Hyundai Terracan 2006 Owner's Manual
Manufacturer: HYUNDAI, Model Year: 2006, Model line: Terracan, Model: Hyundai Terracan 2006Pages: 539, PDF Size: 18.11 MB

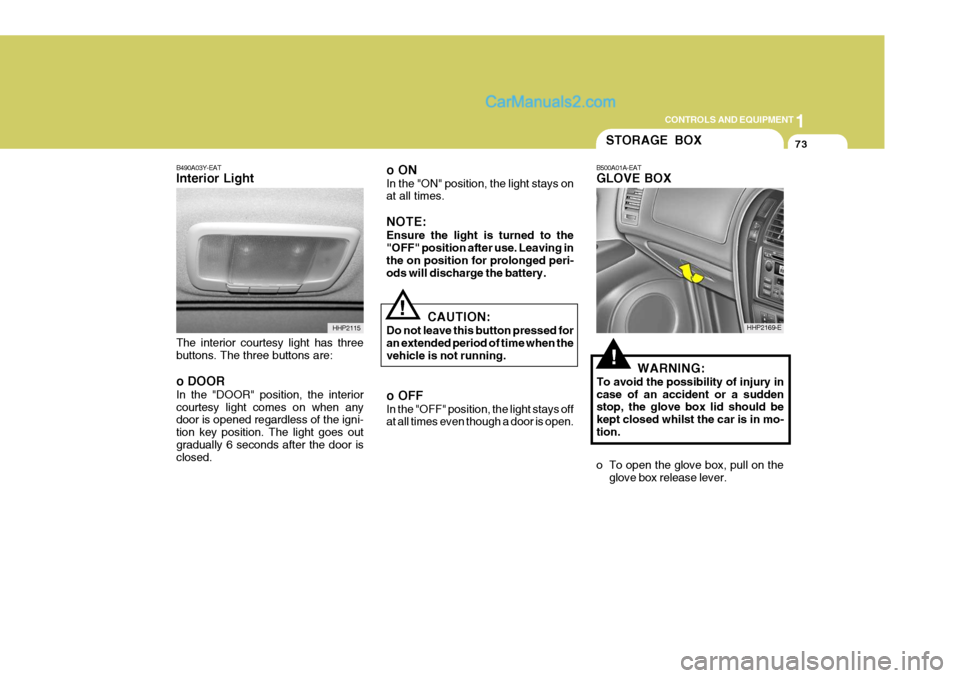

Page 381 of 539

1
CONTROLS AND EQUIPMENT
73
B490A03Y-EAT Interior Light The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of the igni- tion key position. The light goes outgradually 6 seconds after the door is closed. o ON In the "ON" position, the light stays on at all times. NOTE: Ensure the light is turned to the "OFF" position after use. Leaving in the on position for prolonged peri-ods will discharge the battery.
HHP2115
!
!WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box lid should be kept closed whilst the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.
STORAGE BOX
B500A01A-EAT GLOVE BOX
HHP2169-E
CAUTION:
Do not leave this button pressed for an extended period of time when the vehicle is not running. o OFF In the "OFF" position, the light stays off at all times even though a door is open.

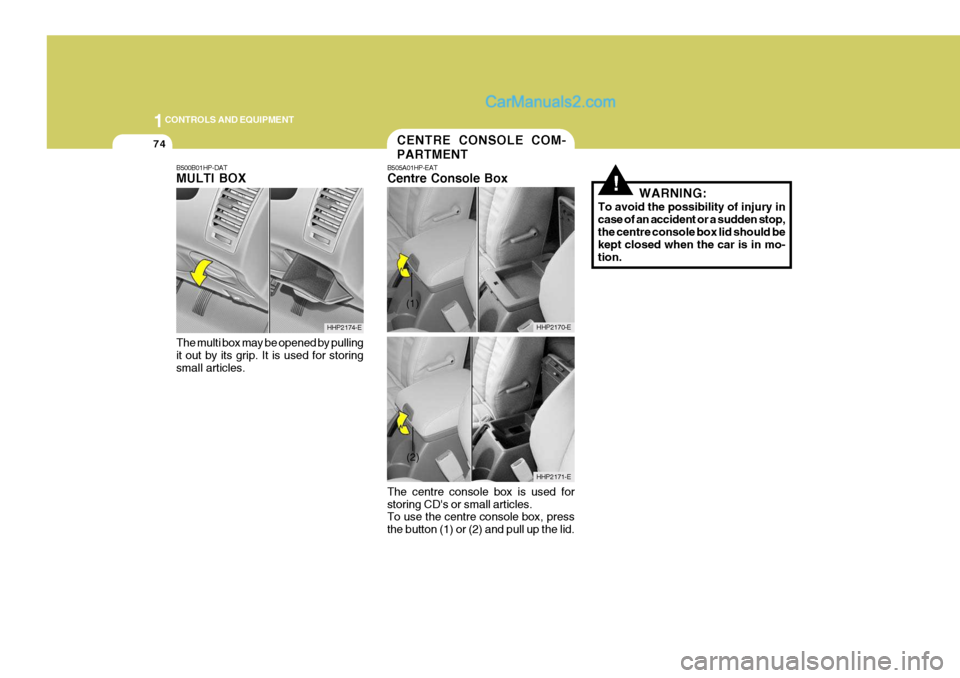

Page 382 of 539

1CONTROLS AND EQUIPMENT
74
!WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the centre console box lid should be kept closed when the car is in mo-tion.
B500B01HP-DAT MULTI BOX The multi box may be opened by pulling it out by its grip. It is used for storing small articles.
HHP2174-E
CENTRE CONSOLE COM- PARTMENT
B505A01HP-EAT Centre Console Box The centre console box is used for storing CD's or small articles. To use the centre console box, press the button (1) or (2) and pull up the lid.
HHP2170-E
HHP2171-E
(2)
(1)

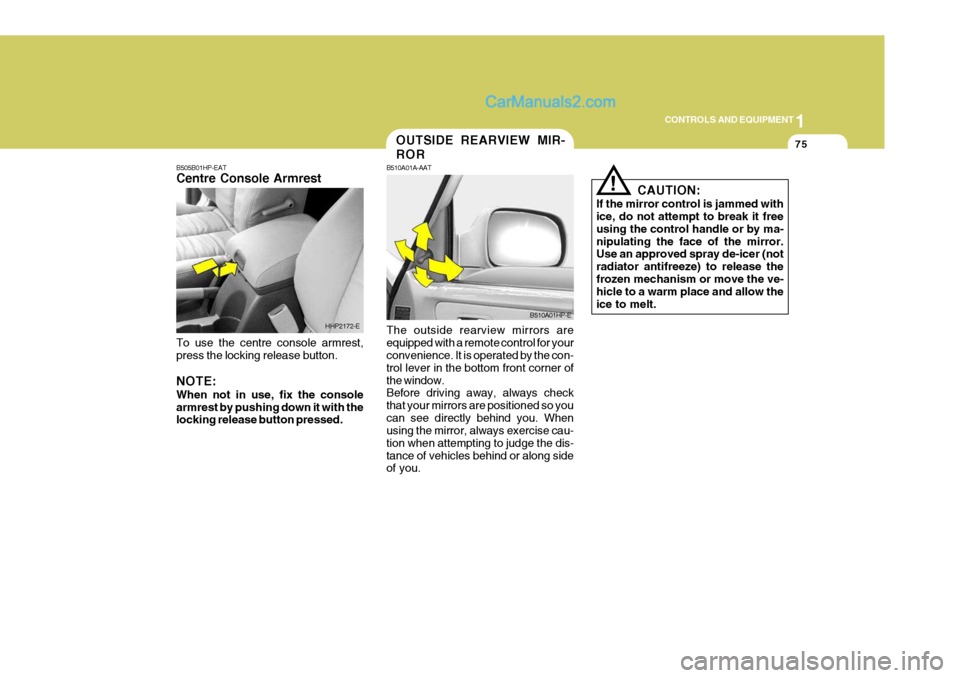

Page 383 of 539

1
CONTROLS AND EQUIPMENT
75
The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the con- trol lever in the bottom front corner ofthe window. Before driving away, always check that your mirrors are positioned so youcan see directly behind you. When using the mirror, always exercise cau- tion when attempting to judge the dis-tance of vehicles behind or along side of you.
B505B01HP-EAT Centre Console Armrest To use the centre console armrest, press the locking release button. NOTE: When not in use, fix the console armrest by pushing down it with the locking release button pressed. HHP2172-E
B510A01HP-E
OUTSIDE REARVIEW MIR- ROR
B510A01A-AAT
! CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma-nipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release thefrozen mechanism or move the ve- hicle to a warm place and allow the ice to melt.

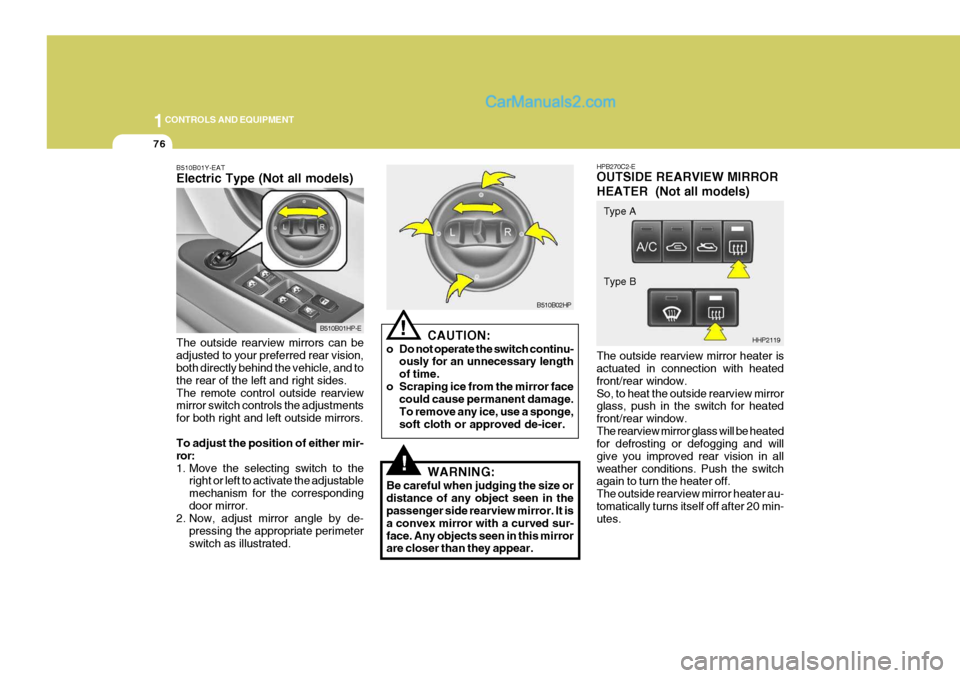

Page 384 of 539

1CONTROLS AND EQUIPMENT
76
HPB270C2-E OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with heated front/rear window.So, to heat the outside rearview mirror glass, push in the switch for heated front/rear window.The rearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in all
weather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater au-tomatically turns itself off after 20 min- utes.
HHP2119
Type A
Type B
!
B510B01Y-EAT Electric Type (Not all models) The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and to the rear of the left and right sides.The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors. To adjust the position of either mir- ror:
1. Move the selecting switch to the right or left to activate the adjustablemechanism for the correspondingdoor mirror.
2. Now, adjust mirror angle by de-
pressing the appropriate perimeterswitch as illustrated. CAUTION:
o Do not operate the switch continu- ously for an unnecessary lengthof time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rearview mirror. It is a convex mirror with a curved sur-face. Any objects seen in this mirror are closer than they appear.
!B510B01HP-E
B510B02HP

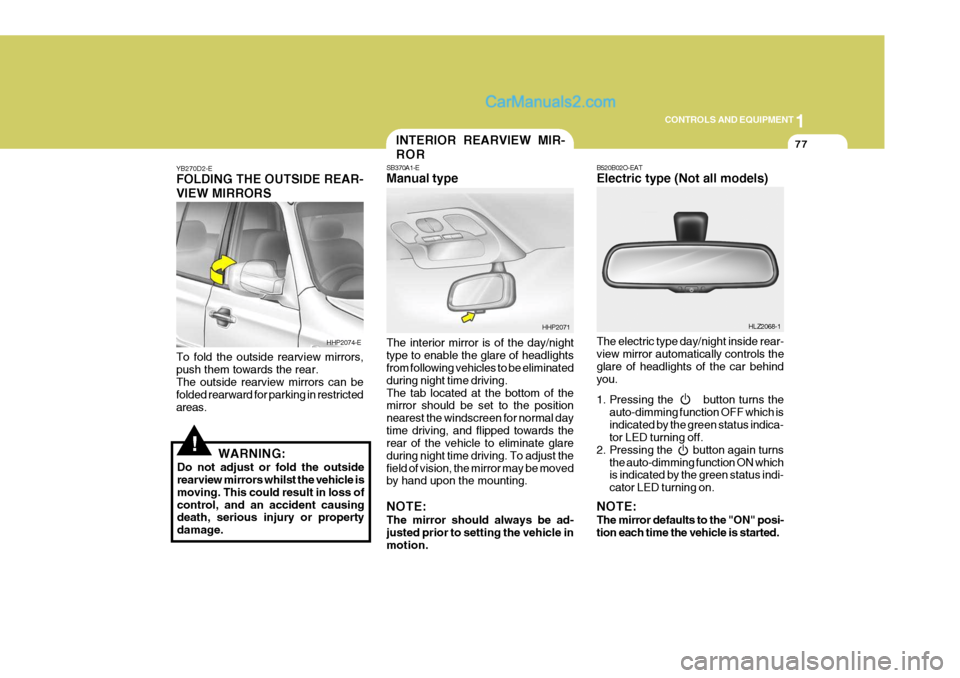

Page 385 of 539

1
CONTROLS AND EQUIPMENT
77
!
YB270D2-E FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can be folded rearward for parking in restrictedareas.
WARNING:
Do not adjust or fold the outside rearview mirrors whilst the vehicle is moving. This could result in loss ofcontrol, and an accident causing death, serious injury or property damage. The interior mirror is of the day/nighttype to enable the glare of headlights from following vehicles to be eliminated during night time driving.The tab located at the bottom of the mirror should be set to the position nearest the windscreen for normal daytime driving, and flipped towards the rear of the vehicle to eliminate glare during night time driving. To adjust thefield of vision, the mirror may be moved by hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle in motion.
HHP2074-E
HHP2071
INTERIOR REARVIEW MIR- ROR
SB370A1-E Manual type
B520B02O-EAT Electric type (Not all models) The electric type day/night inside rear- view mirror automatically controls the glare of headlights of the car behindyou.
1. Pressing the button turns the
auto-dimming function OFF which is indicated by the green status indica- tor LED turning off.
2. Pressing the button again turns the auto-dimming function ON whichis indicated by the green status indi- cator LED turning on.
NOTE: The mirror defaults to the "ON" posi- tion each time the vehicle is started. HLZ2068-1

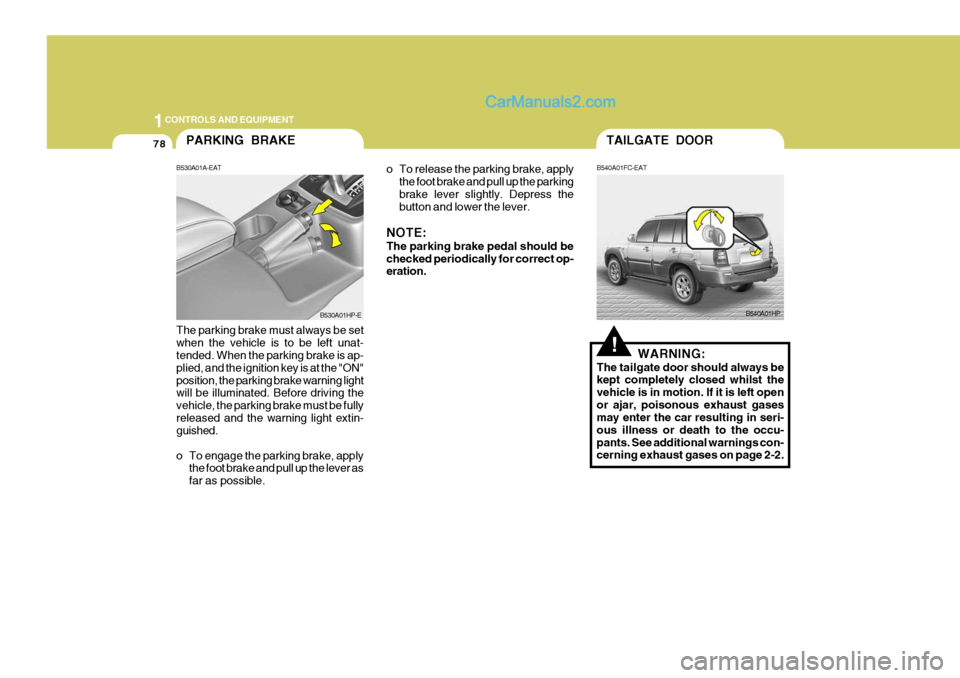

Page 386 of 539

1CONTROLS AND EQUIPMENT
78
o To release the parking brake, applythe foot brake and pull up the parking brake lever slightly. Depress the button and lower the lever.
NOTE: The parking brake pedal should be checked periodically for correct op- eration.
The parking brake must always be set when the vehicle is to be left unat- tended. When the parking brake is ap- plied, and the ignition key is at the "ON"position, the parking brake warning light will be illuminated. Before driving the vehicle, the parking brake must be fullyreleased and the warning light extin- guished.
o To engage the parking brake, apply the foot brake and pull up the lever as far as possible.PARKING BRAKE
B530A01A-EAT
B530A01HP-E
!
B540A01HP
TAILGATE DOOR
B540A01FC-EAT
WARNING:
The tailgate door should always be
kept completely closed whilst the vehicle is in motion. If it is left openor ajar, poisonous exhaust gases may enter the car resulting in seri- ous illness or death to the occu-pants. See additional warnings con- cerning exhaust gases on page 2-2.

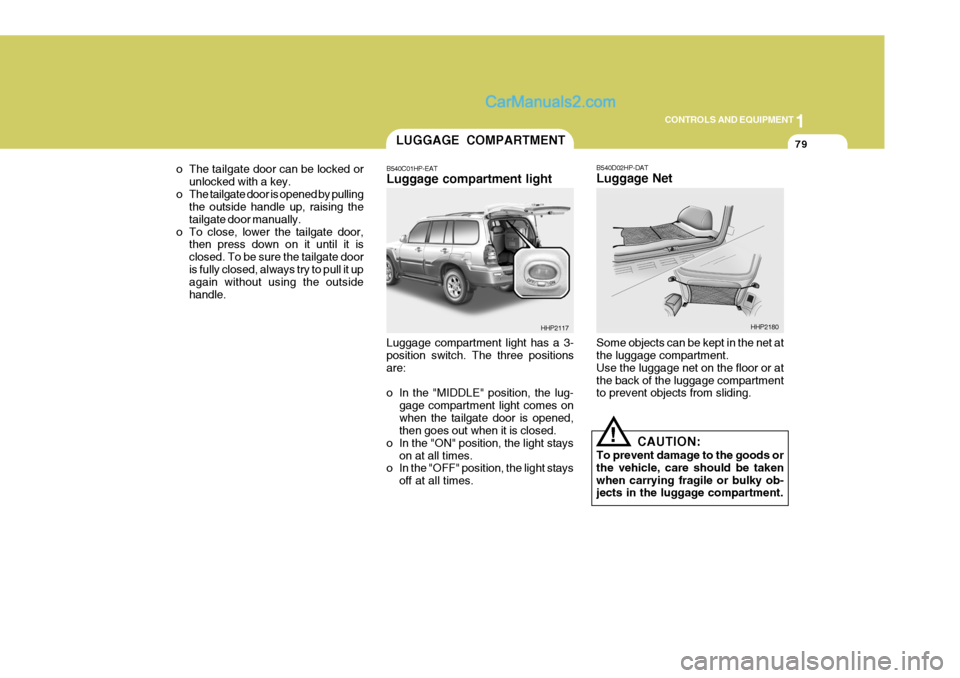

Page 387 of 539

1
CONTROLS AND EQUIPMENT
79
o The tailgate door can be locked or unlocked with a key.
o The tailgate door is opened by pulling the outside handle up, raising the tailgate door manually.
o To close, lower the tailgate door, then press down on it until it isclosed. To be sure the tailgate dooris fully closed, always try to pull it up again without using the outside handle.
!
Luggage compartment light has a 3- position switch. The three positions are:
o In the "MIDDLE" position, the lug-
gage compartment light comes on when the tailgate door is opened, then goes out when it is closed.
o In the "ON" position, the light stays on at all times.
o In the "OFF" position, the light stays
off at all times. B540D02HP-DAT Luggage Net Some objects can be kept in the net at the luggage compartment. Use the luggage net on the floor or atthe back of the luggage compartment to prevent objects from sliding.
CAUTION:
To prevent damage to the goods or the vehicle, care should be takenwhen carrying fragile or bulky ob- jects in the luggage compartment.
LUGGAGE COMPARTMENT
B540C01HP-EAT Luggage compartment light
HHP2117HHP2180

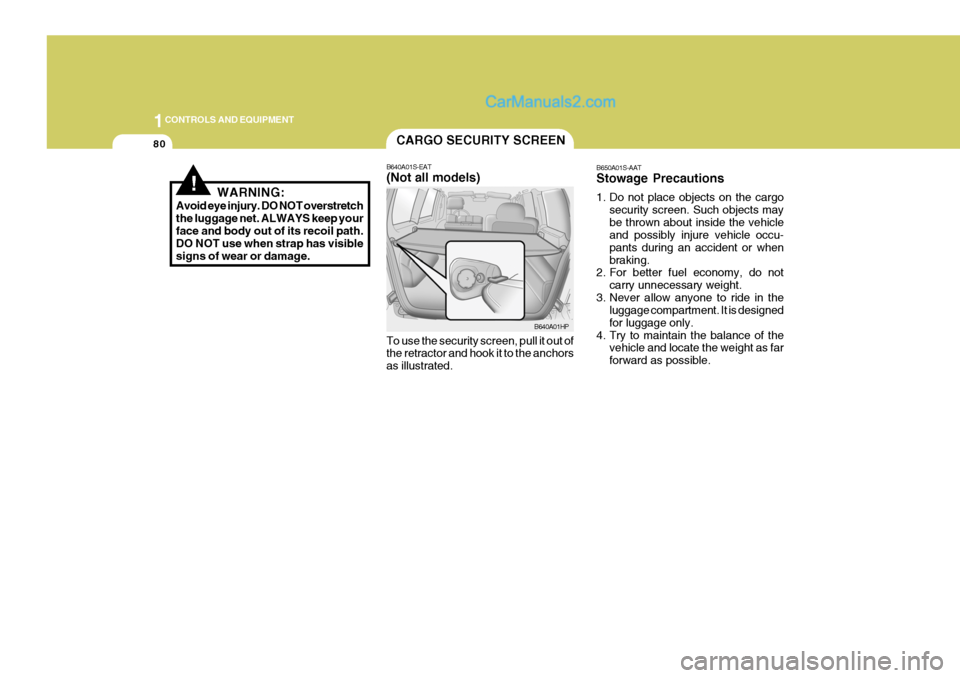

Page 388 of 539

1CONTROLS AND EQUIPMENT
80
B650A01S-AAT Stowage Precautions
1. Do not place objects on the cargosecurity screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occu- pants during an accident or whenbraking.
2. For better fuel economy, do not
carry unnecessary weight.
3. Never allow anyone to ride in the luggage compartment. It is designedfor luggage only.
4. Try to maintain the balance of the vehicle and locate the weight as farforward as possible.CARGO SECURITY SCREEN
B640A01S-EAT (Not all models) To use the security screen, pull it out of the retractor and hook it to the anchors as illustrated. B640A01HP
!WARNING:
Avoid eye injury. DO NOT overstretch the luggage net. ALWAYS keep yourface and body out of its recoil path. DO NOT use when strap has visible signs of wear or damage.

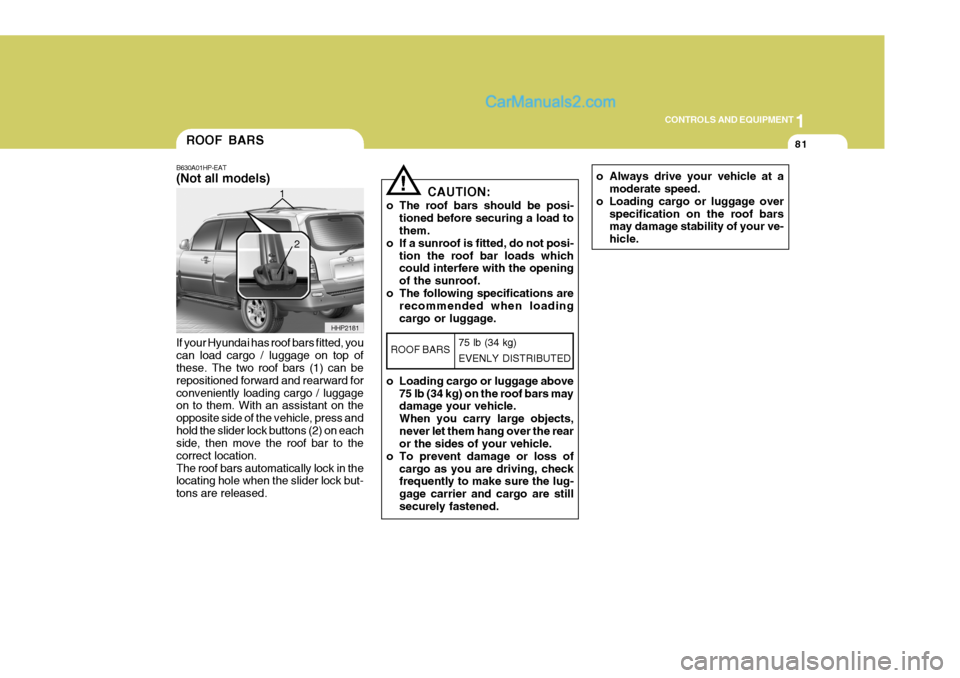

Page 389 of 539

1
CONTROLS AND EQUIPMENT
81
If your Hyundai has roof bars fitted, you can load cargo / luggage on top of these. The two roof bars (1) can be repositioned forward and rearward forconveniently loading cargo / luggage on to them. With an assistant on the opposite side of the vehicle, press andhold the slider lock buttons (2) on each side, then move the roof bar to the correct location.The roof bars automatically lock in the locating hole when the slider lock but- tons are released.ROOF BARS
B630A01HP-EAT (Not all models)
HHP2181
1
2
o Always drive your vehicle at a
moderate speed.
o Loading cargo or luggage over specification on the roof bars may damage stability of your ve- hicle.! CAUTION:
o The roof bars should be posi- tioned before securing a load to them.
o If a sunroof is fitted, do not posi-
tion the roof bar loads whichcould interfere with the opening of the sunroof.
o The following specifications are recommended when loadingcargo or luggage.
o Loading cargo or luggage above 75 lb (34 kg) on the roof bars may damage your vehicle. When you carry large objects,never let them hang over the rear or the sides of your vehicle.
o To prevent damage or loss of cargo as you are driving, checkfrequently to make sure the lug- gage carrier and cargo are stillsecurely fastened.
ROOF BARS 75 lb (34 kg) EVENLY DISTRIBUTED

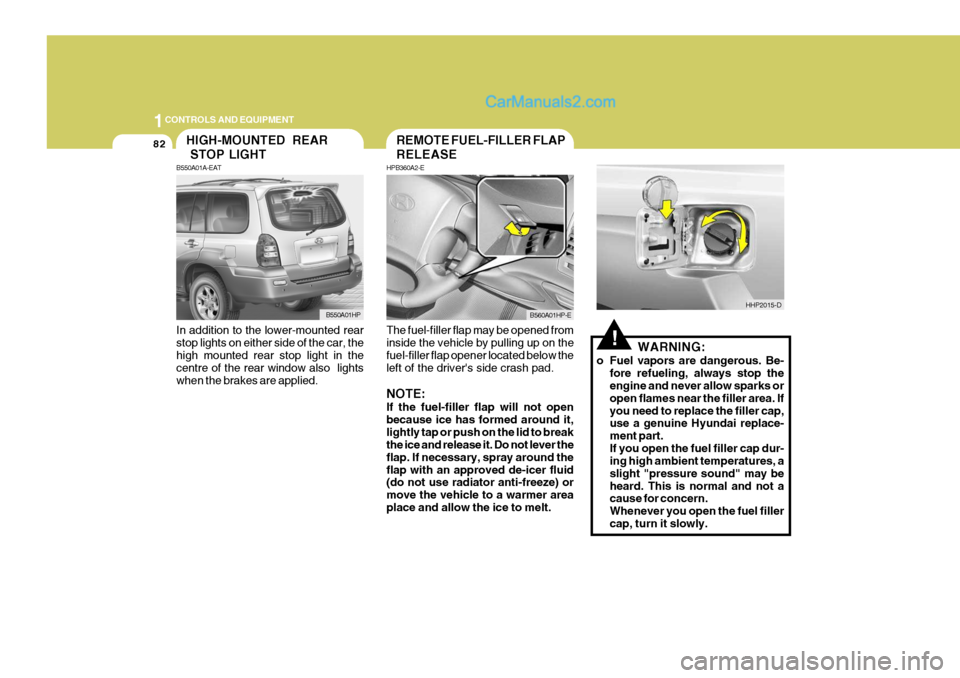

Page 390 of 539

1CONTROLS AND EQUIPMENT
82
!The fuel-filler flap may be opened from inside the vehicle by pulling up on the fuel-filler flap opener located below the left of the driver's side crash pad. NOTE: If the fuel-filler flap will not open because ice has formed around it,lightly tap or push on the lid to break the ice and release it. Do not lever the flap. If necessary, spray around theflap with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warmer areaplace and allow the ice to melt. WARNING:
o Fuel vapors are dangerous. Be- fore refueling, always stop the engine and never allow sparks or open flames near the filler area. Ifyou need to replace the filler cap, use a genuine Hyundai replace- ment part.If you open the fuel filler cap dur- ing high ambient temperatures, a slight "pressure sound" may beheard. This is normal and not a cause for concern. Whenever you open the fuel fillercap, turn it slowly.
REMOTE FUEL-FILLER FLAP RELEASE
HPB360A2-E
B560A01HP-EHHP2015-D
In addition to the lower-mounted rear stop lights on either side of the car, the high mounted rear stop light in the centre of the rear window also lightswhen the brakes are applied.
HIGH-MOUNTED REAR STOP LIGHT
B550A01A-EAT
B550A01HP
