INFINITI FX35 2004 Service Manual

PB-4
PARKING BRAKE CONTROL
Revision: 2004 November 2004 FX35/FX45
12. Remove right and left rear cables installation nut, bolt, and remove right and left rear cable assembly from
the vehicle.
INSTALLATION
1. Refer to “Components” for tightening torque. Install in the reverse order of removal.
CAUTION:
Do not reuse adjusting nut after removing it.
2. Adjust parking brake. Refer to PB-2, "
ADJUSTMENT" .

PARKING BRAKE SHOE
PB-5
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: 2004 November 2004 FX35/FX45

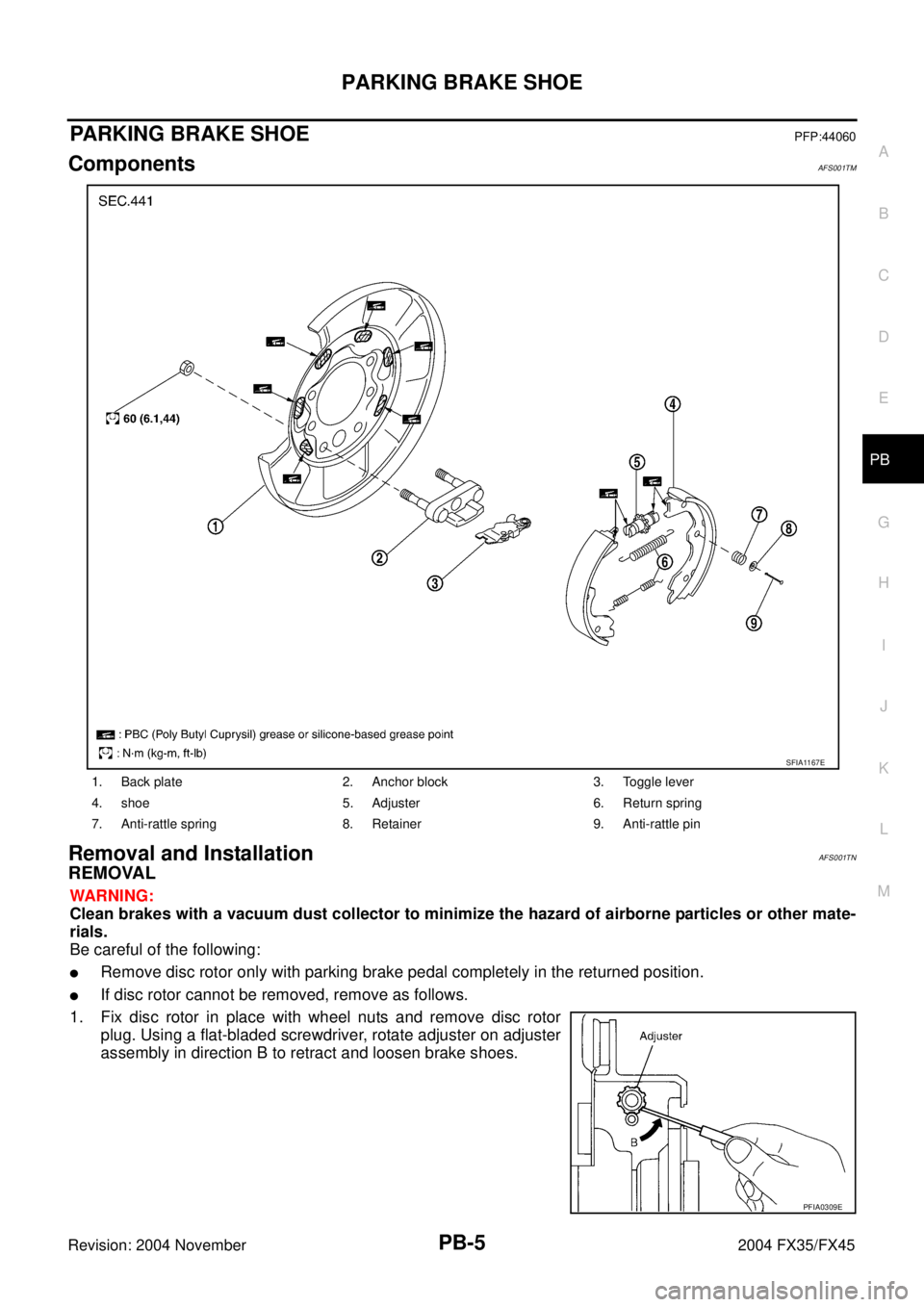

PARKING BRAKE SHOEPFP:44060
ComponentsAFS001TM
Removal and InstallationAFS001TN
REMOVAL
WARNING:
Clean brakes with a vacuum dust collector to minimize the hazard of airborne particles or other mate-
rials.
Be careful of the following:

Remove disc rotor only with parking brake pedal completely in the returned position.

If disc rotor cannot be removed, remove as follows.
1. Fix disc rotor in place with wheel nuts and remove disc rotor
plug. Using a flat-bladed screwdriver, rotate adjuster on adjuster
assembly in direction B to retract and loosen brake shoes.
1. Back plate 2. Anchor block 3. Toggle lever
4. shoe 5. Adjuster 6. Return spring
7. Anti-rattle spring 8. Retainer 9. Anti-rattle pin
SFIA1167E
PFIA0309E

PB-6
PARKING BRAKE SHOE
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER REMOVAL
Lining Thickness Inspection

Check thickness of lining.
Drum Inner Diameter Inspection

Check drum inner diameter.
Other Inspections

Check shoe sliding surface for excessive wear and damage.

Check anti-rattle pin for excessive wear and corrosion.

Check return spring for sagging.

Check adjustor for rough operation.

Check either visually or with a vernier caliper to see if there is
any excessive wear, cracks, or damage inside drum.
INSTALLATION
Be careful of the following:

Refer to “Component Parts Location” and apply brake grease to the specified points during assembly.

Assemble adjuster so that threaded part expands when rotating
it in the direction shown by the arrow.

Shorten adjuster by rotating it.

When disassembling adjuster, apply PBC (Poly Butyl Cuprysil)
grease or silicone based grease to the threads.

After replacing brake shoes or disc rotors, or if brakes do not
function well, perform break-in operation as follows.
1. Adjust parking brake pedal stroke to the specified stroke.
2. Perform parking brake break-in (drag run) operation by driving
the vehicle under the following conditions:
3. After break-in operation, check lever stroke of parking brake. Readjust if it is no longer at the specified
stroke.

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after every
break-in operation.

Do not perform excessive break-in operations, because it may cause uneven or early wear of lining.Standard thickness (A) : 3.2 mm (0.126 in)
Repair limit thickness (A) : 1.5 mm (0.059 in)
SBR021A
Standard inner diameter : 190 mm (7.48 in)
Maximum inner diameter : 191 mm (7.52 in)
SBR768A
Drive forward

Perform the following

Vehicle speed approx. 40 km/h (25 MPH) set (forward)

Parking brake operating force approx. 100 N (10 kg, 45lb) set

Distance approx. 100m (328ft)
SFIA0153E

SERVICE DATA AND SPECIFICATIONS (SDS)
PB-7
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Drum Brake AFS001TO
Parking Brake ControlAFS001TP
TypeDS19HC
Brake liningStandard thickness (new) 3.2 mm (0.126 in)
Wear limit thickness 1.5 mm (0.059 in)
Drum (disc)Standard inner diameter (new) 190 mm (7.48 in)
Wear limit of inner diameter 191 mm (7.52 in)
Control typeFoot pedal
Number of notches [under force of 200 N (20.4 kg, 44.9 lb)] 4 − 5 notches
Number of notches
when warning lamp switch comes on1 notches

PB-8
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2004 November 2004 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ...................... 3
Schematic ................................................................ 3
Wiring Diagram - POWER - ..................................... 4
BATTERY POWER SUPPLY - IGNITION SW. IN
ANY POSITION ..................................................... 4
ACCESSORY POWER SUPPLY - IGNITION SW.
IN “ACC” OR “ON” .............................................. 10
IGNITION POWER SUPPLY - IGNITION SW. IN
“ON” AND/OR “START” ....................................... 12
Fuse ....................................................................... 17
Fusible Link ............................................................ 17
Circuit Breaker ....................................................... 17
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 18
System Description ................................................ 18
SYSTEMS CONTROLLED BY IPDM E/R ........... 18
CAN COMMUNICATION LINE CONTROL ......... 18
IPDM E/R STATUS CONTROL ........................... 19
CAN Communication System Description .............. 19
CAN Communication Unit ...................................... 19
Function of Detecting Ignition Relay Malfunction ... 19
CONSULT-II ........................................................... 20
CONSULT-II INSPECTION PROCEDURE ......... 20
SELF-DIAG RESULTS ........................................ 21
DATA MONITOR ................................................. 22
ACTIVE TEST ..................................................... 22
Auto Active Test ..................................................... 24
DESCRIPTION .................................................... 24
OPERATION PROCEDURE ............................... 24
INSPECTION IN AUTO ACTIVE TEST MODE ... 24
Schematic .............................................................. 26
IPDM E/R Terminal Arrangement ........................... 27
IPDM E/R Power/Ground Circuit Inspection .......... 28
Inspection With CONSULT-II (Self-Diagnosis) ....... 29
Removal and Installation of IPDM E/R ................... 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30GROUND ................................................................... 31
Ground Distribution ................................................. 31
MAIN HARNESS ................................................. 31
ENGINE ROOM HARNESS ................................ 34
ENGINE HARNESS/VK ENGINE MODELS ........ 37
ENGINE HARNESS/VQ ENGINE MODELS ....... 38
ENGINE CONTROL HARNESS/VK ENGINE
MODELS ............................................................. 39
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS ............................................................. 40
BODY HARNESS ................................................ 41
BODY NO.2 HARNESS ...................................... 44
ROOM LAMP HARNESS .................................... 45
HARNESS ................................................................. 46
Harness Layout ...................................................... 46
HOW TO READ HARNESS LAYOUT ................. 46
OUTLINE ............................................................. 47
MAIN HARNESS ................................................. 48
ENGINE ROOM HARNESS ................................ 51
ENGINE HARNESS/VK ENGINE MODELS ........ 54
ENGINE HARNESS/VQ ENGINE MODELS ....... 55
ENGINE CONTROL HARNESS/VK ENGINE
MODELS ............................................................. 56
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS ............................................................. 58
BODY HARNESS ................................................ 60
BODY NO.2 HARNESS ...................................... 62
ROOM LAMP HARNESS .................................... 63
FRONT DOOR HARNESS .................................. 64
REAR DOOR HARNESS .................................... 65
BACK DOOR HARNESS .................................... 66
Wiring Diagram Codes (Cell Codes) ...................... 67
ELECTRICAL UNITS LOCATION ............................ 70
Electrical Units Location ......................................... 70
ENGINE COMPARTMENT .................................. 70
PASSENGER COMPARTMENT ......................... 71
LUGGAGE COMPARTMENT .............................. 73
HARNESS CONNECTOR ......................................... 74
Description .............................................................. 74
HERNESS CONNECTOR (TAB-LOCKING

PG-2Revision: 2004 November 2004 FX35/FX45TYPE) .................................................................. 74
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 75
JOINT CONNECTOR (J/C) ....................................... 76
Terminal Arrangement ............................................ 76
ELECTRICAL UNITS ................................................ 77
Terminal Arrangement ............................................ 77
SMJ (SUPER MULTIPLE JUNCTION) ..................... 79
Terminal Arrangement ............................................ 79STANDARDIZED RELAY .......................................... 81
Description .............................................................. 81
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 81
TYPE OF STANDARDIZED RELAYS .................. 81
FUSE BLOCK - JUNCTION BOX (J/B) .................... 83
Terminal Arrangement ............................................. 83
FUSE, FUSIBLE LINK AND RELAY BOX ................ 84
Terminal Arrangement ............................................. 84

POWER SUPPLY ROUTING CIRCUIT
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

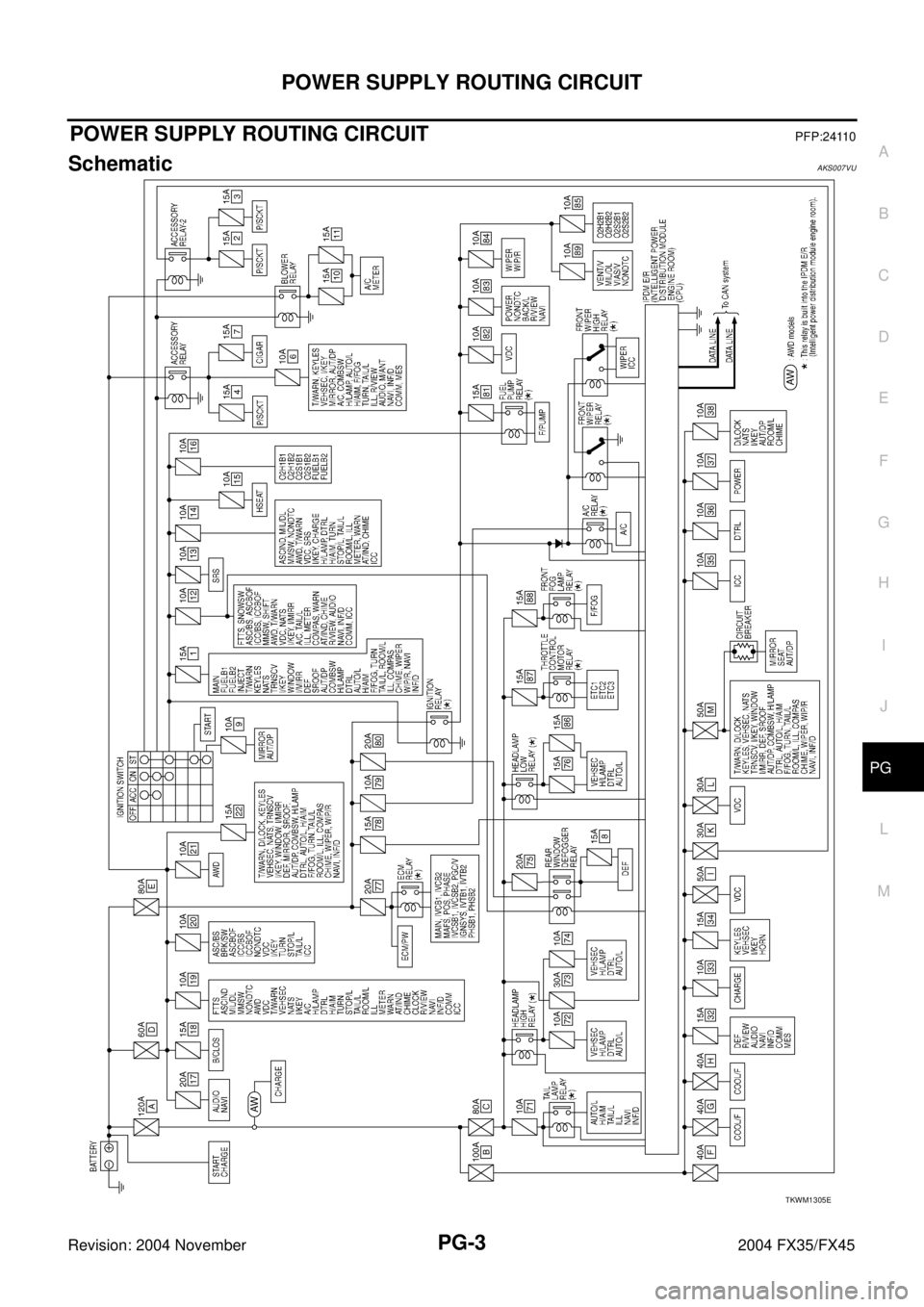

POWER SUPPLY ROUTING CIRCUITPFP:24110
SchematicAKS007VU
TKWM1305E

PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: 2004 November 2004 FX35/FX45

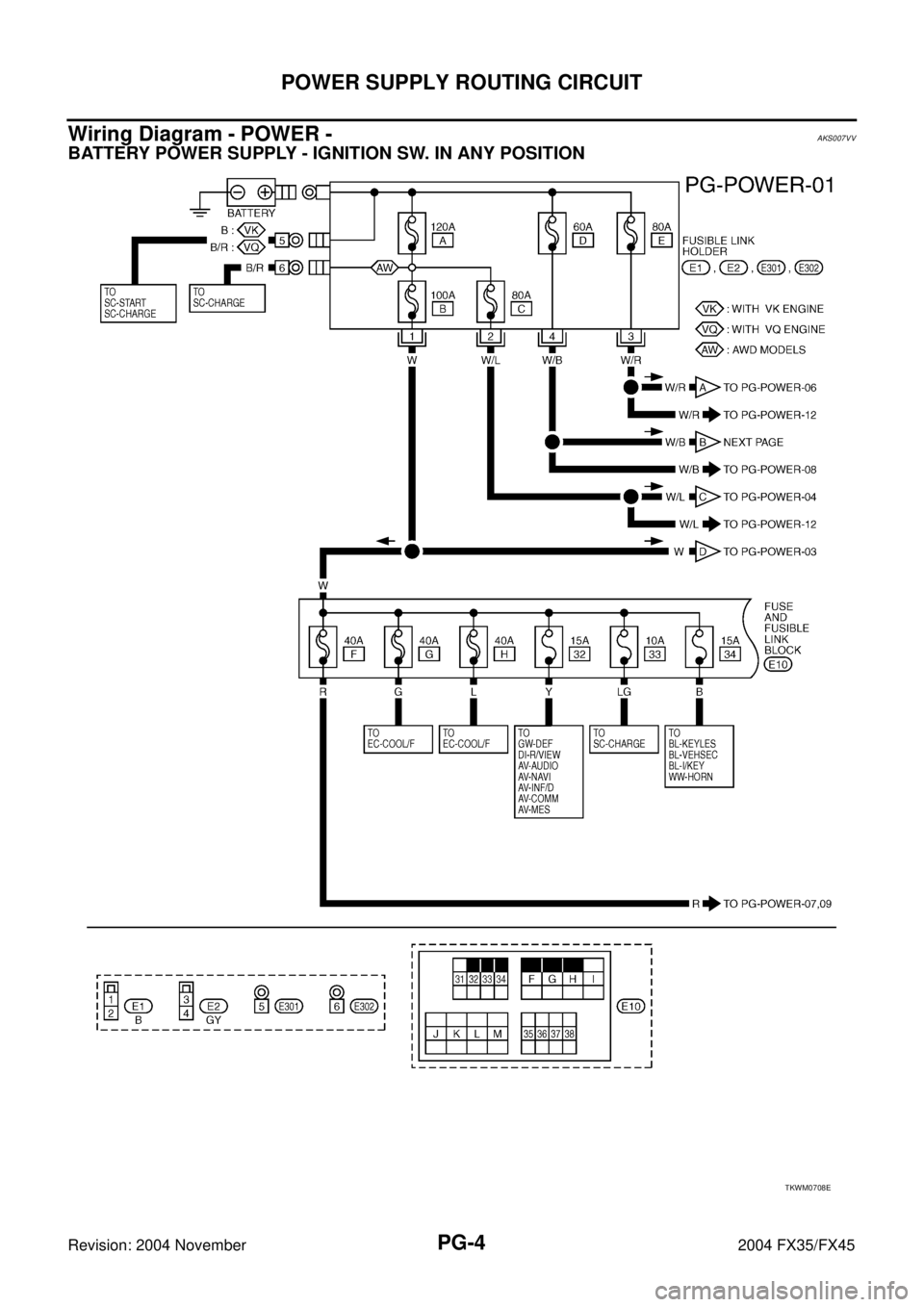

Wiring Diagram - POWER -AKS007VV
BATTERY POWER SUPPLY - IGNITION SW. IN ANY POSITION
TKWM0708E

POWER SUPPLY ROUTING CIRCUIT
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG

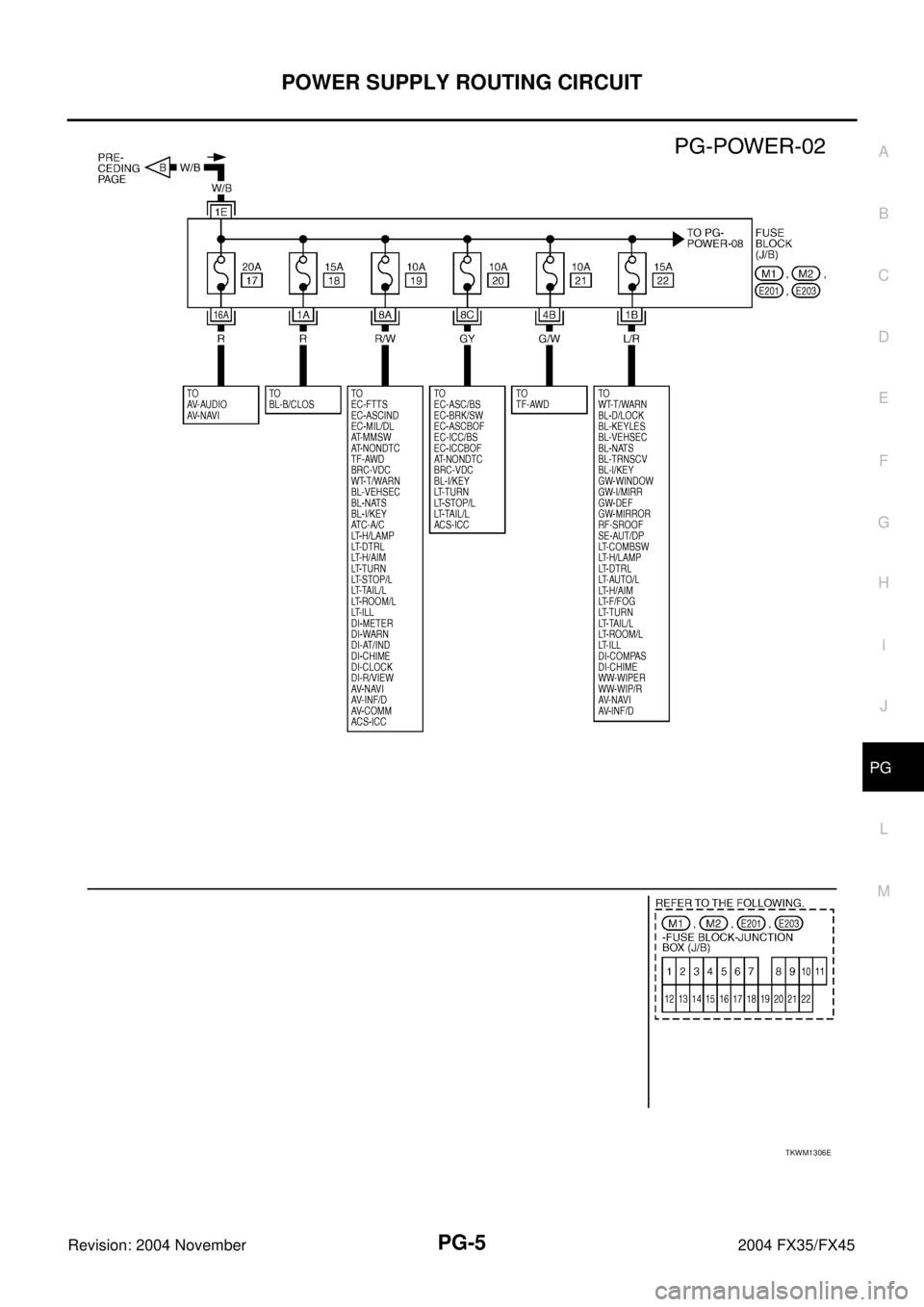

Revision: 2004 November 2004 FX35/FX45
TKWM1306E
