TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2004 November 2004 FX35/FX45
Inspection 4: Vehicle Speed SignalAES000O4
MALFUNCTION CODE NO. 52
1. SELF-DIAGNOSIS RESULT CHECK
1. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
NOTE:
If “AIR PRESSURE MONITOR” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit" .
2. Select “AIR PRESSURE MONITOR” on “SELECT SYSTEM” screen.
3. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
4. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-4, "Precautions When Using CONSULT-
II" .
NO >> GO TO 2.
2. CHECK UNIFIED METER AND A/C AMP. POWER SUPPLY CIRCUIT
1. Disconnect unified meter and A/C amp. connector M56.
2. Check voltage between unified meter and A/C amp. harness connector M56 terminals 21 (R/W), 22 (G/R)
and ground.
OK or NG
OK >> GO TO 3.
NG >> Check unified meter and A/C amp. power supply circuit
for open or short.
3. CHECK UNIFIED METER AND A/C AMP. GROUND CIRCUIT

Check continuity between unified meter and A/C amp. harness connector M56 terminals 29 (B), 30 (B)
and ground.
OK or NG
OK >> Check unified meter and A/C amp. self-diagnostic. Refer
to DI-32, "
SELF-DIAGNOSTIC RESULTS" .
NG >> Repair or replace unified meter and A/C amp. ground circuit.Te r m i n a l s
Vo l ta g e
(Approx.)
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground 12 V
M5621 (R/W)
22 (G/R)
SEIA0337E
Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground Yes
M5629 (B)
30 (B)
SEIA0338E

TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-25
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Inspection 1: Warning Lamp Does Not Come On When Ignition Switch Is Turned
On.
AES000O5
DIAGNOSTIC PROCEDURE
1. SELF-DIAGNOSTIC RESULT CHECK
1. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
NOTE:
If “AIR PRESSURE MONITOR” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit"
2. Select “AIR PRESSURE MONITOR” on “SELECT SYSTEM” screen.
3. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
4. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-4, "Precautions When Using CONSULT-
II" .
NO >> GO TO 2.
2. CHECK COMBINATION METER

Check combination meter operation.
OK or NG
OK >> GO TO 3.
NG >> Check combination meter. Refer to DI-4, "
System Description" .
3. CHECK WARNING LAMP

Disconnect low tire pressure warning control unit connector.
Does the warning lamp activate?
YES >> Replace low tire pressure warning control unit.
NO >> GO TO 4.
4. CHECK UNIFIED METER AND A/C AMP. POWER SUPPLY CIRCUIT
1. Disconnect unified meter and A/C amp. connector M56.
2. Check voltage between unified meter and A/C amp. harness connector M56 terminals 21 (R/W), 22 (G/R)
and ground.
OK or NG
OK >> GO TO 5.
NG >> Check unified meter and A/C amp. power supply circuit
for open or short.Te r m i n a l s
Vo l ta g e
(Approx.)
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground 12 V
M5621 (R/W)
22 (G/R)SEIA0337E

WT-26
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2004 November 2004 FX35/FX45
5. CHECK UNIFIED METER AND A/C AMP. GROUND CIRCUIT

Check continuity between unified meter and A/C amp. connector M56 terminals 29 (B), 30 (B) and
ground.
OK or NG
OK >> Check unified meter and A/C amp. Refer to DI-28, "Sys-
tem Description" .
NG >> Repair or replace unified meter and A/C amp. ground circuit.
Inspection 2: Warning Lamp Stays On When Ignition Switch Is Turned On.AES000O6
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect low tire pressure warning control unit connectors M74.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2. CHECK POWER SUPPLY CIRCUIT 1
Check voltage between low tire pressure warning control unit connector M74 terminal 12 (R/W) and ground.
OK or NG
OK >> GO TO 3.
NG >> Check low tire pressure warning control unit power sup-
ply circuit for open or short.Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground Yes
M5629 (B)
30 (B)
SEIA0338E
Te r m i n a l s
Vo l ta g e
(Approx.)
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground 12 V
M74 12 (R/W)
SEIA0341E

TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-27
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
3. CHECK POWER SUPPLY CIRCUIT 2
1. Turn ignition switch ON.
2. Check voltage between low tire pressure warning control unit connector M74 terminals 11 (LG/R), 24 (G/
R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check low tire pressure warning control unit power sup-
ply circuit for open or short.
4. CHECK GROUND CIRCUIT

Check continuity between low tire pressure warning control unit connector M74 terminal 20(B) and
ground.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace low tire pressure warning control unit
ground circuit.Te r m i n a l s
Vo l ta g e
(Approx.)
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground 12 V
M7411 ( LG /R )
24 (G/R)
SEIA0342E
Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground Yes
M74 20 (B)
SEIA0343E

WT-28
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2004 November 2004 FX35/FX45
Inspection 3: Warning Lamp Blinks When Ignition Switch Is Turned On.AES000O7
NOTE:
If warning lamp blink below, the system is normal.
Blink Mode A

This mode shows transmitter status is OFF-mode.
Carry out transmitter wake up operation. Refer to WT-16,
"Transmitter Wake Up Operation" .
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Disconnect low tire pressure warning control unit connectors M74 and R102.
2. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2. CHECK TIRE PRESSURE WARNING CHECK CONNECTOR CIRCUIT
1. Disconnect low tire pressure warning control unit connector M74.
2. Check continuity between low tire pressure warning control unit harness connector M74 terminal 8 (G)
and ground.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace harness connector.
SEIA0347E
Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground No
M74 8 (G)
SEIA0344E

TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-29
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
Inspection 4: Hazard Warning Lamp Blinks When Ignition Switch Is Turned On.AES000O8
DIAGNOSTIC PROCEDURE
1. CHECK GROUND CIRCUIT
1. Disconnect low tire pressure waning control unit connector M74.
2. Check continuity between low tire pressure warning control unit harness connector M74 terminal 20 (B)
and ground.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace low tire pressure warning control unit
ground circuit.Te r m i n a l s
Continuity
(+) (–)
ConnectorTe r m i n a l
(Wire color)
Ground Yes
M74 20 (B)
SEIA0343E

WT-30
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2004 November 2004 FX35/FX45
Inspection 5: “TIRE PRESSURE” Information In Display Unit Does Not Exist.AES000O9
DIAGNOSTIC PROCEDURE
1. SELF-DIAGNOSTIC RESULT CHECK
1. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
NOTE:
If “AIR PRESSURE MONITOR” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit" .
2. Select “AIR PRESSURE MONITOR” on “SELECT SYSTEM” screen.
3. Select “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
4. Check display contents in self-diagnostic results.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-4, "Precautions When Using CONSULT-
II" .
NO >> GO TO 2.
2. CHECK DISPLAY CONTROL UNIT

Perform display control unit self-diagnosis. Refer to AV- 1 3 1 , "Self-Diagnosis Mode (DCU)" .
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair or replace malfunctioning parts.
Inspection 6: ID Registration Cannot Be Completed.AES000OA
DIAGNOSTIC PROCEDURE
1. ID REGISTRATION (ALL)

Carry out ID registration of all transmitters.

Can ID registration of all transmitters be completed?
YES or NO
YES >> INSPECTION END.
NO >> GO TO WT-22, "
Inspection 1: Transmitter or Low Tire Pressure Warning Control Unit" .

REMOVAL AND INSTALLATION
WT-31
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
REMOVAL AND INSTALLATIONPFP:00000
TransmitterAES000KA

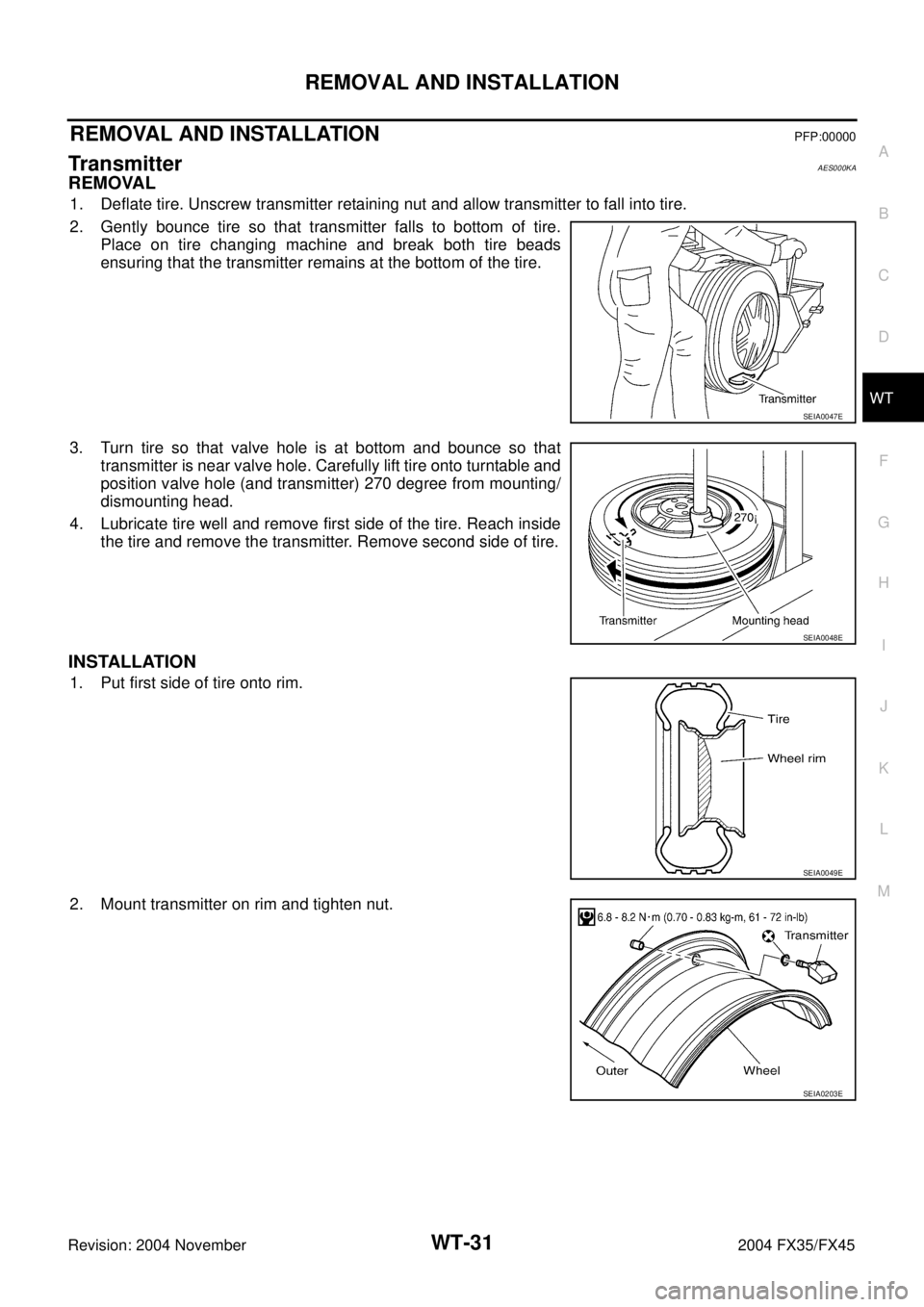

REMOVAL
1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
2. Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.
3. Turn tire so that valve hole is at bottom and bounce so that
transmitter is near valve hole. Carefully lift tire onto turntable and
position valve hole (and transmitter) 270 degree from mounting/
dismounting head.
4. Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter. Remove second side of tire.
INSTALLATION
1. Put first side of tire onto rim.
2. Mount transmitter on rim and tighten nut.
SEIA0047E
SEIA0048E
SEIA0049E
SEIA0203E

WT-32
REMOVAL AND INSTALLATION
Revision: 2004 November 2004 FX35/FX45
3. Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degree from mounting head when second side of tire is
fitted.
NOTE:
Do not touch transmitter at mounting head.
4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
5. Inflate tire and fit to appropriate wheel position.
SEIA0048E

SERVICE DATA
WT-33
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
SERVICE DATAPFP:00030
Road WheelAES000KB
TireAES000KC
Unit: kPa (kg/cm2 , psi)
Tightening TorqueAES000KD
Kind of wheel Aluminum Steel (for emergency
use)
Deflection limitLateral deflection Less than 0.3 mm
(0.012 in)Less than 1.0 mm
(0.039 in)
Vertical deflection Less than 0.3 mm
(0.012 in)Less than 1.2 mm
(0.047 in)
Allowable quantity of
residual unbalanceDynamic
(At rim flange)Less than 7.5 g (0.26 oz)
(per side)—
Static (At rim flange) Less than 20 g (0.70 oz) —
Tire sizeAir pressure
Front wheel Rear wheel
P265/60R18 109V 220 (2.2, 32) 220 (2.2, 32)
P265/50R20 106V 220 (2.2, 32) 220 (2.2, 32)
T175/90D18 110M 420 (4.2, 60) 420 (4.2, 60)
Wheel nut 108 N·m (11 kg-m, 80 ft-lb)
