INFINITI FX35 2004 Service Manual

WW-30
FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
Disassembly and Assembly of Front Wiper Motor and LinkageAKS00578
DISASSEMBLY
1. Remove wiper link 1 and 2 from wiper motor mounting frame and wiper motor arm.
2. Remove wiper motor mounting bolts, and remove wiper motor from wiper motor mounting frame.
ASSEMBLY
Paying attention to the work listed below, assemble in reverse order of disassembly.

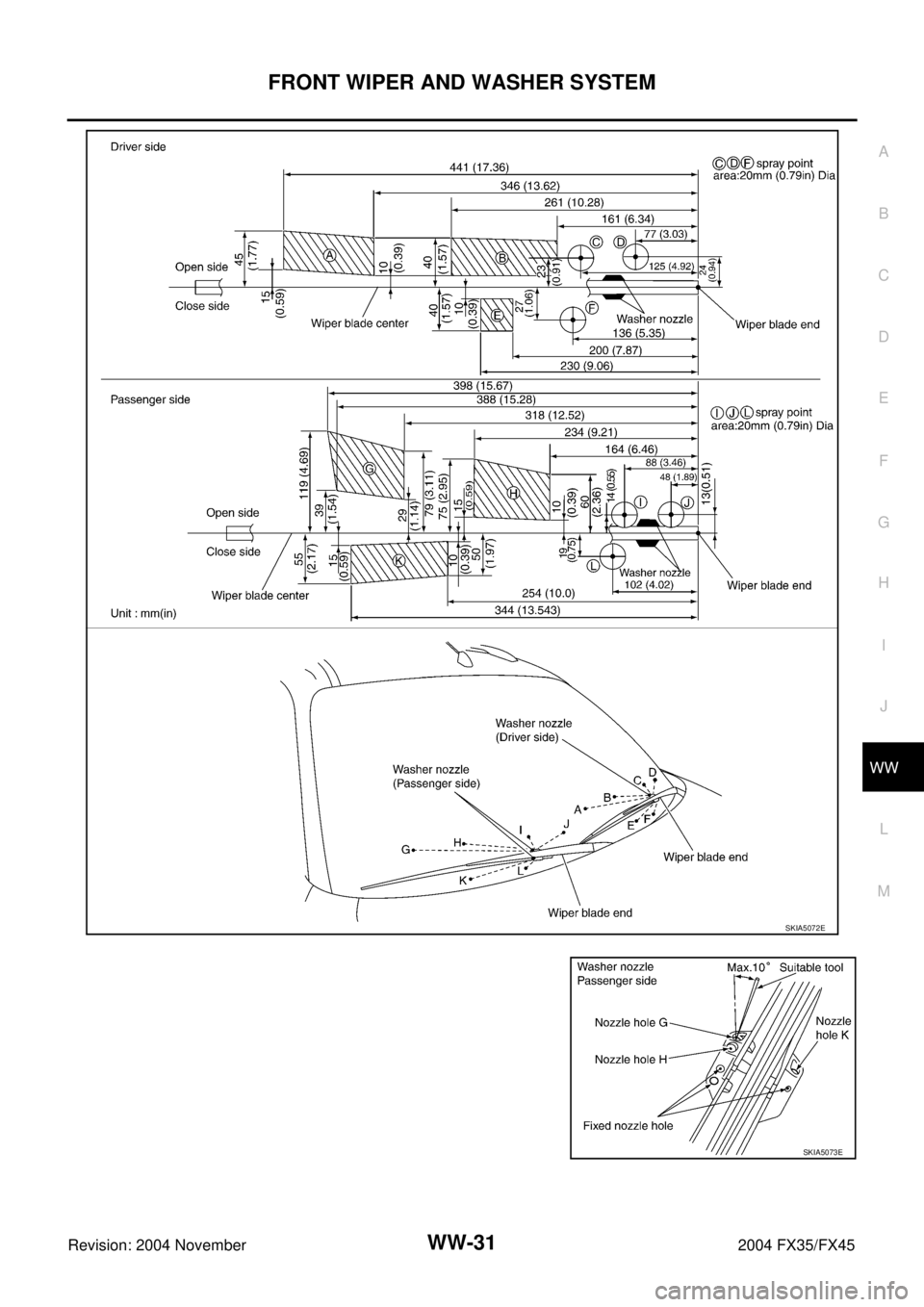

Washer Nozzle AdjustmentAKS00579
1. When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms
do not move.
2. Adjust each nozzle position (A, B, E, G, H, and K) so that spray positions are in the range of shaded parts.
CAUTION:
Only washer nozzles (A, B, E, G, H, and K) can be adjusted. Washer nozzles (C, D, F, I, J, and L)
cannot be adjusted because of fixed nozzles.
1. Wiper link 2 2. Wiper link 1 3. Wiper motor frame mounting bolt
4. Wiper motor mounting frame 5. Wiper motor 6. Wiper motor mounting bolt
SKIA5071E

FRONT WIPER AND WASHER SYSTEM
WW-31
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
SKIA5072E
SKIA5073E

WW-32
FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
Washer Tube LayoutAKS0057A
Removal and Installation of Front Washer NozzleAKS0057B
Replace wiper arm assembly. Refer to WW-28, "Removal and Installation of Front Wiper Arms, Adjustment of
Wiper Arms Stop Location" .
CAUTION:
Removal/installation of the washer nozzle as a unit must not be done.
Removal and Installation of Front Washer Tube JointAKS0057C
REMOVAL
1. Remove upwards while pressing the pawls on reverse side.
2. Remove washer tube.
INSTALLATION
Install in the reverse order of removal.
Check Valve Inspection AKS0057D
Blow air in the injection direction, and make sure air flows only one
way. Make sure that the reverse direction (inhale) is not possible.
SKIA5074E
PKIA1159E
PKIA3131E

FRONT WIPER AND WASHER SYSTEM
WW-33
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Front Wiper and Washer SwitchAKS0057E
REMOVAL
1. Remove steering column upper cover. Refer to IP-14, "(N)
Steering Column Upper Cover" in “IP” section.
2. Disconnect wiper and washer switch connector.
3. Pull wiper and washer switch toward the passenger door while
pressing pawls in direction shown by the arrow in the figure, and
remove it from the base.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Washer TankAKS0057F
REMOVAL
1. Remove bolt and pull out washer tank inlet.
2. Remove fillet molding (RH) and fender protector (RH). Refer to
EI-14, "
Removal and Installation" , EI-25, "Removal and Installa-
tion" in “EI” section.
3. Remove bumper fascia assembly. Refer to EI-14, "
Removal and
Installation" in “EI” section.
4. Disconnect washer pump connector and wash fluid level sensor
connector.
5. Remove washer tank mounting screw and nuts.
6. Remove washer tube, and remove washer tank from the vehicle.
SKIA5075E
SKIA5076E
SKIA5077E
SKIA5078E

WW-34
FRONT WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
NOTE:
After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.
Removal and Installation of Washer MotorAKS0057G
REMOVAL
1. Remove fillet molding (RH) and fender protector (RH). Refer to
EI-14, "
Removal and Installation" , EI-25, "Removal and Installa-
tion" in “EI” section.
2. Disconnect washer motor connector and tube.
3. Pull out washer motor in direction shown by the arrow in the fig-
ure. Remove washer motor from washer tank.
INSTALLATION
Note the following, and install in the reverse order of removal.
NOTE:
When installing washer motor, there should be no packing twists, etc.Washer tank mounting screw : 5.8 N·m (0.59 kg-m, 51 in-lb)
Washer tank mounting nut : 5.8 N·m (0.59 kg-m, 51 in-lb)
Washer tank inlet mounting bolt : 6.9 N·m (0.70 kg-m, 61 in-lb)
SKIA5079E

REAR WIPER AND WASHER SYSTEM
WW-35
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
REAR WIPER AND WASHER SYSTEMPFP:28710
Component Parts and Harness Connector LocationAKS0057H
System DescriptionAKS0057I

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM (body control module) when switch is turned ON.

BCM (body control module) controls rear wiper ON and INT (intermittent) operation.
Power supplied all time

through 50 A fusible link (letter M, located in fusible link block)

to BCM (body control module) terminal 55

through 15 A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42.
When ignition switch ON or START position, power is supplied

through 15 A fuse [No.1, located in fuse block (J/B)]

to BCM (body control module) terminal 38,

through 10 A fuse [No. 84, located in IPDM E/R (intelligent power distribution module engine room)]

to rear washer motor terminal 1.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to combination switch (wiper switch) terminal 12

through grounds M35, M45 and M85.
REAR WIPER OPERATION
When wiper switch is in rear wiper ON position, BCM detects rear wiper ON signal by BCM wiper switch read-
ing function.
BCM operates rear wiper motor, power is supplied
SKIA5311E

WW-36
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45

through BCM terminal 70

to rear wiper motor 4.
Ground is supplied

to rear wiper motor terminal 2

through grounds B15 and B45.
With power and ground supplied, the rear wiper operates.
INTERMITTENT OPERATION
The rear wiper motor operates the wiper arms at low speed approximately every 7 seconds.
When wiper switch is in rear wiper INT position, BCM detects rear wiper INT signal by BCM wiper switch read-
ing function (Refer to BCS-3, "
COMBINATION SWITCH READING FUNCTION" ).
BCM operates rear wiper motor, power supplied

through BCM terminal 70

to rear wiper motor terminal 4.
Ground is supplied

to rear wiper motor terminal 2

through grounds B15 and B45.
With power and ground supplied, rear wiper operates at intermittent.
AUTO STOP OPERATION
With rear wiper switch turned OFF, rear wiper motor will continue to operate until wiper arm reaches rear wiper
stopper.
Then wiper motor turns the other way and wiper arm moves once until wiper arm reaches stopper.
WASHER OPERATION
When wiper switch is in rear wiper washer position, BCM detects rear wiper washer signal by BCM wiper
switch reading function (Refer to BCS-3, "
COMBINATION SWITCH READING FUNCTION" ), and combina-
tion switch (wiper switch) ground is supplied

to rear washer motor terminal 2

through combination switch (wiper switch) terminal 13

to combination switch (wiper switch) terminal 12

through grounds M35, M45 and M85.
With ground supplied, rear washer motor is operated.
When BCM detects that rear washer motor has operated for. 0.4 seconds or linger, BCM operates rear wiper
motor low speed.
When BCM detects washer switch is OFF, low speed operation cycles approximately 3 times and then stops.
BCM WIPER SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" in BODY CONTROL SYSTEM.

REAR WIPER AND WASHER SYSTEM
WW-37
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45

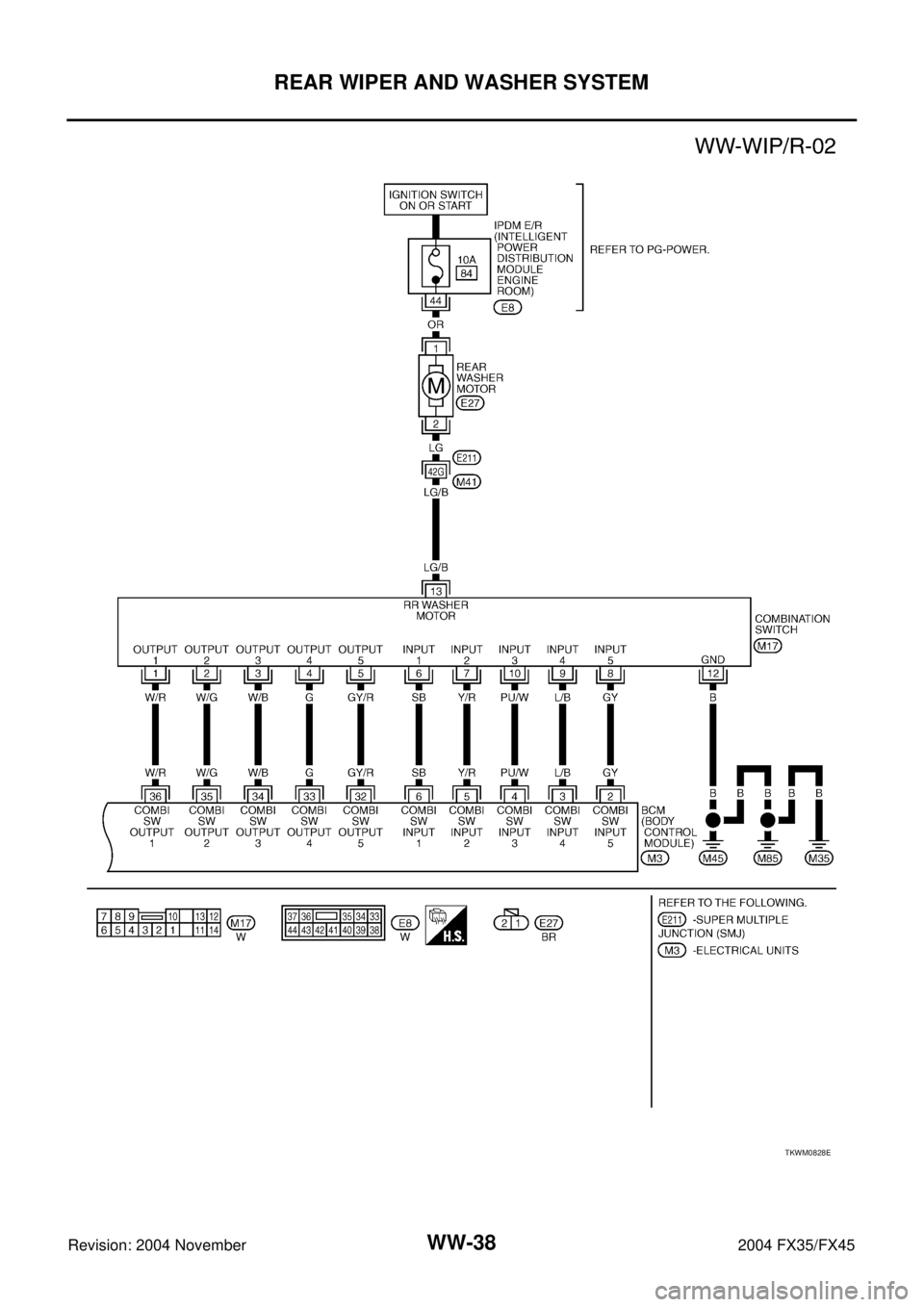

Wiring Diagram — WIP/ R —AKS0057J
TKWM0666E

WW-38
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
TKWM0828E

REAR WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45

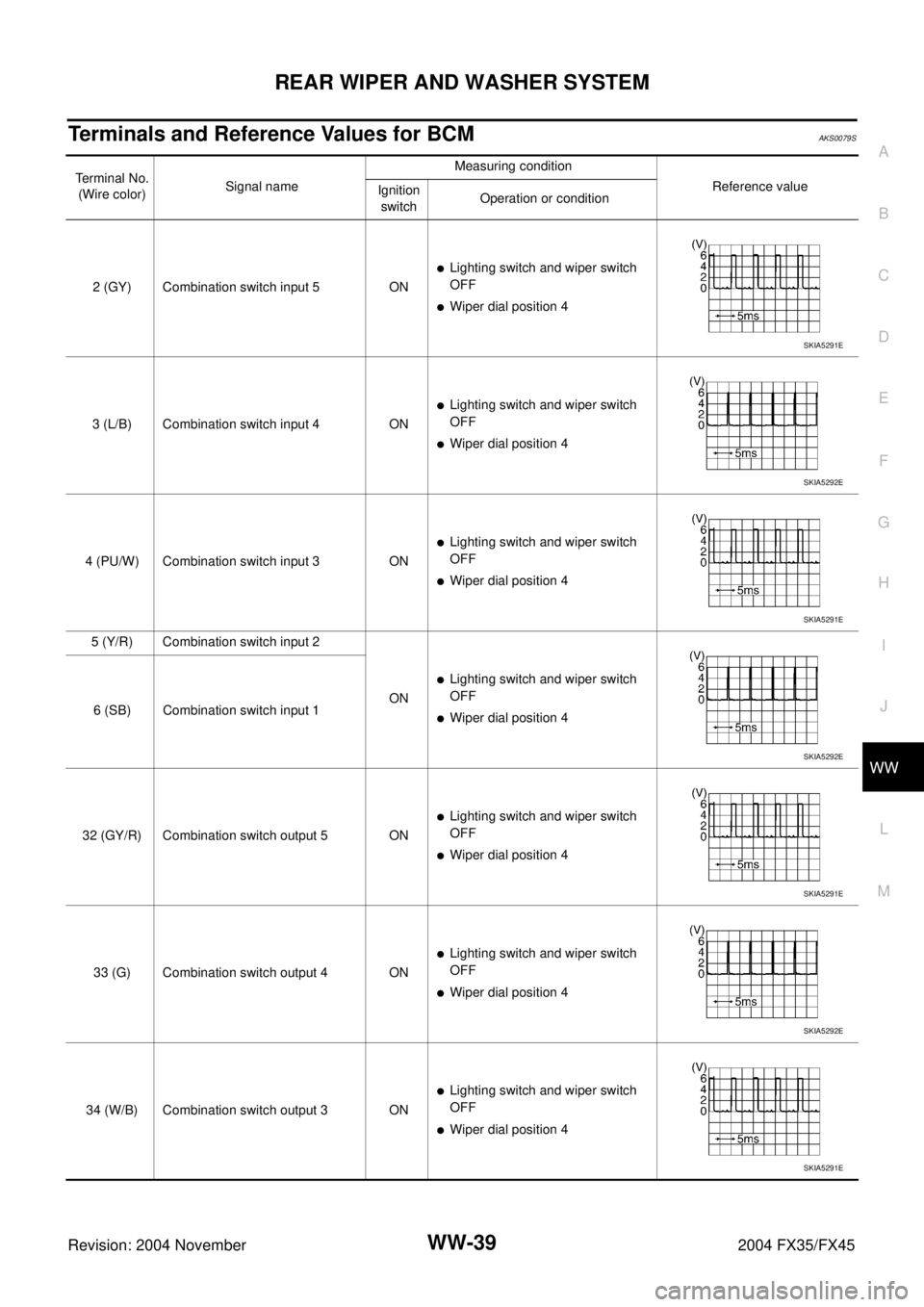

Terminals and Reference Values for BCMAKS0079S
Terminal No.
(Wire color)Signal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2 (GY) Combination switch input 5 ON

Lighting switch and wiper switch
OFF

Wiper dial position 4
3 (L/B) Combination switch input 4 ON

Lighting switch and wiper switch
OFF

Wiper dial position 4
4 (PU/W) Combination switch input 3 ON

Lighting switch and wiper switch
OFF

Wiper dial position 4
5 (Y/R) Combination switch input 2
ON

Lighting switch and wiper switch
OFF

Wiper dial position 4 6 (SB) Combination switch input 1
32 (GY/R) Combination switch output 5 ON

Lighting switch and wiper switch
OFF

Wiper dial position 4
33 (G) Combination switch output 4 ON

Lighting switch and wiper switch
OFF

Wiper dial position 4
34 (W/B) Combination switch output 3 ON

Lighting switch and wiper switch
OFF

Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
