INFINITI FX35 2004 Service Manual

WW-40
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
How to Proceed With Trouble DiagnosisAKS0057L
1. Confirm the symptoms and customer complaint.
2. Understand operation description and function description. Refer to WW-35, "
System Description" .
3. Perform the Preliminary Check. Refer to WW-40, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the rear wiper and washer operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. INSPECTION END
Preliminary CheckAKS0057M
INSPECTION POWER SUPPLY AND GROUND CIRCUIT
Inspection Procedure
1. CHECK FUSE

Check if wiper and washer fusible link and fuse is blown.
Refer to WW-37, "Wiring Diagram — WIP/ R —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
35 (W/G) Combination switch output 2
ON

Lighting switch and wiper switch
OFF

Wiper dial position 4 36 (W/R) Combination switch output 1
38 (W/L) Ignition switch (ON) ON — Battery voltage
39 (L) CAN H — — —
40 (R) CAN L — — —
42 (L/R) Battery power supply OFF — Battery voltage
49 (B) Ground ON — Approx. 0 V
52 (B) Ground ON — Approx. 0 V
55 (G) Battery power supply OFF — Battery voltage
59 (Y) Rear wiper auto stop signal ONWiper operating Approx. 0 V
Wiper stopped Battery voltage
70 (SB) Rear wiper motor output signal ON Wiper switchOFF Approx. 0 V
ON Battery voltage Terminal No.
(Wire color)Signal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
SKIA5292E
Unit Power source Fuse and fusible link No.
BCMBatteryM
22
Ignition ON or START 1
Rear washer motor Ignition ON or START 84

REAR WIPER AND WASHER SYSTEM
WW-41
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector terminal and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between fuse, fusible link and BCM.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector M4 terminal 49
(B), 52 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II FunctionsAKS007AG
CONSULT-II can display each diagnostic item using the following diagnostic test modes: work support, self-
diagnostic results, data monitor and active test through data reception and command transmission via the
BCM CAN communication line.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
Terminals Ignition switch position
(+)
(-) OFF ON
Connector Terminal (Wire color)
M4 42 (L/R)
GroundBattery voltage Battery voltage
M4 55 (G) Battery voltage Battery voltage
M3 38 (W/L) 0V Battery voltage
PKIA5190E
49 (B), 52 (B) - Ground : Continuity should exist.
PKIA5191E
BCM diagnosis position Check item, Diagnosis mode Description
WiperData monitor Displays BCM input data in real time.
Active test Device operation can be checked by applying a drive signal to device.
BCM CAN DIAG SUPPORT MNTR The result of transmit/receive of CAN communication can be read.
PBIB1503E

WW-42
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM”.
If “BCM” is not indicated, refer to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch “WIPER”.
DATA MONITOR
Operation Procedure
1. Touch “WIPER” on the “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL ITEMS” or “SELECT ITEM MENU” on “DATA MONITOR” screen.
4. Touch “START”.
5. When “SELECT ITEM MENU” is selected, touched items to be monitored. If “ALL ITEMS” is selected, all
items will be monitored.
6. Touch “RECORDING START” while monitoring to record the status of the item being monitored. To stop
recording, touch “RECORDING STOP”.
Display Item List
SKIA3098E
PKIA5222E
PKIA5223E
All Items All items will be monitored.
Select Item Menu Selects and monitors individual items.
Monitor item [operation or unit] Display content
IGN ON SW [ON/OFF]Displays “ignition switch ON (ON)/Other OFF or ACC (OFF)” status as judged from ignition switch
signal.
IGN SW CAN [ON/OFF]Displays “ignition switch ON (ON)/Other OFF or ACC (OFF)” status as judged from CAN communi-
cation signal.
FR WIPER HI [ON/OFF] Displays “Front Wiper HI (ON)/Other (OFF)” status as judged from wiper switch signal.

REAR WIPER AND WASHER SYSTEM
WW-43
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
ACTIVE TEST
Operation Procedure
1. Touch “WIPER” on the “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch items to be tested, and check operation.
4. During operation check, touching “STOP” deactivates operation.
Display Item List
Rear Wiper Does Not OperateAKS007A4
1. CHECK FUSE AND FUSIBLE LINK
Check fuse No. 1, 84 and fusible link No. M.
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
SYSTEM” screen.
2. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “REAR WIPER” on “SELECT TEST ITEM” screen.
4. Confirm that rear wiper operates normally.
Without CONSULT-ll
GO TO 3.
Does rear wiper operate normally?
YES >> GO TO LT- 11 3 , "Combination Switch Inspection" .
NO >> GO TO 3.
FR WIPER LOW [ON/OFF] Displays “Front Wiper LOW (ON)/Other (OFF)” status as judged from wiper switch signal.
FR WIPER INT [ON/OFF] Displays “Front Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
FR WASHER SW [ON/OFF] Displays “Front Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation dial position setting (1 - 7) as judged from wiper switch signal.
FR WIPER STOP [ON/OFF] Displays “Stopped (ON)/Operating (OFF)” status as judged from the auto-stop signal.
VEHICLE SPEED [km/h] Displays vehicle speed status as judged from vehicle speed signal.
RR WIPER ON [ON/OFF] Displays “Rear Wiper ON (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT [ON/OFF] Displays “Rear Wiper INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW [ON/OFF] Displays “Rear Washer Switch (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER STOP [ON/OFF] Displays “Rear Wiper Stop (ON)/Other (OFF)” status, as judged from wiper switch signal.Monitor item [operation or unit] Display content
Test item Indication on CONSULT-II display Description
Front wiper HI output FRONT WIPER With a certain operation (OFF, HI, LO, INT), the front wiper can be operated.
Rear wiper output RR WIPER Rear wiper can be operated by any ON-OFF operation.
SKIA3503E

WW-44
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
3. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector B14 termi-
nals 59 (Y), 70 (SB) and rear wiper motor harness connector
D107 terminals 3 (BR), 4 (SB).
4. Check continuity between BCM harness connector B14 termi-
nals 59 (Y), 70 (SB) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK REAR WIPER TO GROUND
Check continuity between rear wiper motor harness connector D107
terminal 2 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK BCM
1. Connect BCM connector and rear wiper motor connector.
2. Turn ignition switch ON.
3. With rear wiper switch ON, check voltage between BCM har-
ness connector B14 terminal 59 (Y) and ground.
OK or NG
OK >> Replace rear wiper motor.
NG >> Replace BCM. Refer to BCS-15, "
Removal and Installation of BCM" . 59 (Y) - 3 (BR) : Continuity should exist.
70 (SB) - 4 (SB) : Continuity should exist.
59 (Y), 70 (SB) - Ground : Continuity should not exist.
PKIA5199E
2 (B) - Ground : Continuity should exist.
PKIA5200E
Terminals
Condition Voltage BCM(+)
(-)
Connec-
torTerminal (Wire color)
B14 59 (Y) GroundWiper stopped Approx. 0V
Wiper operating Battery voltage
PKIA5201E

REAR WIPER AND WASHER SYSTEM
WW-45
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Rear Wiper Does Not Return to Stop PositionAKS007A5
1. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER (1)
With CONSULT-ll
Select “BCM” on CONSULT-II. With “WIPER” on “DATA MONITOR”,
confirm that “RR WIPER STOP” turns ON-OFF linked with wiper
operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> GO TO 2.
2. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER (2)
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector B14 terminal
59 (Y) and rear wiper motor harness connector D107 terminal 3
(BR).
4. Check continuity between BCM harness connector B14 terminal
59 (Y) and ground.
5. Check continuity between rear wiper motor harness connector
D107 terminal 2 (B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
SKIA5322E
59 (Y) - 3 (BR) : Continuity should exist.
59 (Y) - Ground : Continuity should not exist.
PKIA5202E
2 (B) - Ground : Continuity should exist.
PKIA5200E

WW-46
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
3. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER (3)
1. Connect BCM connector and rear wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor harness connector ter-
minal and ground while rear wiper motor is stopped and while it
is operating.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NG >> Replace rear wiper motor.
Only Rear Wiper ON Does Not OperateAKS007A7
Refer to LT- 11 3 , "Combination Switch Inspection" , and inspect it.
Only Rear Wiper INT Does Not OperateAKS007A6
Refer to LT- 11 3 , "Combination Switch Inspection" , and inspect it.
Wiper Does Not Wipe When Rear Washer OperatesAKS007A9
Refer to LT- 11 3 , "Combination Switch Inspection" , and inspect it.
Rear Wipers Do Not StopAKS007G0
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
Select “BCM” on CONSULT-II. With “WIPER” on “DATA MONITOR”,
confirm that “RR WIPER INT”, “RR WIPER ON”, and “RR WASHER
SW” turn ON-OFF according to wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 3 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Check wiper Switch. Refer to LT- 11 3 , "
Combination
Switch Inspection" .
Te r m i n a l s
Condition Voltage Rear wiper motor(+)
(-)
Connector Terminal (Wire color)
D107 3 (BR) GroundWiper stopped Approx. 0V
Wiper operating Battery voltage
PKIA5203E
SKIA5322E

REAR WIPER AND WASHER SYSTEM
WW-47
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
2. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER (2), AND BETWEEN REAR WIPER AND
GROUND
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM connector B14 terminal 59 (Y)
and rear wiper motor connector D107 terminal 3 (BR).
4. Check continuity between BCM connector B14 terminals 59(Y)
and Ground.
5. Check continuity between rear wiper motor connector D107 ter-
minal 2 (B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK CIRCUIT BETWEEN BCM AND REAR WIPER (3)
1. Connect BCM connector and rear wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor harness connector ter-
minal and ground while rear wiper motor is stopped and while it
is operating.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installation of BCM" .
NG >> Replace rear wiper motor.59 (Y) - 3 (BR) : Continuity should exist.
59 (Y) - Ground : Continuity should not exist.
PKIA5202E
2 (B) - Ground : Continuity should exist.
PKIA5200E
Terminals
Condition Voltage Rear wiper motor(+)
(-)
Connector Terminal (Wire color)
D107 3 (BR) GroundWiper stopped Approx. 0V
Wiper operating Battery voltage
PKIA5203E

WW-48
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Rear Wiper Arm, Adjustment of Wiper Arms Stop
Location
AKS0057T
REMOVAL
1. Operate wiper motor, and stop it at the auto stop position.
2. Remove cover wiper arm.
3. Remove wiper arm nut, and remove wiper arm from vehicle.
INSTALLATION
1. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (auto stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L” immediately before tightening
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop within clearance “L”.

Tighten wiper arm nuts to specified torque.
Install in the reverse order of removal.
Removal and Installation of Rear Wiper Motor AKS0057U
Clearance “L” : 45 - 60 mm (1.77 - 2.36 in)
Rear wiper arm nut : 5.0 N·m (0.51 kg-m, 44 in-lb)
SKIA5083E
1. Rear wiper motor 2. Screw 3. Wiper blade
4. Wiper arm 5. Cover wiper arm 6. Nut
7. Pivot cap 8. Nut 9. Washer
10. Cushion rubber
SKIA5084E

REAR WIPER AND WASHER SYSTEM
WW-49
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45

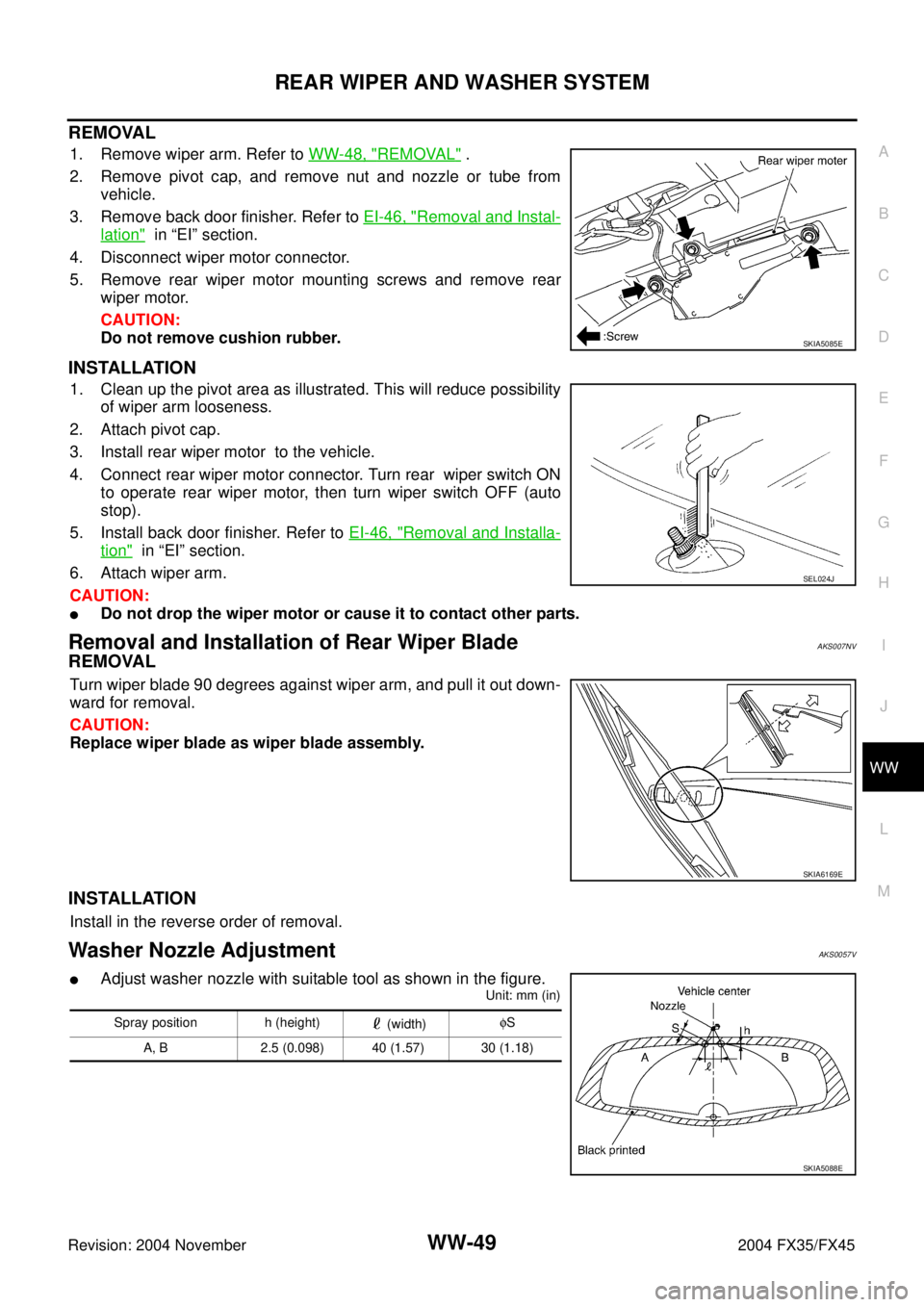

REMOVAL
1. Remove wiper arm. Refer to WW-48, "REMOVAL" .
2. Remove pivot cap, and remove nut and nozzle or tube from
vehicle.
3. Remove back door finisher. Refer to EI-46, "
Removal and Instal-
lation" in “EI” section.
4. Disconnect wiper motor connector.
5. Remove rear wiper motor mounting screws and remove rear
wiper motor.
CAUTION:
Do not remove cushion rubber.
INSTALLATION
1. Clean up the pivot area as illustrated. This will reduce possibility
of wiper arm looseness.
2. Attach pivot cap.
3. Install rear wiper motor to the vehicle.
4. Connect rear wiper motor connector. Turn rear wiper switch ON
to operate rear wiper motor, then turn wiper switch OFF (auto
stop).
5. Install back door finisher. Refer to EI-46, "
Removal and Installa-
tion" in “EI” section.
6. Attach wiper arm.
CAUTION:

Do not drop the wiper motor or cause it to contact other parts.
Removal and Installation of Rear Wiper BladeAKS007NV
REMOVAL
Turn wiper blade 90 degrees against wiper arm, and pull it out down-
ward for removal.
CAUTION:
Replace wiper blade as wiper blade assembly.
INSTALLATION
Install in the reverse order of removal.
Washer Nozzle AdjustmentAKS0057V

Adjust washer nozzle with suitable tool as shown in the figure.
Unit: mm (in)
SKIA5085E
SEL024J
SKIA6169E
Spray position h (height)
(width)φS
A, B 2.5 (0.098) 40 (1.57) 30 (1.18)
SKIA5088E
