NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
CURRENT LOCATION MARK IS IN A RIVER OR SEA
The navigation system moves the current-location mark with no distinction between land and rivers or sea. If
the location mark is somehow out of place, it may appear that the vehicle is driving in a river or the sea.
WHEN DRIVING ON SAME ROAD, SOMETIMES CURRENT-LOCATION MARK IS IN RIGHT
PLACE AND SOMETIMES IT IS WRONG PLACE
The conditions of the GPS antenna (GPS data) and gyroscope (angular speed sensor) change gradually.
Depending on the road traveled and the operation of the steering wheel, the location detection results will be
different. Therefore, even on a road on which the location has never been wrong, conditions may cause the
vehicle mark to deviate.
LOCATION CORRECTION BY MAP-MATCHING IS SLOW

The map matching function needs to refer to the data of the surrounding area. It is necessary to drive
some distance for the function to work.

Because map matching operates on this principle, when there are many roads running in similar direc-
tions in the surrounding area, no matching determination may be made. The location may not be cor-
rected until some special feature is found.
ALTHOUGH GPS RECEIVING DISPLAY IS GREEN, VEHICLE MARK DOES NOT RETURN TO
CORRECT LOCATION

The GPS accuracy has an error of approximately 10 m (30 ft). In some cases the current-location mark
may not be on the correct street, even when GPS location-correction is done.

The navigation system compares the results of GPS location detection with the results from map-match-
ing location detection. The one which is determined to have higher accuracy is used.

GPS location correction may not be performed when the vehicle is stopped.
NAME OF CURRENT PLACE IS NOT DISPLAYED
The current place name may not be displayed if there are no place names displayed on the map screen.
CONTENTS OF DISPLAY DIFFER FOR BIRDVIEW™ AND THE (FLAT) MAP SCREEN
Difference of the BIRDVIEW™ screen from the flat map screen are as follows.

The current place name displays names which are primarily in the direction of vehicle travel.

The amount of time before the vehicle travel or turn angle is updated on the screen is longer than for the
(flat) map display.

The conditions for display of place names, roads, and other data are different for nearby areas and for
more distant areas.

Some thinning of the character data is done to prevent the display becoming to complex. In some cases
and in some locations, the display contents may differ.

The same place name, street name, etc. may be displayed multiple times.

NAVIGATION SYSTEM
AV-181
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Program Loading of NAVI Control UnitAKS007KI
SKIA0389E

AV-182
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of NAVI control UnitAKS007O9
REMOVAL
1. Remove passenger side seat. Refer to SE-101, "Removal and Installation"
2. Remove clips (4), and remove NAVI control unit cover.
3. Remove screws (2) and nut (1) with power tool, and remove
NAVI control unit.
4. Remove screws (4) with power tool and remove bracket.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of GPS AntennaAKS007OA
REMOVAL
1. Remove audio unit. Refer to AV- 4 4 , "Removal and Installation of
Audio Unit" .
2. Remove screw (1) and remove GPS antenna.
INSTALLATION
Install in the reverse order of removal.
PKIA3129E
SKIA5822E
SKIA5823E
SKIA5824E

NAVIGATION SYSTEM
AV-183
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of A/C and AV SwitchAKS007OB
For A/C and AV switch removal and installation procedures, refer to AV- 4 5 , "Removal and Installation for A/C
and AV Switch" .
Removal and Installation of Display UnitAKS007OC
For display unit removal and installation procedures, refer to AV- 4 4 , "Removal and Installation of Audio Unit" .
Removal and Installation of Display Control UnitAKS007OD
REMOVAL
1. Remove instrument passenger lower panel. Refer to IP-11,
"Removal and Installation" .
2. Remove screws (2) with power tool and remove display control
unit.
3. Remove screws (4) with power tool and remove bracket.
INSTALLATION
Install in the reverse order of removal.
SKIA5825E
SKIA5826E

AV-184
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2004 November 2004 FX35/FX45
INFINITI MOBILE ENTERTAINMENT SYSTEMPFP:28184
System DescriptionAKS00BOU
Refer to Owner's Manual for mobile entertainment system operating instructions.
Power is supplied at all times

through 15A fuse (No. 32, located in the fuse and fusible link block)

to DVD player terminal 16

through DVD player terminals 31 and 32

to DVD display terminals 15 and 16.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to DVD player terminal 15

through DVD player terminal 21

to DVD display terminal 5.
Ground is supplied

to DVD player terminal 22

through body ground B15 and B45

to DVD player terminals 19, 27

through DVD display terminals 6, 10 and 12.
When DVD player power switch is ON, power is supplied

through DVD player terminal 9

to audio unit terminal 38

through audio unit terminal 40

to DVD player terminal 11.
When DVD player power switch is ON, DVD sound signals are supplied

through DVD player terminals 17, 18, and 20

to DVD display terminals 1, 2 and 4.
DVD sound can be heard by the head phone.
When rear AV switch is ON, audio signals are supplied

through DVD player terminals 1, 2, 3, and 4

to audio unit terminals 37, 39, 42, and 43.
DVD sound can be heard from the speaker.
When DVD player power switch is ON, video signals are supplied

through DVD player terminals 23 and 24

to DVD display terminals 7 and 8.
When remote controller is operated, operation signals are supplied

through DVD display terminal 14

to DVD player terminal 30

through DVD player terminal 29

to DVD display terminal 13.

INFINITI MOBILE ENTERTAINMENT SYSTEM
AV-185
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45

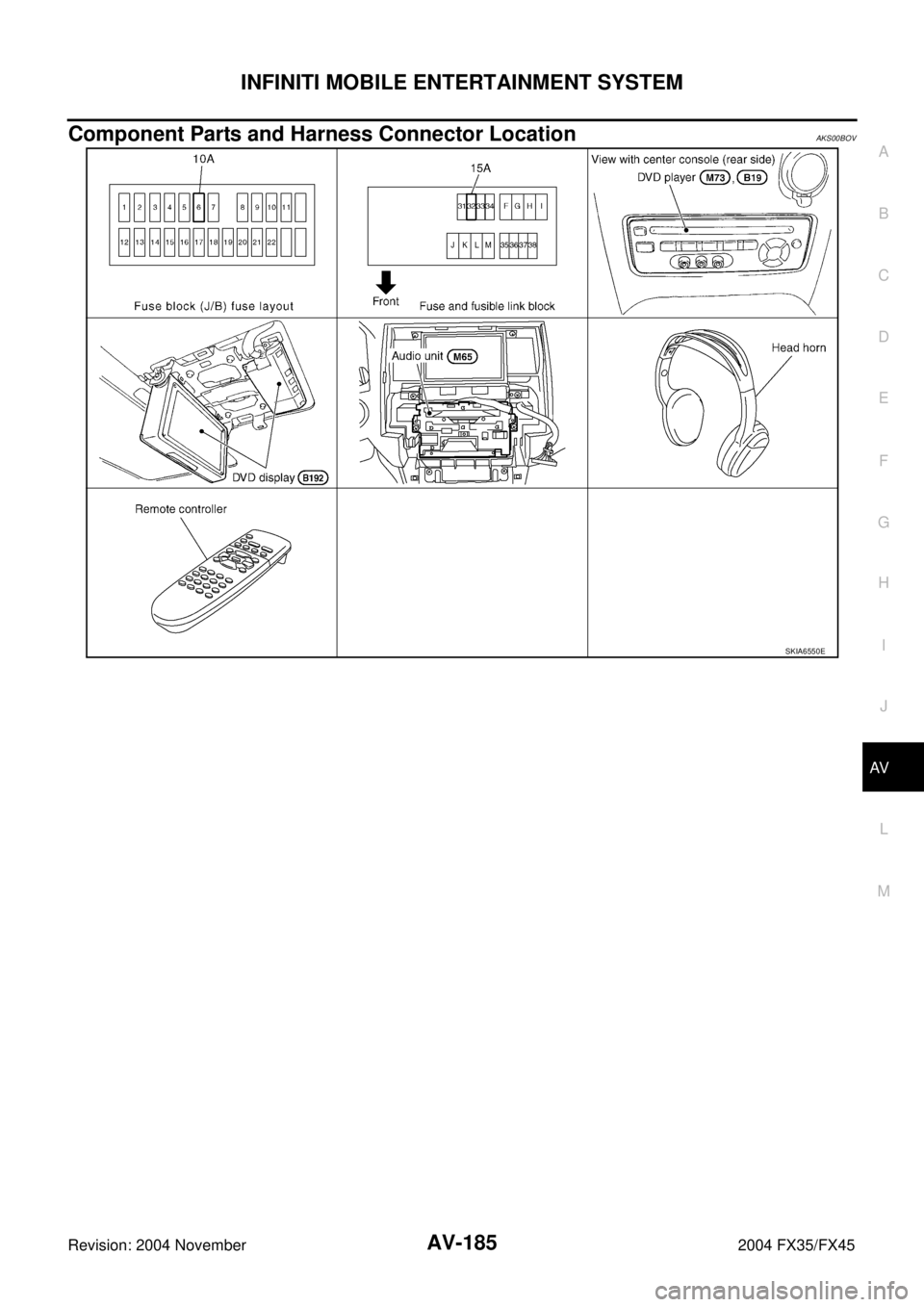

Component Parts and Harness Connector LocationAKS00BOV
SKIA6550E

AV-186
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2004 November 2004 FX35/FX45

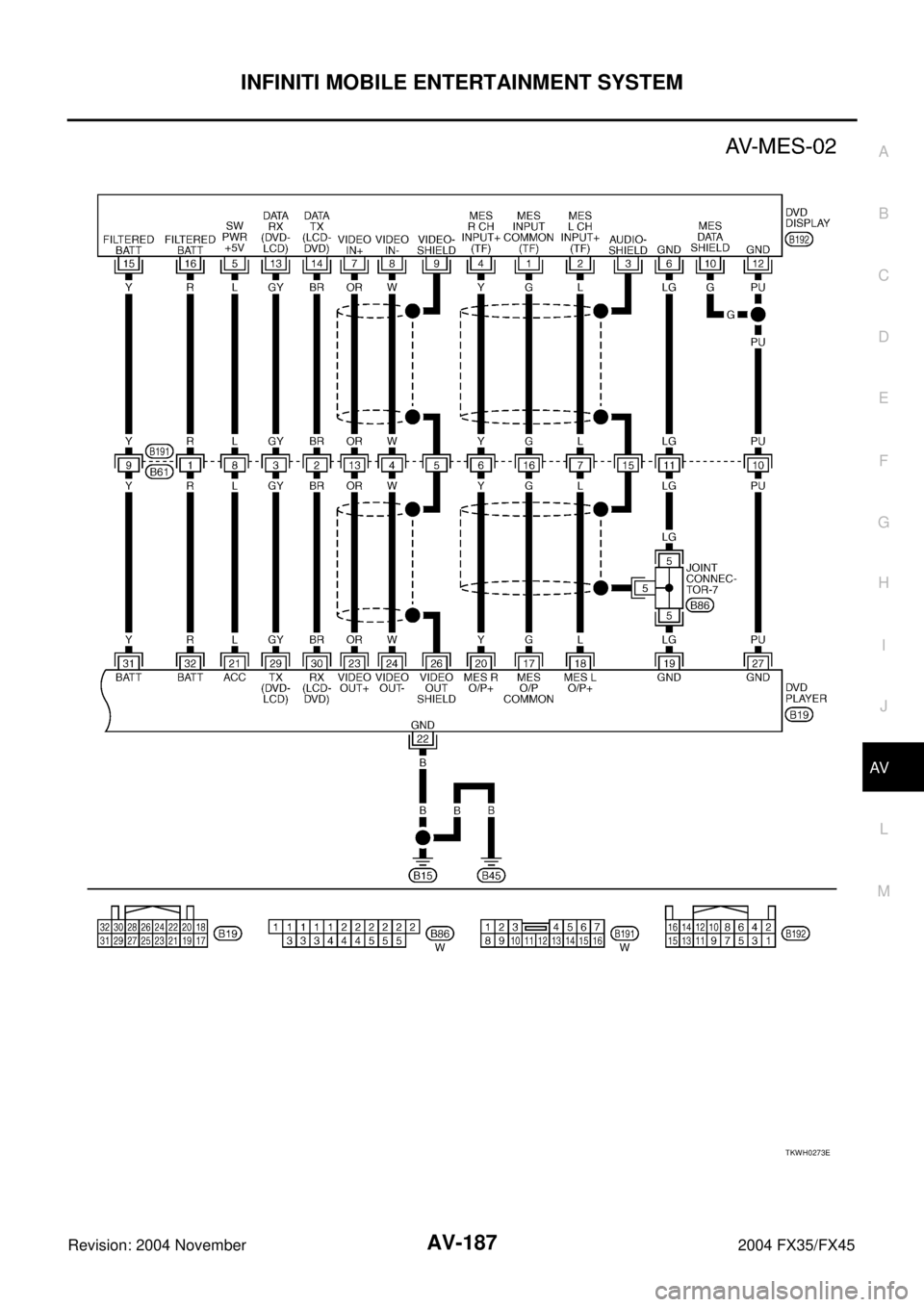

Wiring Diagram – MES –AKS00BOW
TKWM0595E

INFINITI MOBILE ENTERTAINMENT SYSTEM
AV-187
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
TKWH0273E

AV-188
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for DVD PlayerAKS00BOX
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of symp-
tom
(+) (-)Ignition
switchOperation
1 (L) 2 (R)MES output
signal (LH)
Output ACCRear AV
switch is ONNo sound
from speaker LH
3 (LG) 4 (PU)MES output
signal (RH)No sound
from speaker RH
8–Shield – – – – –
9
(Y/B)GroundAudio ON
signal (MES -
H/U) Output ACCPush “POWER”
switch of DVD
playerApprox. 5VSystem dose not
work properly
10
(R/Y)GroundIllumination
control signalInput OFFIllumination con-
trol switch is oper-
ated by lighting
switch in 1st posi-
tion.Changes between approx. 0 and
approx. 12V.DVD player illumi-
nation does not
come on then light-
ing switch is ON
11
(L/W)GroundControl sig-
nal (H/U -
MES)Input ACCPush “POWER”
switch of DVD
playerApprox. 5VSystem dose not
work properly
12
(R/L)GroundIllumination
signalInput OFFLighting switch is
ON (1st position).Approx. 12VDVD player illumi-
nation dose not
come on then light-
ing switch is ON Lighting switch
OFF.Approx. 0V
15
(LG/R)GroundACC power
supplyInput ACC – Battery voltageSystem does not
work properly
16
(W/L)GroundBattery
power supplyInput OFF – Battery voltageSystem dose not
work properly
17 (G) 19 (LG)MES output
signal (Com-
mon)Output ACCPlay CD or DVD
videoApprox. 0V –
18 (L) 19 (LG)MES output
signal (L+)Output ACCPlay CD or DVD
videoNo sound from
head phone LH
19 (LG) Ground Ground – ON – Approx. 0V –
20 (Y) 19 (LG)MES output
signal (R+)Output ACCPlay CD or DVD
videoNo sound from
head phone RH
21 (L) GroundACC power
supplyOutput ACC – Approx. 5VDisplay does not
work properly
22 (B) Ground Ground – ON – Approx. 0V –
SKIA0177E
SKIA5828E
SKIA5828E

INFINITI MOBILE ENTERTAINMENT SYSTEM
AV-189
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for DVD DisplayAKS00BOY
23
(OR)24 (W)VIDEO out-
put signalOutput ACC Play DVD video No picture
26 GroundShield
(Video)– ON – Approx. 0V –
27 (PU) Ground Ground – ON – Approx. 0V –
29
(GY)GroundDVD commu-
nication sig-
nal TX (DVD
- LCD)Output ACCPush “POWER”
switch of DVD
player Display does not
work properly
30 (BR) GroundDVD commu-
nication sig-
nal RX (LCD
- DVD)Input ACCPush “POWER”
switch of DVD
playerRemote controler is
not work
31 (Y)
GroundBattery
power supplyOutput – – Battery voltageDisplay dose not
work properly
32 (R)Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of symp-
tom
(+) (-)Ignition
switchOperation
SKIA8863J
SKIB0322E
SKIA5832E
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (-)Ignition
switchOperation
1 (G) 3MES input
signal (com-
mon)Input ACCPlay CD or DVD
videoApprox. 0V –
2 (L) 3MES input
signal (L+)Input ACCPlay CD or DVD
videoNo sound from
head phone LH
3 Ground Shield – ON – Approx. 0V –
4 (Y) 3MES input
signal (R+)Input ACCPlay cd or DVD
videoNo sound from
head phone RH
SKIA5828E
SKIA5828E
