Page 3491 of 4462
CAN SYSTEM (TYPE 4) LAN-131
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 11
Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor Circuit Inspection" .
PKIC9584E
PKIC9585E
Page 3492 of 4462
LAN-132
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 December 2006 FX35/FX45

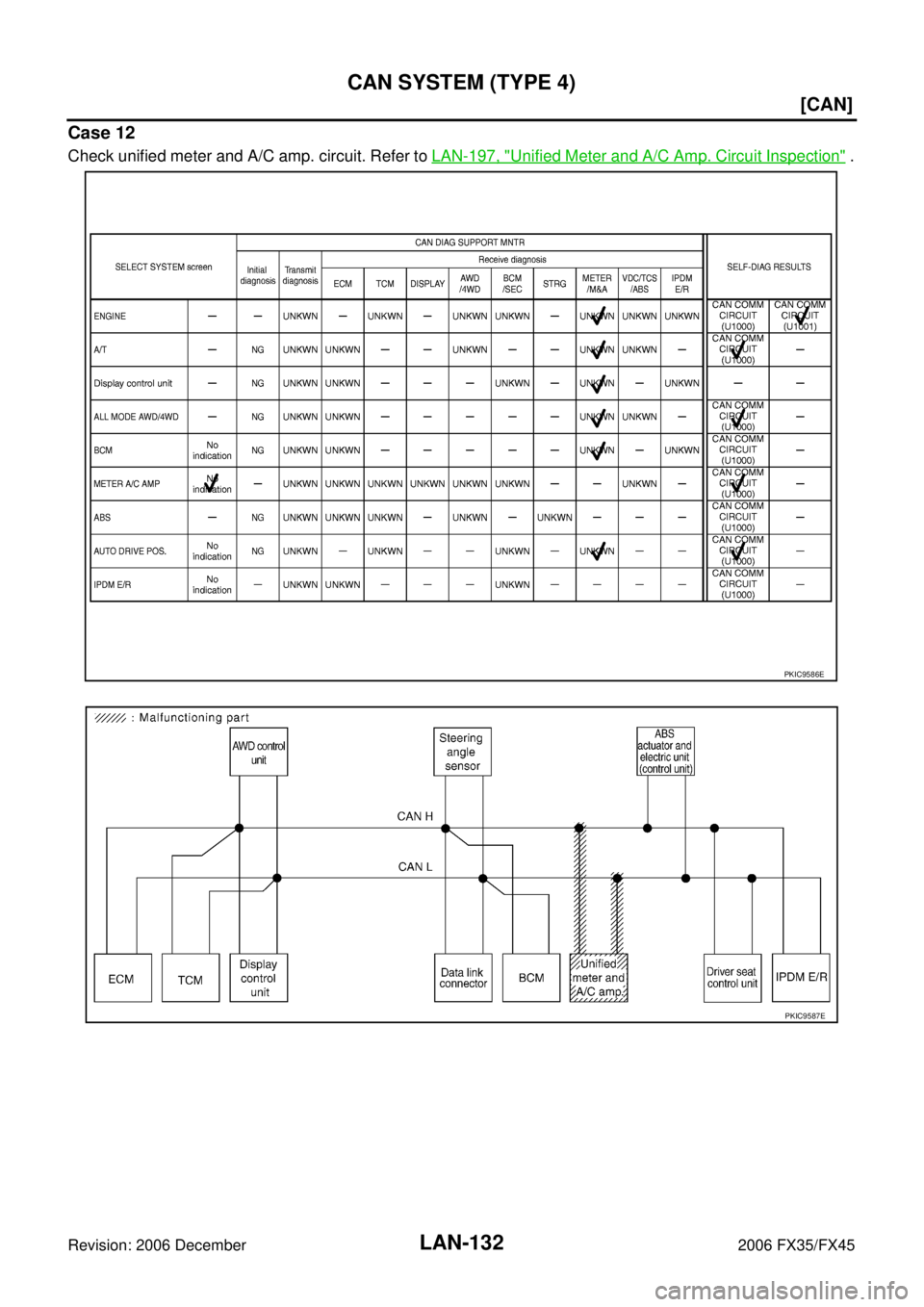

Case 12
Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC9586E
PKIC9587E
Page 3493 of 4462
CAN SYSTEM (TYPE 4) LAN-133
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

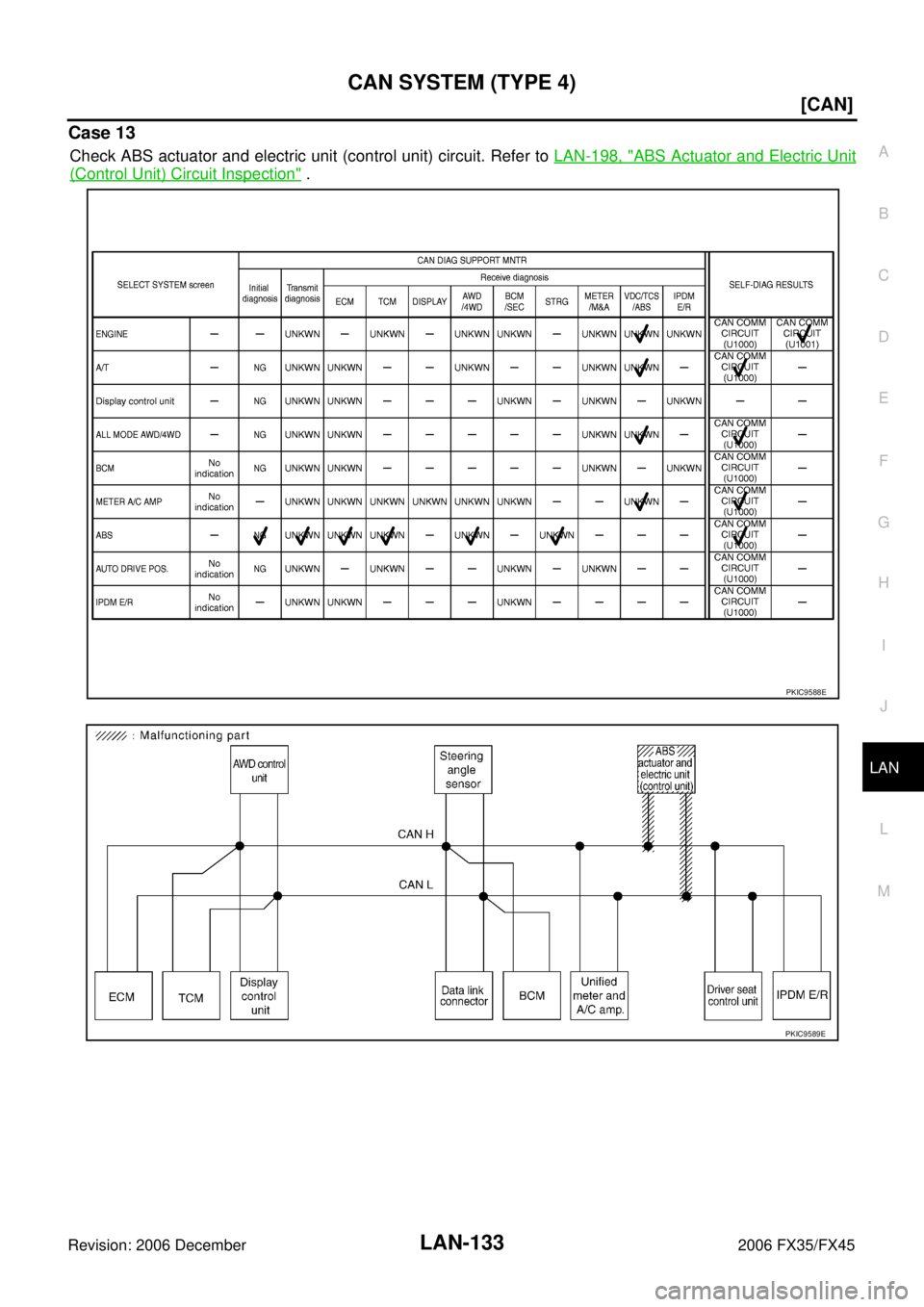

Case 13
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC9588E
PKIC9589E
Page 3494 of 4462
LAN-134
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 December 2006 FX35/FX45

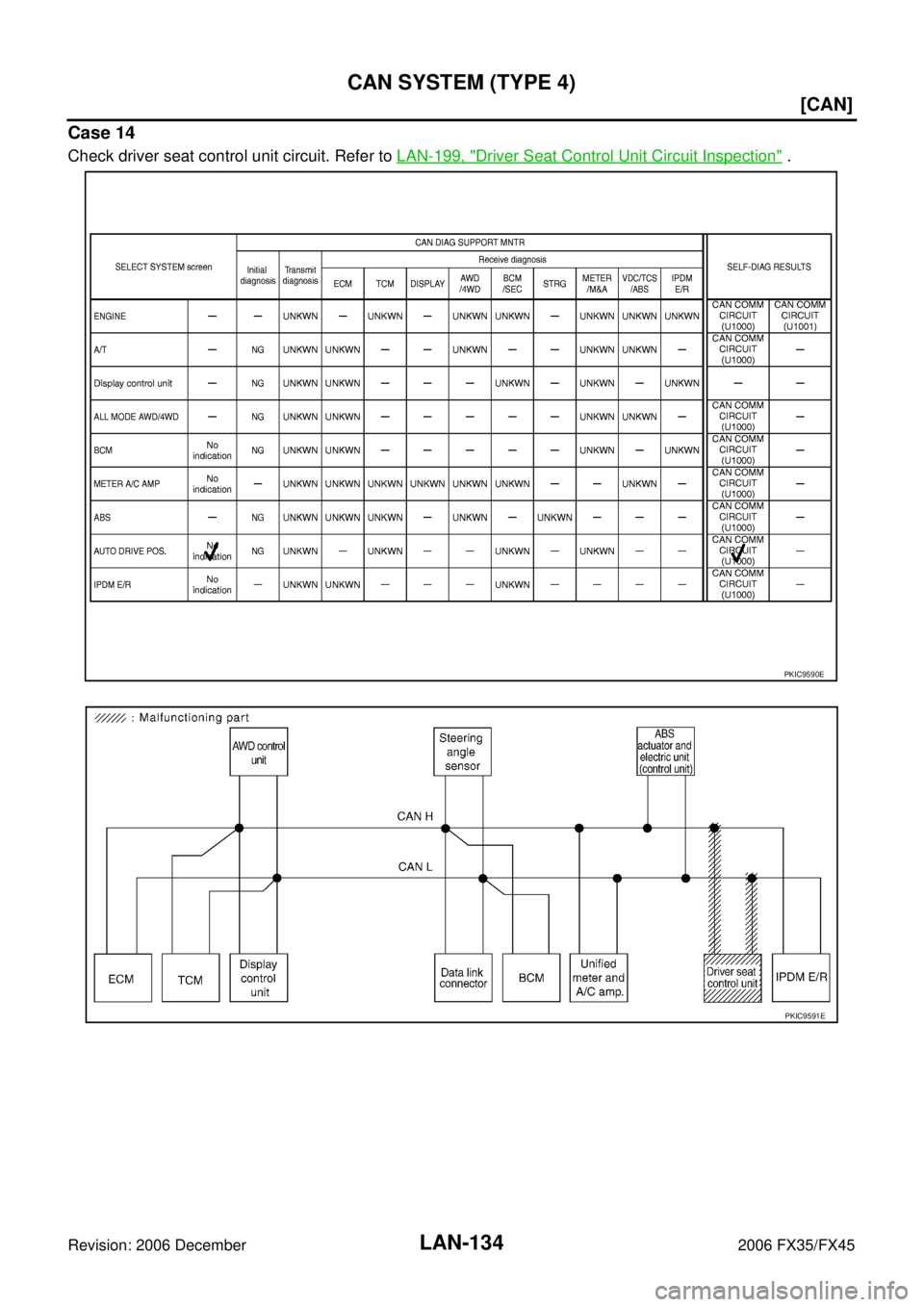

Case 14
Check driver seat control unit circuit. Refer to LAN-199, "Driver Seat Control Unit Circuit Inspection" .
PKIC9590E
PKIC9591E
Page 3495 of 4462
CAN SYSTEM (TYPE 4) LAN-135
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

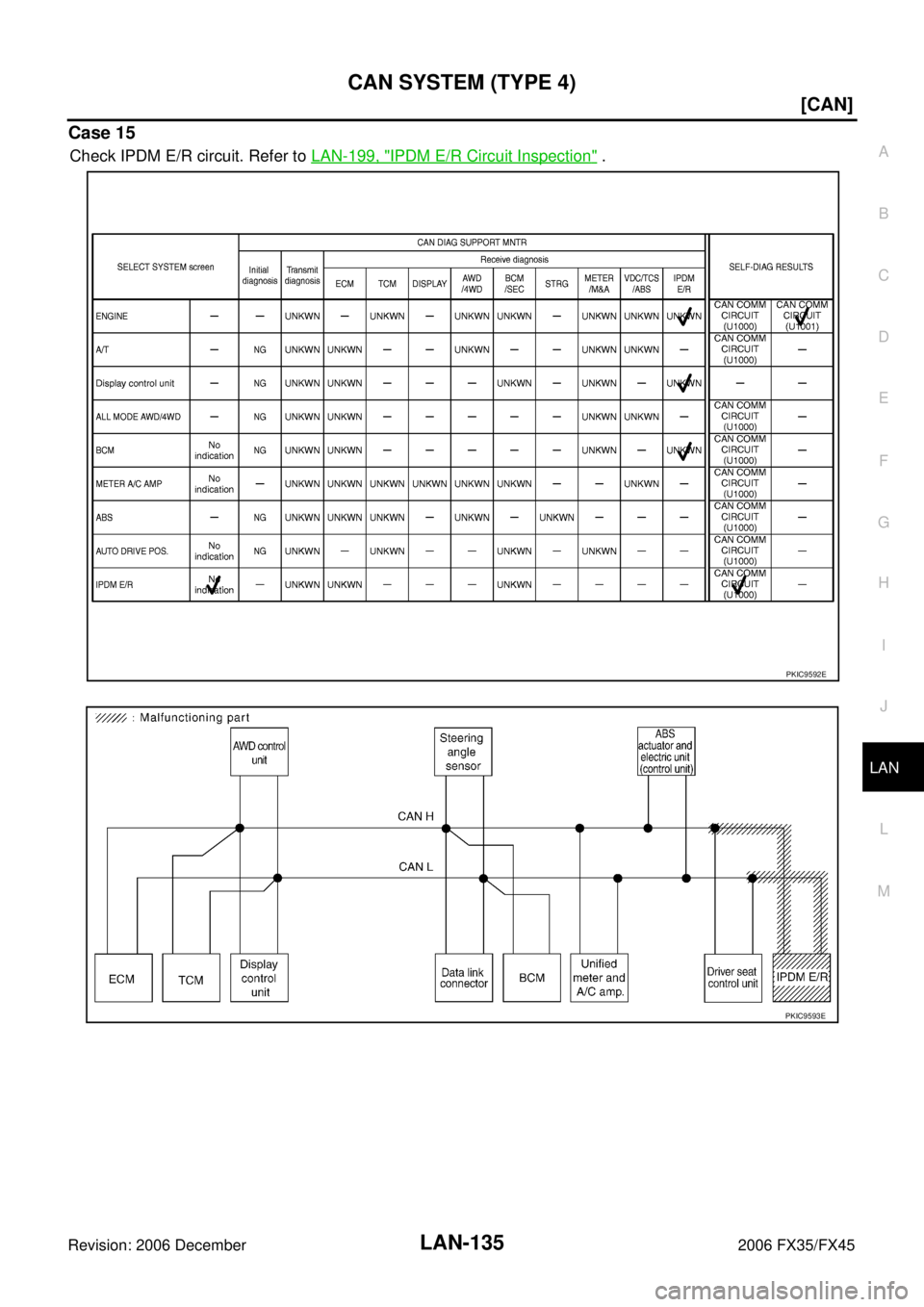

Case 15
Check IPDM E/R circuit. Refer to LAN-199, "IPDM E/R Circuit Inspection" .
PKIC9592E
PKIC9593E
Page 3496 of 4462
LAN-136
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 December 2006 FX35/FX45
Case 16
Check CAN communication circuit. Refer to LAN-200, "CAN Communication Circuit Inspection" .
PKIC9594E
Page 3497 of 4462
CAN SYSTEM (TYPE 4) LAN-137
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9595E
Page 3498 of 4462
LAN-138
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2006 December 2006 FX35/FX45
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9596E
Page 3499 of 4462
CAN SYSTEM (TYPE 5) LAN-139
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
CAN SYSTEM (TYPE 5)PFP:23710
Component Parts and Harness Connector LocationNKS003MY
Refer to LAN-27, "Component Parts and Harness Connector Location"
SchematicNKS003MZ
Refer to LAN-28, "Schematic"
Wiring Diagram — CAN —NKS003N0
Refer to LAN-29, "Wiring Diagram — CAN —"
Page 3500 of 4462
LAN-140
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

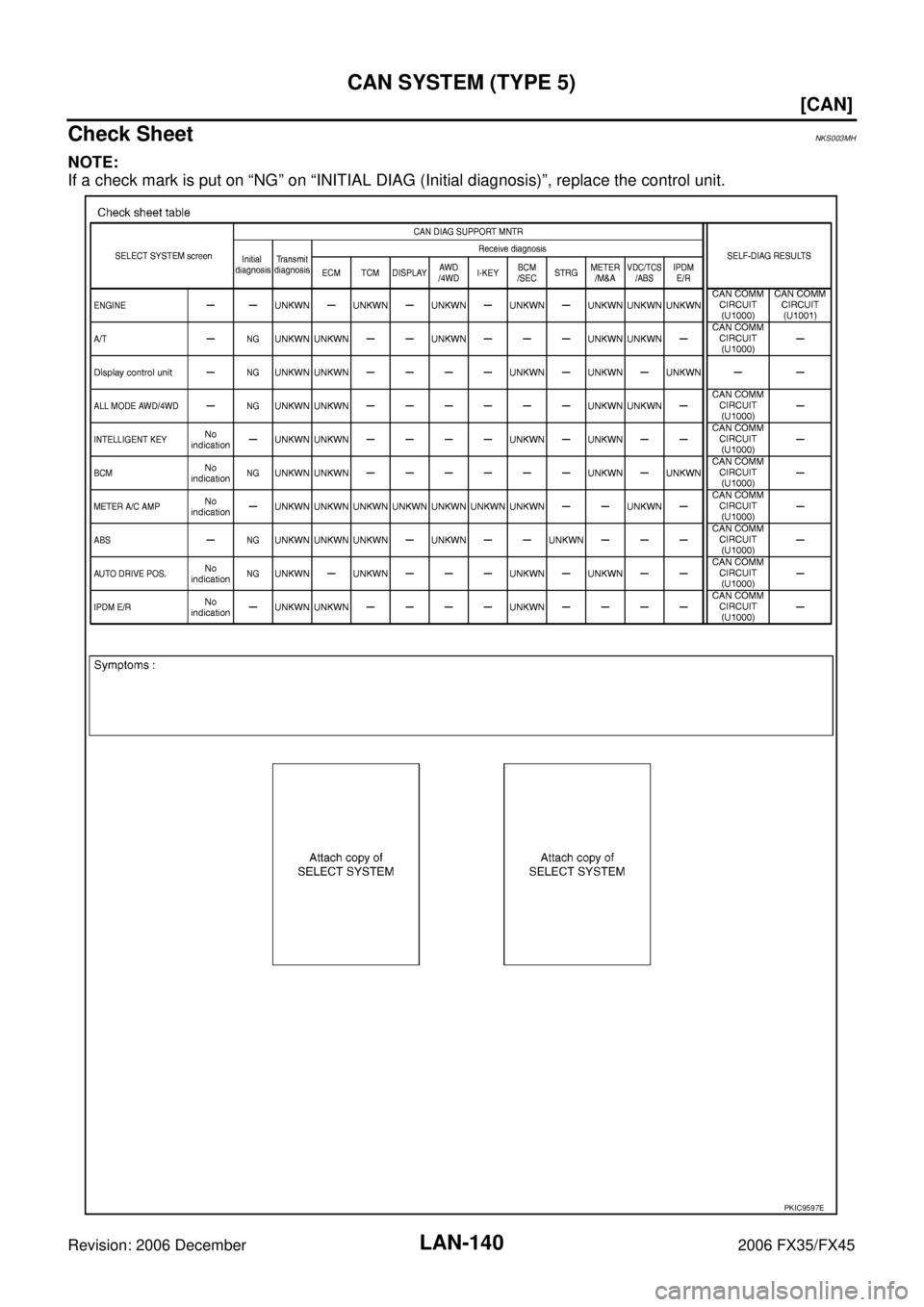

Check SheetNKS003MH
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC9597E
