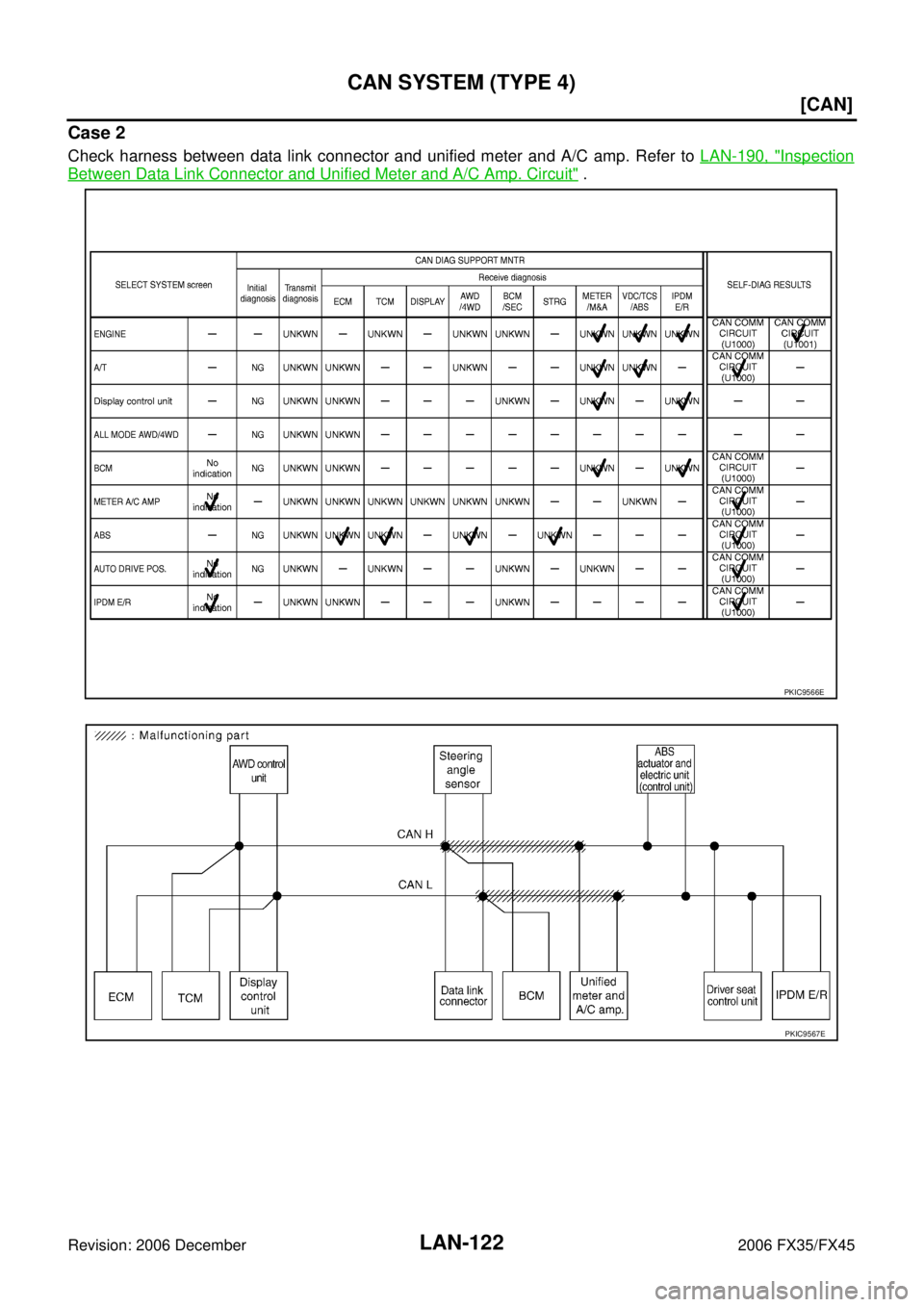

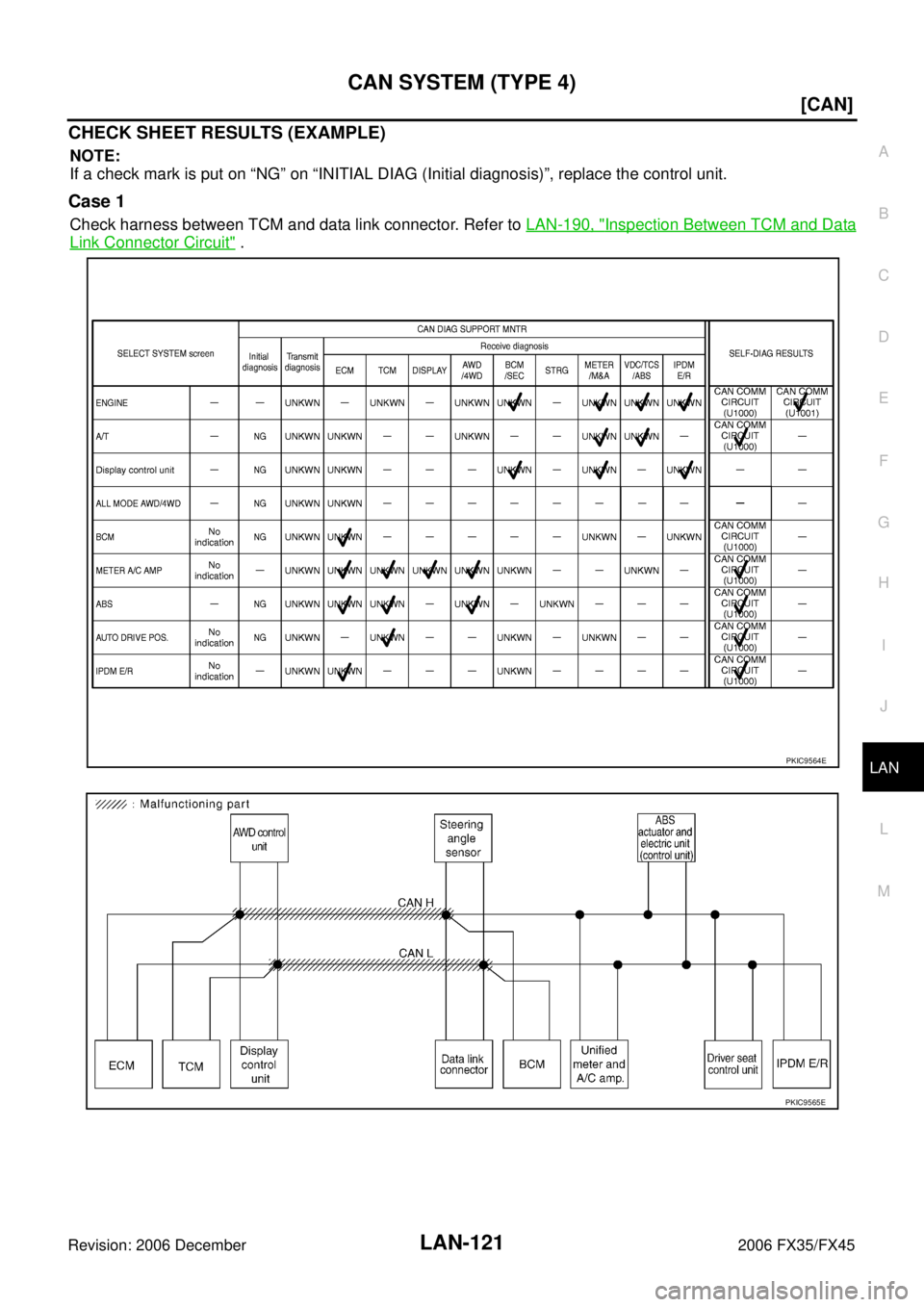

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 4) LAN-121 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL D

Page 3482 of 4462

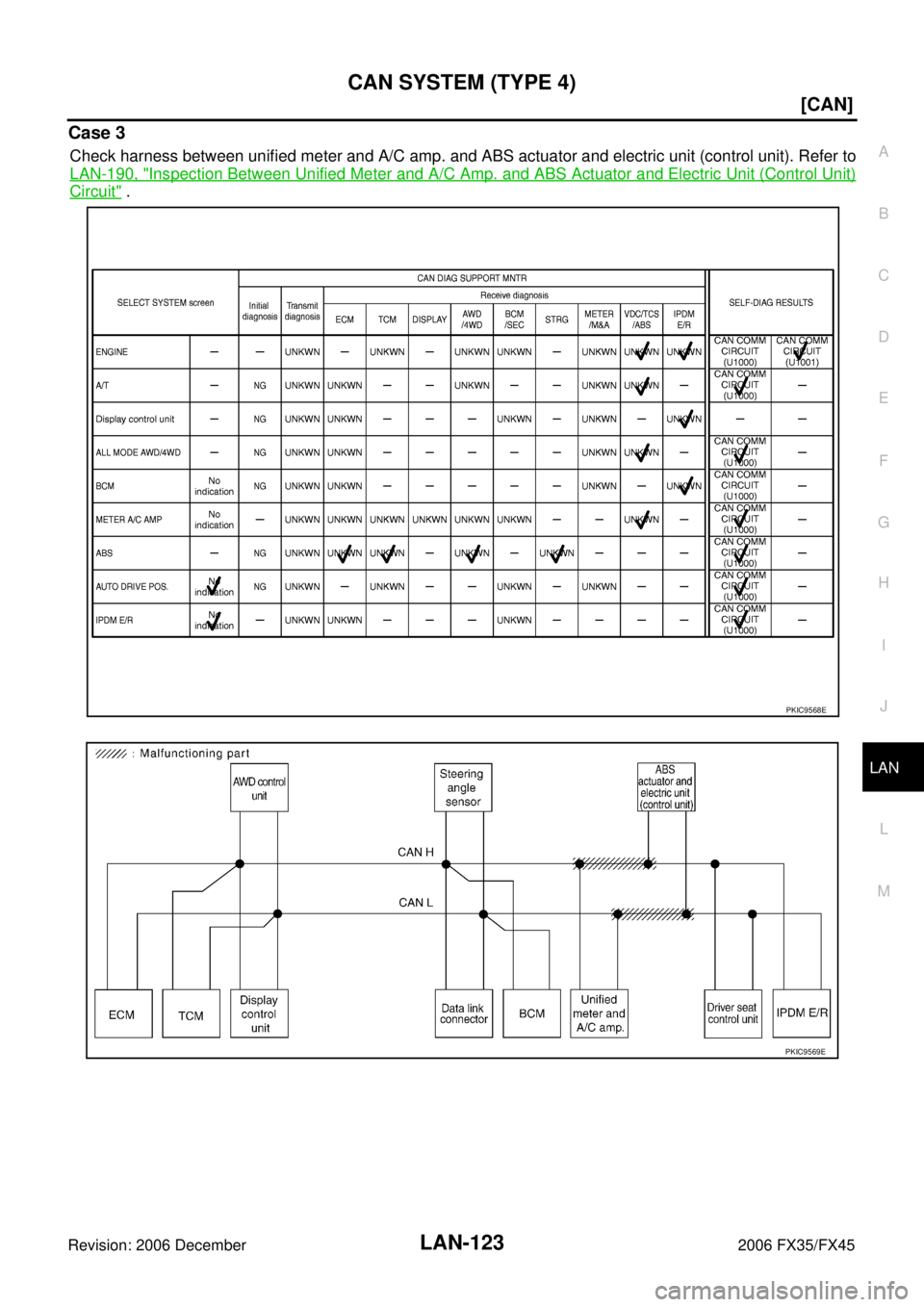

INFINITI FX35 2006 Service Manual LAN-122 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 December 2006 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-190, "Inspection Between Data Lin

Page 3483 of 4462

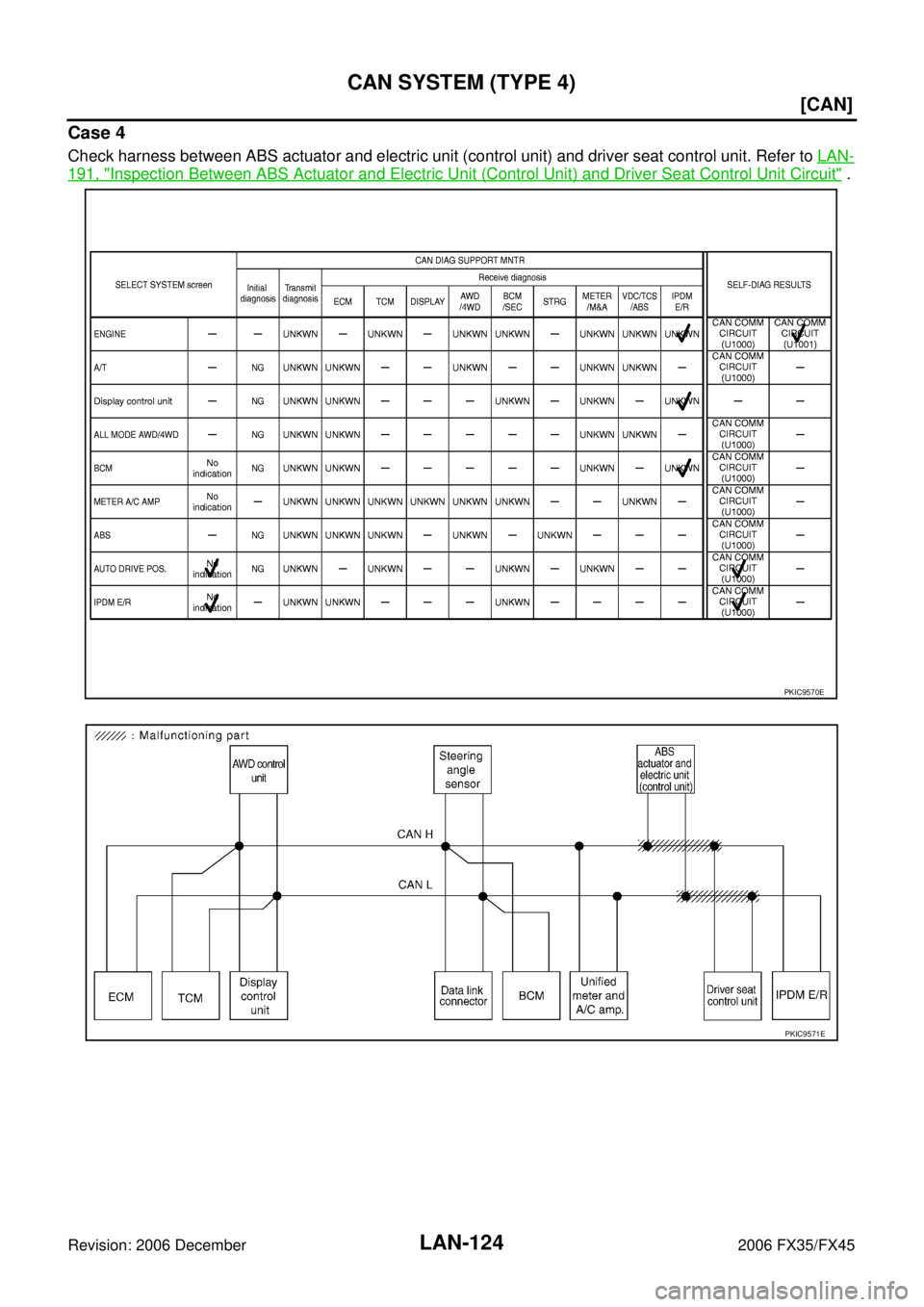

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 4) LAN-123 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric u

Page 3484 of 4462

INFINITI FX35 2006 Service Manual LAN-124 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 December 2006 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 191, "I

Page 3485 of 4462

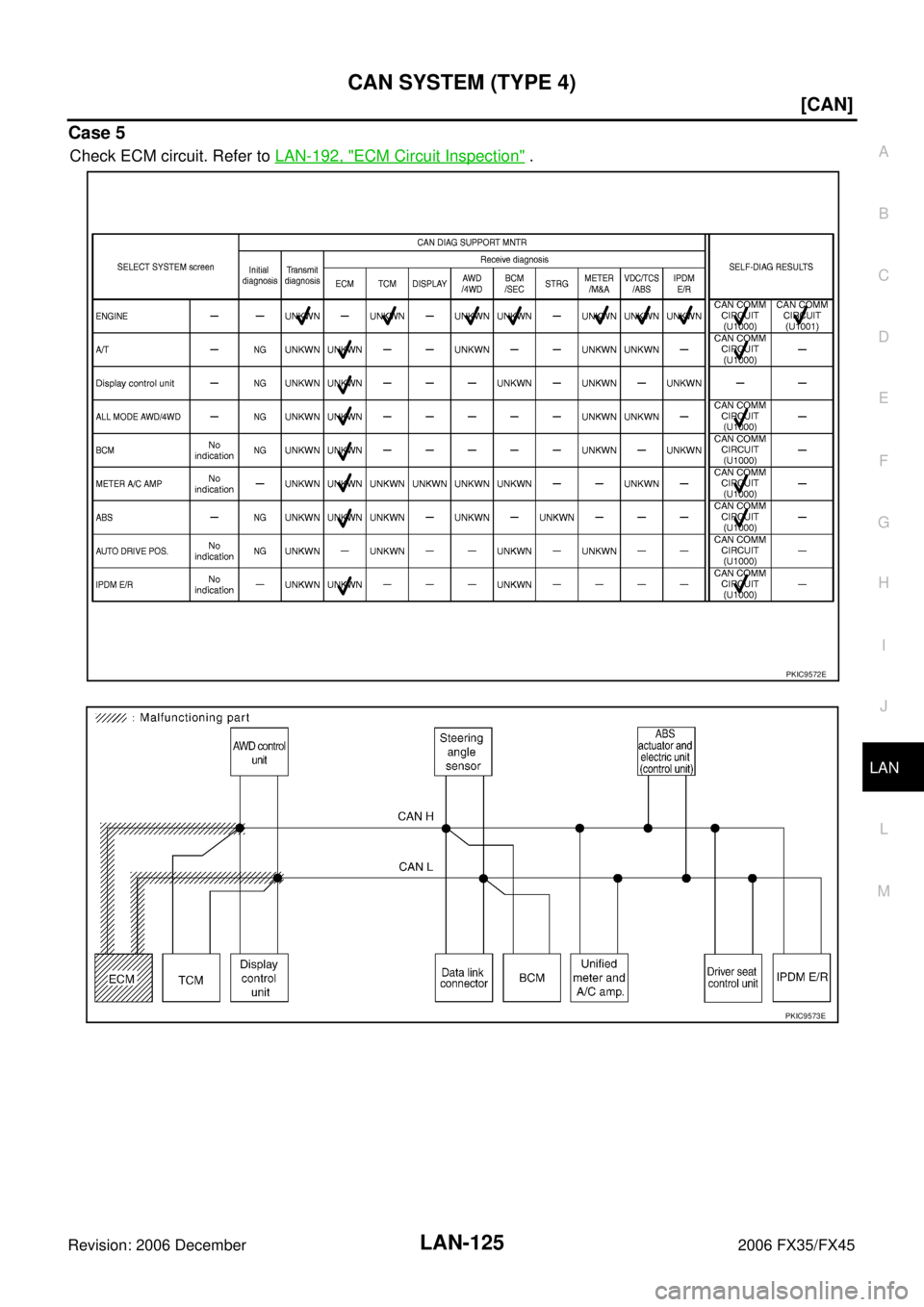

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 4) LAN-125 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" . PKIC9572E PKIC

Page 3486 of 4462

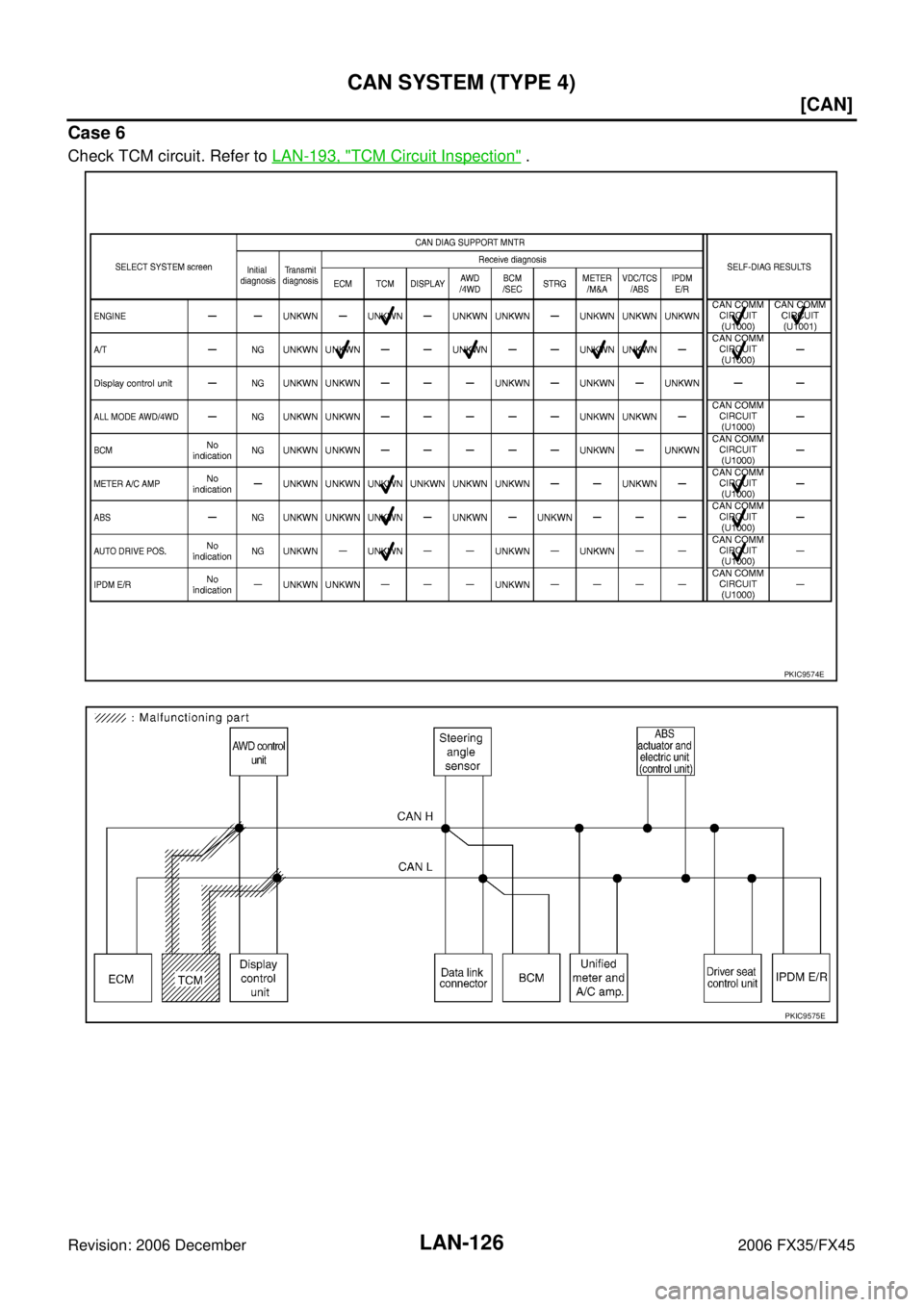

INFINITI FX35 2006 Service Manual LAN-126 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 December 2006 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" . PKIC9574E PKIC9575E

Page 3487 of 4462

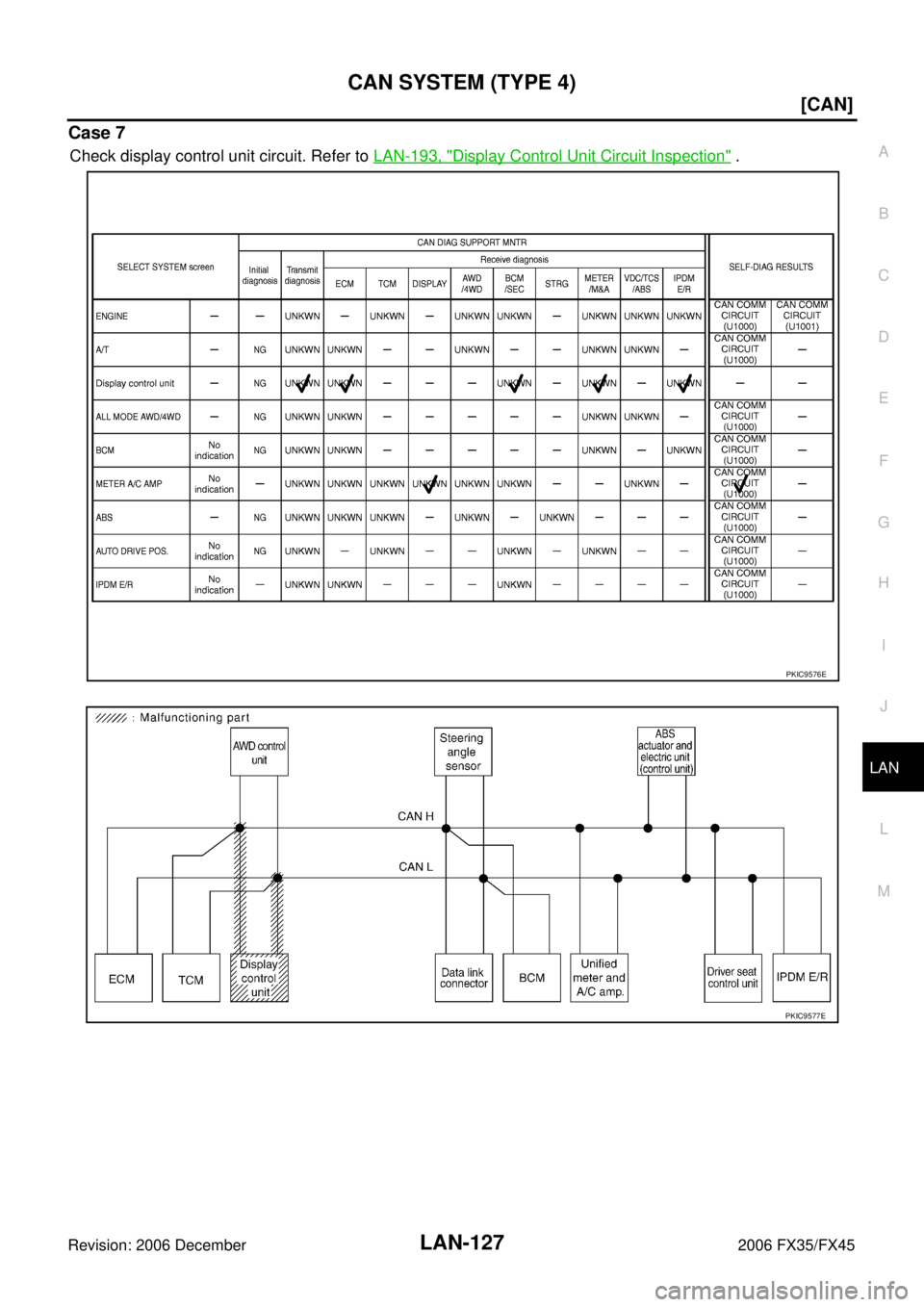

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 4) LAN-127 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 7 Check display control unit circuit. Refer to LAN-193, "Display Control Unit Ci

Page 3488 of 4462

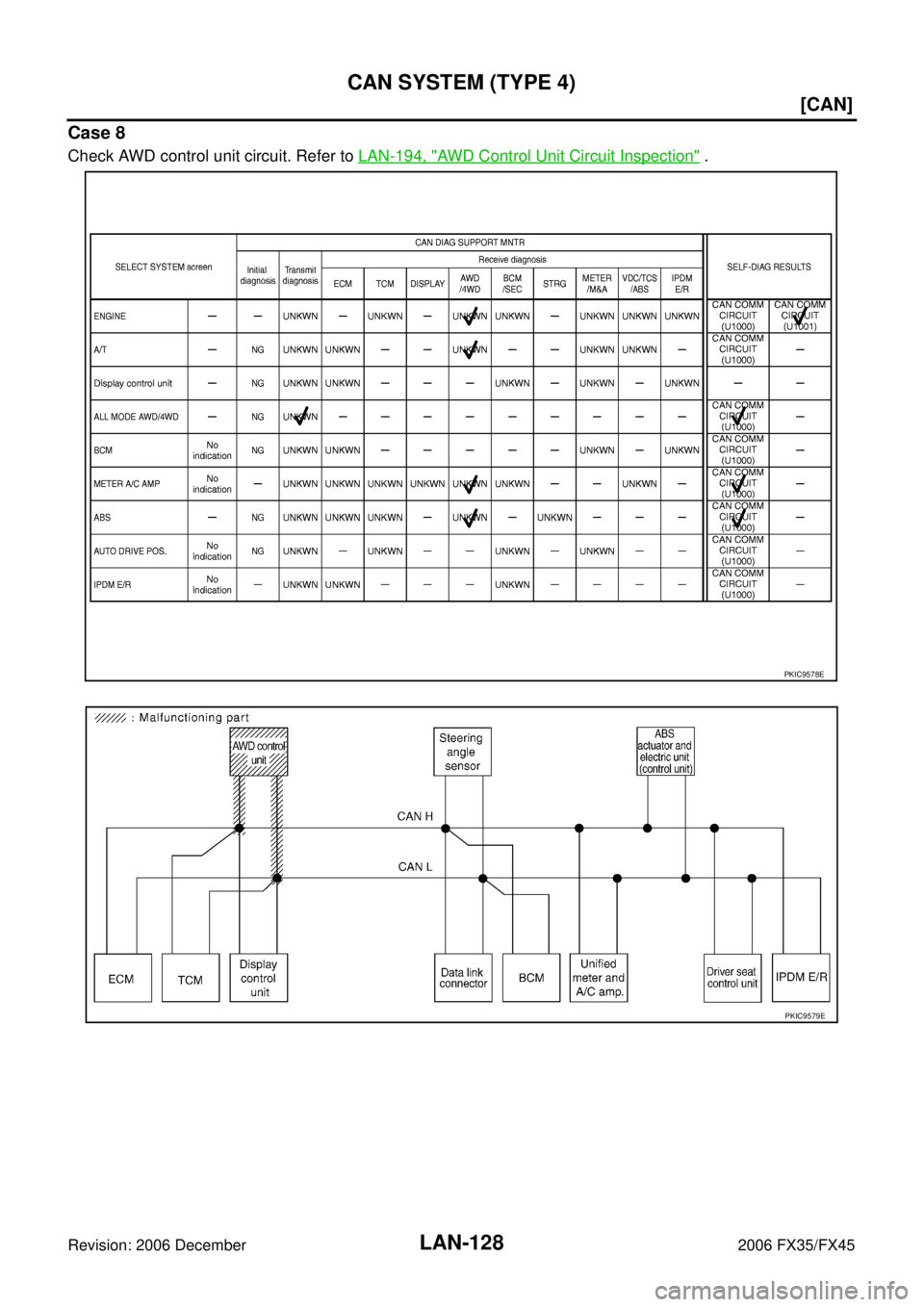

INFINITI FX35 2006 Service Manual LAN-128 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 December 2006 FX35/FX45 Case 8 Check AWD control unit circuit. Refer to LAN-194, "AWD Control Unit Circuit Inspection" . PKIC9578E PKIC9579E

Page 3489 of 4462

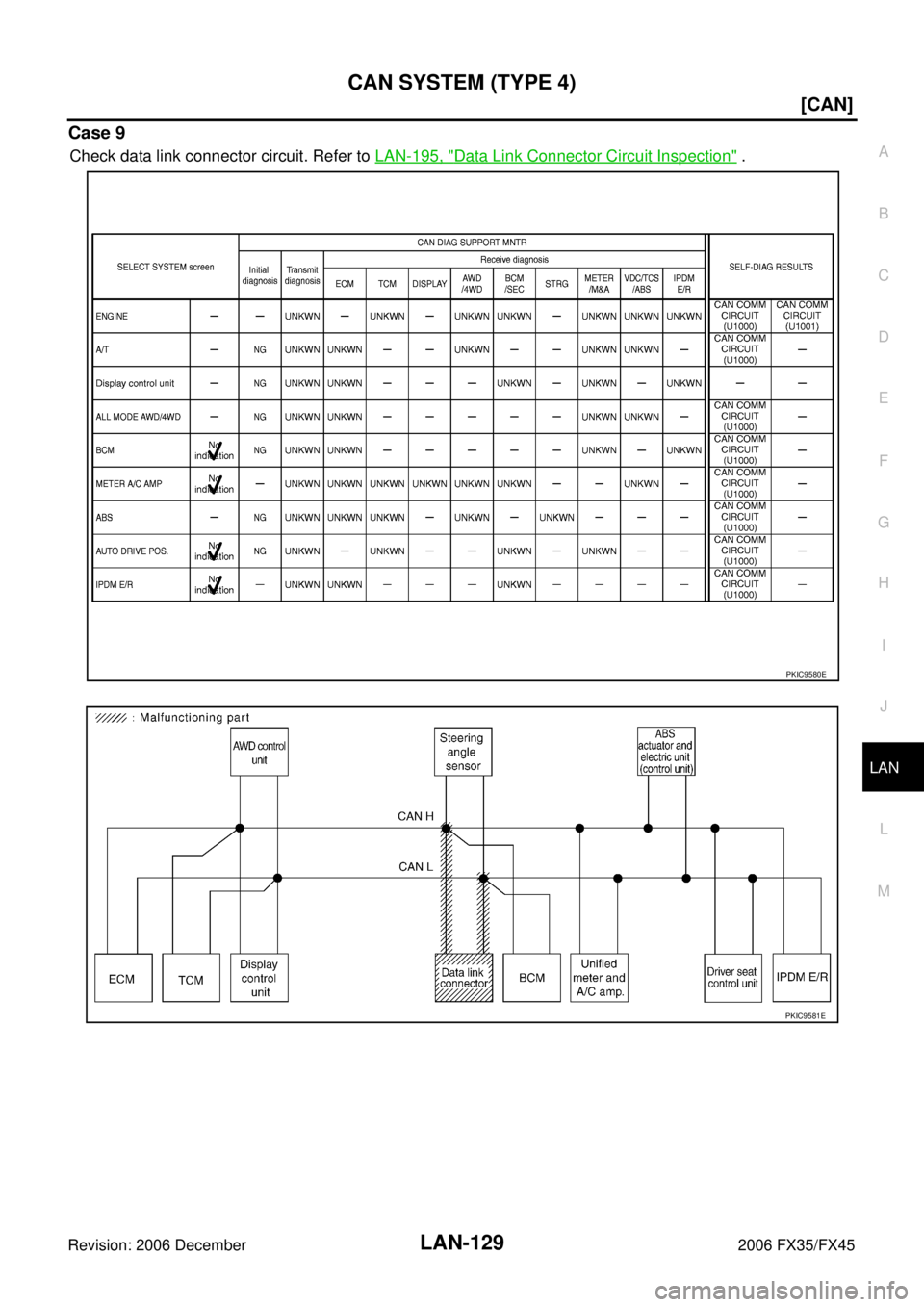

INFINITI FX35 2006 Service Manual CAN SYSTEM (TYPE 4) LAN-129 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 Case 9 Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circ

Page 3490 of 4462

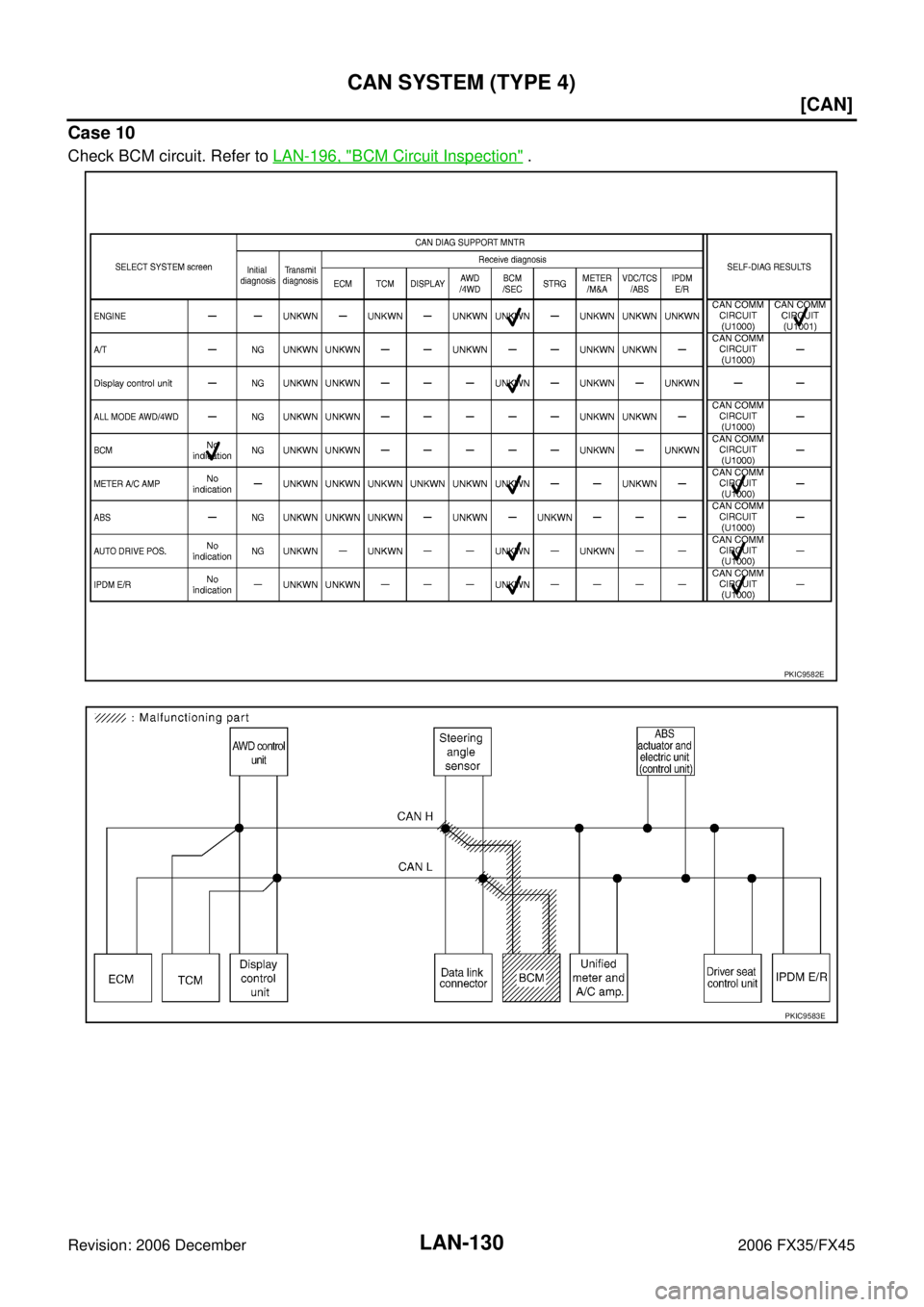

INFINITI FX35 2006 Service Manual LAN-130 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 December 2006 FX35/FX45 Case 10 Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" . PKIC9582E PKIC9583E
