INFINITI FX35 2007 Service Manual

TROUBLE DIAGNOSIS ATC-45
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 July 2007 FX35/FX45

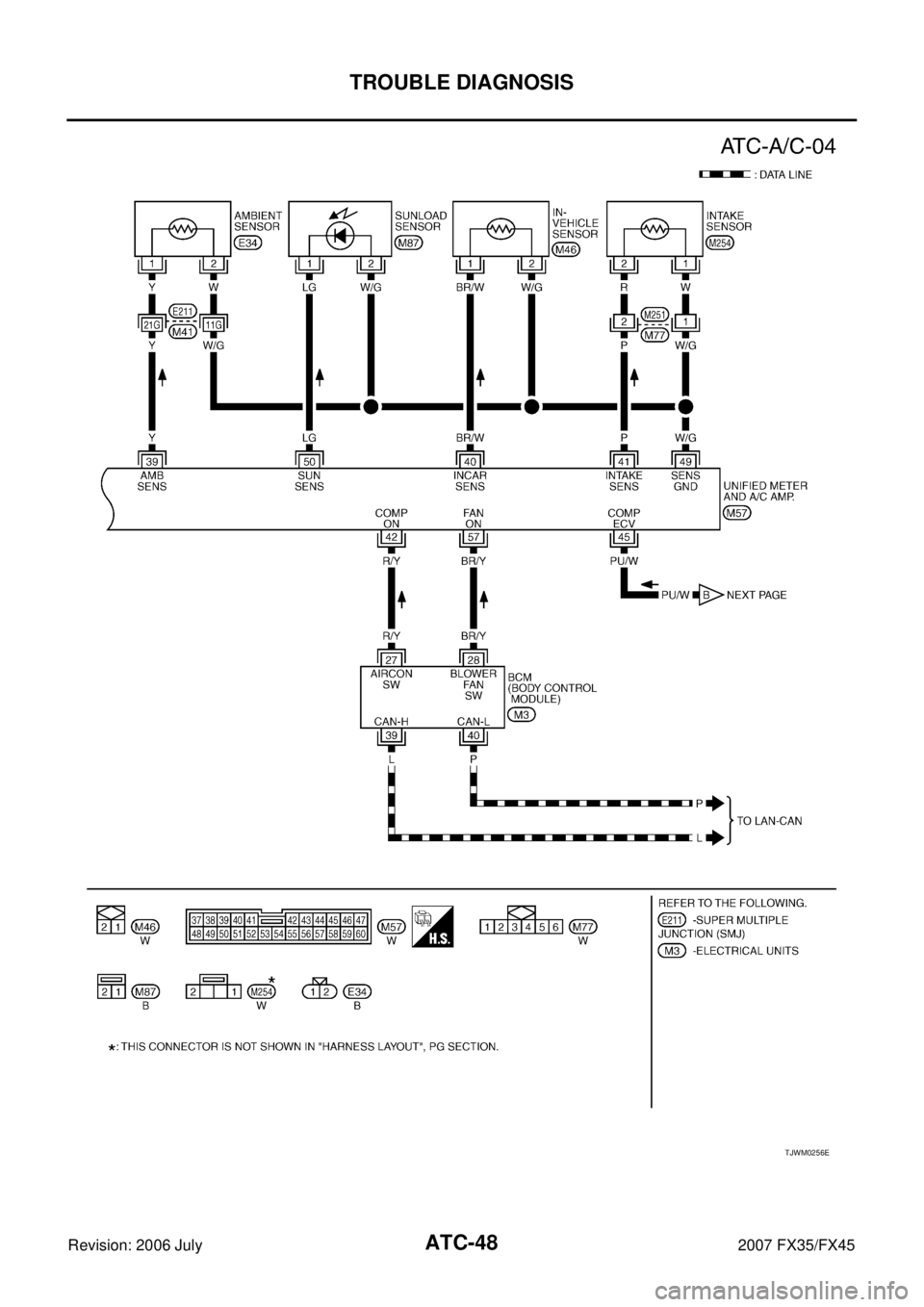

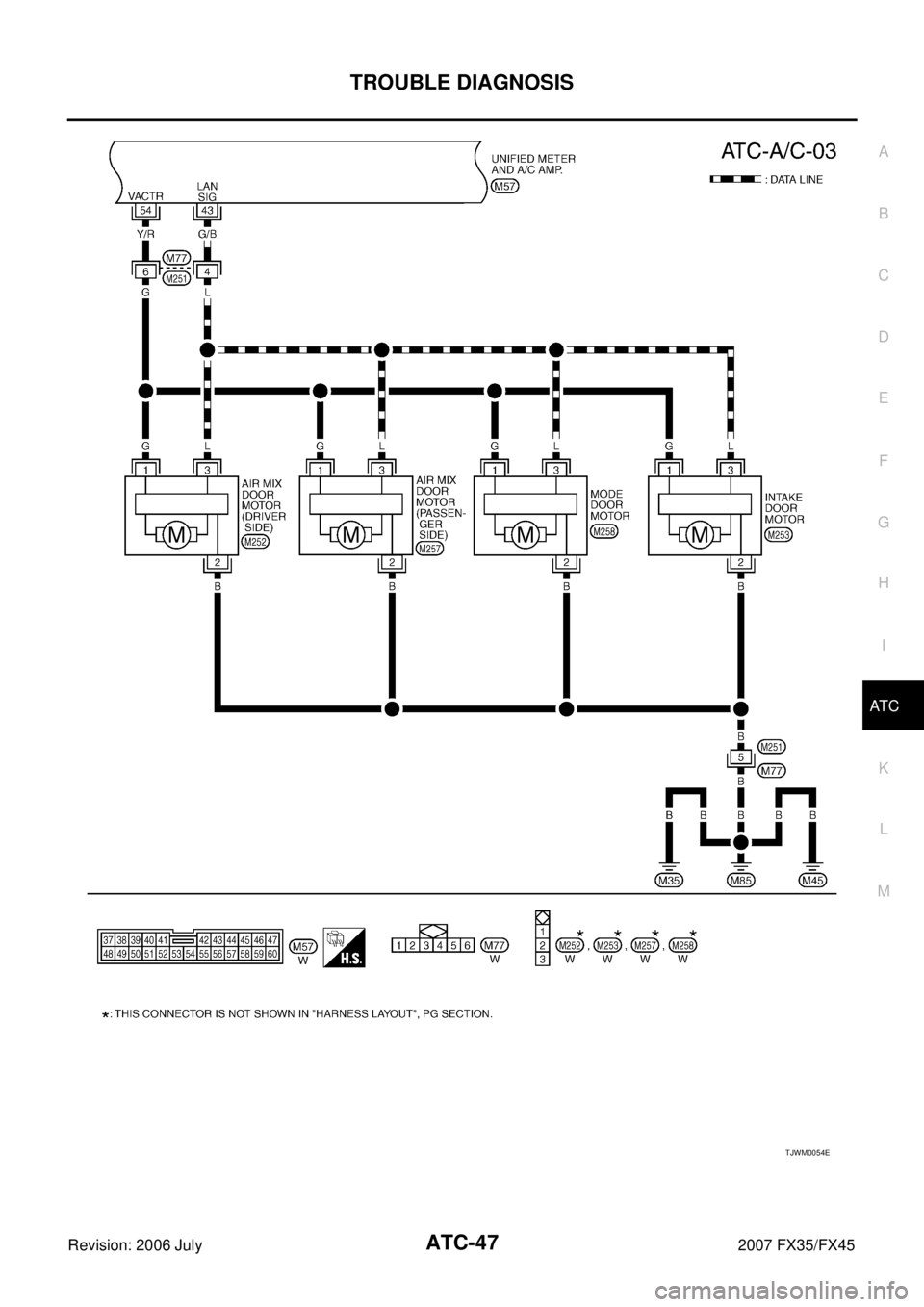

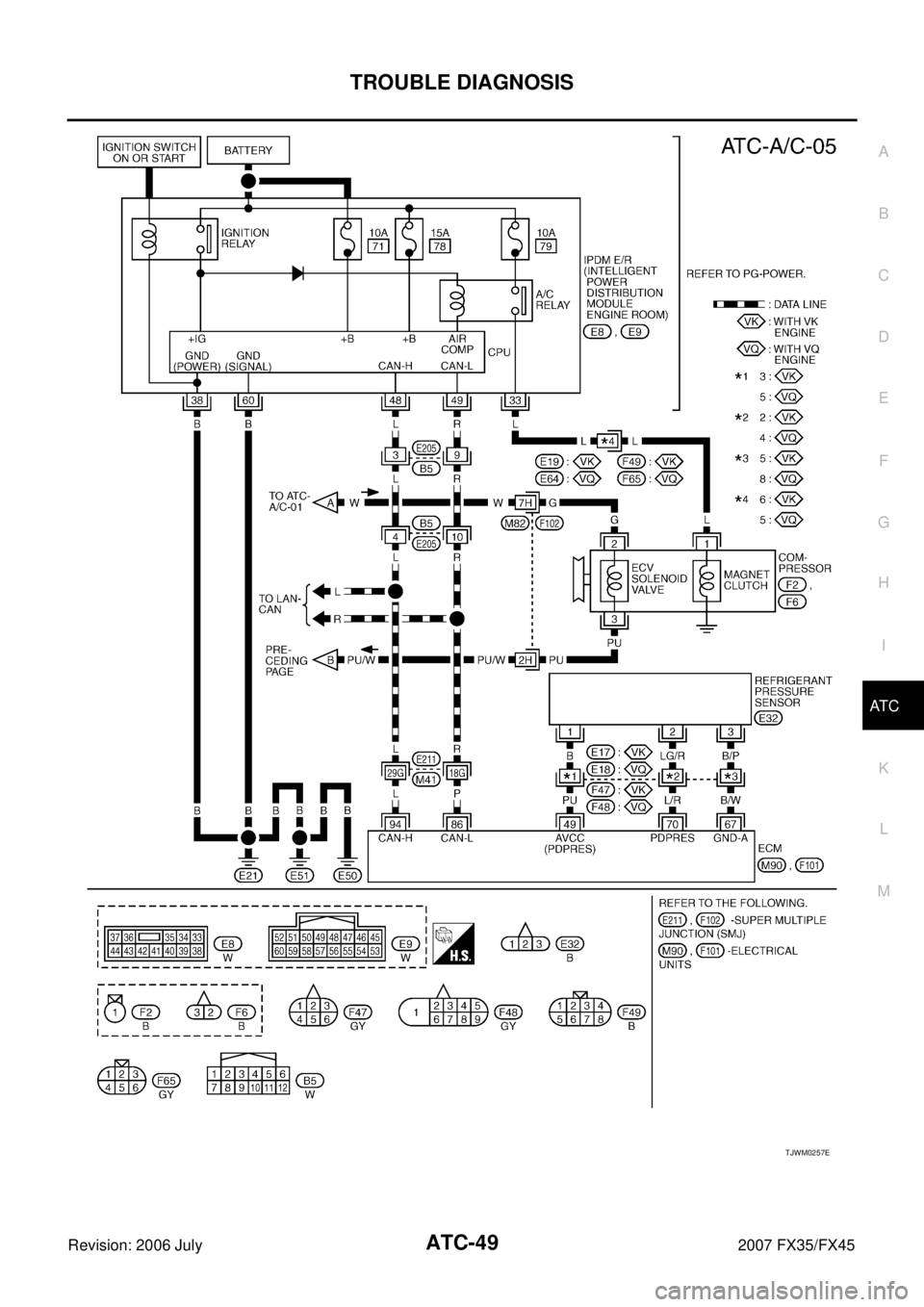

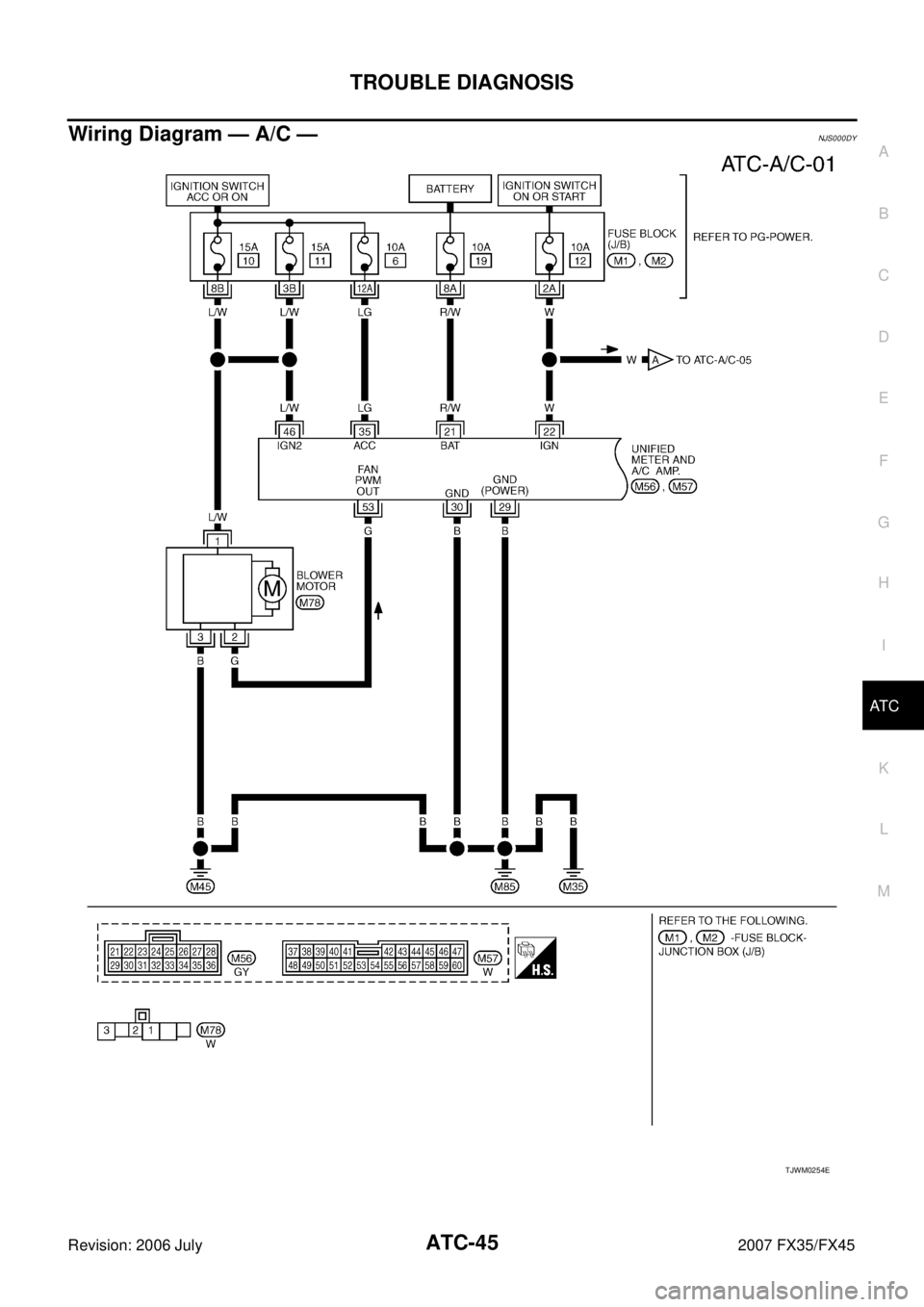

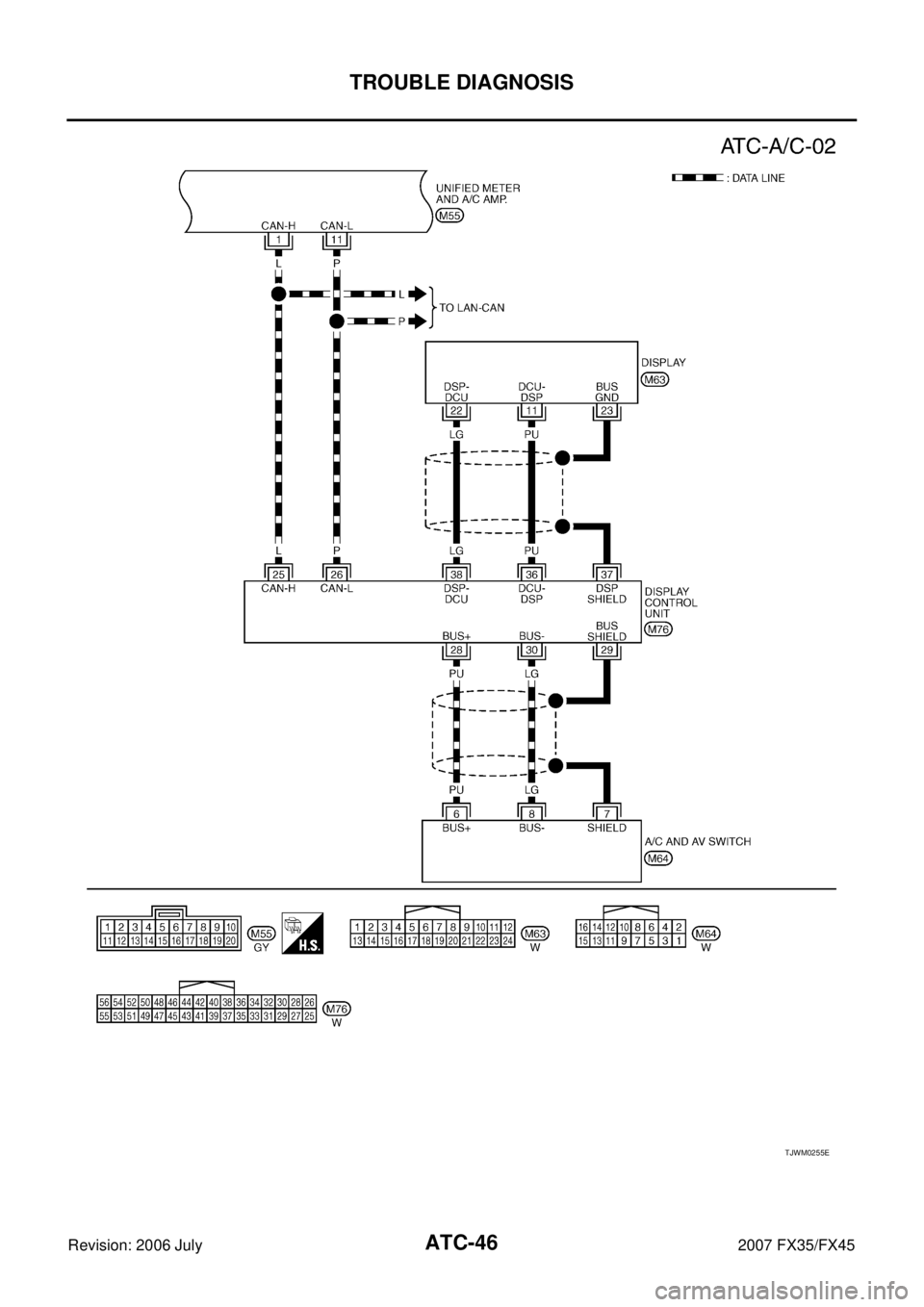

Wiring Diagram — A/C —NJS000DY
TJWM0254E

ATC-46
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TJWM0255E

TROUBLE DIAGNOSIS ATC-47
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 July 2007 FX35/FX45
TJWM0054E

ATC-48
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TJWM0256E

TROUBLE DIAGNOSIS ATC-49
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 July 2007 FX35/FX45
TJWM0257E

ATC-50
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Auto Amp. Terminals and Reference ValueNJS000DZ
Measure voltage between each terminal and ground by referring ter-
minals and reference value for unified meter and A/C amp.
PIN CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUE FOR UNIFIED METER AND A/C AMP.
SJIA1566E
RJIA1966E
Te r m i n a l No. Wire
color Item
Ignition
switch Condition
Voltag e
(V)
1 L CAN-H — — —
11 P C A N - L — — —
21 R/W Power supply from BAT OFF — Battery voltage
22 W Power supply from IGN ON — Battery voltage
29 B Ground (Power) ON — Approx. 0
30 B Ground ON — Approx. 0
35 LG Power supply from ACC ACC — Battery voltage
39 Y Ambient sensor — — —
40 BR/W In-vehicle sensor — — —
41 P Intake sensor — — —
42 R/Y Compressor ON signal ON A/C switch: ON
(Blower motor operates.) Approx. 0
OFF switch: ON
(A/C system: OFF)
43 G/B A/C LAN signal ON —
SJIA1423J
SJIA1453J

TROUBLE DIAGNOSIS ATC-51
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 July 2007 FX35/FX45
45 PU/W ECV (Electric Control Valve)
signal ON
Self-diagnosis. STEP-4
(Code No. 45)
46 L/W Power supply for IGN2 ON — Battery voltage
49 W/G Sensor ground ON — Approx. 0
50 LG Sunload sensor — — —
53 G Blower motor control signal ON Blower speed: 1st speed
(manual)
54 Y/R Power supply for each door
motor ON — Battery voltage
57 BR/Y Blower motor ON signal ON A/C switch: ON
(Blower motor operates.) Approx. 0
OFF switch: ON
(A/C system: OFF)
Terminal
No. Wire
color ItemIgnition
switch Condition Voltage
(V)
SJIA1607E
SJIA1454J
SJIA1474J

ATC-52
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Self-diagnosis FunctionNJS000E0
DESCRIPTION
The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from normal control to the self-diagnosis system is accomplished by
starting the engine (turning the ignition switch ON) and pressing OFF switch for at least 5 seconds. The OFF
switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from one step is
accomplished by means of pressing temperature control switch (driver side), as required.
Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing (fan) UP switch
(driver side).
SJIA1571E

TROUBLE DIAGNOSIS ATC-53
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 July 2007 FX35/FX45
FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned ON.), press OFF switch for at least 5 seconds.
NOTE:

If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower and as a
result, the system may generate an error even when operation is normal. To avoid this, start engine before
performing this diagnosis.

Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis function.
>> GO TO 2.
2. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Does code No. 20 appear on the display?
YES >> GO TO 3.
NO >> GO TO 13.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-3
Press temperature control (UP) switch (driver side).
Advance to self
-diagnosis STEP-3?
YES >> GO TO 4.
NO >> Replace A/C and AV switch. (Temperature control switch is malfunctioning.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-2
Press temperature control (DOWN) switch (driver side).
Return to self
-diagnosis STEP-2?
YES >> GO TO 5.
NO >> Malfunctioning A/C and AV switch or unified meter and A/C amp. Refer to ATC-101, "
Self-diagno-
sis" .
5. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
Press temperature control (UP) switch (driver side).
Does code No. 30 appear on the display?
YES >> GO TO 6.
NO >> GO TO 14.
SJIA1778E
SJIA1779E

ATC-54
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
6. STEP-4: OPERATION OF EACH DOOR MOTOR IS CHECKED
1. Press temperature control (UP) switch (driver side).
2. Press (DEF) switch. Code No. of each door motor test is indicated on the display.
>> GO TO 7.
7. CHECK ACTUATORS
Refer to the following chart and check discharge air flow, air temper-
ature, blower motor duty ratio and compressor operation.
Checks must be made visually, by listening the sound, or by touching air outlets with hand, etc. for improper
operation.
*1: FOOT position during automatic control. Refer to AT C - 5 9 , "
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER" .
OK or NG
OK >> GO TO 8.
NG >>

Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to AT C - 6 8 , "
Mode Door Motor Circuit" .

Intake door does not change.
Go to Intake Door Motor Circuit. Refer to AT C - 7 4 , "
Intake Door Motor Circuit" .

Discharge air temperature does not change.
Go to Air Mix Door Motor Circuit. Refer to AT C - 7 1 , "
Air Mix Door Motor Circuit" .

Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to AT C - 7 7 , "
Blower Motor Circuit" .

Magnet clutch does not engage.
Go to Magnet Clutch Circuit. Refer to AT C - 8 2 , "
Magnet Clutch Circuit" .
SJIA1780E
SJIA0302E
Code No. 41 42 43 44 45 46
Mode door position VENT B/L 1 B/L 2 FOOT
*1D/F DEF
Intake door position REC REC 20% FRE FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL HOT FULL HOT FULL HOT FULL HOT
Blower motor duty ratio 37% 91% 65% 65% 65% 91%
Compressor ON ON OFF OFF ON ON
Electronic control valve
(ECV) duty ratio 100% 100% 0% 0% 50% 100%
