seal INFINITI FX35 2008 Service Manual

EM-222
< SERVICE INFORMATION >[VK45DE]
OIL SEAL
OIL SEAL
Removal and Installation
of Valve Oil SealINFOID:0000000001325793
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-237, "Component".
2. Remove camshaft relating to valve oil seal to be removed. Refer to EM-211, "
Component".
3. Remove valve lifters. Refer to EM-211, "
Component".
 Identify installation positions, and store them without mixing them up.
4. Turn crankshaft until the cylinder requiring new oil seal s is at TDC. This will prevent valve from dropping
into cylinder.
5. Remove valve collet.  Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Remove valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
6. Remove valve spring retainer and valve spring (with valve spring seat). CAUTION:
Do not remove valve spring seat from valve spring.
7. Remove valve oil seal using valve oil seal puller (SST).
INSTALLATION
1. Apply new engine oil on new valve oil seal joint and seal lip.
2. Install valve oil seal.  Install with valve oil seal drift (SST) to match dimension in the
figure.
3. Install in the reverse order of removal.
Removal and Installation of Front Oil SealINFOID:0000000001325794
REMOVAL
PBIC2360E
PBIC0072E
PBIC0073E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OIL SEALEM-223
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
1. Remove the following parts:
 Front engine undercover
 Radiator: Refer to CO-40, "
Component".
 Drive belt: Refer to EM-170, "
Component".
 Cooling fan: Refer to CO-48, "
Component (Crankshaft Driven type)".
 Rear plate cover: Refer to EM-183, "
Component".
2. Remove crankshaft pulley as follows:
a. Set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley with both hands to remove it.
CAUTION:
 Do not remove crankshaft pulley bolt. Keep loosenedcrankshaft pulley bolt in place to protect removed crank-
shaft pulley from dropping.
 Do not remove balance weight (inner hexagon bolt) at the
front of crankshaft pulley.
3. Remove front oil seal using suitable tool. CAUTION:
Be careful not to damage front cover and oil pump drive
spacer.
INSTALLATION
1. Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.
2. Install front oil seal. Install front oil seal so that each seal lip is oriented as shown in
the figure.
PBIC1656E
SBIA0358E
SBIA0359E
SEM715A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-224
< SERVICE INFORMATION >[VK45DE]
OIL SEAL

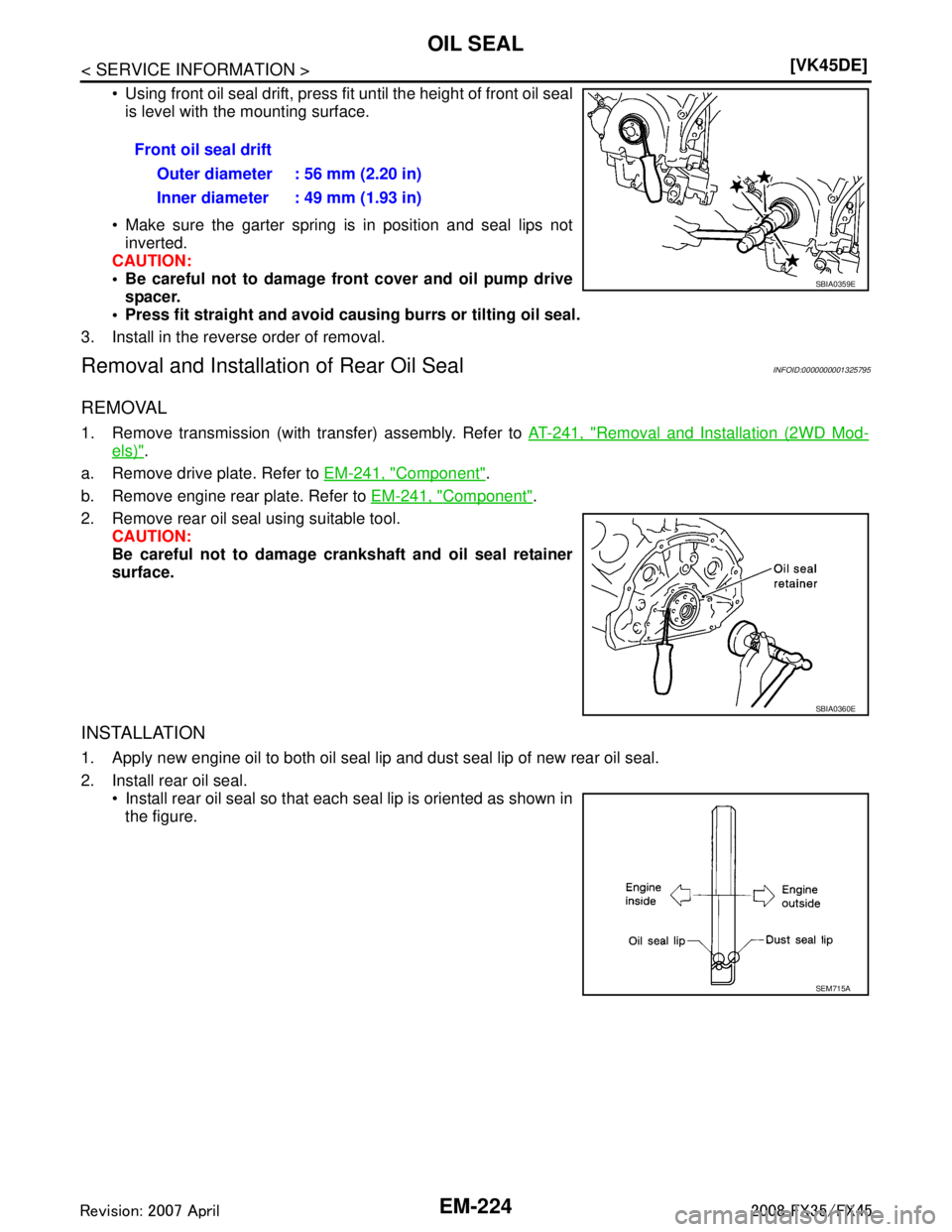

 Using front oil seal drift, press fit until the height of front oil seal
is level with the mounting surface.
 Make sure the garter spring is in position and seal lips not inverted.
CAUTION:
 Be careful not to damage front cover and oil pump drive spacer.
 Press fit straight and avoid cau sing burrs or tilting oil seal.
3. Install in the reverse order of removal.
Removal and Installation of Rear Oil SealINFOID:0000000001325795
REMOVAL
1. Remove transmission (with transfer) assembly. Refer to AT-241, "Removal and Installation (2WD Mod-
els)".
a. Remove drive plate. Refer to EM-241, "
Component".
b. Remove engine rear plate. Refer to EM-241, "
Component".
2. Remove rear oil seal using suitable tool. CAUTION:
Be careful not to damage crankshaft and oil seal retainer
surface.
INSTALLATION
1. Apply new engine oil to both oil seal lip and dust seal lip of new rear oil seal.
2. Install rear oil seal. Install rear oil seal so that each seal lip is oriented as shown inthe figure.Front oil seal drift
Outer diameter : 56 mm (2.20 in)
Inner diameter : 49 mm (1.93 in)
SBIA0359E
SBIA0360E
SEM715A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OIL SEALEM-225
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

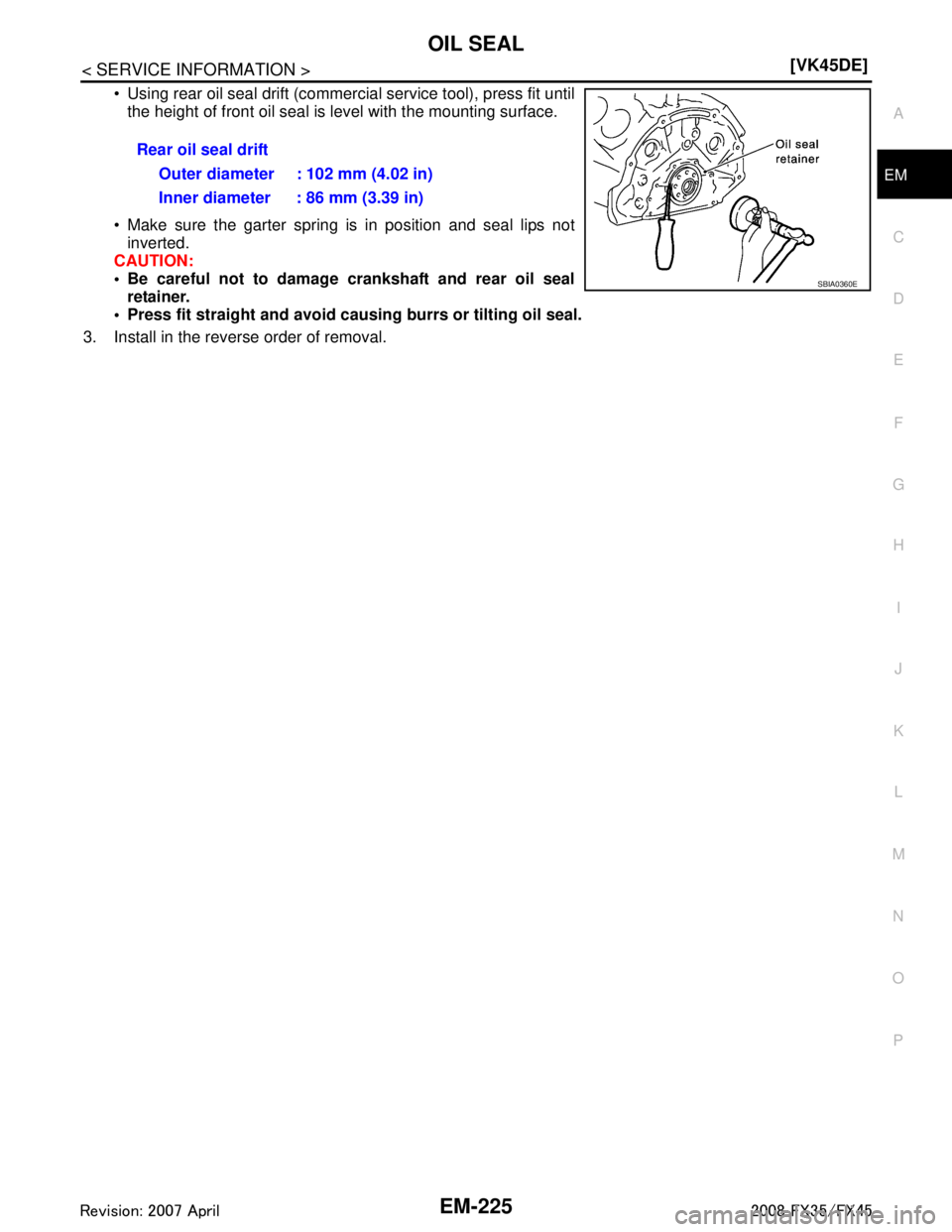

 Using rear oil seal drift (commercial service tool), press fit until
the height of front oil seal is level with the mounting surface.
 Make sure the garter spring is in position and seal lips not inverted.
CAUTION:
 Be careful not to damage crankshaft and rear oil seal retainer.
 Press fit straight and avoid cau sing burrs or tilting oil seal.
3. Install in the reverse order of removal. Rear oil seal drift
Outer diameter : 102 mm (4.02 in)
Inner diameter : 86 mm (3.39 in)
SBIA0360E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-230
< SERVICE INFORMATION >[VK45DE]
CYLINDER HEAD
 Refer to
GI-8, "Component" for symbols in the figure.
DISASSEMBLY
1. Remove spark plug with spark plug wrench (commercial service tool).
2. Remove valve lifter.
 Identify installation positions, and store them without mixing them up.
3. Remove valve collet.  Compress valve spring with valve spring compressor, attach-ment and adapter (SST). Remove valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
4. Remove valve spring retainer and valve spring (with valve spring seat). CAUTION:
Do not remove valve spring seat from valve spring.
5. Push valve stem to combustion chamber side, and remove valve.  Identify installation positions, and store them without mixing them up.

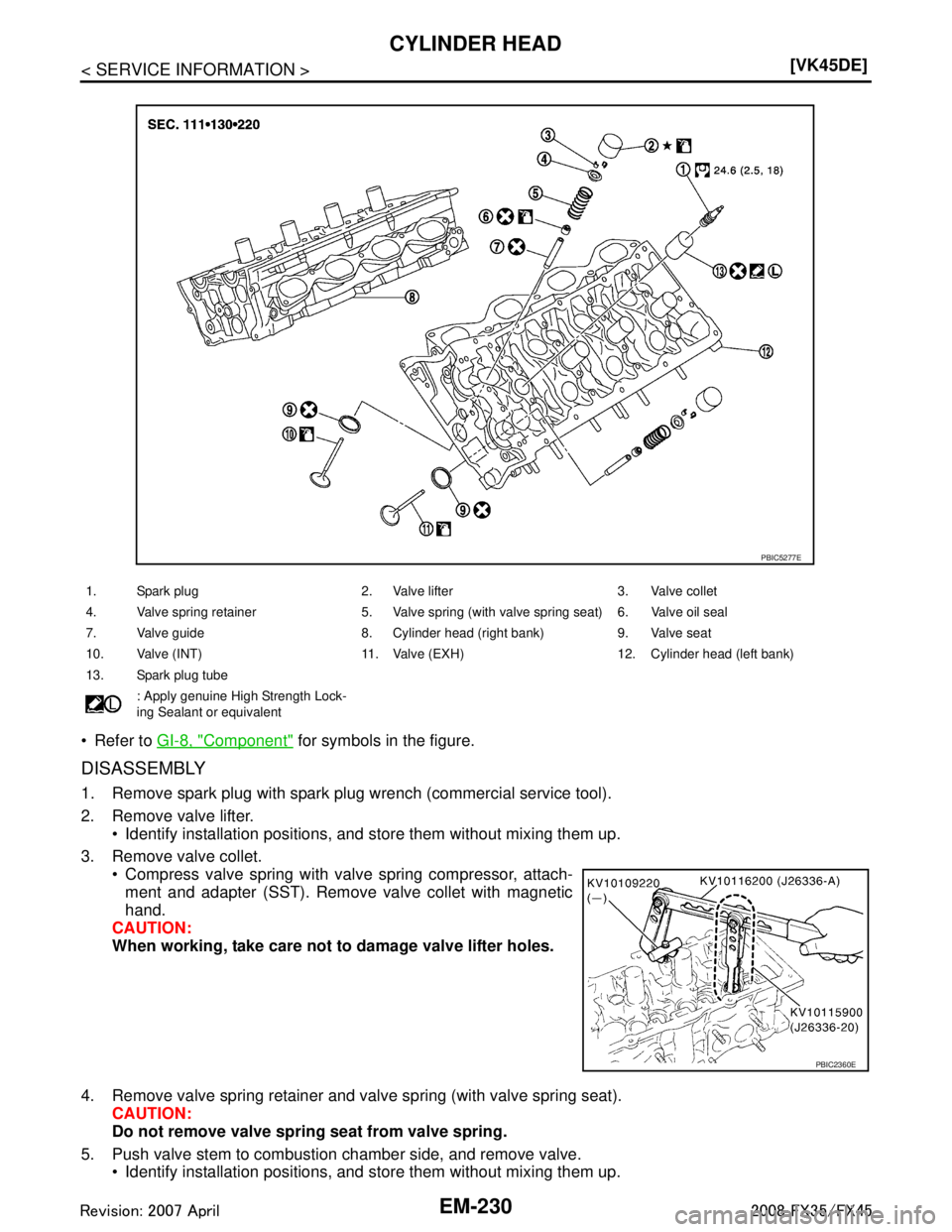

PBIC5277E
1. Spark plug 2. Valve lifter 3. Valve collet
4. Valve spring retainer 5. Valve spring (with valve spring seat) 6. Valve oil seal
7. Valve guide 8. Cylinder head (right bank) 9. Valve seat
10. Valve (INT) 11. Valve (EXH) 12. Cylinder head (left bank)
13. Spark plug tube
: Apply genuine High Strength Lock-
ing Sealant or equivalent
PBIC2360E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CYLINDER HEADEM-231
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

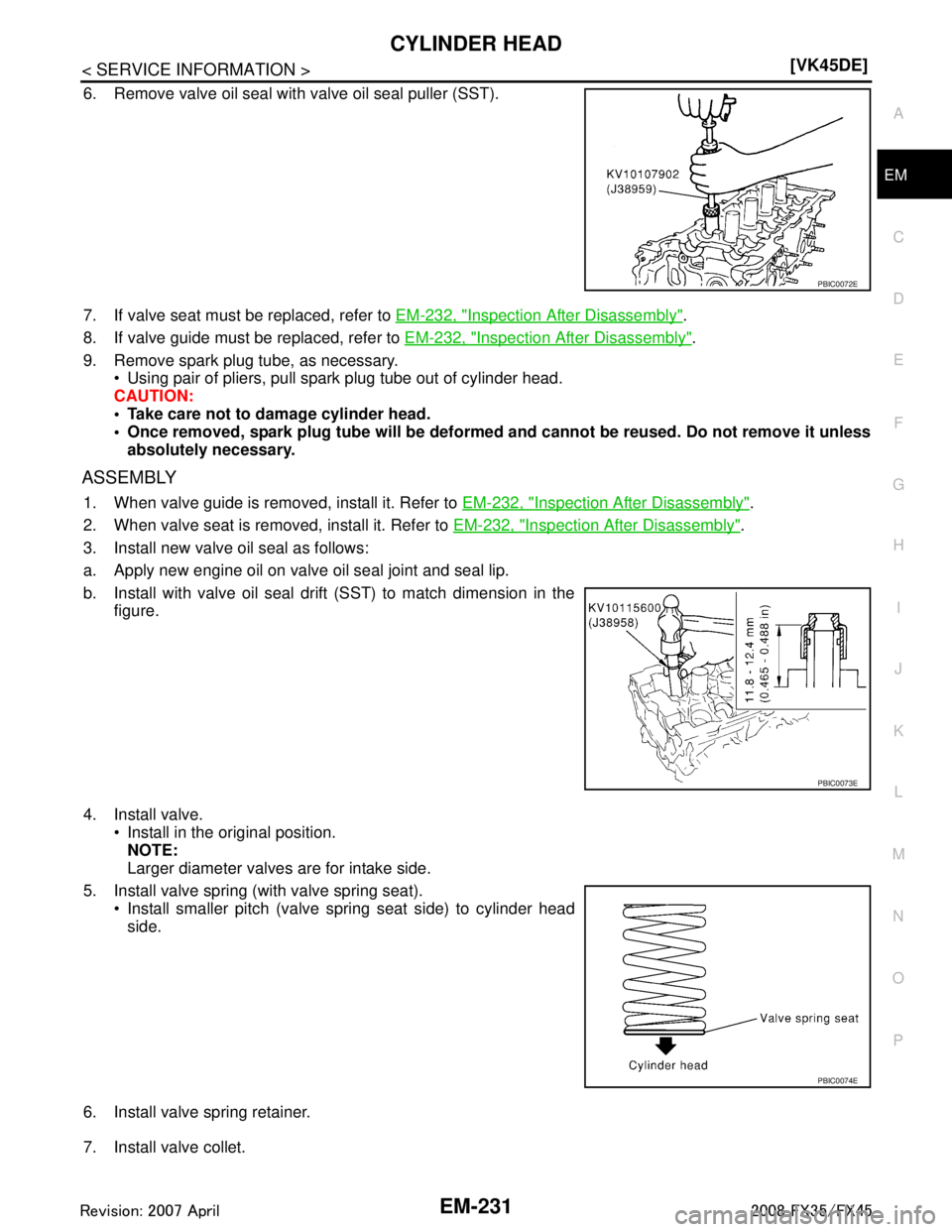

6. Remove valve oil seal with valve oil seal puller (SST).
7. If valve seat must be replaced, refer to
EM-232, "
Inspection After Disassembly".
8. If valve guide must be replaced, refer to EM-232, "
Inspection After Disassembly".
9. Remove spark plug tube, as necessary.  Using pair of pliers, pull spark plug tube out of cylinder head.
CAUTION:
 Take care not to damage cylinder head.
 Once removed, spark plug tube will be deforme d and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-232, "Inspection After Disassembly".
2. When valve seat is removed, install it. Refer to EM-232, "
Inspection After Disassembly".
3. Install new valve oil seal as follows:
a. Apply new engine oil on valve oil seal joint and seal lip.
b. Install with valve oil seal drift (SST) to match dimension in the figure.
4. Install valve.  Install in the original position.NOTE:
Larger diameter valves are for intake side.
5. Install valve spring (with valve spring seat).  Install smaller pitch (valve spring seat side) to cylinder head
side.
6. Install valve spring retainer.
7. Install valve collet.
PBIC0072E
PBIC0073E
PBIC0074E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-232
< SERVICE INFORMATION >[VK45DE]
CYLINDER HEAD

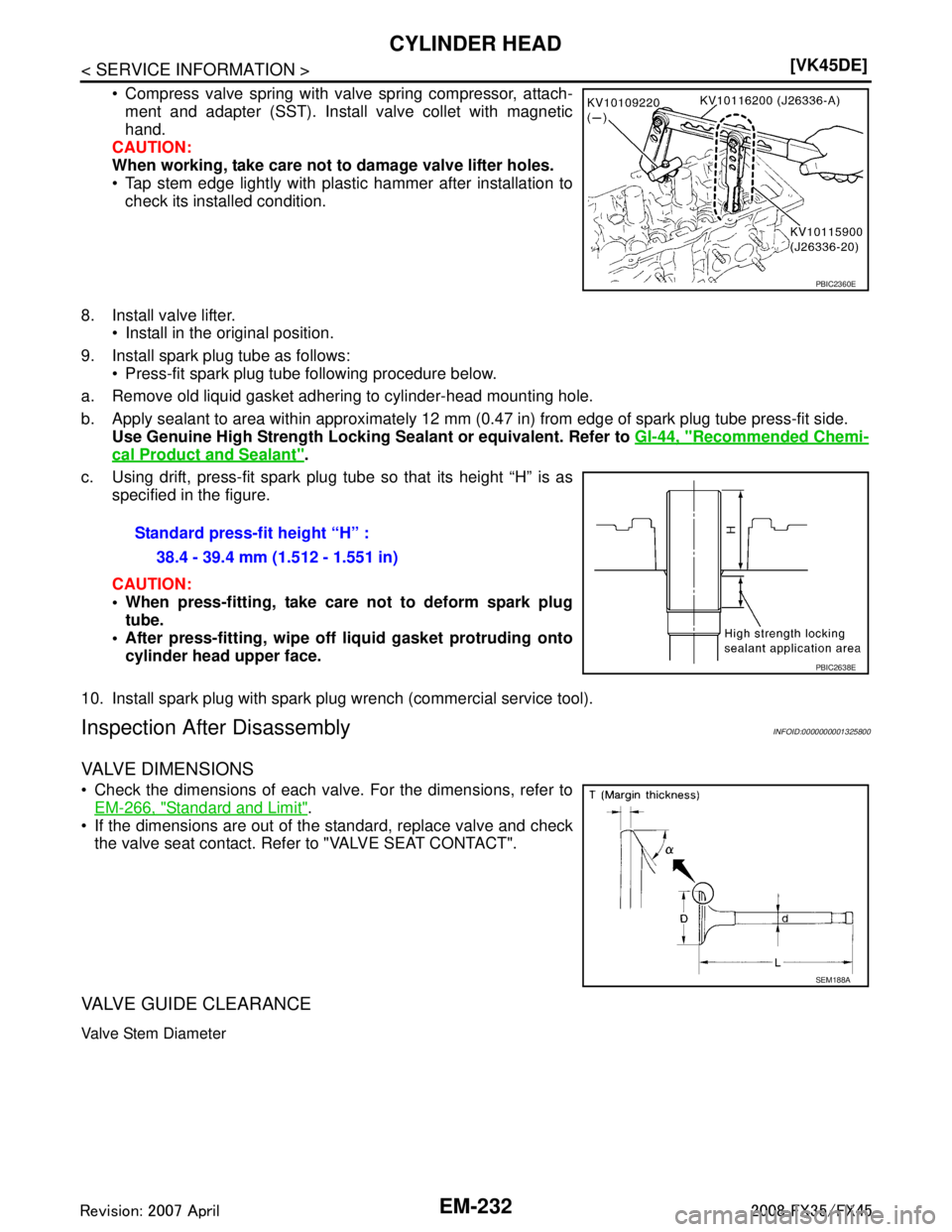

 Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Install valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
 Tap stem edge lightly with plastic hammer after installation to check its installed condition.
8. Install valve lifter.  Install in the original position.
9. Install spark plug tube as follows:  Press-fit spark plug tube following procedure below.
a. Remove old liquid gasket adhering to cylinder-head mounting hole.
b. Apply sealant to area within approximately 12 mm (0 .47 in) from edge of spark plug tube press-fit side.
Use Genuine High Strength Locking S ealant or equivalent. Refer to GI-44, "
Recommended Chemi-
cal Product and Sealant".
c. Using drift, press-fit spark plug tube so that its height “H” is as specified in the figure.
CAUTION:
 When press-fitting, take care not to deform spark plug
tube.
 After press-fitting, wipe off liquid gasket protruding onto
cylinder head upper face.
10. Install spark plug with spark plug wrench (commercial service tool).
Inspection After DisassemblyINFOID:0000000001325800
VALVE DIMENSIONS
 Check the dimensions of each valve. For the dimensions, refer to EM-266, "
Standard and Limit".
 If the dimensions are out of t he standard, replace valve and check
the valve seat contact. Refer to "VALVE SEAT CONTACT".
VALVE GUIDE CLEARANCE
Valve Stem Diameter
PBIC2360E
Standard press-fit height “H” :
38.4 - 39.4 mm (1.512 - 1.551 in)
PBIC2638E
SEM188A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-242
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
 Refer to
GI-8, "Component" for symbols in the figure.
Disassembly and AssemblyINFOID:0000000001325804
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1. Remove engine assembly from vehicle, and separa te front suspension member, transmission and front
final drive from engine. Refer to EM-237, "
Component".
2. Remove the parts that may restrict installation of engine to widely use engine stand. NOTE:
The procedure is described assuming that you use wi dely use engine holding the surface, to which trans-
mission is installed.
a. Remove drive plate.  Holding ring gear with ring gear stopper (SST).
 Loosen mounting bolts diagonally order.
CAUTION:
 Do not disassemble drive plate.
 Do not place drive plate with signal plate facing down.
 When handling signal plate, take care not to damage or scratch it.
 Handle signal plate in a manner that prevents it from becoming magnetized.
b. Remove engine rear plate.
3. Lift engine with hoist to install it onto widely use engine stand. CAUTION:
Use engine stand that has a load capacity [approximately 240 kg ( 529 lb) or more] large enough for
supporting the engine weight.
 If the load capacity of stand is not adequate, remo ve the following parts beforehand to reduce the poten-
tial risk of overturning stand.
- Intake manifolds (upper and lower): Refer to EM-175, "
Component".
- Exhaust manifold: Refer to EM-179, "
Component".
- Fuel tube and fuel injector assembly: Refer to EM-190, "
Component".
22. Main bearing 23. Rear plate 24. Crankshaft
25. Pilot converter 26. Drive plate 27. Thrust bearing
28. Side bolt 29. Reinforcement plate 30. Crankshaft position sensor (POS)
31. O-ring 32. Rear oil seal 33. Rear oil seal retainer
A.Refererence: Installed on transmis-
sion B. Refer to
EM-242
C. Right bank
D. Cylinder block heater (For Canada) E. Chamfered F. Crankshaft side : Engine front
PBIC1656E
PBIC2367E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-244
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK

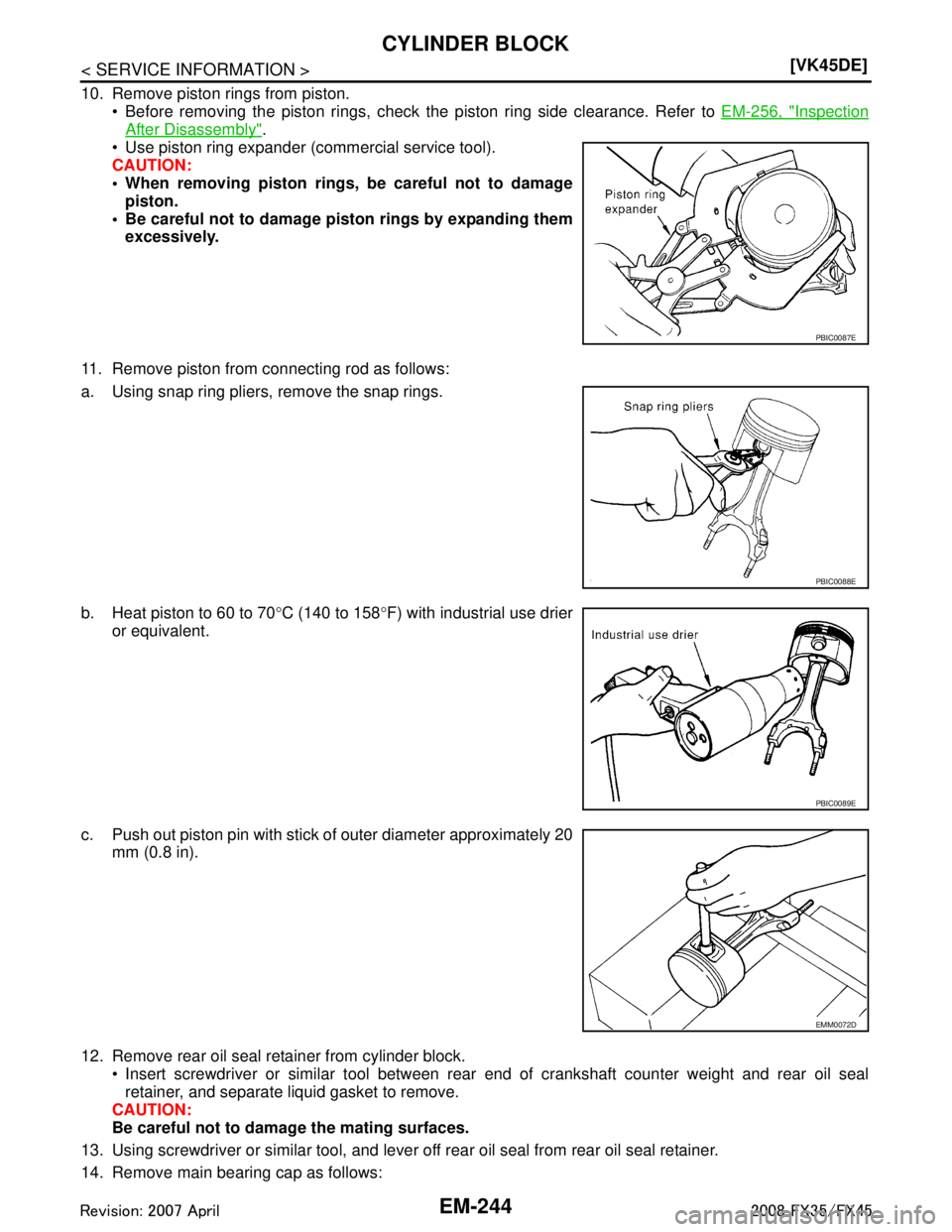

10. Remove piston rings from piston.
 Before removing the piston rings, check the piston ring side clearance. Refer to EM-256, "
Inspection
After Disassembly".
 Use piston ring expander (commercial service tool).
CAUTION:
 When removing piston rings, be careful not to damage piston.
 Be careful not to damage piston rings by expanding them
excessively.
11. Remove piston from connecting rod as follows:
a. Using snap ring pliers, remove the snap rings.
b. Heat piston to 60 to 70 °C (140 to 158 °F) with industrial use drier
or equivalent.
c. Push out piston pin with stick of outer diameter approximately 20 mm (0.8 in).
12. Remove rear oil seal retainer from cylinder block.  Insert screwdriver or similar tool between rear end of crankshaft counter weight and rear oil sealretainer, and separate liquid gasket to remove.
CAUTION:
Be careful not to damage the mating surfaces.
13. Using screwdriver or similar tool, and lever off rear oil seal from rear oil seal retainer.
14. Remove main bearing cap as follows:
PBIC0087E
PBIC0088E
PBIC0089E
EMM0072D
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CYLINDER BLOCKEM-245
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

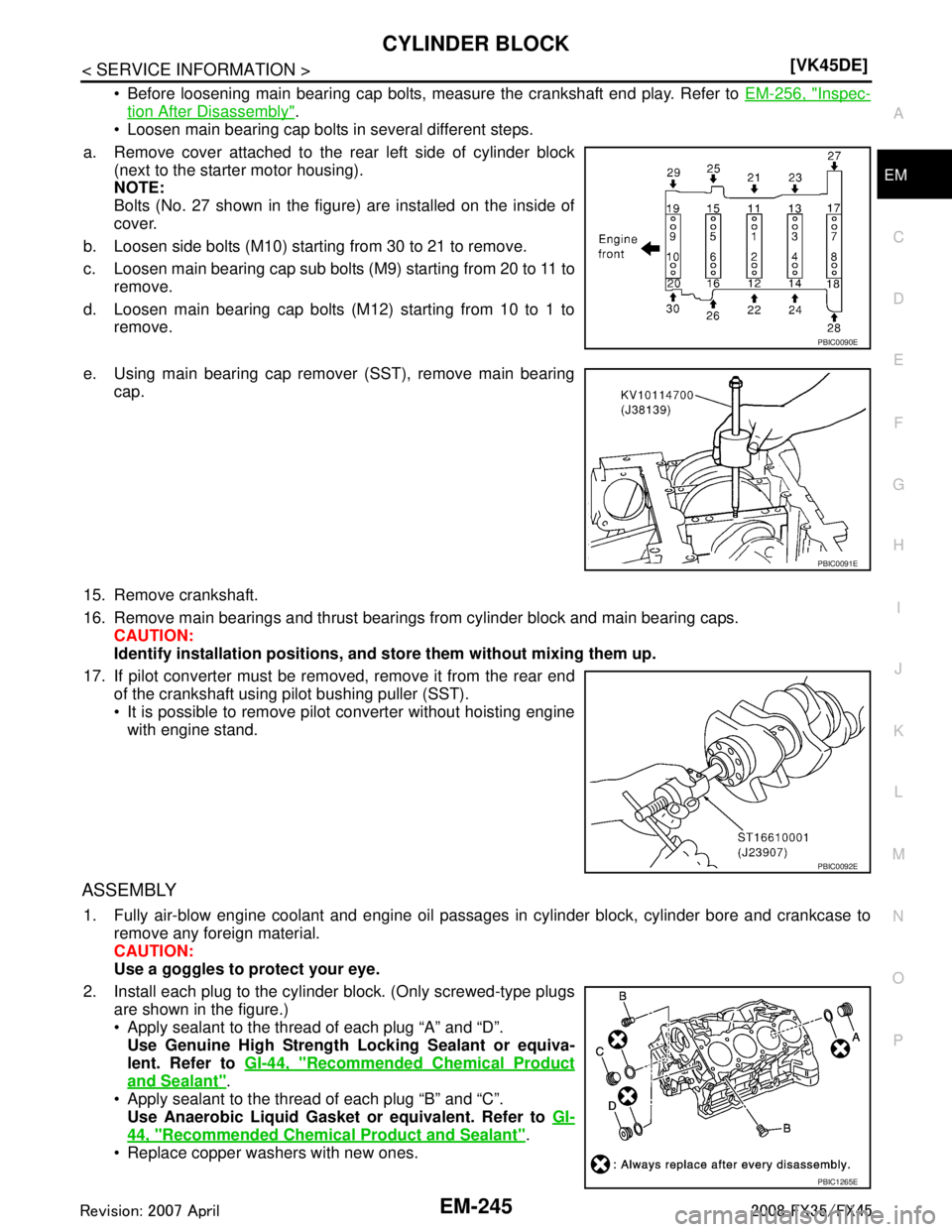

 Before loosening main bearing cap bolts, measure the crankshaft end play. Refer to
EM-256, "Inspec-
tion After Disassembly".
 Loosen main bearing cap bolts in several different steps.
a. Remove cover attached to the rear left side of cylinder block (next to the starter motor housing).
NOTE:
Bolts (No. 27 shown in the figure) are installed on the inside of
cover.
b. Loosen side bolts (M10) starting from 30 to 21 to remove.
c. Loosen main bearing cap sub bolts (M9) starting from 20 to 11 to remove.
d. Loosen main bearing cap bolts (M12) starting from 10 to 1 to remove.
e. Using main bearing cap remover (SST), remove main bearing cap.
15. Remove crankshaft.
16. Remove main bearings and thrust bearings from cylinder block and main bearing caps. CAUTION:
Identify installation po sitions, and store them without mixing them up.
17. If pilot converter must be remov ed, remove it from the rear end
of the crankshaft using pilot bushing puller (SST).
 It is possible to remove pilot converter without hoisting engine with engine stand.
ASSEMBLY
1. Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to remove any foreign material.
CAUTION:
Use a goggles to protect your eye.
2. Install each plug to the cylinder block. (Only screwed-type plugs are shown in the figure.)
 Apply sealant to the thread of each plug “A” and “D”.
Use Genuine High Strength Locking Sealant or equiva-
lent. Refer to GI-44, "
Recommended Chemical Product
and Sealant".
 Apply sealant to the thread of each plug “B” and “C”. Use Anaerobic Liquid Gasket or equivalent. Refer to GI-
44, "Recommended Chemical Product and Sealant".
 Replace copper washers with new ones.
PBIC0090E
PBIC0091E
PBIC0092E
PBIC1265E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
