LASER BEAM AIMING ADJUSTMENT
LASER BEAM AIMING ADJUSTMENT
OutlineINFOID:0000000001328812
Adjust the laser beam aiming every time the ICC sensor is removed or installed.
CAUTION:
 Adjust laser beam aiming at a horizontal place as
far as 12 m (39 ft) forward the vehicle can be seen.
 Adjust laser beam aiming 5 seconds after starting engine.
 Never view ICC sensor integrated un it body window directly during laser beam aiming adjustment.
 Follow the CONSULT-III when adju sting the laser beam aiming (laser beam aiming adjustment can-
not be operated without CONSULT-III).
 Never ride on vehicle during l aser beam aiming adjustment.
 Idle and turn headlamps OFF duri ng laser beam aiming adjustment.
PreparationINFOID:0000000001328813
 Adjust the tire pressure to the specified value.
 See that there is no load in the vehicle.
 Coolant, engine oil filled up to correct level and full fuel tank.
 Shift the gear into “P” position and release the parking brake.
 Clean the ICC sensor with a soft cloth.
Outline of Adjustment ProcedureINFOID:0000000001328814
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSUL T-III. (Turn manually the screw for up-down position
adjustment. ICC sensor automatically adjust the right-left position.)
Setting the ICC Target BoardINFOID:0000000001328815
Accurate ICC target board setting is required for the laser beam aiming adjustment.
CAUTION:
ICC system does not function normally if laser beam aiming is not accurate.
ADJUSTING HEIGHT OF THE TARGET
1. Attach a triangle scale at the center.
SKIA6179E
SKIA5974E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LASER BEAM AIMING ADJUSTMENTACS-15
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
2. Adjust the height of the target board stand so that the point of the triangle aims the cent er of the ICC sensor.
ADJUSTING THE RIGHT-LEFT POSITION OF THE TARGET
1. Attach a scale [at least 350 mm (14 in) or longer] or stick as
shown in the figure.
2. Suspend a thread with weight on the tip of the thread to 310 mm (12.2 in) left side of the target board from the center of the target
board on top.
SETTING THE TARGET
1. Suspend a thread with weight on tip to splice the cent er of the front and rear bumpers. Then, mark the
center point on the ground as each weight points.
2. Link the front and rear bumpers center points ma rked on the ground, and mark a point 5 m (16.4 ft) ahead
of the sensor, on the extended line of the previous lin k line of the bumper center points. Then, adjust the
position of the target board so that the weight come on the top of the marked point [5 m (16.4 ft) ahead of
the sensor] and face to the vehicle.
3. Adjust the position of the target board so that the extended line that links the center of the rear window glass (the center of the
rear window defogger pattern) and the center of the windshield
(the setting part of the room mirror) align with the weight sus-
pended from the board.
4. Remove the thread suspended to the left side of board and sus- pend a thread with weight on tip on the center of the target
board. Then mark the point of weight on the ground.
SKIA6180E
SKIA1211E
SKIA5975E
SKIA1213E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ACS-16
< SERVICE INFORMATION >[ICC]
LASER BEAM AIMING ADJUSTMENT
5. Pivot the edge of the target board 20
° to either side.
NOTE:
Approx. 50 mm (1.97 in) shift rates the 20 ° movement.
6. Do not place anything in the space shown in the figure (view from top). NOTE:
In case the space shown in the figure is not availabl e, make space by covering the side of the target board
with a 400 mm (15.75 in)-size frosted black board or black cloth.
Aiming AdjustmentINFOID:0000000001328816
CAUTION:
Never view ICC sensor integrated unit body windo w directly during laser beam aiming adjustment.
NOTE:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown in the proce-
dure. If the procedure does not complete, the ICC system is inoperable.
1. Connect CONSULT-III and select “Work Support” of “ICC”.
2. Select “LASER BEAM ADJUST”.
3. Touch “START”.
NOTE:
If the adjustment screen does not appear on the CO NSULT-III screen in 10 seconds. After touching
“LASER BEAM ADJUST” screen, the following causes may be considered:
 Target is not set accurately.
 There is not enough space beside the target.
 Deformation of vehicle or the surrounding equipm ent unit, bracket, or the surrounding equipment is
causing inappropriate installation of sensor and aiming may be set out of the adjustable range.
 The area is not suitable for the adjustment work.
 ICC sensor is not clean.
 The ICC system warning lamp illuminates.
4. After the CONSULT-III displays “ADJUST THE VER TICAL OF LASER BEAM AIMING” turn the up-down
direction adjusting screw until “U/D CO RRECT” value is set in the range of ±4.
PKIA2589E
SKIA5976E
SKIA1216E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LASER BEAM AIMING ADJUSTMENTACS-17
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
NOTE:
 Turn the screw slowly. The value change on display is slower than actual movement of the ICC sensor.
Wait for 2 seconds every time the screw is turned half a rotation.
 Turning the screw to the right lowers the aiming and to the left lifts the aiming.
5. When “U/D CORRECT” value indicates ±4, confirm that the margin of value remains within ±4 at least for
2 seconds with no equipment or hand touching the ICC sensor.
When “COMPLETED THE VERTICAL AIMING OF LASER BEAM” appears on screen, touch “END”.
NOTE:
Be sure that the margin of “U/D CORRECT” is within ±4 with ICC sensor unit is untouched.
6. Confirm that “ADJUSTING AUTOMATIC HORIZONT AL LASER BEAM AIMING” is on screen and wait for
a while (maximum: 10 seconds).
7. Confirm that “NORMALLY COMPLETED” is disp layed on CONSULT-III and close the aiming adjustment
procedure by touching “END”.
NOTE:
Complete all the procedures once “LASER BEAM AD JUST” mode is entered in CONSULT-III. When the
procedure is discontinued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by running test. Refer to ACS-11, "ICC System Running Test".
SKIA6181E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ACS-18
< SERVICE INFORMATION >[ICC]

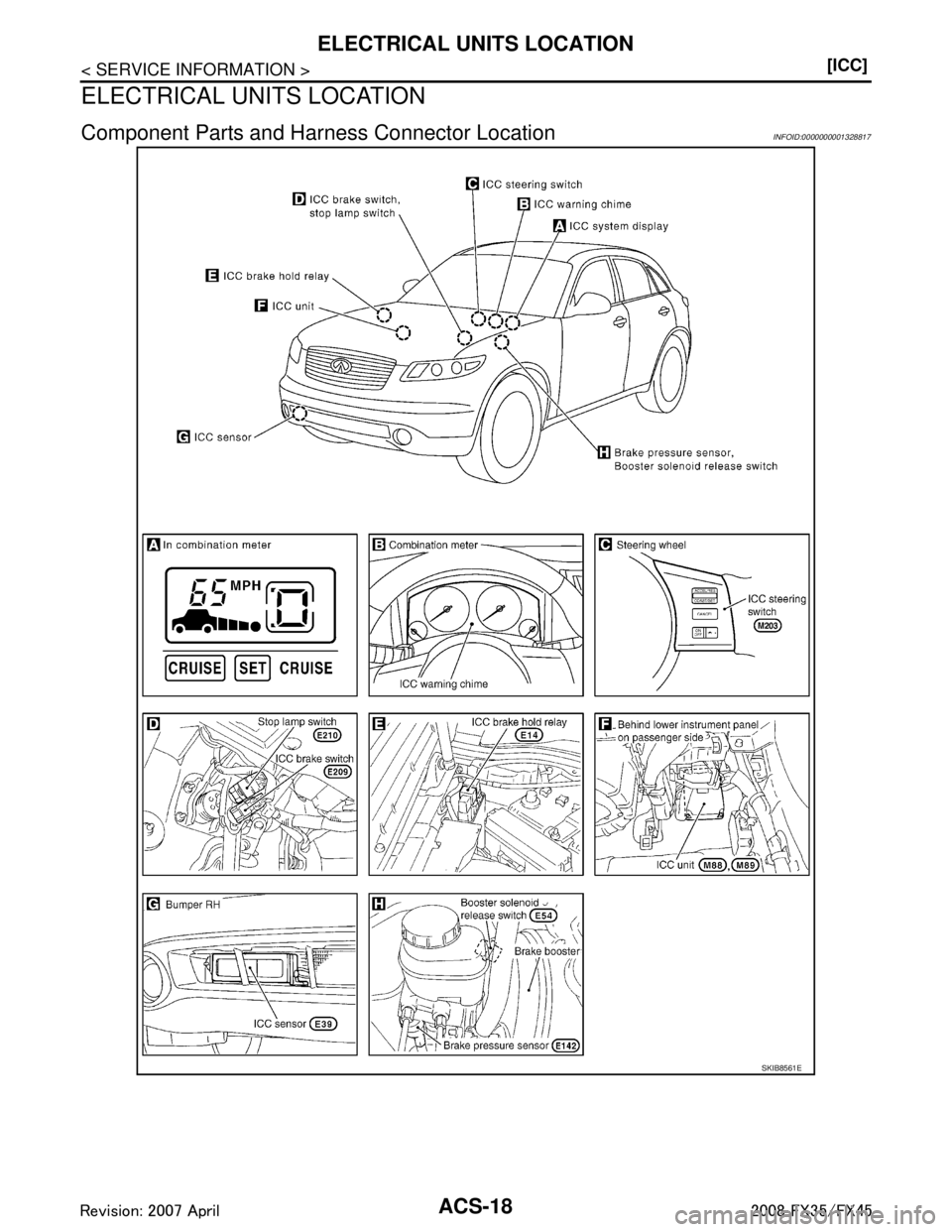

ELECTRICAL UNITS LOCATION
