DTC P1572 ASCD BRAKE SWITCH
DTC P1572 ASCD BRAKE SWITCH
Component DescriptionINFOID:0000000001326942
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to
EC-615
for the ASCD function.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326943
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326944
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first pe rform the trouble diagnosis for DTC P0605. Refer
to EC-1007
.
 This self-diagnosis has the one tr ip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when igniti on switch OFF. And even when ma lfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
DTC Confirmation ProcedureINFOID:0000000001326945
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
 If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
 Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedur e for malfunction A, the incident that causes malfunction B can be
detected.
PBIB2558E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)  Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)  Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.
Trouble diagnosis
name DTC detecting condition Possible cause
P1572
1572 ASCD brake switch A)
When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are sent
to the ECM at the same time.  Harness or connectors
(The stop lamp switch circuit is shorted.)
 Harness or connectors (The ASCD brake switch circuit is shorted.)
 Stop lamp switch
 ASCD brake switch
 Incorrect stop lamp switch installation
 Incorrect ASCD brake switch installation
ECM
B)
ASCD brake switch signal is not sent to
ECM for extremely long time while the ve-
hicle is driving.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P1572 ASCD BRAKE SWITCHEC-1069
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels li
fted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-III
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consec utive seconds under the following conditions.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-1071, "
Diagnosis Procedure".
If 1st trip DTC is not detected, go to the following step.
7. Drive the vehicle for at least 5 consec utive seconds under the following conditions.
8. Check 1st trip DTC.
9. If 1st trip DTC is detected, go to EC-1071, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving location Depress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1080
< SERVICE INFORMATION >[VK45DE]
DTC P1800 VIAS CONT
ROL SOLENOID VALVE
DTC P1800 VIAS CONTROL SOLENOID VALVE
Component DescriptionINFOID:0000000001326961
The VIAS control solenoid valve (1) cuts the intake manifold vacuum
signal for power valve actuator. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
 Vacuum tank (2)
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326962
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326963
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureINFOID:0000000001326964
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 11V at idle.
1. Start engine and let it idle for at least 5 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1082, "
Diagnosis Procedure".
PBIB3236E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V  Selector lever: P or N
ON
 Engine speed: More than 5,000 rpm
 Selector lever: Except P or N
 Engine speed: Less than 5,000 rpm OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1800
1800 VIAS control solenoid valve cir-
cuit An excessively low or high voltage signal
is sent to ECM through the valve  Harness or connectors
(The solenoid valve circuit is open or
shorted.)
 VIAS control solenoid valve
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P1800 VIAS CONTROL SOLENOID VALVEEC-1083
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-1083, "
Component Inspection".
OK or NG
OK >> GO TO 5.
NG >> Replace VIAS control solenoid valve.
5.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001326967
VIAS CONTROL SOLENOID VALVE
With CONSULT-III
1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second.
5. If NG, replace VIAS control solenoid valve.
Without CONSULT-III
1. Disconnect VIAS control solenoid valve.
2. Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second.
3. If NG, replace VIAS control solenoid valve.
Removal and InstallationINFOID:0000000001326968
VIAS CONTROL SOLENOID VALVE
Refer to EM-175.
Condition
VIAS SOL VALVE Air passage continuity
between A and B Air passage continuity
between A and C
ON Yes No
OFF No Yes

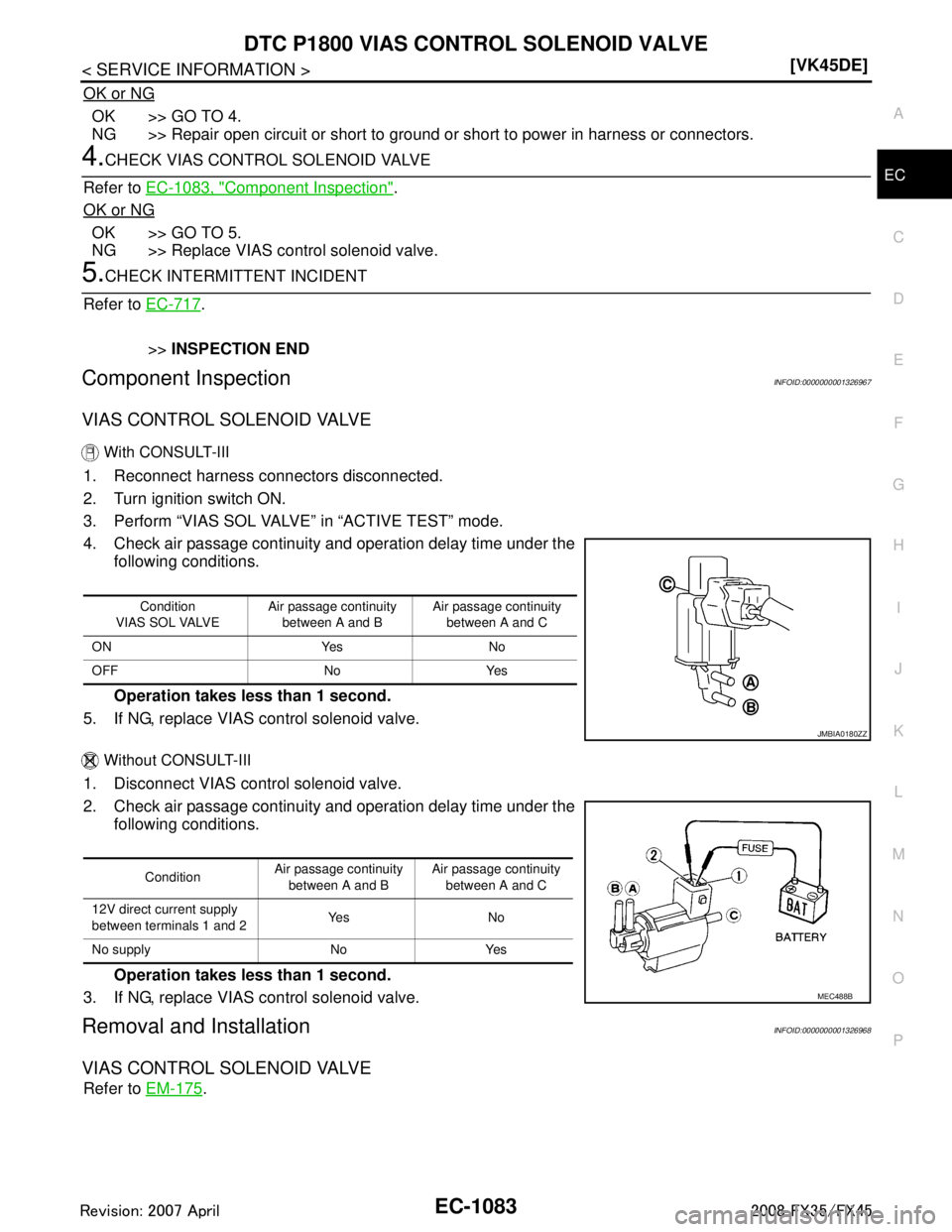

JMBIA0180ZZ
Condition Air passage continuity
between A and B Air passage continuity
between A and C
12V direct current supply
between terminals 1 and 2 Ye s N o
No supply No Yes
MEC488B
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1084
< SERVICE INFORMATION >[VK45DE]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
DescriptionINFOID:0000000001326969
Brake switch signal is applied to the ECM through t
he stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326970
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326971
The MIL will not light up for this diagnosis.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode.
DTC Confirmation ProcedureINFOID:0000000001326972
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-III.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to EC-1086, "
Diagnosis Procedure".
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW  Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805 Brake switch A brake switch signal is not sent to ECM for ex-
tremely long time while the vehicle is driving.  Harness or connectors
(Stop lamp switch circuit is open or short-
ed.)
 Stop lamp switch
Engine operating condition in fail-safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor. Vehicle condition Driving condition
When engine is idling Normal When accelerating Poor acceleration
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1088
< SERVICE INFORMATION >[VK45DE]
DTC P2100, P2103 THROTTLE
CONTROL MOTOR RELAY
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Component DescriptionINFOID:0000000001326976
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326977
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326978
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MlL lights up.
DTC Confirmation ProcedureINFOID:0000000001326979
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-1090, "
Diagnosis Procedure".
PROCEDURE FOR DTC P2103
TESTING CONDITION:
Before performing the following procedure, co nfirm that battery voltage is more than 8V.
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-1090, "
Diagnosis Procedure".
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY  Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100
2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low.  Harness or connectors
(Throttle control moto r relay circuit is
open)
 Throttle control motor relay
P2103
2103 Throttle control motor
relay circuit short ECM detect the throttle control motor relay is
stuck ON.  Harness or connectors
(Throttle control moto r relay circuit is
shorted)
 Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1092
< SERVICE INFORMATION >[VK45DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
DTC P2101 ELECTRIC THRO
TTLE CONTROL FUNCTION
DescriptionINFOID:0000000001326982
NOTE:
If DTC P2101 is displayed with DTC P2100 or P2119, first perform the trouble diagnosis for DTC P2100
or P2119. Refer to EC-1088
or EC-1102.
Electric throttle control actuator consists of th rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagn osis LogicINFOID:0000000001326983
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326984
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V when engine
is running.
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-1094, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2101
2101 Electric throttle control
performance Electric throttle control function does not oper-
ate properly.  Harness or connectors
(Throttle control motor circuit is open or
shorted)
 Electric throttle control actuator
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1098
< SERVICE INFORMATION >[VK45DE]
DTC P2118 THROTTLE CONTROL MOTOR
DTC P2118 THROTTLE CONTROL MOTOR
Component DescriptionINFOID:0000000001326989
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected
by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagn osis LogicINFOID:0000000001326990
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326991
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to EC-1100, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2118
2118 Throttle control motor
circuit short ECM detects short in both circuits between
ECM and throttle control motor.  Harness or connectors
(Throttle control motor circuit is shorted.)
 Electric throttle control actuator
(Throttle control motor)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1102
< SERVICE INFORMATION >[VK45DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P2119 ELECTRIC TH
ROTTLE CONTROL ACTUATOR
Component DescriptionINFOID:0000000001326996
Electric throttle control actuator consists of th rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle va lve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. T he ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the thrott le control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagn osis LogicINFOID:0000000001326997
This self-diagnosis has one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326998
NOTE:
Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.
 If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
1. Turn ignition switch ON and wait at least 1 second.
2. Shift selector lever to D position and wait at least 3 seconds.
3. Shift selector lever to P position.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON and wait at least 1 second.
6. Shift selector lever to D position and wait at least 3 seconds.
7. Shift selector lever to P position.
8. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
9. Check DTC.
10. If DTC is detected, go to EC-1103, "
Diagnosis Procedure".
PROCEDURE FOR MALFUNCTION C
1. Turn ignition switch ON and wait at least 1 second.
2. Shift selector lever to D position and wait at least 3 seconds.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2119
2119 Electric throttle control
actuator A)
Electric throttle control
actuator does not func-
tion properly due to the return spring malfunc-
tion.  Electric throttle control actuator
B) Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detect the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction A The ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction C While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or more.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1110
< SERVICE INFORMATION >[VK45DE]
DTC P2127, P2128 APP SENSOR
DTC P2127, P2128 APP SENSOR
Component DescriptionINFOID:0000000001327008
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerato
r pedal is determined by the ECM
receiving the signal from the accelerator pedal positi on sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001327009
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagn osis LogicINFOID:0000000001327010
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001327011
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1  Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*  Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS  Ignition switch: ON
(Engine stopped) Accelerator pedal:
Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2127
2127 Accelerator pedal posi-
tion sensor 2 circuit low
input An excessively low vo
ltage from the APP sen-
sor 2 is sent to ECM.  Harness or connectors
(APP sensor 2 circuit is open or shorted.)
(TP sensor circuit is shorted.)
 Accelerator pedal position sensor (APP sensor 2)
 Electric throttle control actuator (TP sensor 1 and 2)
P2128
2128
Accelerator pedal posi-
tion sensor 2 circuit high
input An excessively high vo
ltage from the APP sen-
sor 2 is sent to ECM.
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
