INFINITI FX35 2008 Service Manual

ILLUMINATIONLT-169
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
ILLUMINATION
System DescriptionINFOID:0000000001328422
Control of illumination lamps operation is dependent upon position of lighting switch (combination switch).
When lighting switch is placed in the 1ST or 2ND positi on (or if auto light system is activated), BCM (body con-
trol module) receives input signal requesting illuminati on lamps to illuminate. This input signal is communi-
cated to IPDM E/R (intelligent power distribution module engine room) through the CAN communication. The
CPU (central processing unit) located in the IPDM E/R co ntrols tail lamp relay coil. This relay, when energized,
directs power to illumination lamps, which then illuminate.
Power is supplied at all times
 through 10A fuse (No. 71, located in IPDM E/R)
 to tail lamp relay, located in IPDM E/R, and
 to CPU located in IPDM E/R.
Power is also supplied at all times
 through 50A fusible link (letter M, located in fuse, fusible link and relay box)
 to BCM terminal 55,
 through 15A fuse [No. 22 located in fuse block (J/B)]
 to BCM terminal 42,
 through 15A fuse (No. 78, located in IPDM E/R)
 to CPU located in IPDM E/R,
 through 10A fuse [No. 19 located in fuse block (J/B)]
 to unified meter and A/C amp. terminal 21 and
 to combination meter terminal 8.
With ignition switch in ON or START position, power is supplied
 to ignition relay, located in IPDM E/R, from battery direct,
 through 15A fuse [No. 1 located in fuse block (J/B)]
 to BCM terminal 38,
 through 10A fuse [No. 12, located in fuse block (J/B)]
 to unified meter and A/C amp. terminal 22 and
 to combination meter terminal 7.
With ignition switch in ACC or ON position, power is supplied
 through 10A fuse [No. 6, located in fuse block (J/B)]
 to combination meter terminal 4 and
 to BCM terminal 11.
Ground is supplied
 to BCM terminals 49 and 52
 to unified meter and A/C amp. terminals 29 and 30, and
 to combination meter terminals 5, 6, and 15
 through grounds M35, M45, and M85,
 to IPDM E/R terminals 38 and 60
 through grounds E21, E50, and E51.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With lighting switch in the 1ST or 2ND position (or if auto light system is activated), BCM receives input signal
requesting illumination lamps to illuminate. This input signal is communicated to IPDM E/R through the CAN
communication. The CPU located in the IPDM E/R controls tail lamp relay coil, which, when energized, directs
power
 through IPDM E/R terminal 22
 to glove box lamp terminal 1
 to A/T device (illumination) terminal 11
 to snow mode switch (illumination) terminal 5
 to VDC off switch (illumination) terminal 3
 to clock (illumination) terminal 3
 to hazard switch (illumination) terminal 3
 to heated seat switch (driver side) (illumination) terminal 5
 to heated seat switch (passenger side) (illumination) terminal 5
 to door mirror remote control switch (illumination) terminal 16
 to LDW switch (illumination) terminal 5
 to combination switch (spiral cable) terminal 26
 to microphone terminal 2 (with telephone system)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LT-170
< SERVICE INFORMATION >
ILLUMINATION
 to A/C and AV switch (illumination) terminal 3
 to DVD player (illumination) terminal 12
 to coin box illumination terminal 2 and
 to rear power window switch LH and RH (illumination) terminals 6,
 through combination switch (spiral cable) terminal 18
 to audio steering switch (illumination)
 to icc steering switch (illumination) (with icc) and
 to ascd steering switch (illumination) (without icc)
Illumination control
 through combination meter terminal 19
 to A/T device (illumination) terminal 12
 to snow mode switch (illumination) terminal 6
 to VDC off switch (illumination) terminal 4
 to clock (illumination) terminal 4
 to hazard switch (illumination) terminal 4
 to heated seat switch (driver side) (illumination) terminal 6
 to heated seat switch (passenger side) (illumination) terminal 6
 to door mirror remote control switch terminal 15
 to LDW switch (illumination) terminal 4,
 to combination switch (spiral cable) terminal 27
 to A/C and AV switch (illumination) terminal 4 and
 to DVD player (illumination) terminal 10,
 through combination switch (spiral cable) terminal 21
 to audio steering switch (illumination)
 to icc steering switch (illumination) (with icc) and
 to ascd steering switch (illumination) (without icc)
Ground is supplied at all times
 to glove box lamp terminal 2 and
 to coin box illumination terminal 3
 through grounds M35, M45 and M85,
 to rear power window switch LH and RH (illumination) terminals 7
 through grounds B15 and B45.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the lighting switch is in the 1ST or 2ND position (or if auto light system is activated), and ignition switch
is turned from ON or ACC to OFF, batte ry saver control function is activated.
Under this condition, illumination lamps remain illuminated for 5 minutes, then illumination lamps are turned
off.
When the lighting switch is turned from OFF to 1ST or 2 ND position (or if auto light system is activated) after
illumination lamps are turned off by battery save r control, and illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-III.
CAN Communication System DescriptionINFOID:0000000001328423
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitINFOID:0000000001328424
Refer to LAN-43, "CAN System Specification Chart".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ILLUMINATIONLT-171
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

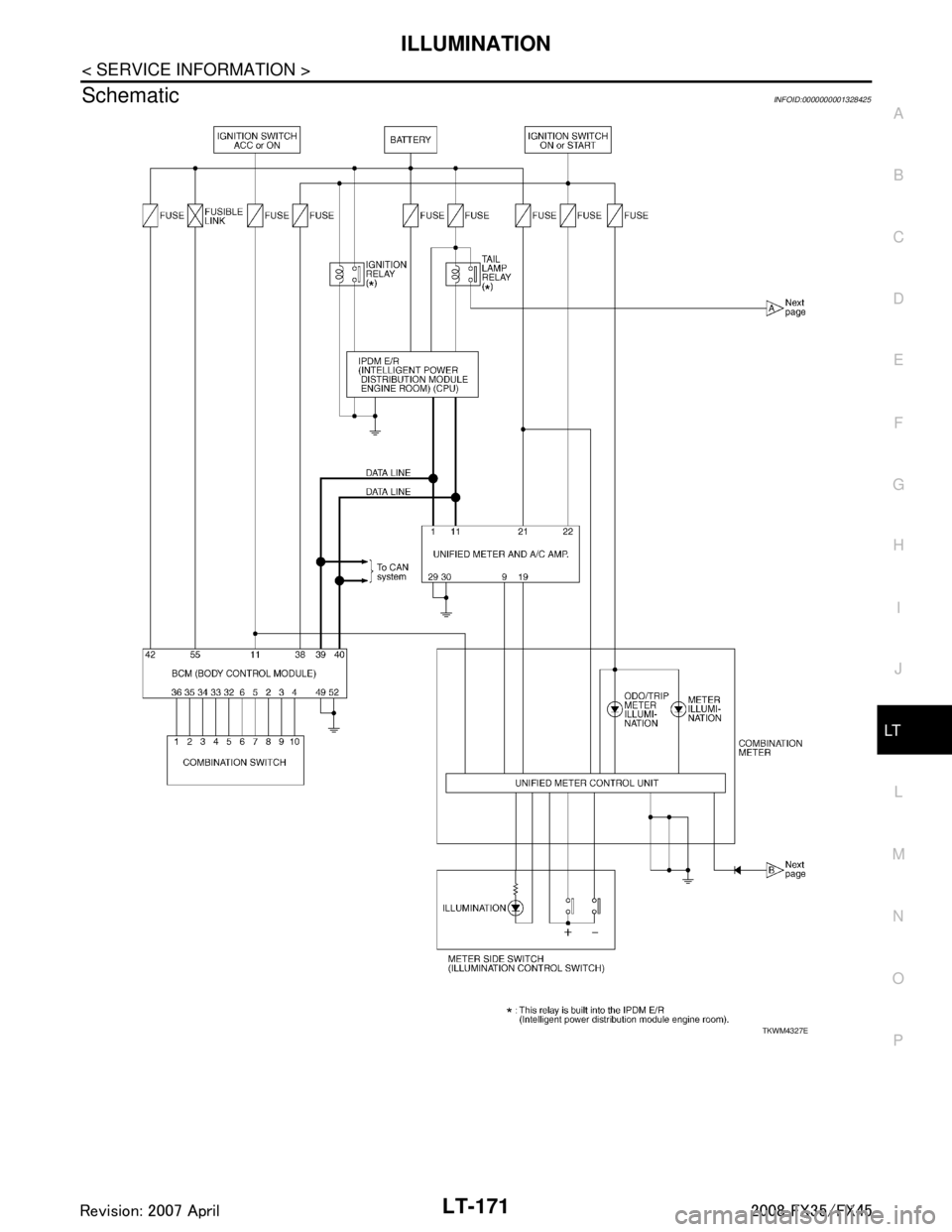

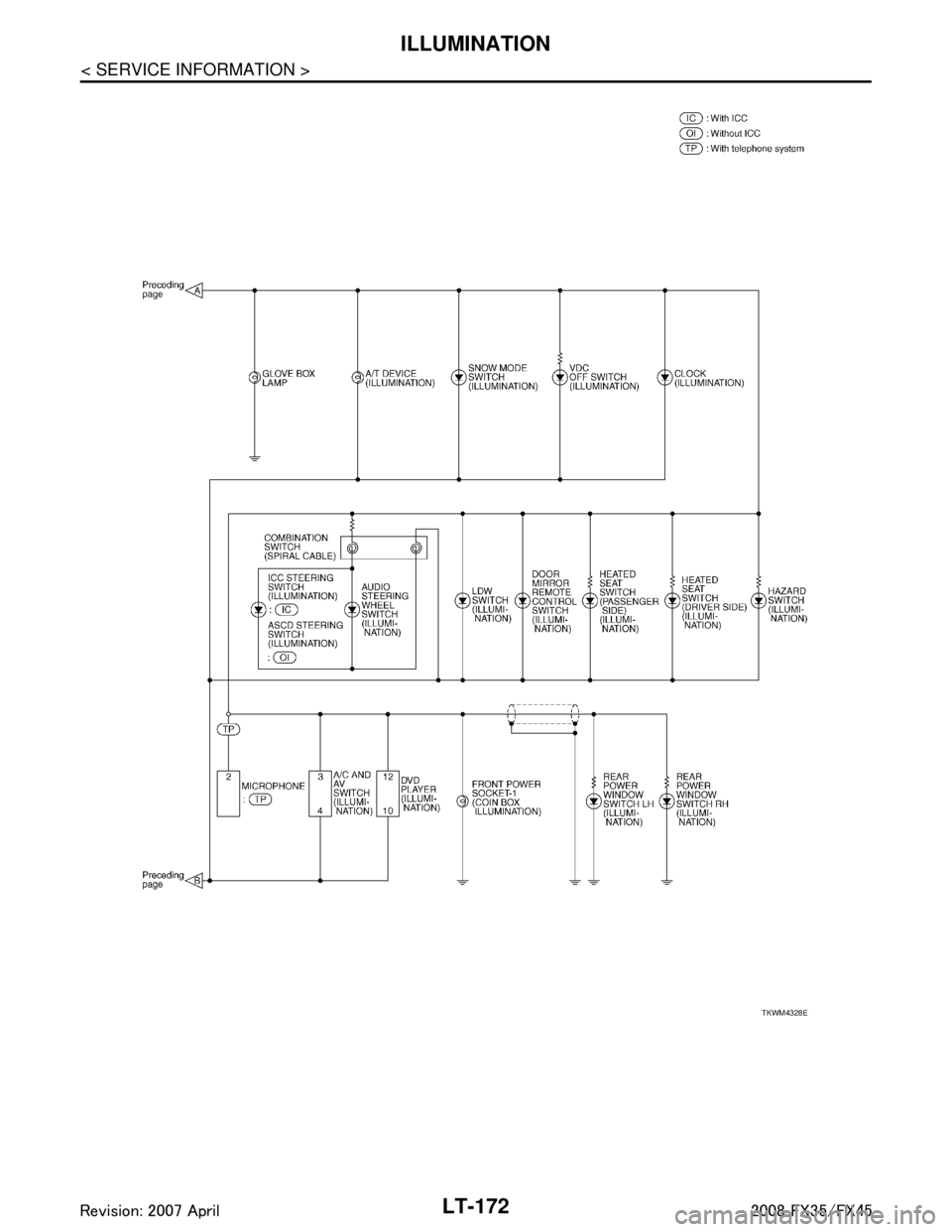

SchematicINFOID:0000000001328425
TKWM4327E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LT-172
< SERVICE INFORMATION >
ILLUMINATION
TKWM4328E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ILLUMINATIONLT-173
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

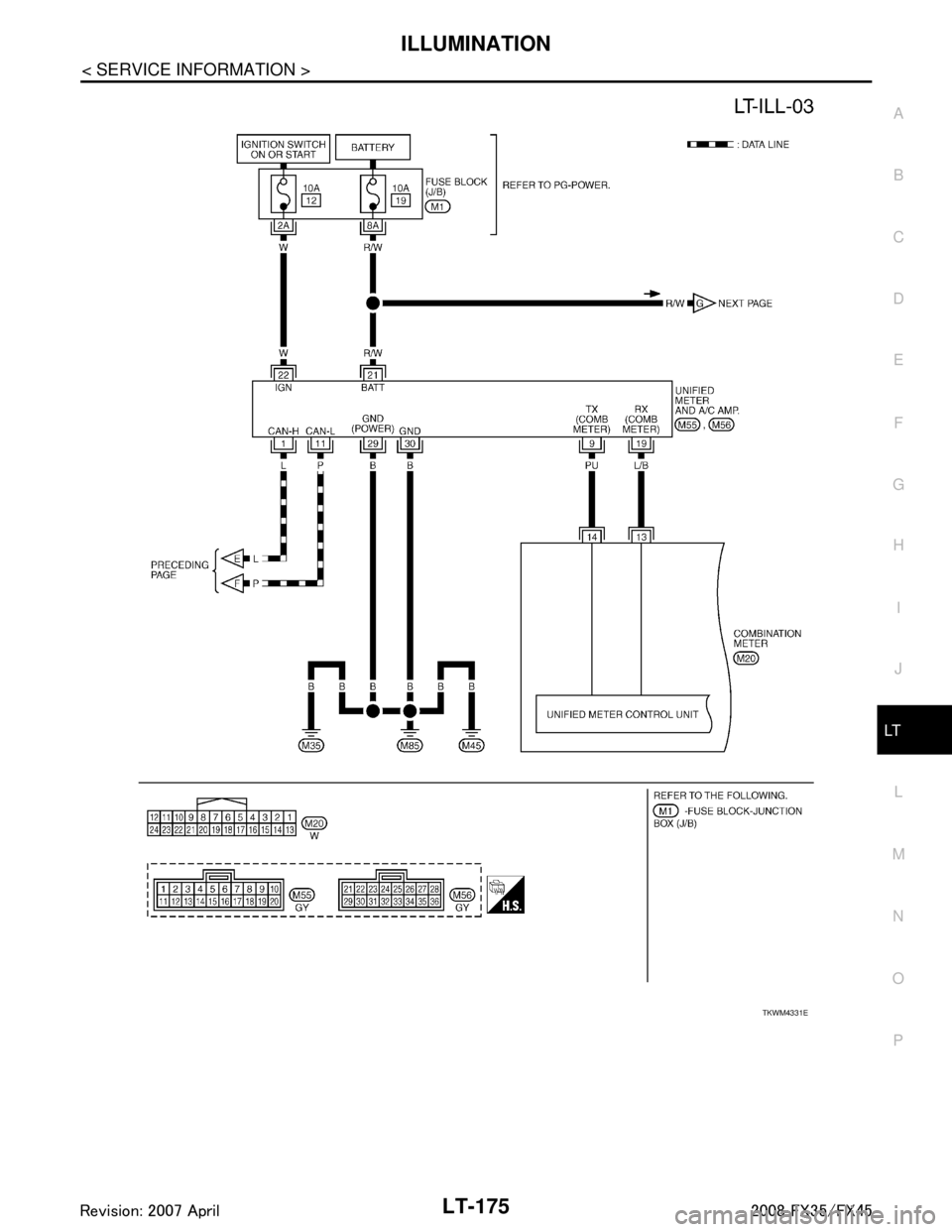

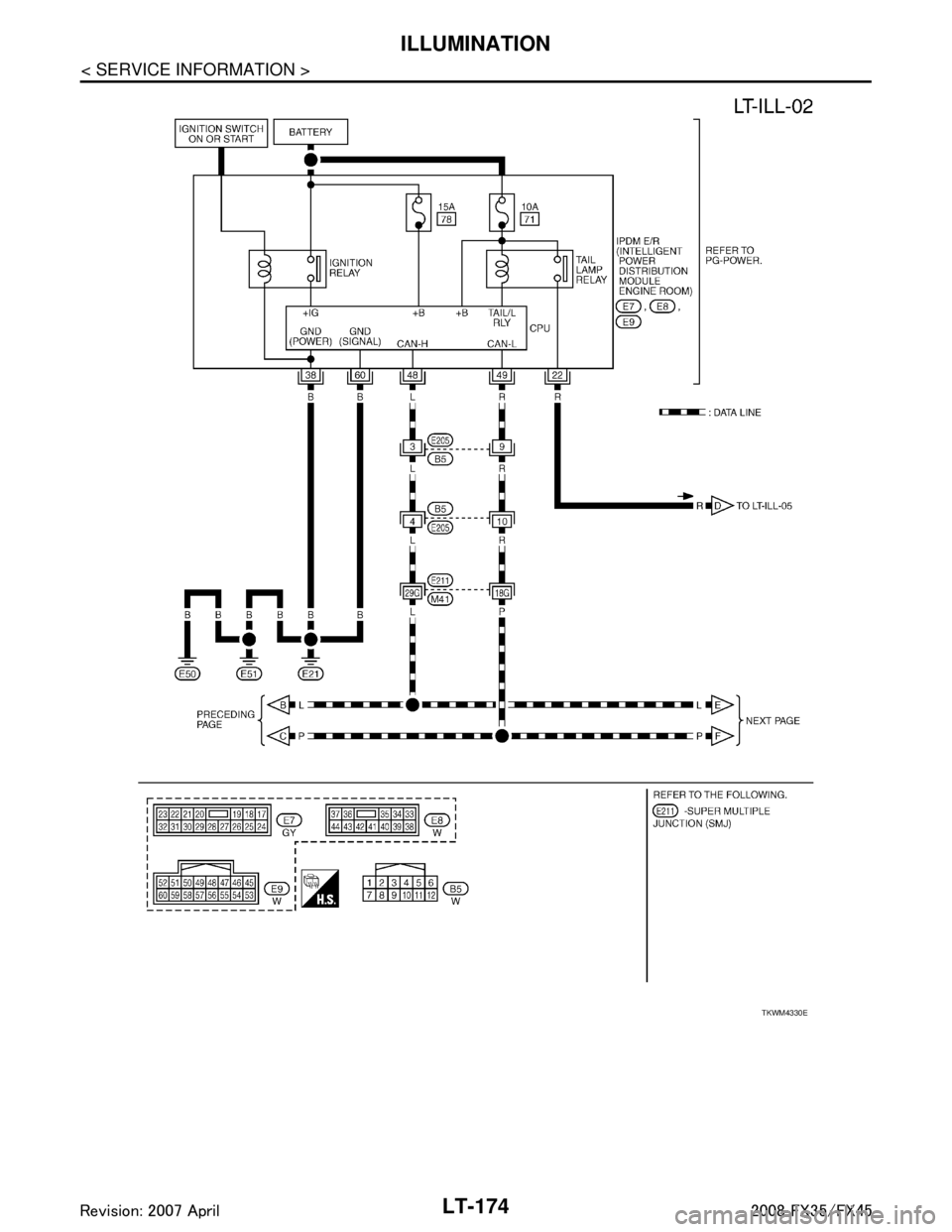

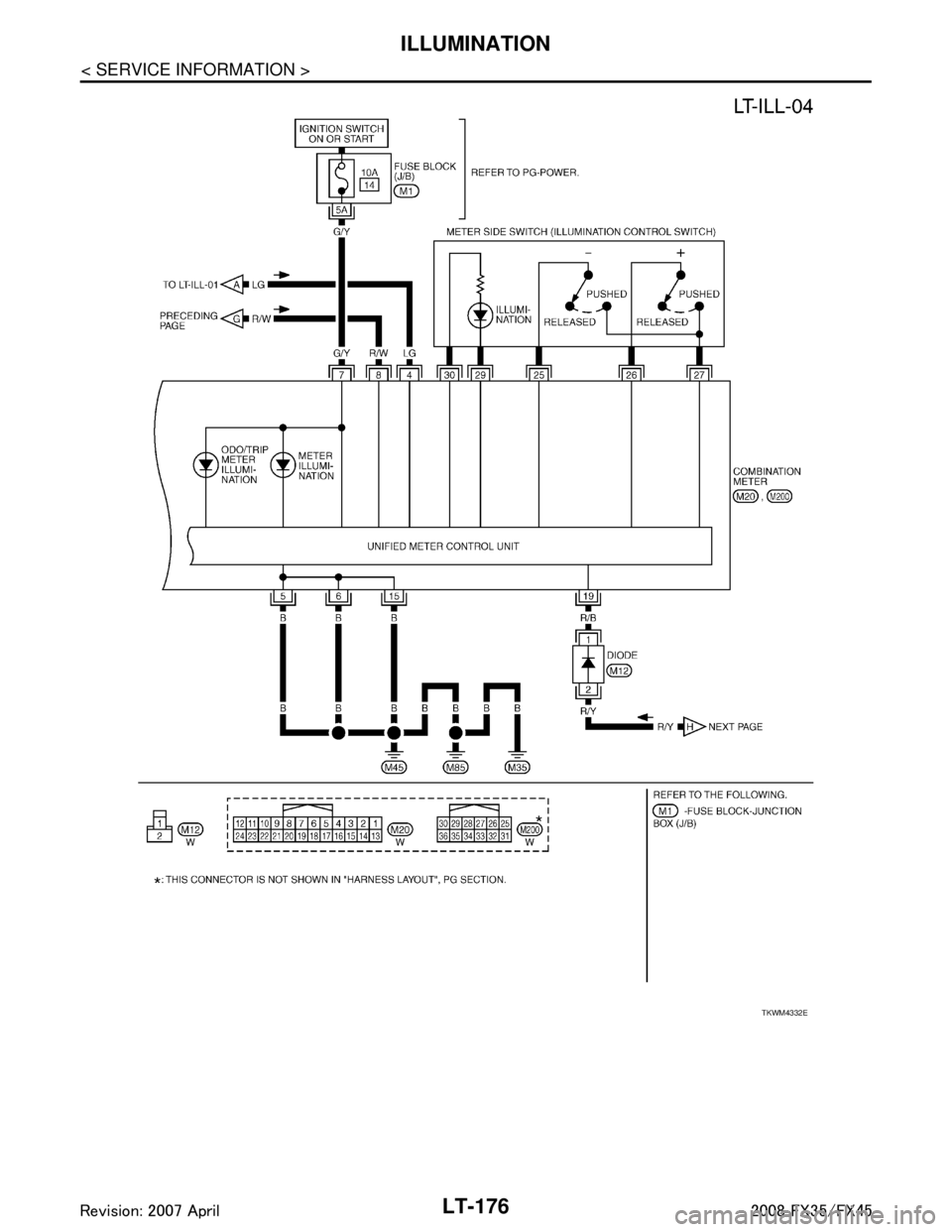

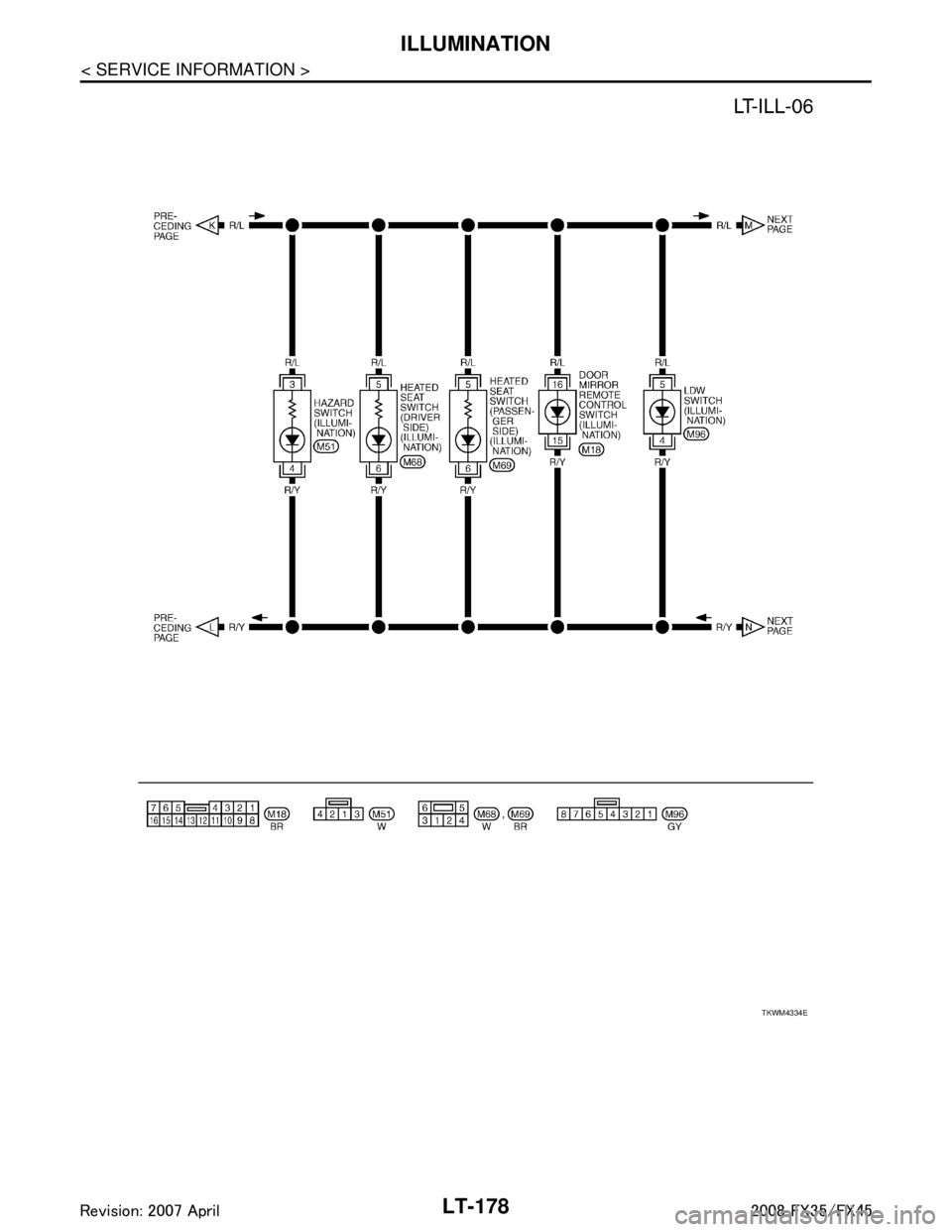

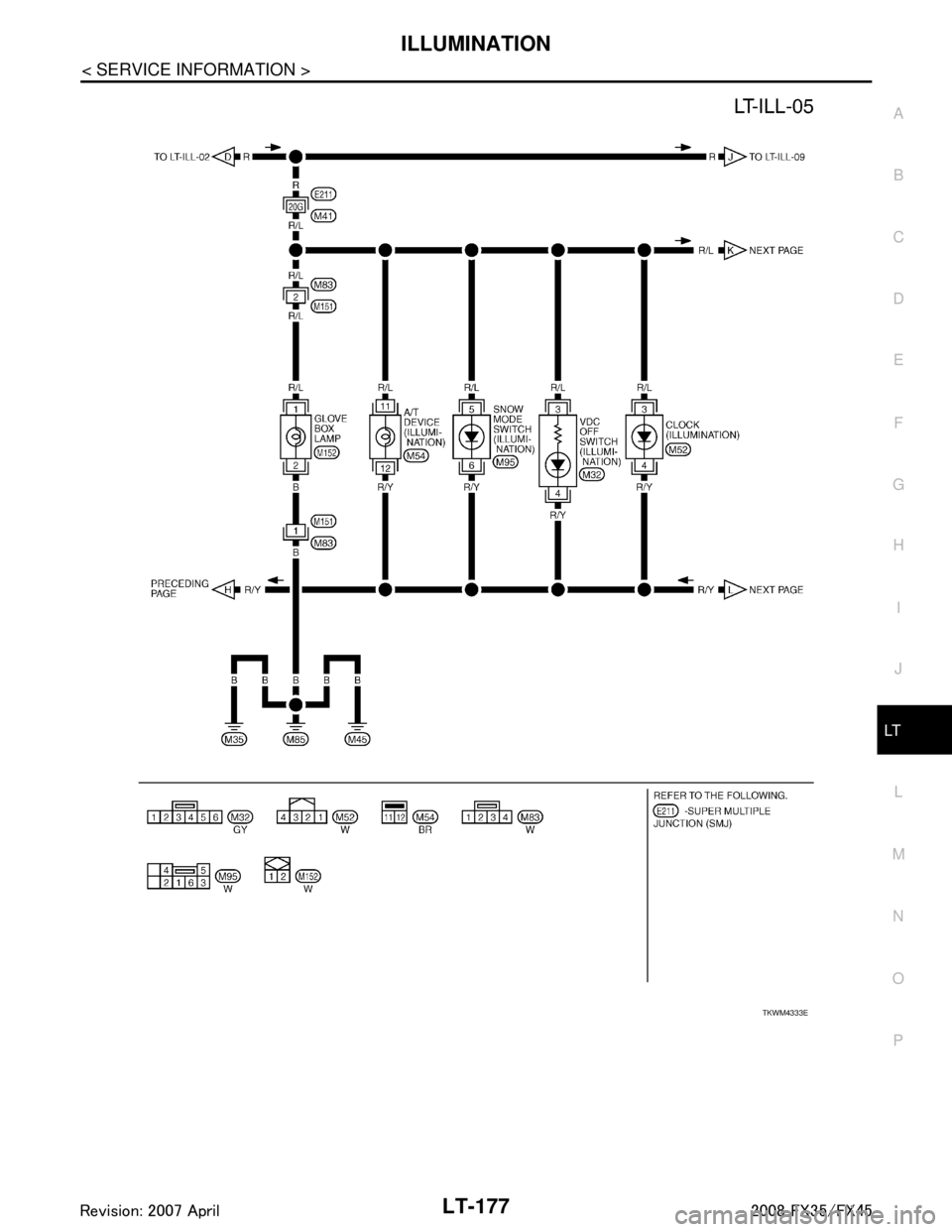

Wiring Diagram - ILL -INFOID:0000000001328426
TKWM4329E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LT-174
< SERVICE INFORMATION >
ILLUMINATION
TKWM4330E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ILLUMINATIONLT-175
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
TKWM4331E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LT-176
< SERVICE INFORMATION >
ILLUMINATION
TKWM4332E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ILLUMINATIONLT-177
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
TKWM4333E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LT-178
< SERVICE INFORMATION >
ILLUMINATION
TKWM4334E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
