Bulb ReplacementINFOID:0000000001328427
GLOVE BOX LAMP
1. Remove instrument passenger lower panel. Refer to IP-16, "Disassembly and Assembly".
TKWM4337E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LT-182
< SERVICE INFORMATION >
ILLUMINATION
2. Turn bulb socket left to release lock and remove it.
3. Installation is the reverse order of removal.
A/T DEVICE ILLUMINATION
1. Remove A/T console finisher. Refer to IP-10.
2. Turn bulb socket left to release lock and remove it.
3. Installation is the reverse order of removal.
COIN BOX ILLUMINATION
1. Remove instrument clock finisher. Refer to IP-10.
2. Turn bulb socket left to release lock and remove it.
3. Installation is the reverse order of removal.
Removal and InstallationINFOID:0000000001328428
ILLUMINATION CONTROL SWITCH
Refer to DI-24, "Removal and Installation of Odo/Trip Meter and Illumination Control Switch".
Glove box lamp : 12 V - 1.4 W
PKIB3636E
A/T device illumination : 12 V - 1.4 W
PKIC9699E
Coin box illumination : 12 V - 1.4 W
PKIC9698E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BULB SPECIFICATIONSLT-183
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
BULB SPECIFICATIONS
HeadlampINFOID:0000000001328429
Exterior LampINFOID:0000000001328430
Interior Lamp/IlluminationINFOID:0000000001328431
Item Wattage (W)
High/Low (Xenon type) 35 (D2S)
Item Wattage (W)
Front combination lamp Front turn signal lamp 21 (amber)
Daytime/Parking lamp 21/5
Front side marker lamp 3.8
Rear combination lamp Stop/Tail lamp and Rear Turn signal lamp LED
Rear side marker lamp 3.8
Front fog lamp 35 (H8)
Back-up lamp 18
License plate lamp 5
High-mounted stop lamp (back door mount) LED
Item Wattage (W)
Map lamp 8
Interior room lamp 10
Personal lamp 8
Luggage room lamp 8
Step lamp 5
Glove box lamp 1.4
Vanity mirror lamp 1.32
Ignition key hole illumination 0.8
A/T device illumination lamp 1.4
Coin box illumination lamp 1.4
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LU-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION LU
A
LU
N
O P
CONTENTS
ENGINE LUBRICATION SYSTEM
VQ35DE
SERVICE INFORMATION .. ..........................
2
PRECAUTIONS .............................................. .....2
Precaution for Liquid Gasket ............................... ......2
PREPARATION ...................................................3
Special Service Tool ........................................... ......3
Commercial Service Tool ..........................................3
LUBRICATION SYSTEM ....................................4
Lubrication Circuit ............................................... ......4
System Chart ............................................................4
ENGINE OIL ........................................................5
Inspection ............................................................ ......5
Changing Engine Oil .................................................7
OIL FILTER .........................................................8
Removal and Installation ..................................... ......8
OIL FILTER BRACKET (AWD) ..........................10
Component .......................................................... ....10
Removal and Installation .........................................10
OIL COOLER ......................................................12
Component .......................................................... ....12
Removal and Installation .........................................13
OIL PUMP ...........................................................15
Component .......................................................... ....15
Removal and Installation .........................................15
Disassembly and Assembly ....................................15
SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................
18
Standard and Limit .............................................. ....18
VK45DE
SERVICE INFORMATION .. .........................
19
PRECAUTIONS .................................................19
Precaution for Liquid Gasket ............................... ....19
PREPARATION .................................................20
Special Service Tool ................................................20
Commercial Service Tool ........................................20
LUBRICATION SYSTEM ..................................21
Lubrication Circuit ....................................................21
System Chart ...........................................................22
ENGINE OIL ......................................................23
Inspection ................................................................23
Changing Engine Oil ................................................24
OIL FILTER .......................................................26
Removal and Installation .........................................26
OIL COOLER ....................................................27
Component ..............................................................27
Removal and Installation .........................................27
OIL PUMP .........................................................29
Component ..............................................................29
Removal and Installation .........................................29
Disassembly and Assembly .....................................30
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
32
Standard and Limit ..................................................32
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LU-2
< SERVICE INFORMATION >[VQ35DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Liquid GasketINFOID:0000000001325808
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and boltholes.
2. Wipe the liquid gasket application surface and the ma ting surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Apply liquid gasket to the liquid gasket application surface. Use Genuine RTV Silicone Seal ant or equivalent. Refer to GI-44
.
 Within five minutes of liquid gasket application, install the mating component.
 If liquid gasket protrudes, wipe it off immediately.
 Do not retighten after mounting bolts and nuts the installation.
 After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PREPARATIONLU-3
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
LU
NP
O
PREPARATION
Special Service ToolINFOID:0000000001325809
The actual shapes of Kent-Moore t
ools may differ from those of special service tools illustrated here.
Commercial Service ToolINFOID:0000000001325810
Tool number
(Kent-Moore No.)
Tool name Description

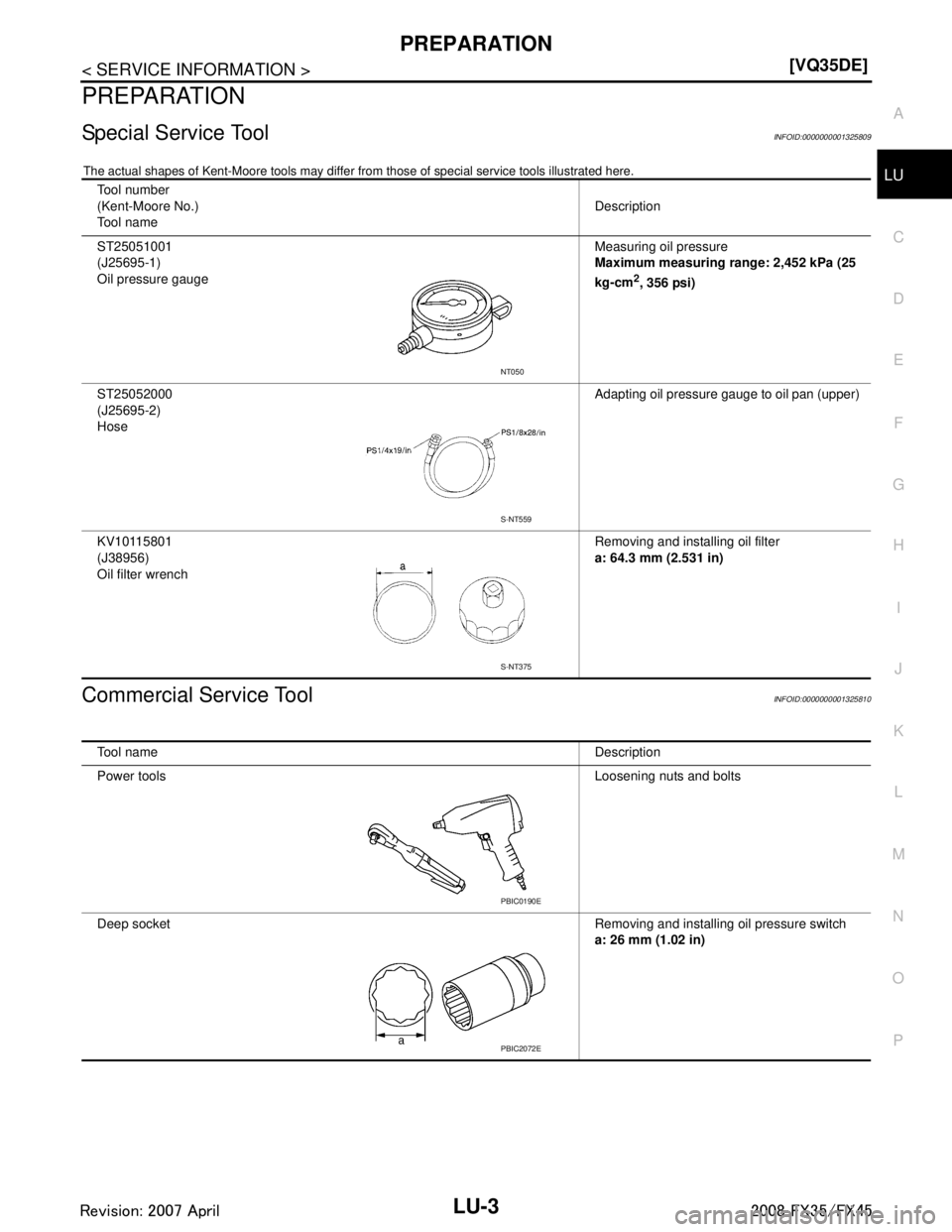

ST25051001
(J25695-1)
Oil pressure gauge Measuring oil pressure
Maximum measuring range: 2,452 kPa (25
kg-cm
2, 356 psi)
ST25052000
(J25695-2)
Hose Adapting oil pressure gauge to oil pan (upper)
KV10115801
(J38956)
Oil filter wrench Removing and installing oil filter
a: 64.3 mm (2.531 in)
NT050
S-NT559
S-NT375
Tool name
Description
Power tools Loosening nuts and bolts
Deep socket Removing and installing oil pressure switch
a: 26 mm (1.02 in)
PBIC0190E
PBIC2072E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

LU-4
< SERVICE INFORMATION >[VQ35DE]
LUBRICATION SYSTEM
LUBRICATION SYSTEM

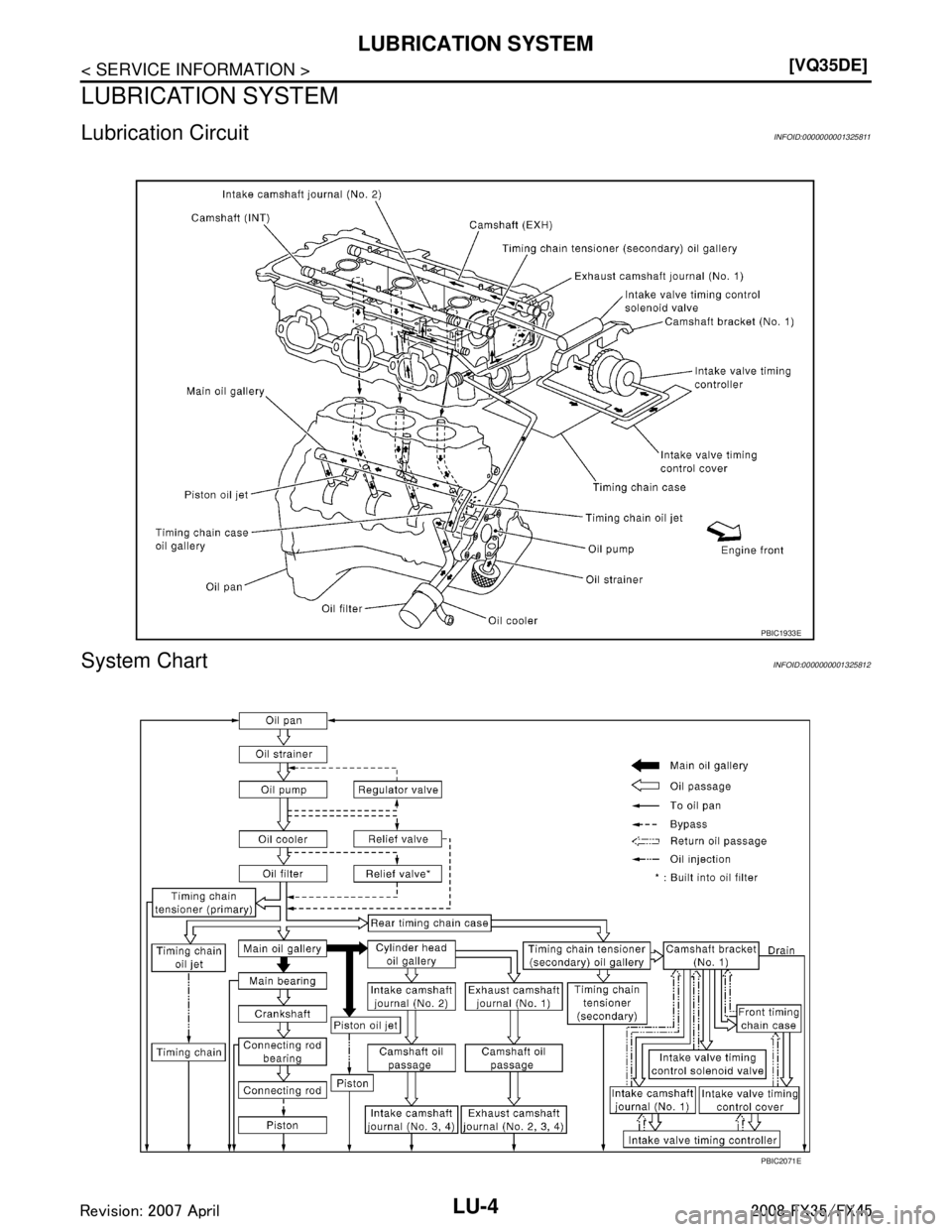

Lubrication CircuitINFOID:0000000001325811
