CONSULT-II SETTING PROCEDURE
Refer to GI-39, "CONSULT-II Start Procedure" .
SELF-DIAGNOSTIC RESULT MODE
After performing self-diagnosis, place check marks for results on the AT- 4 8 , "DIAGNOSTIC WORKSHEET" .
Reference pages are provided following the items.
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.
Display shows malfunction experienced since the last erasing
operation.
Display Items List
X: Applicable, —: Not applicable
BCIA0031E
Items (CONSULT-
II screen terms)Malfunction is detected when...TCM self-
diagnosisOBD-II (DTC)
Reference
page
“A/T” with
CONSULT-IIMIL indicator
lamp*1,
“ENGINE” with
CONSULT-II or
GST
CAN COMM CIR-
CUIT
When a malfunction is detected in CAN communications. U1000 U1000AT-105
STARTER RELAY/
CIRC
If this signal is ON other than in “P” or “N” position, this is
judged to be a malfunction.
(And if it is OFF in “P” or “N” position, this too is judged to
be a malfunction.)P0615 —AT-108
TCMTCM is malfunctioning P0700 P0700AT- 11 2
PNP SW/CIRC
PNP switch 1-4 signals input with impossible pattern.
“P” position is detected from “N” position without any other
position being detected in between.P0705 P0705AT- 11 3
TURBINE REV S/
CIRC
TCM does not receive the proper voltage signal from the
sensor.
TCM detects an irregularity only at position of 4th gear for
turbine revolution sensor 2.P0717 P0717AT- 11 7
VEH SPD SEN/
CIR AT
Signal from vehicle speed sensor A/T (revolution sensor)
not input due to cut line or the like.
Unexpected signal input during running.
After ignition switch is turned ON, unexpected signal input
from vehicle speed sensor MTR before the vehicle starts
moving.P0720 P0720AT- 11 9
ENGINE SPEED
SIGTCM does not receive the CAN communication signal from
the ECM.P0725 P0725*3AT-124
TCC SOLENOID/
CIRCNormal voltage not applied to solenoid due to cut line,
short, or the like.P0740 P0740AT-126
A/T TCC S/V
FNCTNA/T cannot perform lock-up even if electrical circuit is good.
TCM detects as irregular by comparing difference value
with slip rotation.P0744 P0744*2AT-128

TROUBLE DIAGNOSIS
AT-93
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45L/PRESS SOL/
CIRC
Normal voltage not applied to solenoid due to cut line,
short, or the like.
TCM detects as irregular by comparing target value with
monitor value.P0745 P0745AT- 1 3 0
TP SEN/CIRC A/TTCM does not receive the proper accelerator pedal position
signals (input by CAN communication) from ECM.P1705 P1705*3AT- 1 3 2
ATF TEMP SEN/
CIRC During running, the A/T fluid temperature sensor signal
voltage is excessively high or low.P1710 P0710AT- 1 3 5
VEH SPD SE/
CIRꞏMTRSignal (CAN communication) from vehicle speed sensor
MTR not input due to cut line or the like.
Unexpected signal input during running.P1721 —AT- 1 4 0
A/T INTERLOCK
Except during shift change, the gear position and ATF pres-
sure switch states are monitored and comparative judge-
ment made.P1730 P1730AT- 1 4 2
A/T 1ST E/BRAK-
ING
Each ATF pressure switch and solenoid current is moni-
tored and if a pattern is detected having engine braking 1st
gear other than in the M1 position, a malfunction is
detected.P1731 —AT- 1 4 5
I/C SOLENOID/
CIRC
Normal voltage not applied to solenoid due to functional
malfunction, cut line, short, or the like.
TCM detects as irregular by comparing target value with
monitor value.P1752 P1752AT- 1 4 7
I/C SOLENOID
FNCTN
TCM detects that actual gear ratio is irregular, and relation
between gear position and condition of ATF pressure
switch 3 is irregular during depressing accelerator pedal.
(Other than during shift change.)
TCM detects that relation between gear position and condi-
tion of ATF pressure switch 3 is irregular during releasing
accelerator pedal. (Other than during shift change.)P1754 P1754*2AT- 1 4 9
FR/B SOLENOID/
CIRC
Normal voltage not applied to solenoid due to functional
malfunction, cut line, short, or the like.
TCM detects as irregular by comparing target value with
monitor value.P1757 P1757AT- 1 5 1
FR/B SOLENOID
FNCT
TCM detects that actual gear ratio is irregular, and relation
between gear position and condition of ATF pressure
switch 1 is irregular during depressing accelerator pedal.
(Other than during shift change.)
TCM detects that relation between gear position and condi-
tion of ATF pressure switch 1 is irregular during releasing
accelerator pedal. (Other than during shift change.)P1759 P1759*2AT- 1 5 3
D/C SOLENOID/
CIRC
Normal voltage not applied to solenoid due to cut line,
short, or the like.
TCM detects as irregular by comparing target value with
monitor value.P1762 P1762AT- 1 5 5
Items (CONSULT-
II screen terms)Malfunction is detected when...TCM self-
diagnosisOBD-II (DTC)
Reference
page
“A/T” with
CONSULT-IIMIL indicator
lamp*1,
“ENGINE” with
CONSULT-II or
GST

AT-94
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
*1: Refer to EC-69, "Malfunction Indicator Lamp (MIL)" (for VQ35DE engine), EC-780, "Malfunction Indicator Lamp (MIL)" (for VK45DE
engine).
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL. D/C SOLENOID
FNCTN
TCM detects that actual gear ratio is irregular, and relation
between gear position and condition of ATF pressure
switch 5 is irregular during depressing accelerator pedal.
(Other than during shift change.)
TCM detects that relation between gear position and condi-
tion of ATF pressure switch 5 is irregular during releasing
accelerator pedal. (Other than during shift change.)P1764 P1764*2AT-157
HLR/C SOL/CIRC
Normal voltage not applied to solenoid due to functional
malfunction, cut line, short, or the like.
TCM detects as irregular by comparing target value with
monitor value.P1767 P1767AT-159
HLR/C SOL
FNCTN
TCM detects that actual gear ratio is irregular, and relation
between gear position and condition of ATF pressure
switch 6 is irregular during depressing accelerator pedal.
(Other than during shift change.)
TCM detects that relation between gear position and condi-
tion of ATF pressure switch 6 is irregular during releasing
accelerator pedal. (Other than during shift change.)P1769 P1769*2AT-161
LC/B SOLENOID/
CIRCNormal voltage not applied to solenoid due to functional
malfunction, cut line, short, or the like.P1772 P1772AT-163
LC/B SOLENOID
FNCT
TCM detects an improper voltage drop when it tries to oper-
ate the solenoid valve.
Condition of ATF pressure switch 2 is different from monitor
value, and relation between gear position and actual gear
ratio is irregular.P1774 P1774*2AT-165
MANU MODE SW/
CIRCWhen an impossible pattern of switch signals is detected, a
malfunction is detected.P1815 —AT-167
ATF PRES SW 1/
CIRC
TCM detects that actual gear ratio is normal, and relation
between gear position and condition of ATF pressure
switch 1 is irregular during depressing accelerator pedal.
(Other than during shift change.)P1841 —AT-172
ATF PRES SW 3/
CIRC
TCM detects that actual gear ratio is normal, and relation
between gear position and condition of ATF pressure
switch 3 is irregular during depressing accelerator pedal.
(Other than during shift change.)P1843 —AT-174
ATF PRES SW 5/
CIRC
TCM detects that actual gear ratio is normal, and relation
between gear position and condition of ATF pressure
switch 5 is irregular during depressing accelerator pedal.
(Other than during shift change.)P1845 —AT-176
ATF PRES SW 6/
CIRC
TCM detects that actual gear ratio is normal, and relation
between gear position and condition of ATF pressure
switch 6 is irregular during depressing accelerator pedal.
(Other than during shift change.)P1846 —AT-178
NO DTC IS
DETECTED FUR-
THER TESTING
MAY BE
REQUIRED
No NG item has been detected. X X — Items (CONSULT-
II screen terms)Malfunction is detected when...TCM self-
diagnosisOBD-II (DTC)
Reference
page
“A/T” with
CONSULT-IIMIL indicator
lamp*1,
“ENGINE” with
CONSULT-II or
GST

TROUBLE DIAGNOSIS
AT-95
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
*3: For VQ35DE engine.

AT-96
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
How to Erase Self-diagnostic Results
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE”
screen.
2. Touch ”ERASE”. (The self-diagnostic results will be erased.)
DATA MONITOR MODE
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
NOTE:
When malfunctions detected, CONSULT-II performs “REAL-
TIME DIAGNOSIS”. Also, any malfunction detected while in
this mode will be displayed at real time.
Display Items List
X: Standard, —: Not applicable, : Option
BCIA0031E
PCIA0061E
BCIA0031E
Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
VHCL/S SEꞏA/T (km/h) X X Revolution sensor
VHCL/S SEꞏMTR (km/h) X —
ACCELE POSI (0.0/8) X — Accelerator pedal position signal
THROTTLE POSI (0.0/8) X XDegree of opening for accelerator recognized by
the TCM.
For fail-safe operation, the specific value used
for control is displayed.
CLSD THL POS (ON/OFF) X —
Signal input with CAN communications.
W/O THL POS (ON/OFF) X —
BRAKE SW (ON/OFF) X — Stop lamp switch

TROUBLE DIAGNOSIS
AT-97
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
GEAR — XGear position recognized by the TCM updated
after gear-shifting.
ENGINE SPEED (rpm) X X
TURBINE REV (rpm) X X
OUTPUT REV (rpm) X X
GEAR RATIO — X
TC SLIP SPEED (rpm) — XDifference between engine speed and torque
converter input shaft speed.
F SUN GR REV (rpm) — —
F CARR GR REV (rpm) — —
ATF TEMP SE 1 (V) X —
ATF TEMP SE 2 (V) X —
ATF TEMP 1 (
C) — X
ATF TEMP 2 (
C) — X
BATTERY VOLT (V) X —
ATF PRES SW 1 (ON/OFF) X X (for FR/B solenoid)
ATF PRES SW 2 (ON/OFF) X X (for LC/B solenoid)
ATF PRES SW 3 (ON/OFF) X X (for I/C solenoid)
ATF PRES SW 5 (ON/OFF) X X (for D/C solenoid)
ATF PRES SW 6 (ON/OFF) X X (for HLR/C solenoid)
PNP SW 1 (ON/OFF) X —
PNP SW 2 (ON/OFF) X —
PNP SW 3 (ON/OFF) X —
PNP SW 4 (ON/OFF) X —
1 POSITION SW (ON/OFF) X —
SLCT LVR POSI — XSelector lever position is recognized by the
TCM.
For fail-safe operation, the specific value used
for control is displayed.
OD CONT SW (ON/OFF) X —
Not mounted but displayed. POWERSHIFT SW (ON/OFF) X —
HOLD SW (ON/OFF) X —
MANU MODE SW (ON/OFF) X —
NON M-MODE SW (ON/OFF) X —
UP SW LEVER (ON/OFF) X —
DOWN SW LEVER (ON/OFF) X —Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU

AT-98
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
SFT UP ST SW (ON/OFF) — —
Not mounted but displayed.
SFT DWN ST SW (ON/OFF) — —
ASCDꞏOD CUT (ON/OFF) — —
ASCDꞏCRUISE (ON/OFF) — —
ABS SIGNAL (ON/OFF) — —
ACC OD CUT (ON/OFF) — —
Intelligent cruise control (ICC) system
ACC SIGNAL (ON/OFF) — —
TCS GR/P KEEP (ON/OFF) — —
TCS SIGNAL 2 (ON/OFF) — —
TCS SIGNAL 1 (ON/OFF) — —
TCC SOLENOID (A) — X
LINE PRES SOL (A) — X
I/C SOLENOID (A) — X
FR/B SOLENOID (A) — X
D/C SOLENOID (A) — X
HLR/C SOL (A) — X
ON OFF SOL (ON/OFF) — — LC/B solenoid
TCC SOL MON (A) — —
L/P SOL MON (A) — —
I/C SL MON (A) — —
FR/B SOL MON (A) — —
D/C SOL MON (A) — —
HLR/C SOL MON (A) — —
ON OFF SOL MON (ON/OFF) — — LC/B solenoid
P POSI IND (ON/OFF) — —
R POSI IND (ON/OFF) — —
N POSI IND (ON/OFF) — —
D POSI IND (ON/OFF) — —
4TH POSI IND (ON/OFF) — —
3RD POSI IND (ON/OFF) — —
2ND POSI IND (ON/OFF) — —
1ST POSI IND (ON/OFF) — —
MANU MODE IND (ON/OFF) — —
POWER M LAMP (ON/OFF) — —
F-SAFE IND/L (ON/OFF) — —Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU

TROUBLE DIAGNOSIS
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
ATF WARN LAMP (ON/OFF) — — Not mounted but displayed.
BACK-UP LAMP (ON/OFF) — —
STARTER RELAY (ON/OFF) — —
PNP SW3 MON (ON/OFF) — —
C/V CLB ID1 — —
C/V CLB ID2 — —
C/V CLB ID3 — —
UNIT CLB ID1 — —
UNIT CLB ID2 — —
UNIT CLB ID3 — —
TRGT GR RATIO — —
TRGT PRES TCC (kPa) — —
TRGT PRES L/P (kPa) — —
TRGT PRES I/C (kPa) — —
TRGT PRE FR/B (kPa) — —
TRGT PRES D/C (kPa) — —
TRG PRE HLR/C (kPa) — —
SHIFT PATTERN — —
DRV CST JUDGE — —
START RLY MON — —
NEXT GR POSI — —
SHIFT MODE — —
MANU GR POSI — —
VEHICLE SPEED (km/h) — X Vehicle speed recognized by the TCM.
Voltage (V) — —Displays the value measured by the voltage
probe.
Frequency (Hz) — —
The value measured by the pulse probe is dis-
played. DUTY-HI (high) (%) — —
DUTY-LOW (low) (%) — —
PLS WIDTH-HI (ms) — —
PLS WIDTH-LOW (ms) — —Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU

AT-100
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
CAN DIAGNOSTIC SUPPORT MONITOR MODE
Operation Procedure
1. Touch “CAN DAIG SUPPORT MNTR” on “SELECT DIAG
MODE” screen. Refer to LAN-20, "
CAN Diagnostic Support
Monitor" .
DTC WORK SUPPORT MODE
Operation Procedure
1. Touch “DTC WORK SUPPORT” on “SELECT DIAG MODE”
screen.
2. Touch select item menu.
3. Touch “START”.
BCIA0031E
BCIA0031E
SCIA0512E
SCIA5159E

TROUBLE DIAGNOSIS
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45

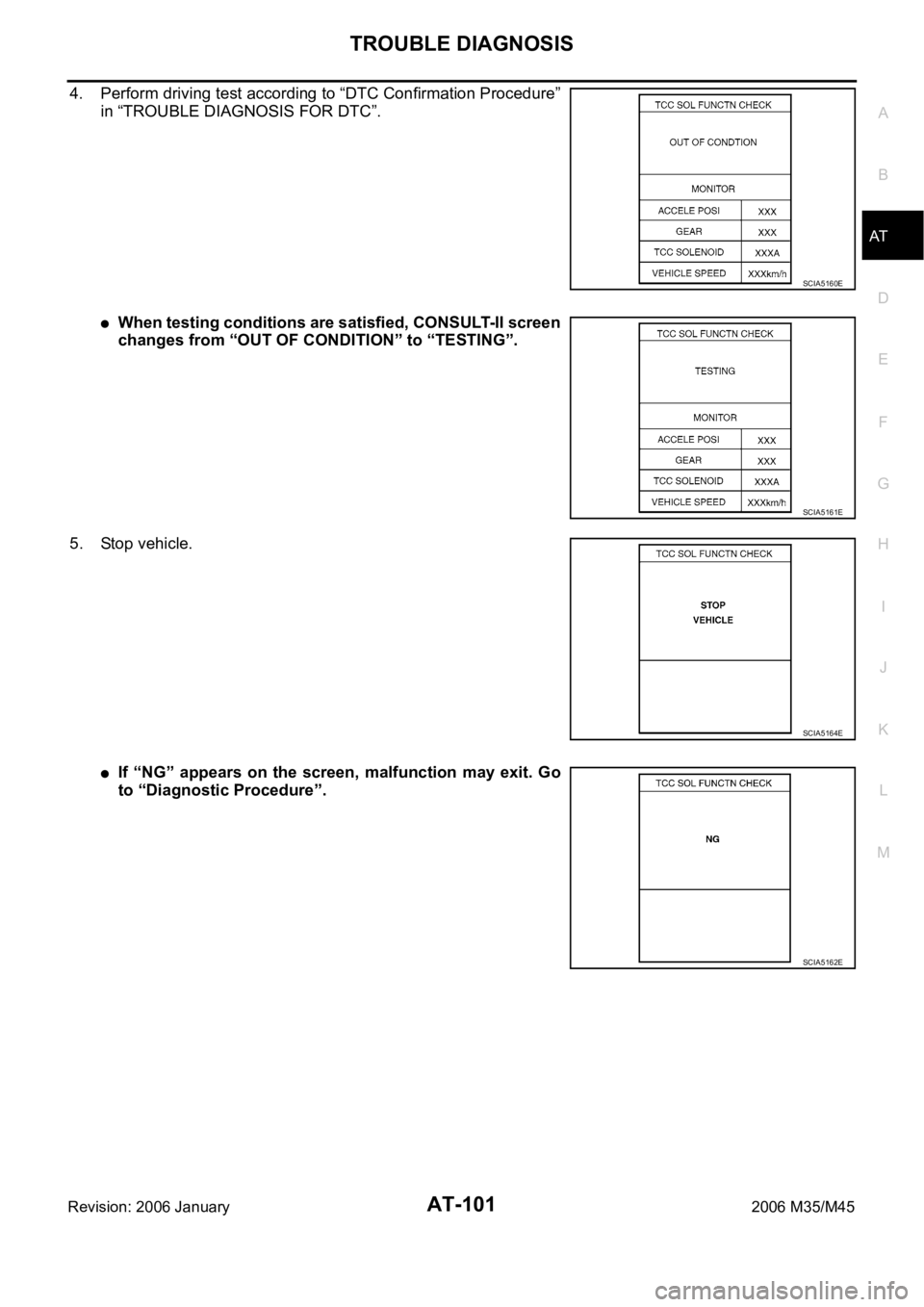

4. Perform driving test according to “DTC Confirmation Procedure”
in “TROUBLE DIAGNOSIS FOR DTC”.
When testing conditions are satisfied, CONSULT-II screen
changes from “OUT OF CONDITION” to “TESTING”.
5. Stop vehicle.
If “NG” appears on the screen, malfunction may exit. Go
to “Diagnostic Procedure”.
SCIA5160E
SCIA5161E
SCIA5164E
SCIA5162E
