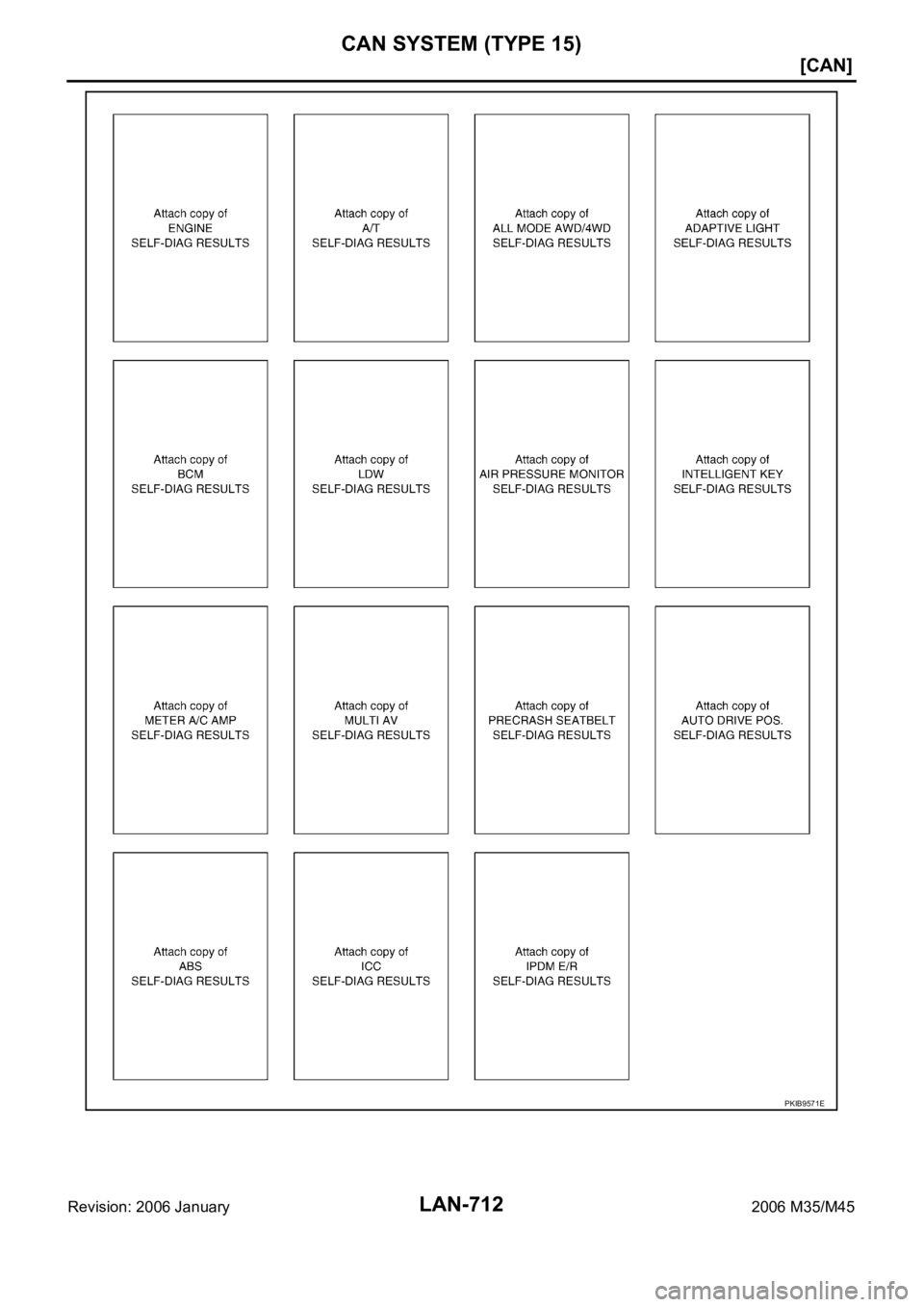

INFINITI M35 2006 Factory Service Manual LAN-712 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 PKIB9571E

Page 4382 of 5621

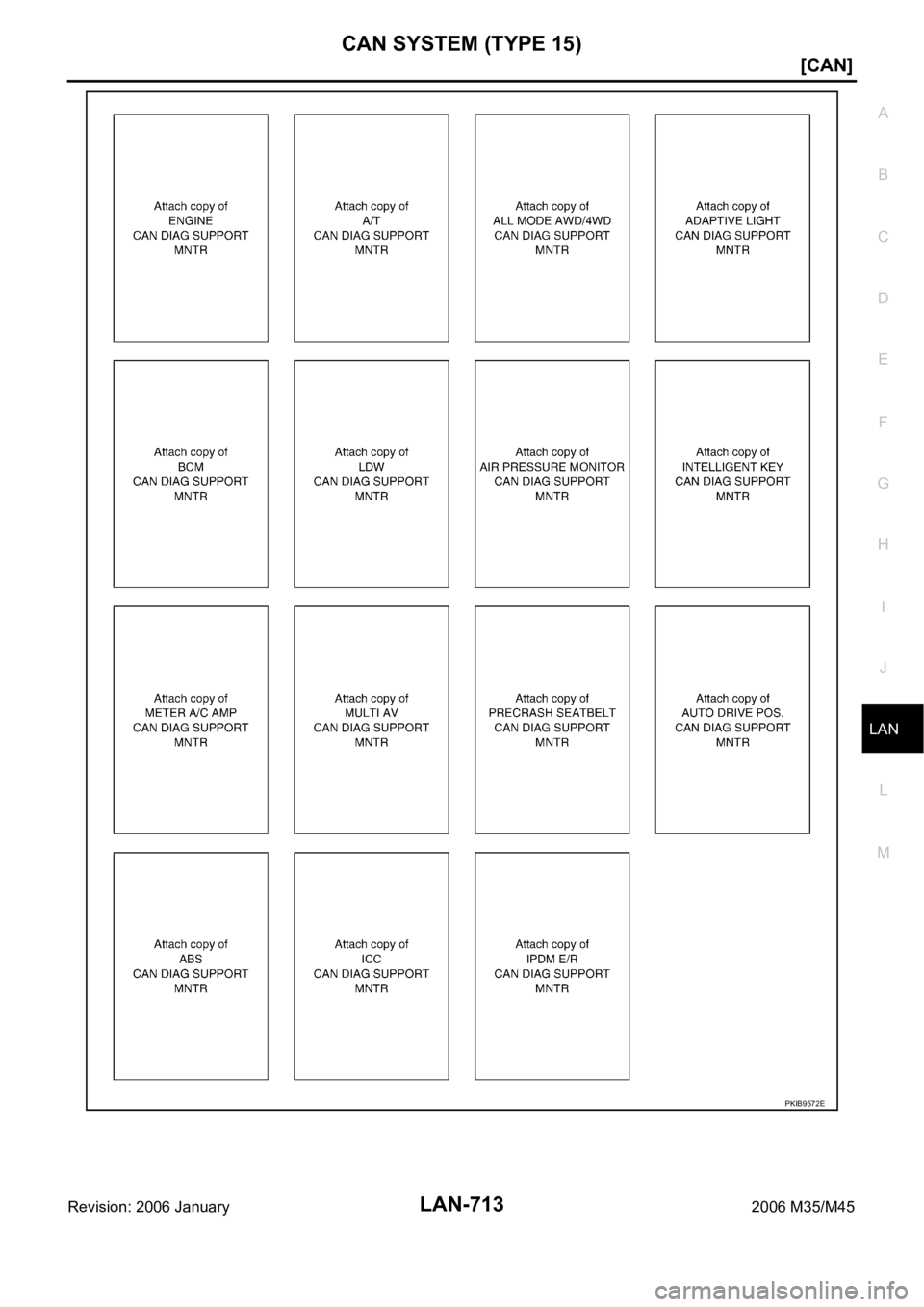

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-713 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9572E

Page 4383 of 5621

INFINITI M35 2006 Factory Service Manual LAN-714 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the cont

Page 4384 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-715 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and pre-crash seat belt control unit. Refer to LA

Page 4385 of 5621

INFINITI M35 2006 Factory Service Manual LAN-716 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 3 Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-739, "I

Page 4386 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-717 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check harness between driver seat control unit and ABS actuator and electric unit (control unit)

Page 4387 of 5621

INFINITI M35 2006 Factory Service Manual LAN-718 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 5 Check harness between ABS actuator and electric unit (control unit) and ICC sensor integrated unit. Refer to LAN-740, "

Page 4388 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-719 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 6 Check ECM circuit. Refer to LAN-741, "ECM Circuit Inspection" . PKIB8568E SKIB4483E

Page 4389 of 5621

INFINITI M35 2006 Factory Service Manual LAN-720 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 7 Check TCM circuit. Refer to LAN-741, "TCM Circuit Inspection" . PKIB8569E SKIB4484E

Page 4390 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-721 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check AWD control unit circuit. Refer to LAN-742, "AWD Control Unit Circuit Inspection"
