Item DisplayMonitor item
Description Remarks
TCM input
signalsMain sig-
nals
1 position switch 1 POSITION SW
[ON/OFF]
XÐION/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise signal ASCD-CRUISE
[ON/OFF]
XÐIStatus of ASCD cruise
signal is displayed.
ON ... Cruising state
OFF ... Normal running
stateIThis is displayed even
when no ASCD is
mounted.
ASCD OD cut signal ASCD-OD CUT
[ON/OFF]
XÐIStatus of ASCD OD
release signal is dis-
played.
ON ... OD released
OFF ... OD not releasedIThis is displayed even
when no ASCD is
mounted.
Kickdown switch KICKDOWN SW
[ON/OFF]
XÐION/OFF status, com-
puted from signal of
kickdown SW, is dis-
played.IThis is displayed even
when no kickdown
switch is equipped.
Closed throttle position
switchCLOSED
THL/SW
[ON/OFF]XÐION/OFF status, com-
puted from signal of
closed throttle position
SW, is displayed.
Wide open throttle position
switchW/O THRL/P-SW
[ON/OFF]
XÐION/OFF status, com-
puted from signal of
wide open throttle posi-
tion SW, is displayed.
Stop lamp switch BRAKE SW
[ON/OFF]
XÐION/OFF status is dis-
played.
ON ... Brake pedal is
depressed.
OFF ... Brake pedal is
released.
Gear position GEAR
ÐXIGear position data used
for computation by TCM,
is displayed.
Selector lever position SLCT LVR POSI
ÐXISelector lever position
data, used for computa-
tion by TCM, is dis-
played.IA specific value used for
control is displayed if
fail-safe is activated due
to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]ÐXIVehicle speed data,
used for computation by
TCM, is displayed.
Throttle position THROTTLE
POSI
[/8]ÐXIThrottle position data,
used for computation by
TCM, is displayed.IA specific value used for
control is displayed if
fail-safe is activated due
to error.
Line pressure duty LINE PRES DTY
[%]
ÐXIControl value of line
pressure solenoid valve,
computed by TCM from
each input signal, is dis-
played.GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
CONSULT-II (Cont'd)
AT-41

SAT014K
5. Touch ªA/Tº.
SAT971J
6. Touch ªDTC WORK SUPPORTº.
SAT018K
7. Touch select item menu (1ST, 2ND, etc.).
SAT589J
8. Touch ªSTARTº.
SAT019K
9. Perform driving test according to ªDTC CONFIRMATION PRO-
CEDUREº in ªTROUBLE DIAGNOSIS FOR DTCº.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
CONSULT-II (Cont'd)
AT-43

SAT596J
SAT593J
13. CONSULT-II procedure ended.
If ªNGº appears on the screen, a malfunction may exist. Go to
ªDIAGNOSTIC PROCEDUREº.
DTC WORK SUPPORT MODENBAT0184S05
DTC work support item Description Check item
1ST GR FNCTN P0731Following items for ªA/T 1st gear function (P0731)º can be con-
firmed.
ISelf-diagnosis status (whether the diagnosis is being con-
ducted or not)
ISelf-diagnosis result (OK or NG)IShift solenoid valve A
IShift solenoid valve B
IEach clutch
IHydraulic control circuit
2ND GR FNCTN P0732Following items for ªA/T 2nd gear function (P0732)º can be con-
firmed.
ISelf-diagnosis status (whether the diagnosis is being con-
ducted or not)
ISelf-diagnosis result (OK or NG)IShift solenoid valve B
IEach clutch
IHydraulic control circuit
3RD GR FNCTN P0733Following items for ªA/T 3rd gear function (P0733)º can be con-
firmed.
ISelf-diagnosis status (whether the diagnosis is being con-
ducted or not)
ISelf-diagnosis result (OK or NG)IShift solenoid valve A
IEach clutch
IHydraulic control circuit
4TH GR FNCTN P0734Following items for ªA/T 4th gear function (P0734)º can be con-
firmed.
ISelf-diagnosis status (whether the diagnosis is being con-
ducted or not)
ISelf-diagnosis result (OK or NG)IShift solenoid valve A
IShift solenoid valve B
IOverrun clutch solenoid valve
ILine pressure solenoid valve
IEach clutch
IHydraulic control circuit
TCC S/V FNCTN P0744Following items for ªA/T TCC S/V function (lock-up) (P0744)º can
be confirmed.
ISelf-diagnosis status (whether the diagnosis is being con-
ducted or not)
ISelf-diagnosis result (OK or NG)ITorque converter clutch sole-
noid valve
IEach clutch
IHydraulic control circuit
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
CONSULT-II (Cont'd)
AT-45

1 CHECK O/D OFF INDICATOR LAMP
1. Start the engine with selector lever in ªPº position. Warm engine to normal operating temperature.
2. Turn ignition switch to ªOFFº position.
3. Wait 5 seconds.
SAT967I
4. Turn ignition switch to ªONº position.
(Do not start engine.)
5. Does O/D OFF indicator lamp come on for about 2 seconds?
SAT133K
YesorNo
Ye s©GO TO 2.
No©Go to ª1. O/D OFF Indicator Lamp Does Not Come Onº, AT-218.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
Diagnostic Procedure Without CONSULT-II (Cont'd)
AT-47

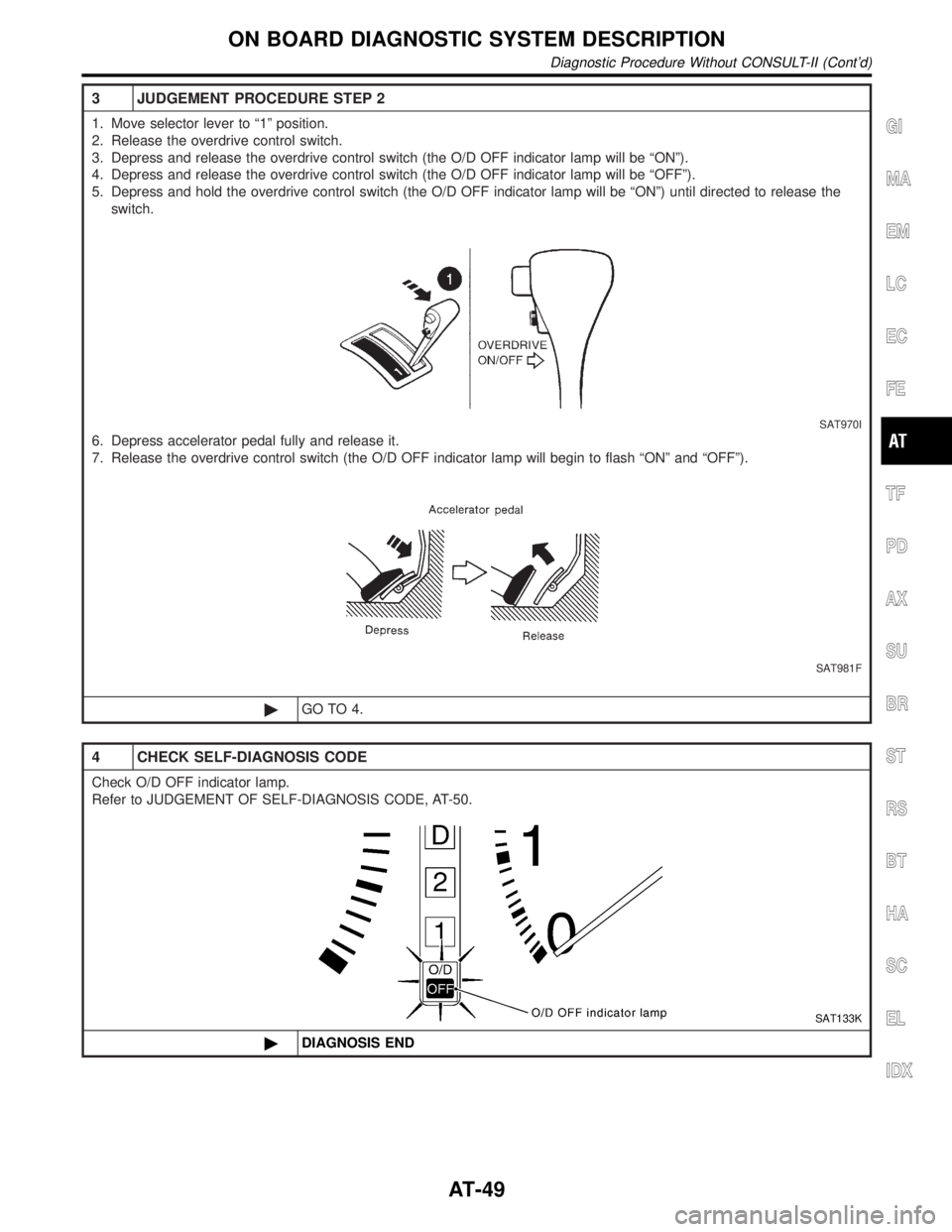

3 JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to ª1º position.
2. Release the overdrive control switch.
3. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be ªONº).
4. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be ªOFFº).
5. Depress and hold the overdrive control switch (the O/D OFF indicator lamp will be ªONº) until directed to release the
switch.
SAT970I
6. Depress accelerator pedal fully and release it.
7. Release the overdrive control switch (the O/D OFF indicator lamp will begin to flash ªONº and ªOFFº).
SAT981F
©GO TO 4.
4 CHECK SELF-DIAGNOSIS CODE
Check O/D OFF indicator lamp.
Refer to JUDGEMENT OF SELF-DIAGNOSIS CODE, AT-50.
SAT133K
