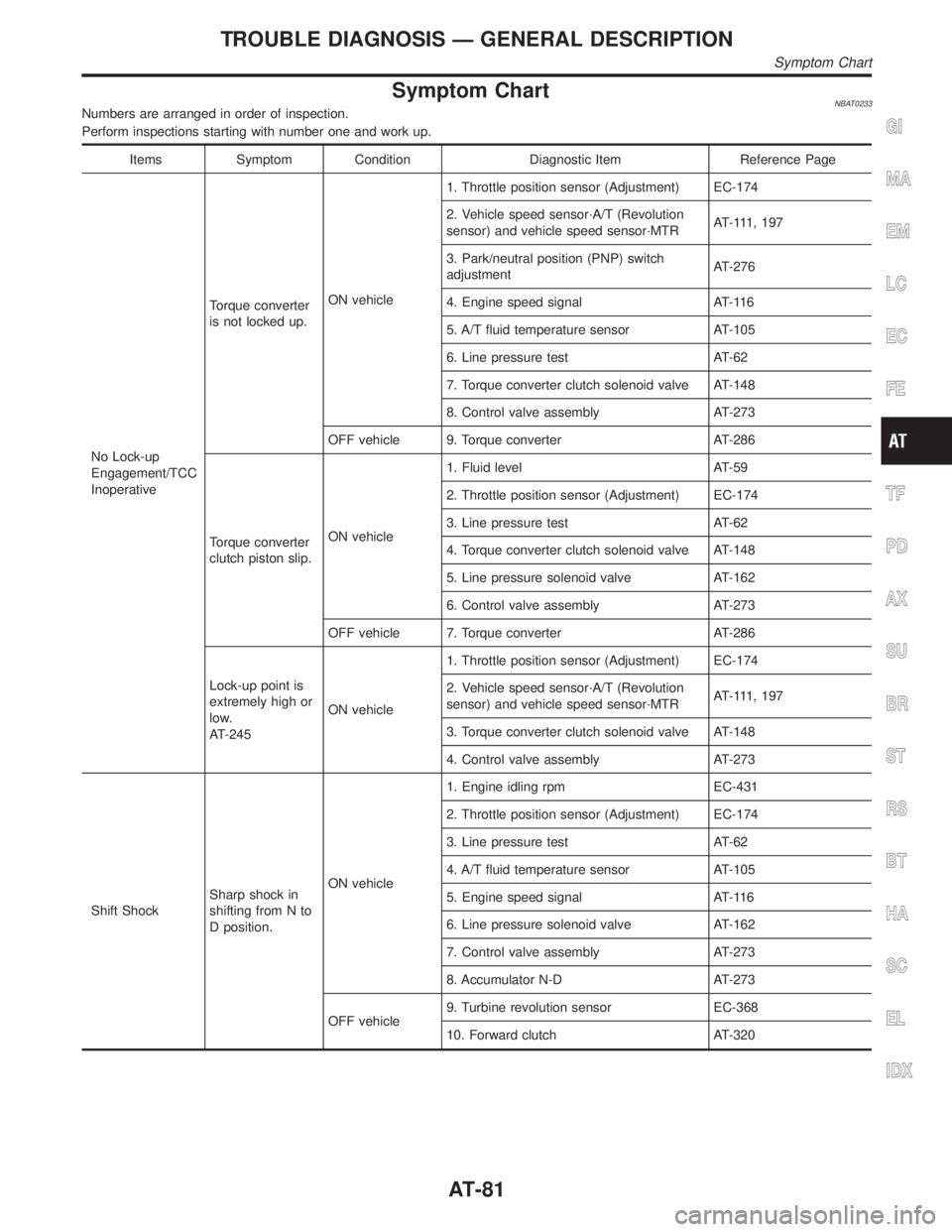

Symptom ChartNBAT0233Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Items Symptom Condition Diagnostic Item Reference Page
No Lock-up
Engagement/TCC
InoperativeTorque converter
is not locked up.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
3. Park/neutral position (PNP) switch
adjustmentAT-276
4. Engine speed signal AT-116
5. A/T fluid temperature sensor AT-105
6. Line pressure test AT-62
7. Torque converter clutch solenoid valve AT-148
8. Control valve assembly AT-273
OFF vehicle 9. Torque converter AT-286
Torque converter
clutch piston slip.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. Torque converter clutch solenoid valve AT-148
5. Line pressure solenoid valve AT-162
6. Control valve assembly AT-273
OFF vehicle 7. Torque converter AT-286
Lock-up point is
extremely high or
low.
AT-245ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
3. Torque converter clutch solenoid valve AT-148
4. Control valve assembly AT-273
Shift ShockSharp shock in
shifting from N to
D position.ON vehicle1. Engine idling rpm EC-431
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. A/T fluid temperature sensor AT-105
5. Engine speed signal AT-116
6. Line pressure solenoid valve AT-162
7. Control valve assembly AT-273
8. Accumulator N-D AT-273
OFF vehicle9. Turbine revolution sensor EC-368
10. Forward clutch AT-320
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart
AT-81

Items Symptom Condition Diagnostic Item Reference Page
Improper Shift
TimingKickdown oper-
ates or engine
overruns when
depressing pedal
in D
4beyond kick-
down vehicle
speed limit.ON vehicle1. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
2. Throttle position sensor (Adjustment) EC-174
3. Shift solenoid valve A AT-168
4. Shift solenoid valve B AT-172
Gear change from
2
2to 23in 2 posi-
tion.ON vehicle1. Park/neutral position (PNP) switch
adjustmentAT-276
Gear change from
1
1to 12in 1 posi-
tion.ON vehicle1. Park/neutral position (PNP) switch
adjustmentAT-276
2. Manual control linkage adjustment AT-276
No Down ShiftFailure to change
gear from D
4to
D
3.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Overrun clutch solenoid valve AT-185
4. Shift solenoid valve A AT-168
5. Line pressure solenoid valve AT-162
6. Control valve assembly AT-273
OFF vehicle7. Low & reverse brake AT-324
8. Overrun clutch AT-320
Failure to change
gear from D
3to
D
2or from D4to
D
2.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Shift solenoid valve A AT-168
4. Shift solenoid valve B AT-172
5. Control valve assembly AT-273
OFF vehicle6. High clutch AT-317
7. Brake band AT-333
Failure to change
gear from D
2to
D
1or from D3to
D
1.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Shift solenoid valve A AT-168
4. Shift solenoid valve B AT-172
5. Control valve assembly AT-273
OFF vehicle6. Low one-way clutch AT-328
7. High clutch AT-317
8. Brake band AT-333
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart (Cont'd)
AT-83

Items Symptom Condition Diagnostic Item Reference Page
No Up ShiftFailure to change
gear from D
3to
D
4.ON vehicle1. Park/neutral position (PNP) switch
adjustmentAT-276
2. Manual control linkage adjustment AT-276
3. Shift solenoid valve A AT-168
4. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
5. A/T fluid temperature sensor AT-105
OFF vehicle 6. Brake band AT-333
A/T does not shift
to D
4when driv-
ing with overdrive
control switch ON.ON vehicle1. Throttle position sensor (Adjustment) EC-174
2. Park/neutral position (PNP) switch
adjustmentAT-276
3. Vehicle speed sensor´A/T (Revolution
sensor) and vehicle speed sensor´MTRAT- 111 , 1 9 7
4. Shift solenoid valve A AT-168
5. Overrun clutch solenoid valve AT-185
6. Control valve assembly AT-273
7. A/T fluid temperature sensor AT-105
8. Line pressure solenoid valve AT-162
OFF vehicle9. Brake band AT-333
10. Overrun clutch AT-320
Slips/Will Not
EngageVehicle will not
run in R position
(but runs in D, 2
and 1 positions).
Clutch slips.
Very poor accel-
eration.
AT-227ON vehicle1. Manual control linkage adjustment AT-276
2. Line pressure test AT-62
3. Line pressure solenoid valve AT-162
4. Control valve assembly AT-273
OFF vehicle5. Reverse clutch AT-314
6. High clutch AT-317
7. Forward clutch AT-320
8. Overrun clutch AT-320
9. Low & reverse brake AT-324
Vehicle will not
run in D and 2
positions (but
runs in 1 and R
positions).ON vehicle 1. Manual control linkage adjustment AT-276
OFF vehicle 2. Low one-way clutch AT-328
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart (Cont'd)
AT-85

Items Symptom Condition Diagnostic Item Reference Page
Slips/Will Not
EngageAlmost no shock
or slipping in
change from D
2to
D
3.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. Control valve assembly AT-273
OFF vehicle5. High clutch AT-317
6. Forward clutch AT-320
Almost no shock
or slipping in
change from D
3to
D
4.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. Control valve assembly AT-273
OFF vehicle5. High clutch AT-317
6. Brake band AT-333
Races extremely
fast or slips in
changing from D
4to D3when
depressing pedal.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. Line pressure solenoid valve AT-162
5. Control valve assembly AT-273
OFF vehicle6. High clutch AT-317
7. Forward clutch AT-320
Races extremely
fast or slips in
changing from D
4to D2when
depressing pedal.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. Line pressure solenoid valve AT-162
5. Shift solenoid valve A AT-168
6. Control valve assembly AT-273
OFF vehicle7. Brake band AT-333
8. Forward clutch AT-320
Races extremely
fast or slips in
changing from D
3to D2when
depressing pedal.ON vehicle1. Fluid level AT-59
2. Throttle position sensor (Adjustment) EC-174
3. Line pressure test AT-62
4. Line pressure solenoid valve AT-162
5. Control valve assembly AT-273
6. A/T fluid temperature sensor AT-105
OFF vehicle7. Brake band AT-333
8. Forward clutch AT-320
9. High clutch AT-317
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart (Cont'd)
AT-87

Items Symptom Condition Diagnostic Item Reference Page
NOT USEDVehicle runs in N
position.
AT-223ON vehicle 1. Manual control linkage adjustment AT-276
OFF vehicle2. Forward clutch AT-320
3. Reverse clutch AT-314
4. Overrun clutch AT-320
Vehicle braked
when shifting into
R position.ON vehicle1. Fluid level AT-59
2. Manual control linkage adjustment AT-276
3. Line pressure test AT-62
4. Line pressure solenoid valve AT-162
5. Control valve assembly AT-273
OFF vehicle6. High clutch AT-317
7. Brake band AT-333
8. Forward clutch AT-320
9. Overrun clutch AT-320
Excessive creep. ON vehicle 1. Engine idling rpm EC-431
Engine stops
when shifting
lever into R, D, 2
and 1.ON vehicle1. Engine idling rpm EC-431
2. Torque converter clutch solenoid valve AT-148
3. Control valve assembly AT-273
OFF vehicle 4. Torque converter AT-286
Vehicle braked by
gear change from
D
1to D2.ON vehicle 1. Fluid level AT-59
OFF vehicle2. Reverse clutch AT-314
3. Low & reverse brake AT-324
4. High clutch AT-317
5. Low one-way clutch AT-328
Vehicle braked by
gear change from
D
2to D3.ON vehicle 1. Fluid level AT-59
OFF vehicle 2. Brake band AT-333
Vehicle braked by
gear change from
D
3to D4.ON vehicle 1. Fluid level AT-59
OFF vehicle2. Overrun clutch AT-320
3. Forward one-way clutch AT-330
4. Reverse clutch AT-314
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart (Cont'd)
AT-89

Items Symptom Condition Diagnostic Item Reference Page
NOT USEDATF shoots out
during operation.
White smoke
emitted from
exhaust pipe dur-
ing operation.ON vehicle 1. Fluid level AT-59
OFF vehicle2. Reverse clutch AT-314
3. High clutch AT-317
4. Brake band AT-333
5. Forward clutch AT-320
6. Overrun clutch AT-320
7. Low & reverse brake AT-324
Offensive smell at
fluid charging
pipe.ON vehicle 1. Fluid level AT-59
OFF vehicle2. Torque converter AT-286
3. Oil pump AT-297
4. Reverse clutch AT-314
5. High clutch AT-317
6. Brake band AT-333
7. Forward clutch AT-320
8. Overrun clutch AT-320
9. Low & reverse brake AT-324
Engine is stopped
at R, D, 2 and 1
positions.ON vehicle1. Fluid level AT-59
2. Torque converter clutch solenoid valve AT-148
3. Shift solenoid valve B AT-172
4. Shift solenoid valve A AT-168
5. Control valve assembly AT-273
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
Symptom Chart (Cont'd)
AT-91

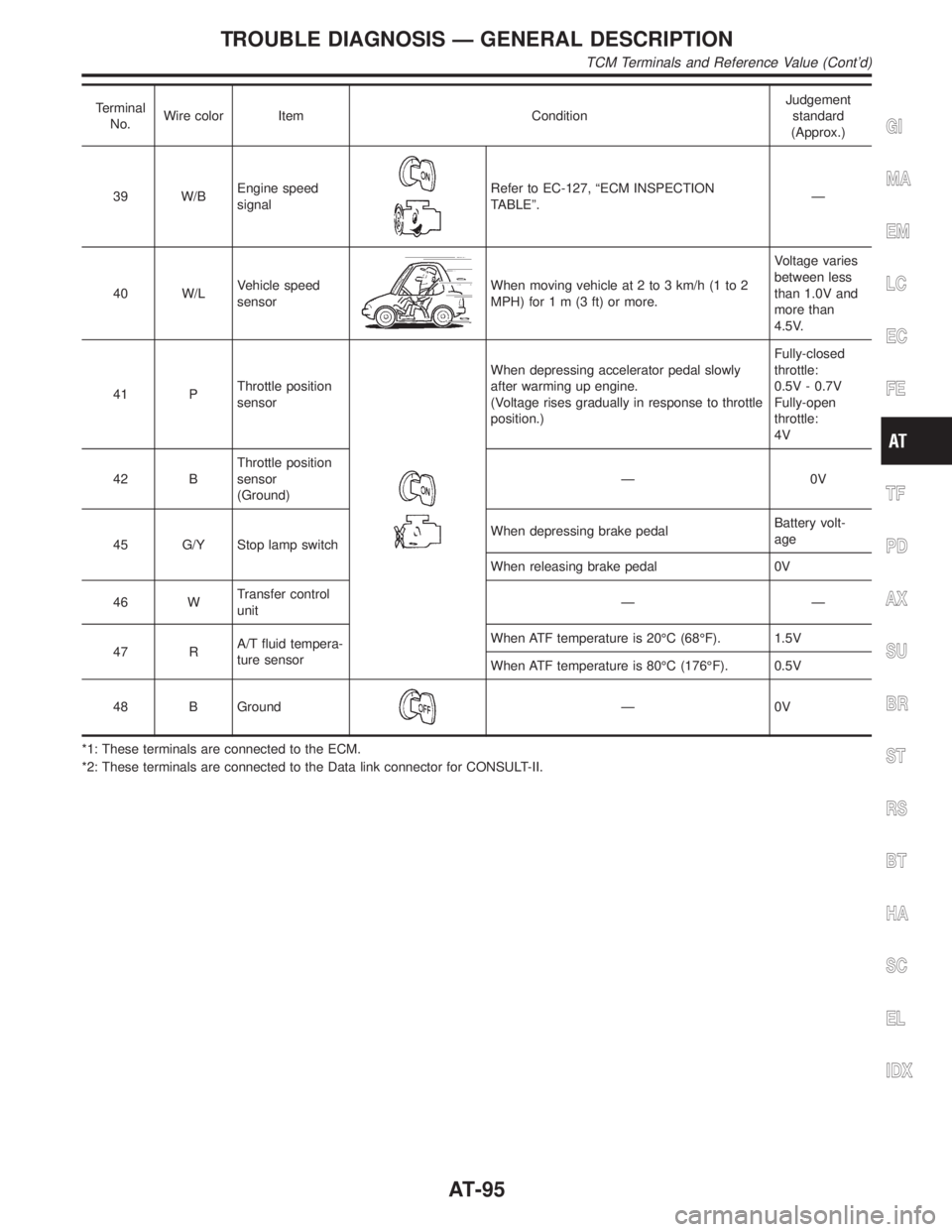

Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
11 L/WShift solenoid
valve A
When shift solenoid valve A operates.
(When driving in ªD
1ºorªD4º.)Battery volt-
age
When shift solenoid valve A does not operate.
(When driving in ªD
2ºorªD3º.)0V
12 L/RShift solenoid
valve BWhen shift solenoid valve B operates.
(When driving in ªD
1ºorªD2º.)Battery volt-
age
When shift solenoid valve B does not operate.
(When driving in ªD
3ºorªD4º.)0V
13 GYO/D OFF indica-
tor lamp
When setting overdrive control switch in ªONº
position.Battery volt-
age
When setting overdrive control switch in
ªOFFº position.0V
14 Ð Ð Ð Ð
15 Ð Ð Ð Ð
16 OR/WClosed throttle
position switch
(in throttle posi-
tion switch)When releasing accelerator pedal after warm-
ing up engine.
Refer to ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-46.Battery volt-
age
When depressing accelerator pedal after
warming up engine.
Refer to ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-46.0V
17 OR/BWide open
throttle position
switch
(in throttle posi-
tion switch)When depressing accelerator pedal more than
half-way after warming up engine.Battery volt-
age
When releasing accelerator pedal after warm-
ing up engine.0V
18 B/YASCD cruise sig-
nal
When ASCD cruise is being performed.
(ªCRUISEº light comes on.)Battery volt-
age
When ASCD cruise is not being performed.
(ªCRUISEº light does not comes on.)0V
19 W/R Power source
Same as No. 10
20 L/BOverrun clutch
solenoid valve
When overrun clutch solenoid valve operates.Battery volt-
age
When overrun clutch solenoid valve does not
operate.0V
21 Ð Ð
ÐÐ
22 GYOverdrive control
switchWhen setting overdrive control switch in ªONº
positionBattery volt-
age
When setting overdrive control switch in
ªOFFº position0V
23 Ð Ð Ð Ð
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
TCM Terminals and Reference Value (Cont'd)
AT-93

Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
39 W/BEngine speed
signal
Refer to EC-127, ªECM INSPECTION
TABLEº.Ð
40 W/LVehicle speed
sensor
When moving vehicle at 2 to 3 km/h (1 to 2
MPH) for1m(3ft)ormore.Voltage varies
between less
than 1.0V and
more than
4.5V.
41 PThrottle position
sensor
When depressing accelerator pedal slowly
after warming up engine.
(Voltage rises gradually in response to throttle
position.)Fully-closed
throttle:
0.5V - 0.7V
Fully-open
throttle:
4V
42 BThrottle position
sensor
(Ground)Ð0V
45 G/Y Stop lamp switchWhen depressing brake pedalBattery volt-
age
When releasing brake pedal 0V
46 WTransfer control
unitÐÐ
47 RA/T fluid tempera-
ture sensorWhen ATF temperature is 20ÉC (68ÉF). 1.5V
When ATF temperature is 80ÉC (176ÉF). 0.5V
48 B Ground
Ð0V
*1: These terminals are connected to the ECM.
*2: These terminals are connected to the Data link connector for CONSULT-II.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTION
TCM Terminals and Reference Value (Cont'd)
AT-95

TCM TERMINALS AND REFERENCE VALUENBAT0185S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
10 W/R Power source
When turning ignition switch to ªONº.Battery volt-
age
When turning ignition switch to ªOFFº. 0V
19 W/R Power source Same as No. 10
25 B Ground
Ð0V
28 R/YPower source
(Memory back-up)
or
When turning ignition switch to ªOFFº.Battery volt-
age
When turning ignition switch to ªONº.Battery volt-
age
48 B Ground
Ð0V
Diagnostic ProcedureNBAT0223
1 CHECK TCM POWER SOURCE STEP 1
1. Turn ignition switch to ON position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
SAT611J
OK or NG
OK©GO TO 2.
NG©GO TO 3.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSIS FOR POWER SUPPLY
Wiring Diagram Ð AT Ð MAIN (Cont'd)
AT-97

SAT136K
DescriptionNBAT0028IThe PNP switch assemble includes a transmission range
switch.
IThe transmission range switch detects the selector position
and sends a signal to the TCM.
TCM TERMINALS AND REFERENCE VALUENBAT0028S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement
standard
(Approx.)
26 GPNP switch ª1º
position
When setting selector lever to ª1º position.Battery volt-
age
When setting selector lever to other positions. 0V
27 G/WPNP switch ª2º
positionWhen setting selector lever to ª2º position.Battery volt-
age
When setting selector lever to other positions. 0V
34 LPNP switch ªDº
positionWhen setting selector lever to ªDº position.Battery volt-
age
When setting selector lever to other positions. 0V
35 YPNP switch ªRº
positionWhen setting selector lever to ªRº position.Battery volt-
age
When setting selector lever to other positions. 0V
36 PPNP switch ªNº or
ªPº positionWhen setting selector lever to ªNº or ªPº posi-
tion.Battery volt-
age
When setting selector lever to other positions. 0V
ON BOARD DIAGNOSIS LOGICNBAT0028S03
Diagnostic trouble code Malfunction is detected when ... Check item (Possible cause)
: PNP SW/CIRC
TCM does not receive the correct volt-
age signal from the switch based on the
gear position.IHarness or connectors
(The PNP switch circuit is open or
shorted.)
IPNP switch
: P0705
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Description
AT-99
