TROUBLE DIAGNOSIS
2005 QX56

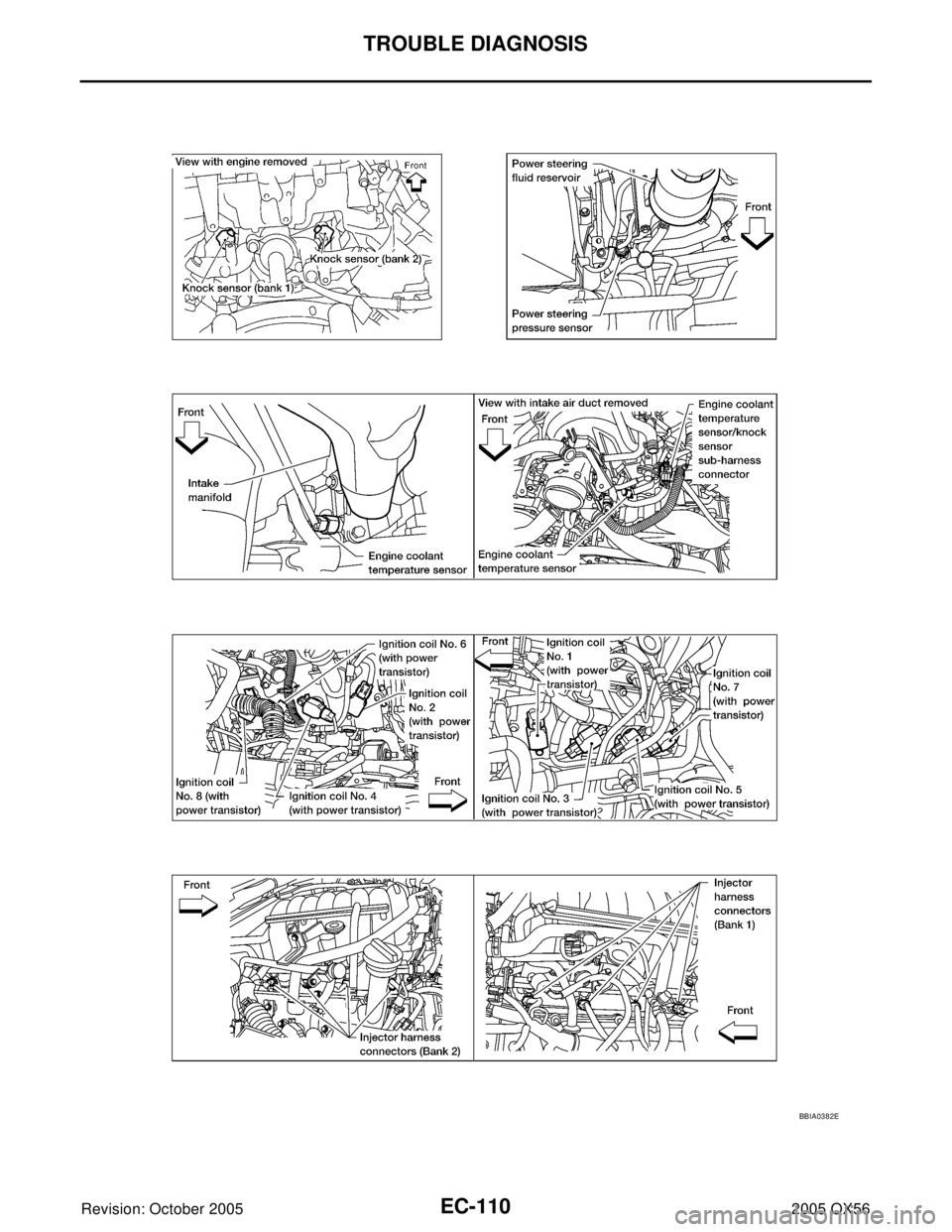

BBIA0382E

TROUBLE DIAGNOSIS
EC-111
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

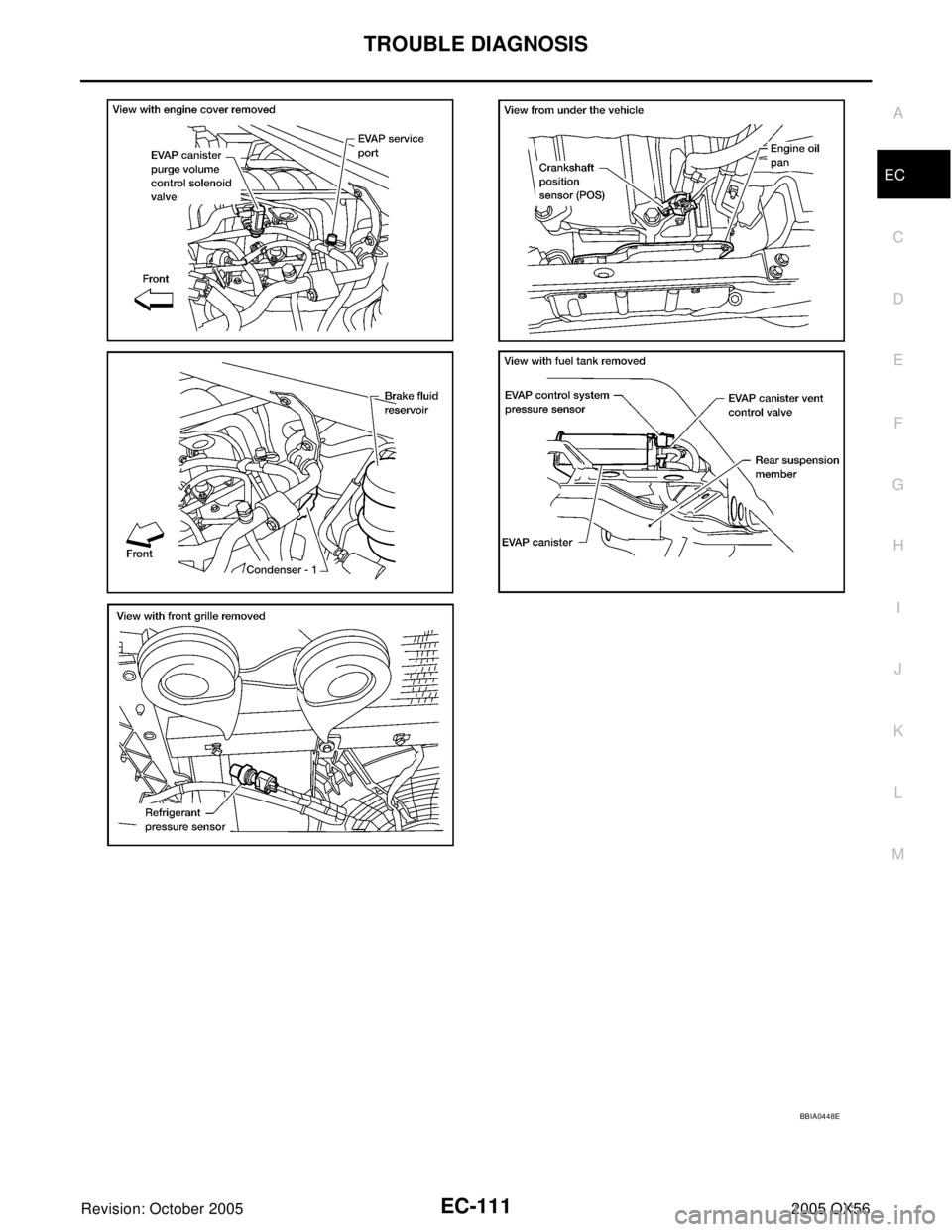

BBIA0448E

EC-112Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56

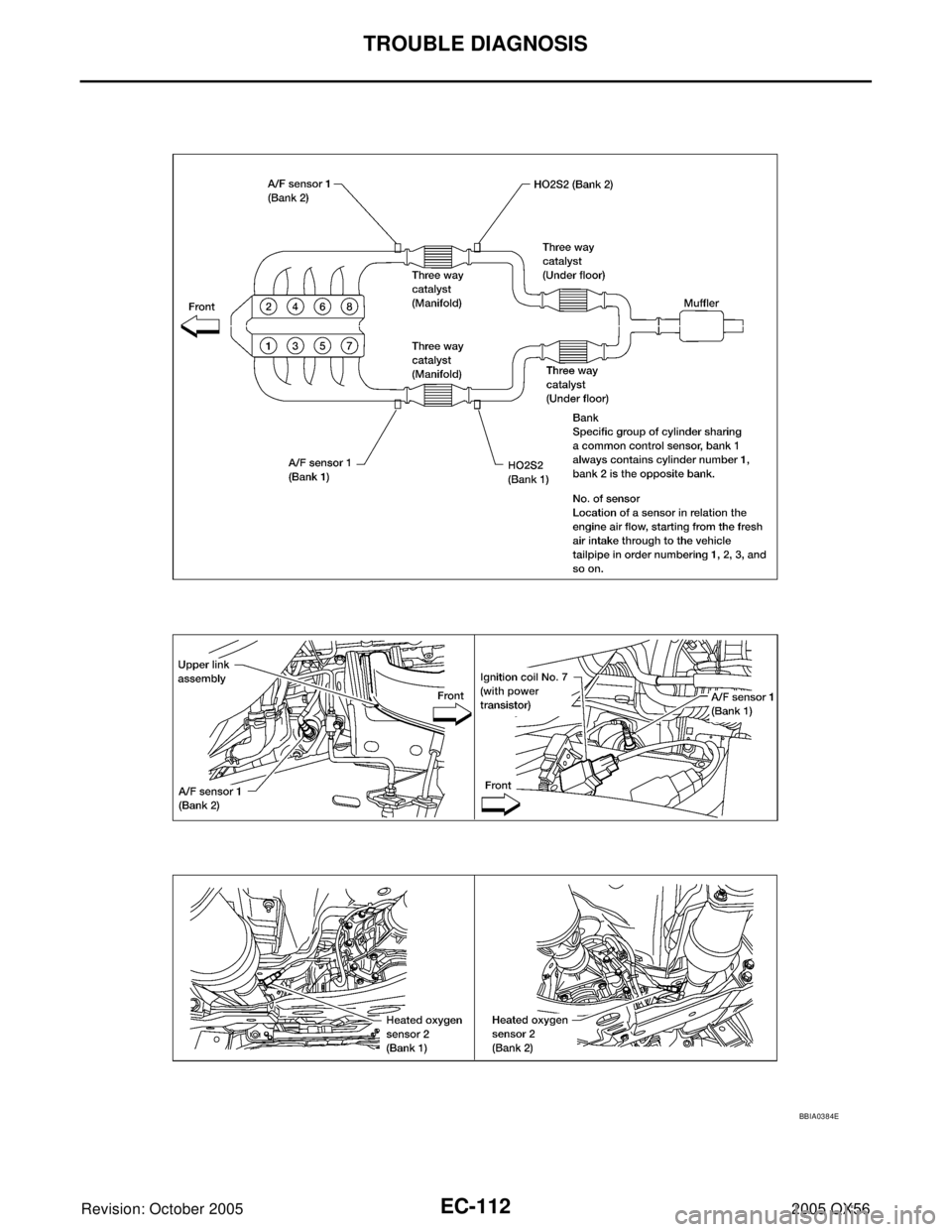

BBIA0384E

TROUBLE DIAGNOSIS
EC-113
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

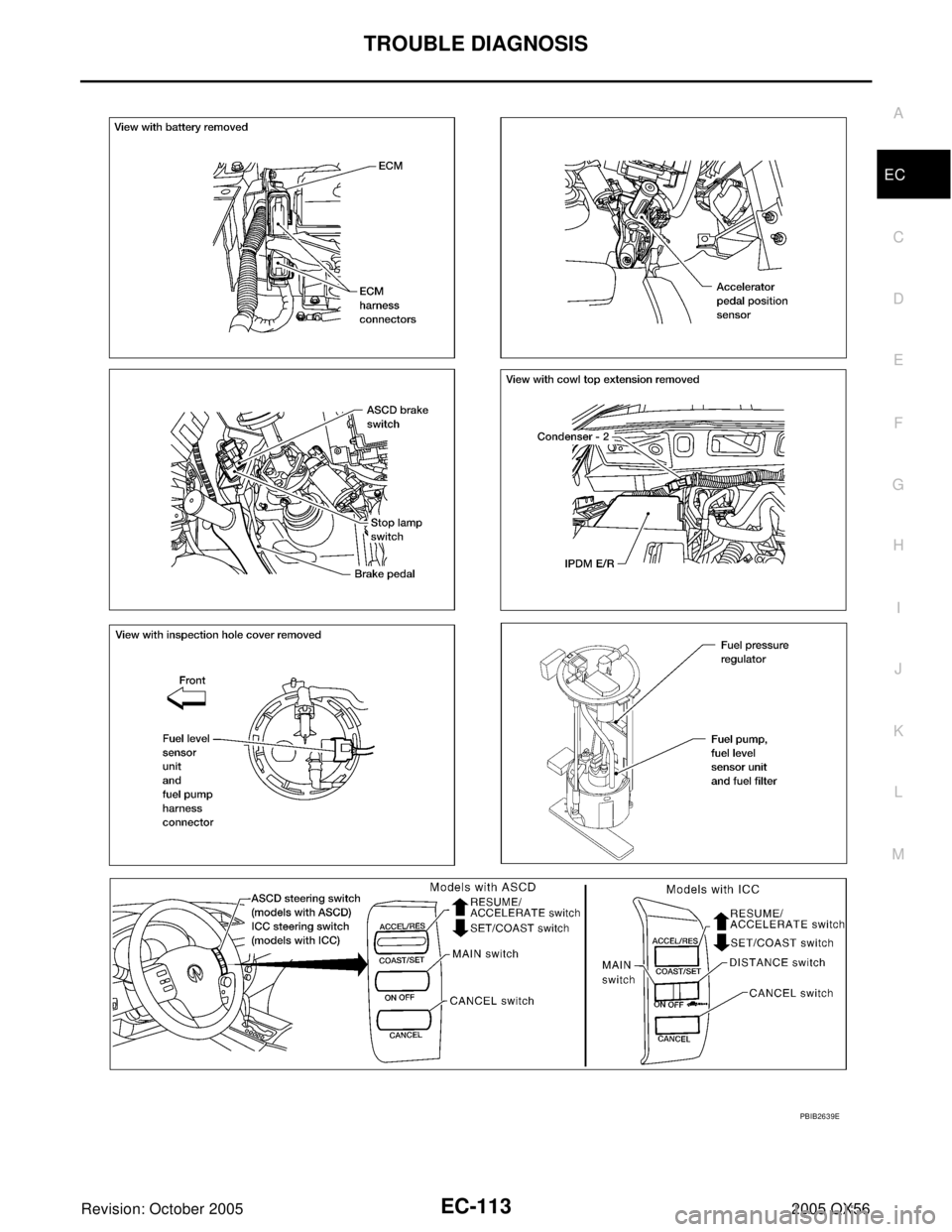

PBIB2639E

EC-114Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56

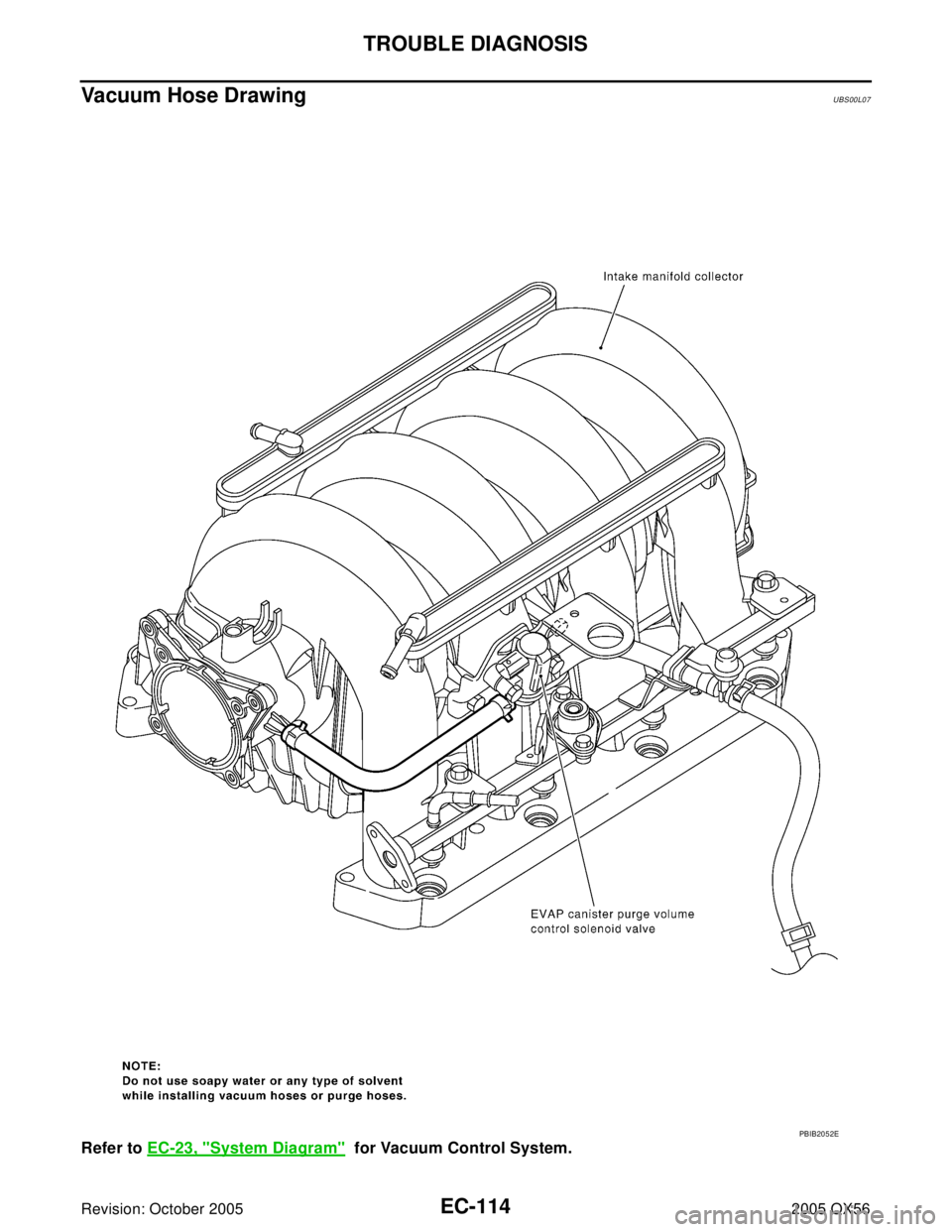

Vacuum Hose DrawingUBS00L07
Refer to EC-23, "System Diagram" for Vacuum Control System.
PBIB2052E

TROUBLE DIAGNOSIS
EC-115
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

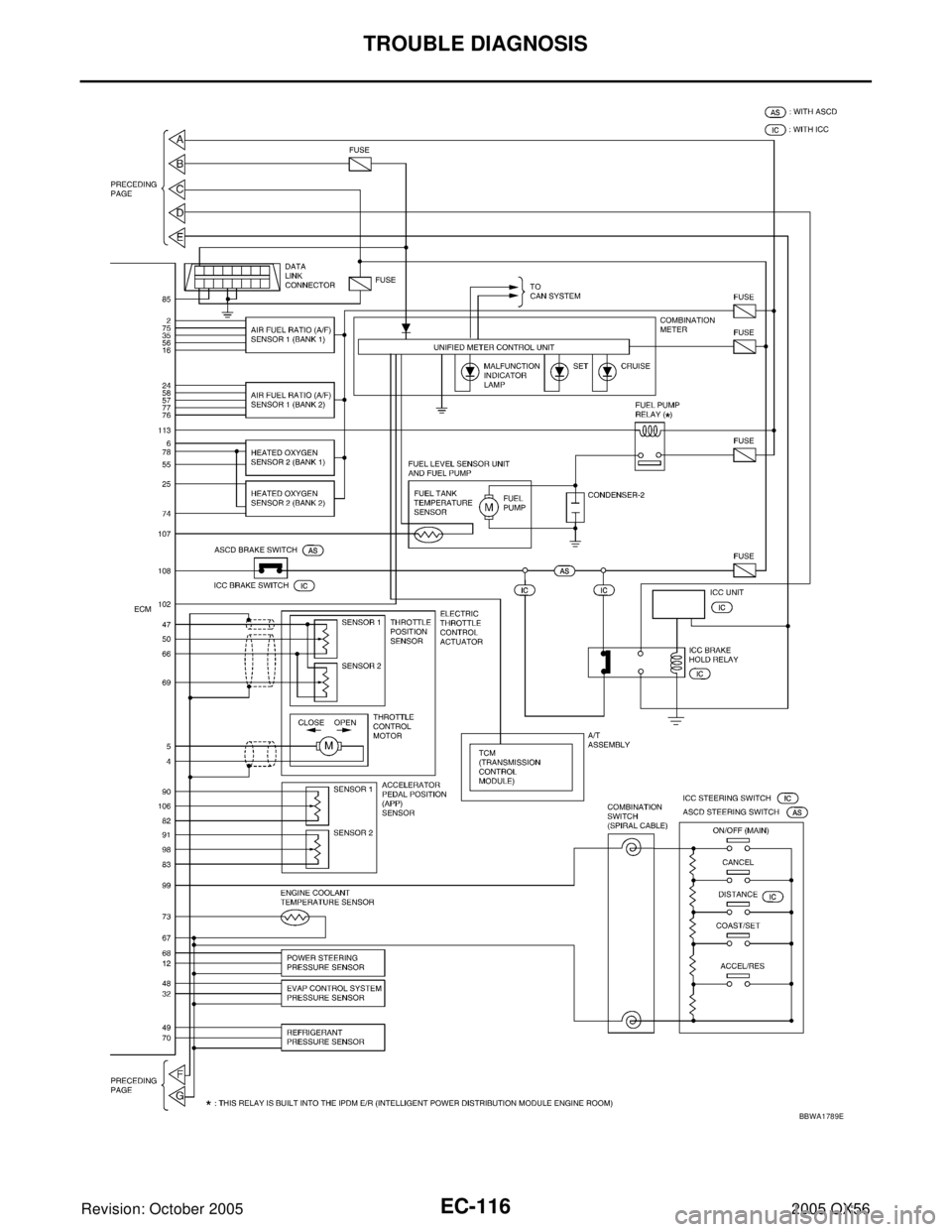

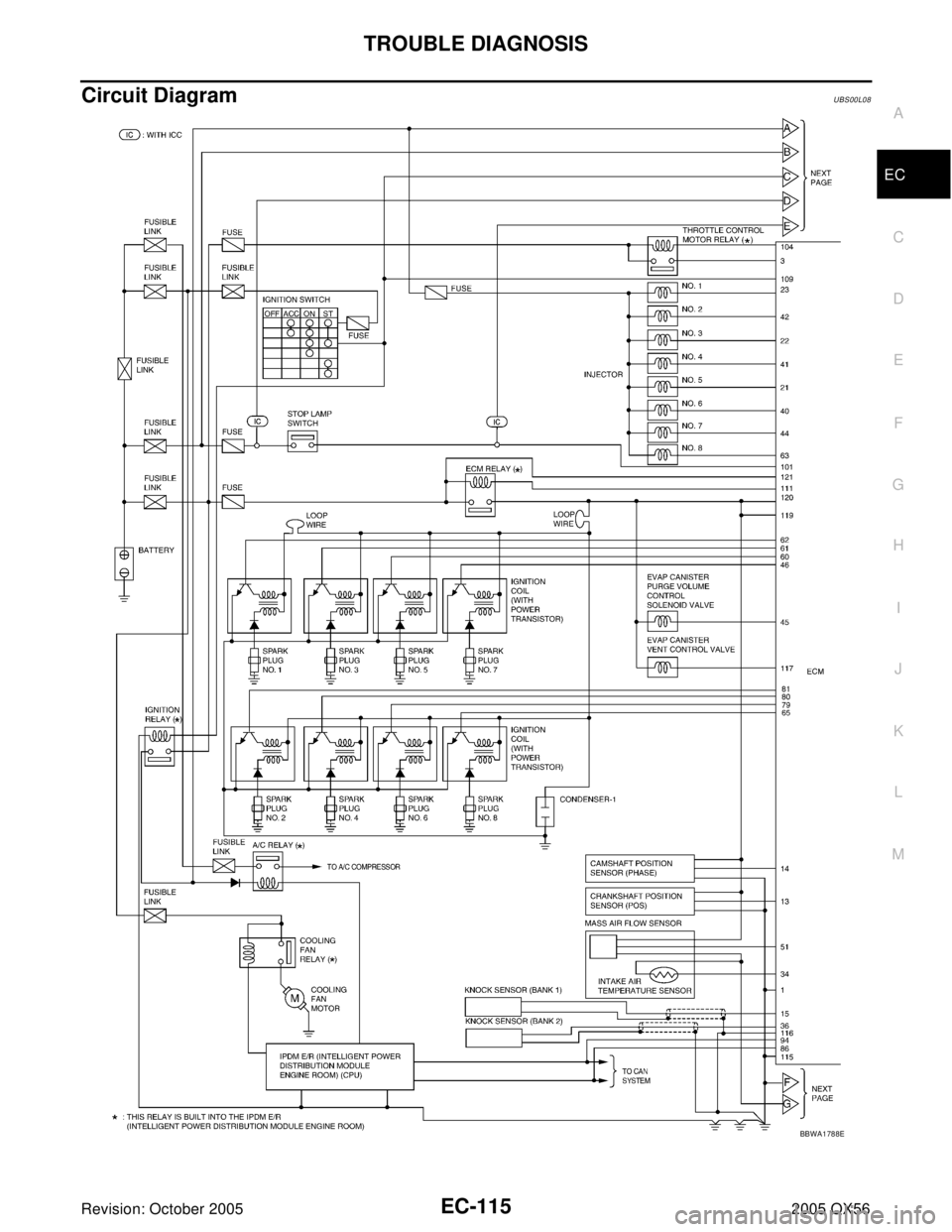

Circuit DiagramUBS00L08
BBWA1788E

EC-116Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
BBWA1789E

TROUBLE DIAGNOSIS
EC-117
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
ECM Harness Connector Terminal LayoutUBS00L09
ECM Terminals and Reference ValueUBS00L0A
PREPARATION
1. ECM is located in the engine room passenger side behind bat-
tery.
2. Remove ECM harness connector.
3. When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown in the figure.
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
BBIA0386E
BBIA0387E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]

Idle speedBody ground
2O/BA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speedApproximately 5V
PBIB1584E

EC-118Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
3LThrottle control motor relay
power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4 L/W Throttle control motor (Close)[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully released0 - 14V
5 L/B Throttle control motor (Open)[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully depressed0 - 14V
6GRHeated oxygen sensor 2
heater (bank 1)[Engine is running]

Warm-up condition

Engine speed is below 3,600 rpm after the
following conditions are met.
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load0 - 1.0V
[Ignition switch: ON]

Engine: Stopped
[Engine is running]

Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
12 RPower steering pressure sen-
sor[Engine is running]

Steering wheel: Being turned0.5 - 4.5V
[Engine is running]

Steering wheel: Not being turned0.4 - 0.8V
13 OCrankshaft position sensor
(POS)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleApproximately 10V
[Engine is running]

Engine speed: 2,000 rpmApproximately 10V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1104E
PBIB1105E
PBIB1041E
PBIB1042E

TROUBLE DIAGNOSIS
EC-119
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
14 YCamshaft position sensor
(PHASE)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 4.0V
[Engine is running]

Engine speed: 2,000 rpm1.0 - 4.0V
15 W Knock sensor (bank 1)[Engine is running]

Idle speedApproximately 2.5V
16 BR/R
A/F sensor 1 (bank 1)[Engine is running]

Warm-up condition

Idle speedApproximately 3.1V
35 BR/GApproximately 2.6V
56 LG/BApproximately 2.3V
75 P/BApproximately 2.3V
21
22
23
44O/L
BR
GR/W
OInjector No. 5
Injector No. 3
Injector No. 1
Injector No. 7[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
24 BR/WA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speedApproximately 5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1039E
PBIB1040E
SEC984C
SEC985C
PBIB1584E
