BCM (BODY CONTROL MODULE)
Revision: October 20052005 QX56
NOTE:
Headlamp has a dual system switch.
4. Example operation: (When lighting switch 1st position turned ON)

When lighting switch 1st position is turned ON, contact in combination switch turns ON. At this time if
OUTPUT 4 transistor is activated, BCM detects that voltage changes in INPUT 5.

When OUTPUT 4 transistor is ON, BCM detects that voltage changes in INPUT 5, and judges lighting
switch 1st position is ON. Then BCM sends tail lamp ON signal to IPDM E/R using CAN communica-
tion.

When OUTPUT 4 transistor is activated again, BCM detects that voltage changes in INPUT 5 and rec-
ognizes that lighting switch 1st position is continuously ON.
SKIA4959E

BCM (BODY CONTROL MODULE)
BCS-5
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: October 20052005 QX56
NOTE:
Each OUTPUT terminal transistor is activated at 10 ms intervals. Therefore, after a switch is turned ON,
electrical loads are activated with a time delay. But this time delay is so short that it cannot be noticed.
5. Operation mode

Combination switch reading function has operation modes as follows:
Normal status

When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.
Sleep status

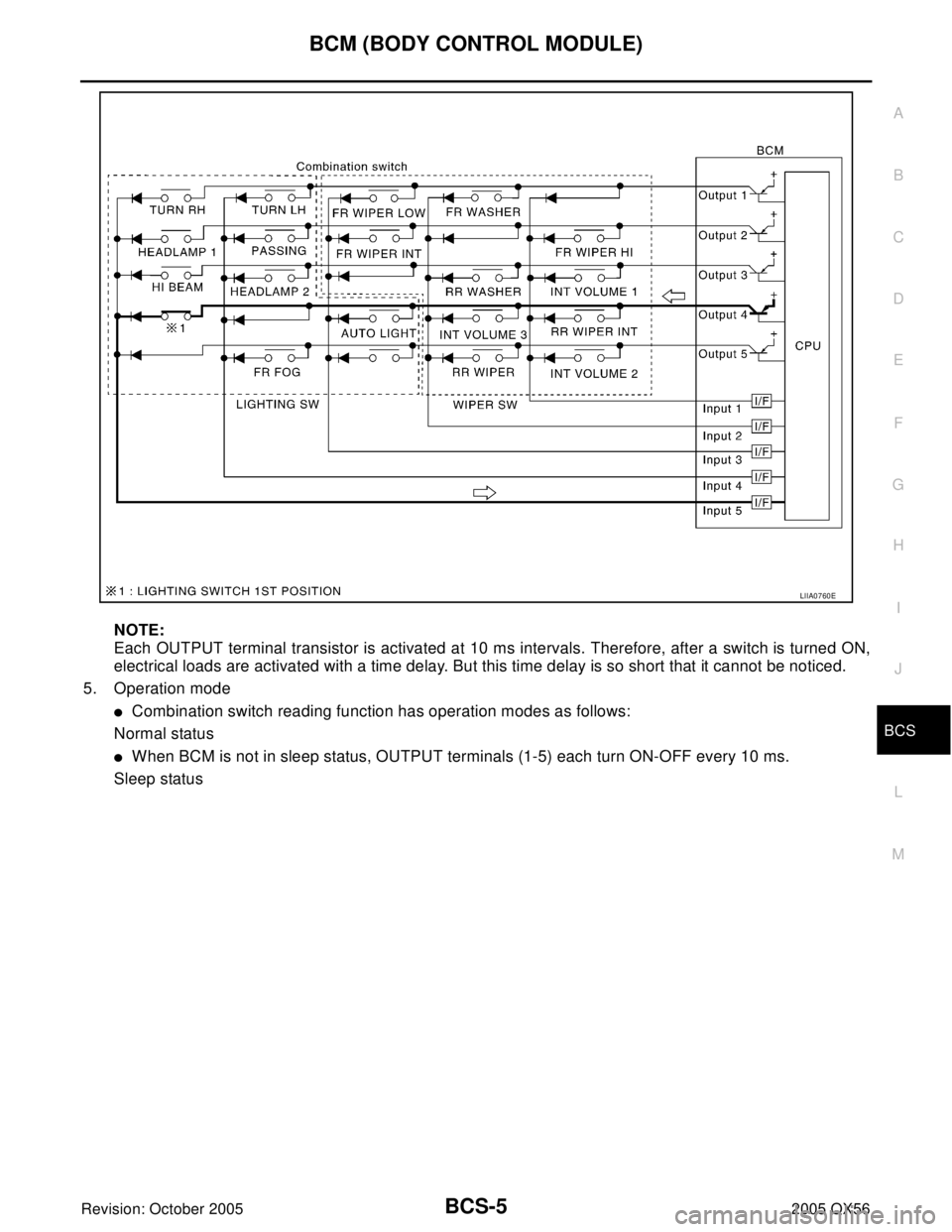

LIIA0760E

BCS-6
BCM (BODY CONTROL MODULE)
Revision: October 20052005 QX56

When BCM is in sleep mode, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low-cur-
rent-consumption mode. OUTPUTS (2, 3, and 4) turn ON-OFF at 60 ms intervals, and receives lighting
switch input only.
CAN COMMUNICATION CONTROL
CAN communication allows a high rate of information through the two communication lines (CAN-L, CAN-H)
connecting the various control units in the system. Each control unit transmits/receives data, but selectively
reads required data only.
BCM STATUS CONTROL
BCM changes its status depending on the operation status in order to save power consumption.
1. CAN communication status

With ignition switch ON, CAN communicates with other control units normally.

Control by BCM is being operated properly.

When ignition switch is OFF, switching to sleep mode is possible.

Even when ignition switch is OFF, if CAN communication with IPDM E/R and combination meter is
active, CAN communication status is active.
2. Sleep transient status

This status shuts down CAN communication when ignition switch is turned OFF.

It transmits sleep request signal to IPDM E/R and combination meter.

Two seconds after CAN communication of all control units stops, CAN communication switches to inac-
tive status.
3. CAN communication inactive status

With ignition switch OFF, CAN communication is not active.

With ignition switch OFF, control performed only by BCM is active.

Three seconds after CAN communication of all control units stops, CAN communication switches to
inactive status.
4. Sleep status
WKIA4093E

BCM (BODY CONTROL MODULE)
BCS-7
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: October 20052005 QX56

BCM is activated with low current consumption mode.

CAN communication is not active.

When CAN communication operation is detected, it switches to CAN communication status.

When a state of the following switches changes, it switches to CAN communication state:
–Key switch
–Hazard switch
–Door lock/unlock switch
–Front door switch (LH, RH)
–Rear door switch (LH, RH)
–Back door switch
–Combination switch (passing, lighting switch 1st position, front fog lamp)
–Keyfob (lock/unlock signal)
–Door lock assembly LH (key cylinder switch)

When control performed only by BCM is required by switch, it shifts to CAN communication inactive
mode.

Status of combination switch reading function is changed.
SYSTEMS CONTROLLED BY BCM DIRECTLY

Power door lock system. Refer to BL-16, "POWER DOOR LOCK SYSTEM" .

Remote keyless entry system. Refer to BL-44, "REMOTE KEYLESS ENTRY SYSTEM" .

Power window system. Refer to GW-15, "POWER WINDOW SYSTEM" . NOTE

Sunroof system. Refer to RF-10, "SUNROOF" . NOTE

Room lamp timer. Refer to LT- 1 2 9 , "INTERIOR ROOM LAMP" .

Warning chime system. Refer to DI-42, "WARNING CHIME" .

Turn signal and hazard warning lamps system. Refer to LT-80, "TURN SIGNAL AND HAZARD WARNING
LAMPS" .
NOTE:
Power supply only. No system control.
SYSTEMS CONTROLLED BY BCM AND IPDM E/R

Panic system. Refer to BL-44, "REMOTE KEYLESS ENTRY SYSTEM" .

IVIS (NATS) system. Refer to BL-137, "IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)" .

Headlamp, tail lamp, front fog lamp, auto light and battery saver control systems. Refer to LT- 6 , "HEAD-
LAMP (FOR USA)" , LT- 3 3 , "HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -" , LT-108,
"PARKING, LICENSE PLATE AND TAIL LAMPS" , LT-69, "FRONT FOG LAMP" or LT-47, "AUTO LIGHT
SYSTEM" .

Front wiper and washer system. Refer to WW-4, "FRONT WIPER AND WASHER SYSTEM" .

Rear wiper and washer system. Refer to WW-35, "REAR WIPER AND WASHER SYSTEM" .

Rear window defogger system. Refer to GW-77, "REAR WINDOW DEFOGGER" .
MAJOR COMPONENTS AND CONTROL SYSTEM
System Input Output
Remote keyless entry system Keyfob

All-door locking actuator

Back door opener actuator

Turn signal lamp (LH, RH)
Power door lock systemFront power door lock/unlock
switch (LH, RH)All-door locking actuator
Power supply (IGN) to power window
and sunroofIgnition power supply Power supply to power window and sunroof system
Power supply (BAT) to power window
and sunroofBattery power supply Power supply to power window and sunroof system

BCS-8
BCM (BODY CONTROL MODULE)
Revision: October 20052005 QX56
CAN Communication System DescriptionEKS00D7X
Refer to LAN-5, "CAN COMMUNICATION" .
Panic alarm
Key switch

KeyfobIPDM E/R
Auto light system

Auto light sensor

Combination switchIPDM E/R
Battery saver control

Ignition switch

Combination switchIPDM E/R
Headlamp Combination switch IPDM E/R
Tail lamp Combination switch IPDM E/R
Fog lamp Combination switch IPDM E/R
Turn signal lamp Combination switch

Turn signal lamp

Combination meter
Hazard lamp Hazard switch

Turn signal lamp

Combination meter
Room lamp timer

Key switch

Keyfob

Main power wndow and door
lock/unlock switch

Front door switch LH

All door switchInterior room lamp
Key warning chime

Key switch

Front door switch LHCombination meter (warning buzzer)
Light warning chime

Combination switch

Key switch

Front door switch LHCombination meter (warning buzzer)
Vehicle-speed-sensing intermittent
wiper

Combination switch

Combination meterIPDM E/R
Rear window defogger Rear window defogger switch IPDM E/R
Air conditioner switch signal Front air control ECM
Blower fan switch signal Front air control ECMSystem Input Output

BCM (BODY CONTROL MODULE)
BCS-9
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: October 20052005 QX56

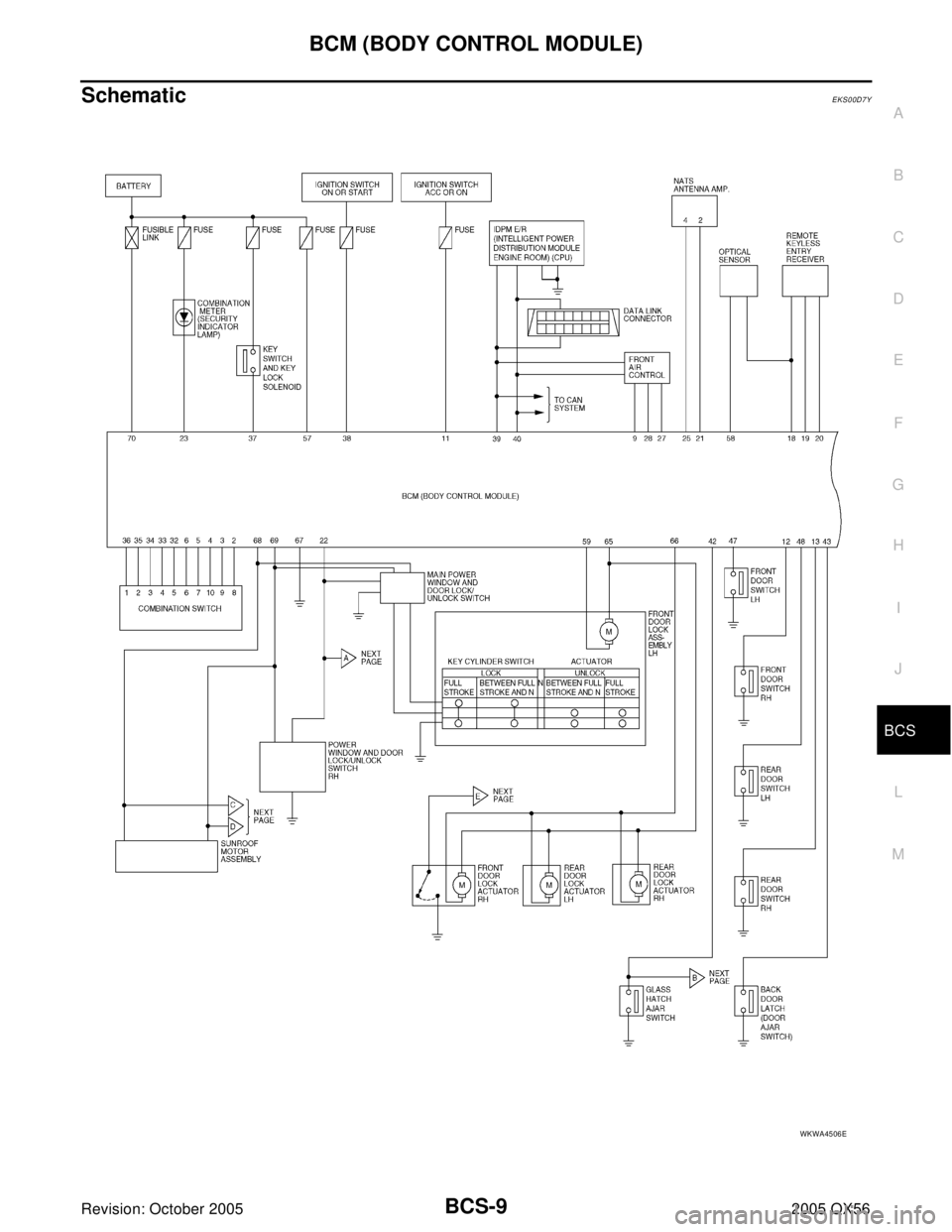

SchematicEKS00D7Y
WKWA4506E

BCS-10
BCM (BODY CONTROL MODULE)
Revision: October 20052005 QX56

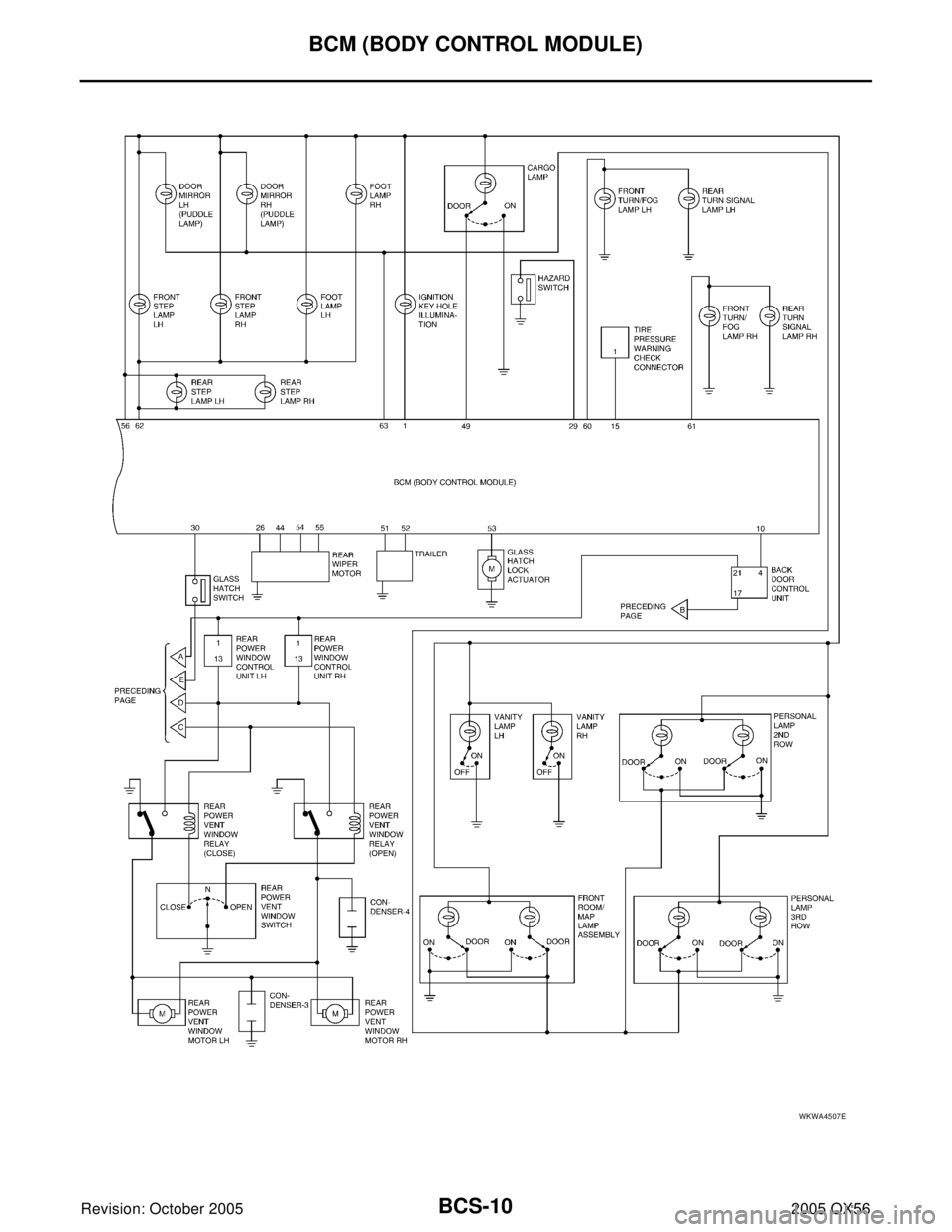

WKWA4507E

BCM (BODY CONTROL MODULE)
BCS-11
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: October 20052005 QX56
CONSULT-II Function (BCM)EKS00D7Z
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT–II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With ignition switch OFF, connect CONSULT-II and CONSULT-II
CONVERTER to data link connector and turn ignition switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen. If "BCM" is not
indicated, refer to GI-39, "
CONSULT-II Data Link Connector
(DLC) Circuit" .
BCM diagnostic
test itemDiagnostic mode Content
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT
MNTRThe results of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E

BCS-12
BCM (BODY CONTROL MODULE)
Revision: October 20052005 QX56
4. Select item to be diagnosed on “SELECT TEST ITEM” screen.
ITEMS OF EACH PART
NOTE:
CONSULT-II will only display systems the vehicle possesses.
LKIA0183E
System and itemCONSULT-II
displayDiagnostic test mode (Inspection by part)
WORK
SUPPORTSELF−
DIAG
RESULTSCAN DIAG
SUPPORT
MNTRDATA
MONITORECU
PA R T
NUMBERACTIVE
TESTCON-
FIGU-
RATION
BCM BCM×× × × ×
Power door lock system DOOR LOCK×××
Rear defoggerREAR
DEFOGGER××
Warning chime BUZZER××
Room lamp timer INT LAMP×××
Remote keyless entry
systemMULTI REMOTE
ENT×××
Headlamp HEAD LAMP×××
Wiper (front/rear) WIPER×××
Turn signal lamp
Hazard lampFLASHER××
Blower fan switch signal
Air conditioner switch
signalAIR
CONDITIONER×
Combination switch COMB SW×
IVIS (NATS) IMMU××
Interior lamp battery
saverBATTERY
SAVER×××
Back door TRUNK××
Theft alarm THEFT ALM×××
Retained accessory
power controlRETAINED PWR×××
Oil pressure switch SIGNAL BUFFER××
Air pressure monitorAIR PRESSURE
MONITOR×× × ×
Panic alarm PANIC ALARM×

BCM (BODY CONTROL MODULE)
BCS-13
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: October 20052005 QX56
WORK SUPPORT
Operation Procedure
1. Touch "BCM" on "SELECT TEST ITEM" screen.
2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
3. Touch item on "SELECT WORK ITEM" screen.
4. Touch "START".
5. Touch "CHANGE SETT".
6. The setting will be changed and "CUSTOMIZING COM-
PLETED" will be displayed.
7. Touch "END".
Display Item List
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)EKS00D80
1. SELF-DIAGNOSTIC RESULT CHECK
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect to CONSULT–II, and select “BCM” on “SELECT SYSTEM” screen.
2. Select “BCM” on “SELECT TEST ITEM” screen, and select “SELF-DIAG RESULTS”.
3. Check display content in self-diagnostic results.
Contents displayed
No malfunction>>Inspection End
Malfunction in CAN communication system>>After printing the monitor items, go to LAN-5, "
CAN COMMU-
NICATION" .
LKIA0183E
BCIA0031E
Item Description
RESET SETTING VALUE Return a value set with WORK SUPPORT of each system to a default value in factory shipment.
CONSULT-II display code Diagnosis item
U1000INITIAL DIAG
TRANSMIT DIAG
ECM
IPDM E/R
METER/M&A
I-KEY
