INFINITI QX56 2006 Factory Service Manual

AT-176
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Wiring Diagram — AT — NONDTCECS00CK2
BCWA0499E

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-177
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

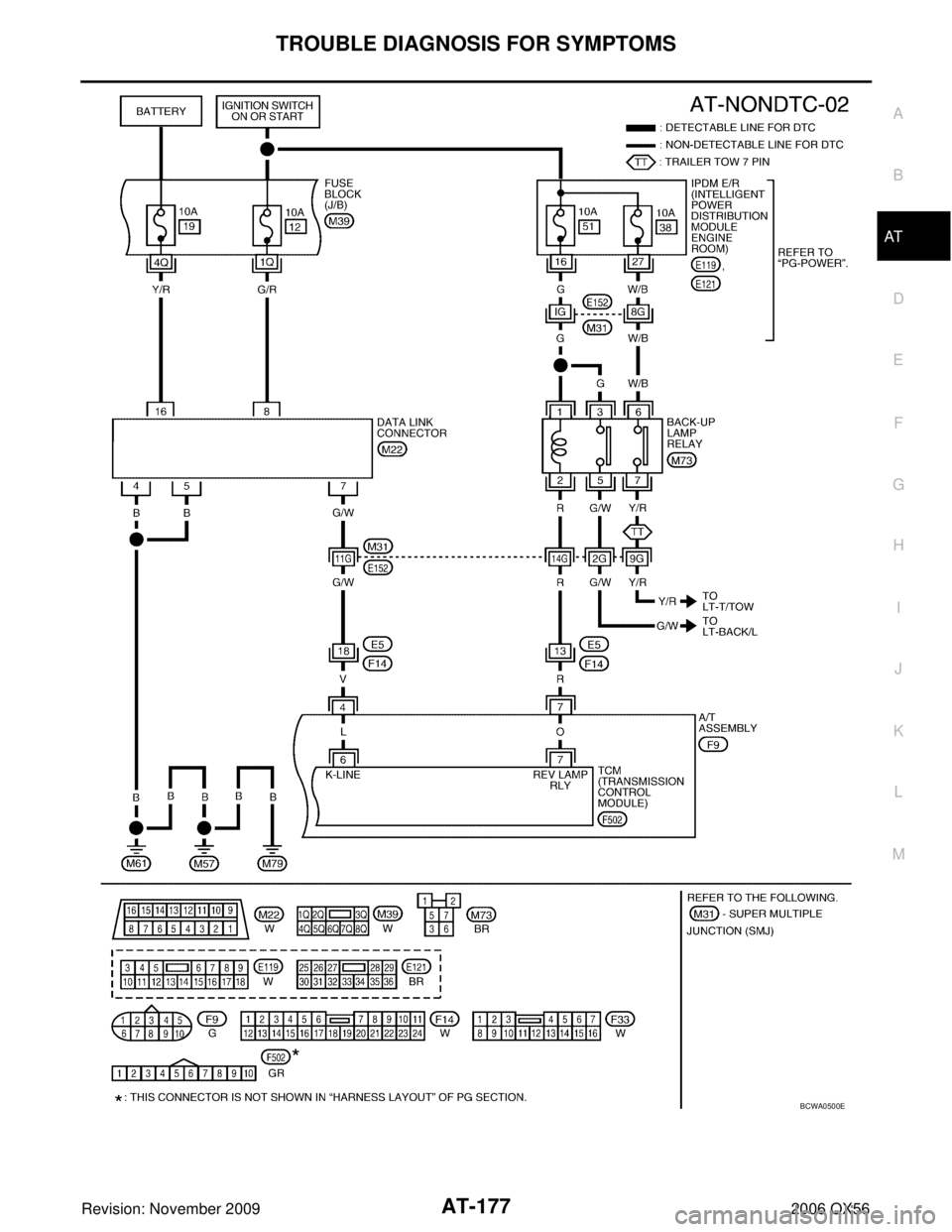

BCWA0500E

AT-178
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56

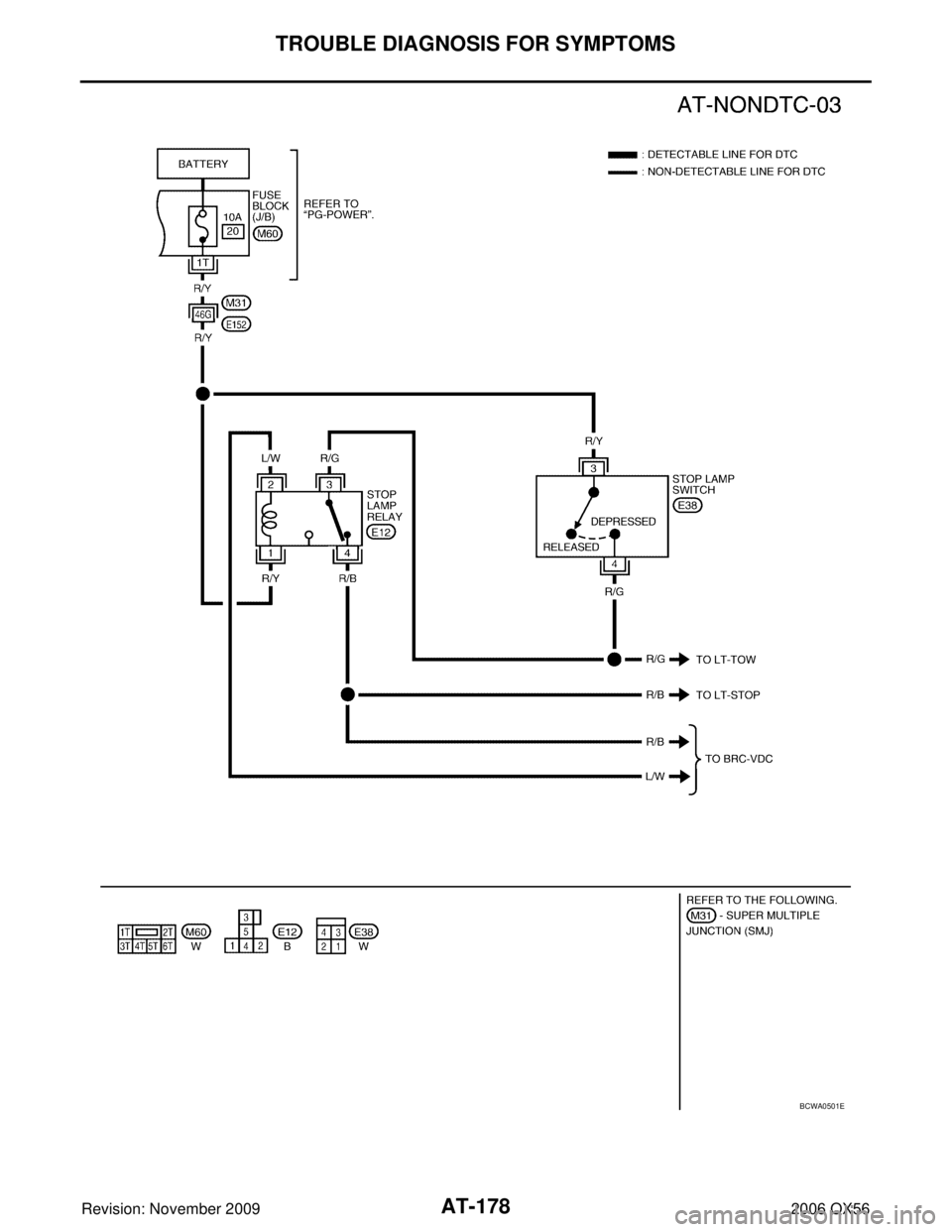

BCWA0501E

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-179
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
TCM terminals and data are reference value. Measured between each terminal and ground.
A/T CHECK Indicator Lamp Does Not Come OnECS00CK3
SYMPTOM:
AT CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch to
“ON”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 6 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK A/T CHECK INDICATOR LAMP CIRCUIT
Check the combination meter. Refer to DI-5, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 7 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started In “P” or “N” PositionECS00CK4
SYMPTOM:

Engine cannot be started with selector lever in “P” or “N” position.

Engine can be started with selector lever in “D”or “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
Terminal Wire
color Item
ConditionData (Approx.)
3 L CAN-H ––
4V K-line (CONSULT-
II signal) The terminal is connected to the data link connector for CONSULT-II
–
7 R Back-up lamp relay Selector lever in "R" position.
0V
Selector lever in other positions. Battery voltage
8 P CAN-L ––

AT-180
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
2. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
3. CHECK STARTING SYSTEM
Check the starting system. Refer to SC-10, "
STARTING SYSTEM" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
In “P” Position, Vehicle Moves When PushedECS00CK5
SYMPTOM:
Even though the selector lever is set in the “P” position, the parking mechanism is not actuated,
allowing the vehicle to be moved when it is pushed.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
LCIA0345E
LCIA0345E

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-181
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
In “N” Position, Vehicle MovesECS00CK6
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
SCIA5199E
LCIA0345E

AT-182
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
3. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic Trans-
mission Fluid (ATF)" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 , "
Symp-
tom Chart" (Symptom No.60).
5. CHECK SYMPTOM
Check again. Refer to AT- 5 5 , "
Check at Idle" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6. PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT- 8 3 , "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Large Shock (“N” to “D” Position)ECS00CK7
SYMPTOM:
A noticeable shock occurs when the selector lever is shifted from the “N” to “D” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate A/T fluid temperature sensor, engine speed signal, accelerator pedal
position sensor, ATF pressure switch 1, front brake solenoid valve, CAN communication line?
YES >> Check the malfunctioning system. Refer to AT- 1 2 7 , "DTC P1710 A/T FLUID TEMPERATURE
SENSOR CIRCUIT" , AT- 11 6 , "DTC P0725 ENGINE SPEED SIGNAL" ., AT- 1 2 4 , "DTC P1705
SAT638A
SCIA5199E

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-183
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
THROTTLE POSITION SENSOR" , AT- 1 5 9 , "DTC P1841 ATF PRESSURE SWITCH 1" , AT- 1 4 3 ,
"DTC P1757 FRONT BRAKE SOLENOID VALVE" , AT- 9 6 , "DTC U1000 CAN COMMUNICATION
LINE" .
NO >> GO TO 2.
2. ENGINE IDLE SPEED
Check the engine idle speed. Refer to EC-76, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
4. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 5.
NG >> Refill ATF.
5. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT- 5 2 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 8.
NG - 1 >> Line pressure high: GO TO 6.
NG - 2 >> Line pressure low: GO TO 7.
LCIA0345E
SAT638A
SAT494G

AT-184
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 6 4 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT- 2 8 2 , "Oil Pump" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 6 4 , "
Disassembly" .
3. Check the following items:
–Oil pump assembly. Refer to AT- 2 8 2 , "Oil Pump" .
–Power train system. Refer to AT- 2 6 4 , "Disassembly" .
–Transmission case. Refer to AT- 2 6 4 , "Disassembly" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.1).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
10. CHECK SYMPTOM
Check again. Refer to AT- 5 5 , "
Check at Idle" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 11.
SCIA5199E

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-185
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
11 . PERFORM TCM INSPECTION
1. Perform TCM input/output signals inspection. Refer to AT- 8 3 , "
TCM Input/Output Signal Reference Val-
ues" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
