TF-76
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
COMPONENT INSPECTION
Transfer Shift Relay
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay. Refer to TF-22, "
Location of Electrical Parts" .
3. Apply 12V direct current between transfer shift relay terminals 1 and 2.
4. Check continuity between relay terminals 3 and 4, 3 and 5.
5. If NG, replace transfer shift relay.
Transfer Control Device
1. Remove transfer control device. Refer to TF-138, "Removal and Installation" .
2. Check operation by applying battery voltage to transfer control device (actuator motor) terminals 21 and 24.
CAUTION:
Do not operate actuator motor for more than 1 second.
Change the actuator motor position to “HIGH” when
installing.
Be careful not to overheat the harness.
3. Check continuity between transfer control device (actuator motor) terminals 21 and 24.
4. If NG, replace transfer control device (actuator motor). Refer to TF-138, "
Removal and Installation" .
Terminal ConditionContinuity
3 - 4 12V direct current supply between terminals 1 and 2 No
OFF
Yes
3 - 5 12V direct current supply between terminals 1 and 2 Yes
OFF
No
WIIA0291E
TerminalActuator motor
21 (Battery voltage) - 24 (Ground) Clockwise rotate
24 (Battery voltage) - 21 (Ground) Counterclockwise rotate
21 - 24 : Approx. 0.2 \b
WDIA0224E
SDIA2726E
Page 3182 of 3383
TROUBLE DIAGNOSIS FOR SYSTEMTF-77
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
Actuator Position SwitchEDS002ID
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.Monitored item [Unit]
Content ConditionDisplay value
SHIFT POS SW1 [ON/
OFF] Condition of actuator posi-
tion switch 1
(Low)
Vehicle stopped
Engine running
A/T selector lever “
N”
position
Brake pedal depressed 4WD shift switch: 4LO
ON
4WD shift switch: 2WD,
AUTO or 4H OFF
SHIFT POS SW2 [ON/
OFF] Condition of actuator posi-
tion switch 2
(High)
Vehicle stopped
Engine running
A/T selector lever “
N”
position
Brake pedal depressed 4WD shift switch: 4H,
AUTO or 2WD
ON
4WD shift switch: 4LO OFF
Terminal Wire
color Item
ConditionData (Approx.)
27 W/L Actuator position switch 2
(High)
Vehicle stopped
Engine running
A/T selector
lever
“N ” position
Brake pedal
depressed 4WD shift switch: 4H, AUTO or 2WD 0V
4WD shift switch: 4LO
Battery voltage
44 LG/B Actuator position switch 1
(Low)
Vehicle stopped
Engine running
A/T selector
lever
“N ” position
Brake pedal
depressed 4WD shift switch: 4LO
0V
4WD shift switch: 2WD, AUTO or 4H Battery voltage
Page 3183 of 3383
TF-78
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
DIAGNOSTIC PROCEDURE
1. CHECK ACTUATOR POSITION SWITCH SIGNAL
With CONSULT-II
1. Start engine.
2. Select “DATA MONITOR ” mode for “ALL MODE AWD/4WD ” with CONSULT-II.
3. Read out the value of “SHIFT POS SW1” and “SHIFT POS
SW2 ”.
Without CONSULT-II
1. Start engine.
2. Check voltage between transfer control unit harness connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Monitored item ConditionDisplay value
SHIFT POS SW1
Vehicle stopped
Engine running
A/T selector lever
“ N ” position
Brake pedal
depressed 4WD shift switch: 4LO ON
4WD shift switch:
2WD, AUTO or 4H
OFF
SHIFT POS SW2
Vehicle stopped
Engine running
A/T selector lever
“ N ” position
Brake pedal
depressed 4WD shift switch: 4H,
AUTO or 2WD
ON
4WD shift switch: 4LO OFF
Connector Terminal ConditionVoltage
(Approx.)
E143 27 -
Ground
Vehicle stopped
Engine running
A/T selector
lever “N ” position
Brake pedal
depressed 4WD shift switch: 4H,
AUTO or 2WD
0V
4WD shift switch: 4LO Battery
voltage
44 -
Ground
Vehicle stopped
Engine running
A/T selector
lever “N ” position
Brake pedal
depressed 4WD shift switch: 4LO 0V
4WD shift switch:
2WD, AUTO or 4H
Battery
voltage
SDIA2714E
SDIA2715E
Page 3184 of 3383
TROUBLE DIAGNOSIS FOR SYSTEMTF-79
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
2. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND ACTUATOR POSITION SWITCH
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the transfer control device (actuator position switch) harness connector.
3. Check continuity between the following terminals.
–Transfer control unit harness connector E143 terminal 27 and
transfer control device (actuator position switch) harness con-
nector F58 terminal 23.
–Transfer control unit harness connector E143 terminal 44 and
transfer control device (actuator position switch) harness con-
nector F58 terminal 20.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control device (actuator position switch) harness connector.
3. Check continuity between transfer control device (actuator posi- tion switch) harness connector F58 terminal 22 and ground.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK ACTUATOR POSITION SWITCH
1. Remove transfer control device. Refer to TF-138, "
Removal and Installation" .
2. Check operation by applying battery voltage to transfer control device (actuator motor) terminals 21 and 24.
CAUTION:
Do not operate actuator motor for more than 1 second.
Change the actuator motor position to “HIGH” when
installing.
Be careful not to overheat the harness.
OK or NG
YES >> GO TO 5.
NO >> Replace transfer control device (actuator motor). Refer to TF-138, "
Removal and Installation" .
Continuity should exist.
SDIA2716E
Continuity should exist.
SDIA2717E
Terminal
Continuity Continuity
24 (Battery voltage) - 21 (Ground) 20 - 22
Yes
22 - 23 No
21 (Battery voltage) - 24 (Ground) 22 - 23
Yes
20 - 22 No
LDIA0101E
Page 3185 of 3383

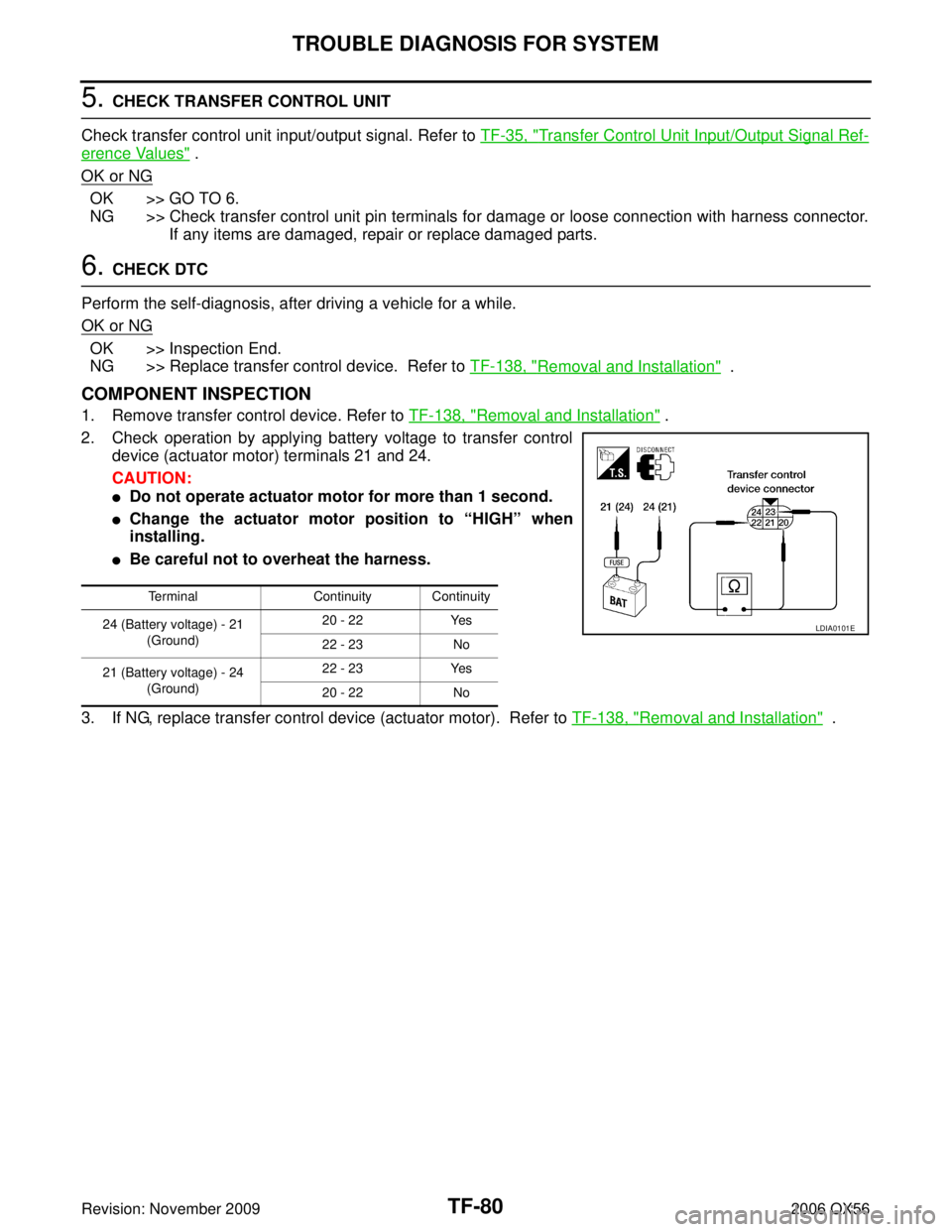

TF-80
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
5. CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Values" .
OK or NG
OK >> GO TO 6.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
6. CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >> Inspection End.
NG >> Replace transfer control device. Refer to TF-138, "
Removal and Installation" .
COMPONENT INSPECTION
1. Remove transfer control device. Refer to TF-138, "Removal and Installation" .
2. Check operation by applying battery voltage to transfer control device (actuator motor) terminals 21 and 24.
CAUTION:
Do not operate actuator motor for more than 1 second.
Change the actuator motor position to “HIGH” when
installing.
Be careful not to overheat the harness.
3. If NG, replace transfer control device (actuator motor). Refer to TF-138, "
Removal and Installation" .
TerminalContinuity Continuity
24 (Battery voltage) - 21 (Ground) 20 - 22
Yes
22 - 23 No
21 (Battery voltage) - 24 (Ground) 22 - 23
Yes
20 - 22 No
LDIA0101E
Page 3186 of 3383
TROUBLE DIAGNOSIS FOR SYSTEMTF-81
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
Transfer Control DeviceEDS003B3
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.Monitored item [Unit] Content Condition Display value
SHIFT AC MON1 [ON/
OFF] Check signal for transfer
control unit signal output
Vehicle stopped
Engine running
A/T selector lever “
N”
position
Brake pedal depressed 4WD shift switch: 4H to
4LO (
“Wait ” function is
operating.) ON
Except the above OFF
SHIFT AC MON2 [ON/
OFF] Check signal for transfer
control unit signal output
Vehicle stopped
Engine running
A/T selector lever “
N”
position
Brake pedal depressed 4WD shift switch: 4LO to
4H (
“Wait ” function is
operating.) ON
Except the above OFF
TerminalWire
color Item
ConditionData (Approx.)
16 Y/R Power supply Ignition switch: ON
Battery voltage
Ignition switch: OFF 0V
22 Y/R Power supply Ignition switch: ON
Battery voltage
Ignition switch: OFF 0V
30 SB Shut off relay Ignition switch: ON
0V
Ignition switch: OFF Battery voltage
33 R/L Transfer shift high relay moni-
tor
Vehicle stopped
Engine running
A/T selector
lever
“N ” position
Brake pedal
depressed 4WD shift switch: 4H to 4LO (
“Wait ” func-
tion is operating.) Battery voltage
Except the above 0V
42 P/G Transfer shift low relay moni-
tor
Vehicle stopped
Engine running
A/T selector
lever
“N ” position
Brake pedal
depressed 4WD shift switch: 4LO to 4H (
“Wait ” func-
tion is operating.) Battery voltage
Except the above 0V
Page 3187 of 3383
TF-82
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
DIAGNOSTIC PROCEDURE
1. CHECK POWER SUPPLY
1. Turn ignition switch “ OFF”. (Stay for at least 5 seconds.)
2. Connect transfer control unit harness connector.
3. Check voltage between transfer control unit harness connector terminal and ground.
4. Turn ignition switch “ ON”. (Do not start engine.)
5. Check voltage between transfer control unit harness connector terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
10A fuse No. 26 located in the fuse and fusible link box. Refer to PG-4, "POWER SUPPLY
ROUTING CIRCUIT" .
Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 1.
Harness for short or open between transfer shut off relay harness connector E69 terminal 2
and transfer control unit harness connector E143 terminal 30.
Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 3.
Harness for short or open between transfer shut off relay harness connector E69 terminal 5 and
transfer control unit harness connector E142 terminal 22.
Transfer shut off relay. Refer to TF-57, "COMPONENT INSPECTION" .
ConnectorTerminal Voltage (Approx.)
E142 16 - Ground
0V
22 - Ground
E143 30 - Ground Battery voltage
SDIA2834E
ConnectorTerminal Voltage (Approx.)
E142 16 - Ground
Battery voltage
22 - Ground
E143 30 - Ground 0V
SDIA2835E
Page 3188 of 3383
TROUBLE DIAGNOSIS FOR SYSTEMTF-83
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
2. CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector.
3. Check continuity between transfer control unit harness connec- tor E142 terminals 3, 6, E143 terminal 45 and ground.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK ACTUATOR MOTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay. Refer to TF-22, "
Location of Electrical Parts" .
3. Check voltage between transfer shift high relay harness connec- tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
4. Turn ignition switch “ON”. (Do not start engine.)
5. Check voltage between transfer shift high relay harness connec- tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
20A fuse No. 57 located in the fuse and relay box. Refer to PG-4, "POWER SUPPLY ROUTING
CIRCUIT" .
Harness for short or open between battery, transfer shift high relay harness connector E46 ter-
minal 5 and transfer shift low relay harness connector E47 terminal 5.
Continuity should exist.
SDIA2691E
Connector
Terminal Voltage (Approx.)
E46 5 - Ground
Battery voltage
E47 5 - Ground
WDIA0310E
Connector Terminal Voltage (Approx.)
E46 5 - Ground
Battery voltage
E47 5 - Ground
WDIA0311E
Page 3189 of 3383
TF-84
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: November 20092006 QX56
4. CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND TRANSFER SHIFT RELAY
1. Turn ignition switch “ OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and transfer control device (actuator motor) harness connector.
3. Remove transfer shift high relay and transfer shift low relay. Refer to TF-22, "
Location of Electrical Parts" .
4. Check continuity between the following terminals.
–Transfer control unit harness connector E143 terminal 33 (A)
and transfer shift high relay harness connector E46 terminal 3
(B).
–Transfer control unit harness connector E143 terminal 42 (A)
and transfer shift low relay harness connector E47 terminal 3
(C).
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK TRANSFER SHIFT RELAY GROUND CIRCUIT
1. Turn ignition switch “ OFF”. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay.
3. Check continuity between transfer shift high relay harness con- nector E46 terminals 2, 4 (A), transfer shift low relay harness
connector E47 terminals 2, 4 (B) and ground.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Values" .
OK or NG
OK-1 >> With CONSULT-II: GO TO 7.
OK-2 >> Without CONSULT-II: GO TO 8.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
Continuity should exist.
WDIA0315E
Continuity should exist.
WDIA0312E
Page 3190 of 3383
TROUBLE DIAGNOSIS FOR SYSTEMTF-85
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
7. PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS ” mode for “ALL MODE AWD/4WD ” with CONSULT-II.
3. Touch “ERASE”.
4. Turn ignition switch “OFF” and wait at least 10 seconds.
5. Perform the self-diagnosis again.
Is the
“SHIFT ACT CIR [P1819]” displayed?
YES >> Replace transfer control unit. Refer to TF-132, "Removal and Installation" .
NO >> Inspection End.
8. PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-II)
Without CONSULT-II
1. Perform the self-diagnosis and then erase self-diagnostic results. Refer to TF-50, "
SELF-DIAGNOSTIC
PROCEDURE (WITHOUT CONSULT-II)" and TF-53, "ERASE SELF-DIAGNOSIS" .
2. Perform the self-diagnosis again.
Do the self-diagnostic results indicate transfer control device?
YES >> Replace transfer control unit. Refer to TF-132, "Removal and Installation" .
NO >> Inspection End.
Engine Speed Signal (ECM)EDS002IF
DIAGNOSTIC PROCEDURE
1. CHECK DTC WITH ECM
Perform self-diagnosis with ECM. Refer to EC-118, "
SELF-DIAG RESULTS MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 2.
2. CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Values" .
OK or NG
OK >> GO TO 3.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
3. CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >> Inspection End.
NG >> Perform self-diagnosis with ECM again. Refer to EC-118, "
SELF-DIAG RESULTS MODE" .
