ACS-18
< SERVICE INFORMATION >[ICC]
ELECTRICAL UNITS LOCATION
ELECTRICAL UNITS LOCATION

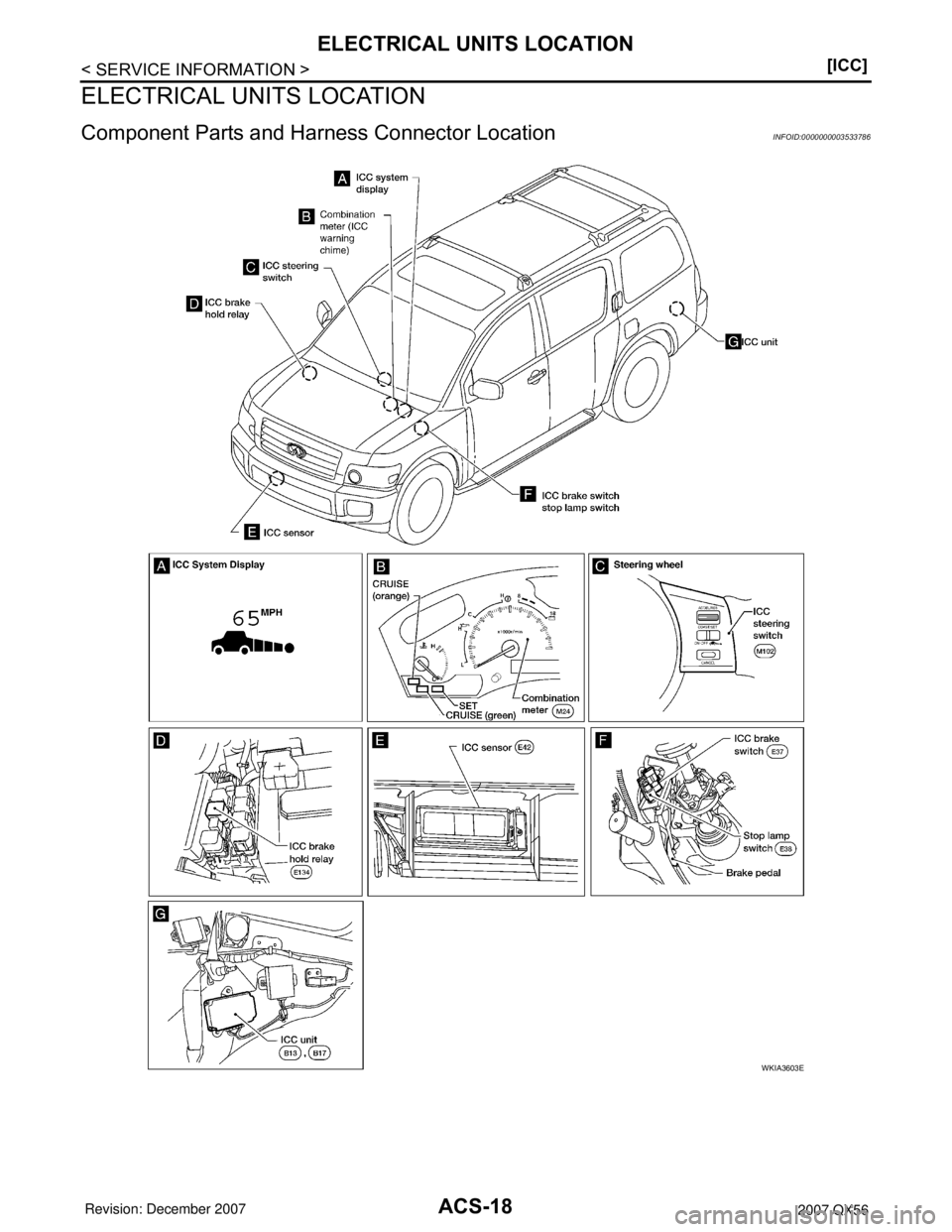

Component Parts and Harness Connector LocationINFOID:0000000003533786
WKIA3603E

WIRING DIAGRAM
ACS-19
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
WIRING DIAGRAM
SchematicINFOID:0000000003533787
WKWA3631E

ACS-20
< SERVICE INFORMATION >[ICC]
WIRING DIAGRAM
Wiring Diagram - ICC -
INFOID:0000000003533788
WKWA3632E

WIRING DIAGRAM
ACS-21
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
WKWA3633E

ACS-22
< SERVICE INFORMATION >[ICC]
WIRING DIAGRAM
WKWA3634E

WIRING DIAGRAM
ACS-23
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
WKWA3635E

ACS-24
< SERVICE INFORMATION >[ICC]
TERMINALS AND REFERENCE VALUE
TERMINALS AND REFERENCE VALUE
Terminal and Reference Value for ICC UnitINFOID:0000000003533789
Terminal and Reference Value for ICC SensorINFOID:0000000003533790
Te r m i n a lWire col-
orItemCondition
Voltage (V)
(Approx.) Ignition
switchOperation
1W/L
Battery power supply OFF — Battery voltage
2W/L
5 P CAN-L — — —
7 B/R N-P RANGE ON A/T selector lever in "P" or "N" Battery voltage
10 V/R Brake booster signal ON —
14 L CAN-H — — —
19 B
Ground
ON——
20 B
29 BR/WICC brake switch
(normally closed)Selector le-
ver: Not in
“N” or “P”
positionDepress the brake
pedal0
Release the brake
pedalBattery voltage
30 L DDL-TX — — —
33 R/B Ignition switch power supply ON —
Battery voltage
38 R/GSt op la mp sw i tc h
(normally open) OFFDepress the brake pedal
Release the brake pedal 0
39 V/W DDL-RX — — —
40 G Parking brake signal
ONParking brake is ON 0
Parking brake is OFF Battery voltage
42 R/B Ignition switch power supply — Battery voltage
46 B Ground — —
47 BR Stop lamp drive output signalBrake operating with ICC system Battery voltage
Brake not operating with ICC sys-
tem0
SKIA1243E
Te r m i n a lWire
colorItemCondition
Voltage (V)
Ignition
switchOperation
1 R/B Ignition switch power supply
ON— Battery voltage
2LCAN-H — —
3PCAN-L — —
4 B Ground — —

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
ACS-25
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Work FlowINFOID:0000000003533791
• Reference 1··· Refer to ACS-30, "Self-Diagnostic Function".
• Reference 2··· Refer to ACS-34, "
Diagnostic Trouble Code (DTC) Chart".
• Reference 3··· Refer to ACS-49, "
Symptom Chart" .
• Reference 4··· Refer to GI-38, "
CONSULT-II Data Link Connector (DLC) Circuit" and ACS-30, "Self-Diagnos-
tic Function" .
CONSULT-II Function (ICC)INFOID:0000000003533792
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
SKIA1227E
ICC diagnostic mode Description
WORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the ICC unit for setting the sta-
tus suitable for required operation, input/output signals are received from the ICC unit and received
data is displayed.
SELF-DIAG RESULTS Displays ICC unit self-diagnosis results.
DATA MONITOR Displays ICC unit input/output data in real-time.

ACS-26
< SERVICE INFORMATION >[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
CONSULT-II START PROCEDURE
Refer to GI-36, "CONSULT-II Start Procedure".
WORK SUPPORT
Work Item
Cause of Auto-Cancel
1. Touch “WORK SUPPORT” on "SELECT DIAG MODE" screen.
2. Touch “CAUSE OF AUTO-CANCEL” on "SELECT WORK ITEM"
screen.
3. Cause of automatic cancellation screen will be shown.
4. The last five causes of automatic cancellation of ICC system will
be displayed.
Possible Causes of "Auto-Cancel"
Laser Beam Adjust
For details, refer to ACS-12 .
SELF-DIAGNOSTIC RESULTS
For details, refer to ACS-34, "Diagnostic Trouble Code (DTC) Chart" .
DATA MONITOR
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
ECU PART NUMBER ICC unit part number can be read.ICC diagnostic mode Description
Operation Function
CAUSE OF AUTO-CANCEL Indicates causes of automatic cancellation of the ICC system.
LASER BEAM ADJUST Outputs laser beam, calculates dislocation of the beam, and indicates adjustment direction.
SKIA6191E
Cause of cancellation Description
OPERATING WIPER Windshield wipers were operated at HI or LO speed operation.
OPERATING ABS ABS function was operated.
OPERATING TCS TCS function was operated.
OPERATING VDC VDC function was operated.
ECM CIRCUIT ECM did not permit ICC operation.
OPE SW VOLT CIRC Voltage outside the standard was detected.
LASER SUN BEAM Intense light such as sunlight entered ICC sensor light sensing part.
LASER TEMP Temperature around ICC sensor became low.
WHL SPD ELEC NOISE Wheel speed sensor signal caught electromagnetic noise.
OP SW DOUBLE TOUCH ICC steering switches were pressed at the same time.
VDC/TCS OFF SW VDC OFF switch was pressed.
WHEEL SPD UNMATCH Wheel speed became different from AT vehicle speed.
TIRE SLIP Wheel slipped.
PKB SW ON Parking brake is applied.
IGN LOW VOLT Power supply voltage became low.
NO RECORD—

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
ACS-27
< SERVICE INFORMATION >[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
N
O
P Operation Procedure
1. Touch “DATA MONITOR” on "SELECT DIAG MODE" screen.
2. Touch “ECU INPUT SIGNALS”, “MAIN SIGNALS“, or “SELEC-
TION FROM MENU” on "SELECT MONITOR ITEM" screen.
Monitored Item
×: Applicable
BCIA0031E
WDIA0084E
Monitored Item [unit] MAIN SIGNALSECU IN-
PUT SIG-
NALSSELECTION
FROM MENUDescription
VHCL SPEED SE
[km/h] or [mph]×××Indicates vehicle speed calculated from
wheel speed sensor signal.
SET VHCL SPD
[km/h] or [mph]××Indicates set vehicle speed stored in ICC
unit.
THRTL OPENING
[%]×××Indicates throttle angle calculated from sig-
nal voltage of throttle position sensor.
ENGINE RPM
[rpm]××Indicates engine speed read by ICC unit via
CAN communication (ECM transmits engine
speed via CAN communication).
DISTANCE ADJ
[SHOR/MID/LONG]×××Indicates set distance stored in ICC unit.
WIPER SW
[OFF/LOW/HIGH]××Indicates wiper [OFF/LOW/HIGH] status.
MAIN SW
[ON/OFF]×××Indicates [ON/OFF] status as judged from
control switch signal.
SET/COAST SW
[ON/OFF]×××Indicates [ON/OFF] status as judged from
control switch signal.
CANCEL SW
[ON/OFF]×××Indicates [ON/OFF] status as judged from
control switch signal.
RESUME/ACC SW
[ON/OFF]×××Indicates [ON/OFF] status as judged from
control switch signal.
CRUISE OPE
[ON/OFF]××Indicates whether vehicle speed is being
controlled or not (ON means “controlling”).
BRAKE SW
[ON/OFF]×××Indicates [ON/OFF] status as judged from
ICC brake switch signal.
