door INFINITI QX56 2011 Factory Service Manual

MA-6
< PERIODIC MAINTENANCE >
PERIODIC MAINTENANCE
PERIODIC MAINTENANCE
Introduction of Periodic MaintenanceINFOID:0000000006287729
Two different maintenance schedules are provided, and should be used, depending upon the conditions in
which the vehicle is mainly operated. After 60,000 miles (96,000 km) or 48 months, continue the periodic
maintenance at the same mileage/time intervals.
Schedule 1INFOID:0000000006287730
EMISSION CONTROL SYSTEM
Abbreviations: R = Replace. I = Inspec t. Correct or replace if necessary. [ ]: At the mileage intervals only
Schedule 1Follow Periodic Maintenance Schedule 1 if the driving habits frequently include
one or more of the following driving conditions:
 Repeated short trips of less than 5 miles (8 km).
 Repeated short trips of less than 10 miles (16 km) with outside temperatures
remaining below freezing.
 Operating in hot weather in stop-and-go “rush hour” traffic.
 Extensive idling and/or low speed driving for long distances, such as police, taxi
or door-to-door delivery use.
 Driving in dusty conditions.
 Driving on rough, muddy, or salt spread roads.
 Towing a trailer, using a camper or a car-top carrier. Emission Control Sys-
tem Maintenance
MA-6Chassis and Body
Maintenance
Schedule 2 Follow Periodic Maintenance Schedule 2 if none of driving conditions shown in
Schedule 1 apply to the driving habits. Emission Control Sys-
tem Maintenance
MA-8
Chassis and Body
Maintenance
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months, which-
ever comes first. Miles x 1,000
(km x 1,000) Months 3.75
(6)3 7.50
(12) 6 11 . 2 5
(18) 9 15
(24) 12 18.75
(30)15 22.5
(36) 18 26.25
(42)21 30
(48) 24
Drive belts NOTE (1) MA-12
Air cleaner filter NOTE (2) [R]MA-17
EVAP vapor linesI*MA-20
Fuel lines I*MA-17
Fuel filter NOTE (3) —
Engine coolant* NOTE (4) MA-13
Engine oil R R R R R R R RMA-17
Engine oil filter (Use genuine
NISSAN engine oil filter or
equivalent.)R R RRRRR R
MA-18
Spark plugs (Iridium-tipped
type)Replace every 105,000 miles (168,000 km).
MA-19
Intake & exhaust valve clear-
ance*NOTE (5)
EM-12
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title
Perform at number of miles,
kilometers or months, which-
ever comes first. Miles x 1,000
(km x 1,000) Months 33.75
(54)27 37.5
(60) 30 41.25
(66)33 45
(72) 36 48.75
(78)39 52.5
(84) 42 56.25
(90)45 60
(96) 48
Drive belts NOTE (1) I* MA-12
Air cleaner filter NOTE (2) [R]MA-17
EVAP vapor linesI*MA-20
Fuel lines I*MA-17
Revision: 2010 May2011 QX56

MA-34
< PERIODIC MAINTENANCE >
BODY MAINTENANCE
BODY MAINTENANCE
LOCKS, HINGES AND HOOD LATCH
LOCKS, HINGES AND HOOD LATCH : LubricatingINFOID:0000000006220949
For hood and hood lock illustration.
 Hood: Refer to DLK-215, "
Exploded View".
 Hood lock: Refer to DLK-238, "
Exploded View".
For front door and front door lock illustration.
 Front door: Refer to DLK-224, "
Exploded View".
 Front door lock: Refer to DLK-240, "
Exploded View".
For rear door and rear door lock illustration.
 Rear door: Refer to DLK-228, "
Exploded View".
 Rear door lock: Refer to DLK-243, "
Exploded View".
For back door and back door lock illustration.
 Back door: Refer to DLK-232, "
Exploded View".
 Back door lock: Refer to DLK-246, "
Exploded View".
SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS
SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection
INFOID:0000000006220950
For front seat belt illustration. Refer to SB-6, "SEAT BELT RETRACTOR : Exploded View".
For second seat belt illustration. Refer to SB-11, "
SEAT BELT RETRACTOR : Exploded View".
For third seat belt illustration. Refer to SB-19, "
SEAT BELT RETRACTOR : Exploded View".
CAUTION:
 After any collision, inspect all seat belt assembli es, including retractors and other attached hard-
wares (I.e. anchor bolt, guide ra il set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and pr operly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if th e seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.
 If any component of seat belt assembl y is questionable, do not repair.
Replace as seat belt assembly.
 If webbing is cut, frayed, or damaged, replace belt assembly.
 Never oil tongue and buckle.
 Use a genuine NISSAN seat belt assembly.
For details, refer to SB-4, "
SEAT BELT RETRACTOR : Inspection", SB-10, "SEAT BELT RETRACTOR :
Inspection", SB-17, "SEAT BELT RETRACTOR : Inspection" in SB section.
 Check anchors for loose mounting
 Check belts for damage
 Check retractor for smooth operation
 Check function of buckles and tongues when buckled and released
Revision: 2010 May2011 QX56

MIR-1
DRIVER CONTROLS
C
DE
F
G H
I
J
K
M
SECTION MIR
A
B
MIR
N
O P
CONTENTS
MIRRORS
PRECAUTION ................ ...............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect .....................................
3
PREPARATION ............................................5
PREPARATION .............................................. .....5
Commercial Service Tools ................................. ......5
SYSTEM DESCRIPTION ..............................6
COMPONENT PARTS ................................... .....6
DOOR MIRROR ..................................................... ......6
DOOR MIRROR : Component Parts Location ..........6
DOOR MIRROR : Component Description ...............6
INSIDE MIRROR .................................................... ......7
INSIDE MIRROR : Component Description ..............7
SYSTEM ..............................................................8
DOOR MIRROR SYSTEM ..................................... ......8
DOOR MIRROR SYSTEM : System Diagram ..........8
DOOR MIRROR SYSTEM : System Description ......8
AUTO ANTI-DAZZLING INSIDE MIRROR SYS-
TEM ........................................................................ ......
9
AUTO ANTI-DAZZLING INSIDE MIRROR SYS-
TEM : System Description .........................................
9
ECU DIAGNOSIS INFORMATION ..............10
DRIVER SEAT CONTROL UNIT, AUTOMAT-
IC DRIVE POSITIONER CONTROL UNIT ..... ....
10
List of ECU Reference ........................................ ....10

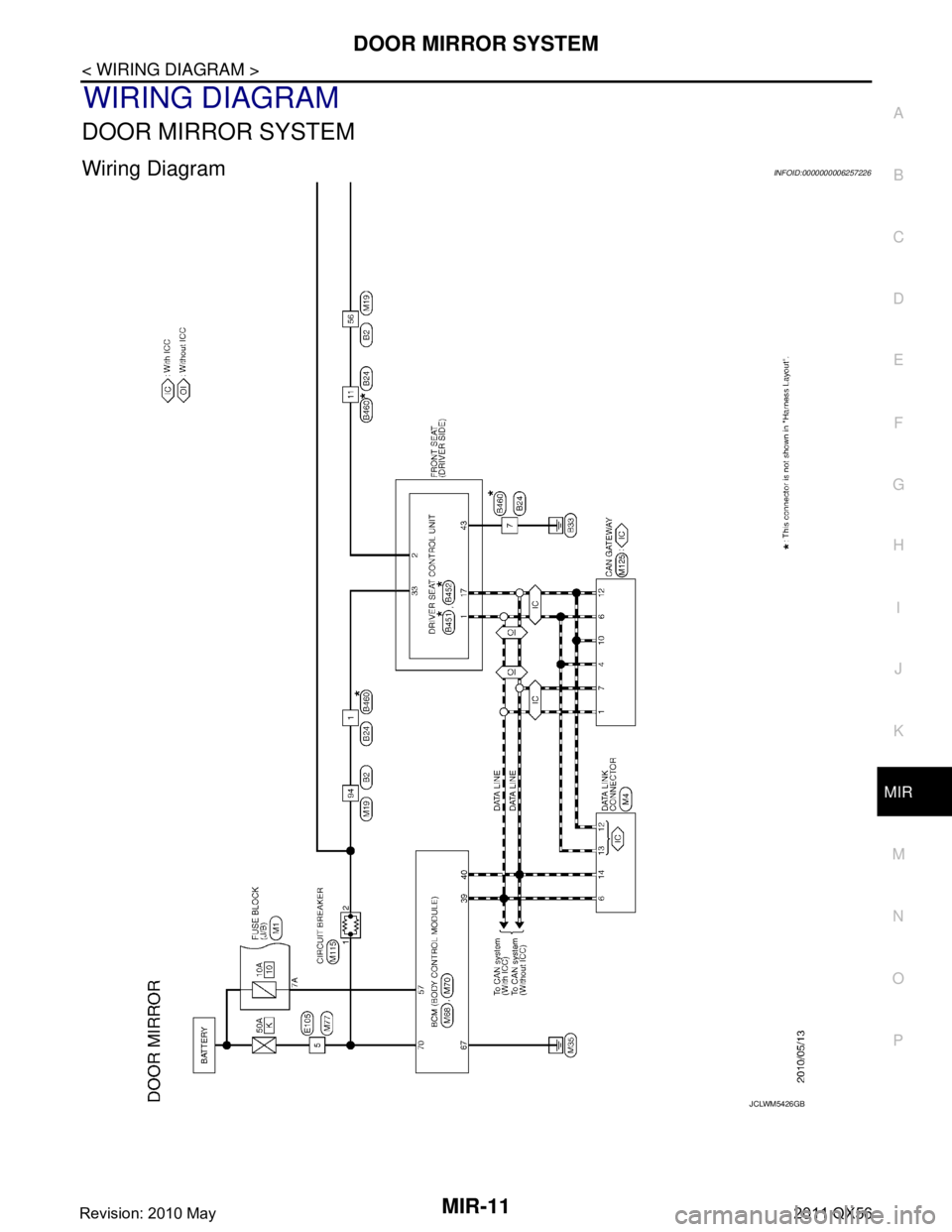

WIRING DIAGRAM ......................................11
DOOR MIRROR SYSTEM .................................11
Wiring Diagram .................................................... ....11
AUTO ANTI-DAZZLING INSIDE MIRROR
SYSTEM ............................................................
19
Wiring Diagram - INSIDE MIRROR SYSTEM - ... ....19
BASIC INSPECTION ....... ............................21
DIAGNOSIS AND REPAIR WORKFLOW ........21
Work Flow ............................................................ ....21
DTC/CIRCUIT DIAGNOSIS .........................22
DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................
22
OPEN/CLOSE SWITCH ......................................... ....22
OPEN/CLOSE SWITCH : Component Inspection ....22
SYMPTOM DIAGNOSIS ..............................23
REVERSE INTERLOCK DOOR MIRROR
DOES NOT OPERATE ......................................
23
Diagnosis Procedure ........................................... ....23
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
24
Work Flow ................................................................24
Inspection Procedure ...............................................26
Diagnostic Worksheet ..............................................28
REMOVAL AND INSTALLATION ...............30
INSIDE MIRROR ...............................................30
Exploded View ..................................................... ....30
Removal and Installation .........................................30
OUTSIDE MIRROR ...........................................32
Exploded View .........................................................32
DOOR MIRROR ASSEMBLY ....................................32
Revision: 2010 May2011 QX56

MIR-2
DOOR MIRROR ASSEMBLY : Removal and In-
stallation .................................................................
32
DOOR MIRROR ASSEMBLY : Disassembly and
Assembly ............................................................. ...
33
GLASS MIRROR .................................................... ...35
GLASS MIRROR : Removal and Installation ..........35
DOOR MIRROR COVER ........................................ ...35
DOOR MIRROR COVER : Removal and Installa-
tion ..........................................................................
36
SIDE CAMERA FINISHER ASSEMBLY ...................36
SIDE CAMERA FINISHER ASSEMBLY : Remov-
al and Installation ................................................. ...
36
DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................
38
Removal and Installation ...................................... ...38
Revision: 2010 May2011 QX56

MIR-6
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
DOOR MIRROR
DOOR MIRROR : Component Parts LocationINFOID:0000000006257219
DOOR MIRROR : Component DescriptionINFOID:0000000006257220
1. TCMRefer to TM-10, "
A/T CONTROL
SYSTEM : Componen t Parts Loca-
tion"
2. Door mirror (passenger side) 3. BCM
Refer to BCS-4, "
BODY CONTROL
SYSTEM : Component Parts Loca-
tion"
4. Automatic drive positioner control
unit
Refer to ADP-6, "
Component Parts
Location"
5. Door mirror remote control switch 6. Driver seat control unit
Refer to ADP-6, "
Component Parts
Location"
7. Door mirror (driver side)
JMLIA0871ZZ
Component parts Description
Automatic drive positioner control unit Door mirror is supplied with power after receiving the input of mirror
switch and changeover switch.
Door mirror re mote control
switch Mirror switch
It transmits mirror face adjust operation to automatic drive positioner
control unit.
Changeover switch It transmits the LH/RH control of door mirror that supplies power to au-
tomatic drive positioner control unit.
Open/close switch Power is supplied to folding mirro
r from door mirror remote control
switch when operating switch.
Door mirror It makes mirror face operate from side to side and up and down via in-
tegrated motor.
Revision: 2010 May2011 QX56

MIR-8
< SYSTEM DESCRIPTION >
SYSTEM
SYSTEM
DOOR MIRROR SYSTEM
DOOR MIRROR SYSTEM : System DiagramINFOID:0000000006257222
DOOR MIRROR SYSTEM : System DescriptionINFOID:0000000006257223
MANUAL FUNCTION
Description
 Automatic drive positioner control unit controls door mirror.
 Automatic drive positioner control unit inputs changeover switch signal and perform the LH/RH control of
door mirror motor supplying electric power when changeover switch is operated.
 Automatic drive positioner control unit inputs mirror s witch signal and supplies electric power to door mirror.
 The ignition switch signal (ACC/ON) is transmitted from BCM to driver seat control unit via CAN communica-
tion and from driver seat control unit to automatic drive positioner control unit via UART communication.
Operation Conditions
If the following conditions are not satisfied, operation is not performed.
 Ignition switch: ON or ACC
 Changeover switch: Select either left or right
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Description
 Select either of the door mirror faces by changeover switch, and then set mirror face downward.
 When ignition switch is ON position and A/T shift selector is in R position, TCM sends the R signal to driver
seat control unit.
 The R signal is transmitted to automatic drive positioner control unit from driver seat control unit via UART
communication.
 When the R signal is detected, automatic drive positioner control unit activated mirror motor.
Operation Conditions
If the following conditions are not satisfied, operation is not performed.
 Ignition switch: ON
JMLIA0872GB
Revision: 2010 May2011 QX56

SYSTEMMIR-9
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
 Changeover switch: Select either left or right
 A/T shift selector: R position
NOTE:
During the reverse interlock door mirror system, if all of the above conditions are not satisfied, mirror face
returns to original angle.
AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM
AUTO ANTI-DAZZLING INSIDE MIRRO R SYSTEM : System DescriptionINFOID:0000000006257224
The sensor built in inside mirror detects the bri ghtness of headlight of the vehicle behind and automatically
changes the light transmission to decrease the brightness.
Revision: 2010 May2011 QX56

DOOR MIRROR SYSTEMMIR-11
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
WIRING DIAGRAM
DOOR MIRROR SYSTEM
Wiring DiagramINFOID:0000000006257226
JCLWM5426GB
Revision: 2010 May2011 QX56

MIR-12
< WIRING DIAGRAM >
DOOR MIRROR SYSTEM
JCLWM5427GB
Revision: 2010 May2011 QX56

DOOR MIRROR SYSTEMMIR-13
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
JCLWM5428GB
Revision: 2010 May2011 QX56
