ISUZU AXIOM 2002  Service Repair Manual 8F±55 BODY STRUCTURE

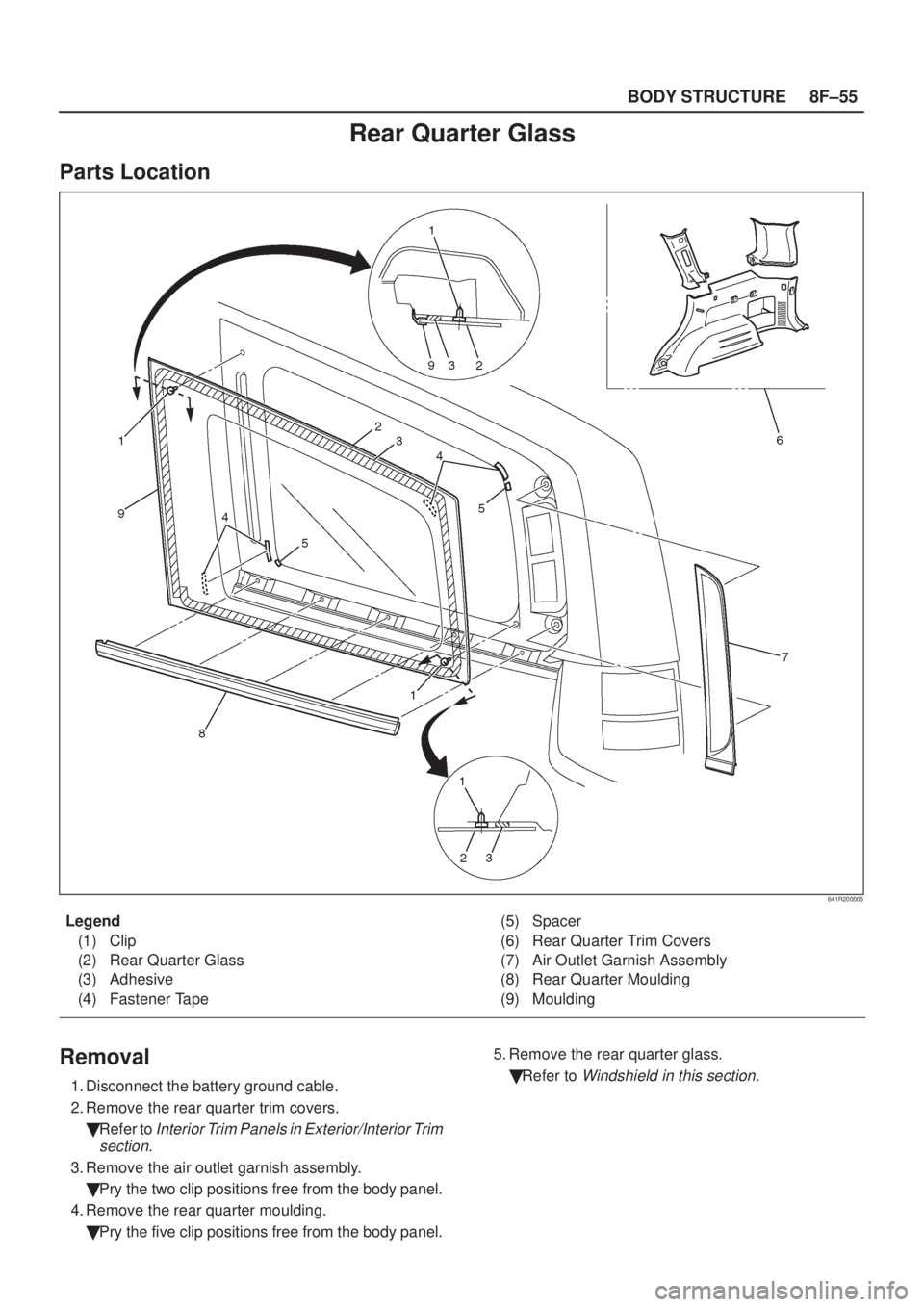

Rear Quarter Glass
Parts Location
641R200005
Legend
(1) Clip
(2) Rear Quarter Glass
(3) Adhesive
(4) Fastener Tape(5) Spacer
(6) Rear Quarter Trim Covers
(7) Air Outlet Garnish A

Page 1932 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±56BODY STRUCTURE
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
641R200003
Legend
(1) Primer Coating Area (Glass side)
(2) Adhesive(3) Primer

Page 1933 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±57 BODY STRUCTURE
Tailgate Glass
Parts Location
641R200004
Legend
(1) Adhesive
(2) Sealing Dam
(3) Primer Coating Area (Glass Side)
(4) Tailgate Glass(5) Clip
(6) Primer Coating Area (Body Panel S

Page 1934 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±58BODY STRUCTURE
7. Remove the tailgate glass assembly.
Use a knife to cut through part of the adhesive
caulking material. Secure one end of a piece of
steel piano wire (0.02 inches in diameter)

Page 1935 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±59 BODY STRUCTURE
Main Data and Specifications

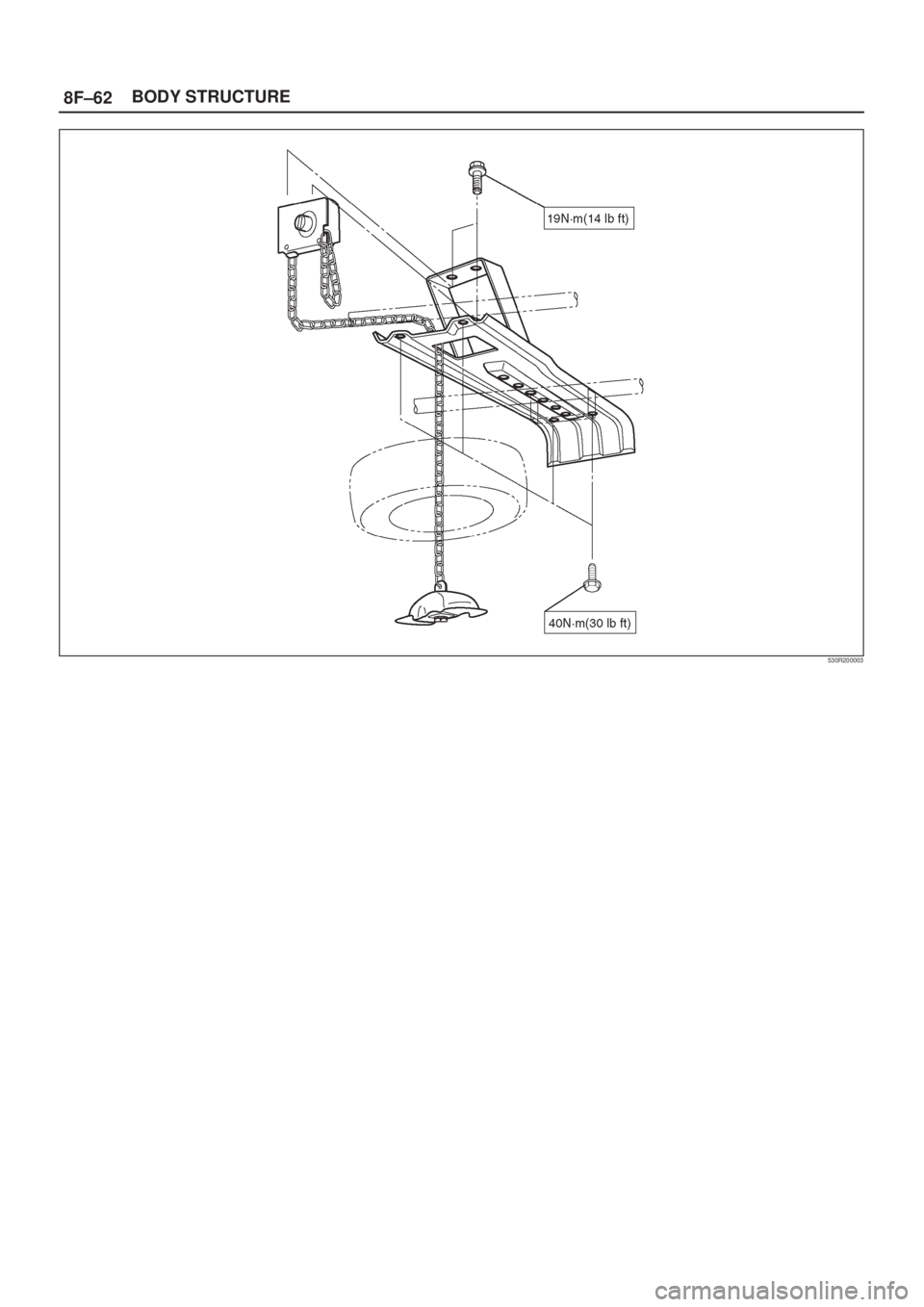

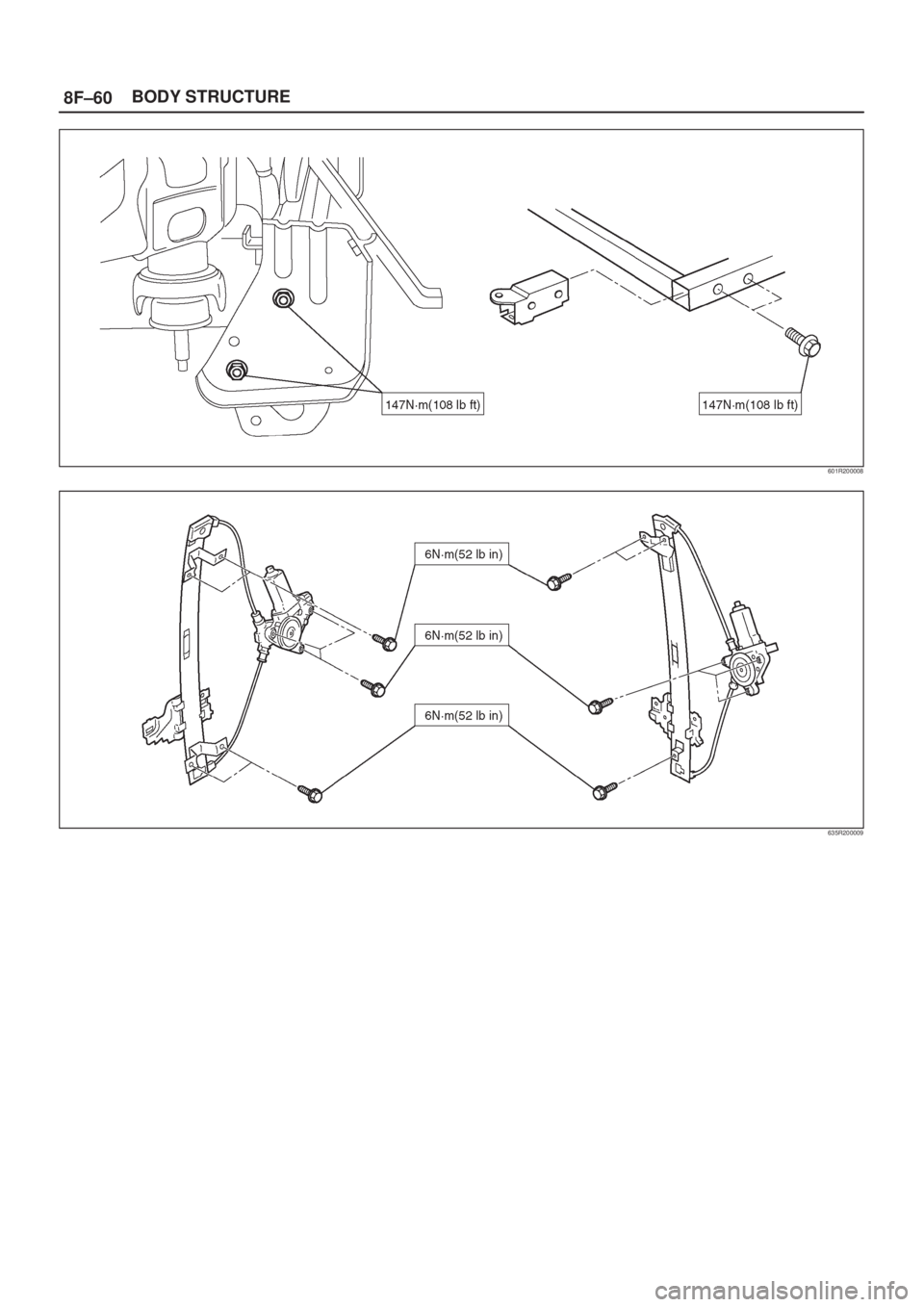

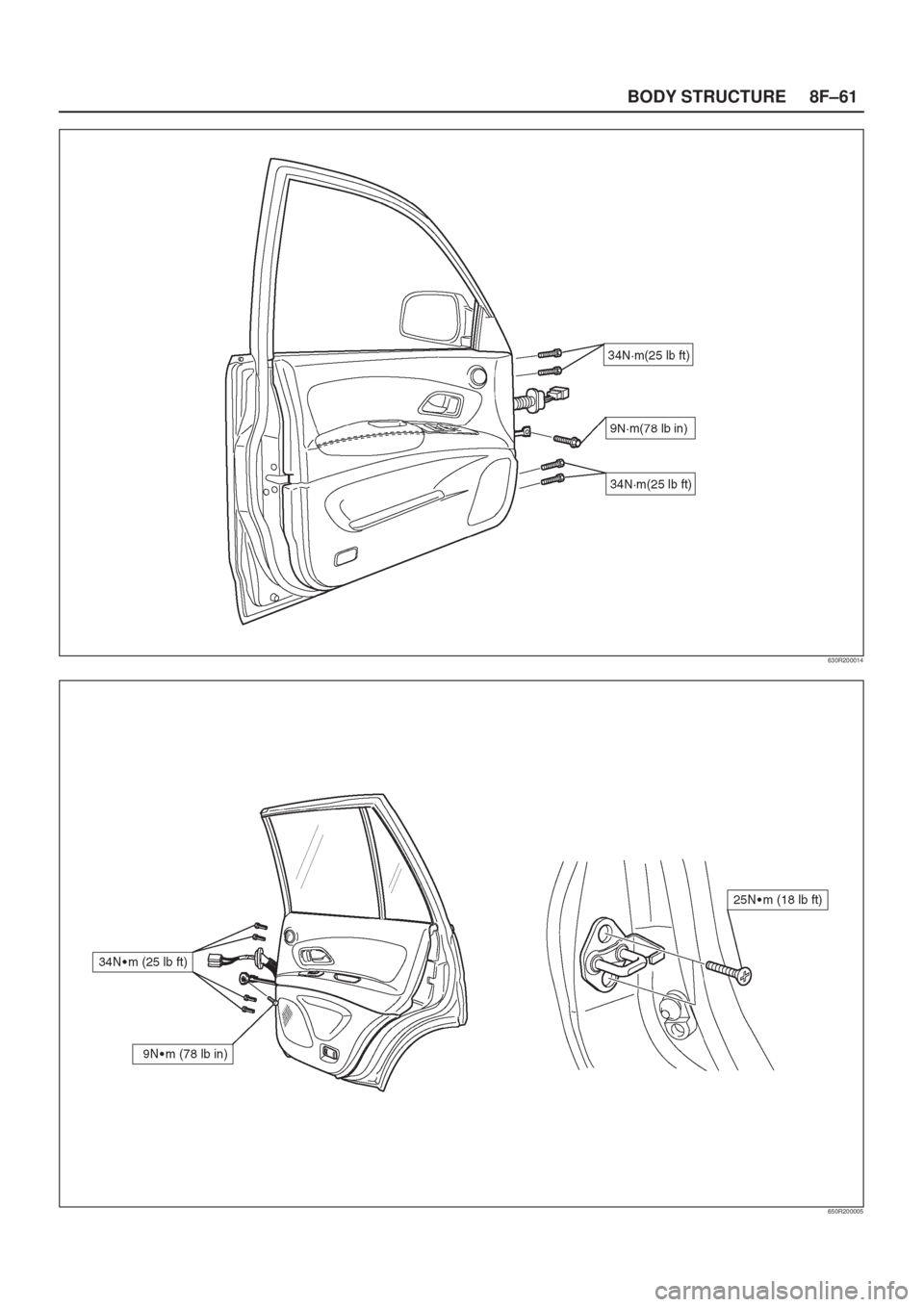

Torque Specification
501R200003

Page 1936 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±60BODY STRUCTURE
601R200008
635R200009

Page 1937 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±61 BODY STRUCTURE
630R200014
650R200005

Page 1938 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8F±62BODY STRUCTURE
530R200003

Page 1939 of 2100

ISUZU AXIOM 2002  Service Repair Manual SEATS8G±1
AXIOM
BODY AND ACCESSORIES
SEATS
CONTENTS
Service Precaution 8G±1. . . . . . . . . . . . . . . . . . . . . .
Front Seat Assembly 8G±2. . . . . . . . . . . . . . . . . . . .
Front Seat A

Page 1940 of 2100

ISUZU AXIOM 2002  Service Repair Manual 8G±2SEATS
Front Seat Assembly
Front Seat Assembly and Associated Parts
750R200011
Legend
(1) Front Seat Assembly (Passengers Seat Only)
(2) Hinge Cover
(3) Rear Cover
(4) Front Seat Belt Buckle Asse
