EXTERIOR/INTERIOR TRIM8J±13

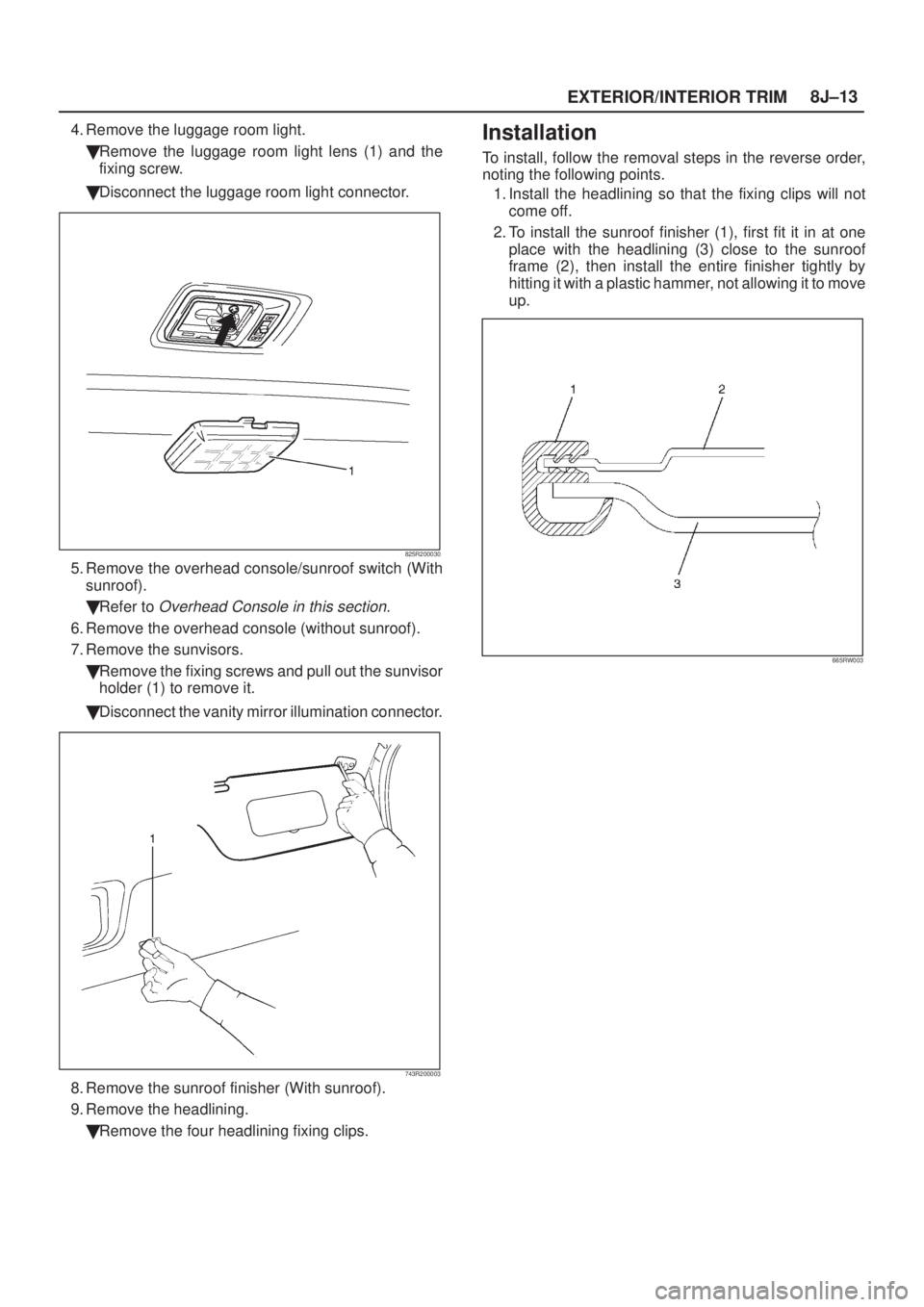

4. Remove the luggage room light.

Remove the luggage room light lens (1) and the
fixing screw.

Disconnect the luggage room light connector.
825R200030
5. Remove the overhead console/sunroof switch (With
sunroof).

Refer to
Overhead Console in this section.
6. Remove the overhead console (without sunroof).
7. Remove the sunvisors.

Remove the fixing screws and pull out the sunvisor
holder (1) to remove it.

Disconnect the vanity mirror illumination connector.
743R200003
8. Remove the sunroof finisher (With sunroof).
9. Remove the headlining.

Remove the four headlining fixing clips.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Install the headlining so that the fixing clips will not
come off.
2. To install the sunroof finisher (1), first fit it in at one
place with the headlining (3) close to the sunroof
frame (2), then install the entire finisher tightly by
hitting it with a plastic hammer, not allowing it to move
up.
665RW003

8J±14EXTERIOR/INTERIOR TRIM

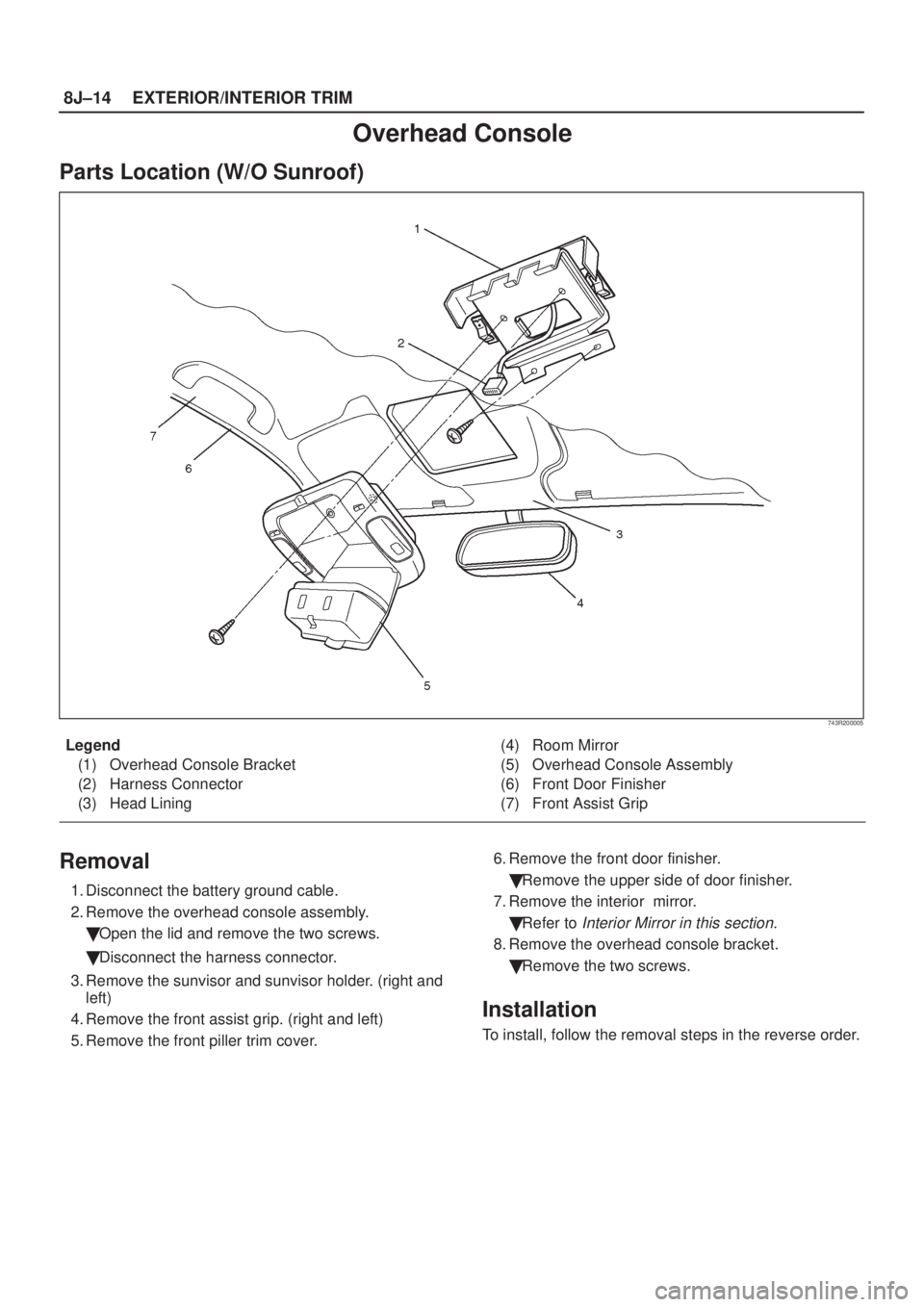

Overhead Console
Parts Location (W/O Sunroof)
743R200005
Legend
(1) Overhead Console Bracket
(2) Harness Connector
(3) Head Lining(4) Room Mirror
(5) Overhead Console Assembly
(6) Front Door Finisher
(7) Front Assist Grip
Removal
1. Disconnect the battery ground cable.
2. Remove the overhead console assembly.

Open the lid and remove the two screws.

Disconnect the harness connector.
3. Remove the sunvisor and sunvisor holder. (right and
left)
4. Remove the front assist grip. (right and left)
5. Remove the front piller trim cover.6. Remove the front door finisher.

Remove the upper side of door finisher.
7. Remove the interior mirror.

Refer to
Interior Mirror in this section.
8. Remove the overhead console bracket.

Remove the two screws.
Installation
To install, follow the removal steps in the reverse order.

EXTERIOR/INTERIOR TRIM8J±15

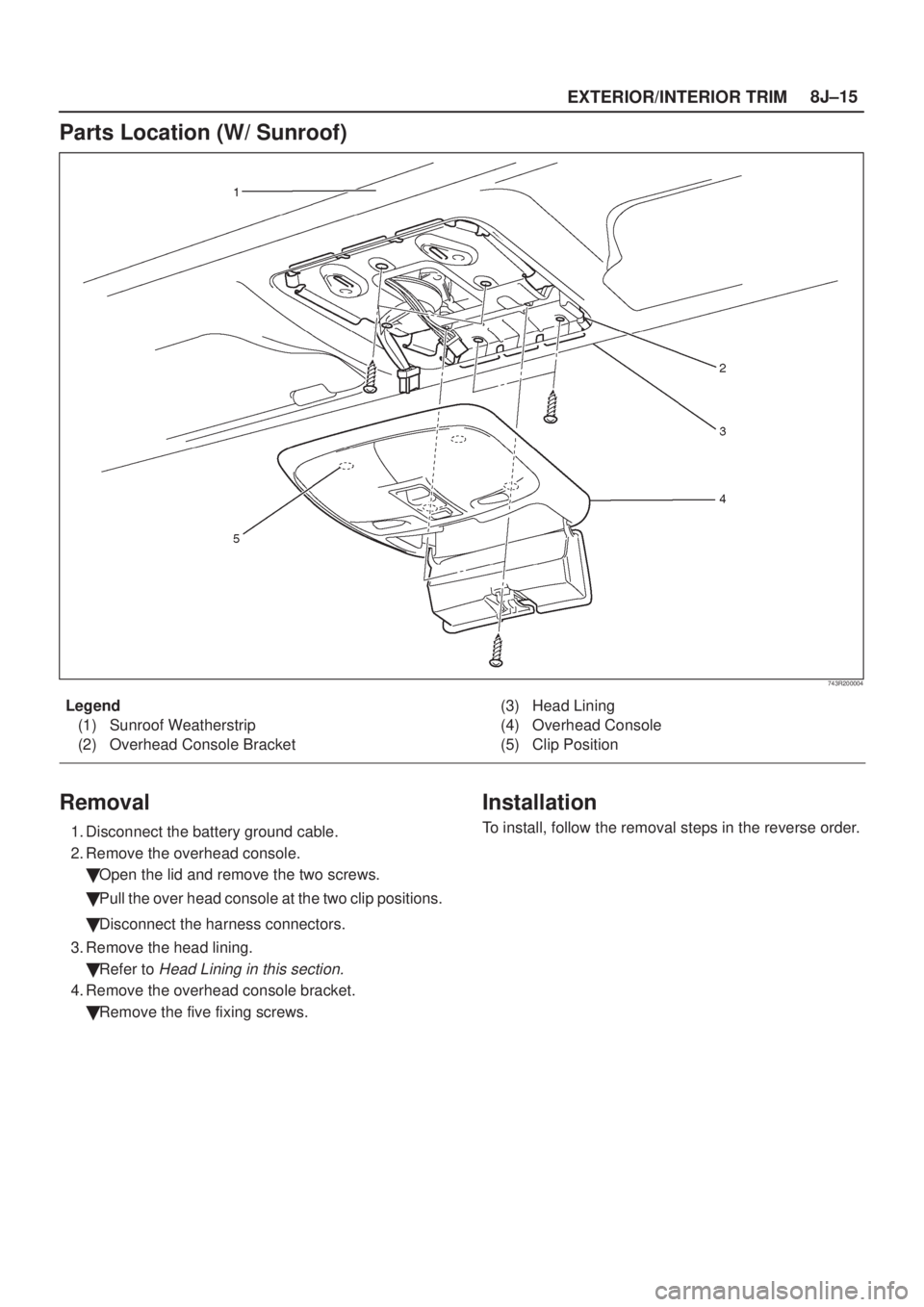

Parts Location (W/ Sunroof)
743R200004
Legend
(1) Sunroof Weatherstrip
(2) Overhead Console Bracket(3) Head Lining
(4) Overhead Console
(5) Clip Position
Removal
1. Disconnect the battery ground cable.
2. Remove the overhead console.

Open the lid and remove the two screws.

Pull the over head console at the two clip positions.

Disconnect the harness connectors.
3. Remove the head lining.

Refer to
Head Lining in this section.
4. Remove the overhead console bracket.

Remove the five fixing screws.
Installation
To install, follow the removal steps in the reverse order.

8J±16EXTERIOR/INTERIOR TRIM

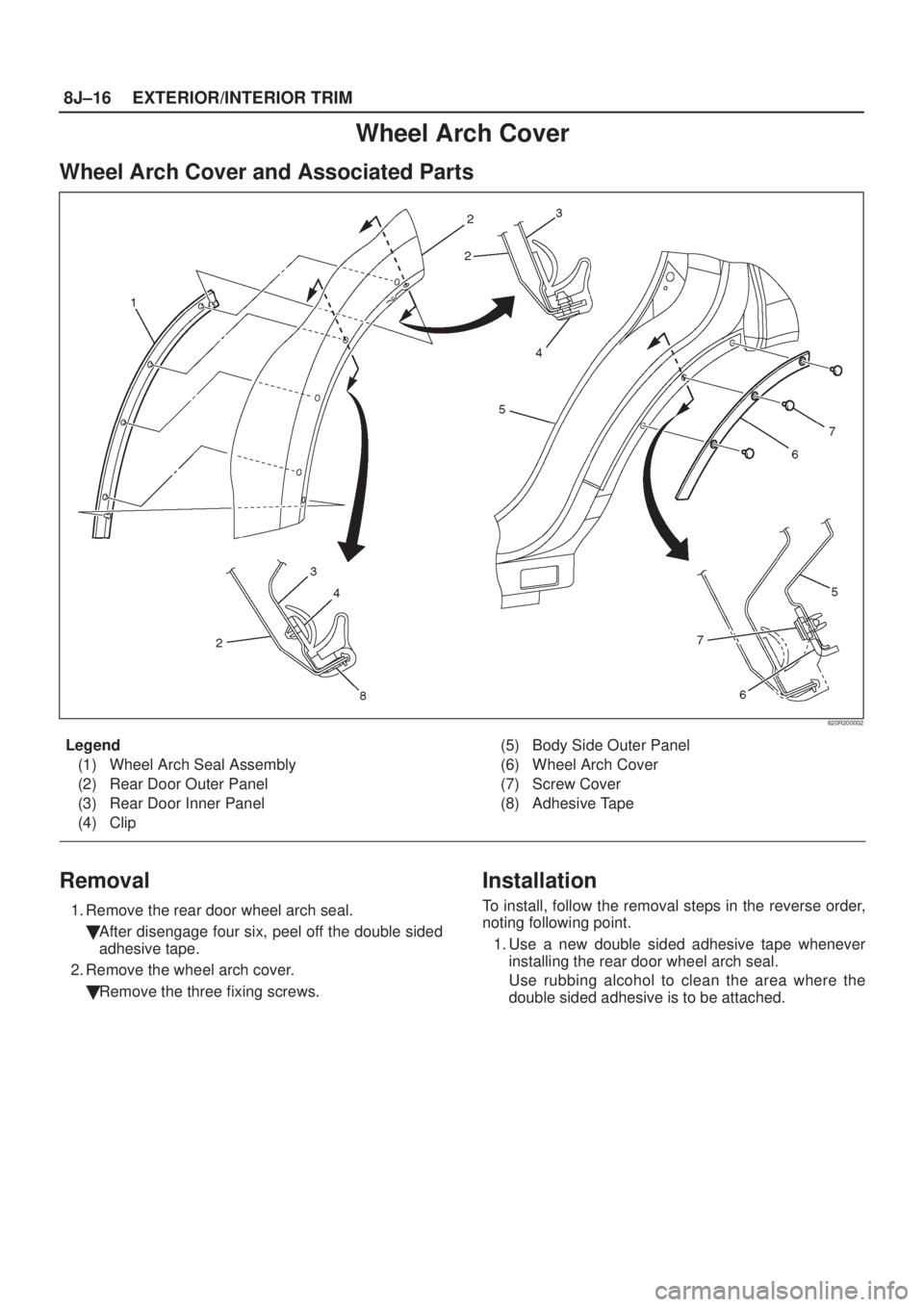

Wheel Arch Cover
Wheel Arch Cover and Associated Parts
620R200002
Legend
(1) Wheel Arch Seal Assembly
(2) Rear Door Outer Panel
(3) Rear Door Inner Panel
(4) Clip(5) Body Side Outer Panel
(6) Wheel Arch Cover
(7) Screw Cover
(8) Adhesive Tape
Removal
1. Remove the rear door wheel arch seal.

After disengage four six, peel off the double sided
adhesive tape.
2. Remove the wheel arch cover.

Remove the three fixing screws.
Installation
To install, follow the removal steps in the reverse order,
noting following point.
1. Use a new double sided adhesive tape whenever
installing the rear door wheel arch seal.
Use rubbing alcohol to clean the area where the
double sided adhesive is to be attached.

EXTERIOR/INTERIOR TRIM8J±17

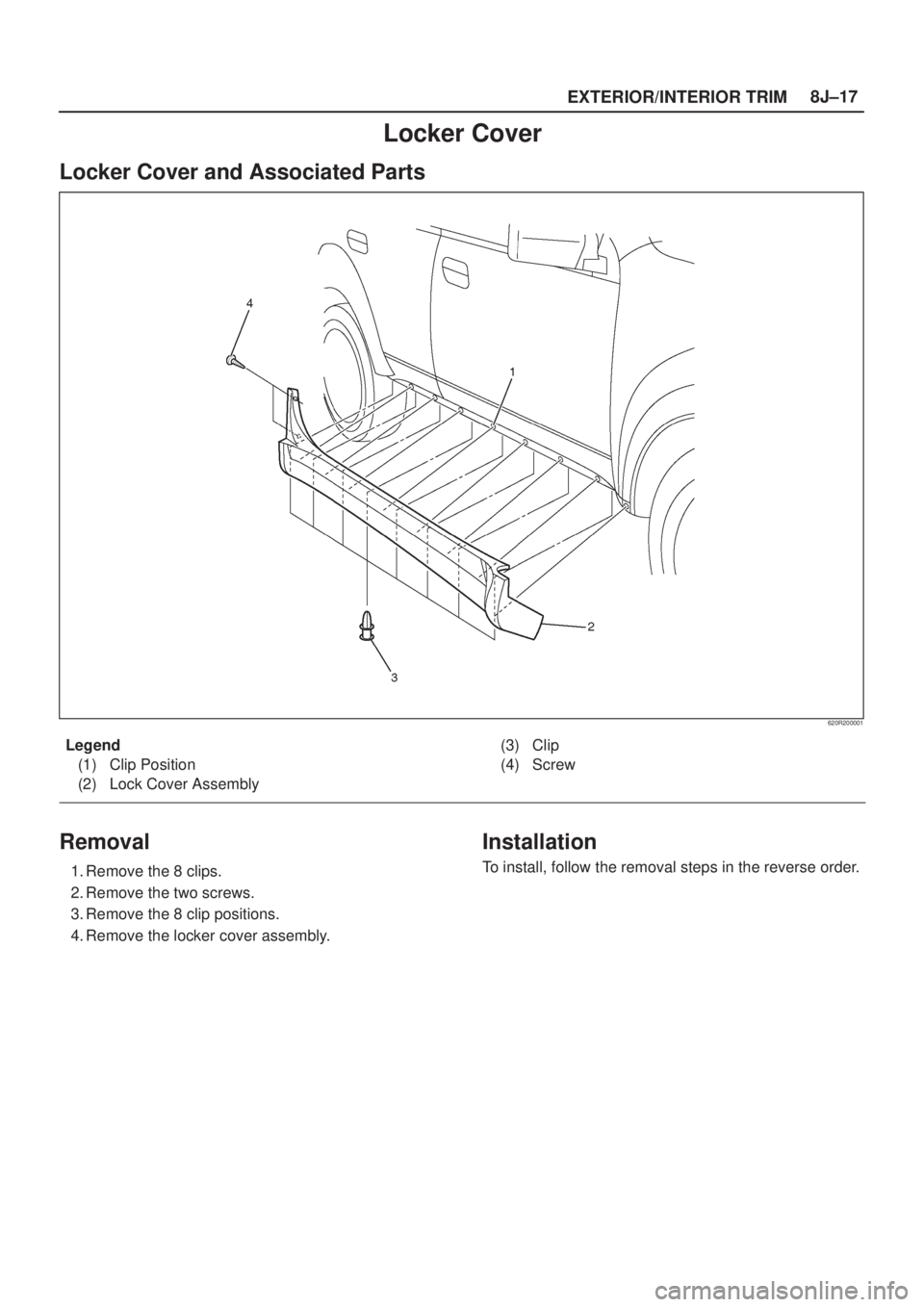

Locker Cover
Locker Cover and Associated Parts
620R200001
Legend
(1) Clip Position
(2) Lock Cover Assembly(3) Clip
(4) Screw
Removal
1. Remove the 8 clips.
2. Remove the two screws.
3. Remove the 8 clip positions.
4. Remove the locker cover assembly.
Installation
To install, follow the removal steps in the reverse order.

8J±18EXTERIOR/INTERIOR TRIM

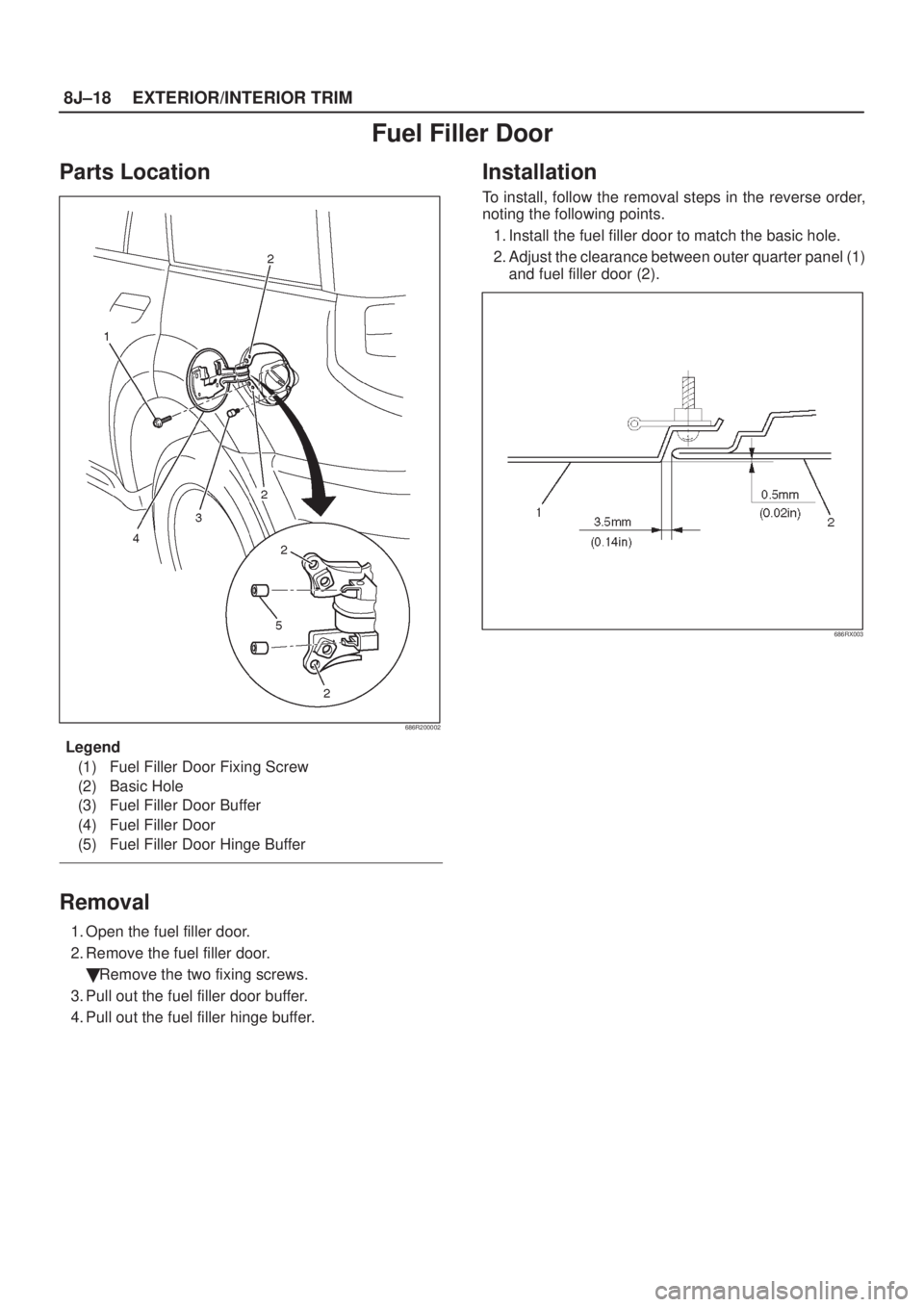

Fuel Filler Door
Parts Location
686R200002
Legend
(1) Fuel Filler Door Fixing Screw
(2) Basic Hole
(3) Fuel Filler Door Buffer
(4) Fuel Filler Door
(5) Fuel Filler Door Hinge Buffer
Removal
1. Open the fuel filler door.
2. Remove the fuel filler door.

Remove the two fixing screws.
3. Pull out the fuel filler door buffer.
4. Pull out the fuel filler hinge buffer.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Install the fuel filler door to match the basic hole.
2. Adjust the clearance between outer quarter panel (1)
and fuel filler door (2).
686RX003

EXTERIOR/INTERIOR TRIM8J±19

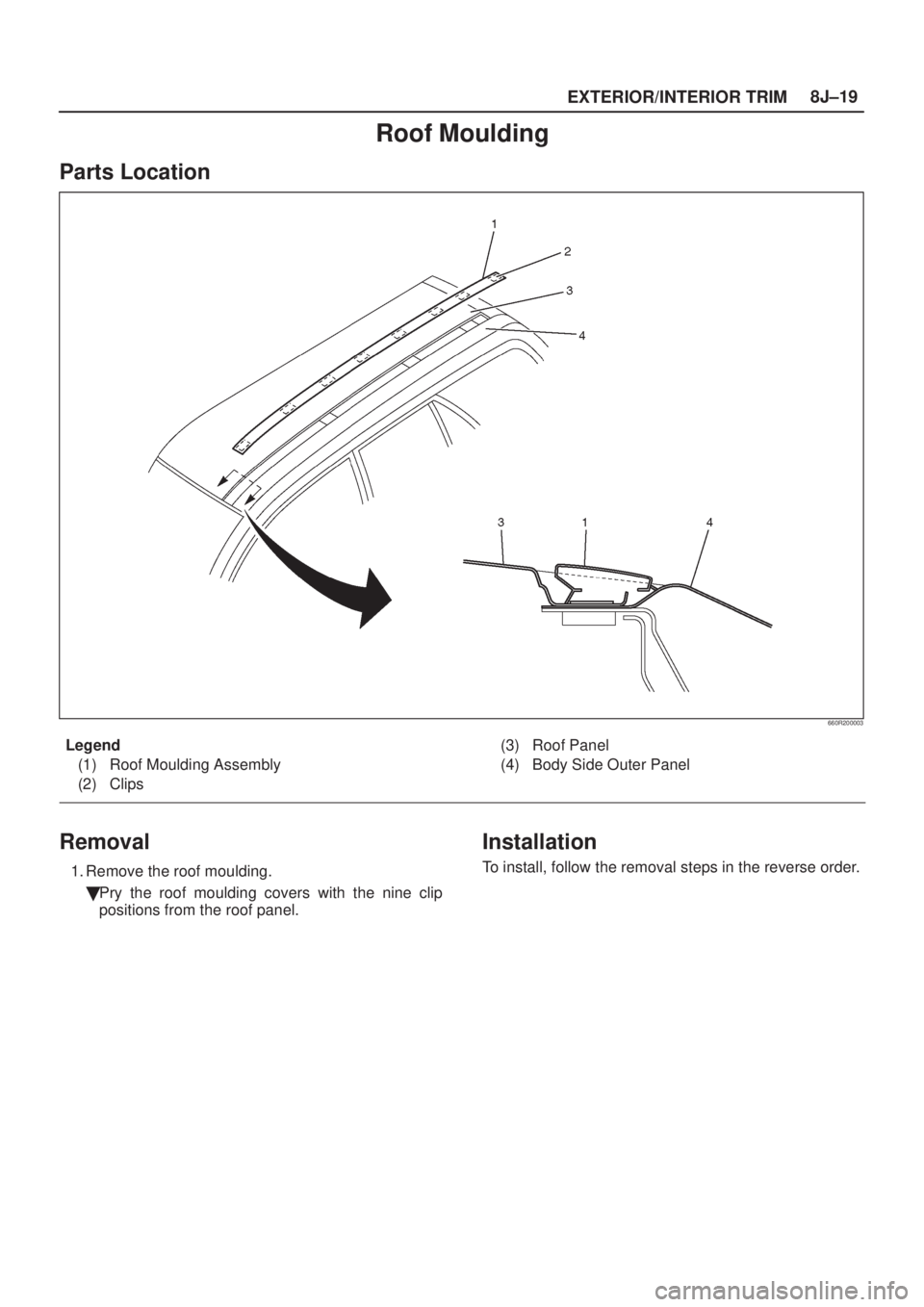

Roof Moulding
Parts Location
660R200003
Legend
(1) Roof Moulding Assembly
(2) Clips(3) Roof Panel
(4) Body Side Outer Panel
Removal
1. Remove the roof moulding.

Pry the roof moulding covers with the nine clip
positions from the roof panel.
Installation
To install, follow the removal steps in the reverse order.

8J±20EXTERIOR/INTERIOR TRIM
Power Door Mirror System
General Description
The system consists of the starter switch, door mirror
switch, rear defogger/mirror defogger switch and door
mirrors on both sides.
When the door mirror switch is operated with the starter
switch at either ªACCº or ªONº position, the motor in the
door mirror (on either side) rotates to allow the horizontal
and vertical adjustment of mirror angles.
When the rear defogger/mirror defogger switch is turned
ªONº with the starter switch ªONº, the heater of the left
and right mirrors and the tailgate glass are activated.
Door Mirror Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the instrument panel lower cover (2).
Refer to the
Instrument Panel Assembly in Body
Structure section.
3. Remove the door mirror switch (1).
825RW094
Rear Defogger/Mirror Defogger Switch
Refer to the Rear Defogger/Mirror switch removal and
installation steps in Lighting System section.
Door Mirrors
Refer to Door Mirror Assembly in this section.

EXTERIOR/INTERIOR TRIM8J±21
Power Window System
General Description
The power window system consists of power window
switches and power window motors on driver and
passenger sides and power window relay. With the starter
switch in ªONº position, the battery voltage is supplied
through power window relay to the power window
switches on driver and passenger sides. Selection of up
or down switch changes the motor rotating direction to
open or close the window.
When the power window ªLOCKº switch on the driver side
is pressed, the power source for the other switches are
disconnected causing the power window operation to
seize.
Power Window Switch Driver Seat
Side
Removal
1. Disconnect the battery ground cable.
2. Remove the switch (1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect the connector.
635R200002
Installation
To install, follow the removal steps in the reverse order.
Front Passenger Seat Side
Removal
1. Disconnect the battery ground cable.
2. Remove the switch (1).

Pull out the switch by pushing the spring (2) with the
tip of a screwdriver.

Disconnect the connector.
825R200025
Installation
To install, follow the removal steps in the reverse order.
Rear-Left and Right Sides
Removal
1. Disconnect the battery ground cable.
2. Remove the rear power window switch (1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect the connector.
655R200004
Installation
To install, follow the removal steps in the reverse order.

8J±22EXTERIOR/INTERIOR TRIM
Power Window Motor
Driver Seat Side
Removal
1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (2).

Refer to the
Window Regulator and Glass removal
steps in Body Structure section.
3. Remove the power window motor (1).

Remove three screws.
635R200007
Installation
To install, follow the removal steps in the reverse order.
Front Passenger Seat Side
Removal and Installation
Refer to the
Front Window Motor Ð Driver Seat side
removal and installation steps in this section.
Rear-Right Side
Removal
1. Disconnect the battery ground cable.
2. Remove the rear window regulator assembly (2).

Refer to the
Rear Window Regulator and Glass
removal steps in Body Structure section.
3. Remove the power window motor (1).

Remove three screws.
655R200006
Installation
To install, follow the removal steps in the reverse order.
Rear-Left Side
Removal and Installation
Refer to the
Rear Power Window Motor Ð Right Side
removal and installation steps in this section.
