TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±83
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
2. This test checks the indicated range signal to the
actual selected range. A faulty switch could set a
DTC P1870.
3. This test checks the torque converter for slippage
while in a commanded lockup state.Range Switch Logic Table
RangeRange Switch Ping
PositionABCP(G)
ParkONOFFOFFON
ReverseONONOFFOFF
NeutralOFFONOFFON
D4OFFONONOFF
D3ONONONON
2ONOFFONOFF
LOFFOFFONON
IllegalOFFOFFOFFOFF
IllegalOFFOFFOFFON
DTC P1870 Transmission Component Slipping (TCC Stuck Off)
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
21. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
4. Apply the brake pedal.
5. Select each transmission range: DL, D2, D3, D4, N, R, and P.
Does each selected transmission range match the scan tool ªTR
Switchº display?
Go to Step 3
Go to ªRange
Switch Logic
Tableº
3Drive the vehicle in 4th gear while the TCC is engaged.
At any time is the ªTCC Slip Speedº greater than 130 rpm for 8
seconds while the TCC is engaged?
Go to System
Diagnosis ChartsGo to Diagnostic
Aids

8A±2LIGHTING SYSTEM
Removal and Installation 8A±17. . . . . . . . . . . . . . .
Dimmer´Passing Switch
(Combination Switch) 8A±17. . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±17. . . . . . . . . . . . . . .
Front Door Switch 8A±17. . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±17. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Switch 8A±18. . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Lock Switch 8A±18. . . . . . . . . . . . . . . . . . . . .
Removal 8A±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Remind Switch (Starter Switch) 8A±19. . . . . . . Removal and Installation 8A±19. . . . . . . . . . . . . . .
Hazard Warning Light Switch 8A±19. . . . . . . . . . . . .
Removal 8A±19. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stoplight Switch 8A±20. . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±20. . . . . . . . . . . . . . .
Turn Signal Light Switch
(Combination Switch) 8A±20. . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±20. . . . . . . . . . . . . . .
Illumination Controller 8A±20. . . . . . . . . . . . . . . . . . . .
Removal 8A±20. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±20. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8A±21. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

WIPER/WASHER SYSTEM8B±1
AXIOM
BODY AND ACCESSORIES
WIPER / WASHER SYSTEM
CONTENTS
Service Precaution 8B±1. . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper/Washer System 8B±2. . . . . . . . .
General Description 8B±2. . . . . . . . . . . . . . . . . . . . .
Windshield Wiper And Washer Switch 8B±2. . . . .
Removal and Installation 8B±2. . . . . . . . . . . . . . .
Windshield Wiper Motor 8B±2. . . . . . . . . . . . . . . . . .
Removal 8B±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Washer Motor 8B±3. . . . . . . . . . . . . . . .
Removal 8B±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Washer Spray Pattern 8B±4. . . . . . . . .
Windshield Wiper Linkage 8B±5. . . . . . . . . . . . . . . .
Windshield Wiper Linkage and Associated
Parts 8B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Arm/Blade 8B±6. . . . . . . . . . . . . .
Removal 8B±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade Rubber 8B±7. . . . . . . . . . .
Removal 8B±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper/Washer System 8B±8. . . . . . . . . . . . . . General Description 8B±8. . . . . . . . . . . . . . . . . . . . . .
Rear Wiper and Washer Switch 8B±8. . . . . . . . . . .
Removal 8B±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper Motor 8B±9. . . . . . . . . . . . . . . . . . . . . . .
Removal 8B±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Motor 8B±10. . . . . . . . . . . . . . . . . . . . . .
Removal 8B±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alarm and Relay Control Unit 8B±11. . . . . . . . . . . . .
Removal 8B±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper Arm/Blade 8B±11. . . . . . . . . . . . . . . . . . .
Removal 8B±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Nozzle 8B±12. . . . . . . . . . . . . . . . . . . . .
Removal 8B±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Spray Pattern 8B±12. . . . . . . . . . . . .
Rear Wiper Blade Rubber 8B±13. . . . . . . . . . . . . . . .
Removal 8B±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8B±14. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

8B±2WIPER/WASHER SYSTEM
Windshield Wiper/Washer System
General Description
The circuit consists of the starter switch, windshield wiper
& washer switch, windshield wiper motor, windshield
washer motor and alarm & relay control unit.
When the windshield wiper & washer switch is turned on
with the starter switch on, the battery voltage is applied to
the wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed. The alarm & relay control
unit relay is used to control motion of the wiper.
Windshield Wiper And Washer Switch
Removal and Installation
Refer to Combination Switch in Steering section.
Windshield Wiper Motor
Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector(2).
3. Remove 4 mounting bolts.
4. Remove the nut of the wiper motor shaft, and
disconnect the linkage.
5. Remove the windshield wiper motor(1).
CAUTION: To facilitate the removal of the nuts, be
sure to put out the tip portion of the linkage
sufficiently through the mounting hole of the motor
by sliding the linkage slowly.
880RW002
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the wiper motor shaft nut to the specified
torque.
Torque: 14 N´m (122 lb in)
2. Remove the wiper arms on both sides, and rotate the
wiper motor until it gets to the autostop position to
secure windshield wiper correct operation.

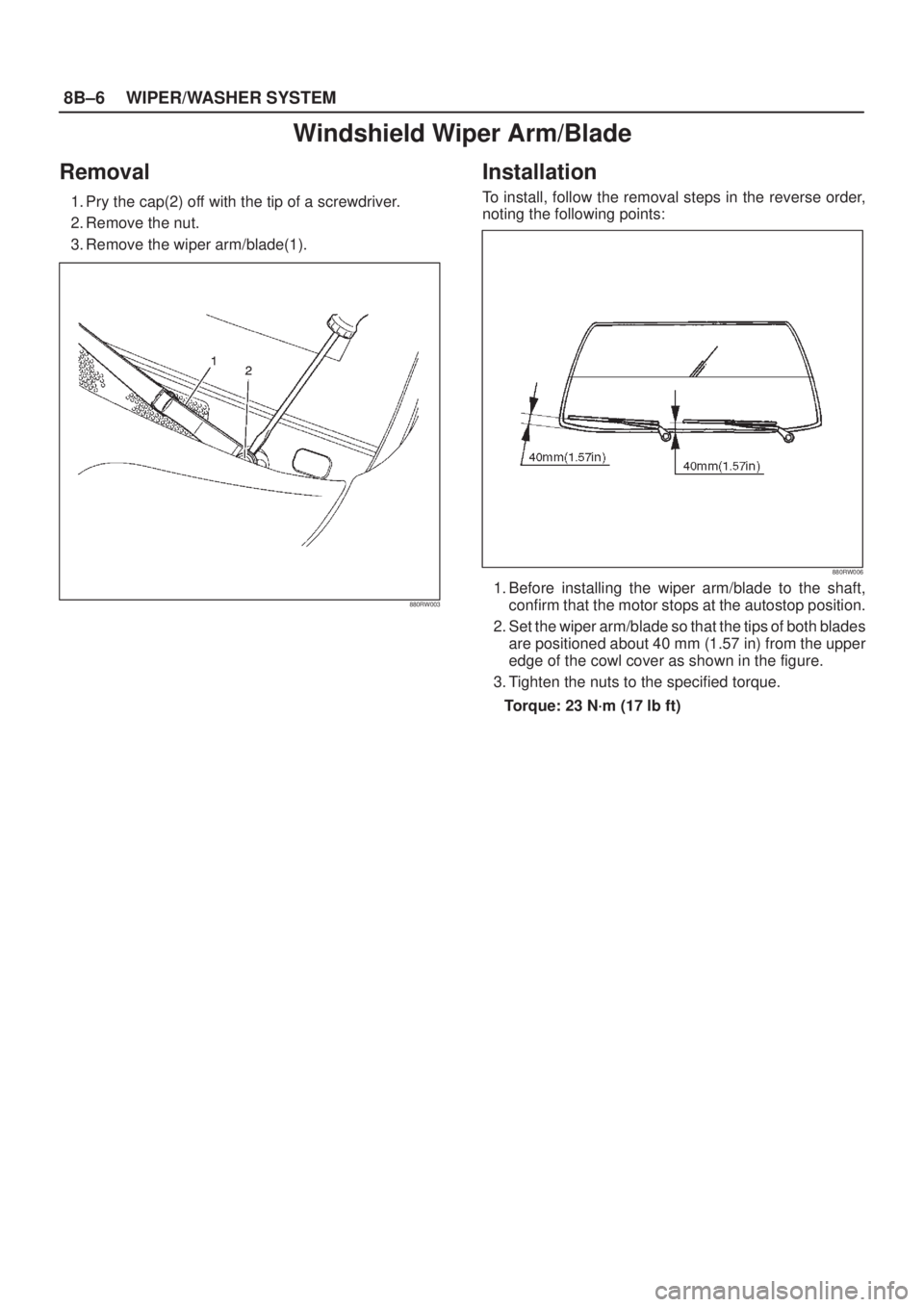

8B±6WIPER/WASHER SYSTEM
Windshield Wiper Arm/Blade
Removal
1. Pry the cap(2) off with the tip of a screwdriver.
2. Remove the nut.
3. Remove the wiper arm/blade(1).
880RW003
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
880RW006
1. Before installing the wiper arm/blade to the shaft,
confirm that the motor stops at the autostop position.
2. Set the wiper arm/blade so that the tips of both blades
are positioned about 40 mm (1.57 in) from the upper
edge of the cowl cover as shown in the figure.
3. Tighten the nuts to the specified torque.
Torque: 23 N´m (17 lb ft)

WIPER/WASHER SYSTEM8B±9
Rear Wiper Motor
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate trim pad.

Refer to
Tailgate Trim Pad in Body Structure
section.
3. Remove the wiper arm/blade.
Refer to
Rear Wiper Arm/Blade in this section.
4. Remove the rear wiper motor (1).

Disconnect the connector.

Remove the rear wiper motor fixing screws.
885R200002
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Before installing the wiper arm/blade (1) to the motor
shaft (6), confirm that the motor stops at the autostop
position.
2. Tighten the motor shaft nut (5) to the specified torque.
Torque: 10 N´m (87 lb in)3. Tighten the wiper arm nut (3) to the specified torque.
Torque: 9 N´m (78 lb in)
885R200001
4. Install the wiper arm/blade so that the wiper arm
contact as shown in the figure.
885R200005

8B±14WIPER/WASHER SYSTEM
Main Data and Specifications
Torque Specifications
ApplicationN´mLb FtLb In
Windshield Wiper Motor Shaft Nut14Ð122
Windshield Wiper Arm Nuts2317Ð
Rear Wiper Motor Shaft Nut10Ð87
Rear Wiper Arm Nut9Ð78

ENTERTAINMENT8C±1
AXIOM
BODY AND ACCESSORIES
ENTERTAINMENT
CONTENTS
Service Precaution 8C±1. . . . . . . . . . . . . . . . . . . . . .
Cigarette Lighter 8C±2. . . . . . . . . . . . . . . . . . . . . . . .
General Description 8C±2. . . . . . . . . . . . . . . . . . . . .
Removal 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rod Type Antenna 8C±3. . . . . . . . . . . . . . . . . . . . . .
Removal 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessory Socket 8C±4. . . . . . . . . . . . . . . . . . . . . . .
Front Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Tweeter Assembly 8C±6. . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Speaker 8C±6. . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Tweeter Assembly 8C±7. . . . . . . . . . . . . . . .
Removal 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display (MID) 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MID Control Unit 8C±9. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS Control Unit 8C±10. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis 8C±11. . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis Flow Chart±1 8C±11. . . . . . . . . . . .
Self-Diagnosis Flow Chart±2 (Audio) 8C±12. . . . .
Self-Diagnosis Flow Chart±3 (Display) 8C±13. . .
Self-Diagnosis Flow Chart±4 (MID) 8C±14. . . . . .
Audio Self-Diagnosis 8C±15. . . . . . . . . . . . . . . . . . .
Display Self-Diagnosis 8C±16. . . . . . . . . . . . . . . . .
MID Self-Diagnosis 8C±17. . . . . . . . . . . . . . . . . . . .
Symptom Diagnosis 8C±18. . . . . . . . . . . . . . . . . . . . .
MID Not Appears 8C±18. . . . . . . . . . . . . . . . . . . . . .
No COMPASS, CLOCK, FUEL
CONSUMPTION, or SERVICE Display 8C±19. .
No COMPASS Display 8C±20. . . . . . . . . . . . . . . . .
No SERVICE Display 8C±20. . . . . . . . . . . . . . . . . .
Other Trouble Symptom 8C±21. . . . . . . . . . . . . . . .
MID Circuit 8C±22. . . . . . . . . . . . . . . . . . . . . . . . . . .
Harness Connector Faces 8C±23. . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

METER AND GAUGE8E±1
AXIOM
BODY AND ACCESSORIES
METER AND GAUGE
CONTENTS
Service Precaution 8E±1. . . . . . . . . . . . . . . . . . . . . .
General Description 8E±1. . . . . . . . . . . . . . . . . . . . .
Meter Assembly 8E±2. . . . . . . . . . . . . . . . . . . . . . . . .
General Description 8E±2. . . . . . . . . . . . . . . . . . . . .
Layout for Meters/Gauges, Warning Lights,
Indicator Lights and Illumination Lights 8E±2. . .
Table for Meter/Gauge Connector Terminal
Connections 8E±4. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Light Bulb and Indicator Light Bulb 8E±6. Removal 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
A/T Shift Indicator Light Bulb 8E±7. . . . . . . . . . . . . .
Removal 8E±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle Speed Sensor 8E±9. . . . . . . . . . . . . . . . . . .
Removal 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank Unit 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8E±10. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The circuit consists of the starter switch, meter assembly,
vehicle speed sensor, transmission switch, lighting
switch, turn signal switch, thermo unit, oil pressure unit,
Powertrain Control Module (PCM), fuel tank unit, 4WD
switch, oil pressure switch, parking brake switch, brake
fluid switch, seat belt switch, illumination controller, meter
and ambient sensor.

METER AND GAUGE8E±9
Vehicle Speed Sensor
Removal
1. Disconnect the battery ground cable.
2. Remove the vehicle speed sensor(1).

Disconnect the connector.

Rotate the sensor counterclockwise.
225R200001
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the vehicle speed sensor to the specified
torque.
Torque: 25 N´m (18 lb ft)
Fuel Tank Unit
Removal
Refer to Engine Fuel section.
