8A-284 ELECTRICAL-BODY AND CHASSIS


4. Disconnect the connector
1.
5. Disconnect the water hose
2.

6. Pull out the washer tank motor 3.




Installation
Follow the removal procedure in the reverse order to install the
washer tank motor.
Pay close attention to the important points mentioned in the
following paragraphs.


Connector
Be absolutely sure that the washer tank motor connector is
securely connected.
This will prevent a poor contact and an open circuit.




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-290 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6 Sheet 1/2






RTW 78AXF012501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-291

CIRCUIT DIAGRAM HFV6 Sheet 2/2




RTW 78AXF012601

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-292 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC (AW30-40LE) Sheet 1/2


RTW 78AXF011601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-293

CIRCUIT DIAGRAM 4JJ1-TC (AW30-40LE) Sheet 2/2










RTW 78AXF011701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-294 ELECTRICAL-BODY AND CHASSIS

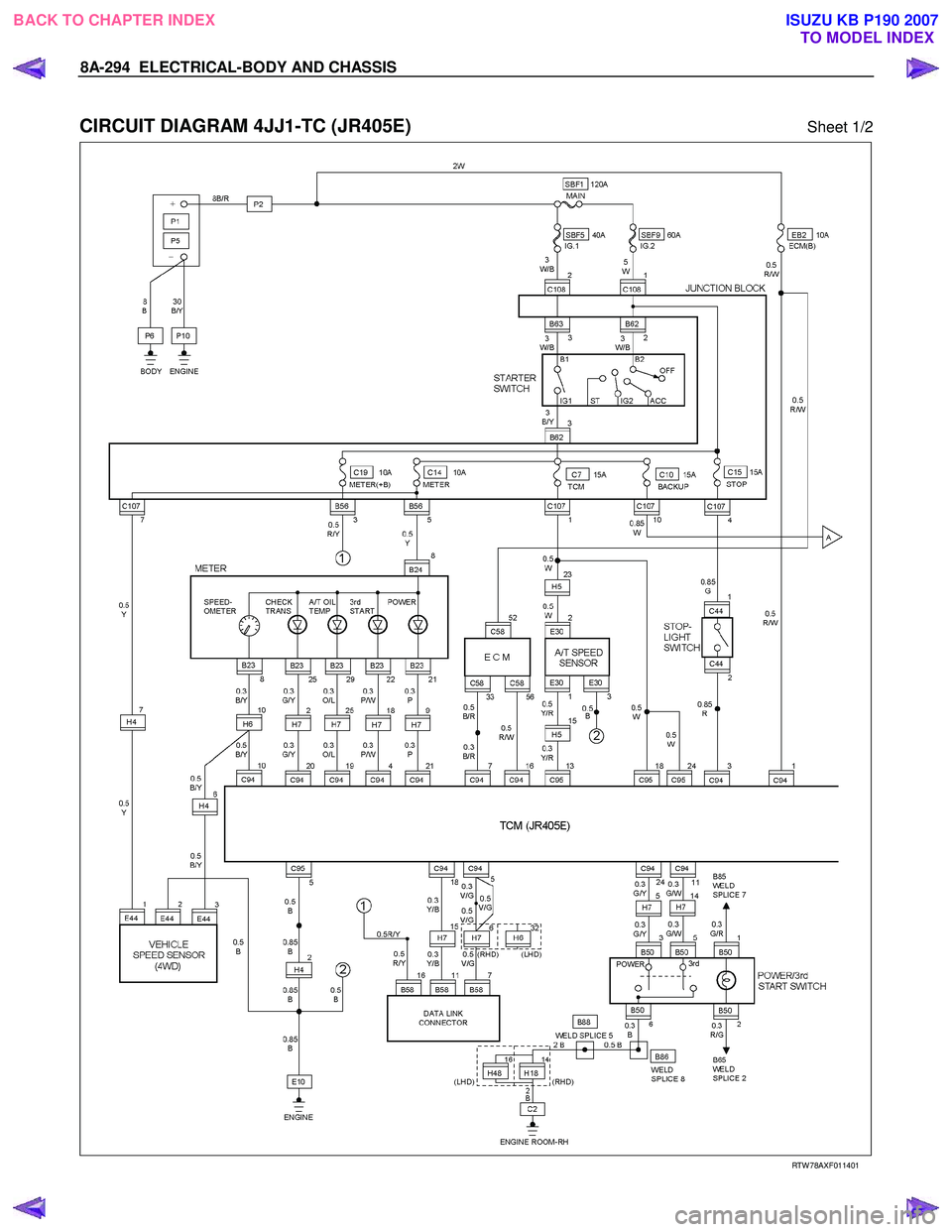

CIRCUIT DIAGRAM 4JJ1-TC (JR405E) Sheet 1/2


RTW 78AXF011401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-295

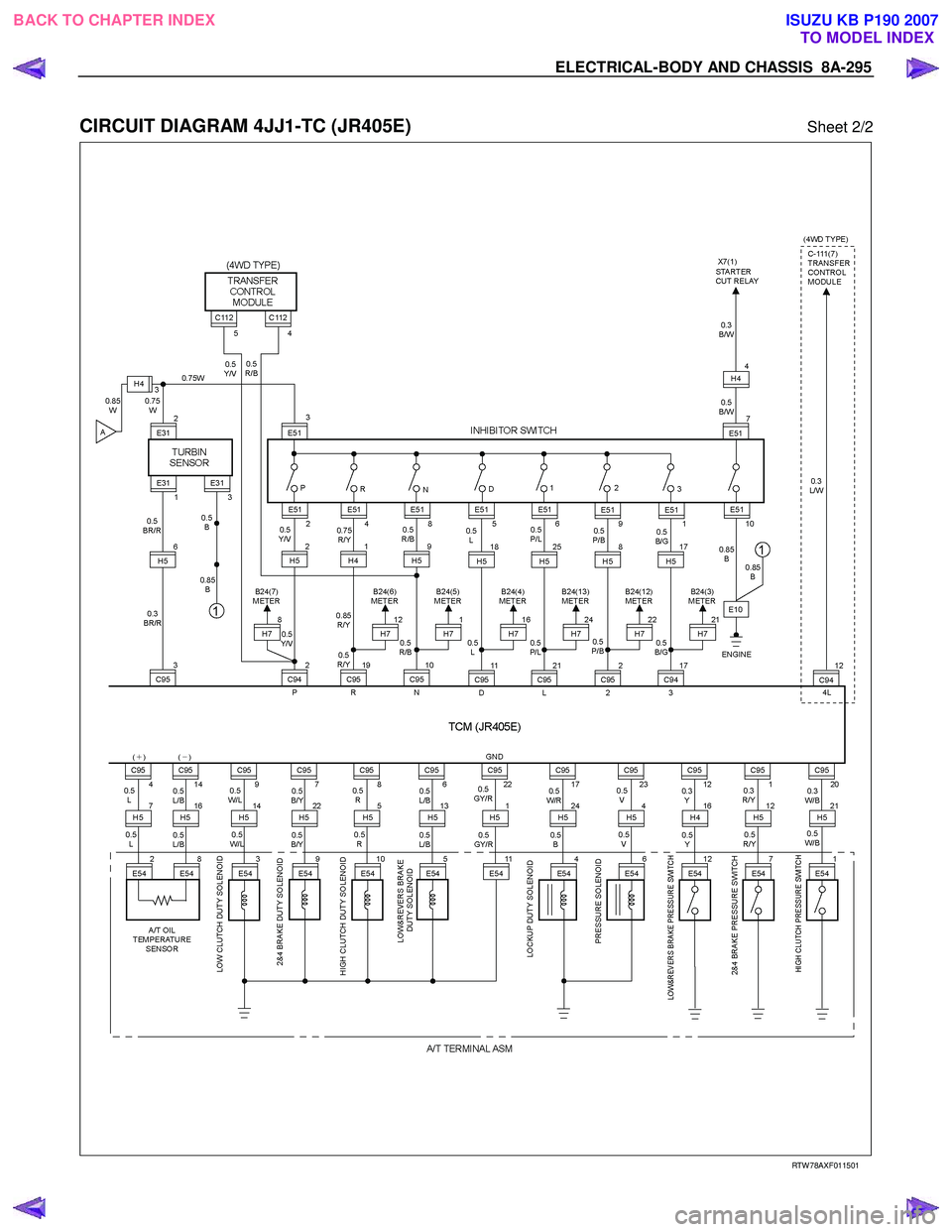

CIRCUIT DIAGRAM 4JJ1-TC (JR405E) Sheet 2/2










RTW 78AXF011501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-296 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JH1-TC (LHD) (JR405E) Sheet 1/2


RTW 78AXF004801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-297

CIRCUIT DIAGRAM 4JH1-TC (LHD) (JR405E) Sheet 2/2









RTW 78AXF004901


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-302 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA




RTW 78AXF022801
