ISUZU KB P190 2007 Workshop Repair Manual

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-77
91. Remove the transmission oil pan. Refer to
repair instructions (On-Vehicle Service).
2. Inspect the low & reverse brake solenoid valve and transmission fluid pressure (TFP) switch
for the following conditions:
• Physical damage
• Loose or improper installation
3. Inspect for an intermittent and for a poor connection at the harness connector of the
low & reverse brake TFP switch or in-line
harness connector.
4. Test the signal circuit between the low & reverse brake TFP switch and the in-line
harness connector (pin 12 of E-54 male side)
for the following conditions:
• An open circuit
• A short to ground
• A short to the solenoid valve circuit
• High resistance
5. Repair the connection(s), circuit(s) or replace as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 10
10 1. Remove the low & reverse brake solenoid
valve and TFP switch from the valve body
assembly and perform function check. Refer
to repair instructions (On-Vehicle Service).
2. Repair or replace as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 11
11 Repair or replace the valve body assembly. Refer
to repair instructions (On-Vehicle Service or Unit
Repair).
Did you complete the repair or replacement? —
Go to Step 13 —
12 Important:
Replacement TCM must be
programmed.
Replace the TCM. Refer to TCM Replacement.
Did you complete the replacement? —
Go to Step 13 —
13 1. Reconnect all previously disconnected
components or harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Drive the vehicle while observing the DTC Information with a scan tool.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 14
14 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-78 TRANSMISSION CONTROL SYSTEM (JR405E)
DTC P1858 (Flash Code 27)
Circuit Description
The 2-4 brake transmission fluid pressure (TFP) switch
is installed to the lower part of the valve body assembly
and it feedbacks fluid pressure in the 2-4 brake
hydraulic circuit. When the solenoid valve is energized,
fluid pressure is drained to disengage the 2-4 brake
and the TFP switch is OFF. When the solenoid valve is
not energized, fluid pressure is applied to engage the
2-4 brake and the TFP switch is ON. The TCM
monitors the 2-4 brake pressure switch ON/ OFF status
through the signal circuit. If the TCM detects an
improper status on the signal circuit, this DTC will set.
Condition for Running the DTC • DTCs P0560, P0705, P0717, P0722, P0753, P0758, P0763, P0768, P1120, P1750, P1755 and
P1875 are not set.
AND following conditions are met for longer than 2.5
seconds.
• The ignition switch is ON.
• The transmission fluid temperature is more than 60 °C (140 °F).
• The engine speed is more than 500 RPM.
• The TCM is not under gearshift control.
Condition for Setting the DTC
Either of following condition is met: • The TCM detects that the 2-4 brake TFP switch signal is stuck at the ON for longer than 2 seconds
when the selector lever in P, R or N range. • The TCM detects that the 2-4 brake TFP switch
signal is stuck at the OFF for longer than 2 second
when the selector lever in D range with 4th gear.
Action Taken When the DTC Sets • The TCM blinks the Check Trans lamp when the diagnostic runs and fails.
Condition for Clearing the DTC • The TCM turns OFF the Check Trans lamp when the diagnostic runs and does not fail.
• A current DTC clears when the diagnostic runs and does not fail.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• Use the Clutch, Brake, Solenoid and Pressure Switch Logic table to verify each component works
properly within the selected gear range.
• A sticking or intermittently sticking the 2-4 brake solenoid valve will cause this DTC to set.
Schematic Reference: Transmission Controls
Schematics
Connector End View Reference: Transmission
Controls Connector End Views or TCM Connector End
Views
Circuit/ System Testing DTC P1858
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Transmission Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Transmission Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Lift the driving wheels or drive the vehicle while observing the DTC Information with a
scan tool.
Is DTC P0758 also set? —
Go to DTC P0758 Go to Step 3
3 Place the selector lever in forward range while
observing the 2-4 Brake Pressure Switch
parameter with a scan tool.
Does the 2-4 Brake Pressure Switch parameter
ever indicate OFF when gear is positioned 2nd and
4th? —
Go to Step 5 Go to Step 4

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-79
4Place the selector lever in P, R and N range while
observing the 2-4 Brake Pressure Switch
parameter with a scan tool.
Does the 2-4 Brake Pressure Switch parameter
indicate OFF? —
Go to Diagnostic Aids Go to Step 5
5 1. Turn OFF the ignition.
2. Disconnect the in-line harness connector (E- 54) near the transmission range switch.
3. Turn ON the ignition, with the engine OFF.
4. Observe the 2-4 Brake Switch parameter with a scan tool while momentarily jumping 3-amp
fused jumper wire between pin 7 of E-54
(female side) and a known good ground.
Does the scan tool indicate ON when the circuit is
jumpered and OFF when the circuit is not
jumpered? —
Go to Step 8 Go to Step 6
6 1. Test the signal circuit between the TCM (pin 1
of C-95) and the in-line harness connector (pin
7 of E-54 female side) for the following
conditions:
• An open circuit
• A short to ground
• High resistance
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 7
7 1. Turn OFF the ignition.
2. Disconnect the TCM harness connector.
3. Inspect for an intermittent and for a poor connection at the harness connector of the
TCM (pin 1 of C-95).
4. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 12
8 1. Inspect for an intermittent and for a poor
connection at the in-line harness connector
(pin 7 of E-54).
2. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 9
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-80 TRANSMISSION CONTROL SYSTEM (JR405E)
91. Remove the transmission oil pan. Refer to
repair instructions (On-Vehicle Service).
2. Inspect the 2-4 brake solenoid valve and transmission fluid pressure (TFP) switch for
the following conditions:
• Physical damage
• Loose or improper installation
3. Inspect for an intermittent and for a poor connection at the harness connector of the 2-
4 brake TFP switch or in-line harness
connector.
4. Test the signal circuit between the 2-4 brake TFP switch and the in-line harness connector
(pin 7 of E-54 male side) for the following
conditions:
• An open circuit
• A short to ground
• A short to the solenoid valve circuit
• High resistance
5. Repair the connection(s), circuit(s) or replace as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 10
10 1. Remove the 2-4 brake solenoid valve and TFP
switch from the valve body assembly and
perform function check. Refer to repair
instructions (On-Vehicle Service).
2. Repair or replace as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 11
11 Repair or replace the valve body assembly. Refer
to repair instructions (On-Vehicle Service or Unit
Repair).
Did you complete the repair or replacement? —
Go to Step 13 —
12 Important:
Replacement TCM must be
programmed.
Replace the TCM. Refer to TCM Replacement.
Did you complete the replacement? —
Go to Step 13 —
13 1. Reconnect all previously disconnected
components or harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Drive the vehicle while observing the DTC Information with a scan tool.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 14
14 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-81
DTC P1860 (Flash Code 36)
Circuit Description
The torque converter clutch (TCC) solenoid valve
controls fluid acting on the lock up control spool valve,
which then controls lock up clutch apply and release.
The solenoid valve is installed to the lower part of the
valve body assembly. The TCM controls the solenoid
valve by a duty cycle (pulse width modulation [PWM])
signal based on the vehicle running conditions. The
solenoid valve provides a smooth engagement of the
torque converter clutch by operating on a duty cycle
percentage of ON time. The TCM monitors the TCC
solenoid valve operating status through the feedback
circuit. If the TCM detects an improper voltage level on
the control circuit, this DTC will set.
Condition for Running the DTC • The ignition switch is ON.
Condition for Setting the DTC • The TCM detects an open circuit or short circuit on the TCC solenoid valve control circuit. Action Taken When the DTC Sets
• The TCM blinks the Check Trans lamp when the diagnostic runs and fails.
• The TCM inhibits lock up control.
Condition for Clearing the DTC • The TCM turns OFF the Check Trans lamp when the diagnostic runs and does not fail at next
ignition cycle.
• A current DTC clears when the diagnostic runs and does not fail at next ignition cycle.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Transmission Controls
Schematics
Connector End View Reference: Transmission
Controls Connector End Views or TCM Connector End
Views
Circuit/ System Testing DTC P1860
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Transmission Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Transmission Controls
2 1. Install a scan tool.
2. Perform the Torque Converter Clutch (TCC) Solenoid control with a scan tool.
3. Command the solenoid valve ON and OFF.
Does the TCC solenoid valve click with each
command? —
Go to Diagnostic Aids Go to Step 3
3 1. Turn OFF the ignition.
2. Disconnect the in-line harness connector (E- 54) near the transmission range switch.
3. Connect a test lamp between the control circuit (pin 4 of E-54 female side) and a known
good ground.
4. Turn ON the ignition, with the engine OFF.
5. Perform the TCC Solenoid control with a scan tool.
6. Command the solenoid valve ON and OFF.
Does the test lamp turn ON and OFF with each
command? —
Go to Step 8 Go to Step 4
4 Does the test lamp remain illuminated with each
command? —
Go to Step 5 Go to Step 6

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-82 TRANSMISSION CONTROL SYSTEM (JR405E)
51. Test the control circuit between the TCM (pin
17 of C-95) and the in-line harness connector
(pin 4 of E-54 female side) for a short to
battery or ignition voltage.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 11
6 1. Test the control circuit between the TCM (pin
17 of C-95) and the in-line harness connector
(pin 4 of E-54 female side) for the following
conditions:
• An open circuit
• A short to ground
• High resistance
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —

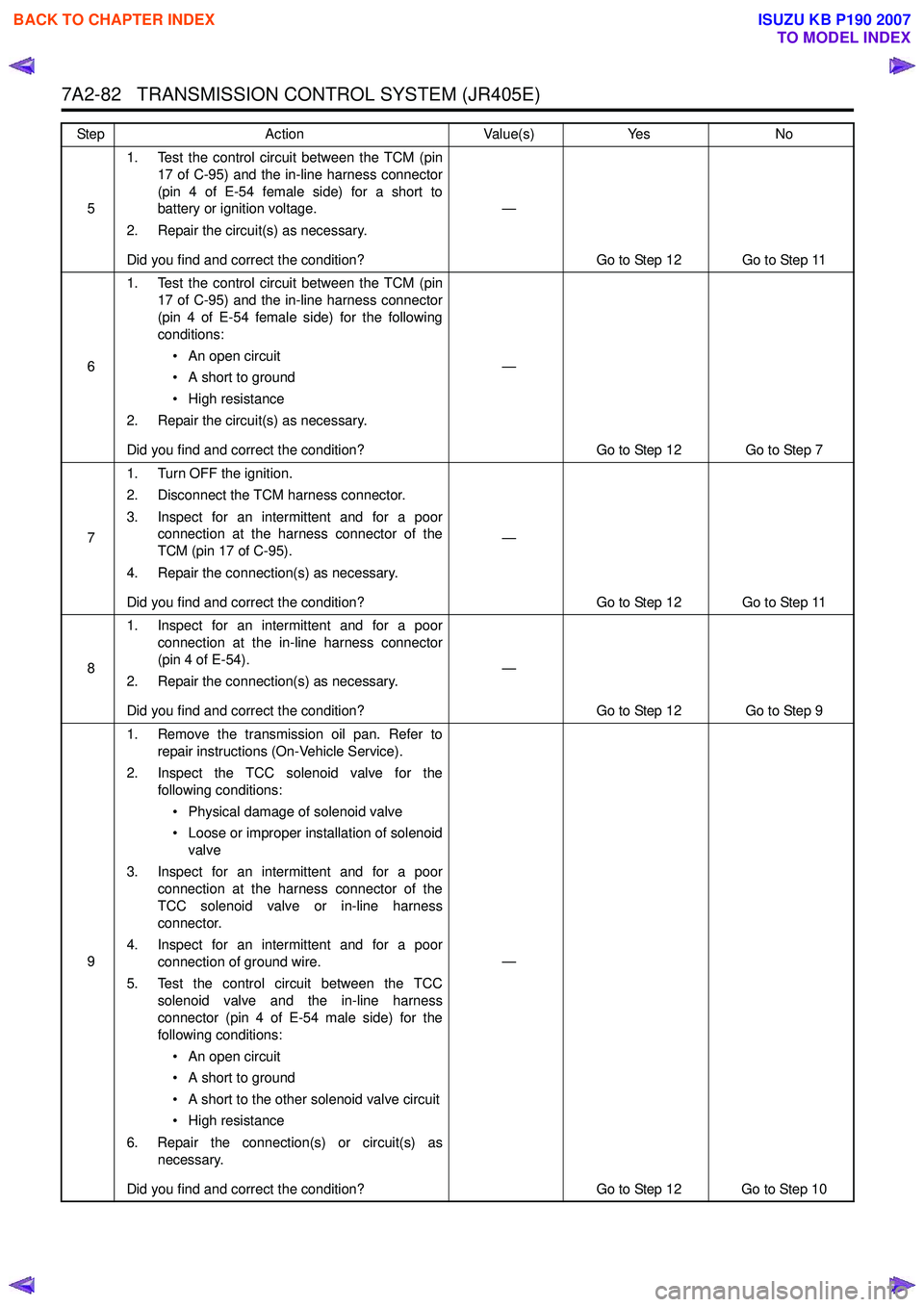

Go to Step 12 Go to Step 7
7 1. Turn OFF the ignition.
2. Disconnect the TCM harness connector.
3. Inspect for an intermittent and for a poor connection at the harness connector of the
TCM (pin 17 of C-95).
4. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 11
8 1. Inspect for an intermittent and for a poor
connection at the in-line harness connector
(pin 4 of E-54).
2. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 9
9 1. Remove the transmission oil pan. Refer to
repair instructions (On-Vehicle Service).
2. Inspect the TCC solenoid valve for the following conditions:
• Physical damage of solenoid valve
• Loose or improper installation of solenoid valve
3. Inspect for an intermittent and for a poor connection at the harness connector of the
TCC solenoid valve or in-line harness
connector.
4. Inspect for an intermittent and for a poor connection of ground wire.
5. Test the control circuit between the TCC solenoid valve and the in-line harness
connector (pin 4 of E-54 male side) for the
following conditions:
• An open circuit
• A short to ground
• A short to the other solenoid valve circuit
• High resistance
6. Repair the connection(s) or circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 10
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-83

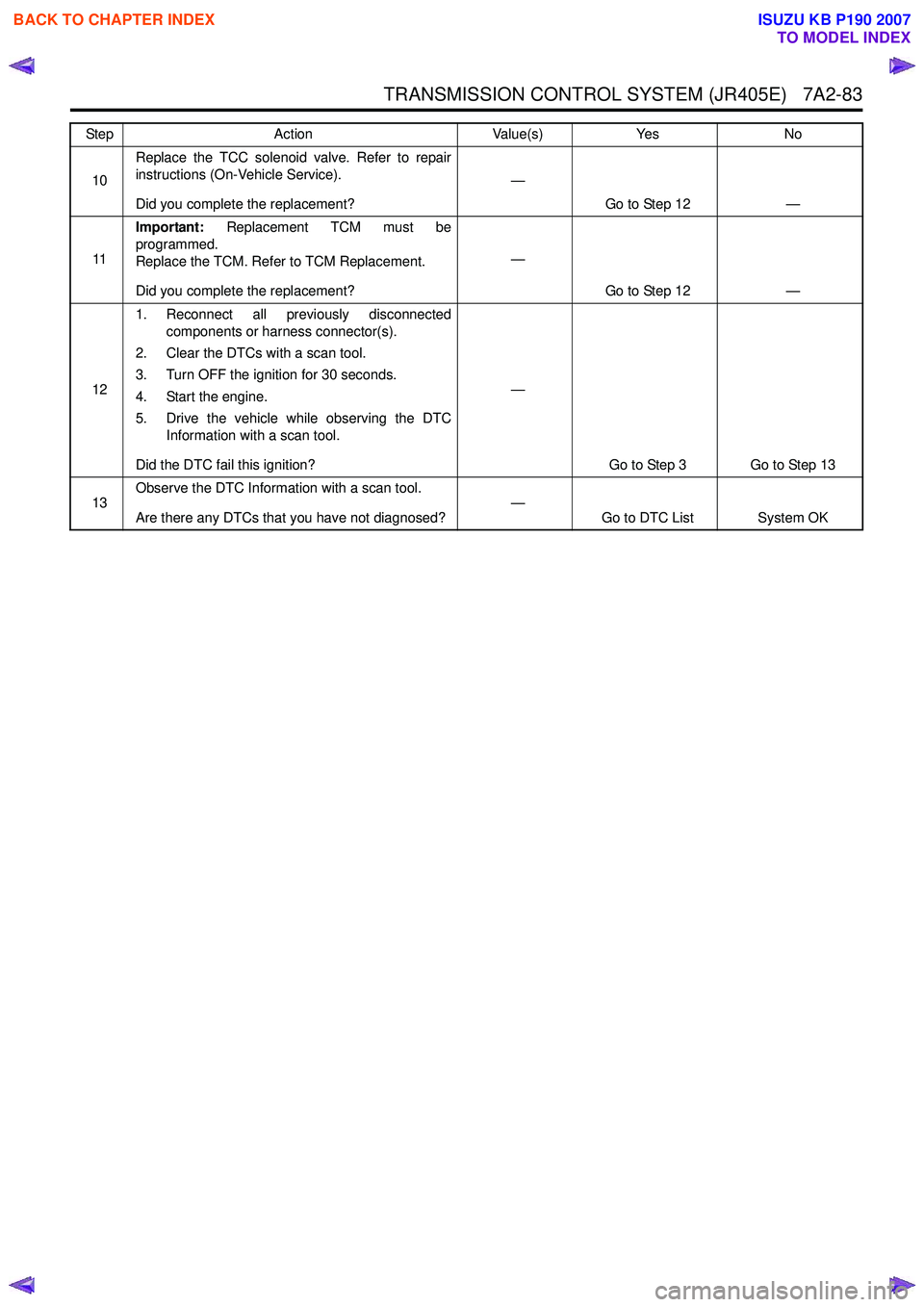

10Replace the TCC solenoid valve. Refer to repair
instructions (On-Vehicle Service).
Did you complete the replacement? —
Go to Step 12 —
11 Important:
Replacement TCM must be
programmed.
Replace the TCM. Refer to TCM Replacement.
Did you complete the replacement? —
Go to Step 12 —
12 1. Reconnect all previously disconnected
components or harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Drive the vehicle while observing the DTC Information with a scan tool.
Did the DTC fail this ignition? —
Go to Step 3 Go to Step 13
13 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-84 TRANSMISSION CONTROL SYSTEM (JR405E)
DTC P1863 (Flash Code 28)
Circuit Description
The high clutch transmission fluid pressure (TFP)
switch is installed to the lower part of the valve body
assembly and it feedbacks fluid pressure in the high
clutch hydraulic circuit. When the solenoid valve is
energized, fluid pressure is drained to disengage the
high clutch and the TFP switch is OFF. When the
solenoid valve is not energized, fluid pressure is
applied to engage the high clutch and the TFP switch is
ON. The TCM monitors the high clutch TFP switch ON/
OFF status through the signal circuit. If the TCM
detects an improper status on the signal circuit, this
DTC will set.
Condition for Running the DTC • DTCs P0560, P0705, P0717, P0722, P0753, P0758, P0763, P0768, P1120, P1750, P1755 and
P1875 are not set.
AND following conditions are met for longer than 3
seconds.
• The ignition switch is ON.
• The transmission fluid temperature is more than 60 °C (140 °F).
• The engine speed is more than 500 RPM.
• The TCM is not under gearshift control.
Condition for Setting the DTC
Either of following condition is met: • The TCM detects that the high clutch TFP switch
signal is stuck at the ON for longer than 2 seconds
when the selector lever in P, R or N range.
• The TCM detects that the high clutch TFP switch signal is stuck at the OFF for longer than 2 second
when the selector lever in D range with 4th gear.
Action Taken When the DTC Sets • The TCM blinks the Check Trans lamp when the diagnostic runs and fails.
Condition for Clearing the DTC • The TCM turns OFF the Check Trans lamp when the diagnostic runs and does not fail.
• A current DTC clears when the diagnostic runs and does not fail.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• Use the Clutch, Brake, Solenoid and Pressure Switch Logic table to verify each component works
properly within the selected gear range.
• A sticking or intermittently sticking the high clutch solenoid valve will cause this DTC to set.
Schematic Reference: Transmission Controls
Schematics
Connector End View Reference: Transmission
Controls Connector End Views or TCM Connector End
Views
Circuit/ System Testing DTC P1863
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Transmission Controls? —
Go to Step 2 Go to Diagnostic
System Check - Transmission Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Lift the driving wheels or drive the vehicle while observing the DTC Information with a
scan tool.
Is DTC P0763 also set? —
Go to DTC P0763 Go to Step 3
3 Place the selector lever in forward range while
observing the High Clutch Pressure Switch
parameter with a scan tool.
Does the High Clutch Pressure Switch parameter
ever indicate OFF when gear is positioned 3rd and
4th? —
Go to Step 5 Go to Step 4

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

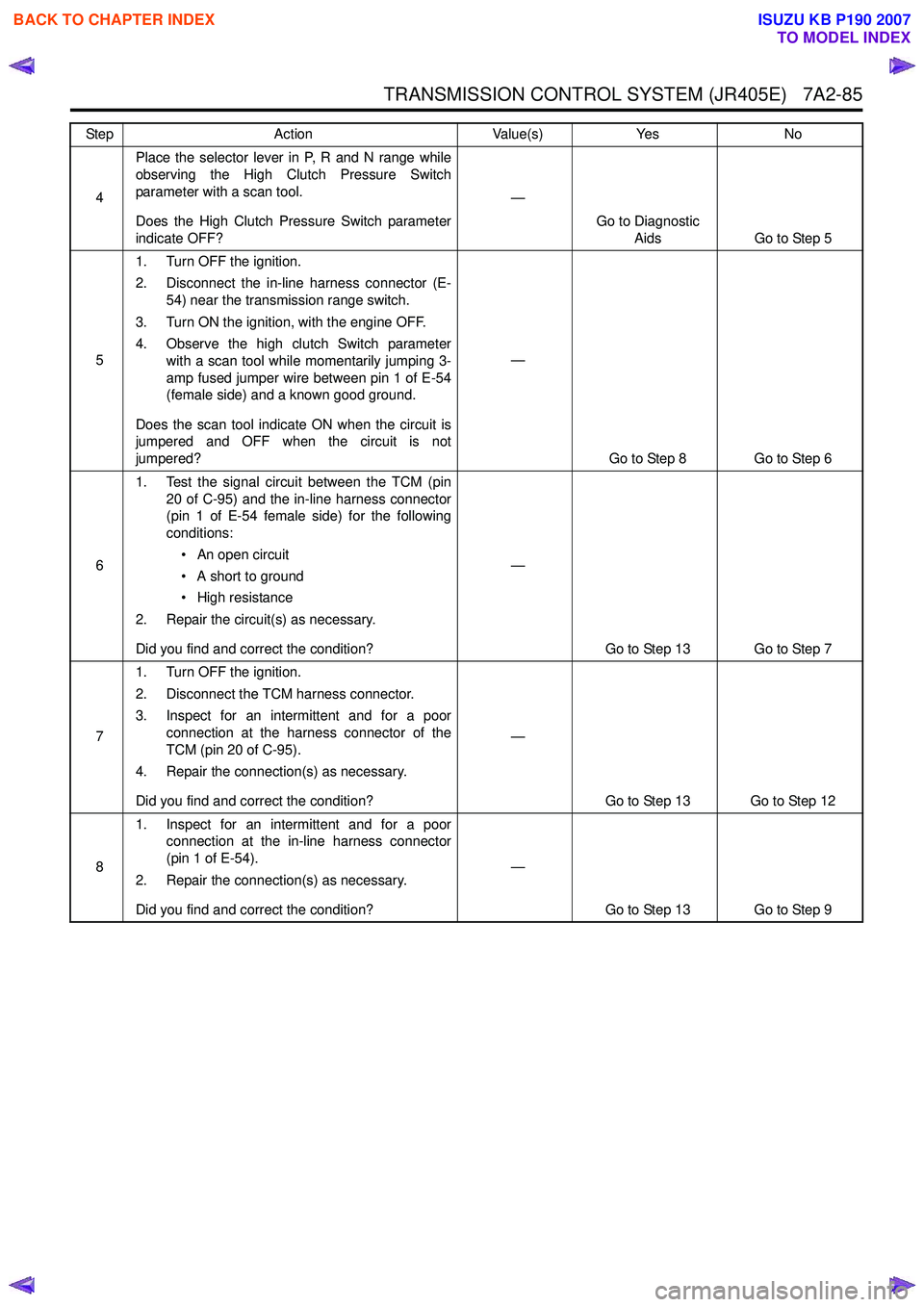

TRANSMISSION CONTROL SYSTEM (JR405E) 7A2-85
4Place the selector lever in P, R and N range while
observing the High Clutch Pressure Switch
parameter with a scan tool.
Does the High Clutch Pressure Switch parameter
indicate OFF? —
Go to Diagnostic Aids Go to Step 5
5 1. Turn OFF the ignition.
2. Disconnect the in-line harness connector (E- 54) near the transmission range switch.
3. Turn ON the ignition, with the engine OFF.
4. Observe the high clutch Switch parameter with a scan tool while momentarily jumping 3-
amp fused jumper wire between pin 1 of E-54
(female side) and a known good ground.
Does the scan tool indicate ON when the circuit is
jumpered and OFF when the circuit is not
jumpered? —
Go to Step 8 Go to Step 6
6 1. Test the signal circuit between the TCM (pin
20 of C-95) and the in-line harness connector
(pin 1 of E-54 female side) for the following
conditions:
• An open circuit
• A short to ground
• High resistance
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 7
7 1. Turn OFF the ignition.
2. Disconnect the TCM harness connector.
3. Inspect for an intermittent and for a poor connection at the harness connector of the
TCM (pin 20 of C-95).
4. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 12
8 1. Inspect for an intermittent and for a poor
connection at the in-line harness connector
(pin 1 of E-54).
2. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 9
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-86 TRANSMISSION CONTROL SYSTEM (JR405E)
91. Remove the transmission oil pan. Refer to
repair instructions (On-Vehicle Service).
2. Inspect the high clutch solenoid valve and transmission fluid pressure (TFP) switch for
the following conditions:
• Physical damage
• Loose or improper installation
3. Inspect for an intermittent and for a poor connection at the harness connector of the
high clutch TFP switch or in-line harness
connector.
4. Test the signal circuit between the high clutch TFP switch and the in-line harness connector
(pin 1 of E-54 male side) for the following
conditions:
• An open circuit
• A short to ground
• A short to the solenoid valve circuit
• High resistance
5. Repair the connection(s), circuit(s) or replace as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 10
10 1. Remove the high clutch solenoid valve and
TFP switch from the valve body assembly and
perform function check. Refer to repair
instructions (On-Vehicle Service).
2. Repair or replace as necessary.
Did you find and correct the condition? —
Go to Step 13 Go to Step 11
11 Repair or replace the valve body assembly. Refer
to repair instructions (On-Vehicle Service or Unit
Repair).
Did you complete the repair or replacement? —
Go to Step 13 —
12 Important:
Replacement TCM must be
programmed.
Replace the TCM. Refer to TCM Replacement.
Did you complete the replacement? —
Go to Step 13 —
13 1. Reconnect all previously disconnected
components or harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Drive the vehicle while observing the DTC Information with a scan tool.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 14
14 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
