ELECTRICAL-BODY AND CHASSIS 8A-545
Power Door Lock System
General Description
The circuit consists of the door lock (& power window)
switch, door lock actuator for the front and rear door,
tailgate lock actuator and the door lock key switch.
The front door lock switch ‐RH is always provided with
the battery voltage.
The key or the inside lock button on both driver's and
front passenger's door can activate the lock mechanism
of all the doors (including the tailgate).
W hen the driver's door lock switch or the front
passenger's door lock switch is turned on, current flows
for about one second to the door lock actuator of each
door connected in parallel with the front door lock (&
power window) switch ‐LH to activate the actuator to
lock and unlock the doors.
Door Lock Key Switch
Removal and Installation
・ Refer to the Front Door Lock Assembly removal
and installation steps in this section.
Front Door Lock Actuator
Removal and Installation
・ Refer to the Front Door Lock Assembly removal
and installation steps in this section.
Rear Door Lock Actuator
Removal and Installation
・ Refer to the Rear Door Lock Assembly removal
and installation steps in this section.
Tailgate Lock Actuator
Removal and Installation
・ Refer to the Tailgate Lock Assembly removal and
installation steps in this section.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5485 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-547
Pin-outs

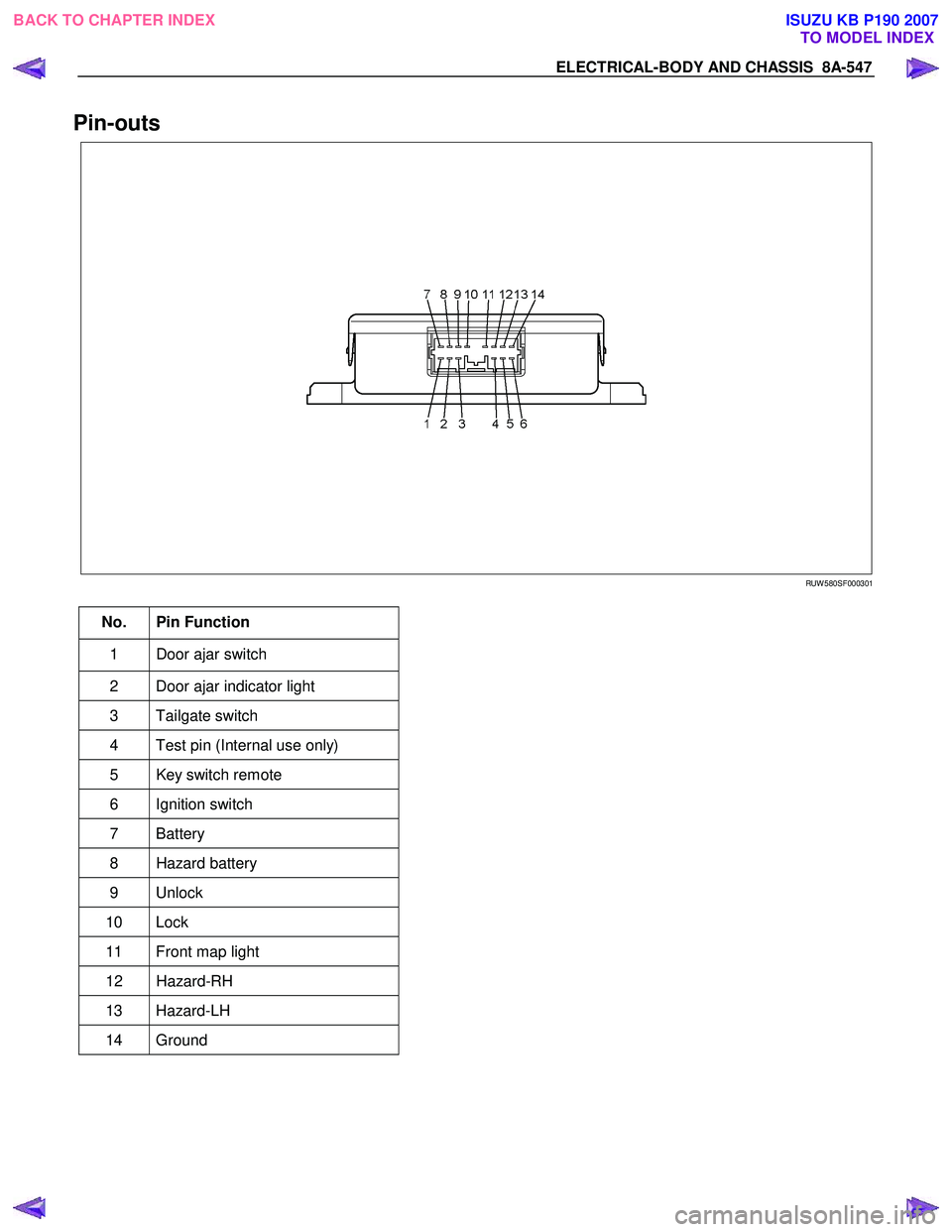

RUW 580SF000301
No. Pin Function
1 Door ajar switch
2 Door ajar indicator light
3 Tailgate switch
4 Test pin (Internal use only)
5 Key switch remote
6 Ignition switch
7 Battery
8 Hazard battery
9 Unlock
10 Lock
11 Front map light
12 Hazard-RH
13 Hazard-LH
14 Ground
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5850 of 6020
10-92 CAB

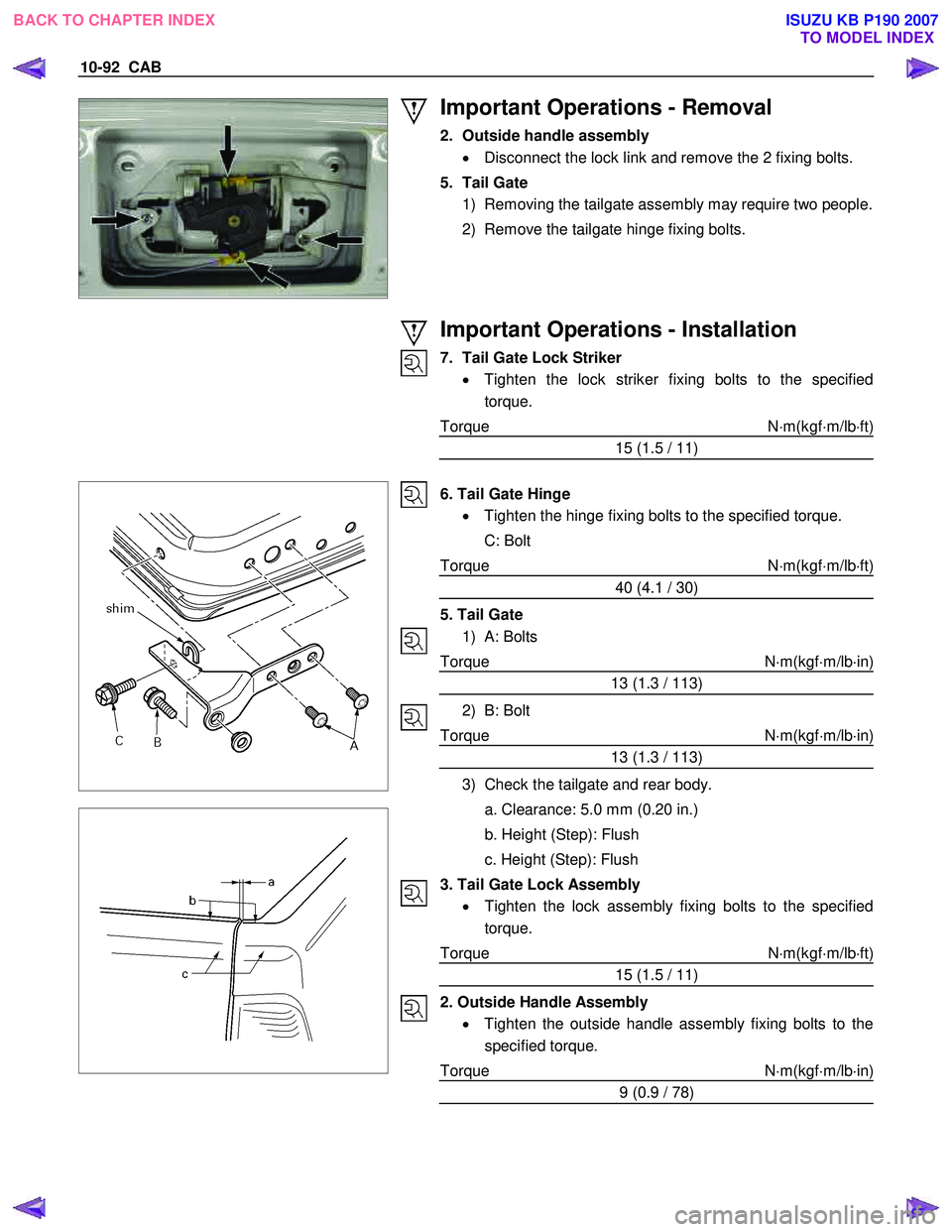

Important Operations - Removal
2. Outside handle assembly • Disconnect the lock link and remove the 2 fixing bolts.
5. Tail Gate 1) Removing the tailgate assembly may require two people.
2) Remove the tailgate hinge fixing bolts.
Important Operations - Installation
7. Tail Gate Lock Striker • Tighten the lock striker fixing bolts to the specified
torque.
Torque N ⋅m(kgf ⋅m/lb ⋅ft)
15 (1.5 / 11)
6. Tail Gate Hinge • Tighten the hinge fixing bolts to the specified torque.
C: Bolt
Torque N ⋅m(kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
5. Tail Gate 1) A: Bolts
Torque N ⋅m(kgf ⋅m/lb ⋅in)
13 (1.3 / 113)
2) B: Bolt
Torque N ⋅m(kgf ⋅m/lb ⋅in)
13 (1.3 / 113)
3) Check the tailgate and rear body.
a. Clearance: 5.0 mm (0.20 in.)
b. Height (Step): Flush
c. Height (Step): Flush
3. Tail Gate Lock Assembly • Tighten the lock assembly fixing bolts to the specified
torque.
Torque N ⋅m(kgf ⋅m/lb ⋅ft)
15 (1.5 / 11)
2. Outside Handle Assembly • Tighten the outside handle assembly fixing bolts to the
specified torque.
Torque N ⋅m(kgf ⋅m/lb ⋅in)
9 (0.9 / 78)
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
