DIAGNOSIS (JR405E) 7A2-149

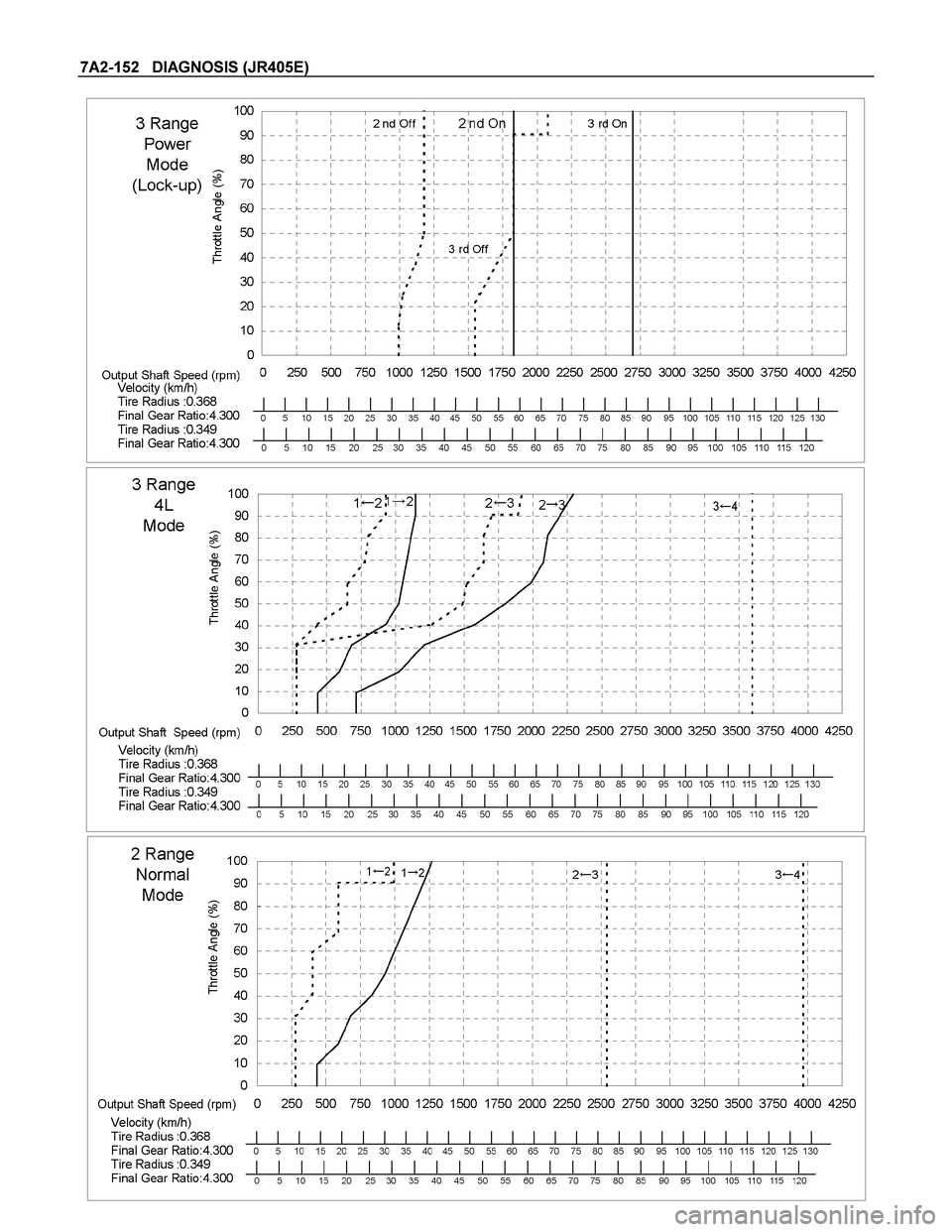

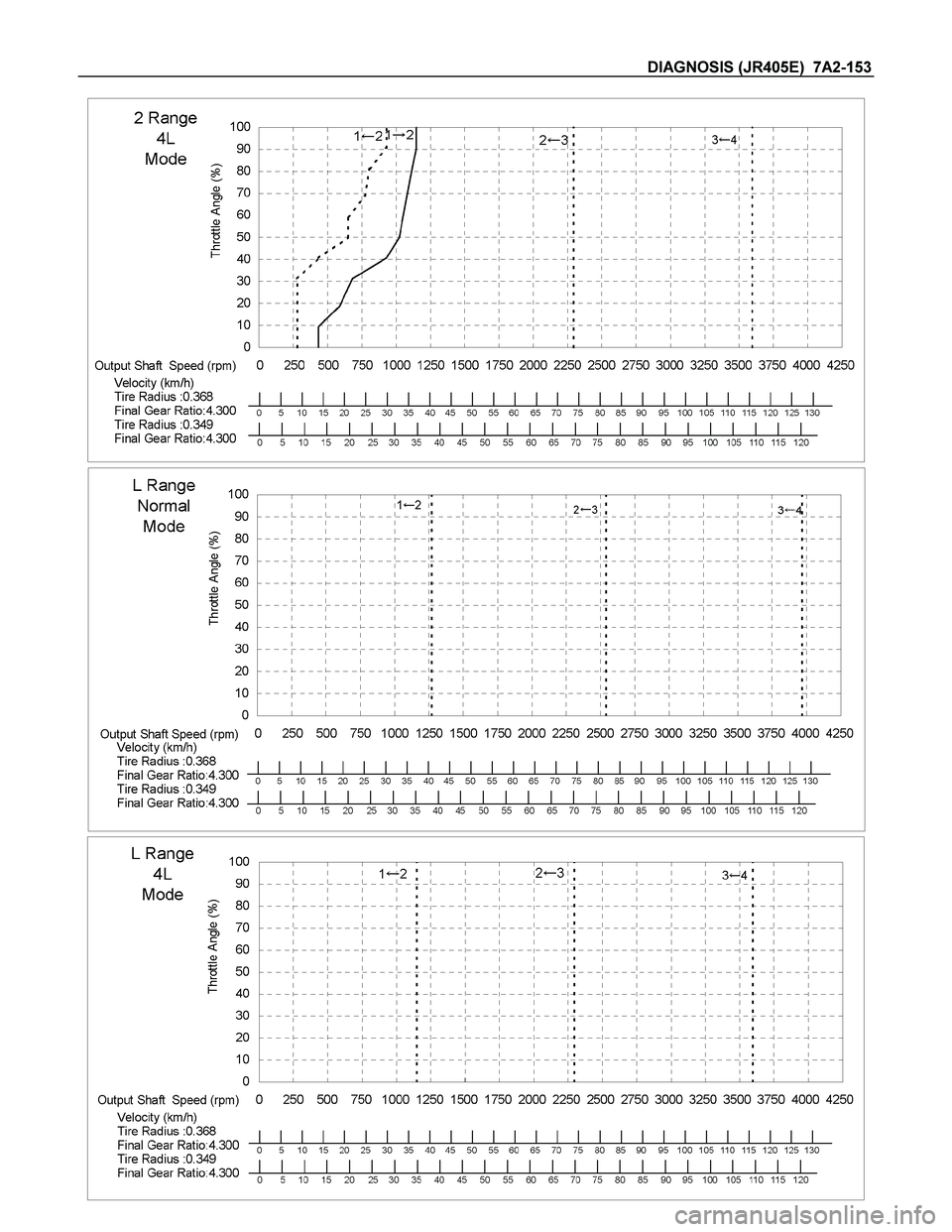

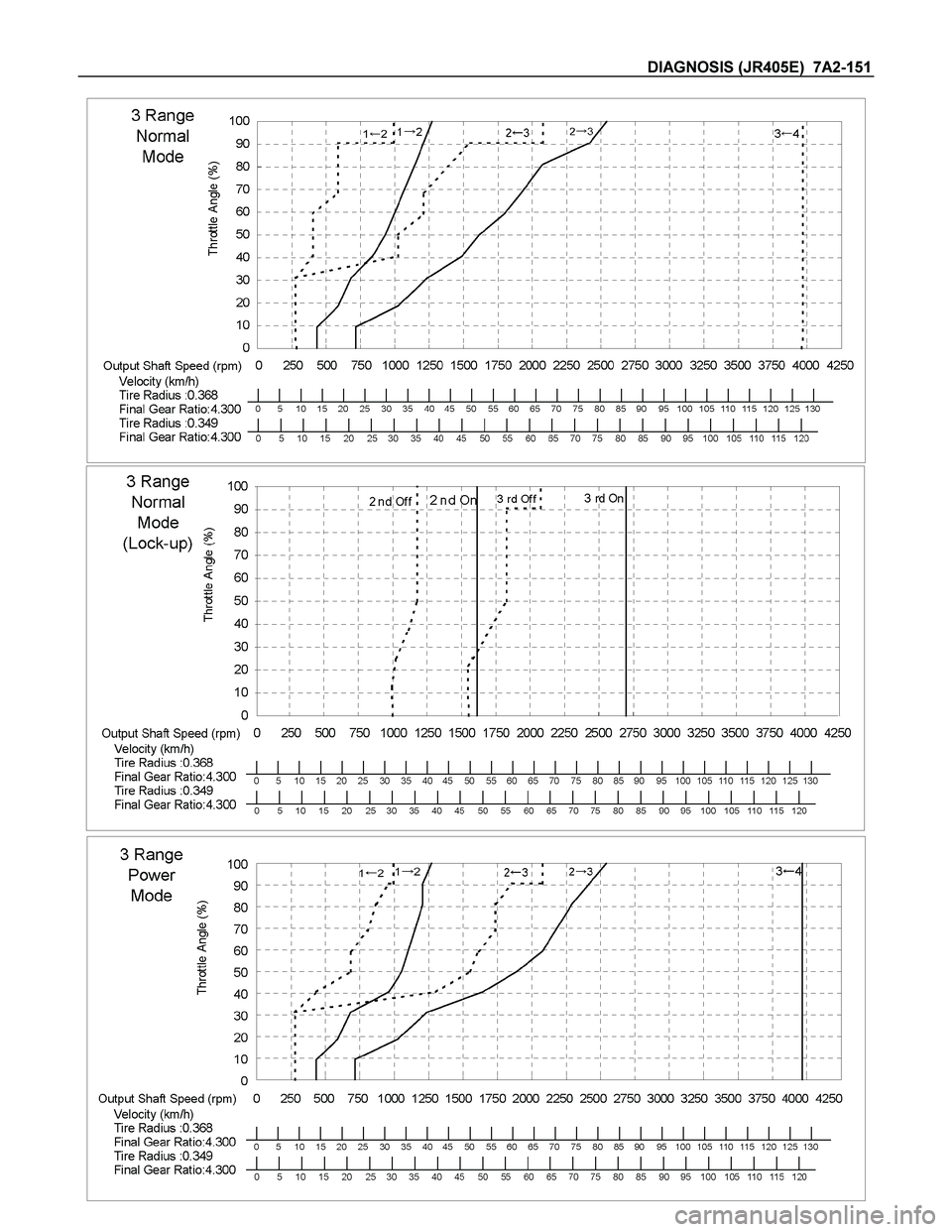

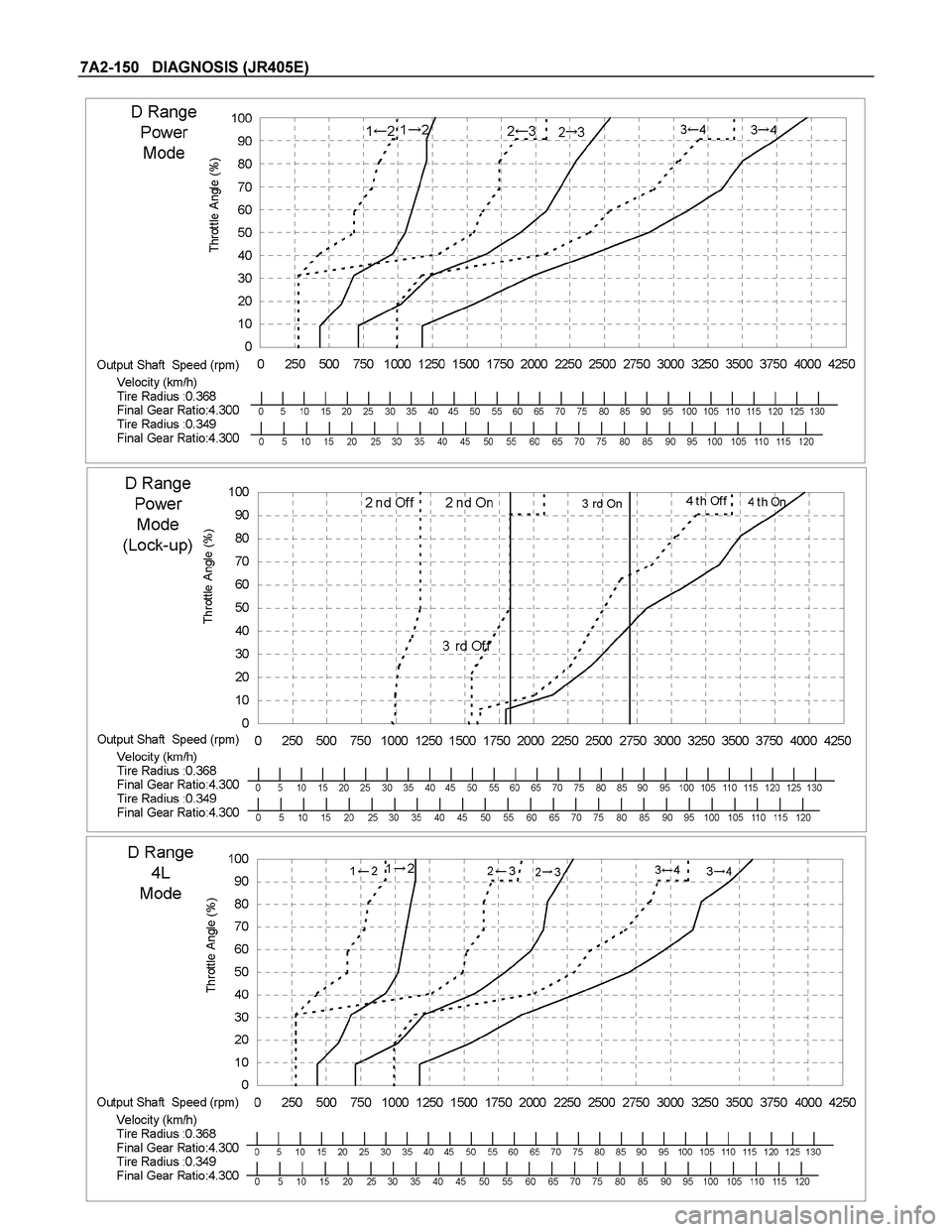

SHIFT POINT DIAGRAM

7A2-150 DIAGNOSIS (JR405E)

DIAGNOSIS (JR405E) 7A2-151

7A2-152 DIAGNOSIS (JR405E)

DIAGNOSIS (JR405E) 7A2-153

7A2-154 DIAGNOSIS (JR405E)
TCM VOLTAGE CHECK




TCM voltage check is done to check for transmission and TCM
problems which cannot be detected by self-diagnosis.
Additionally, it severs as a back-up check for self-diagnosis.
Measure the voltage drop and make a continuity test for each of
sensors, solenoids and switches.
If the voltage is within the specified range and continuity exists,
that particular area of the TCM and transmission assembly is
normal.
If voltage deviation or lack of continuity is discovered, disconnect
the applicable parts and check of them individually.

Inspection Tool
Use a circuit tester and an oscilloscope to measure voltage and
circuit continuity.
Insert the test probes from the connector wiring side. TCM
terminals are extremely small.
Wrap a piece of thin wire around the probe of tester.
This will make measurement easier.

TCM Pin Assignment












         
 











      













 








Connect to White Connector Connect to Grey Connector


No. Wire
Color Pin Name Input /
OutputConnected toMeasurement
Item Measurement
Condition StandardInspection
Point at
Trouble
A1 RED V BATT (Battery Back-up Power
Supply) Input Battery Voltage - 10 – 14.5V Related
harness
At P range 10 – 14.5V Related
harness
A2 YEL/
VIO P Range Switch Input Inhibitor switch Voltage
At other than
P range Less than 2VInhibitor
switch
At brake
stepped 10 – 14.5V Related
harness
A3 RED Brake Switch Input Brake switch Voltage At brake no
stepped Less than 2V Brake switch
At lamp OFF 10 – 14.5V Related
harness A4 PNK/
WHT 3rd Start Indicator Lamp Output 3rd start lamp Voltage
At lamp ON Less than 2V Lamp
A5 GRN K-line signal (Tech 2 serial
communication) Input/
OutputTech 2 - - - Related
harness
A6 - - - - - - - -

DIAGNOSIS (JR405E) 7A2-155
No. Wire
Color Pin Name Input /
OutputConnected toMeasurement
Item Measurement
Condition StandardInspection
Point at
Trouble
Related
harness
Engine
Speed
Sensor A7 BLK/
RED Engine Speed Sensor Input ECM Voltage (Wave
form) At 2000rpm.
Circuit tester
(+) to A7 pin,
(-) to B5 pin. Pulse
generated (At
AC range
approx. 6.2V)
ECM
A8 - - - - - - - -
A9 - - - - - - - -
Related
harness
Speed
sensor
Speed meter
A10 BLK/
YEL Vehicle Speed Sensor Out (2WD Only) Output Speed meter Voltage (Wave
form) At run in L
range in 1st
gear 20 km/h.
Circuit tester
(+) to A10 pin,
(-) to B5 pin. Pulse
generated (At
AC range
approx. 6.5V)
TCM
At switch
pushed Less than 2VRelated
harness
A11 GRN/
WHT 3rd Start Select Switch Input 3rd start switch Voltage
At switch off 10 – 14.5V 3rd start
switch
At 4L Less than 2VRelated
harness
A12 BLU/
WHT 4L Mode Switch (4WD Only) InputTransfer control
unit Voltage
At other than
4L 10 – 14.5V 4L switch
A13 - - - - - - - -
A14 - - - - - - - -
A15 - - - - - - - -
At fully close Off duty 10%Related
harness
ECM A16 RED/
WHT Throttle Position Sensor Input ECM Wave form
(140Hz Duty
signal) *1
At fully open Off duty 90%Throttle
position
sensor
At 3 range 10 – 14.5V Related
harness
A17 BLK/
GRN 3 Range Switch Input Inhibitor switch Voltage
At other than
3 range Less than 2VInhibitor
switch
At key switch
ON 10 – 14.5V Related
harness
A18 YEL/
BLK DIAG Switch InputData link
connector Voltage
At short circuit
of DIAG
switch Less than 2VRelated
harness
At lamp OFF 10 – 14.5V Related
harness A19 ORG/
BLU A/T OIL TEMP Indicator Lamp OutputAT OIL TEMP
indicator lamp Voltage
At lamp ON Less than 2V Lamp
At lamp OFF 10 – 14.5V Related
harness A20 GRN/
YEL CHECK TRANS Indicator Lamp OutputCHECK TRANS
indicator Lamp Voltage
At lamp ON Less than 2V Lamp
At lamp OFF 10 – 14.5V Related
harness A21 PNK POWER DRIVE Indicator Lamp OutputPOWER DRIVE
indicator lamp Voltage
At lamp ON Less than 2V Lamp
A22 - - - - - - - -
A23 - - - - - - - -

7A2-156 DIAGNOSIS (JR405E)
No. Wire
Color Pin Name Input /
OutputConnected toMeasurement
Item Measurement
Condition StandardInspection
Point at
Trouble
At lamp OFF 10 – 14.5V Related
harness A24 GRN/
YEL Power Drive Select Switch InputPower drive
switch Voltage
At lamp ON Less than 2V Lamp
At other than
2nd or 4th
gear More than 10
V Related
harness
B1 RED/
YEL 2-4 Brake Pressure Switch Input2-4 brake
pressure switch Voltage
At 2nd or 4th
gear Less than 2VPressure
switch
At 2 range 10 – 14.5V Related
harness
B2 PNK/
BLK 2 Range Switch Input Inhibitor switch Voltage
At other than
2 range Less than 2VInhibitor
switch
InputRelated
harness
B3 BRN/
RED Turbine Sensor

Turbine sensor Voltage (Wave
form) At run in L
range in 1st
gear 20 km/h.
Circuit tester
(+) to B3 pin,
(-) to B5 pin. Pulse
generated (At
AC range
approx. 6.5V)Turbine
sensor
ATF temp.
20
C Approx. 1.55
V Related
harness
B4 BLU ATF Thermo Sensor InputATF thermo
sensor Voltage
ATF temp.
60
C Approx. 0.7VThermo
sensor
B5 BLK Ground - Ground Voltage Normally Less than 2VRelated
harness
Related
harness
B6 BLU/
BLK Low & Reverse Brake Duty Solenoid OutputLow & reverse
brake duty
solenoid Voltage (Wave
form) P, N range.
Circuit tester
(+) to B6 pin,
(-) to B22 pin. Pulse
generated (At
AC range
approx. 6.2V)Duty solenoid
Related
harness
B7 BLK/
YEL 2-4 Brake Duty Solenoid Output2-4 brake duty
solenoid Voltage (Wave
form) P, N range.
Circuit tester
(+) to B7 pin,
(-) to B22 pin. Pulse
generated (At
AC range
approx. 6.2V)Duty solenoid
Related
harness
B8 RED High Clutch Duty Solenoid OutputHigh clutch duty
solenoid Voltage (Wave
form) P, N range.
Circuit tester
(+) to B8 pin,
(-) to B22 pin. Pulse
generated (At
AC range
approx. 6.2V)Duty solenoid
Related
harness
B9 WHT/
RED Low Clutch Duty Solenoid OutputLow clutch duty
solenoid Voltage (Wave
form) 4th gear in D
range. Circuit
tester (+) to
B9 pin, (-) to
B22 pin. Pulse
generated (At
AC range
approx. 6.2V)Duty solenoid
At N range 10 – 14.5V Related
harness
B10 RED/
BLK N Range Switch Input Inhibitor switch Voltage
At other than
N range Less than 2VInhibitor
switch
At D range 10 – 14.5V Related
harness
B11 BLU D Range Switch Input Inhibitor switch Voltage
At other than
D range Less than 2VInhibitor
switch

DIAGNOSIS (JR405E) 7A2-157
No. Wire
Color Pin Name Input /
OutputConnected toMeasurement
Item Measurement
Condition StandardInspection
Point at
Trouble
At other than
R range, L
range 1st gear More than 10
V Related
harness
B12 YEL Low & Reverse Brake Pressure Switch InputLow & reverse
brake pressure
switch Voltage
At R range, L
range 1st gear Less than 2VPressure
switch
Related
harness
B13 YEL/
RED Vehicle Speed Sensor InputVehicle speed
sensor Voltage (Wave
form) At run in L
range in 1 st
gear 20 km/h.
Circuit tester
(+) to B13 pin,
(-) to B5 pin. Pulse
generated (At
AC range
approx. 6.8V)Vehicle
speed sensor
B14 BLU/
BLK ATF Thermo Sensor Ground - ATF thermo
sensor Continuity Normally Continuity Related
harness
B15 BLK Ground - Ground Voltage Normally Less than 2VRelated
harness
B16 - - - - - - - -
At lock-up.
Circuit tester
(+) to B17 pin,
(-) to B5 pin. Pulse
generated (At
AC range
approx. 2.2 -
9.0V) Related
harness
B17 BLK Lock-up Duty Solenoid OutputLock-up duty
solenoid Voltage (Wave
form)
At unlock-up.
Circuit tester
(+) to B17 pin,
(-) to B5 pin. Pulse
generated (At
AC range
approx. 1.0 -
2.0V) Duty solenoid
At key switch
ON 10 – 14.5V Related
harness
B18 WHT V ign (Ignition Power Supply) Input Key switch Voltage
At key switch
OFF Less than 2V Fuse
At R range 10 – 14.5V Related
harness
B19 RED/
YEL R Range Switch Input Inhibitor switch Voltage
At other than
R range Less than 2VInhibitor
switch
At other than
3rd or 4th
gear More than 10
V Related
harness
B20 WHT/
BLK High Clutch Oil Pressure Switch InputHigh clutch
pressure switch Voltage
At 3rd or 4th
gear Less than 2VPressure
switch
At L range 10 – 14.5V Related
harness
B21 PNK/
BLK L Range Switch Input Inhibitor switch Voltage
At other than
L range Less than 2VInhibitor
switch
B22 GRY/
RED Ground Return Output Shift solenoid Continuity Normally Continuity Related
harness
At N range 10 – 14.5V Related
harness
B23 VIO Line Pressure Solenoid OutputLine pressure
solenoid Voltage
At D range
stall Less than 2V Solenoid

7A2-158 DIAGNOSIS (JR405E)
No. Wire
Color Pin Name Input /
OutputConnected toMeasurement
Item Measurement
Condition StandardInspection
Point at
Trouble
At key switch
ON 10 – 14.5V Related
harness
B24 WHT V ign (Ignition Power Supply) Input Key switch Voltage
At Key switch
OFF Less than 2V Fuse

7.14ms 7.14ms


Time Time
0.714ms 6.426ms
Voltage
Off duty 10% =Throttle Position 0%
Voltage
Off duty 90% =Throttle Position 100%

Engine Speed Sensor Reference Wave Form
Measurement Terminal: A7 (+) B5 (-)
Measurement Scale: 5V/div 10ms/div
Measurement Condition: At engine speed 2000rpm
0V
Vehicle Speed Sensor Output Reference Wave Form
Measurement Terminal: A10 (+) B5 (-)
Measurement Scale: 5V/div 50ms/div
Measurement Condition: Vehicle speed 20km/h at L range
in 1st gear
0V
Turbine Sensor Reference Wave Form
Measurement Terminal: B3 (+) B5 (-)
Measurement Scale: 5V/div 500micro sec/div
Measurement Condition: Vehicle speed 20km/h at L range
in 1st gear
0V
Vehicle Speed Sensor Reference Wave Form
Measurement Terminal: B13 (+) B5 (-)
Measurement Scale: 5V/div 5ms/div
Measurement Condition: Vehicle speed 20km/h at L range
in 1st gear
0V
