10-2 BODY
Tailgate Center Weatherstrip ...... 10-84 Sun Roof Glass ................... 10-113
Tailgate Main Weatherstrip ....... 10-85
Spare Tire Carrier
............... 10-85
Sun Roof Deflector ................ 10-114
Sunshade ....................... 10-115 ~
Seats ........................... 10-86 Sun Roof Frame Complete
Front Seat Assembly ............ 10-86 Assembly ...................... 10-116
Rear Seat Assembly ............. 10-96 Sun Roof Drain Hose ............ 10-119
Rear Seat Foot Rest (L·W·B) ...... 10-101 Rear Air Deflector ............... 10-122
Luggage Floor Box (L·W·B) ........... 10-101 Roof Moulding ................. 10-124
Rope Hook Set ................... 10-102 Stationary Glass .................. 10-127
Seat
Belt .......................... 10-103 Windshield ..................... 10-127
Front Seat Belt ................... 10-103 Rear Quarter Side Glass .......... 10-130
Front Seat Buckle Assembly ........ 10-105 Tailgate Glass .................. 10-132
Rear Seat Belt .................... 10-106 Child Restraint ................... 10-134
Reat Center Seat Belt (S·W·B) ....... 10-108 Child Seat Tether Anchor Bracket .. 10-134
Rear Center Seat Belt/Buckle Key ............................ 10-135
Assembly ...................... 10-108 Key
Coding .................... 10-135
Rear Seat Lock Assembly .......... 10-109 Key Styles ..................... 10-135
Rear Seat Striker ................. 10-110 Main Data and Specifications ......... 10-136
Roof ............................ 10-111 Torque Specifications .............. 10-136
Headlining ....................... 10-111 Special Tools ....................... 10-146
GENERAL DESCRIPTION
This section describes major items of the removal,
installation
and servicing procedures pertaining to
TROOPER body. Each servicing instruction is
applicable to all models of TROOPER, unless
otherwise specifically mentioned. For those
differing by specific models from the common
procedures, they are detailed for each model.
..

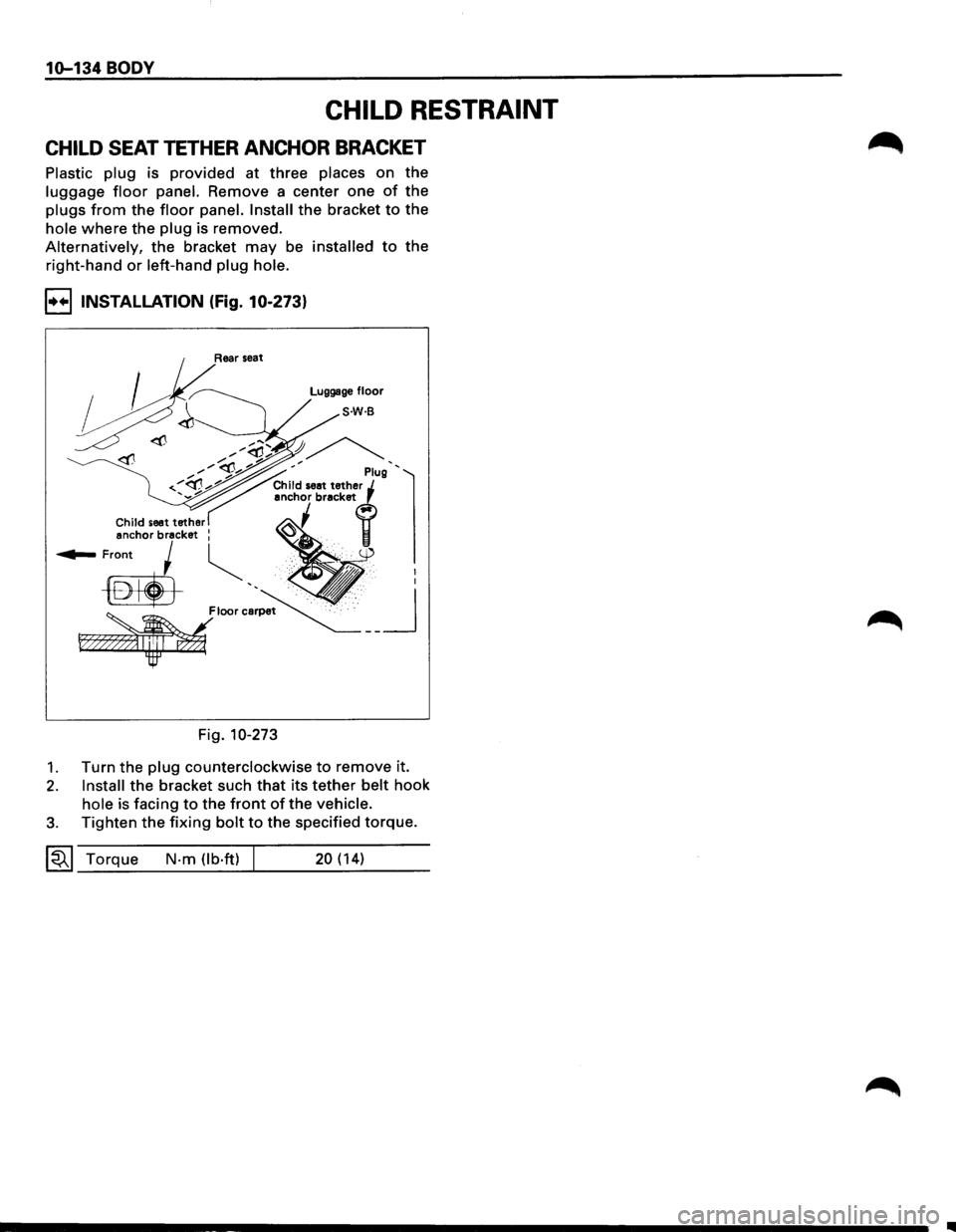

10-134 BODY
CHILD RESTRAINT
CHILD SEAT TETHER ANCHOR BRACKET
Plastic plug is provided at three places on the
luggage floor panel. Remove a center one of the
plugs from the floor panel. Install the bracket to the
hole where the plug is removed.
Alternatively, the bracket may be installed to the
right-hand
or left-hand plug hole.
I••IINSTALLATION (Fig. 10-273)
,/<(!.., )~ ~ .., "' ' "'"' '''-'"-"' ' Plug '
'-."" anchor bracket r ... -- Child seet tether ~~ ~ anchor bracket : ~ ~
~Front ~ ~ ,.
-®liJ ', • :
~loom~ __ j
F?»
Fig. 10-273
1. Turn the plug counterclockwise to remove it.
2. Install the bracket such that its tether belt hook
hole is facing to the front of the vehicle.
3. Tighten the fixing bolt to the specified torque.
~~~ Torque N-m (lb·ft) 20 (14)
