lower JAGUAR X308 1998 2.G Owners Manual

Remova
l

2
05-2
34 (JD 550-1)
1. CAUTION: Replacement of nuts and bolts: Various
thread-locking devices are used on nuts and bolts throughout the
vehicle. These devices restrict the number of times a nut or bolt
can be used. See section 100-00 for information.
Release handbrake.
2. Ra
ise the vehicle on a four-post lift.

3. Fully slacken bu
t do not remove parking brake cable adjuster
nut.

4. Relea s
e appropriate side parkin
g brake cable from connecting
clip.

5. With draw parkin
g brake cable th
rough equalizer (LH side cable
only).
6. Lower four-post lift.
7. Raise rear of vehicle to workin g height and support on stands.
Refer to section 100-02.
8. Remove rear wheel. Refer to section 204-04.

35
.
Tighten hub nut to 304-336Nm.
36. Remove securing nuts and withdraw special tool 204-195
from hub.
37. Install rear wheel. Refer to Section 204-04.
38. Remove stands and lower vehi cle onto wheels. Refer to
section 100-02.
39. Raise vehicle on four-post lift.

40
.
Route parking brake cable through suspension mounting
bracket and secure with clip.

41
.
Route parking brake LH ca ble through equalizer.
42. Install LH cable in connecting clip.

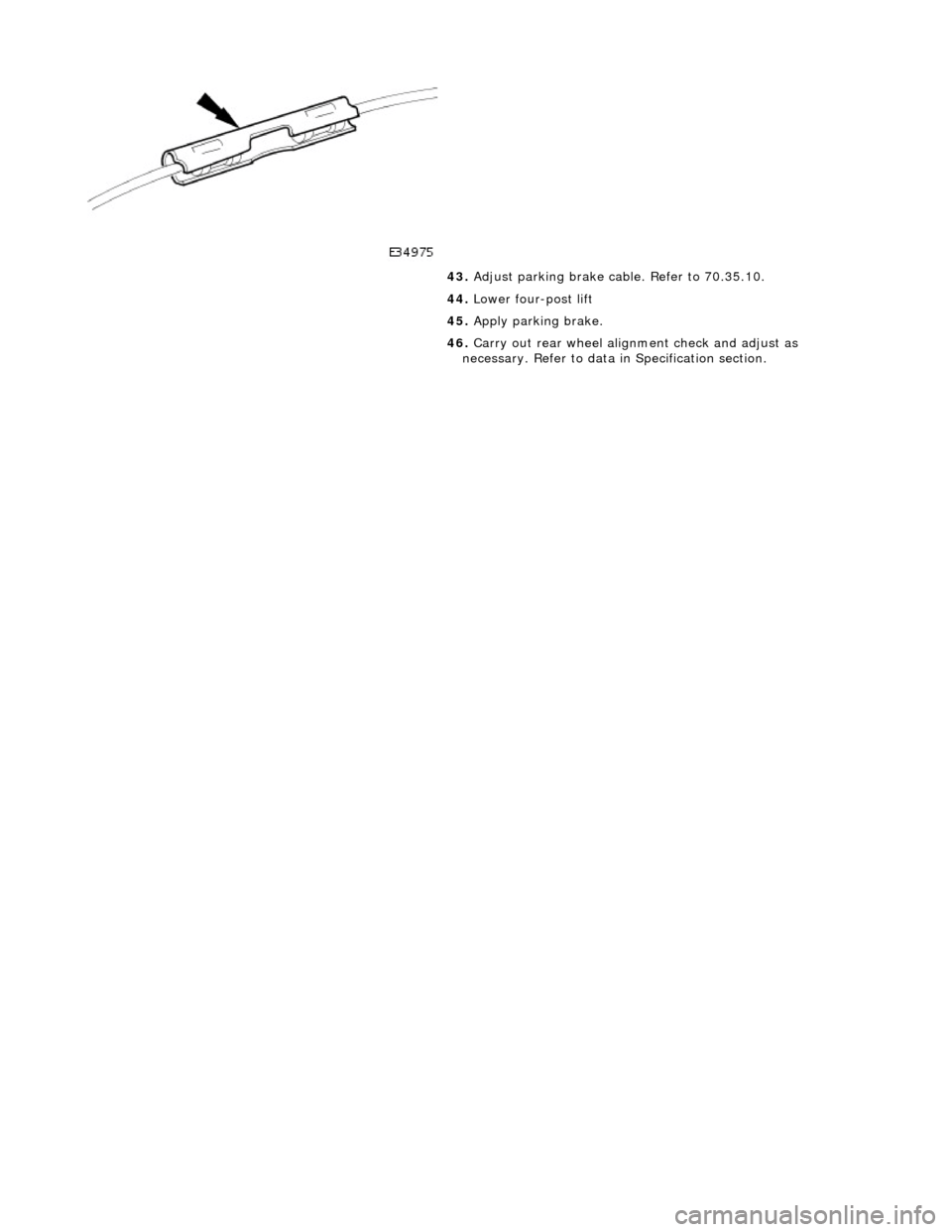

43
. Adjust parkin
g brake cable. Refer to 70.35.10.
44. Lower four-post lift
45. Apply parking brake.
46. Carry out rear wheel alignm ent check and adjust as
necessary. Refer to data in Specification section.

clip
.

5. With draw parkin
g brake cable th
rough equalizer (LH side cable
only).
6. Lower four-post lift.
7. Raise rear of vehicle to workin g height and support on stands.
Refer to section 100-02.
8. Remove rear wheel. Refer to section 204-04.

9. Posit i
on special tool (204-1
95) on hub studs and install
securing nuts.

10 . Slac
ken but do not remove hub to axle shaft securing nut.
11. Remove nuts and withdraw special tool (204-195) from hub.
12. Remove rear brake disc. Refer to 70.10.13.
13. Remove parking brake shoe s. Refer to 70.40.05.
14. Remove wheel speed sensor.

20
.
Remove nuts and withdraw special tool (204-195) from hub.
21. Install rear wheel. Refer to Section 204-04.
22. Remove stands and lower vehi cle onto wheels. Refer to
section 100-02.
23. Raise vehicle on four-post lift.

24
.
Route parking brake cable through suspension mounting
bracket and secure with clip.

25
.
Route parking brake cable through equalizer (LH side cable
only).

26
.
Install parking brake cabl e in connecting clip.
27. Adjust parking brake cable. Refer to 70.35.10.
28. Lower four-post lift
29. Apply parking brake.
30. Carry out rear wheel alignm ent check and adjust as


necessary. Refer
t
o 204-02 Specification section.

cli
p.

5. With
draw parking brake cable th
rough equalizer (LH side cable
only).
6. Lower four-post lift.
7. Raise rear of vehicle to workin g height and support on stands.
Refer to section 100-02.
8. Remove rear wheel. Refer to section 204-04.

9. Posit
ion special tool (204-1
95) on hub studs and install
securing nuts.

10
.
Slacken but do not remove hub to axle shaft securing nut.
11. Remove securing nuts from stud s and withdraw special tool
(204-195) from hub.
12. Remove rear brake disc. Refer to 70.10.13.
13. Remove parking brake shoe s. Refer to 70.40.05.
14. Remove wheel speed sensor.

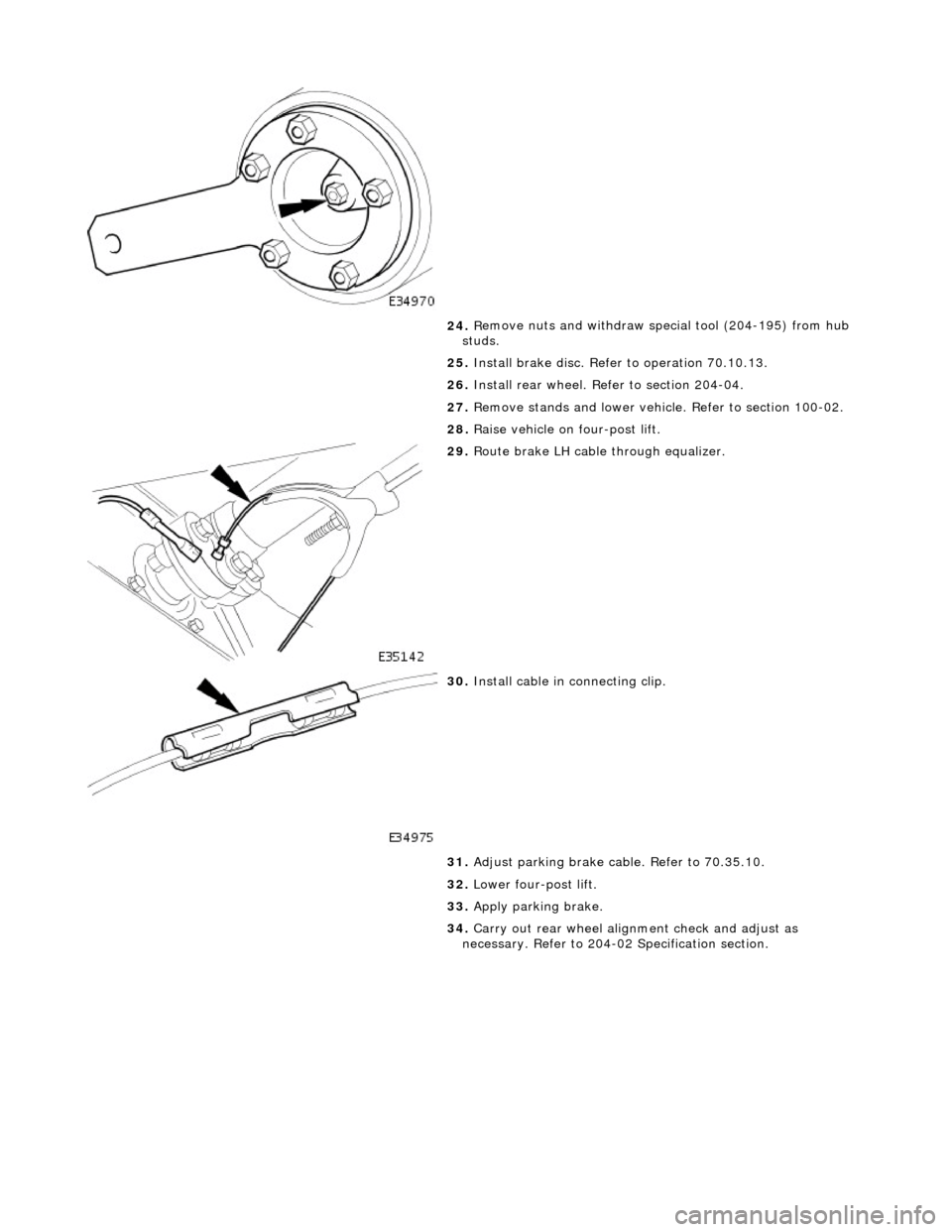

24
. R
emove nuts and withdraw special tool (204-195) from hub
studs.
25. Install brake disc. Refer to operation 70.10.13.
26. Install rear wheel. Refer to section 204-04.
27. Remove stands and lower vehicl e. Refer to section 100-02.
28. Raise vehicle on four-post lift.

29 . Rout
e brake LH cable through equalizer.

30 . Inst
all cable in connecting clip.
31. Adjust parking brake cable. Refer to 70.35.10.
32. Lower four-post lift.
33. Apply parking brake.
34. Carry out rear wheel alignm ent check and adjust as
necessary. Refer to 204-02 Specification section.

Instal
l the wheel an
d tire assembly.
1. Install wheel.
2. Install wheel nuts to secure wheel in position.
3. Lower vehicle.
4. Tighten wheel nuts in a diagonal sequence to:
Steel wh
eel 68-82 Nm.
Al
loy
wheel 88-102 Nm.

Vehicle Dynamic Suspension - Vehicle Dynamic Suspension
Description an
d Operation
Front Sho

ck Absorbers

The front shock absorber
comprises:
A

coil-type road spring, mounted between the lower wish
bone spring pan and the front suspension crossbeam;
different spring rates are used according to model.
A
telescopic, hydraulically controlled, damper mounte
d between the lower wishbone and the vehicle body.
It
em
De
scription
1Front

suspension crossbeam
2Front

hub assembly
3Ro

ad spring
4Dam

per

The rear shock ab
sorber comprises:
A
c
oil-type road spring mounted between the lower wish
bone and the upper spring seat on the vehicle body;
different spring rates are used according to model.
A te
lescopic, hydraulically controlled, damper, co-axial wi
th the road spring, mounted between the lower wishbone
and the upper spring seat on the vehicle body.
Damp
ing Principle
D
a
mping is achieved by controlling the flow of fluid from one
end of the damping chamber to the other. The more the flow
of fluid is restricted, the firmer the damping action.
Ite
m
De
scr
iption
1Dam
p
er
2Ro
ad s
pring
3Lower wishbon
e
4Upper sprin
g seat

Rear Shock A
b
sorbers
