Interior Trim and Ornamentation - Front Door Trim Panel
Removal and Installation
Removal
1. Remove interior door handle escutcheon.
Remove cover from door ha ndle escutcheon securing
screw and slacken and remove screw.
Pull door handle inwards and exercising care to avoid
damaging tweeter, remove escutcheon from casing.
2. Remove door casing veneer panel. Refer to 76.47.11.
3. Slacken and remove the armres t centre securing screw.
4. Carefully release the eight fasten ers securing lower section of
casing to door.
5. Lift rear edge of door casing to release retaining clip housing
from door panel.
Page 2074 of 2490

6. Lift casing clear of door wais t flange and lock button and
withdraw for access.
7. Using pliers, remove housing from clip and fit to door panel.
8. Disconnect tweeter, speaker, puddle lamp and switchpack
harness multiplugs.
9. Remove armrest lower securing clip housing from casing. and
refit to door.
10. Remove door inner waist se al from holder, slacken and
remove screws securing waist seal holder and remove seal
holder.
11. Remove armrest from door casing. Refer to 76.34.22.
12. Slacken and remove puddle la mp securing screws and
remove lamp assembly from casing.
13. Remove pocket from door casing.
Page 2075 of 2490

Installation
1. Release puddle lamp harness from clips at base of door pocket.
2. Slacken and remove th e two screws securing
bottom of pocket to casing.
3. Remove two spring clips securing top of pocket to casing.
14. Lift pocket from casing.
15. Slacken and remove door sp eaker securing screws and
remove speaker from casing.
1. Fit and fully seat casing securing clips.
2. Position speaker grill in casing align speaker and fit and tighten
securing screws.
3. Position pocket in casing and secure with screws and spring
clips.
4. Fit puddle lamp to casing, fit and tighten securing screws and
position harness in pocket clips.
5. Fit door armrest to casing. Refer to 76.34.23.
6. Fit inner waist seal holder to casing and fit and tighten the
securing screws.
7. Align and fit inner waist seal.
8. Fit door armrest to casing. Refer to .
9. Check that armrest tang locater and screw insert are correctly
positioned in door panel.
10. Position casing for access and connect tweeter, speaker,
puddle lamp and switchpack harnesses.
11. Finally position casing locating fold over waist flange and
firmly press armrest to locate retaining tang in door panel.
12. Commencing at front , press and firmly seat casing lower
fasteners in door inserts.
13. Fit and tighten armrest centre se curing screw in door insert.
14. Fit door casing veneer panel. Refer to 76.47.11.
15. Position door handle escutche on on casing, fit and tighten
securing screw and fit cover over screw.
Page 2086 of 2490

Interior Trim and Ornamentation - Parcel Shelf
Removal and Installation
Removal
Installation
1.
Open both rear doors.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove rear seat squa b. Refer to 76.70.38.
4. Remove and discard the two fir tr ee fasteners securing front of
tray to parcel shelf.
5. Remove parcel tray.
Slightly raise front of shelf trim and lift rear fold clear of
body flange.
Exercising care to avoid dama ging sun blind (if fitted) and
rear quarter trims, or dislodging high level stop lamp, slide trim from shelf, twist slightly and remove from vehicle via
rear doors.
1. Exercising care to avoid damaging sun blind (if fitted) and rear
quarter trims, or dislodging hi gh level stop lamp, slide trim
onto shelf, engaging rear fold on body flange.
2. Secure front of trim to shelf using two new fir tr ee fasteners.
3. Fit rear seat squab. Refer to 76.70.38.
4. Fit rear seat cushion. Refer to 76.70.37.
Page 2089 of 2490

Interior Trim and Ornamentation - Rear Door Armrest Removal and Installation
Removal
Installation
1.
Remove battery cover and disconnect ground cable from battery
terminal. Refer to 86.15.19.
2. Remove door casing. Refer to 76.34.01.
3. Slacken and remove four screws se curing armrest to door casing
and remove armrest from casing.
4. Remove switchpack/ashtray from armrest.
1. Slacken and remove two screws securing switchpack/ashtray and finisher to armrest.
2. Remove switchpack/ashtray and finisher from armrest.
5. Slacken and remove two screws secu ring armrest retaining clip and
remove clip from armrest.
1. Position retaining clip on armrest and fit and tighten securing
screws.
2. Position switchpack/ashtray and finisher on armrest and fit and
tighten securing screws
3. Position armrest on casing and fit and tighten four securing screws.
4. Fit casing to door. Refer to 76.34.04.
5. Connect ground cable to battery and fit battery cover. Refer to
86.15.15.
Page 2090 of 2490

Interior Trim and Ornamentation - Rear Door Trim Panel Finish Panel
Removal and Installation
Removal
Installation
1. Remove interior door handle escutcheon.
Remove cover from door ha ndle escutcheon securing
screw and slacken and remove screw.
Pull door handle inwards and exercising care to avoid
damaging tweeter, remove escutcheon from casing.
2. Remove veneer panel from casing.
1. Using a thin plastic leve r, carefully ease rear of
veneer panel inwards to release the two rear
securing tangs.
2. Slide veneer panel re arwards to release front
retainers.
1. Position veneer panel on casing and slide forward to engage
front retainers.
2. Using a soft pad or cloth, press re ar of panel firmly to seat the
securing tangs.
3. Position door handle escutche on on casing, fit and tighten
securing screw and fit cover over screw.
Page 2091 of 2490

Interior Trim and Ornamentation - Rear Door Trim Panel
Removal and Installation
Removal
1. Remove interior door handle escutcheon.
1. Remove cover from door handle escutcheon securing screw and slac ken and remove screw.
2. Pull door handle inwards and exercising care to avoid damaging tweeter, remove escutcheon from
casing.
2. Remove door casing veneer panel. Refer to 76.47.12.
3. Slacken and remove the armres t centre securing screw.
4. Carefully release the six fastener s (seven on long wheelbase)
securing lower section of casing to door.
5. Lift rear edge of door casing to release retaining clip housing
from door panel.
Page 2092 of 2490

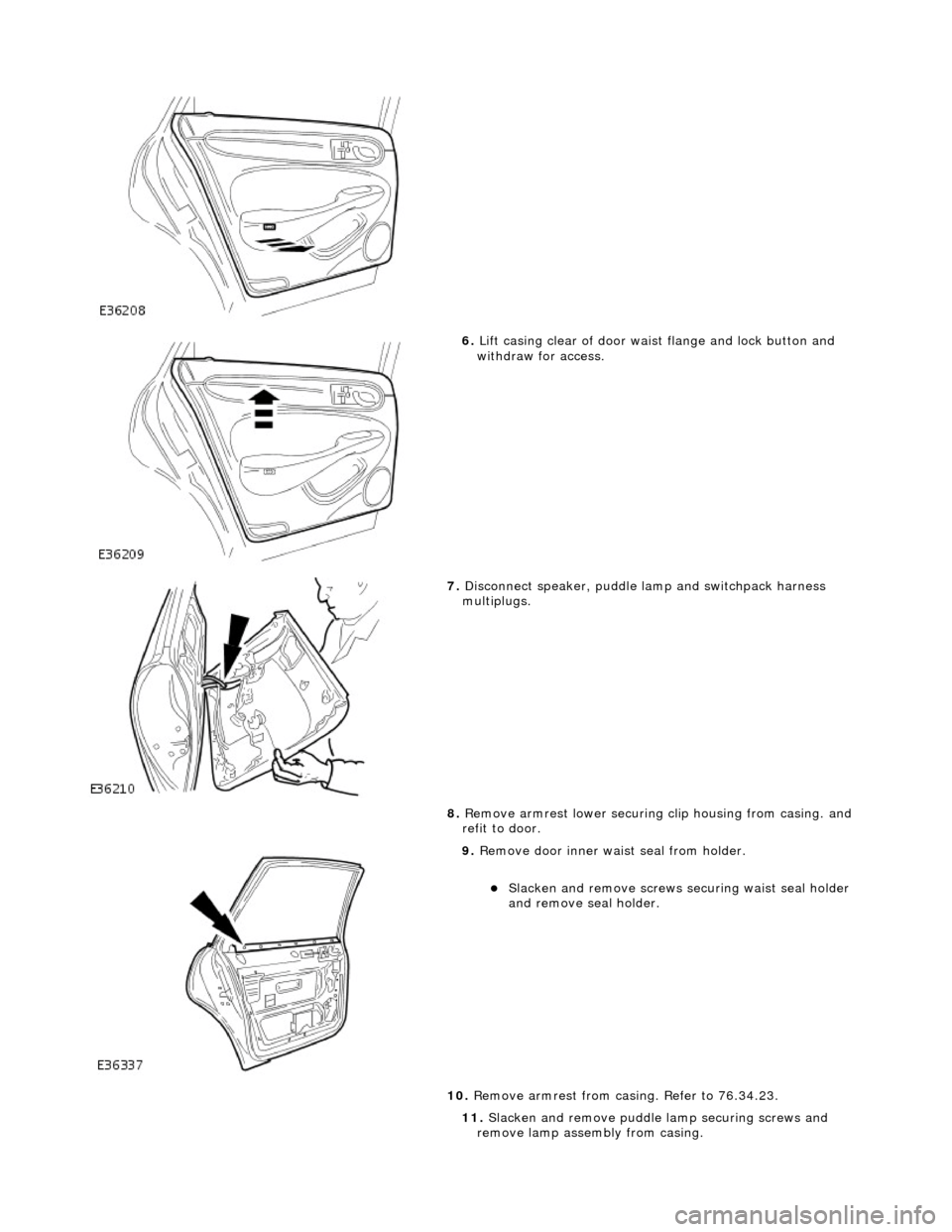

6. Lift casing clear of door wais t flange and lock button and
withdraw for access.
7. Disconnect speaker, puddle lamp and switchpack harness
multiplugs.
8. Remove armrest lower securing clip housing from casing. and
refit to door.
9. Remove door inner waist seal from holder.
Slacken and remove screws securing waist seal holder
and remove seal holder.
10. Remove armrest from casing. Refer to 76.34.23.
11. Slacken and remove puddle la mp securing screws and
remove lamp assembly from casing.
Page 2093 of 2490

Installation

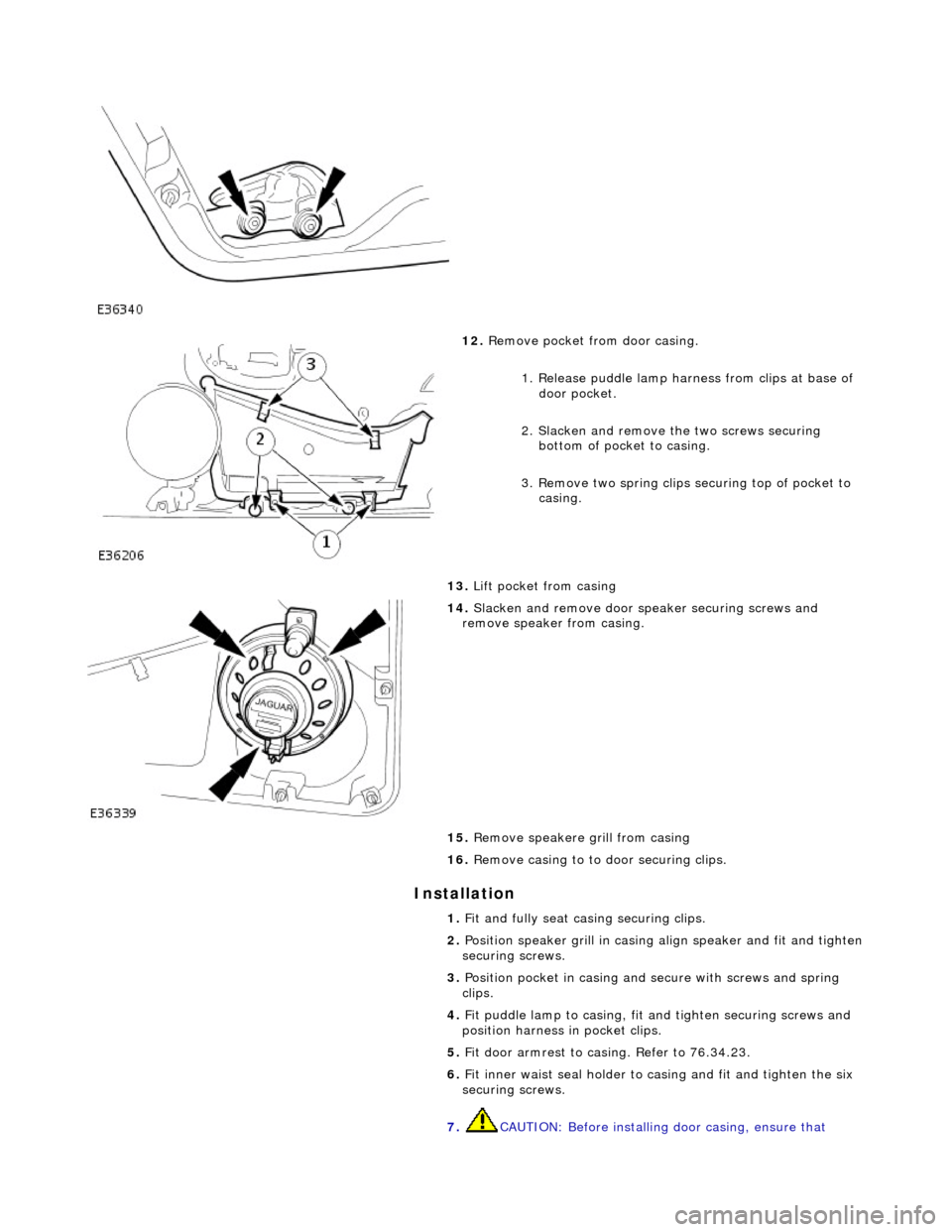

12. Remove pocket from door casing.
1. Release puddle lamp harness from clips at base of door pocket.
2. Slacken and remove th e two screws securing
bottom of pocket to casing.
3. Remove two spring clips securing top of pocket to casing.
13. Lift pocket from casing
14. Slacken and remove door sp eaker securing screws and
remove speaker from casing.
15. Remove speakere grill from casing
16. Remove casing to to door securing clips.
1. Fit and fully seat casing securing clips.
2. Position speaker grill in casing align speaker and fit and tighten
securing screws.
3. Position pocket in casing and secure with screws and spring
clips.
4. Fit puddle lamp to casing, fit and tighten securing screws and
position harness in pocket clips.
5. Fit door armrest to casing. Refer to 76.34.23.
6. Fit inner waist seal holder to casing and fit and tighten the six
securing screws.
7. CAUTION: Before installing door casing, ensure that
Page 2096 of 2490

Interior Trim and Ornamentation - Rear Door Window Control Switch
Finish Panel
Removal and Installation
Removal
Installation
1.
Remove door casing veneer panel. Refer to 76.47.12.
2. Remove door casing. Refer to 76.34.04.
3. Remove door armrest and remo ve switch/ashtray assembly
from armrest. Refer to 76.34.23.
4. Slacken and remove screws securing veneer panels to door
glass switch/ashtray assembly.
5. Remove veneer panels from switch/ashtray assembly.
1. Position veneer panel over switch/ashtray assembly and fit and
tighten securing screws.
2. Position switch/ashtray assembly on armrest and fit and
tighten the two securing screws.
3. Fit armrest to door casing. Refer to 76.34.23.
4. Fit casing to door. Refer to 76.34.04.
