JAGUAR XF 2009 1.G Owners Manual

241
Fuses

CHANGING A FUSE
Note: Jaguar recommend that owners do not
remove or replace rela ys. It is recommended
that you seek qualified assistance in the event
of a rela y failure.
Always switch off the i gnition and the affected
electrical circuit, be fore replacing a fuse.
Fuse failure is identifi ed by an inoperative
circuit.
A special tool for remo ving and replacing Mini
fuses is provided in the engine compartment
fuse box, together with spare fuses. Two types of fuses are fitted in the fuse boxes:
1.
Mini-type
2. J-Case
If a spare fuse is used, renew it (or have it
renewed) with a fuse of the same amperage
rating.
Push the tool onto the suspect fuse and
withdraw it.
If the wire in the fuse is broken, the fuse has
blown.
Fit a new fuse using the tool.
Checking or renewing a blown fuse
J-Case fuses ( 2) and relays should only be
replaced by a qualified technician.
Fuses are colour coded according to the
amperage and the rating is also marked on
each fuse.
CAUTIONS
Always turn off the ignition system and
the affected electrical circuit, before
replacing a fuse.
Fit Jaguar approved replacement fuses
of the same rating and type, or fuses of
matching specification. Using an incorrect
fuse may result in damage to the vehicle's
electrical system, and can result in a fire.
No attempt should be made to repair a
fuse that has blown.
If the replacement fuse blows after
installation, the system should be
checked by your Dealer /Authorised Repairer.
12
E95262

Fuses
242

FUSE BOX LOCATIONS
There are three separate fuse boxes fitted to the
vehicle, each one containing fuses protecting a
different group of circuits.
They are located in:
1.The engine compartment
2. The passenger compartment.
3. The luggage compartment.
Engine compartment fuse box
The fuse box is located underneath a cover on
the right-hand side of the engine compartment.
Remove the engine compartment right-hand
cover by releasing the turnbuckles (1).
Remove the fuse box lid by pressing the
retaining lugs (solid arrows) and lifting.
When refitting, press the fuse box lid in the
area of the retaining l ugs until the lid engages.CAUTION
When a fuse box lid is removed, take
care to protect the box from moisture,
and refit the lid at th e earliest opportunity.
1
2
3
E95263
E95264
1
1
1
1

243
Fuses

Passenger compartment fuse box
The passenger compartment fuse box is
located behind an access hatch in the
right-hand footwell.
Press the release catch to access the fuse box.
Luggage compartment fuse box
The fuse box is located behind an access hatch
on the right-hand side of the luggage
compartment.
Push down on the top of the hatch and pull
away from the side of the vehicle, to access the
fuse box.
E95265
E95266

Fuses
244

Fuse and relay positions
1.Engine compartment fuse box.
2. Passenger compartment fuse box.
3. Luggage compartment fuse box
F28
F29
F30
F31
F32 F33
F34
F35 F36 F19
F10 F3
F11
F12
F13
F14
F15
F44
F43
F42
F41
F40
F39
F38
F37
F17
F18 F16 F4
F5
F6
F7F8
F9 F1
F2
F20
F21 F22
F23
F24
F25
F26 F27
F3 F4
F5 F6
F21
F22
F23 F24
F20
F25
F14
F13 F15 F16
F1
F2 F18
F17 F19
F28F29
F30
F36
F35
F34
F33F32
F31 F12
F11
F10 F9
F8F7 F26 F27
F3
F4
F5 F6
F21
F22
F23 F24
F20
F25
F14
F13 F15 F16
F1
F2 F18
F17 F19
F28F29
F30
F36
F35
F34
F33F32
F31 F12
F11
F10 F9
F8F7
JAG1533
1
23
F26 F27 F45

245
Fuses

FUSE SPECIFICATION CHART
Engine compartment fuse box
Fuse No Rating (amps) Fuse
Colour Circuit
F1 - - Not used.
F2 - - Not used.
F3 20A Blue Emissions system (petrol only).
F4 20A Blue Emissions system (petrol only).
F5 40A Green Anti-lock brake pump.
F6 30A Pink Power wash pump.
F7 - - Not used.
F8 - - Not used.
F9 50A Red Engine management.
F10 - - Not used.
F11 - - Not used.
F12 50A Red Secondary air in jection (petrol only).
F13 30A Pink Wipers.
F14 30A Pink Starter solenoid.
F15 40A Green Screen heater.
F16 40A Green Screen heater.
F17 80A Black Radiator fan. (V6 petrol only)
F18 60A Yellow Glow plugs (diesel only).
F19 - - Not used.
F20 15A Blue Horn.
F21 25A Clear Anti-lock brakes.
F22 15A Blue Cigar lighter.
F23 - - Not used.
F24 5A Tan Adaptive cruise control.
F25 10A Red Anti-lock brakes.
F26 10A Red Engine manage ment. JaguarDrive selector. Transmission
control module.
F27 5A Tan Diesel - Engine management.
F27 5A Tan Petrol - Secondary air injection.

Fuses
246

F28 - - Not used.
F29 - - Not used.
F30 - - Not used.
F31 - - Not used.
F32 - - Not used.
F33 - - Not used.
F34 - - Not used.
F35 5A Tan Air conditioning compressor clutch.
F36 15A Blue Engine management system (diesel only).
20A Blue Engine management sy stem (V8 petrol only).
F37 15A Blue Ignition s ystem (petrol only).
F38 5A Tan Power steering.
F39 5A Tan Headlamp levelling system.
F40 15A Blue Water pump (Superc harged vehicles only).
F41 5A Tan Diesel - Emissions system.
10A Red Petrol - Engine management system.
F42 30A Green Diesel - Engi ne management system. Ignition supply.
10A Red Petrol - Engine management system. Ignition supply. Radiator
fan.
F43 5A Tan Diesel - Fuel system. 10A Red Petrol - Engine manageme nt system. Emission control.
F44 5A Tan Engine management system (diesel only)
15A Blue Fuel injectors (petrol only).
F45 100A Blue Radiator fan (diesel and V8 petrol only).
Fuse No Rating
(amps) Fuse
Colour Circuit

247
Fuses

Passenger compartment fuse box
Fuse No Rating (amps) Fuse
Colour Circuit
F1 - - Not used.
F2 - - Not used.
F3 20A Blue Driver's seat adjustment.
F4 20A Blue Driver's seat adjustment.
F5 - - Not used.
F6 - - Not used.
F7 - - Not used.
F8 20A Blue Front passenger's seat adjustment.
F9 20A Blue Front passenger's seat adjustment.
F10 20A Blue Left-hand rear door controls.
F11 20A Blue Right-hand rear door controls.
F12 - - Not used.
F13 10A Red Steering column adjust.
F14 - - Not used.
F15 - - Not used.
F16 5A Tan Sunblind.
F17 - - Not used.
F18 - - Not used.
F19 - - Not used.
F20 5A Tan Remote control receiver.
F21 5A Tan Foot brake.
F22 5A Tan Electric parking brake.
F23 5A Tan Driver's seat. Audio system. Auto headlamps. Upper centre console switches.
F24 10A Red Front passen ger seat. Electric windows. Mirror adjustment.
F25 20A Yellow Driver's heated/climate seat
F26 15A Blue Trailer power connector. Road pricing system.
F27 20A Yellow Front passenger's heated/climate seat.
F28 15A Blue Auxiliary power socket.
F29 20A Yellow Keyless entry system.
F30 10A Red Air conditioning.

Fuses
248

Luggage compartment fuse box
F31 15A Blue Sunroof.
F32 5A Tan Jaguar Smart Key docking station.
F33 5A Tan Diagnostic connector.
F34 5A Tan Instrument pack.
F35 15A Blue Interior lamps.
F36 10A Red Suspension system.
Fuse No Rating
(amps) Fuse
Colour Circuit
Fuse No Rating
(amps) Fuse
Colour Circuit
F1 30A Pink Air blower.
F2 30A Pink Electric parking brake.
F3 - - Not used.
F4 - - Not used.
F5 - - Not used.
F6 - - Not used.
F7 30A Pink Heated rear screen.
F8 30A Pink Audio system (Premium audio only).
F9 50A Red RBD link.
F10 40A Green Rear electronic differential (e-Diff).
F11 - - Not used.
F12 - - Not used.
F13 - - Not used.
F14 5A Tan Telephone.
F15 10A Red TV. DVD. DAB radio.
F16 - - Not used.
F17 - - Not used.
F18 - - Not used.
F19 - - Not used.
F20 - - Not used.
F21 - - Not used.
F22 - - Not used.

249
Fuses

F23 - - Not used.
F24 - - Not used.
F25 25A Clear Fuel pump.
F26 15A Blue Audio system. Portable audio interface.
F27 10A Red Navigation. Voic e recognition. Touch-screen.
F28 15A Blue Trailer power conne ctor. Road pricing system.
F29 15A Blue Trailer power connector.
F30 25A Clear Driver’s door module.
F31 25A Clear Front passenger door module.
F32 - - Not used.
F33 5A Tan Tyre pressure monitoring system.
F34 - - Not used.
F35 10A Red Supplementary restraint system.
F36 10A Red Pedestrian protection system.
Fuse No Rating
(amps) Fuse
Colour Circuit

Emergency equipment
250

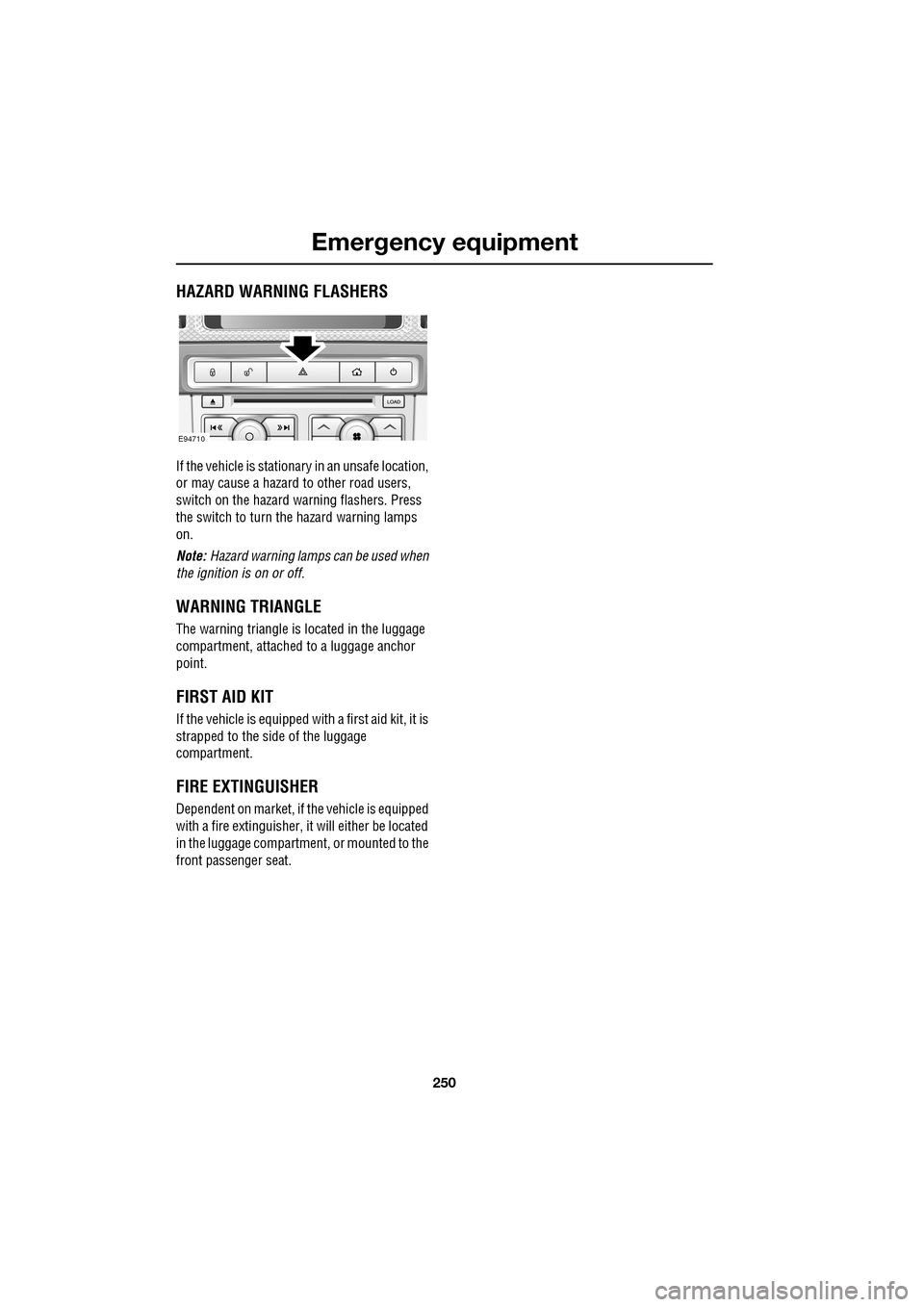

HAZARD WARNING FLASHERS
If the vehicle is stationary in an unsafe location,
or may cause a hazard to other road users,
switch on the hazard warning flashers. Press
the switch to turn the hazard warning lamps
on.
Note: Hazard warning lamps can be used when
the ignition is on or off.
WARNING TRIANGLE
The warning triangle is located in the luggage
compartment, attached to a luggage anchor
point.
FIRST AID KIT
If the vehicle is equipped wi th a first aid kit, it is
strapped to the side of the luggage
compartment.
FIRE EXTINGUISHER
Dependent on market, if the vehicle is equipped
with a fire extinguisher, it will either be located
in the luggage compartment, or mounted to the
front passenger seat.
E94710
