Navigation system

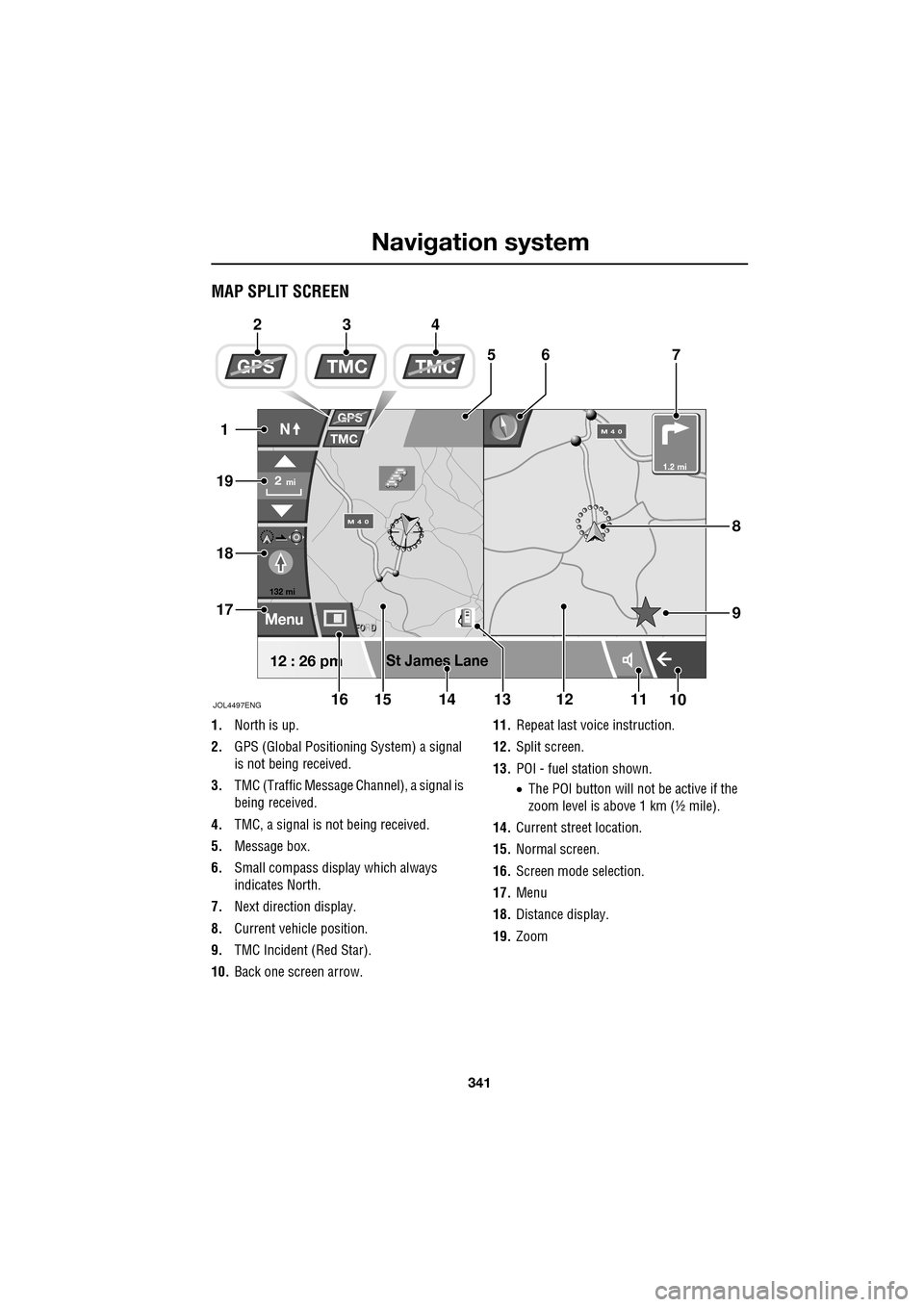

MAP SPLIT SCREEN
1.North is up.
2. GPS (Global Positioning System) a signal
is not being received.
3. TMC (Traffic Message Channel), a signal is
being received.
4. TMC, a signal is not being received.
5. Message box.
6. Small compass display which always
indicates North.
7. Next direction display.
8. Current vehicle position.
9. TMC Incident (Red Star).
10. Back one screen arrow. 11.
Repeat last voice instruction.
12. Split screen.
13. POI - fuel station shown.
•The POI button will not be active if the
zoom level is abov e 1 km (½ mile).
14. Current street location.
15. Normal screen.
16. Screen mode selection.
17. Menu
18. Distance display.
19. Zoom
FO D
FORD
12 : 26 pm
132 mi
Menu
TMC
GPS
St James Lane
N
TMCTMC
mi2
M 4 0
GPS
M 4 0
JOL4497ENG
2
5
34
6
8
1610111415
17
18
19
1
13
9
12
mi1.2
7

Navigation system
342

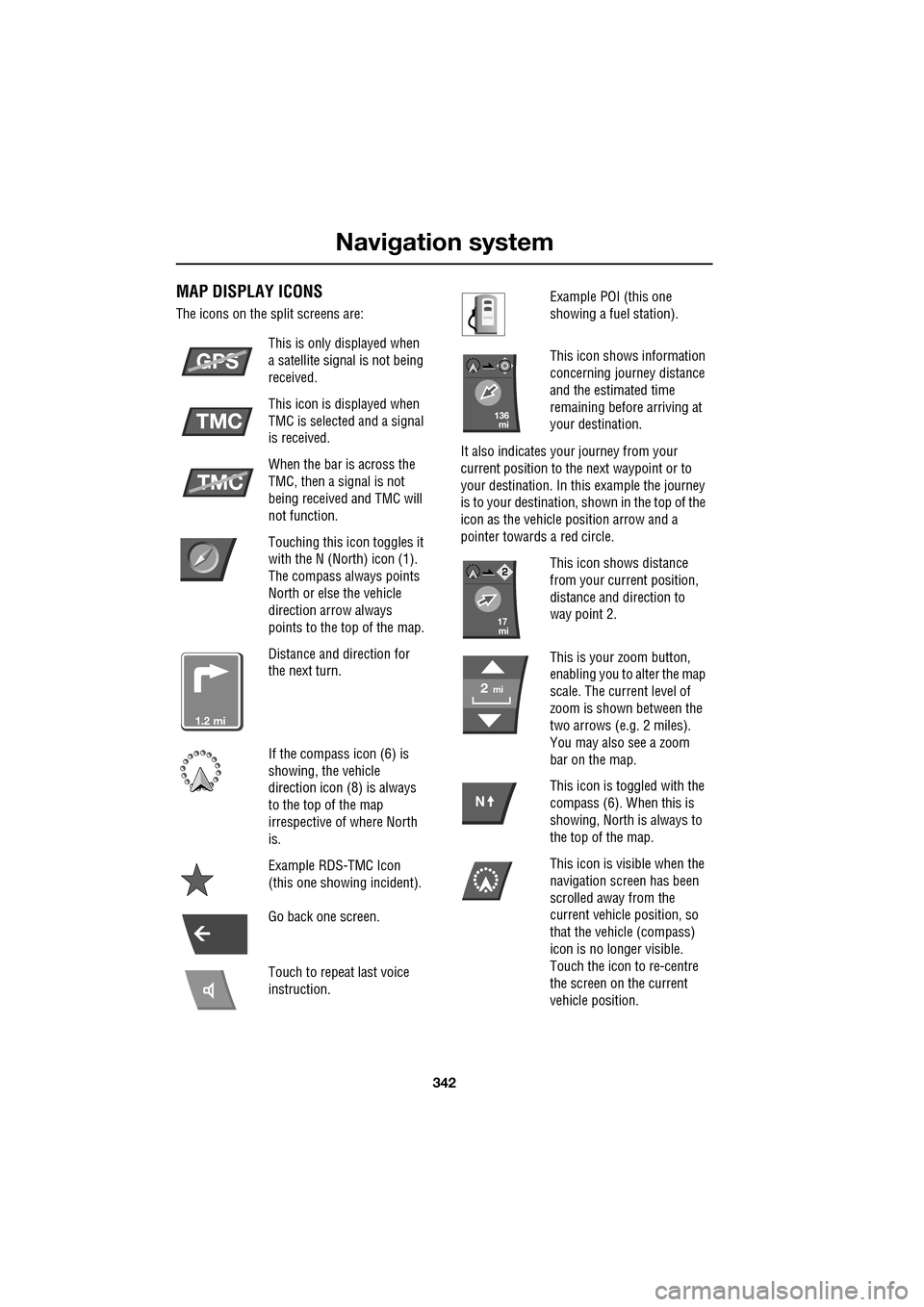

MAP DISPLAY ICONS
The icons on the split screens are:This is only displayed when
a satellite signal is not being
received.
This icon is displayed when
TMC is selected and a signal
is received.
When the bar is across the
TMC, then a signal is not
being received and TMC will
not function.
Touching this icon toggles it
with the N (North) icon (1).
The compass always points
North or else the vehicle
direction arrow always
points to the top of the map.
Distance and direction for
the next turn.
If the compass icon (6) is
showing, the vehicle
direction icon (8) is always
to the top of the map
irrespective of where North
is.
Example RDS-TMC Icon
(this one showing incident).
Go back one screen.
Touch to repeat last voice
instruction.
GPS
TMC
TMC
mi1.2
Example POI (this one
showing a fuel station).
This icon shows information
concerning journey distance
and the estimated time
remaining before arriving at
your destination.
It also indicates your journey from your
current position to the next waypoint or to
your destination. In th is example the journey
is to your destination, shown in the top of the
icon as the vehicle position arrow and a
pointer towards a red circle.
This icon shows distance
from your current position,
distance and direction to
way point 2.
This is your zoom button,
enabling you to alter the map
scale. The current level of
zoom is shown between the
two arrows (e.g. 2 miles).
You may also see a zoom
bar on the map.
This icon is toggled with the
compass (6). When this is
showing, North is always to
the top of the map.
This icon is visible when the
navigation screen has been
scrolled away from the
current vehicle position, so
that the vehicle (compass)
icon is no longer visible.
Touch the icon to re-centre
the screen on the current
vehicle position.
mi136
mi17
mi2
N

343
Navigation system

Other icons

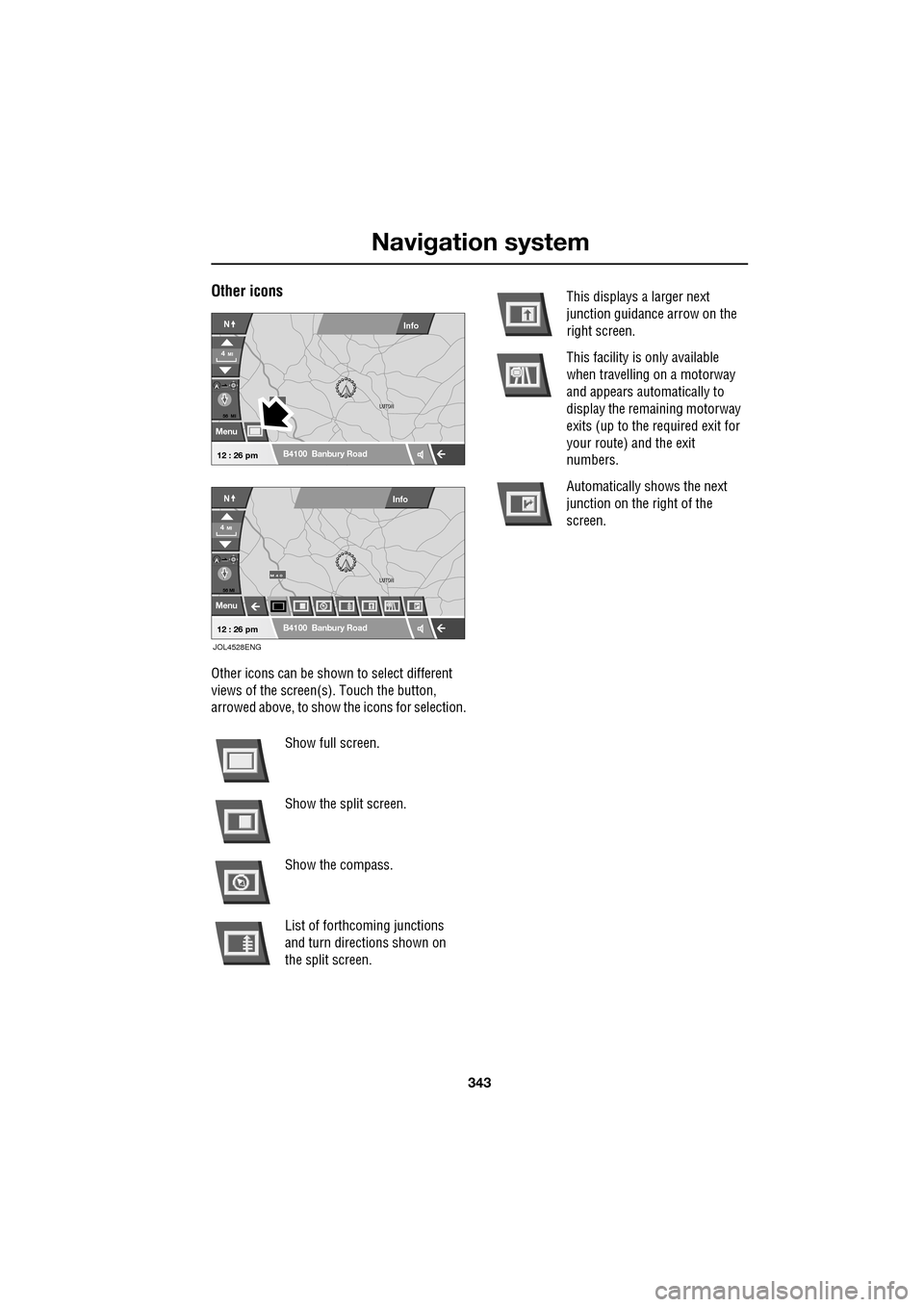

Other icons can be shown to select different
views of the screen(s ). Touch the button,
arrowed above, to show the icons for selection.
Show full screen.
Show the split screen.
Show the compass.
List of forthcoming junctions
and turn directions shown on
the split screen.
LUTON
LUTONM 4 0
LUTON
LUTON
4MI
NInfo

56 MI
Menu Info
B4100 Banbury Road
4MI
N
B4100 Banbury Road
56 MI
Menu
12 : 26 pm
12 : 26 pm
JOL4528ENG
This displays a larger next
junction guidance arrow on the
right screen.
This facility is only available
when travelling on a motorway
and appears automatically to
display the remaining motorway
exits (up to the required exit for
your route) and the exit
numbers.
Automatically shows the next
junction on the right of the
screen.

Navigation system
344

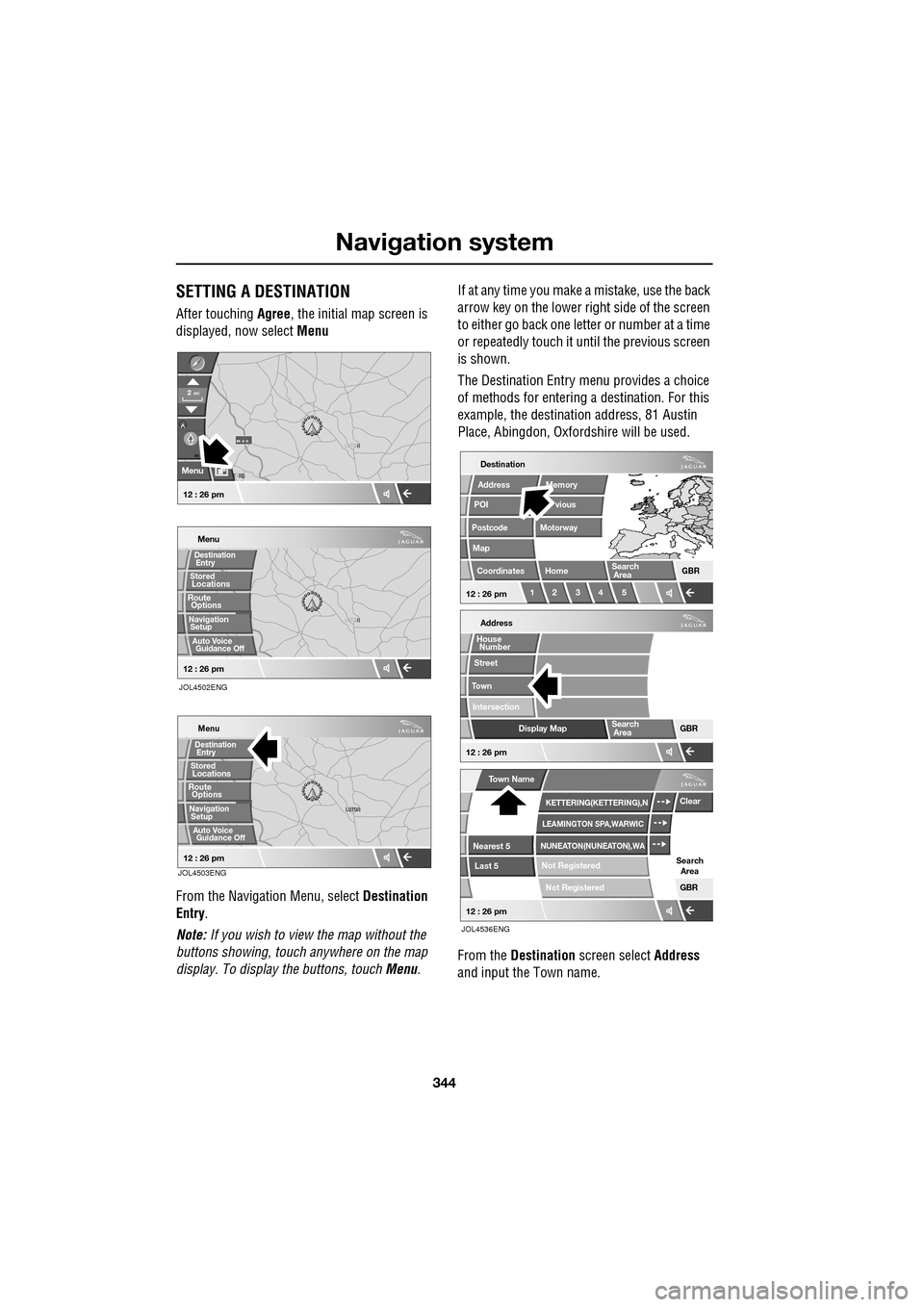

SETTING A DESTINATION
After touching Agree, the initial map screen is
displayed, now select Menu
From the Navigation Menu, select Destination
Entry .
Note: If you wish to view the map without the
buttons showing, touch anywhere on the map
display. To display the buttons, touch Menu. If at any time you make a mistake, use the back
arrow key on the lower right side of the screen
to either go back one le
tter or number at a time
or repeatedly touch it un til the previous screen
is shown.
The Destination Entry menu provides a choice
of methods for entering a destination. For this
example, the destinatio n address, 81 Austin
Place, Abingdon, Oxford shire will be used.
From the Destination screen select Address
and input the Town name.
N
LUTON
Menu
Stored
Destination
Auto Voice
Entry
Guidance Off
N
LUTON
F RD ORD
M 4 0m
Menu
2mi
12 : 26 pm
12 : 26 pm
Locations
Navigation
Setup
Route Options
JOL4502ENG

Menu
12 : 26 pm
Stored
Destination
Auto Voice
Entry
Guidance Off
Locations
Navigation
Setup
Route Options
JOL4503ENG
Address
Street
To w n
Intersection
House
Display Map GBR
Destination
POI
Postcode
Map
Coordinates
Address
HomeGBR
12 3 4 5
vious
Motorway
Memory
Last 5
KETTERING(KETTERING),NClear
NUNEATON(NUNEATON),WA
LEAMINGTON SPA,WARWIC
Not Registered
Not Registered
GBR
Town Name
Nearest 5 Search
Area
12 : 26 pm
12 : 26 pm
12 : 26 pm
SearchArea
Search
Area
Number
JOL4536ENG

345
Navigation system

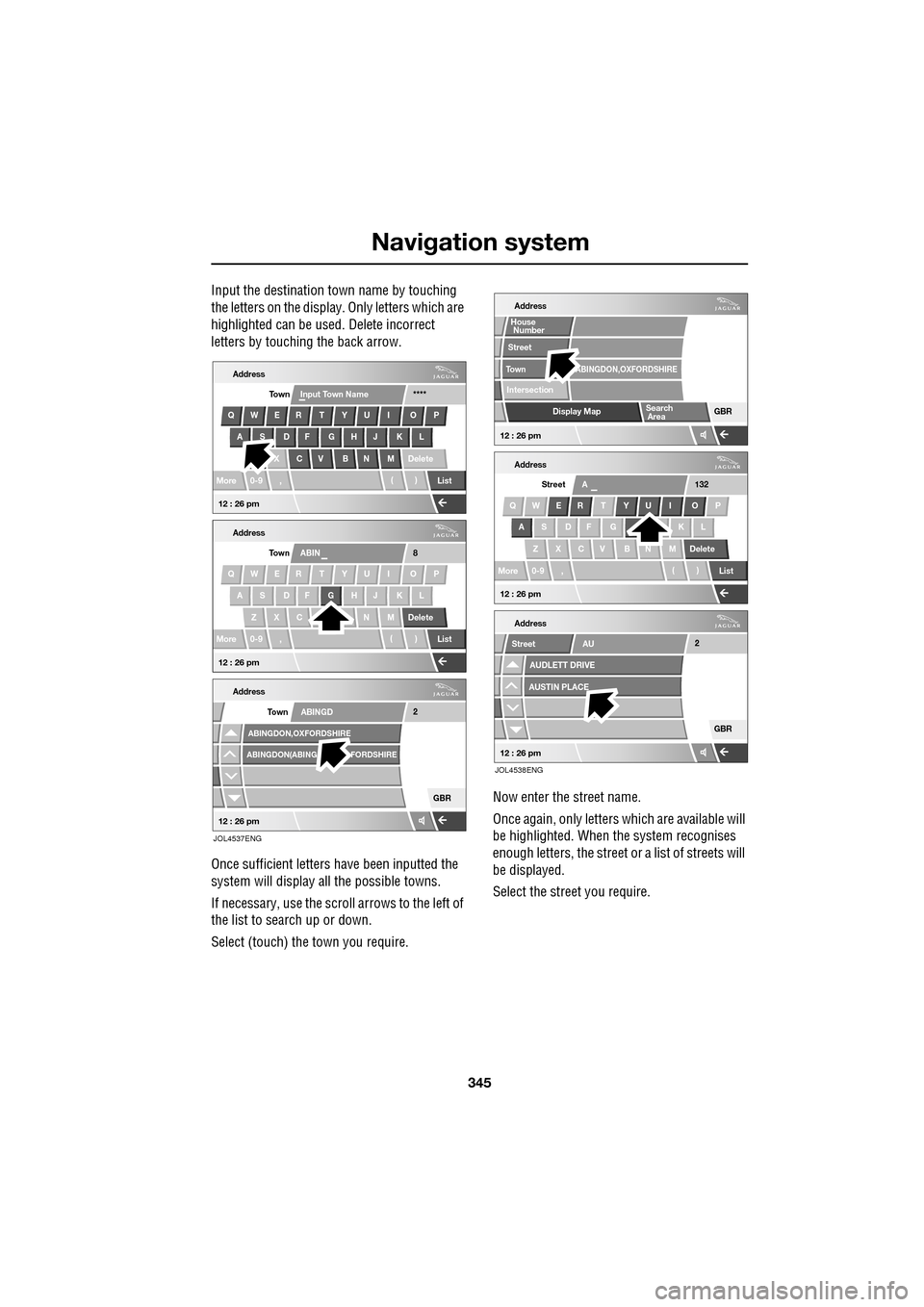

Input the destination town name by touching
the letters on the display. Only letters which are
highlighted can be used. Delete incorrect
letters by touchi ng the back arrow.
Once sufficient letters have been inputted the
system will display all the possible towns.
If necessary, use the scroll arrows to the left of
the list to search up or down.
Select (touch) the town you require. Now enter the street name.
Once again, only letters which are available will
be highlighted. When the system recognises
enough letters, the street or a list of streets will
be displayed.
Select the street you require.
Address
TownInput Town Name
****
Delete
More 0-9 , ()
List
Address
TownABIN 8
Delete
More 0-9 , (
)List
Address
GBR
TownABINGD2
ABINGDON,OXFORDSHIRE
QWER T YU I O P
AS DF GHJ KL
XCV BN M
QWER T YU I O PAS DF GHJ KL
ZXC N M
ABINGDON(ABING FORDSHIRE
12 : 26 pm
12 : 26 pm
12 : 26 pm
JOL4537ENG
Address
StreetA 132
Delete
More 0-9 , ()
List
Address
GBR
StreetAU2
AUDLETT DRIVE
QWER T YU I O P
AS DF G KL
ZXCV BN M
AUSTIN PLACE
Address
Street
Town
Intersection
Display Map GBR
ABINGDON,OXFORDSHIRE
House
Number
Search
Area
12 : 26 pm
12 : 26 pm
12 : 26 pm
JOL4538ENG

Navigation system
346

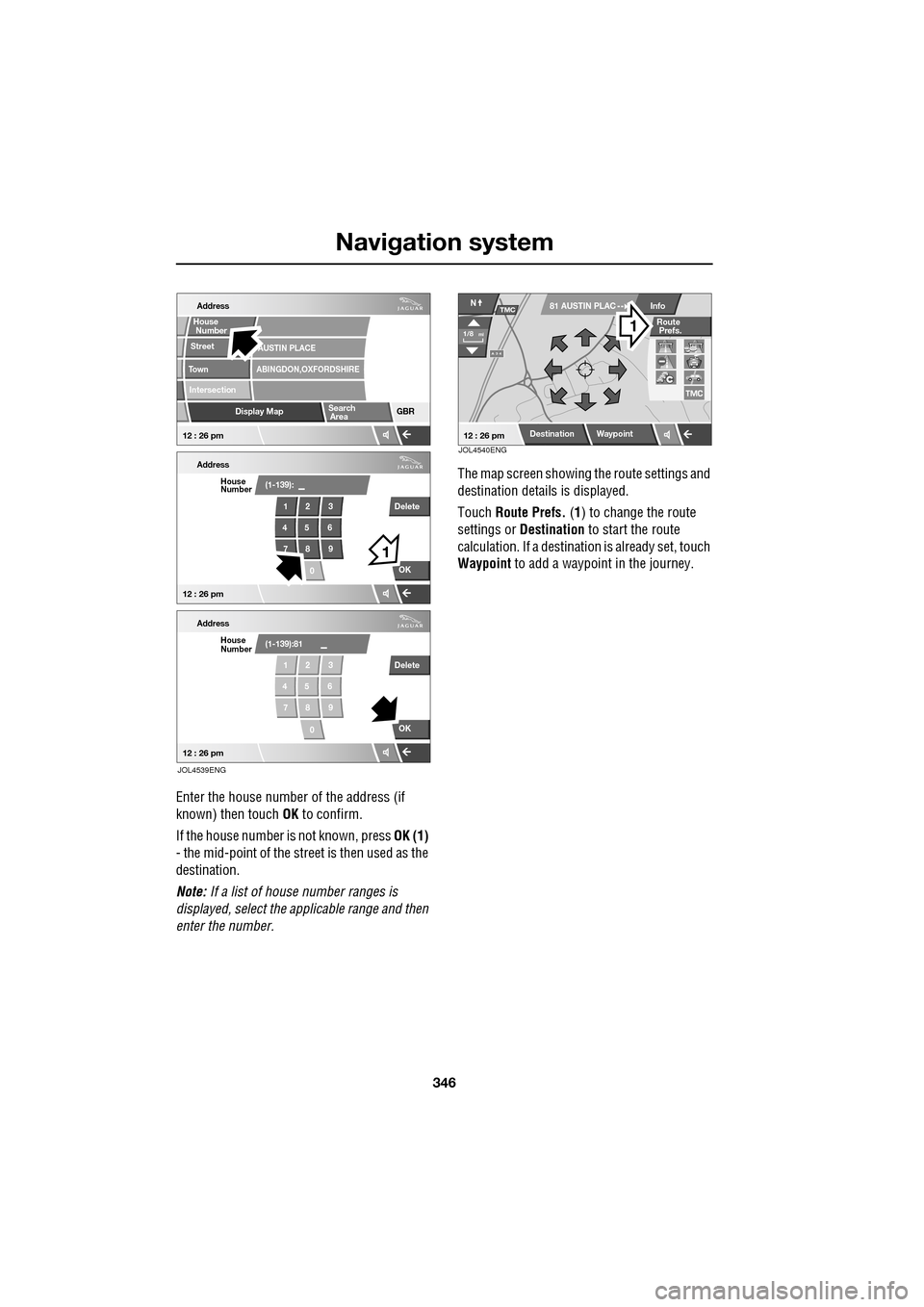

Enter the house number of the address (if
known) then touch OK to confirm.
If the house number is not known, press OK (1)
- the mid-point of the street is then used as the
destination.
Note: If a list of house number ranges is
displayed, select the a pplicable range and then
enter the number. The map screen showing the route settings and
destination detail
s is displayed.
Touch Route Prefs. (1) to change the route
settings or Destination to start the route
calculation. If a destinati on is already set, touch
Waypoint to add a waypoint in the journey.
Address
Street
To w n
Intersection
Display Map GBR
ABINGDON,OXFORDSHIREAUSTIN PLACE
Address
(1-139):
OK
1
Delete
23
45 6 78 9
0
Address
(1-139):81
OK
1 Delete
23
45 6 78 9
0
House
Number
HouseNumber
House Number
Search Area
12 : 26 pm
12 : 26 pm
12 : 26 pm
1
JOL4539ENG
A 3 4
Info
Route
Prefs.N
1/8mi
81 AUSTIN PLACTMC
12 : 26 pmDestinationWaypoint
JOL4540ENG

347
Navigation system

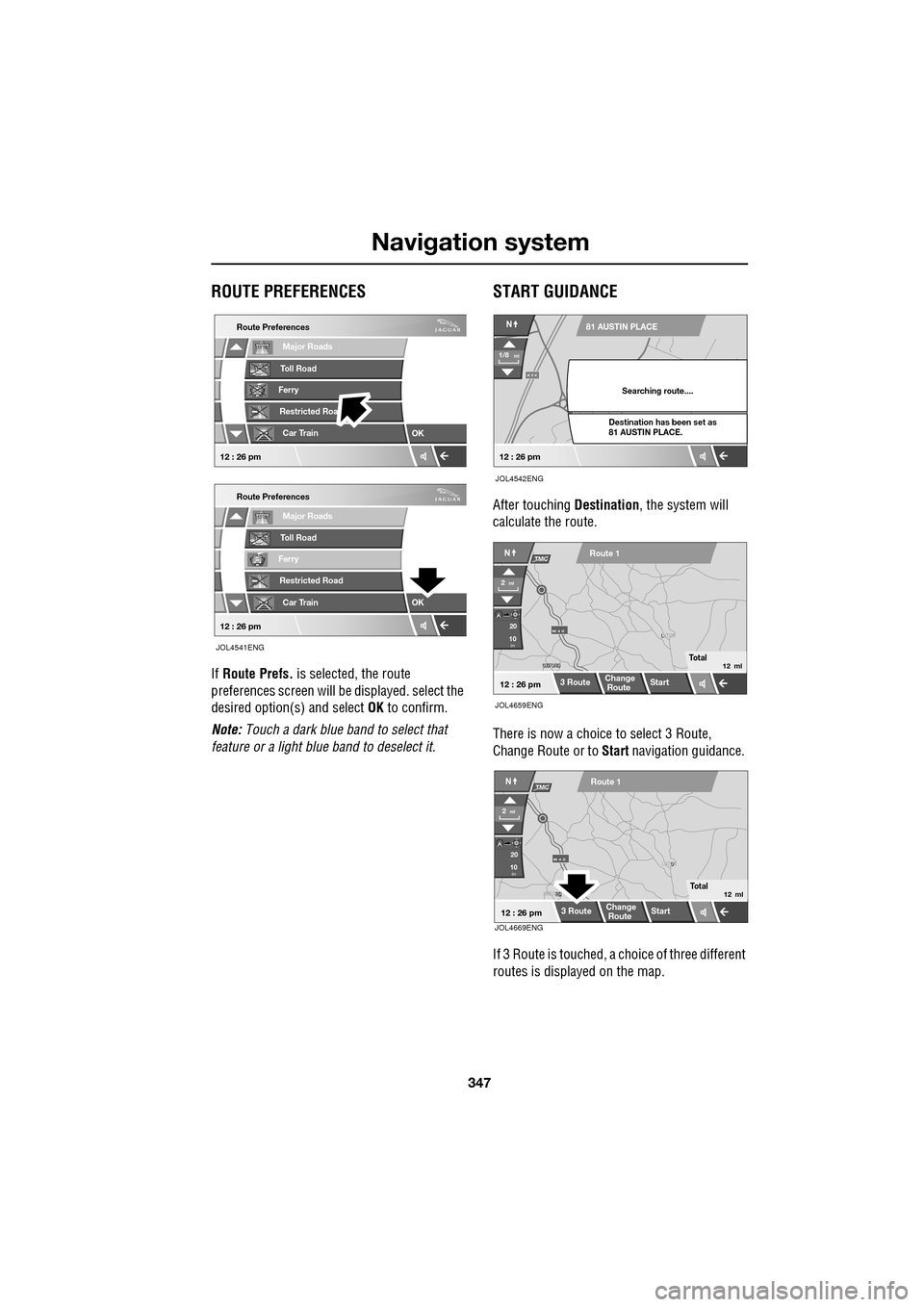

ROUTE PREFERENCES
If Route Prefs. is selected, the route
preferences screen will be displayed. select the
desired option(s) and select OK to confirm.
Note: Touch a dark blue band to select that
feature or a light blue band to deselect it.
START GUIDANCE
After touching Destination, the system will
calculate the route.
There is now a choice to select 3 Route,
Change Route or to Start navigation guidance.
If 3 Route is touc hed, a choice of three different
routes is displayed on the map.
Major Roads
Route Preferences
Toll Road
Ferry
Restricted Roa
Car Train
OK
Major Roads
Route Preferences
Toll Road
Ferry
Restricted Road
Car Train
OK
12 : 26 pm
12 : 26 pm
JOL4541ENG
A 3 4
N
1/8mi
81 AUSTIN PLACE
Searching route....
Destination has been set as
81 AUSTIN PLACE.
12 : 26 pm
JOL4542ENG
OXFORD
OXFORD L
LUTON
M 4 0
12 : 26 pm
m
Route 1
Change
Route Start
3 Route
2ml
JOL4659ENG
Total12 ml
20
10
NTMC
JOL4669ENG
RD
OXFORD O
LUTON
M 4 0
12 : 26 pm
m
Route 1
Change
Route Start
3 Route
2ml
Total12 ml
20
10
NTMC

Navigation system
348

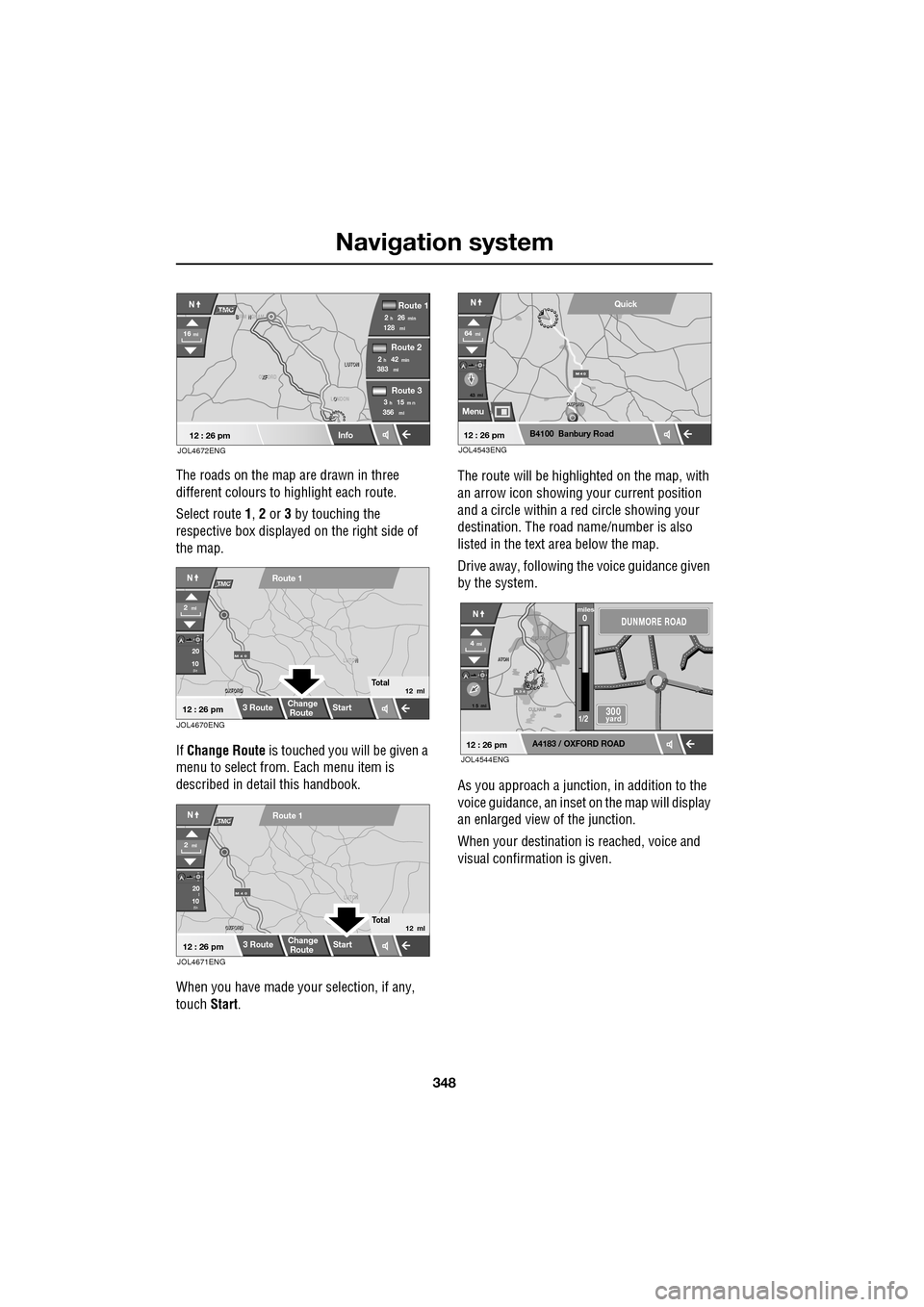

The roads on the map are drawn in three
different colours to highlight each route.
Select route 1, 2 or 3 by touching the
respective box displaye d on the right side of
the map.
If Change Route is touched you will be given a
menu to select from . Each menu item is
described in deta il this handbook.
When you have made your selection, if any,
touch Start. The route will be highlighted on the map, with
an arrow icon showing your current position
and a circle within a re
d circle showing your
destination. The road name/number is also
listed in the text area below the map.
Drive away, following the voice guidance given
by the system.
As you approach a junction, in addition to the
voice guidance, an inset on the map will display
an enlarged view of the junction.
When your destination is reached, voice and
visual confirmation is given.
XF
OXFORD LUTON
LUTON
12 : 26 pm
NTMC
Info
Route 1
mi
Route 2
Route 3
128min26h2
mi383min42h2
mi356m n15h3
16mi
O
LONDON
B N
BIRM NGHAM
JOL4672ENG
JOL4670ENG
OXFORD
OXFORD N
LUTON
M 4 0
12 : 26 pm
m
Route 1
Change
Route Start
3 Route
2ml
Total12 ml
20
10
NTMC
JOL4671ENG
OXFORD
OXFORD LUTON
M 4 0
12 : 26 pm
m
Route 1
Change
Route
Start
3 Route
2ml
Total12 ml
20
10l
NTMC

43 mi
Menu
B4100 Banbury Road
64mi
NQuick
12 : 26 pmJOL4543ENG
A 3 4
OXFORD
CULHAM
A
TON
A
TON

1 5 mi
A4183 / OXFORD ROAD
4mi
NDUNMORE ROAD
300 yard
miles0
1/2
12 : 26 pmJOL4544ENG

349
Navigation system

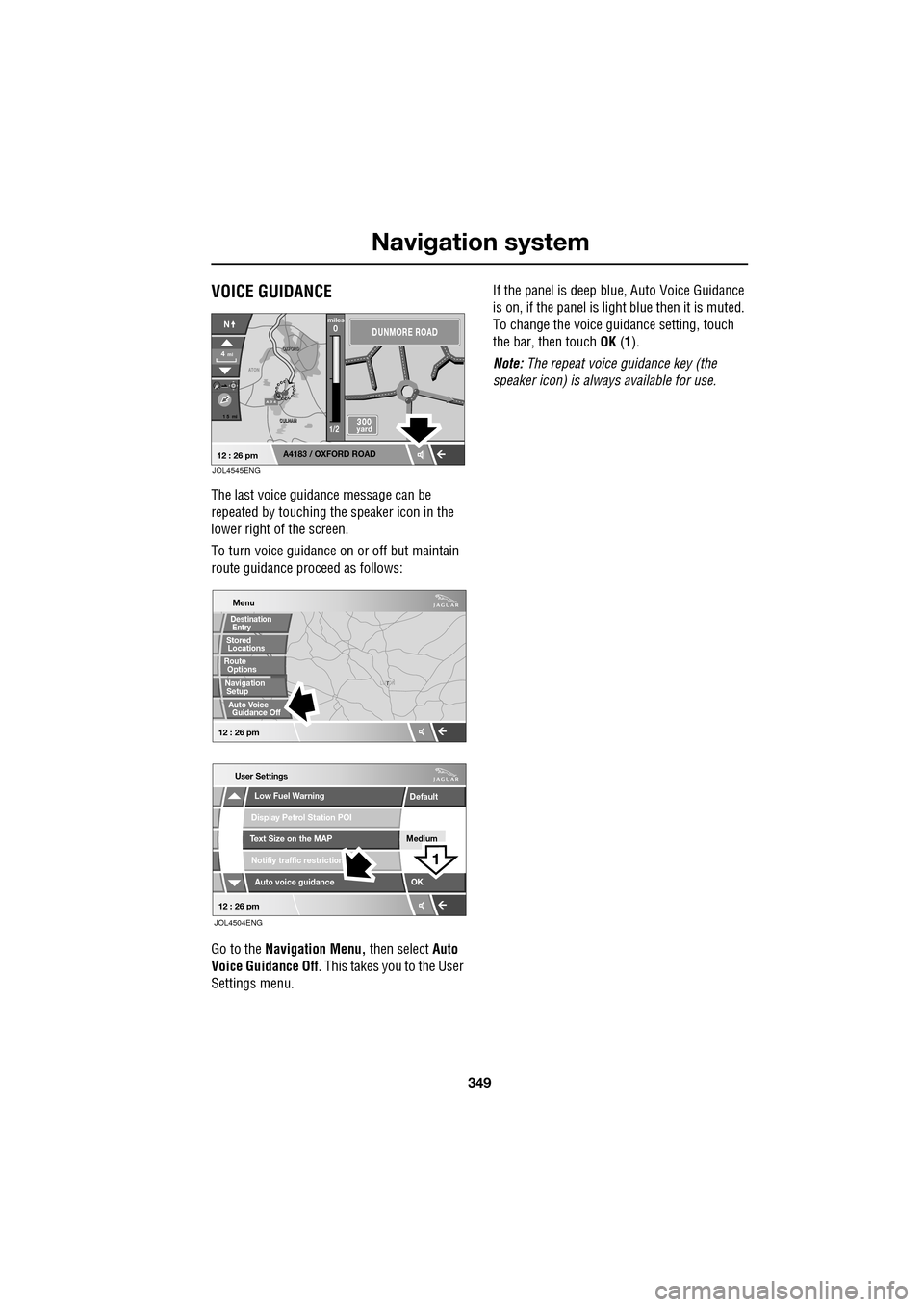

VOICE GUIDANCE
The last voice guidance message can be
repeated by touching the speaker icon in the
lower right of the screen.
To turn voice guidance on or off but maintain
route guidance proceed as follows:
Go to the Navigation Menu, then select Auto
Voice Guidance Off . This takes you to the User
Settings menu. If the panel is deep blue, Auto Voice Guidance
is on, if the panel is light
blue then it is muted.
To change the voice gui dance setting, touch
the bar, then touch OK (1).
Note: The repeat voice guidance key (the
speaker icon) is always available for use.
A 3 4
OXFORD
OXFORD
CULHAM
CULHAM
ATON

1 5 mi
A4183 / OXFORD ROAD
4mi
NDUNMORE ROAD
300 yard
miles0
1/2
12 : 26 pmJOL4545ENG
T
LUTON
Menu
Low Fuel Warning
User Settings
Display Petrol Station POI
Text Size on the MAP
Notifiy traffic restriction
Auto voice guidance
Medium
OK
Default
12 : 26 pm
12 : 26 pm
1
JOL4504ENG
Stored
Destination
Auto Voice
Entry
Guidance Off
Locations
Navigation SetupRoute Options

Navigation system
350

CANCEL GUIDANCE

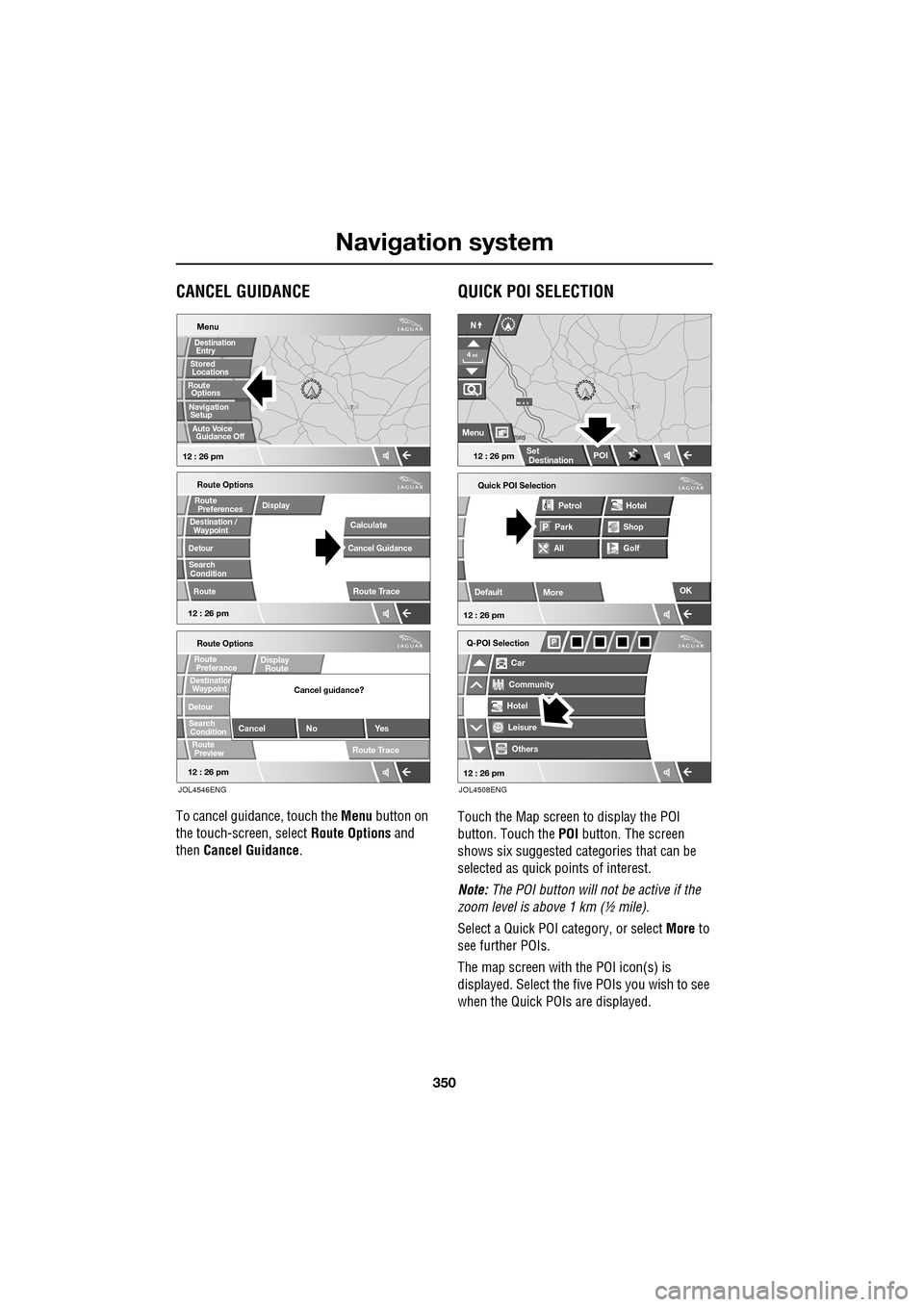

To cancel guidance, touch the Menu button on
the touch-screen, select Route Options and
then Cancel Guidance .
QUICK POI SELECTION
Touch the Map screen to display the POI
button. Touch the POI button. The screen
shows six suggested ca tegories that can be
selected as quick points of interest.
Note: The POI button will not be active if the
zoom level is above 1 km (½ mile).
Select a Quick POI category, or select More to
see further POIs.
The map screen with the POI icon(s) is
displayed. Select the five POIs you wish to see
when the Quick POIs are displayed.
T
LUTON
Menu
12 : 26 pm
Stored
Destination
Auto Voice
Entry
Guidance Off
Locations
Navigation SetupRoute Options
12 : 26 pm
Route Options
Destination /
Detour
Search
Route
RouteDisplay
Preferences
Condition
Calculate
Cancel Guidance
Route Trace
12 : 26 pm
Route Options
Waypoint
Detour
Search
Route
Preview
RouteDisplay
RoutePreferance
ConditionDestination
Cancel No Yes
Cancel guidance?
Route Trace
Waypoint
JOL4546ENG
Quick POI Selection
DefaultOK
All
Park Petrol
Golf ShopHotel
Car
Q-POI Selection
Community
Hotel
Leisure
Others
12 : 26 pm
12 : 26 pm
More
FORD
FORD T
LUTON
M 4 0
12 : 26 pm
4
N
Set
Destination
Menu
POI
mi
JOL4508ENG
