JAGUAR XFR 2010 1.G Workshop Manual

Instrument Cluster - Instrument Cluster Lens
Removal and Installation

Removal Published: 04-Sep-2013

1. Fully extend the steering column for access.

2. Disconnect the battery ground cable.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Refer to: Instrument Cluster (413-01 Instrument Cluster, Removal and Installation).


4. CAUTION: To prevent static damage to the circuits,
place the instrument cluster inside the electro static
discharge bag and use the gloves provided during this
procedure.













5.

www.JagDocs.com

Installation).

3. Disconnect the battery ground cable.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Vehicle horn retaining bolt 25 18 -

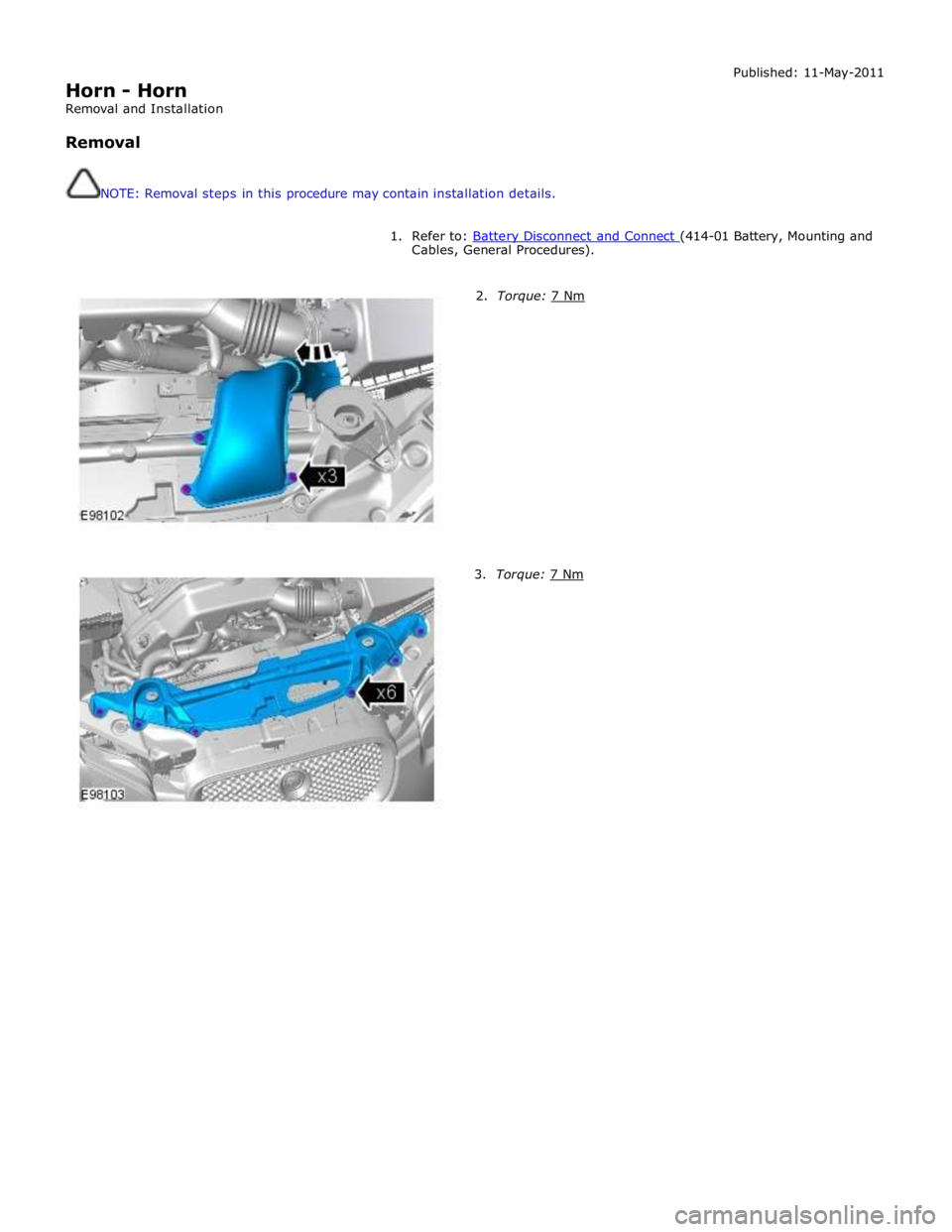

Horn - Horn
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Torque: 7 Nm 3. Torque: 7 Nm

1. To install, reverse the removal procedure.

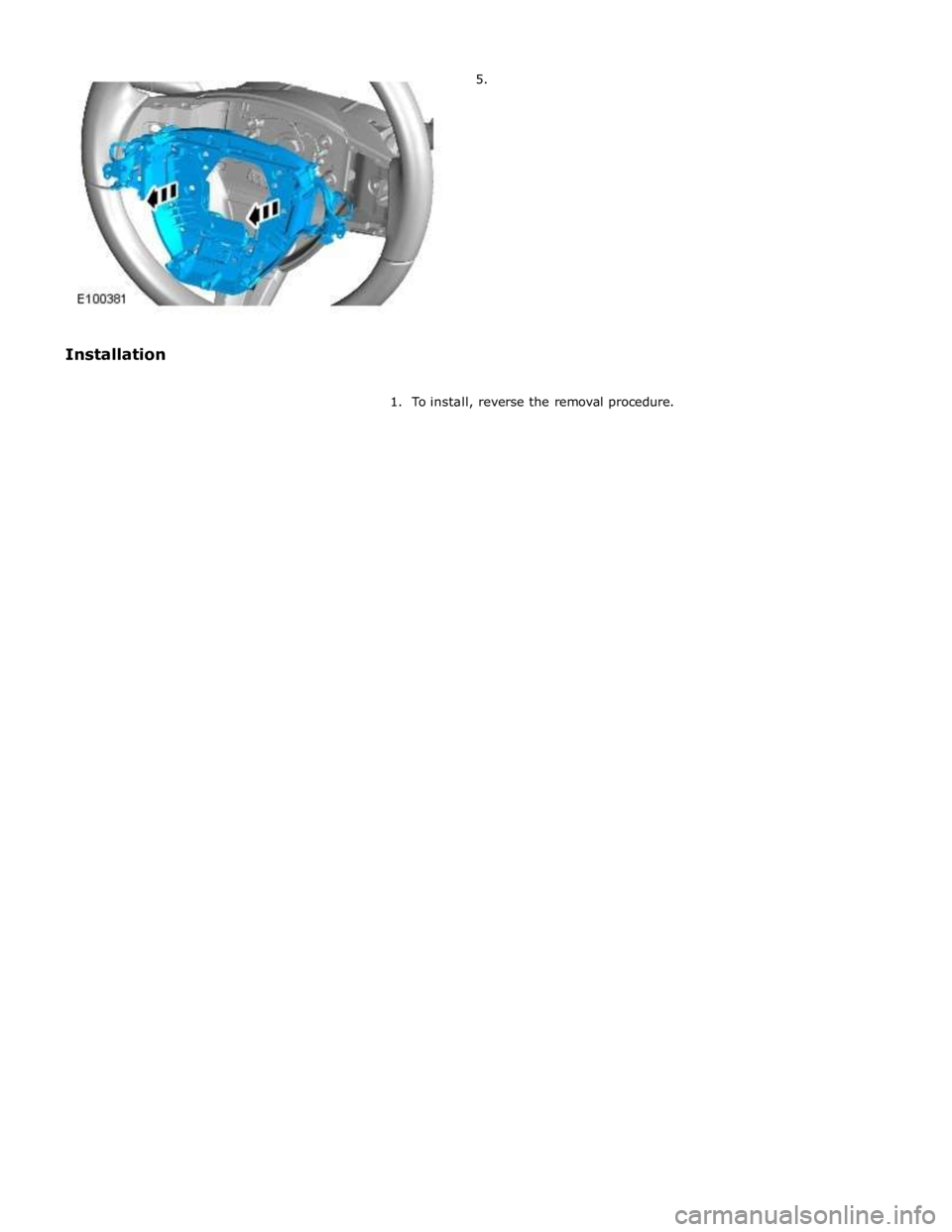

Description and Operation).

2. Refer to: Steering Wheel Audio Controls (415-01A Information and Entertainment System, Removal and Installation).

3.
4. www.JagDocs.com

1 Message center

Published: 11-May-2011
Information and Message Center - Information and Message Center - Overview
Description and Operation

OVERVIEW

The message center is a LCD (liquid crystal display) located in a central position in the instrument cluster. The message center
receives CAN (controller area network) bus, LIN (local interconnect network) bus, and hardwired signals from other vehicle
system control modules to display current vehicle status information. Depending on message importance, the message center
will be backlit in white, amber or red.
The message center will display:
Fuel level
Trip computer information
Gear selected
Speed control information
Vehicle map
Clock
Turn by turn satellite navigation
Voice control text
JaguarDrive Control system messages.

Operation of the message center is controlled by software within the instrument cluster.
Refer to: Instrument Cluster (413-01 Instrument Cluster, Description and Operation).
