JAGUAR XFR 2010 1.G Workshop Manual

14. WARNINGS:


Never remove the coolant expansion tank cap under any
circumstances while the engine is operating. Failure to follow this
instruction may result in personal injury.


To avoid having scalding hot coolant or steam blowing out of the
cooling system, use extreme care when removing the coolant pressure
cap from a hot cooling system. Wait until the engine has cooled, then
wrap a thick cloth around the coolant pressure cap and turn it slowly
until the pressure begins to release. Step back while the pressure is
released from the system. When certain all the pressure has been
released (still with a cloth) turn and remove the coolant pressure cap
from the coolant expansion tank. Failure to follow these instructions may
result in personal injury.
Release the cooling system pressure.

15. Fill the cooling system up to the MAX mark on the coolant expansion
tank using a fifty percent mixture of Jaguar Premium Cooling System
Fluid or equivalent, meeting Jaguar specification WSS M97B44-D and
fifty percent water.

16. Install the coolant expansion tank pressure cap.

17. Raise the vehicle.

18. Check all coolant hoses for visible signs of coolant leaks.

19. Install the air deflector.

Refer to: Air Deflector (501-02, Removal and Installation).
www.JagDocs.com

Auxiliary Climate Control - Electric Booster Heater
Removal and Installation

Removal

NOTES:


Removal steps in this procedure may contain installation details.


Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles Published: 11-May-2011

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Right-hand drive vehicles

2. Refer to: Heater Core and Evaporator Core Housing (412-01 Climate Control, Removal and Installation).

All vehicles






Installation
3. NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

Torque: 1.3 Nm












4. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.


NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

1. To install, reverse the removal procedure.

A/C compressor retaining bolts 25 18 - A/C compressor manifold and tube retaining bolt 9 - 80 A/C condenser core retaining studs 5 - 48 A/C condenser core supply and return lines retaining nuts 8 - 71 Power steering oil cooler retaining nuts 7 - 62 A/C desiccant bag retaining screw (vehicles fitted with petrol engines) 22 16 - A/C desiccant bag retaining screw (vehicles fitted with diesel engines) 4 - 37 A/C pressure cutoff switch 8 - 71

Published: 11-May-2011
Air Conditioning - Air Conditioning (A/C) Compressor V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

4. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

5. Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).

6. Refer to: Refrigerant Oil Adding - V6 3.0L Petrol (412-00 Climate Control System - General Information, General Procedures).

7. www.JagDocs.com

Installation 8.



































9.

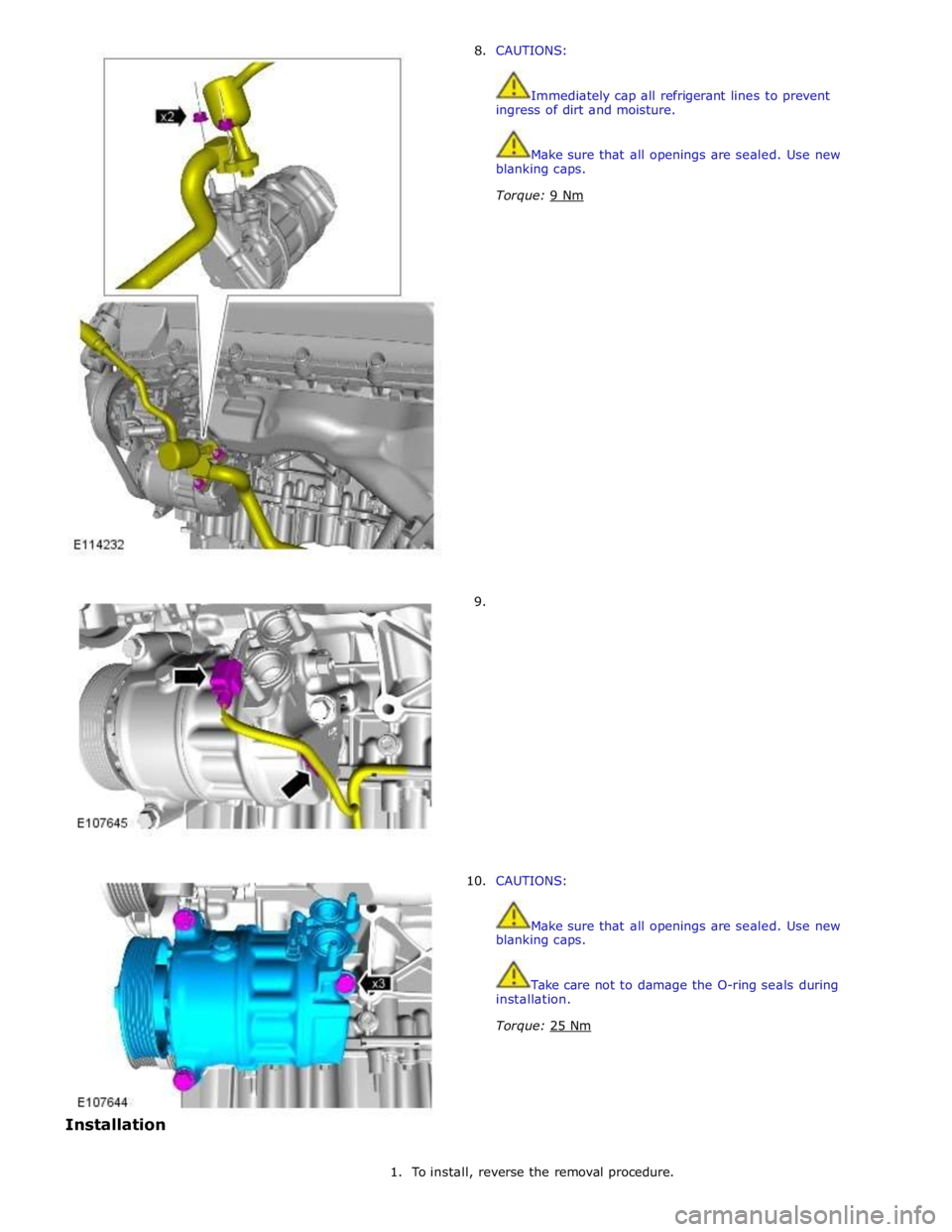

10. CAUTIONS:


Immediately cap all refrigerant lines to prevent
ingress of dirt and moisture.


Make sure that all openings are sealed. Use new
blanking caps.
Torque: 9 Nm











































CAUTIONS:


Make sure that all openings are sealed. Use new
blanking caps.


Take care not to damage the O-ring seals during
installation.
Torque: 25 Nm
1. To install, reverse the removal procedure.

Air Conditioning - Condenser Core V8 S/C 5.0L Petrol
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Radiator (303-03D Supercharger Cooling - V8 S/C 5.0L Petrol, Removal and Installation).

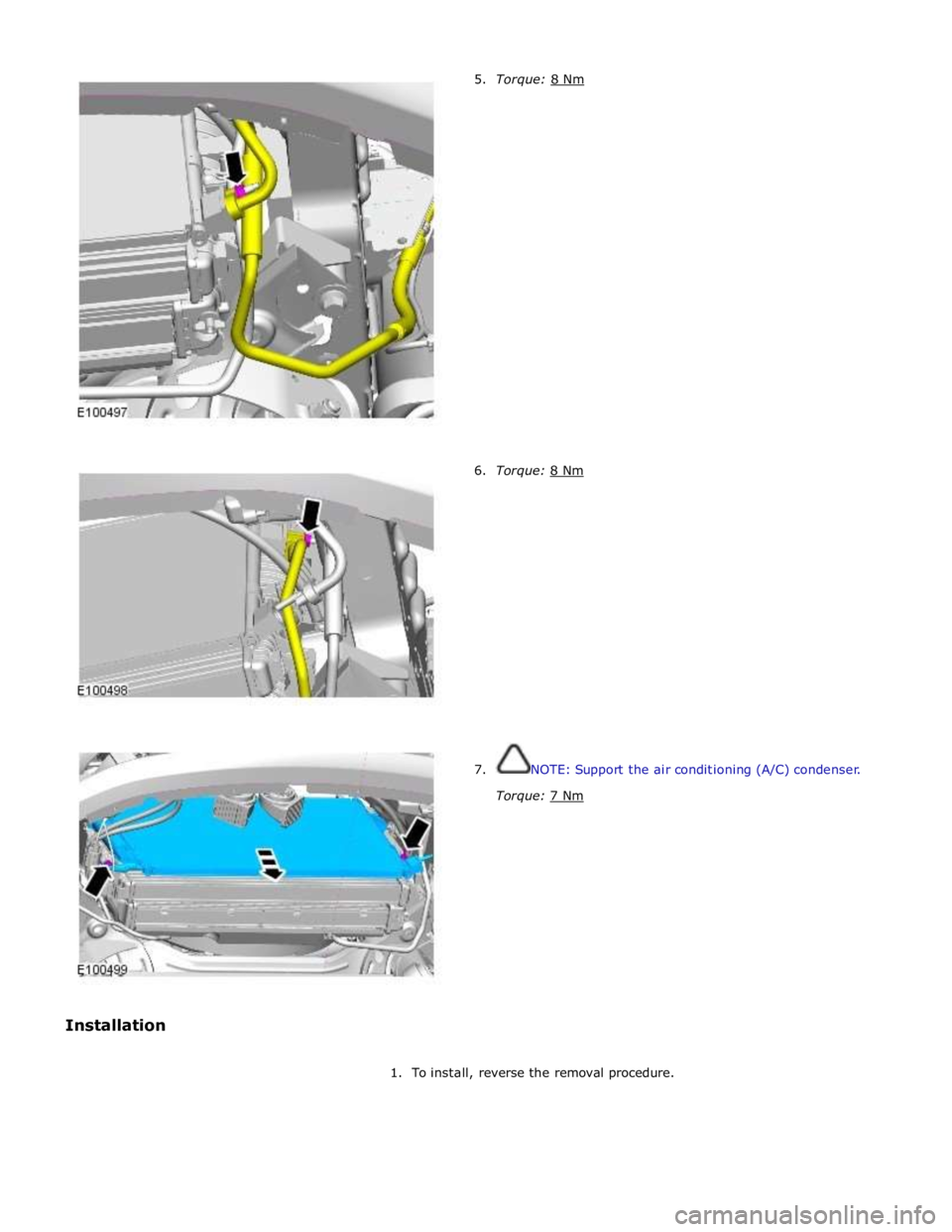

4. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct. www.JagDocs.com

6. Torque: 8 Nm
















7. NOTE: Support the air conditioning (A/C) condenser.
Torque: 7 Nm
1. To install, reverse the removal procedure.

Air Conditioning - Pressure Cutoff Switch
Removal and Installation
Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. For additional information, refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

2. For additional information, refer to: Air Cleaner (303-12, Removal and
Installation).

3.
4. CAUTION: Make sure the air conditioning (A/C) hose
does not turn when removing the low pressure switch.

TORQUE: 8 Nm











Installation

1. To install, reverse the removal procedure.

Illumination bulb. 3.0 Watt
