Rear Drive Axle/Differential - Differential Draining and Filling
General Procedures
Check Published: 11-May-2011

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. Refer to: Specifications - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-02 Rear Drive Axle/Differential, Specifications).

2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3.

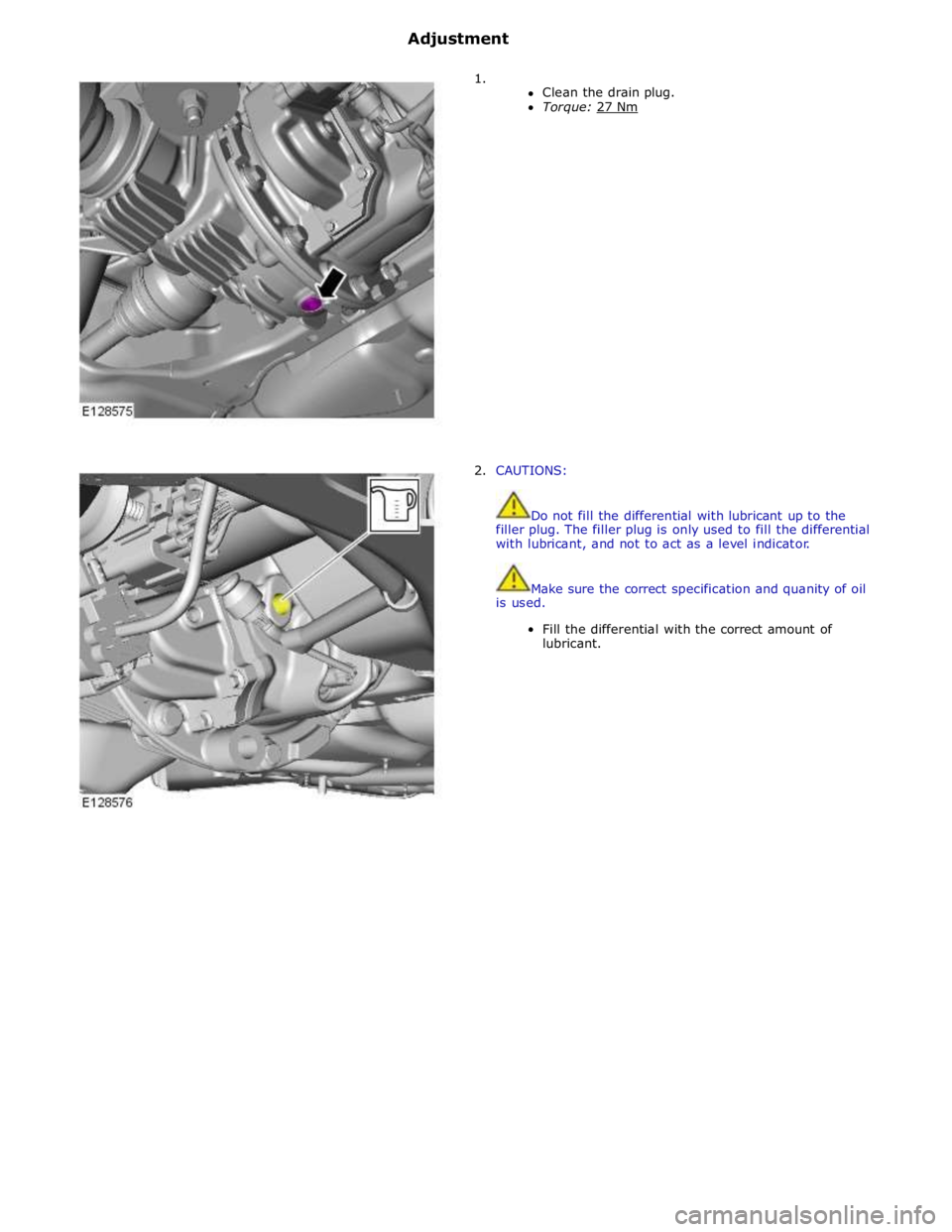

Clean the area around the lubricant filler plug.
Position container to collect fluid loss.























4.
Clean the area around the drain plug.
Remove the fluid drain plug.
Drain the differential lubricant. www.JagDocs.com

Adjustment

1.
Clean the drain plug.
Torque: 27 Nm






















2. CAUTIONS:


Do not fill the differential with lubricant up to the
filler plug. The filler plug is only used to fill the differential
with lubricant, and not to act as a level indicator.


Make sure the correct specification and quanity of oil
is used.

Fill the differential with the correct amount of
lubricant.

Published: 11-May-2011
Rear Drive Axle/Differential - Differential Case TDV6 3.0L Diesel /V8 5.0L
Petrol/V8 S/C 5.0L Petrol
Removal and Installation


Removal

All vehicles

1. WARNING: Do not work on or under a vehicle supported only by a
jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Refer to: Rear Halfshaft - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-05 Rear Drive Halfshafts, Removal and Installation).
3. Refer to: Exhaust System (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

4. CAUTIONS:


Do not use the 5mm hole on the differential case
flange for the alignment mark.


Make sure that the driveshaft is supported with
suitable retaining straps.


NOTE: Using the 3mm hole on the differential case
flange, paint an alignment mark (as indicated) to aid
correct installation of the driveshaft to the differential case. 205-932
Remover, Driveshaft Special Tool(s)

Vehicles with supercharger

2.
All vehicles

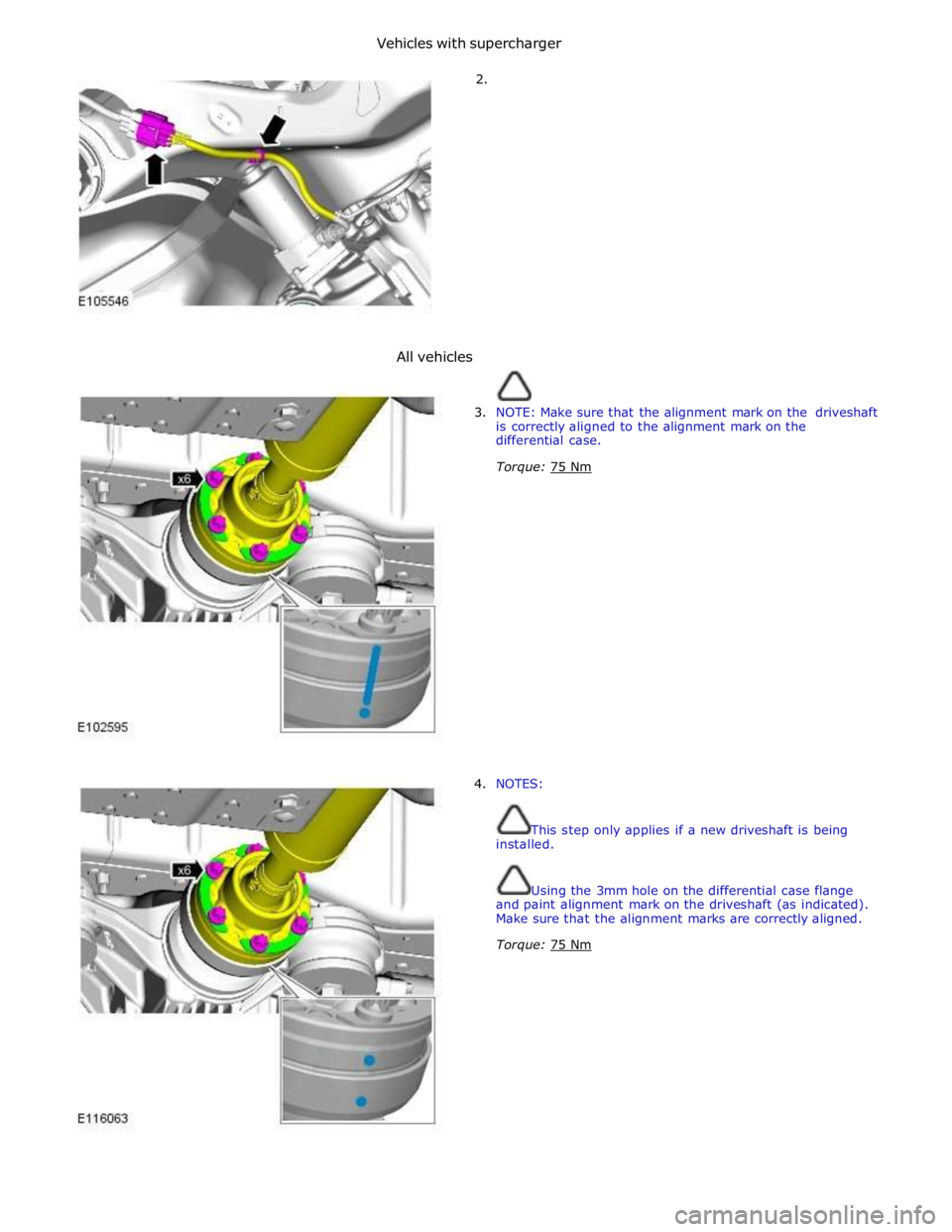

3. NOTE: Make sure that the alignment mark on the driveshaft
is correctly aligned to the alignment mark on the
differential case.
Torque: 75 Nm



















4. NOTES:


This step only applies if a new driveshaft is being
installed.


Using the 3mm hole on the differential case flange
and paint alignment mark on the driveshaft (as indicated).
Make sure that the alignment marks are correctly aligned.
Torque: 75 Nm

S/C 5.0L Petrol, Removal and Installation).

6. Refer to: Rear Halfshaft - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-05 Rear Drive Halfshafts, Removal and Installation).
7. Check and top-up the differential case.

Torque: 30 Nm

Published: 11-May-2011
Rear Drive Axle/Differential - Differential Front Bushing TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

Special Tool(s)


204-274
Bush install and removal tool

204-275
Bush install and removal tool

204-335
Bush install and removal tool

204-601
Bush install tool

303-1121
Installer, Crankshaft Seal Removal


1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

2. Refer to: Differential Case - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-02 Rear Drive Axle/Differential, Removal and Installation).

Installation
3. Special Tool(s): 204-335

1. NOTE: Make sure the new bushes are installed in the correct
orientation.
.

Special Tool(s): 204-275, 204-601, 303-1121, 204-274



2. Refer to: Differential Case - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-02 Rear Drive Axle/Differential, Removal and Installation). www.JagDocs.com

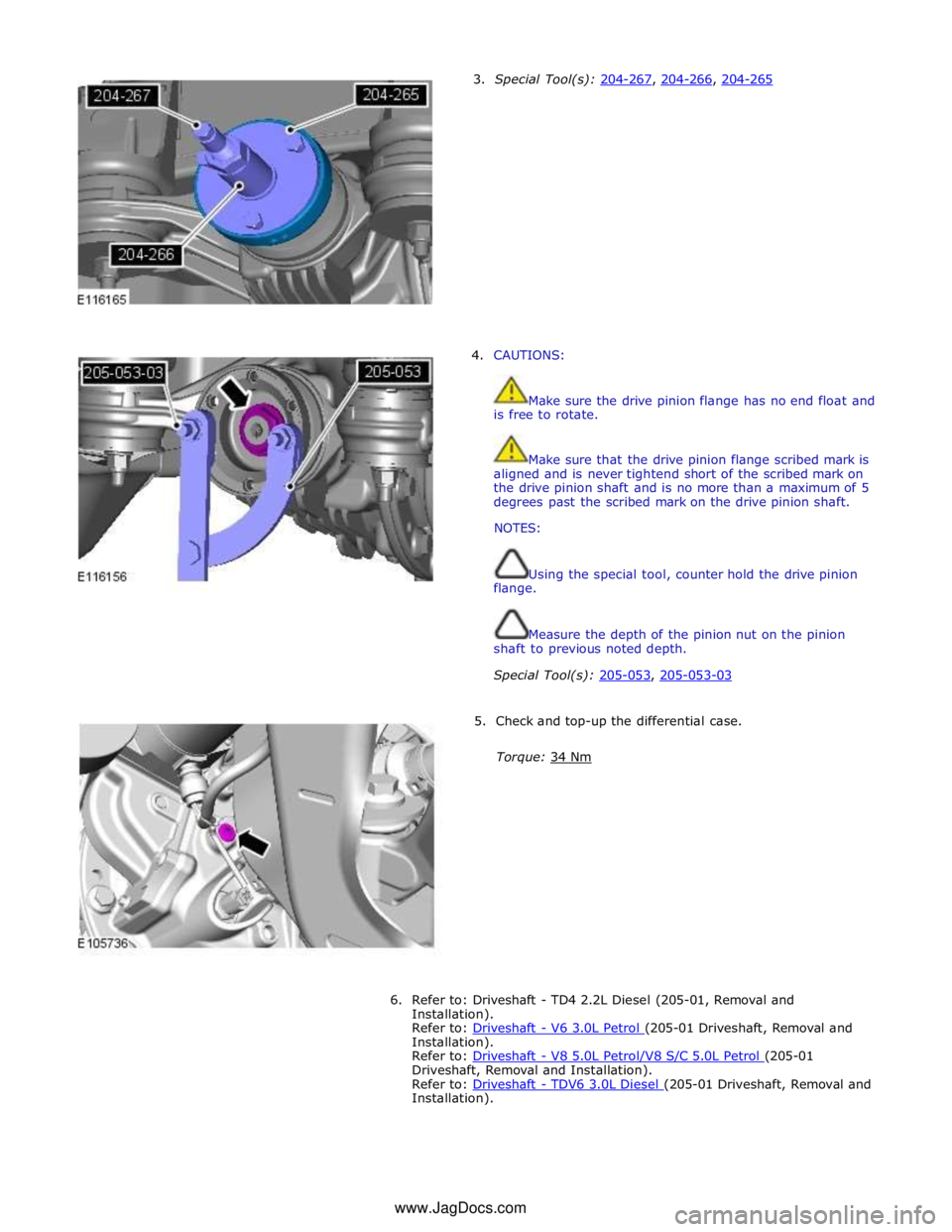

3. Special Tool(s): 204-267, 204-266, 204-265 4. CAUTIONS:


Make sure the drive pinion flange has no end float and
is free to rotate.


Make sure that the drive pinion flange scribed mark is
aligned and is never tightend short of the scribed mark on
the drive pinion shaft and is no more than a maximum of 5
degrees past the scribed mark on the drive pinion shaft.
NOTES:


Using the special tool, counter hold the drive pinion
flange.


Measure the depth of the pinion nut on the pinion
shaft to previous noted depth.
Special Tool(s): 205-053, 205-053-03
5. Check and top-up the differential case.

Torque: 34 Nm











6. Refer to: Driveshaft - TD4 2.2L Diesel (205-01, Removal and
Installation).
Refer to: Driveshaft - V6 3.0L Petrol (205-01 Driveshaft, Removal and Installation).
Refer to: Driveshaft - V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-01 Driveshaft, Removal and Installation).
Refer to: Driveshaft - TDV6 3.0L Diesel (205-01 Driveshaft, Removal and Installation). www.JagDocs.com

Rear Drive Axle/Differential - Differential Locking Motor
Removal and Installation

Removal

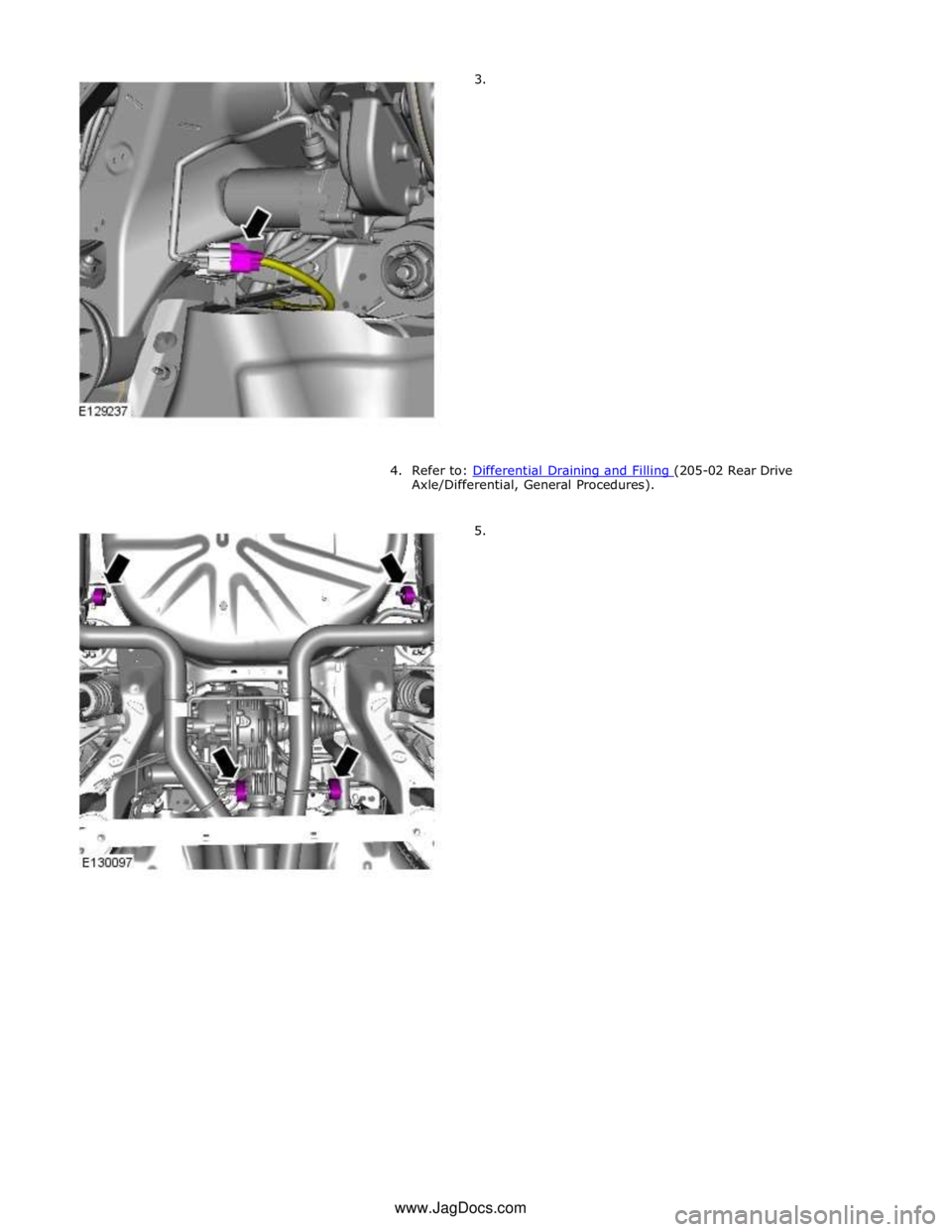

NOTE: Removal steps in this procedure may contain installation details. Published: 26-Feb-2014

1. Refer to: Differential Draining and Filling (205-02 Rear Drive Axle/Differential, General Procedures).

2.
3.

Axle/Differential, General Procedures).
