JAGUAR XFR 2010 1.G Workshop Manual

4. NOTE: Accurately scribe a line to mark the drive pinion
shaft to the drive pinion nut and pinion flange.






















5. Special Tool(s): 205-053, 205-053-03 6. Special Tool(s): 204-266, 204-265, 204-269

2.

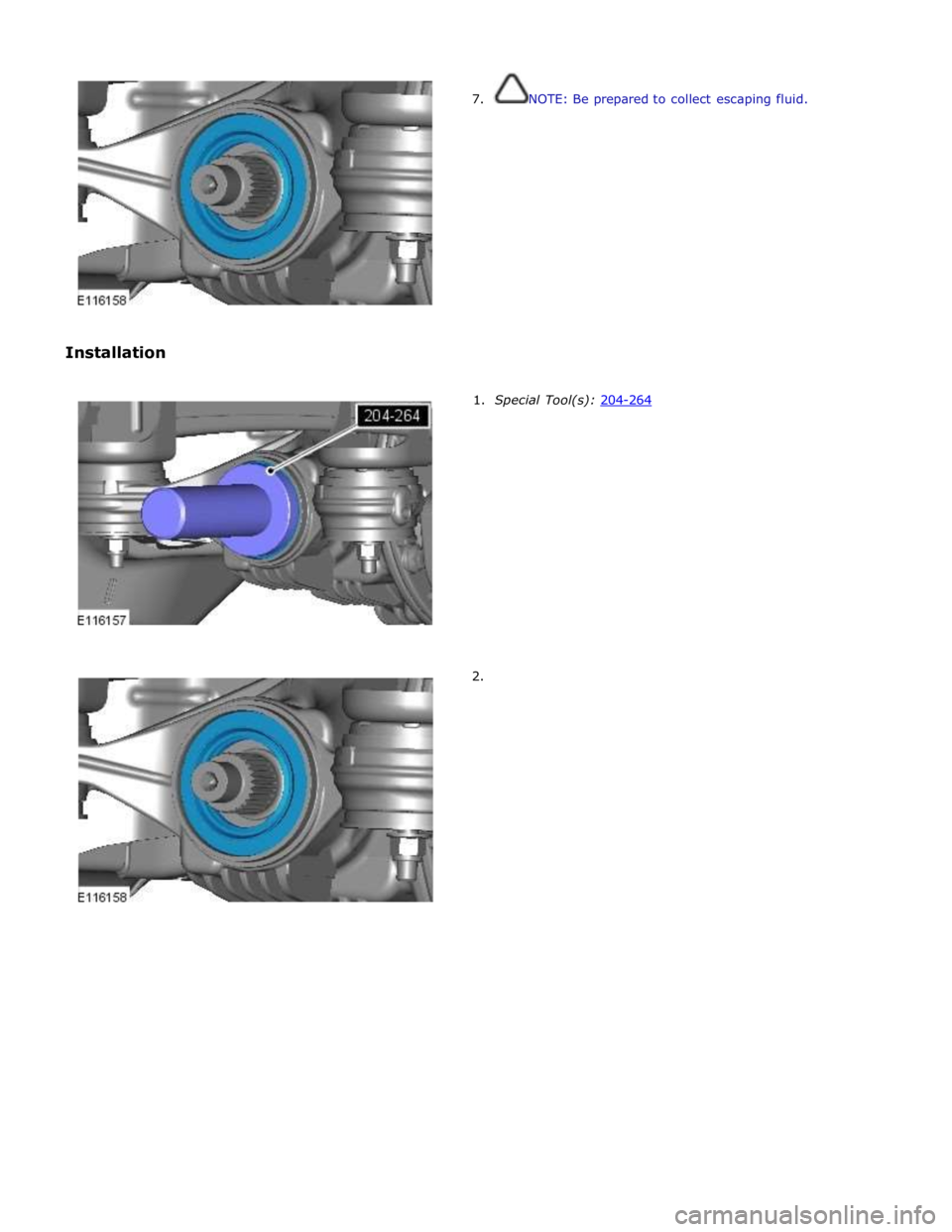

3. Special Tool(s): 204-267, 204-266, 204-265 4. CAUTIONS:


Make sure the drive pinion flange has no end float and
is free to rotate.


Make sure that the drive pinion flange scribed mark is
aligned and is never tightend short of the scribed mark on
the drive pinion shaft and is no more than a maximum of 5
degrees past the scribed mark on the drive pinion shaft.
NOTES:


Using the special tool, counter hold the drive pinion
flange.


Measure the depth of the pinion nut on the pinion
shaft to previous noted depth.
Special Tool(s): 205-053, 205-053-03
5. Check and top-up the differential case.

Torque: 34 Nm











6. Refer to: Driveshaft - TD4 2.2L Diesel (205-01, Removal and
Installation).
Refer to: Driveshaft - V6 3.0L Petrol (205-01 Driveshaft, Removal and Installation).
Refer to: Driveshaft - V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-01 Driveshaft, Removal and Installation).
Refer to: Driveshaft - TDV6 3.0L Diesel (205-01 Driveshaft, Removal and Installation). www.JagDocs.com

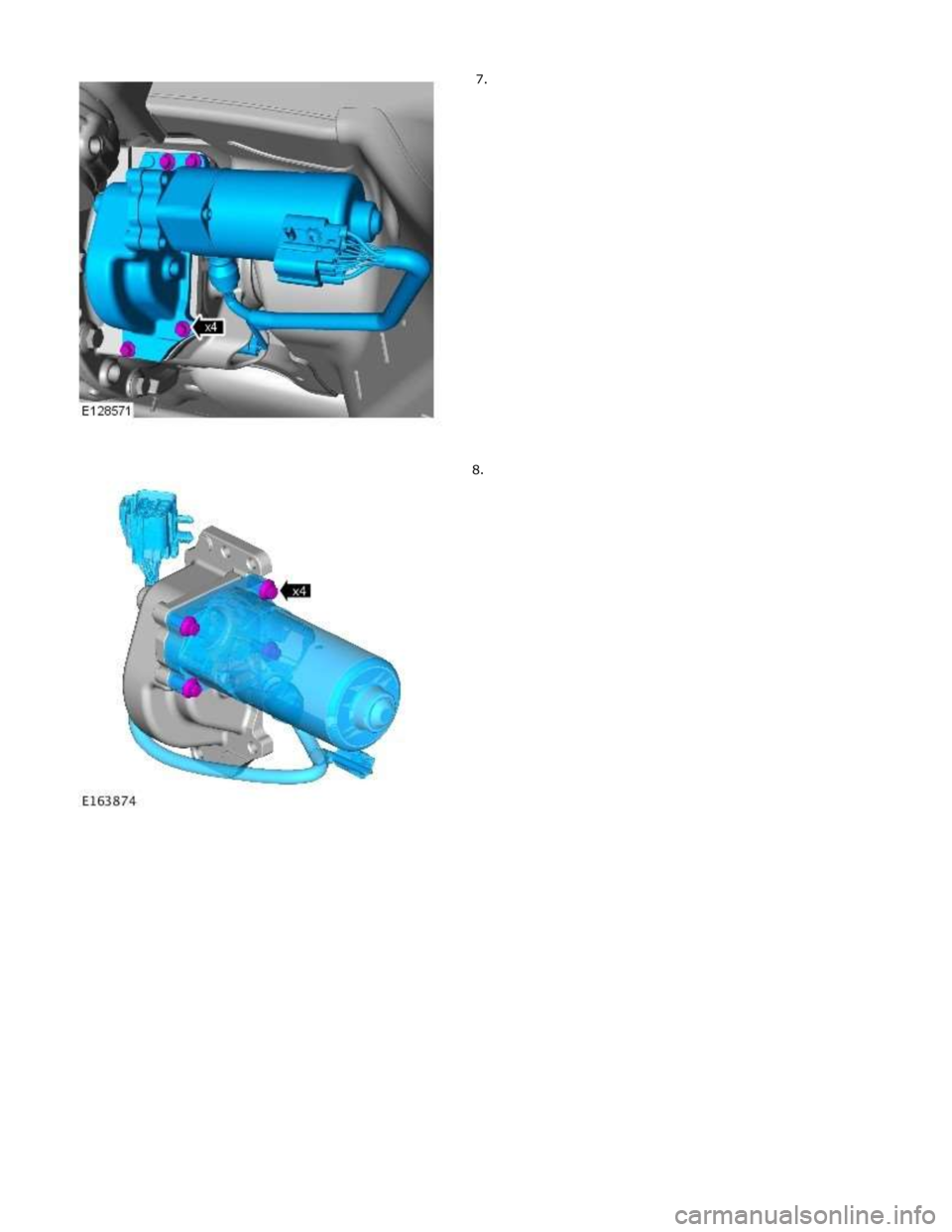

Rear Drive Axle/Differential - Differential Locking Motor
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details. Published: 26-Feb-2014

1. Refer to: Differential Draining and Filling (205-02 Rear Drive Axle/Differential, General Procedures).

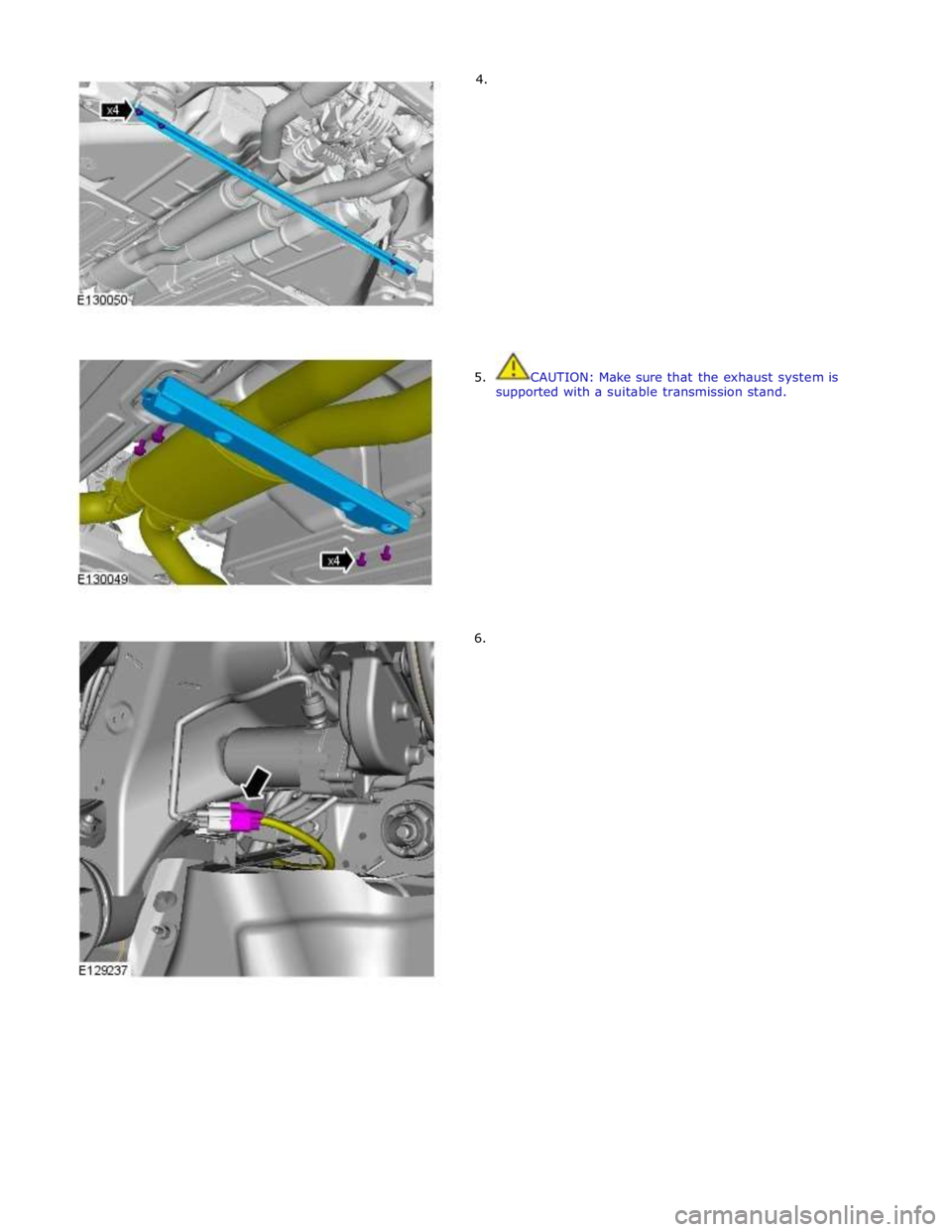

2.
3.

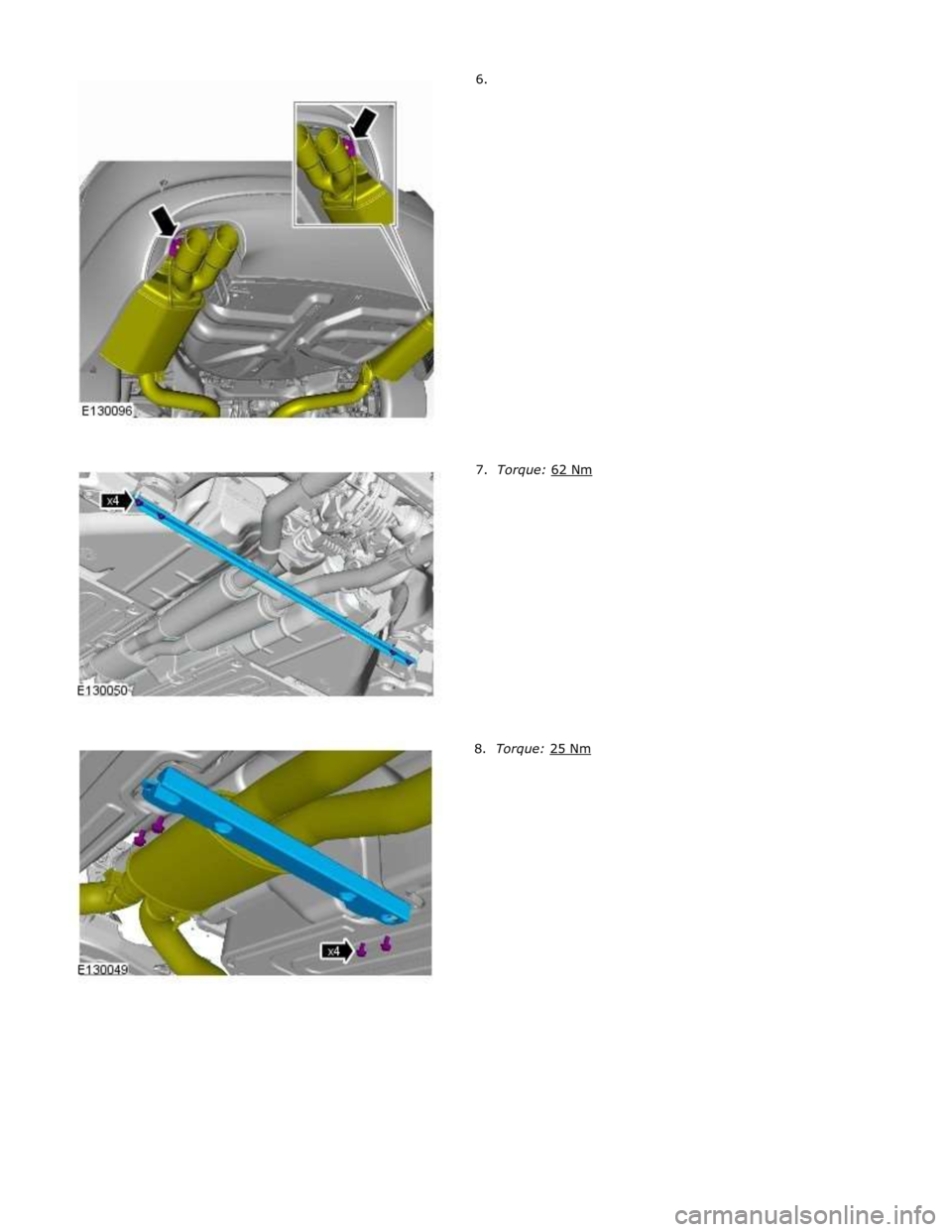

Installation
1. Torque: 11 Nm























2. CAUTIONS:


Make sure that the mating faces are clean and free of
foreign material.


Apply a continuous bead of silicone gasket sealant
(Loctite 5999) as shown on the illustration. The application
of the sealant must be 4mm diameter. Install the
component immediately after applying the sealant without
smearing the sealant.


NOTE: New units must be configured using the
Programmable Module Installation Routine in the diagnostic
tool.
Torque: 11 Nm Apply a suitable amount of approved sealant to one
of the mating faces.

Axle/Differential, General Procedures).

5. www.JagDocs.com

8. Torque: 25 Nm

Rear Drive Halfshafts -
Lubricants, Fluids, Sealers and Adhesives Published: 11-May-2011
Item Specification Constant velocity (CV) grease Optimal LN 584 LO Fill Capacities
Description Grams Grease for inner CV joint - all vehicles 140 Grease for outer CV joint - all vehicles 125 Torque Specifcations

NOTE: Make sure that a new nut is installed.

Item Nm lb-ft lb-in Halfshaft outer constant velocity joint retaining nut 300 221 -
