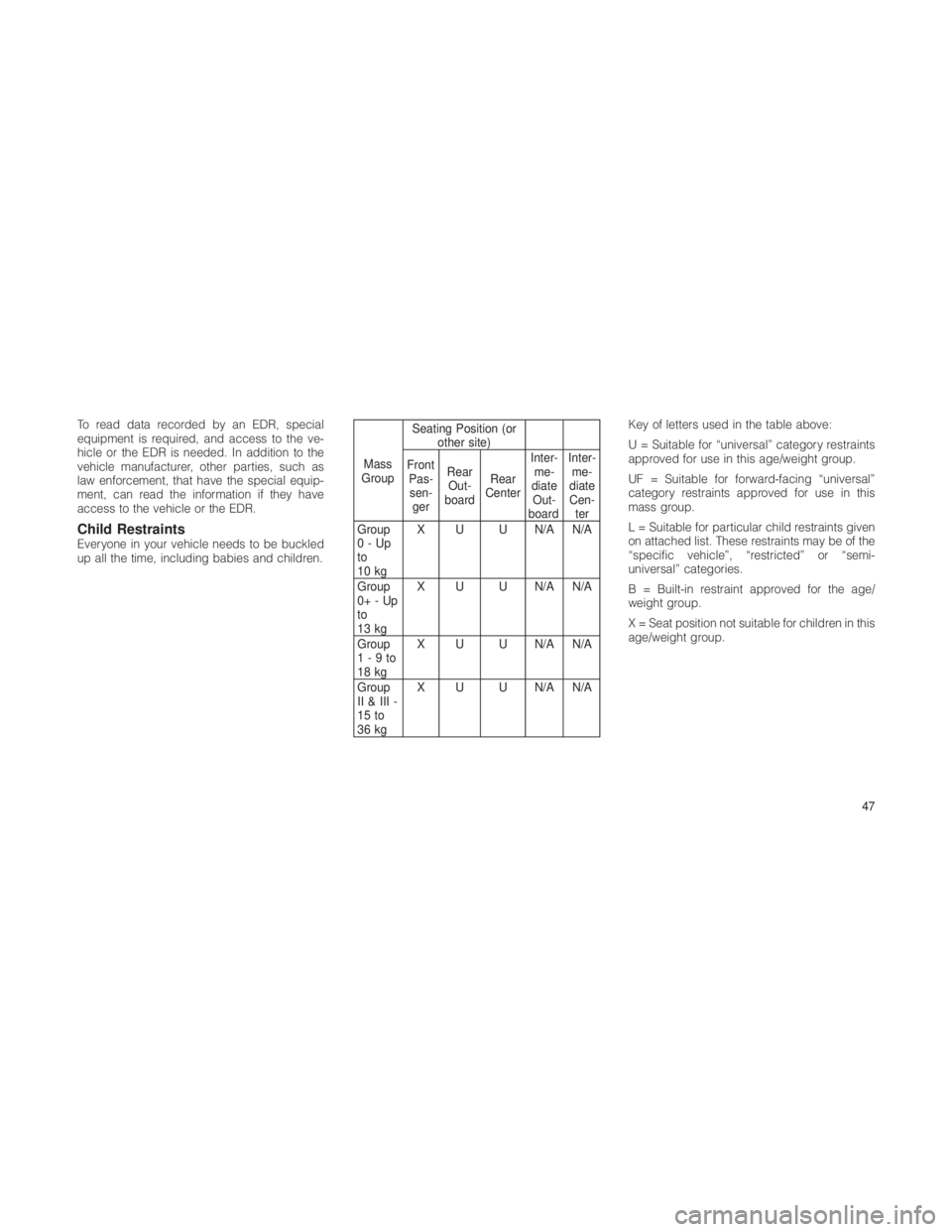

To read data recorded by an EDR, special
equipment is required, and access to the ve-
hicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as
law enforcement, that have the special equip-
ment, can read the information if they have
access to the vehicle or the EDR.
Child RestraintsEveryone in your vehicle needs to be buckled
up all the time, including babies and children.
Mass
Group Seating Position (or
other site)
Front Pas-sen- ger Rear
Out-
board Rear
Center Inter-
me-
diate Out-
board Inter-
me-
diate
Cen- ter
Group
0-Up
to
10 kg X U U N/A N/A
Group
0+-Up
to
13 kg X U U N/A N/A
Group
1-9to
18 kg X U U N/A N/A
Group
II & III -
15 to
36 kg X U U N/A N/A Key of letters used in the table above:
U = Suitable for “universal” category restraints
approved for use in this age/weight group.
UF = Suitable for forward-facing “universal”
category restraints approved for use in this
mass group.
L = Suitable for particular child restraints given
on attached list. These restraints may be of the
“specific vehicle”, “restricted” or “semi-
universal” categories.
B = Built-in restraint approved for the age/
weight group.
X = Seat position not suitable for children in this
age/weight group.
47

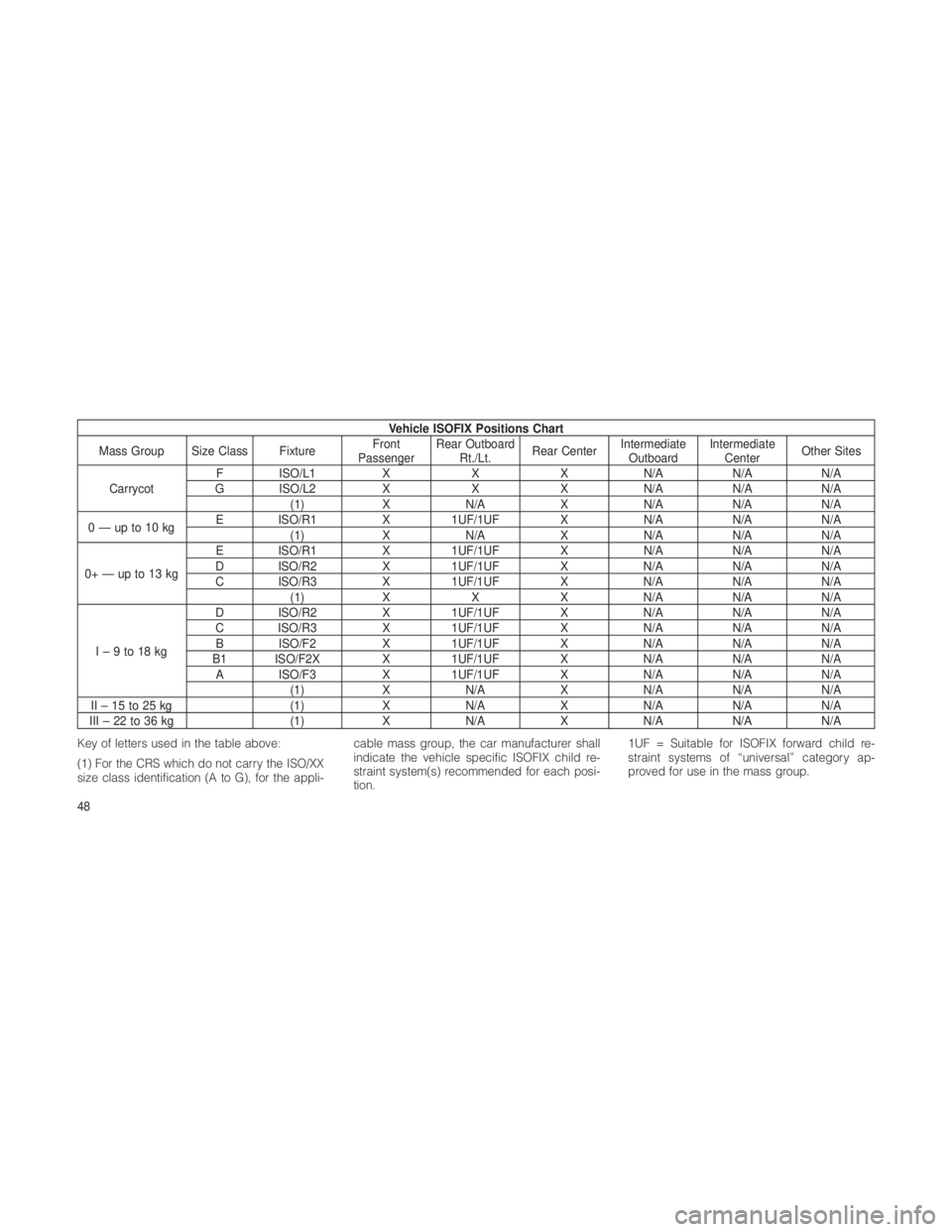

Vehicle ISOFIX Positions Chart
Mass Group Size Class Fixture Front
Passenger Rear Outboard
Rt./Lt. Rear Center Intermediate
Outboard Intermediate
Center Other Sites
Carrycot F ISO/L1
XXXN/A N/AN/A
G ISO/L2 XXXN/A N/AN/A
(1) XN/A XN/A N/AN/A
0—upto10kg E ISO/R1
X1UF/1UF XN/A N/AN/A
(1) XN/A XN/A N/AN/A
0+—upto13kg E ISO/R1
X1UF/1UF XN/A N/AN/A
D ISO/R2 X1UF/1UF XN/A N/AN/A
C ISO/R3 X1UF/1UF XN/A N/AN/A
(1) XXXN/A N/AN/A
I–9to18kg D ISO/R2
X1UF/1UF XN/A N/AN/A
C ISO/R3 X1UF/1UF XN/A N/AN/A
B ISO/F2 X1UF/1UF XN/A N/AN/A
B1 ISO/F2X X1UF/1UF XN/A N/AN/A
A ISO/F3 X1UF/1UF XN/A N/AN/A
(1) XN/A XN/A N/AN/A
II – 15 to 25 kg (1)XN/A XN/A N/AN/A
III – 22 to 36 kg (1)XN/A XN/A N/AN/A
Key of letters used in the table above:
(1) For the CRS which do not carry the ISO/XX
size class identification (A to G), for the appli- cable mass group, the car manufacturer shall
indicate the vehicle specific ISOFIX child re-
straint system(s) recommended for each posi-
tion.1UF = Suitable for ISOFIX forward child re-
straint systems of “universal” category ap-
proved for use in the mass group.
48

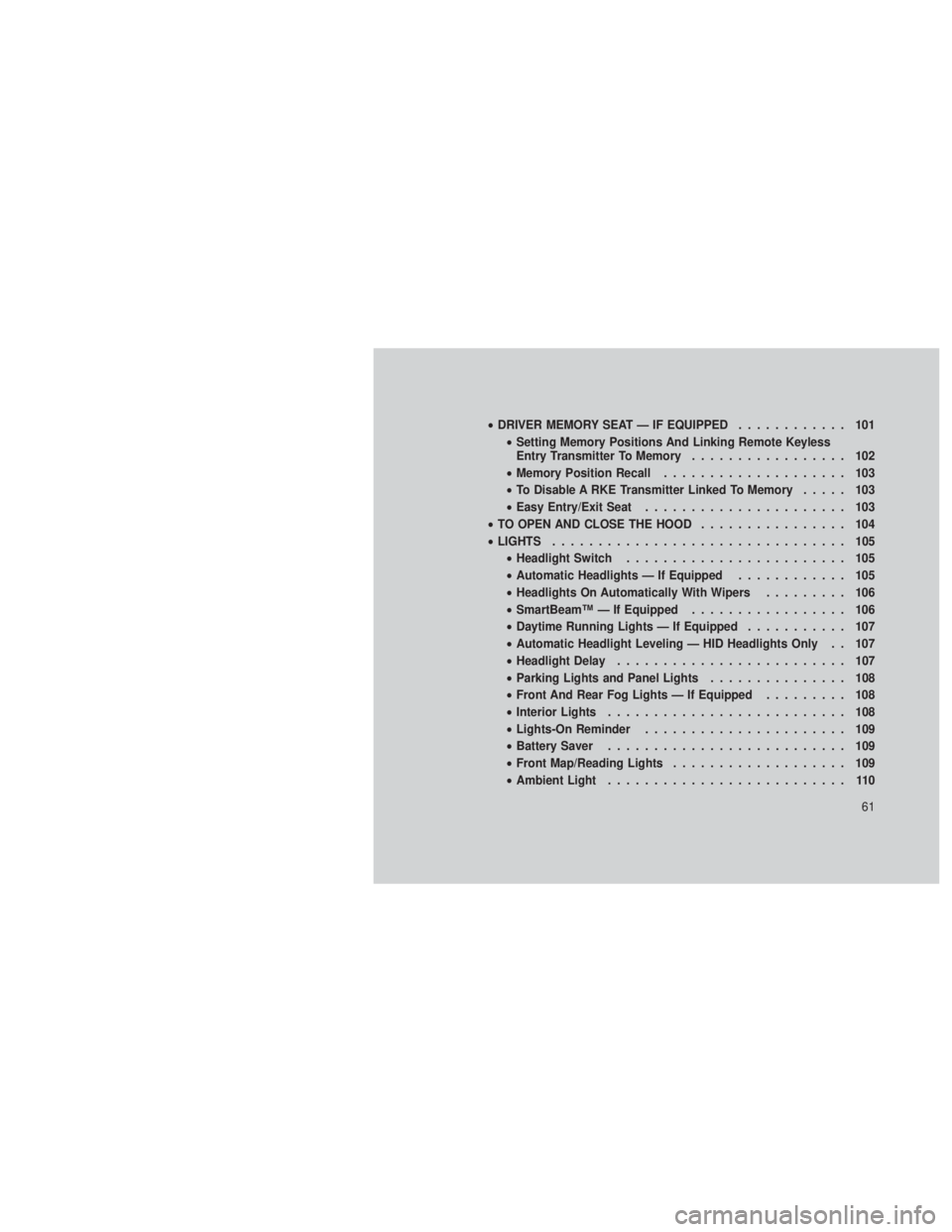

•DRIVER MEMORY SEAT — IF EQUIPPED ............ 101
• Setting Memory Positions And Linking Remote Keyless
Entry Transmitter To Memory ................. 102
• Memory Position Recall .................... 103
• To Disable A RKE Transmitter Linked To Memory ..... 103
• Easy Entry/Exit Seat ...................... 103
• TO OPEN AND CLOSE THE HOOD ................ 104
• LIGHTS ................................ 105
• Headlight Switch ........................ 105
• Automatic Headlights — If Equipped ............ 105
• Headlights On Automatically With Wipers ......... 106
• SmartBeam™ — If Equipped ................. 106
• Daytime Running Lights — If Equipped ........... 107
• Automatic Headlight Leveling — HID Headlights Only . . 107
• Headlight Delay ......................... 107
• Parking Lights and Panel Lights ............... 108
• Front And Rear Fog Lights — If Equipped ......... 108
• Interior Lights .......................... 108
• Lights-On Reminder ...................... 109
• Battery Saver .......................... 109
• Front Map/Reading Lights ................... 109
• Ambient Light .......................... 110
61

Toggling Between Calls
If two calls are in progress (one active and one
on hold), press the
button until you hear a
single beep indicating that the active and hold
status of the two calls have switched. Only one
call can be placed on hold at one time.
Conference Call
When two calls are in progress (one active and
one on hold), press and hold the
button
until you hear a double beep indicating that the
two calls have been joined into one conference
call.
Three-Way Calling
To initiate three-way calling, press the
button while a call is in progress, and make a
second phone call, as described under “Mak-
ing a Second Call While Current Call in Prog-
ress”. After the second call has established,
press and hold the
button until you hear a
double beep, indicating that the two calls have
been joined into one conference call.
Call Termination
To end a call in progress, momentarily press the
button. Only the active call(s) will be
terminated and if there is a call on hold, it will become the new active call. If the active call is
terminated by the phone far end, a call on hold
may not become active automatically. This is
cell phone-dependent. To bring the call back
from hold, press and hold the
button until
you hear a single beep.
Redial
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Redial”.
• The Uconnect™ Phone will call the last num-
ber that was dialed from your mobile phone.
NOTE:
This may not be the last number dialed from
the Uconnect™ Phone.
Call Continuation
Call continuation is the progression of a phone
call on the Uconnect™ Phone after the vehicle
ignition key has been switched to OFF. Call
continuation functionality available on the ve-
hicle can be any one of three types:
• After the ignition key is switched to OFF, a
call can continue on the Uconnect™ Phone either until the call ends, or until a vehicle
specific time expires, or until the vehicle
battery condition dictates cessation of the
call on the Uconnect™ Phone and transfer of
the call to the mobile phone.
• After the ignition key is switched to OFF, a
call can continue on the Uconnect™ Phone
for a certain duration, after which the call is
automatically transferred from the
Uconnect™ Phone to the mobile phone.
• An active call is automatically transferred to
the mobile phone after the ignition key is
switched to OFF.
Uconnect™ Phone Features
Language Selection
To change the language that the Uconnect™
Phone is using:
•Press the
button to begin.
• After the “Ready” prompt and the following
beep, say the name of the language you
wish to switch to (English, Dutch, French,
German, Italian, or Spanish, if so equipped).
80

•Continue to follow the system prompts to
complete language selection.
After selecting one of the languages, all
prompts and voice commands will be in that
language.
NOTE:
After every Uconnect™ Phone language
change operation, only the language-
specific 32-name phonebook is usable. The
paired phone name is not language-specific
and is usable across all languages.
For command translations and alternate com-
mands in supported languages, refer to “Com-
mand Translations” at the end of this section.
Emergency Assistance — If Equipped
If you are in an emergency and the mobile
phone is reachable:
• Pick up the phone and manually dial the
emergency number for your area.
If the phone is not reachable and the
Uconnect™ Phone is operational, you may
reach the emergency number as follows:
• Press the
button to begin. •
After the “Ready” prompt and the following
beep, say “Emergency” and the Uconnect™
Phone will instruct the paired mobile phone
to call the emergency number.
NOTE:
• The default number is 112. The number
dialed may not be applicable with the
available mobile service and area.
• If supported, this number may be pro-
grammable on some systems. To do this,
press the
button and say “Setup”,
followed by “Emergency”.
• The Uconnect™ Phone does slightly
lower your chances of successfully mak-
ing a phone call as to that for the mobile
phone directly.
WARNING!
To use your Uconnect™ Phone System in an
emergency, your mobile phone must be:
•turned on,
• paired to the Uconnect™ System,
• and have network coverage. Breakdown Service — If Equipped
If you need Breakdown service:
•
Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Breakdown service”.
NOTE:
The Breakdown service number has to be
setup before using. To setup, press the
button and say “Setup, Breakdown Service”
and follow prompts.
Paging
To learn how to page refer to “Working with
Automated Systems”. Paging works properly
except for pagers of certain companies which
time out a little too soon to work properly with
the Uconnect™ Phone.
Voice Mail Calling
To learn how to access your voice mail, refer to
“Working with Automated Systems”.
Working With Automated Systems
This method is used in instances where one
generally has to press numbers on the mobile
phone keypad while navigating through an
automated telephone system.
81

You can use your Uconnect™ Phone to access
a voice mail system or an automated service,
such as a paging service or automated cus-
tomer service. Some services require immedi-
ate response selection. In some instances, that
may be too quick for use of the Uconnect™
Phone.
When calling a number with your Uconnect™
Phone that normally requires you to enter in a
touch-tone sequence on your mobile phone
keypad, you can press the
button and
say the sequence you wish to enter followed by
the word “Send”. For example, if required to
enter your PIN followed with a hash, (3746#),
you can press the
button and say, “3 7 4
6 # Send”. Saying a number, or sequence of
numbers, followed by “Send”, is also to be
used for navigating through an automated cus-
tomer service center menu structure, and to
leave a number on a pager.
You can also send stored Uconnect™ Phone-
book entries as tones for fast and easy access
to voice mail and pager entries. To use this
feature, dial the number you wish to call and
then press the
button and say “Send.”
The system will prompt you to enter the name or number and say the name of the phonebook
entry you wish to send. The Uconnect™ Phone
will then send the corresponding phone num-
ber associated with the phonebook entry, as
tones over the phone.
NOTE:
•
You may not hear all of the tones due to
mobile phone network configurations;
this is normal.
• Some paging and voice mail systems
have system time out settings that are too
short and may not allow the use of this
feature.
Barge In — Overriding Prompts
The “Voice Command” button can be used
when you wish to skip part of a prompt and
issue your voice command immediately. For
example, if a prompt is asking “Would you like
to pair a phone, clear a,” you could press the
button and say, “Pair a Phone” to select
that option without having to listen to the rest of
the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the
system from confirming your choices (e.g., the Uconnect™ Phone will not repeat a phone
number before you dial it).
•
Press the
button to begin.
• After the “Ready” prompt and the following
beep, say:
“Setup Confirmations Prompts On”
“Setup Confirmations Prompts Off”
Phone And Network Status Indicators
If available on the radio and/or on a premium
display such as the instrument panel cluster,
and supported by your mobile phone, the
Uconnect™ Phone will provide notification to
inform you of your phone and network status
when you are attempting to make a phone call
using Uconnect™ Phone. The status is given
for network signal strength, phone battery
strength, etc.
Dialing Using The Mobile Phone Keypad
You can dial a phone number with your mobile
phone keypad and still use the Uconnect™
Phone (while dialing via the mobile phone
keypad, the user must exercise caution and
take precautionary safety measures). By dial-
ing a number with your paired Bluetooth mo-
82

•Uconnect™ Phone will play the new text
message for you.
After reading a message, you can “Reply” or
“Forward” the message using Uconnect™
Phone.
Send Messages:
You can send messages using Uconnect™
Phone. To send a new message:
• Press the
button.
• After the “Ready” prompt and the following
beep, say “SMS Send” or “Send Messages”.
• You can either say the message you wish to
send or say “List Messages.” There are 20
preset messages.
To send a message, press the
button
while the system is listing the message and say
“Send.”
Uconnect™ Phone will prompt you to say the
name or number of the person you wish to send
the message to.
List of Preset Messages:
1. Yes 2. No
3. Where are you?
4. I need more direction.
5. LOL
6. Why
7. I love you
8. Call me
9. Call me later
10. Thanks
11. See You in 15 minutes
12. Iamonmyway
13. I’ll be late
14. Are you there yet?
15. Where are we meeting?
16. Can this wait?
17. Bye for now
18. When can we meet
19. Send number to call
20. Start without meTurn SMS Incoming Announcement
ON/OFF
Turning the SMS Incoming Announcement OFF
will stop the system from announcing the new
incoming messages.
•
Press the
button.
• After the “Ready” prompt and the following
beep, say “Setup, Incoming Message An-
nouncement”, you will then be given a
choice to change it.
Bluetooth Communication Link
Mobile phones have been found to lose con-
nection to the Uconnect™ Phone. When this
happens, the connection can generally be re-
established by switching the phone off/on. Your
mobile phone is recommended to remain in
Bluetooth ON mode.
Power-Up
After switching the ignition key from OFF to
either ON or ACC position, or after a language
change, you must wait at least 15 seconds
prior to using the system.
86

equipped), and the radio station preset set-
tings. Your Remote Keyless Entry (RKE) trans-
mitters can also be programmed to recall the
same positions when the UNLOCK button is
pressed.
Your vehicle is equipped with two RKE trans-
mitters. One or both RKE transmitters can be
linked to either memory position. The memory
system can accommodate up to four RKE
transmitters, each one linked to either of the
two memory positions.Setting Memory Positions And
Linking Remote Keyless Entry
Transmitter To Memory
NOTE:
Each time the S (SET) button and a num-
bered button 1 or 2 are pressed, you erase
the memory settings for that button and
store a new one.
1. Insert the ignition key, and turn the ignition
switch to the ON/RUN position.
2. Press the driver door MEMORY button num-
ber 1 if you are setting the memory for driver 1,
or button number 2 if you are setting the
memory for driver 2. The system will recall any
stored settings. Wait for the system to complete
the memory recall before continuing to Step 3.
3. Adjust the driver’s seat, recliner, and driver’s
sideview mirror to the desired positions.
4. Adjust the power steering column tilt and
telescoping position (if equipped) to the de-
sired positions.5. Turn on the radio and set the radio station
presets (up to 12 AM and 12 FM stations can
be set).
6. Turn the ignition switch to the LOCK/OFF
position and remove the key.
7. Press and release the S (SET) button lo-
cated on the driver’s door.
8. Within five seconds, press and release
MEMORY button 1 or 2 on the driver’s door. The
next step must be performed within five sec-
onds if you desire to also use a RKE transmitter
to recall memory positions.
9. Press and release the LOCK button on one
of the RKE transmitters.
10. Insert the ignition key, and turn the ignition
switch to the ON/RUN position.
11. Select
Remote Linked to Memory in the
Electronic Vehicle Information Center (EVIC)
and enter Ye s. Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-
Programmable Features” in “Understanding
Your Instrument Panel” for further information.
Driver Memory Buttons
102

12. Repeat the above steps to set the next
memory position, using the other numbered
memory button, or to link another RKE transmit-
ter to memory.
Memory Position Recall
NOTE:
The vehicle must be in PARK to recall
memory positions. If a recall is attempted
when the vehicle is not in PARK, a message
will be displayed in the Electronic Vehicle
Information Center (EVIC).
To recall the memory settings for driver one,
press MEMORY button number 1 on the driv-
er’s door, or the UNLOCK button on the RKE
transmitter linked to memory position 1.
To recall the memory setting for driver two,
press MEMORY button number 2 on the driv-
er’s door, or the UNLOCK button on the RKE
transmitter linked to memory position 2.
A recall can be cancelled by pressing any of
the MEMORY buttons on the drivers door dur-
ing a recall (S, 1, or 2). When a recall is
cancelled, the driver’s seat, driver’s mirror andthe pedals stop moving. A delay of one second
will occur before another recall can be se-
lected.
To Disable A RKE Transmitter
Linked To Memory
1. Turn the ignition switch to the LOCK posi-
tion, and remove the key.
2. Press and release MEMORY button number
1. The system will recall any memory settings
stored in position 1. Wait for the system to
complete the memory recall before continuing
to Step 3.
3. Press and release the memory S (SET) but-
ton located on the driver’s door.
4. Within five seconds, press and release
MEMORY button 1 on the driver’s door.
5. Within five seconds, press and release the
UNLOCK button on the RKE transmitter.
To disable another RKE transmitter linked to
either memory position, repeat steps 1 through
5 for each RKE transmitter.
NOTE:
Once programmed, all RKE transmitters
linked to memory can be easily enabled or
disabled at one time. Refer to “Electronic
Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding
Your Instrument Panel” for further informa-
tion.
Easy Entry/Exit SeatThis feature provides automatic driver’s seat
positioning which will enhance driver mobility
out of and into the vehicle.
There are two possible Easy Entry/Exit adjust-
ments available:
•
The seat cushion will move rearward ap-
proximately 2.5 in (60 mm), if the starting
position of the seat is greater than or equal to
2.67 in (68 mm) forward of the rear seat stop
when the key is removed from the ignition
switch. The seat will then move forward
approximately 2.5 in (60 mm) when the key is
placed into the ignition and turned out of the
LOCK position.
103

•The seat will move to the position located
0.3 in (8 mm) forward of the rear stop if the
starting position is between 0.9 to 2.67 in (23
to 68 mm) forward of the rear stop when the
key is removed from the ignition switch. The
seat will move forward to the memory/driving
position when the key is placed into the
ignition, and turned out of the LOCK position
toward the ACC/ON position.
The Easy Entry/Exit feature will be automatically
disabled if the seat is already positioned closer
than 0.9 in (23 mm) forward of the rear stop. At
this position, there is no benefit to the driver by
moving the seat for Easy Exit/Entry.
Each stored memory setting will have an asso-
ciated Easy Entry/Exit position.
NOTE:
The Easy Entry/Exit feature is not enabled
when the vehicle is delivered from the fac-
tory. The Easy Entry/Exit feature is enabled
(or later disabled) through the program-
mable features in the Electronic Vehicle In-
formation Center (EVIC). Refer to “Elec-
tronic Vehicle Information Center (EVIC)/ Customer-Programmable Features” in
“Understanding Your Instrument Panel” for
further information.
TO OPEN AND CLOSE THE HOODTo open the hood, two latches must be re-
leased.
1. Pull the release lever located below the
instrument panel and in front of the driver’s
door.
2. Reach under the hood, move safety latch to
the left and lift the hood.
CAUTION!
To prevent possible damage, do not slam the
hood to close it. Use a firm downward push at
the center of the hood to ensure that both
latches engage.
Hood Release
Safety Latch Location
104
