2

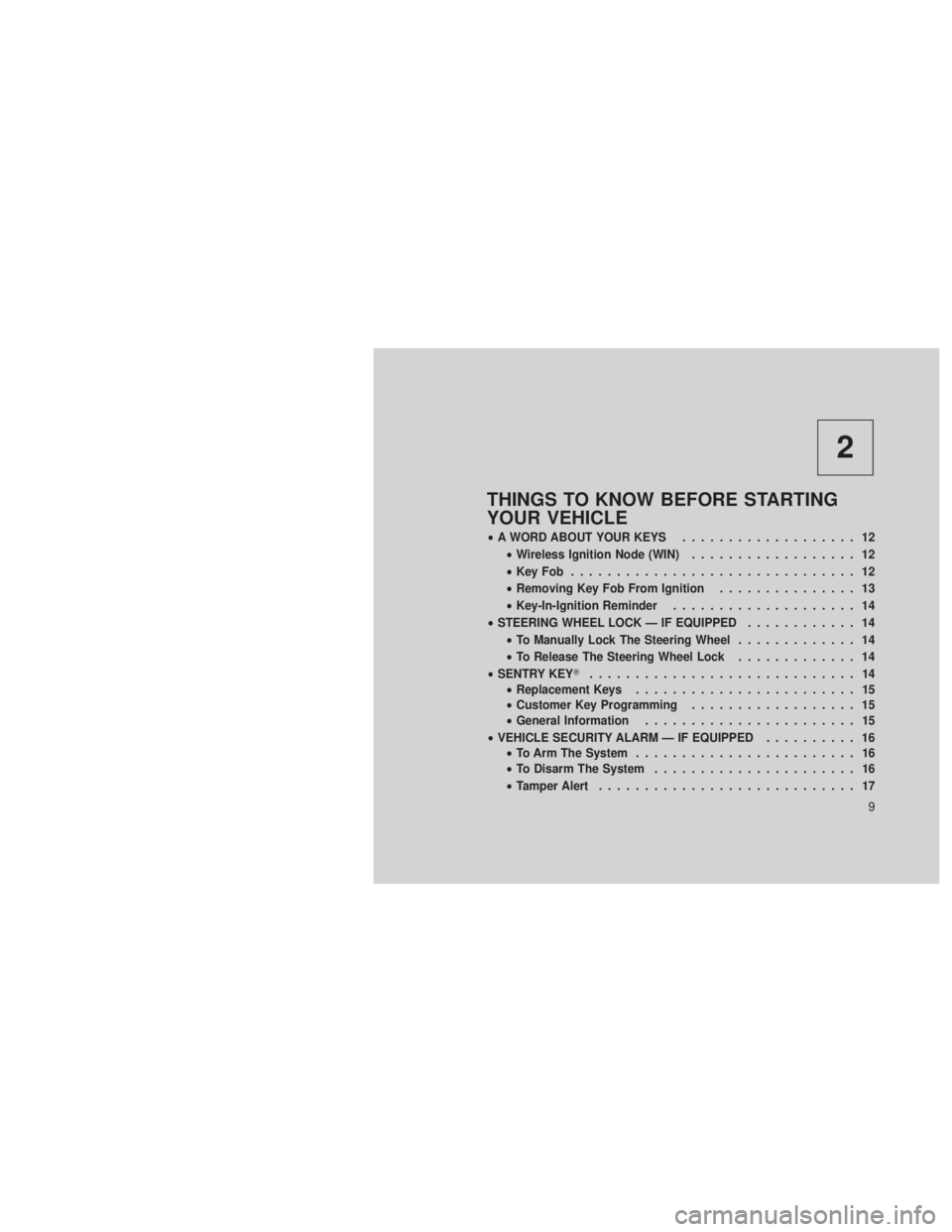

THINGS TO KNOW BEFORE STARTING
YOUR VEHICLE
•A WORD ABOUT YOUR KEYS ................... 12
• Wireless Ignition Node (WIN) .................. 12
• KeyFob ............................... 12
• Removing Key Fob From Ignition ............... 13
• Key-In-Ignition Reminder .................... 14
• STEERING WHEEL LOCK — IF EQUIPPED ............ 14
• To Manually Lock The Steering Wheel ............. 14
• To Release The Steering Wheel Lock ............. 14
• SENTRY KEY ............................. 14
• Replacement Keys ........................ 15
• Customer Key Programming .................. 15
• General Information ....................... 15
• VEHICLE SECURITY ALARM — IF EQUIPPED .......... 16
• To Arm The System ........................ 16
• To Disarm The System ...................... 16
• Tamper Alert ............................ 17
9

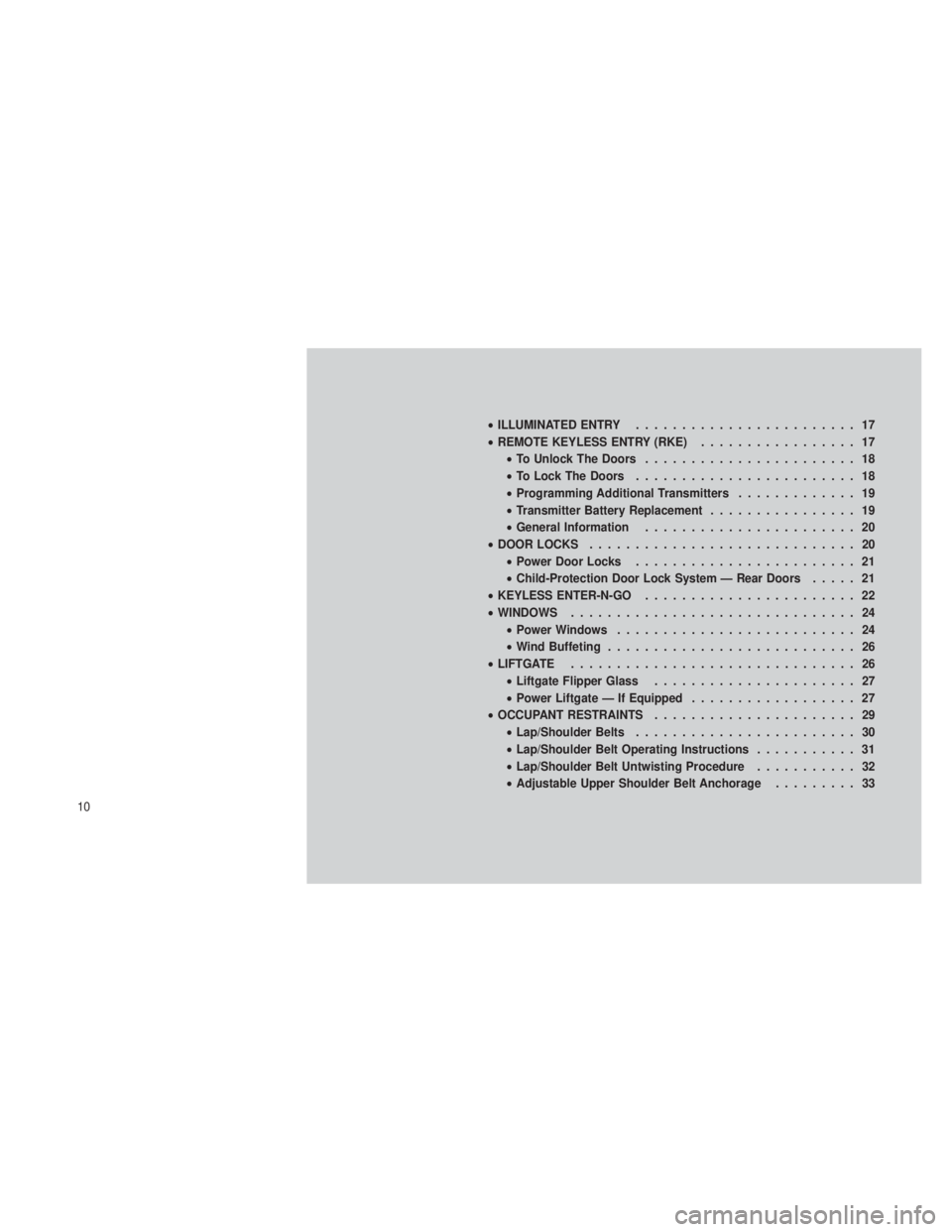

•ILLUMINATED ENTRY ........................ 17
• REMOTE KEYLESS ENTRY (RKE) ................. 17
• To Unlock The Doors ....................... 18
• To Lock The Doors ........................ 18
• Programming Additional Transmitters ............. 19
• Transmitter Battery Replacement ................ 19
• General Information ....................... 20
• DOOR LOCKS ............................. 20
• Power Door Locks ........................ 21
• Child-Protection Door Lock System — Rear Doors ..... 21
• KEYLESS ENTER-N-GO ....................... 22
• WINDOWS ............................... 24
• Power Windows .......................... 24
• Wind Buffeting ........................... 26
• LIFTGATE ............................... 26
• Liftgate Flipper Glass ...................... 27
• Power Liftgate — If Equipped .................. 27
• OCCUPANT RESTRAINTS ...................... 29
• Lap/Shoulder Belts ........................ 30
• Lap/Shoulder Belt Operating Instructions ........... 31
• Lap/Shoulder Belt Untwisting Procedure ........... 32
• Adjustable Upper Shoulder Belt Anchorage ......... 33
10

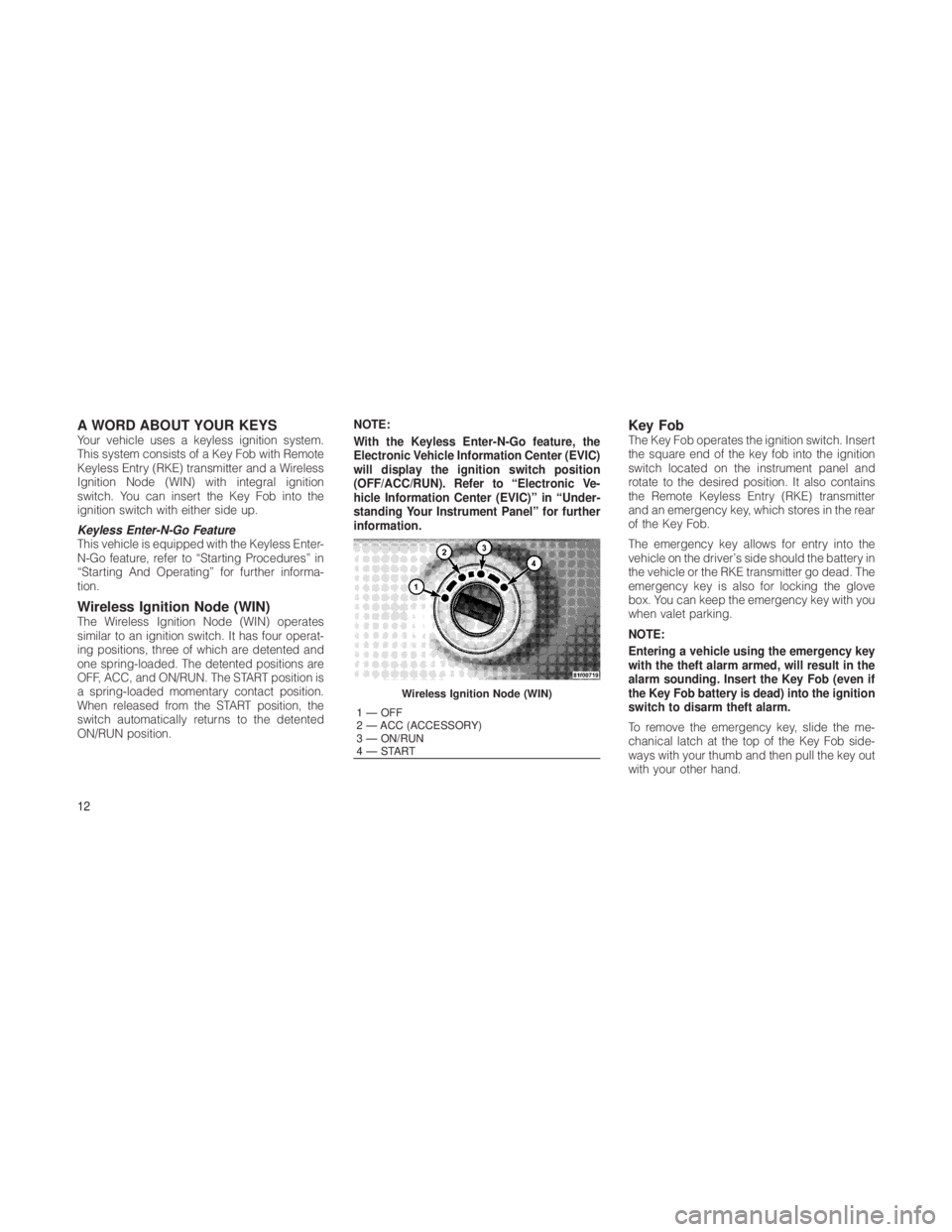

A WORD ABOUT YOUR KEYSYour vehicle uses a keyless ignition system.
This system consists of a Key Fob with Remote
Keyless Entry (RKE) transmitter and a Wireless
Ignition Node (WIN) with integral ignition
switch. You can insert the Key Fob into the
ignition switch with either side up.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-
N-Go feature, refer to “Starting Procedures” in
“Starting And Operating” for further informa-
tion.
Wireless Ignition Node (WIN)The Wireless Ignition Node (WIN) operates
similar to an ignition switch. It has four operat-
ing positions, three of which are detented and
one spring-loaded. The detented positions are
OFF, ACC, and ON/RUN. The START position is
a spring-loaded momentary contact position.
When released from the START position, the
switch automatically returns to the detented
ON/RUN position.NOTE:
With the Keyless Enter-N-Go feature, the
Electronic Vehicle Information Center (EVIC)
will display the ignition switch position
(OFF/ACC/RUN). Refer to “Electronic Ve-
hicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further
information.
Key FobThe Key Fob operates the ignition switch. Insert
the square end of the key fob into the ignition
switch located on the instrument panel and
rotate to the desired position. It also contains
the Remote Keyless Entry (RKE) transmitter
and an emergency key, which stores in the rear
of the Key Fob.
The emergency key allows for entry into the
vehicle on the driver’s side should the battery in
the vehicle or the RKE transmitter go dead. The
emergency key is also for locking the glove
box. You can keep the emergency key with you
when valet parking.
NOTE:
Entering a vehicle using the emergency key
with the theft alarm armed, will result in the
alarm sounding. Insert the Key Fob (even if
the Key Fob battery is dead) into the ignition
switch to disarm theft alarm.
To remove the emergency key, slide the me-
chanical latch at the top of the Key Fob side-
ways with your thumb and then pull the key out
with your other hand.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4—START
12

NOTE:
You can insert the double-sided emergency
key into the lock cylinders with either side
up.
Removing Key Fob From IgnitionPlace the shift lever in PARK. Turn the Key Fob
to the OFF position and then remove the Key
Fob.
With the Keyless Enter-N-Go feature, the EVIC
will display the ignition switch position “OFF/
ACC/RUN”. Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.NOTE:
•
If you try to remove the Key Fob before
you place the shift lever in PARK, it may
become trapped temporarily in the igni-
tion switch. If this occurs, place the shift
lever in PARK, rotate the key to the right
slightly, then remove the Key Fob as de-
scribed. If a malfunction occurs, the sys-
tem may trap the key in the ignition switch
to warn you that this safety feature is
inoperable. The engine can be started and
stopped, but the Key Fob cannot be re-
moved until you obtain service.
• The power window switches, radio, power
sunroof (if equipped), and power outlets
will remain active for up to 10 minutes
after the ignition switch is turned to the
OFF position. Opening either front door
will cancel this feature. The time for this
feature is programmable. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Program-
mable Features)” in “Understanding Your
Instrument Panel” for further information.
CAUTION!
•If your vehicle battery becomes low or
dead, your Key Fob will become locked in
the ignition.
• Do not attempt to remove the Key Fob
while in this condition, damage could occur
to the Key Fob or ignition module. Only
remove the emergency key for locking and
unlocking the doors.
• Leave the Key Fob in the ignition and
either:
• Jump Start the vehicle.
• Charge the battery.
WARNING!
•When leaving the vehicle, always remove
the key fob from the ignition and lock your
vehicle.
• Never leave children alone in a vehicle, or
with access to an unlocked vehicle.
(Continued)
Emergency Key Removal
13

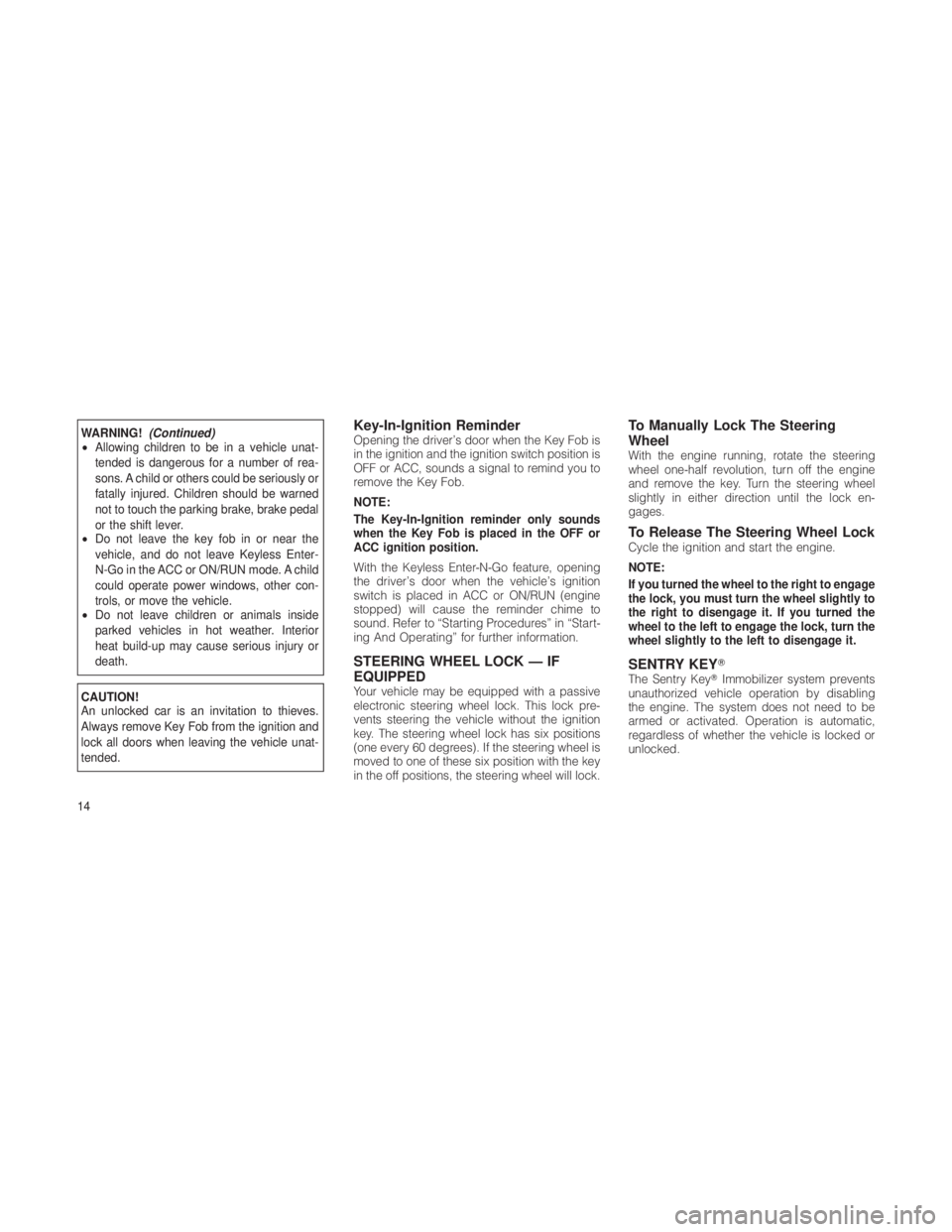

WARNING!(Continued)
• Allowing children to be in a vehicle unat-
tended is dangerous for a number of rea-
sons. A child or others could be seriously or
fatally injured. Children should be warned
not to touch the parking brake, brake pedal
or the shift lever.
• Do not leave the key fob in or near the
vehicle, and do not leave Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child
could operate power windows, other con-
trols, or move the vehicle.
• Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury or
death.
CAUTION!
An unlocked car is an invitation to thieves.
Always remove Key Fob from the ignition and
lock all doors when leaving the vehicle unat-
tended.
Key-In-Ignition ReminderOpening the driver’s door when the Key Fob is
in the ignition and the ignition switch position is
OFF or ACC, sounds a signal to remind you to
remove the Key Fob.
NOTE:
The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the OFF or
ACC ignition position.
With the Keyless Enter-N-Go feature, opening
the driver’s door when the vehicle’s ignition
switch is placed in ACC or ON/RUN (engine
stopped) will cause the reminder chime to
sound. Refer to “Starting Procedures” in “Start-
ing And Operating” for further information.
STEERING WHEEL LOCK — IF
EQUIPPED
Your vehicle may be equipped with a passive
electronic steering wheel lock. This lock pre-
vents steering the vehicle without the ignition
key. The steering wheel lock has six positions
(one every 60 degrees). If the steering wheel is
moved to one of these six position with the key
in the off positions, the steering wheel will lock.
To Manually Lock The Steering
Wheel
With the engine running, rotate the steering
wheel one-half revolution, turn off the engine
and remove the key. Turn the steering wheel
slightly in either direction until the lock en-
gages.
To Release The Steering Wheel LockCycle the ignition and start the engine.
NOTE:
If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to
the right to disengage it. If you turned the
wheel to the left to engage the lock, turn the
wheel slightly to the left to disengage it.
SENTRY KEYThe Sentry Key Immobilizer system prevents
unauthorized vehicle operation by disabling
the engine. The system does not need to be
armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or
unlocked.
14

The system uses the factory-mated Key Fob
with Remote Keyless Entry (RKE) transmitter
and Wireless Ignition Node (WIN) to prevent
unauthorized vehicle operation. Therefore, only
Key Fobs that are programmed to the vehicle
can be used to start and operate the vehicle.
The system will shut the engine off in two
seconds if an invalid Key Fob is used to start
the engine.
After turning the ignition switch to the ON/RUN
position, the Vehicle Security Light will turn on
for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates
that there is a problem with the electronics. In
addition, if the light begins to flash after the
bulb check, it indicates that someone used an
invalid Key Fob to start the engine. Either of
these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during
normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there
is a fault in the electronics. Should this occur,
have the vehicle serviced as soon as possible
by an authorized dealer.CAUTION!
The Sentry KeyImmobilizer system is not
compatible with some after-market remote
starting systems. Use of these systems may
result in vehicle starting problems and loss of
security protection.
All of the Key Fobs provided with your new
vehicle have been programmed to the vehicle
electronics.
Replacement Keys
NOTE:
Only Key Fobs that are programmed to the
vehicle electronics can be used to start and
operate the vehicle. Once a Key Fob is
programmed to a vehicle, it cannot be pro-
grammed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the
vehicle and lock all doors when leaving the
vehicle unattended.
(Continued)
CAUTION!(Continued)
• With Keyless Enter-N-Go, always remem-
ber to place the ignition in OFF.
At the time of purchase, the original owner is
provided with a four-digit Personal Identifica-
tion Number (PIN). Keep the PIN in a secure
location. This number is required for authorized
dealer replacement of Key Fobs. Duplication of
Key Fobs may be performed at an authorized
dealer.
NOTE:
When having the Sentry Key Immobilizer
system serviced, bring all vehicle ignition
keys with you to an authorized dealer.
Customer Key ProgrammingProgramming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
General InformationThe Sentry Key operates on a carrier fre-
quency of 433.92 MHz. The Sentry Key Immo-
bilizer system will be used in the following
European countries, which apply Directive
1999/5/EC: Austria, Belgium, Czech Republic,
15

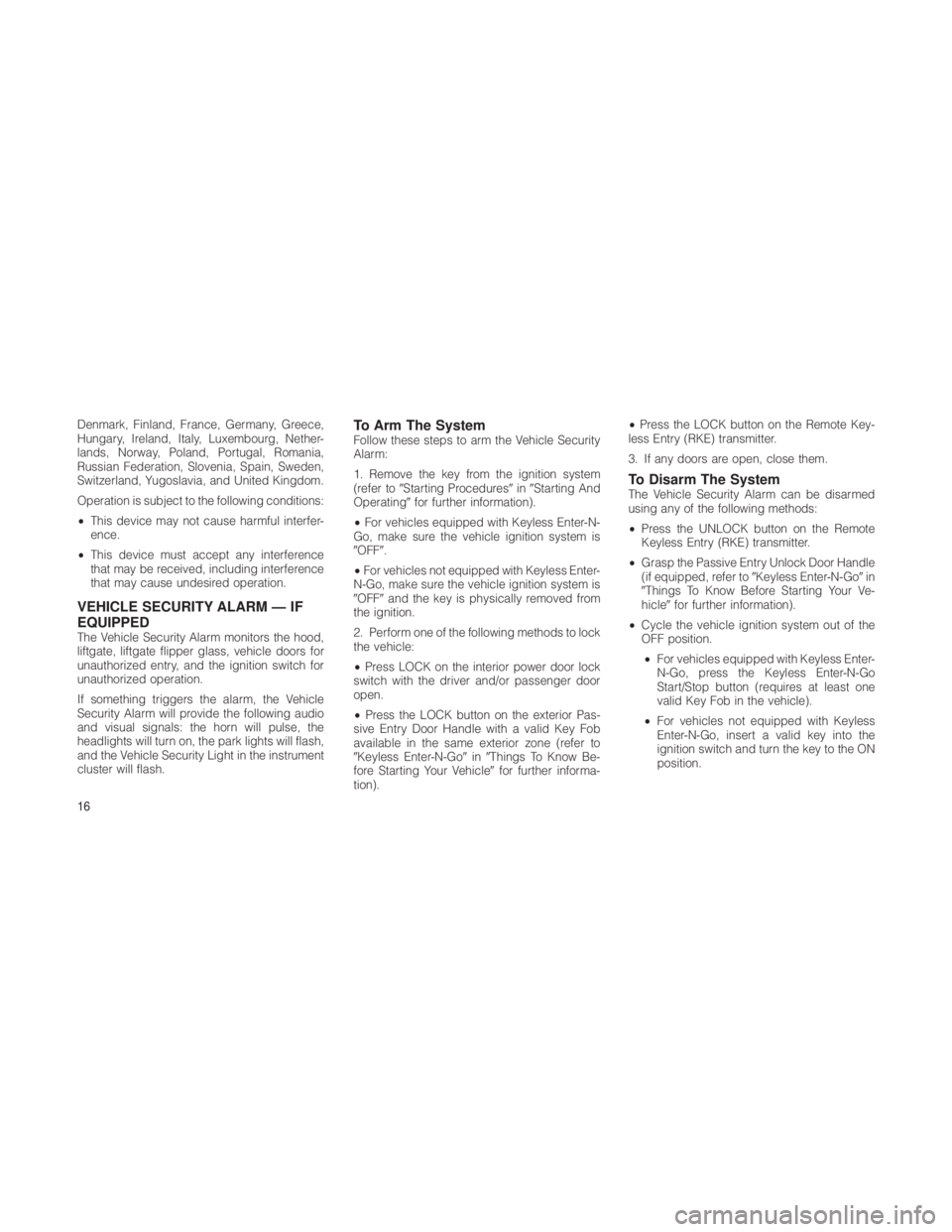

Denmark, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Luxembourg, Nether-
lands, Norway, Poland, Portugal, Romania,
Russian Federation, Slovenia, Spain, Sweden,
Switzerland, Yugoslavia, and United Kingdom.
Operation is subject to the following conditions:
•This device may not cause harmful interfer-
ence.
• This device must accept any interference
that may be received, including interference
that may cause undesired operation.
VEHICLE SECURITY ALARM — IF
EQUIPPED
The Vehicle Security Alarm monitors the hood,
liftgate, liftgate flipper glass, vehicle doors for
unauthorized entry, and the ignition switch for
unauthorized operation.
If something triggers the alarm, the Vehicle
Security Alarm will provide the following audio
and visual signals: the horn will pulse, the
headlights will turn on, the park lights will flash,
and the Vehicle Security Light in the instrument
cluster will flash.
To Arm The SystemFollow these steps to arm the Vehicle Security
Alarm:
1. Remove the key from the ignition system
(refer to Starting Procedures inStarting And
Operating for further information).
• For vehicles equipped with Keyless Enter-N-
Go, make sure the vehicle ignition system is
OFF.
• For vehicles not equipped with Keyless Enter-
N-Go, make sure the vehicle ignition system is
OFF and the key is physically removed from
the ignition.
2. Perform one of the following methods to lock
the vehicle:
• Press LOCK on the interior power door lock
switch with the driver and/or passenger door
open.
• Press the LOCK button on the exterior Pas-
sive Entry Door Handle with a valid Key Fob
available in the same exterior zone (refer to
Keyless Enter-N-Go inThings To Know Be-
fore Starting Your Vehicle for further informa-
tion). •
Press the LOCK button on the Remote Key-
less Entry (RKE) transmitter.
3. If any doors are open, close them.
To Disarm The SystemThe Vehicle Security Alarm can be disarmed
using any of the following methods:
• Press the UNLOCK button on the Remote
Keyless Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle
(if equipped, refer to Keyless Enter-N-Go in
Things To Know Before Starting Your Ve-
hicle for further information).
• Cycle the vehicle ignition system out of the
OFF position.
• For vehicles equipped with Keyless Enter-
N-Go, press the Keyless Enter-N-Go
Start/Stop button (requires at least one
valid Key Fob in the vehicle).
• For vehicles not equipped with Keyless
Enter-N-Go, insert a valid key into the
ignition switch and turn the key to the ON
position.
16

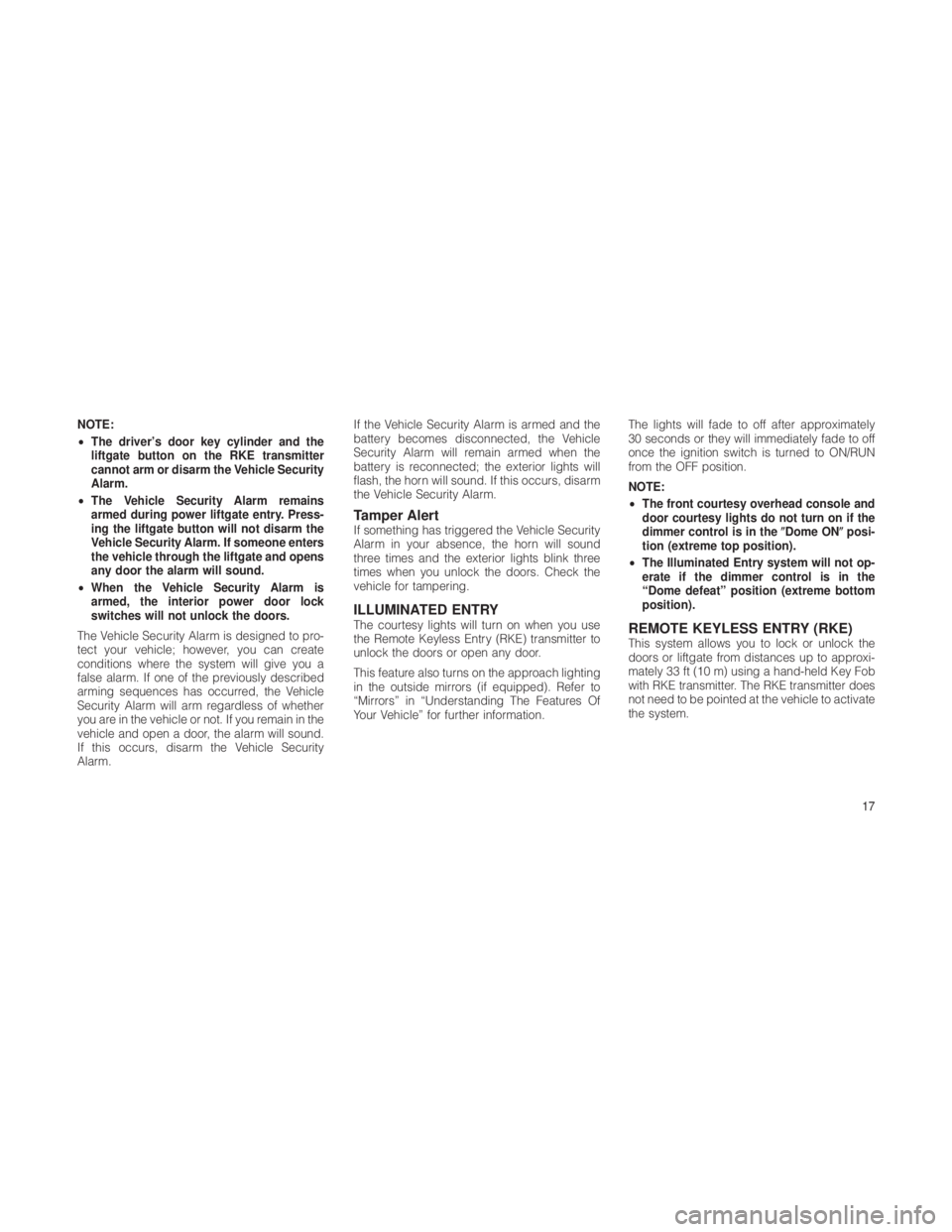

NOTE:
•The driver’s door key cylinder and the
liftgate button on the RKE transmitter
cannot arm or disarm the Vehicle Security
Alarm.
• The Vehicle Security Alarm remains
armed during power liftgate entry. Press-
ing the liftgate button will not disarm the
Vehicle Security Alarm. If someone enters
the vehicle through the liftgate and opens
any door the alarm will sound.
• When the Vehicle Security Alarm is
armed, the interior power door lock
switches will not unlock the doors.
The Vehicle Security Alarm is designed to pro-
tect your vehicle; however, you can create
conditions where the system will give you a
false alarm. If one of the previously described
arming sequences has occurred, the Vehicle
Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound.
If this occurs, disarm the Vehicle Security
Alarm. If the Vehicle Security Alarm is armed and the
battery becomes disconnected, the Vehicle
Security Alarm will remain armed when the
battery is reconnected; the exterior lights will
flash, the horn will sound. If this occurs, disarm
the Vehicle Security Alarm.
Tamper AlertIf something has triggered the Vehicle Security
Alarm in your absence, the horn will sound
three times and the exterior lights blink three
times when you unlock the doors. Check the
vehicle for tampering.
ILLUMINATED ENTRYThe courtesy lights will turn on when you use
the Remote Keyless Entry (RKE) transmitter to
unlock the doors or open any door.
This feature also turns on the approach lighting
in the outside mirrors (if equipped). Refer to
“Mirrors” in “Understanding The Features Of
Your Vehicle” for further information.
The lights will fade to off after approximately
30 seconds or they will immediately fade to off
once the ignition switch is turned to ON/RUN
from the OFF position.
NOTE:
•
The front courtesy overhead console and
door courtesy lights do not turn on if the
dimmer control is in the Dome ONposi-
tion (extreme top position).
• The Illuminated Entry system will not op-
erate if the dimmer control is in the
“Dome defeat” position (extreme bottom
position).REMOTE KEYLESS ENTRY (RKE)This system allows you to lock or unlock the
doors or liftgate from distances up to approxi-
mately 33 ft (10 m) using a hand-held Key Fob
with RKE transmitter. The RKE transmitter does
not need to be pointed at the vehicle to activate
the system.
17

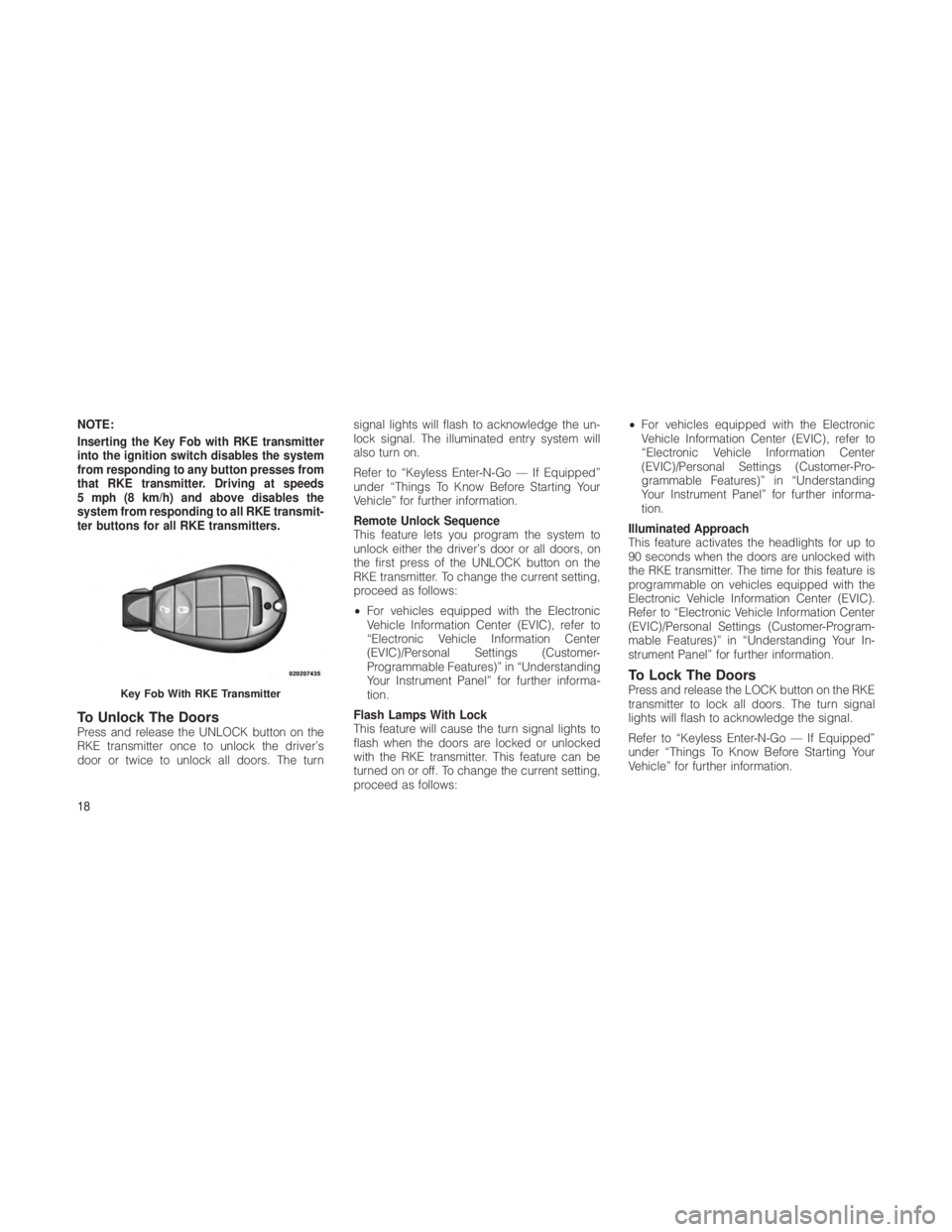

NOTE:
Inserting the Key Fob with RKE transmitter
into the ignition switch disables the system
from responding to any button presses from
that RKE transmitter. Driving at speeds
5 mph (8 km/h) and above disables the
system from responding to all RKE transmit-
ter buttons for all RKE transmitters.
To Unlock The DoorsPress and release the UNLOCK button on the
RKE transmitter once to unlock the driver’s
door or twice to unlock all doors. The turnsignal lights will flash to acknowledge the un-
lock signal. The illuminated entry system will
also turn on.
Refer to “Keyless Enter-N-Go — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.
Remote Unlock Sequence
This feature lets you program the system to
unlock either the driver’s door or all doors, on
the first press of the UNLOCK button on the
RKE transmitter. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further informa-
tion.
Flash Lamps With Lock
This feature will cause the turn signal lights to
flash when the doors are locked or unlocked
with the RKE transmitter. This feature can be
turned on or off. To change the current setting,
proceed as follows: •
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Pro-
grammable Features)” in “Understanding
Your Instrument Panel” for further informa-
tion.
Illuminated Approach
This feature activates the headlights for up to
90 seconds when the doors are unlocked with
the RKE transmitter. The time for this feature is
programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC).
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Program-
mable Features)” in “Understanding Your In-
strument Panel” for further information.
To Lock The DoorsPress and release the LOCK button on the RKE
transmitter to lock all doors. The turn signal
lights will flash to acknowledge the signal.
Refer to “Keyless Enter-N-Go — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.Key Fob With RKE Transmitter
18

Programming Additional
Transmitters
Programming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
Transmitter Battery ReplacementThe recommended replacement battery is one
CR2032 battery.
NOTE:
•Perchlorate Material — special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate
• Do not touch the battery terminals that
are on the back housing or the printed
circuit board.
1. Remove the emergency key by sliding the
mechanical latch at the top of the RKE trans-
mitter sideways with your thumb and then pull
the key out with your other hand. 2. Insert the tip of the emergency key or a #2
flat blade screwdriver into the slot and gently
pry the two halves of the RKE transmitter apart.
Make sure not to damage the seal during
removal.
Emergency Key RemovalInserting Emergency Key Into Slot
Separating RKE Transmitter
19
