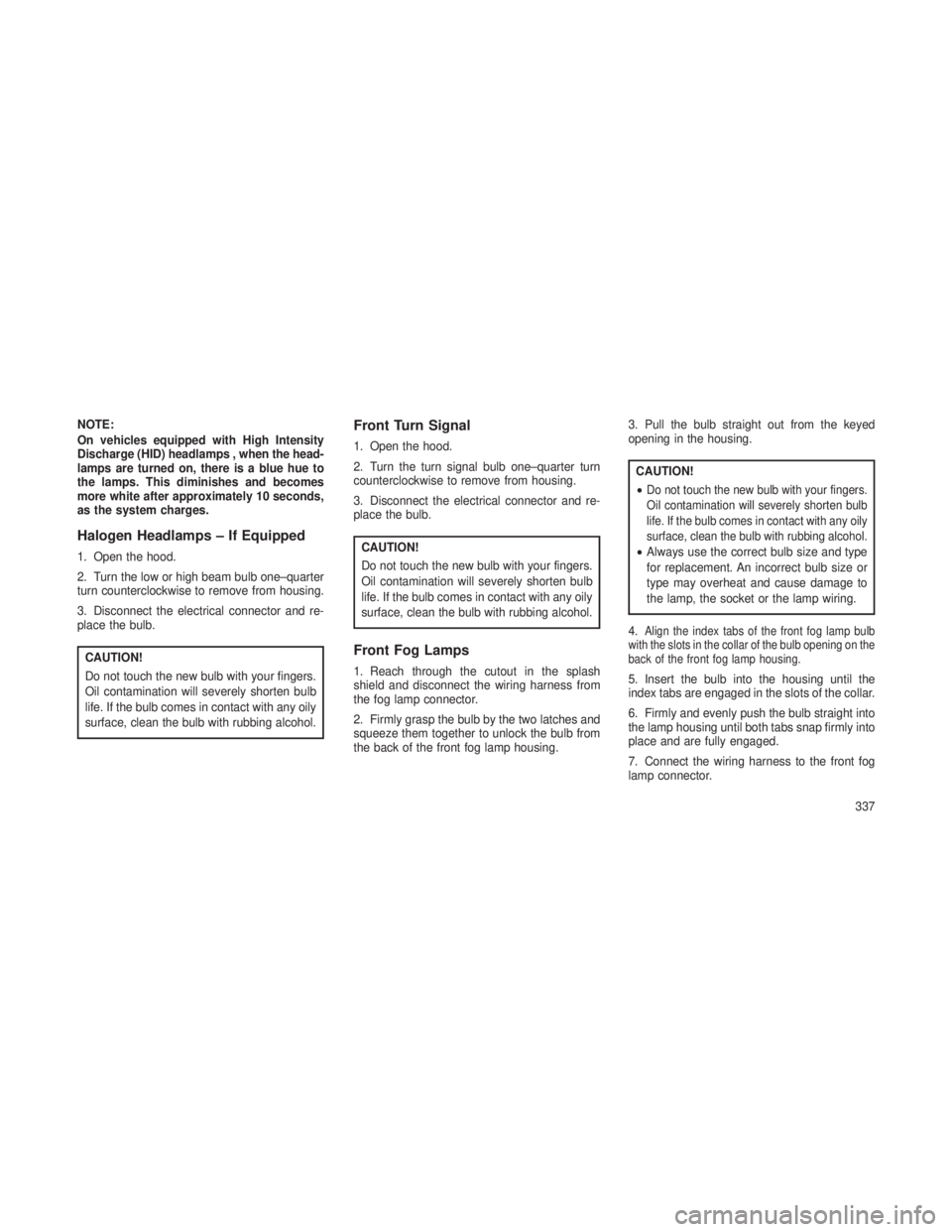

NOTE:
On vehicles equipped with High Intensity
Discharge (HID) headlamps , when the head-
lamps are turned on, there is a blue hue to
the lamps. This diminishes and becomes
more white after approximately 10 seconds,
as the system charges.
Halogen Headlamps – If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter
turn counterclockwise to remove from housing.
3. Disconnect the electrical connector and re-
place the bulb.
CAUTION!
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb
life. If the bulb comes in contact with any oily
surface, clean the bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn
counterclockwise to remove from housing.
3. Disconnect the electrical connector and re-
place the bulb.
CAUTION!
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb
life. If the bulb comes in contact with any oily
surface, clean the bulb with rubbing alcohol.
Front Fog Lamps
1. Reach through the cutout in the splash
shield and disconnect the wiring harness from
the fog lamp connector.
2. Firmly grasp the bulb by the two latches and
squeeze them together to unlock the bulb from
the back of the front fog lamp housing.3. Pull the bulb straight out from the keyed
opening in the housing.
CAUTION!
•
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb
life. If the bulb comes in contact with any oily
surface, clean the bulb with rubbing alcohol.
•
Always use the correct bulb size and type
for replacement. An incorrect bulb size or
type may overheat and cause damage to
the lamp, the socket or the lamp wiring.
4.
Align the index tabs of the front fog lamp bulb
with the slots in the collar of the bulb opening on the
back of the front fog lamp housing.
5. Insert the bulb into the housing until the
index tabs are engaged in the slots of the collar.
6. Firmly and evenly push the bulb straight into
the lamp housing until both tabs snap firmly into
place and are fully engaged.
7. Connect the wiring harness to the front fog
lamp connector.
337

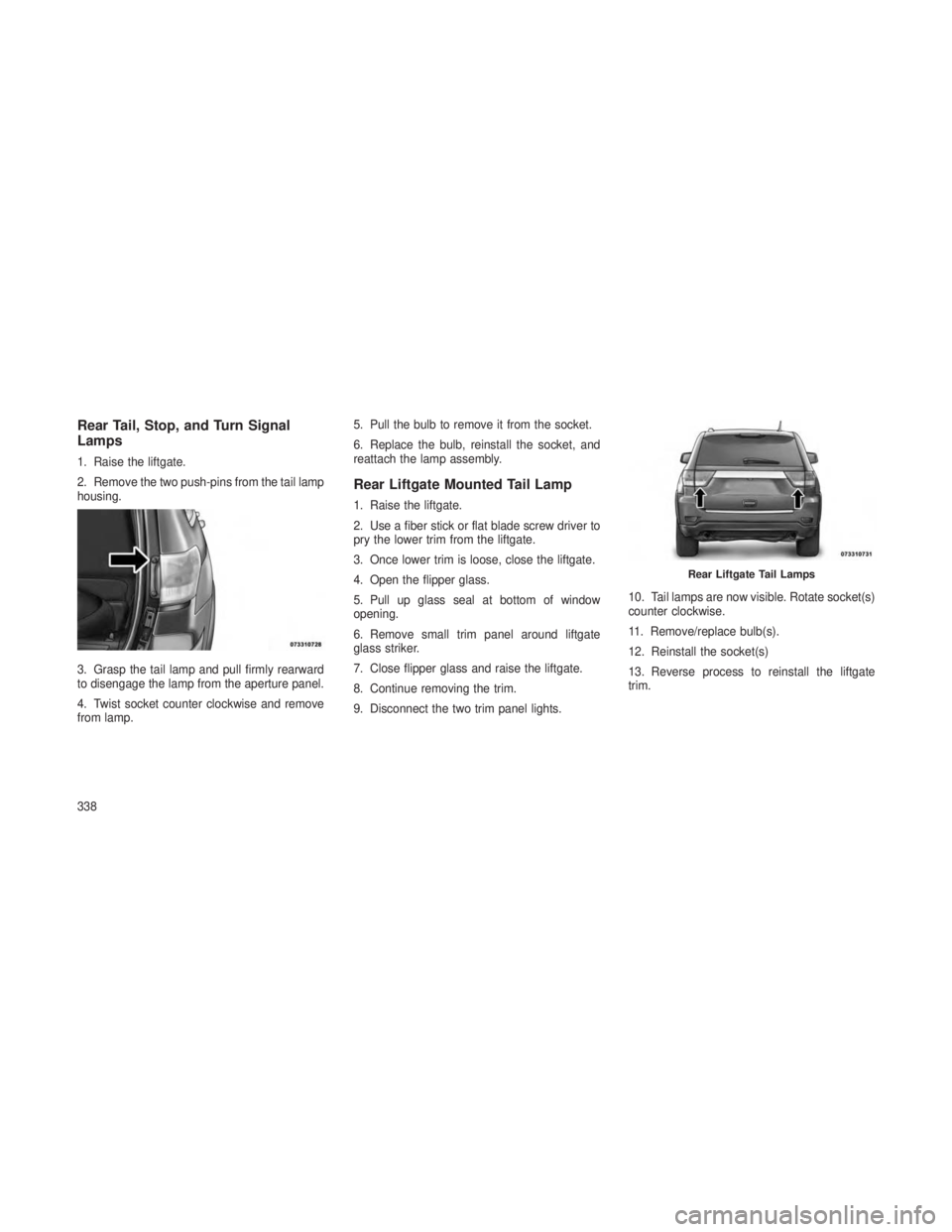

Rear Tail, Stop, and Turn Signal
Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the tail lamp
housing.
3. Grasp the tail lamp and pull firmly rearward
to disengage the lamp from the aperture panel.
4. Twist socket counter clockwise and remove
from lamp.5. Pull the bulb to remove it from the socket.
6. Replace the bulb, reinstall the socket, and
reattach the lamp assembly.
Rear Liftgate Mounted Tail Lamp
1. Raise the liftgate.
2. Use a fiber stick or flat blade screw driver to
pry the lower trim from the liftgate.
3. Once lower trim is loose, close the liftgate.
4. Open the flipper glass.
5. Pull up glass seal at bottom of window
opening.
6. Remove small trim panel around liftgate
glass striker.
7. Close flipper glass and raise the liftgate.
8. Continue removing the trim.
9. Disconnect the two trim panel lights.
10. Tail lamps are now visible. Rotate socket(s)
counter clockwise.
11. Remove/replace bulb(s).
12. Reinstall the socket(s)
13. Reverse process to reinstall the liftgate
trim.
Rear Liftgate Tail Lamps
338

Rear Fascia Mounted Fog Lamp
1. Using a fiber stick or flat blade screw driver,
gently pry between the inboard edge of the
lamp and the fascia.
2. Remove lamp from fascia opening.
3. Twist socket counter clockwise.
4. Replace bulb.
5. Reinstall the socket.6. Hook inboard side of the lamp into the fascia
pocket.
7. Rotate lamp forward in car until lamp snaps
back into the opening.
Center High-Mounted Stop
Lamp (CHMSL)
The center high-mounted stop lamp is an LED
assembly. See your authorized dealer for re-
placement.
Rear License Lamp
1. Use a screw driver to gently pry against the
side of the snap tab to remove the license lamp
lens.
2. Pull bulb from socket.
3. Replace bulb.
4. Reinstall lens.
Rear Fog Lamps
Center High-Mounted Stop Lamp
339

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines 24.6 Gallons93 Liters
Engine Oil with Filter
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
3.0L Diesel Engine (SAE 5W-30 Synthetic, API Certified Low Ash) 9 Quarts8.4 Liters
Cooling System *
3.6L Engine (MOPAR® Engine Coolant/Antifreeze 10-Year/150,000 Mile Formula) 10.4 Quarts9.9 Liters
5.7 Liter Engine (MOPAR® Engine Coolant/Antifreeze 10-Year/150,000 Mile
Formula) – Without Trailer Tow Package 15.4 Quarts
14.6 Liters
5.7 Liter Engine (MOPAR® Engine Coolant/Antifreeze 10-Year/150,000 Mile
Formula) – With Trailer Tow Package 16 Quarts
15.2 Liters
3.0L Diesel Engine (MOPAR® Engine Coolant/Antifreeze 10-Year/150,000 Mile
Formula) 13.9 Quarts
13.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
340

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula
OAT (Organic Additive Technology) that meets the requirements of Chrysler Material Standard
MS-12106 or an equivalent coolant.
Engine Oil – Non ACEA Categories
(3.6L Engine) We recommend you use API Certified SAE 5W-20 engine oil, meeting the requirements of
Chrysler Material Standard MS-6395.
Engine Oil – ACEA Categories (3.6L Engine) For countries that use the ACEA European Oil Categories for Service Fill Oils, we recommend you use 5W-20 engine oils that meet the requirements of ACEA C3.
Engine Oil – Non ACEA Categories
(5.7L Engine) We recommend you use API Certified SAE 5W-20 engine oil, meeting the requirements of
Chrysler Material Standard MS-6395.
Engine Oil – ACEA Categories (5.7L Engine) For countries that use the ACEA European Oil Categories for Service Fill Oils, we recommend you use 5W-20 engine oils that meet the requirements of ACEA C3.
Engine Oil – 3.0L Diesel Engine We recommend you use SAE 5W-30 Synthetic Low Ash Engine Oil meeting the requirements of
Chrysler Material Standard MS-11106 and approved ACEA C3.
Engine Oil Filter We recommend you use MOPAR® Engine Oil Filters.
Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]).
Spark Plugs – 5.7L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]).
Fuel Selection – 3.6L Engine 91 Octane
341

ComponentFluid, Lubricant, or Genuine Part
Fuel Selection – 5.7L Engine 91 Octane Acceptable - 95 Octane Recommended
Fuel Selection – 3.0L Diesel Engine 50 Cetane or higher (Less than 15 ppm Sulfur)
Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission We recommend you use MOPAR® ATF+4 Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Failure to use ATF+4 fluid may affect the function or performance of your transmission.
Transfer Case We recommend you use MOPAR® ATF+4 Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Axle Differential (Rear) – 5.7L Engine With
Electronic Limited-Slip Differential (ELSD) We recommend you use 75W-85 Castrol SAF Carbon Mod or equivalent.
Axle Differential (Rear) – 5.7L Engine Without
Electronic Limited-Slip Differential (ELSD) We recommend you use 75W-85 Fuchs 5010D or equivalent.
Brake Master Cylinder We recommend you use MOPAR® Brake & Clutch Fluid DOT 4, that meets the requirements of
Chrysler Material Standard MS-9971.
Power Steering Reservoir – 3.0L Diesel Engine We recommend you use MOPAR® Hydraulic Fluid that meets Chrysler Material Standard MS-11655.
Power Steering Reservoir – 3.6L Engine and
5.7L EngineWe recommend you use MOPAR® Power Steering Fluid +4, or MOPAR ATF+4 Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
342

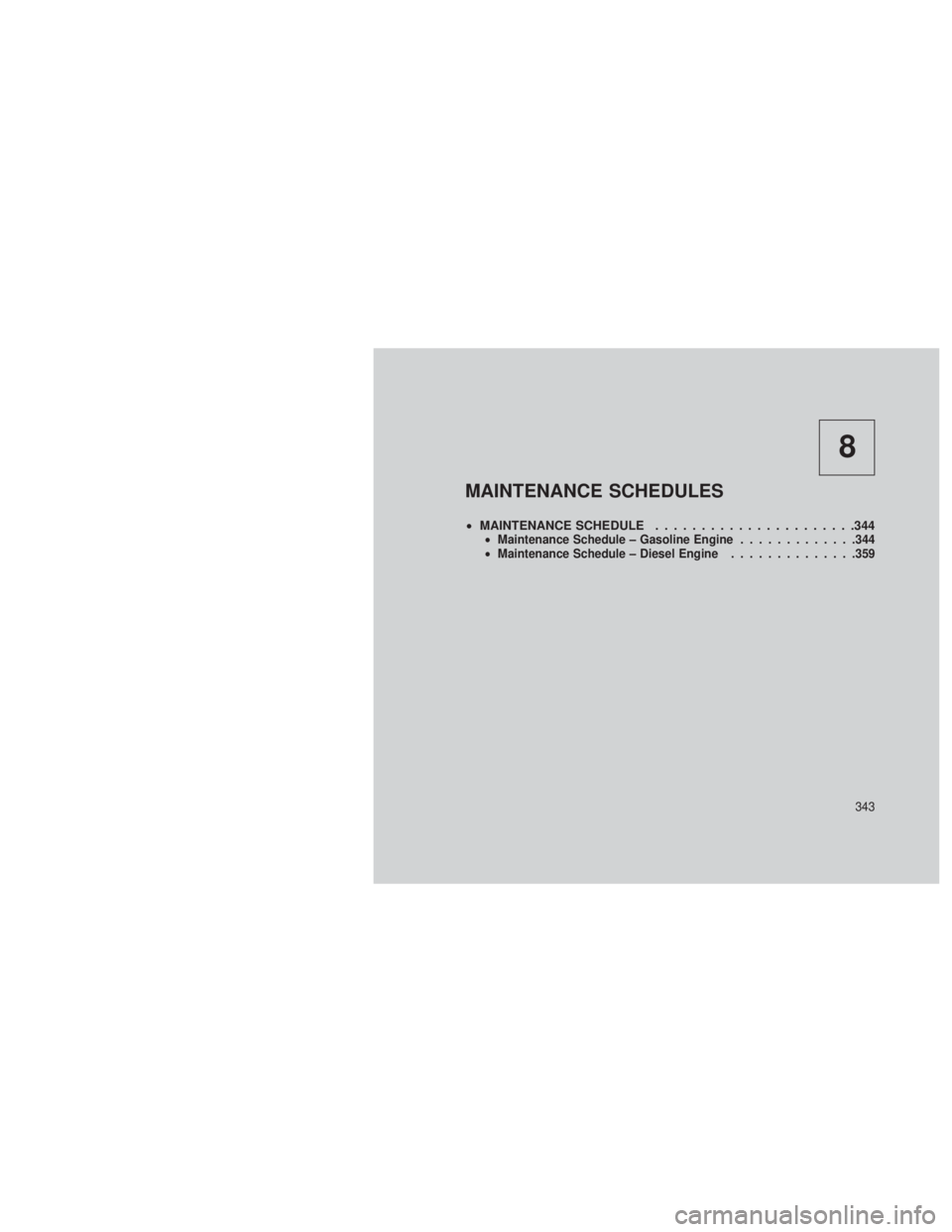

8
MAINTENANCE SCHEDULES
•MAINTENANCE SCHEDULE ......................344•Maintenance Schedule – Gasoline Engine .............344
• Maintenance Schedule – Diesel Engine ..............359
343

MAINTENANCE SCHEDULE
Maintenance Schedule – Gasoline
Engine
The Scheduled Maintenance services listed in
this manual must be done at the times or
mileages specified to protect your vehicle war-
ranty and ensure the best vehicle performance
and reliability. More frequent maintenance may
be needed for vehicles in severe operating
conditions, such as dusty areas and very short
trip driving. Inspection and service should also
be done anytime a malfunction is suspected.
The oil change indicator system will remind you
that it is time to take your vehicle in for sched-
uled maintenance.On Electronic Vehicle Information Center
(EVIC) equipped vehicles “Oil Change Re-
quired” will be displayed in the EVIC and a
single chime will sound, indicating that an oil
change is necessary.
The oil change indicator message will illuminate
approximately 7,000 miles (11,200 km) after the
most recent oil change was performed. Have
your vehicle serviced as soon as possible,
within 500 miles (800 km).
NOTE:
•
The oil change indicator message will not
monitor the time since the last oil change.
Change your vehicles oil if it has been 12
months since your last oil change even if
the oil change indicator message is NOT
illuminated. •
Change your engine oil more often if you
drive your vehicle off-road for an ex-
tended period of time.
•Under no circumstances should oil change
intervals exceed 7,500 miles (12 000 km) or
12 months, whichever comes first.
Your authorized dealer will reset the oil change
indicator message after completing the sched-
uled oil change. If this scheduled oil change is
performed by someone other than your autho-
rized dealer the message can be reset by
referring to the steps described under ”Elec-
tronic Vehicle Information Center” in “Under-
standing Your Instrument Panel” for further in-
formation.
344

At Each Stop for Fuel
•Check the engine oil level about 5 minutes
after a fully warmed engine is shut off.
Checking the oil level while the vehicle is on
level ground will improve the accuracy of the
oil level reading. Add oil only when the level
is at or below the ADD or MIN mark.
• Check the windshield washer solvent and
add if required.
Once a Month
• Check tire pressure and look for unusual
wear or damage.
• Inspect the battery and clean and tighten the
terminals as required. •
Check the fluid levels of the coolant reservoir,
brake master cylinder, power steering and
transmission (5.7L only) and add as needed.
• Check all lights and other electrical items for
correct operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance
items may result in damage to the vehicle. 7,500 Miles (12,000 km) or 12 Months
Maintenance Service Schedule
❏
Change the engine oil and engine oil
filter.††
❏ Rotate tires.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
345

15,000 Miles (24,000 km) or 24 Months Maintenance Service Schedule❏Change the engine oil and engine oil filter.††
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
346
