REMOTE KEYLESS
ENTRY (RKE)
This system allows you to lock or unlock the
doors or liftgate from distances up to approxi-
mately 33 ft (10 m) using a hand-held Key Fob
with RKE transmitter. The RKE transmitter does
not need to be pointed at the vehicle to activate
the system.
NOTE:
Inserting the Key Fob with RKE transmitter
into the ignition switch disables the system
from responding to any button presses from
that RKE transmitter. Driving at speeds
5 mph (8 km/h) and above disables the
system from responding to all RKE transmit-
ter buttons for all RKE transmitters.
To Unlock The DoorsPress and release the UNLOCK button on the
RKE transmitter once to unlock the driver’s door
or twice to unlock all doors. The turn signal lights
will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
Refer to “Keyless Enter-N-Go™ — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.Remote Unlock Sequence
This feature lets you program the system to
unlock either the driver’s door or all doors, on
the first press of the UNLOCK button on the
RKE transmitter. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic Ve-
hicle Information Center (EVIC), refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
Flash Lamps With Lock
This feature will cause the turn signal lights to
flash when the doors are locked or unlocked
with the RKE transmitter. This feature can be
turned on or off. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic Ve-
hicle Information Center (EVIC), refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
Key Fob With RKE Transmitter
19

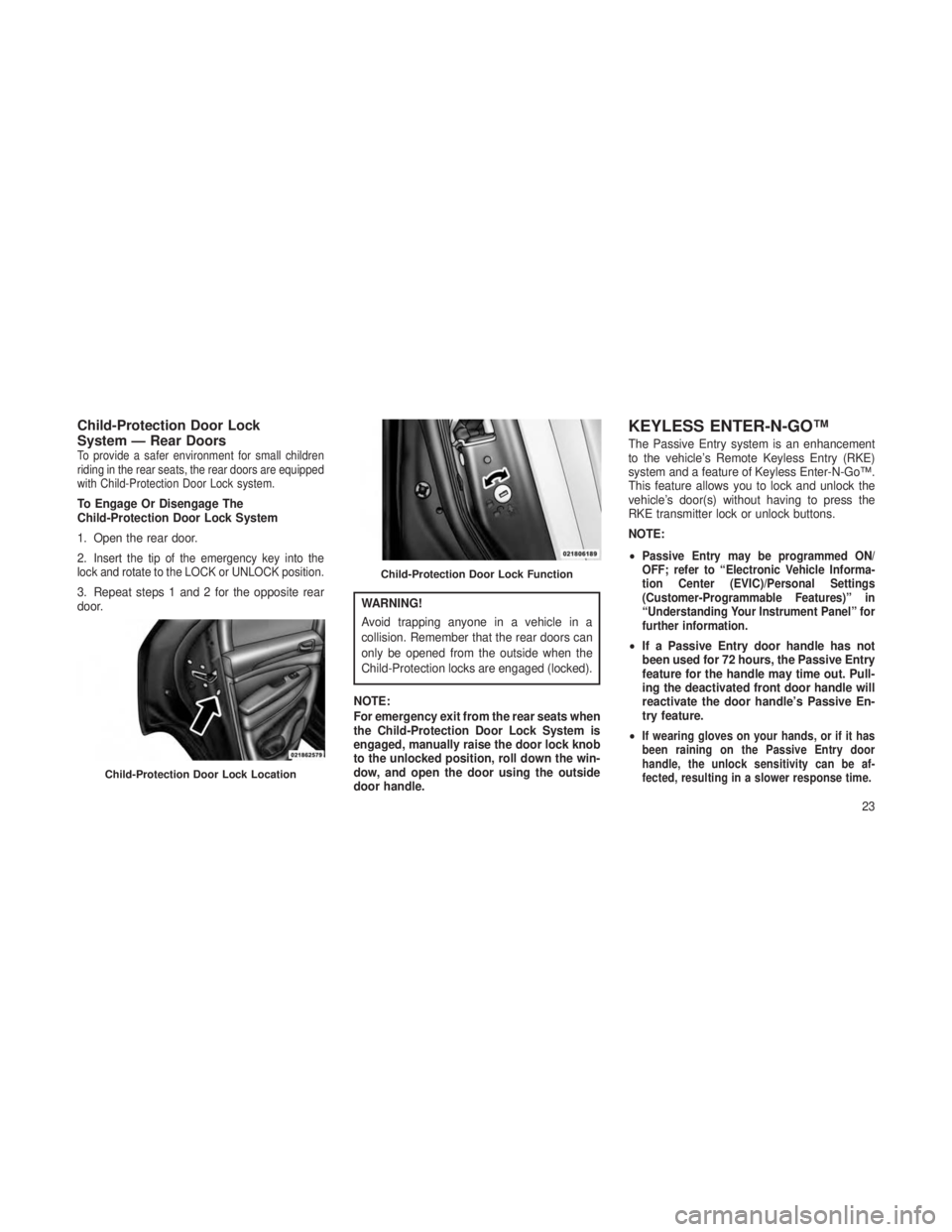

Child-Protection Door Lock
System — Rear Doors
To provide a safer environment for small children
riding in the rear seats, the rear doors are equipped
with Child-Protection Door Lock system.
To Engage Or Disengage The
Child-Protection Door Lock System
1. Open the rear door.
2.
Insert the tip of the emergency key into the
lock and rotate to the LOCK or UNLOCK position.
3. Repeat steps 1 and 2 for the opposite rear
door.WARNING!
Avoid trapping anyone in a vehicle in a
collision. Remember that the rear doors can
only be opened from the outside when the
Child-Protection locks are engaged (locked).
NOTE:
For emergency exit from the rear seats when
the Child-Protection Door Lock System is
engaged, manually raise the door lock knob
to the unlocked position, roll down the win-
dow, and open the door using the outside
door handle.
KEYLESS ENTER-N-GO™
The Passive Entry system is an enhancement
to the vehicle’s Remote Keyless Entry (RKE)
system and a feature of Keyless Enter-N-Go™.
This feature allows you to lock and unlock the
vehicle’s door(s) without having to press the
RKE transmitter lock or unlock buttons.
NOTE:
•
Passive Entry may be programmed ON/
OFF; refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in
“Understanding Your Instrument Panel” for
further information.
• If a Passive Entry door handle has not
been used for 72 hours, the Passive Entry
feature for the handle may time out. Pull-
ing the deactivated front door handle will
reactivate the door handle’s Passive En-
try feature.
•
If wearing gloves on your hands, or if it has
been raining on the Passive Entry door
handle, the unlock sensitivity can be af-
fected, resulting in a slower response time.
Child-Protection Door Lock Location
Child-Protection Door Lock Function
23

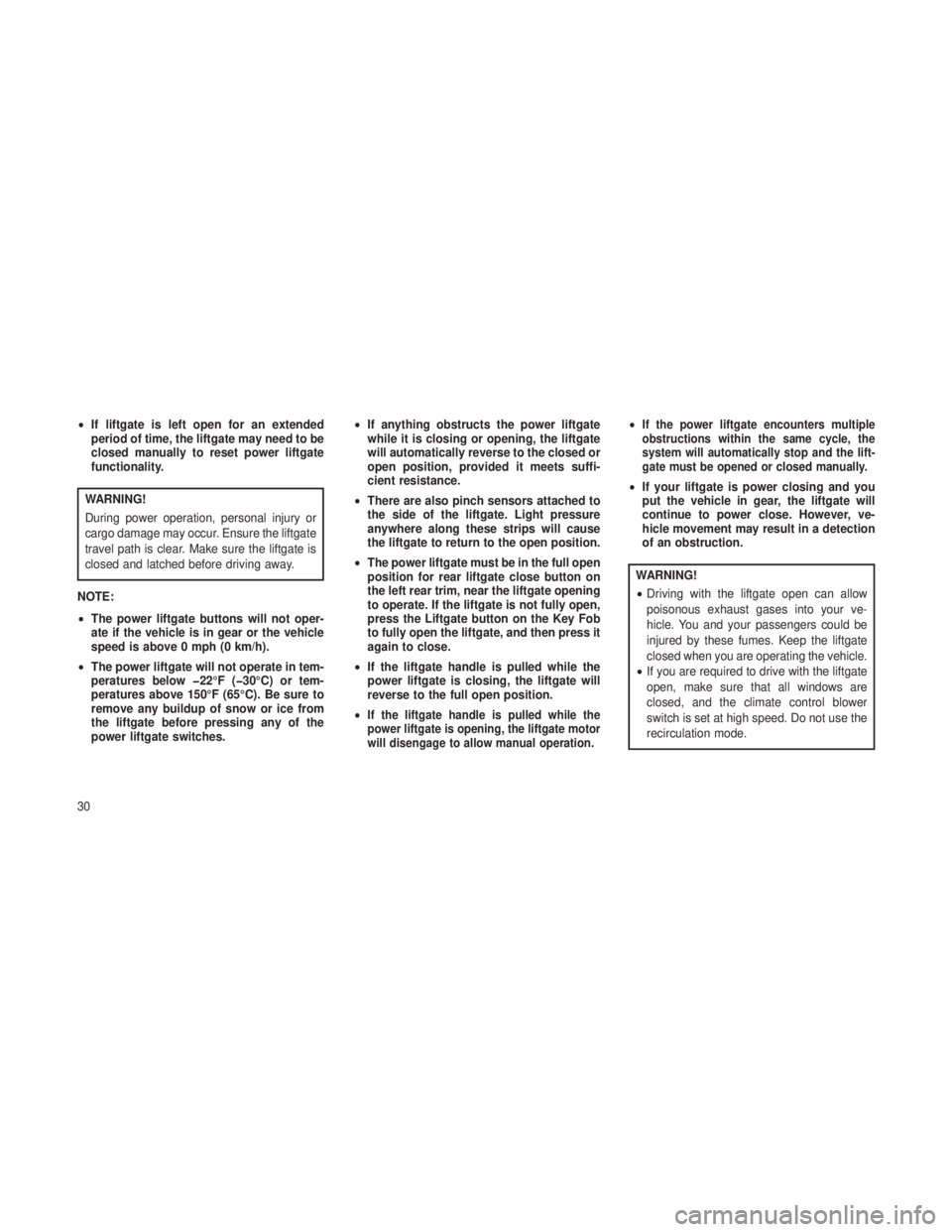

•If liftgate is left open for an extended
period of time, the liftgate may need to be
closed manually to reset power liftgate
functionality.
WARNING!
During power operation, personal injury or
cargo damage may occur. Ensure the liftgate
travel path is clear. Make sure the liftgate is
closed and latched before driving away.
NOTE:
• The power liftgate buttons will not oper-
ate if the vehicle is in gear or the vehicle
speed is above 0 mph (0 km/h).
• The power liftgate will not operate in tem-
peratures below 22°F (30°C) or tem-
peratures above 150°F (65°C). Be sure to
remove any buildup of snow or ice from
the liftgate before pressing any of the
power liftgate switches. •
If anything obstructs the power liftgate
while it is closing or opening, the liftgate
will automatically reverse to the closed or
open position, provided it meets suffi-
cient resistance.
• There are also pinch sensors attached to
the side of the liftgate. Light pressure
anywhere along these strips will cause
the liftgate to return to the open position.
• The power liftgate must be in the full open
position for rear liftgate close button on
the left rear trim, near the liftgate opening
to operate. If the liftgate is not fully open,
press the Liftgate button on the Key Fob
to fully open the liftgate, and then press it
again to close.
• If the liftgate handle is pulled while the
power liftgate is closing, the liftgate will
reverse to the full open position.
•
If the liftgate handle is pulled while the
power liftgate is opening, the liftgate motor
will disengage to allow manual operation.
•If the power liftgate encounters multiple
obstructions within the same cycle, the
system will automatically stop and the lift-
gate must be opened or closed manually.
• If your liftgate is power closing and you
put the vehicle in gear, the liftgate will
continue to power close. However, ve-
hicle movement may result in a detection
of an obstruction.
WARNING!
•Driving with the liftgate open can allow
poisonous exhaust gases into your ve-
hicle. You and your passengers could be
injured by these fumes. Keep the liftgate
closed when you are operating the vehicle.
• If you are required to drive with the liftgate
open, make sure that all windows are
closed, and the climate control blower
switch is set at high speed. Do not use the
recirculation mode.
30

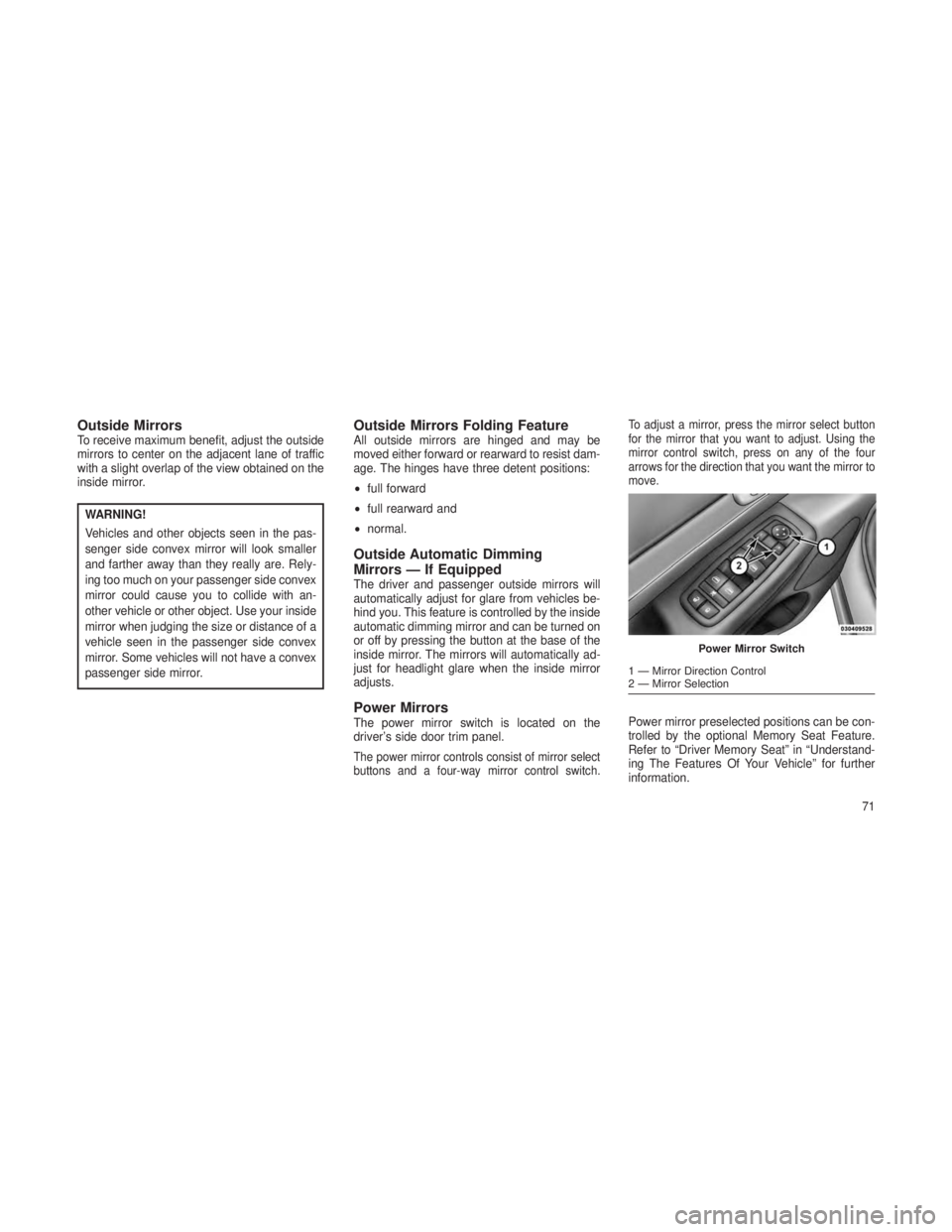

Outside MirrorsTo receive maximum benefit, adjust the outside
mirrors to center on the adjacent lane of traffic
with a slight overlap of the view obtained on the
inside mirror.
WARNING!
Vehicles and other objects seen in the pas-
senger side convex mirror will look smaller
and farther away than they really are. Rely-
ing too much on your passenger side convex
mirror could cause you to collide with an-
other vehicle or other object. Use your inside
mirror when judging the size or distance of a
vehicle seen in the passenger side convex
mirror. Some vehicles will not have a convex
passenger side mirror.
Outside Mirrors Folding FeatureAll outside mirrors are hinged and may be
moved either forward or rearward to resist dam-
age. The hinges have three detent positions:
•full forward
• full rearward and
• normal.
Outside Automatic Dimming
Mirrors — If Equipped
The driver and passenger outside mirrors will
automatically adjust for glare from vehicles be-
hind you. This feature is controlled by the inside
automatic dimming mirror and can be turned on
or off by pressing the button at the base of the
inside mirror. The mirrors will automatically ad-
just for headlight glare when the inside mirror
adjusts.
Power MirrorsThe power mirror switch is located on the
driver’s side door trim panel.
The power mirror controls consist of mirror select
buttons and a four-way mirror control switch. To adjust a mirror, press the mirror select button
for the mirror that you want to adjust. Using the
mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.
Power mirror preselected positions can be con-
trolled by the optional Memory Seat Feature.
Refer to “Driver Memory Seat” in “Understand-
ing The Features Of Your Vehicle” for further
information.
Power Mirror Switch
1 — Mirror Direction Control
2 — Mirror Selection
71

The Uconnect® Phone is driven through your
Bluetooth® “Hands-Free profile” mobile phone.
Uconnect® Phone features Bluetooth® technol-
ogy - the global standard that enables different
electronic devices to connect to each other with-
out wires or a docking station, so Uconnect®
Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or brief-
case), as long as your phone is turned on and has
been paired to the vehicle’s Uconnect® Phone.
The Uconnect® Phone allows up to seven mobile
phones to be linked to the system. Only one
linked (or paired) mobile phone can be used with
the Uconnect® Phone at a time. The Uconnect®
Phone is available in English, Dutch, French,
German, Italian or Spanish languages (as
equipped).
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
all applicable laws. Your attention should be
focused on safely operating the vehicle. Fail-
ure to do so may result in a collision causing
serious injury or death.Uconnect® Phone Button
The radio or steering wheel con-
trols (if equipped) will contain the
two control buttons (Uconnect®
Phone
button and Voice Com-
mandbutton) that will enable
you to access the system. When you press the
button you will hear the word Uconnect® fol-
lowed by a BEEP. The beep is your signal to
give a command.
Voice Command Button
Actual button location may vary
with radio. The individual buttons
are described in the “Operation”
section.
The Uconnect® Phone can be used with
Hands-Free Profile certified Bluetooth® mobile
phones. Some phones may not support all the
Uconnect® Phone features. Refer to your mo-
bile service provider or the phone manufacturer
for details. The Uconnect® Phone is fully integrated with
the vehicle’s audio system. The volume of the
Uconnect® Phone can be adjusted either from
the radio volume control knob or from the
steering wheel radio control, if so equipped.
The radio display will be used for visual prompts
from the Uconnect® Phone such as CELL or
caller ID on certain radios.
Compatible Phones* The Uconnect® Phone requires a mobile
phone equipped with the Bluetooth® “Hands-
Free Profile”, version 1.0 or higher.
See
Uconnect® website for supported phones.
• www.UconnectPhone.com
To find the list of compatible phones navigate
through the following menus:
• Select model year for the vehicle
• Select type of the vehicle
• In the getting started tab, select compatible
phones
73

Reclining Rear SeatTo recline the seatback, lift the lever located on
the outboard side of the seat, lean back and
release the lever at the desired position. To
return the seatback, lift the lever, lean forward
and release the lever.
WARNING!
Do not ride with the seatback reclined so that
the shoulder belt is no longer resting against
your chest. In a collision you could slide under
the seat belt, which could result in serious
injury or death.
DRIVER MEMORY SEAT — IF
EQUIPPED
This feature allows the driver to store up to two
different memory profiles for easy recall through
a memory switch. Each memory profile contains
desired position settings for the driver seat, side
mirrors, adjustable pedals (if equipped), and
power tilt and telescopic steering column (if
equipped) and a set of desired radio station
presets. Your Remote Keyless Entry (RKE)
transmitter can also be programmed to recall
the same positions when the UNLOCK button is
pressed.
NOTE:
Your vehicle is equipped with two RKE
transmitters. One RKE transmitter can be
linked to memory position 1 and the other
transmitter can be linked to memory posi-
tion 2.The memory seat switch is located on the
driver’s door trim panel. The switch consists of
three buttons:
•
The (S) button, which is used to activate the
memory save function
• The (1) and (2) buttons which are used to
recall either of two pre-programmed memory
profiles.
Rear Seat Release
Memory Seat Switch
102

Programming The Memory Feature
NOTE:
To create a new memory profile, perform the
following:
Vehicles Equipped With Keyless Enter-N-Go
1. Without pressing the brake pedal, push the
ENGINE START/STOP button and cycle the
ignition to the ON/RUN position (Do not start the
engine).
2. Adjust all memory profile settings to desired
preferences (i.e., seat, side mirror, adjustable
pedals [if equipped], power tilt and telescopic
steering column [if equipped], and radio station
presets).
3. Press and release the S (Set) button on the
memory switch.
4. Within 5 seconds, press and release either
of the memory buttons (1) or (2). The Electronic
Vehicle Information Center (EVIC) will display
which memory position has been set.Vehicles Not Equipped With Keyless
Enter-N-Go
1.
Insert the ignition key fob, and turn the ignition
switch to the ON/RUN position.
2. Adjust all memory profile settings to desired
preferences (i.e., seat, side mirror, adjustable
pedals [if equipped], power tilt and telescopic
steering column [if equipped], and radio station
presets).
3. Press and release the S (Set) button on the
memory switch.
4. Within 5 seconds, press and release either
of the memory buttons (1) or (2). The Electronic
Vehicle Information Center (EVIC) will display
which memory position has been set.
NOTE:
• Memory profiles can be set without the
vehicle in PARK, but the vehicle must be
in PARK to recall a memory profile. •
The Recall Memory with Remote Linked to
Memory feature can be enabled through the
Electronic Vehicle Information Center (EVIC),
refer to “Electronic Vehicle Information Cen-
ter (EVIC)/Customer-Programmable Fea-
tures” in “Understanding Your Instrument
Panel” for further information.
Linking And Unlinking The Remote
Keyless Entry Transmitter To Memory
Your RKE transmitters can be programmed to
recall one of two pre-programmed memory pro-
files by pressing the UNLOCK button on the
RKE transmitter.
NOTE:
Before programming your RKE transmitters
you must select the “Remote Linked to
Memory” feature through the Electronic Vehicle
Information Center (EVIC), refer to “Electronic
Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding
Your Instrument Panel” for further information.
103

To program your RKE transmitters, perform the
following:
1.
Remove the Key Fob from the ignition (or
change the ignition to OFF, for vehicles equipped
with Keyless Enter-N-Go).
2. Select desired memory profile (1) or (2).
NOTE:
If a memory profile has not already been set,
refer to Programming The Memory Feature
for instructions on how to set a memory
profile.
3. Once the profile has been recalled, press
and release the SET (S) button on the memory
switch, then press and release button (1) or (2)
accordingly. “Memory Profile Set” (1 or 2) will
display in the instrument cluster on vehicles
equipped with the EVIC.
4. Press and release the LOCK button on the
RKE transmitter within 10 seconds.
NOTE:
Your RKE transmitters can be unlinked to your
memory settings by following steps 1-4 above
and pressing the UNLOCK button (instead of
LOCK) on the RKE transmitter in Step 4.
Memory Position Recall
NOTE:
The vehicle must be in PARK to recall
memory positions. If a recall is attempted
when the vehicle is not in PARK, a message
will be displayed in the Electronic Vehicle
Information Center (EVIC).
Driver One Memory Position Recall
• To recall the memory settings for driver one
using the memory switch , press MEMORY
button number 1 on the memory switch.
• To recall the memory settings for driver one
using the RKE transmitter, press the UN-
LOCK button on the RKE transmitter linked
to memory position 1.
Driver Two Memory Position Recall
• To recall the memory setting for driver two
using the memory switch, press MEMORY
button number 2 on the memory switch.
• To recall the memory settings for driver two
using the RKE transmitter, press the UN-
LOCK button on the RKE transmitter linked
to memory position 2. A recall can be cancelled by pressing any of the
MEMORY buttons during a recall (S, 1, or 2).
When a recall is cancelled, the driver’s seat,
driver’s mirror and the pedals stop moving. A
delay of one second will occur before another
recall can be selected.
Easy Entry/Exit SeatThis feature provides automatic driver seat po-
sitioning to enhance driver mobility when enter-
ing and exiting the vehicle.
The distance the driver seat moves depends on
where you have the driver seat positioned when
you remove the Key Fob from the ignition (or
change the ignition to OFF, for vehicles
equipped with Keyless Enter-N-Go).
•
When you remove the Key Fob from the
ignition (or change the ignition to OFF, for
vehicles equipped with Keyless Enter-N-Go),
the driver seat will move about 2.4 in (60 mm)
rearward if the driver seat position is greater
than or equal to 2.7 in (67.7 mm) forward of
the rear stop. The seat will return to its
previously set position when you place the
ignition into the ACC or RUN position.
104

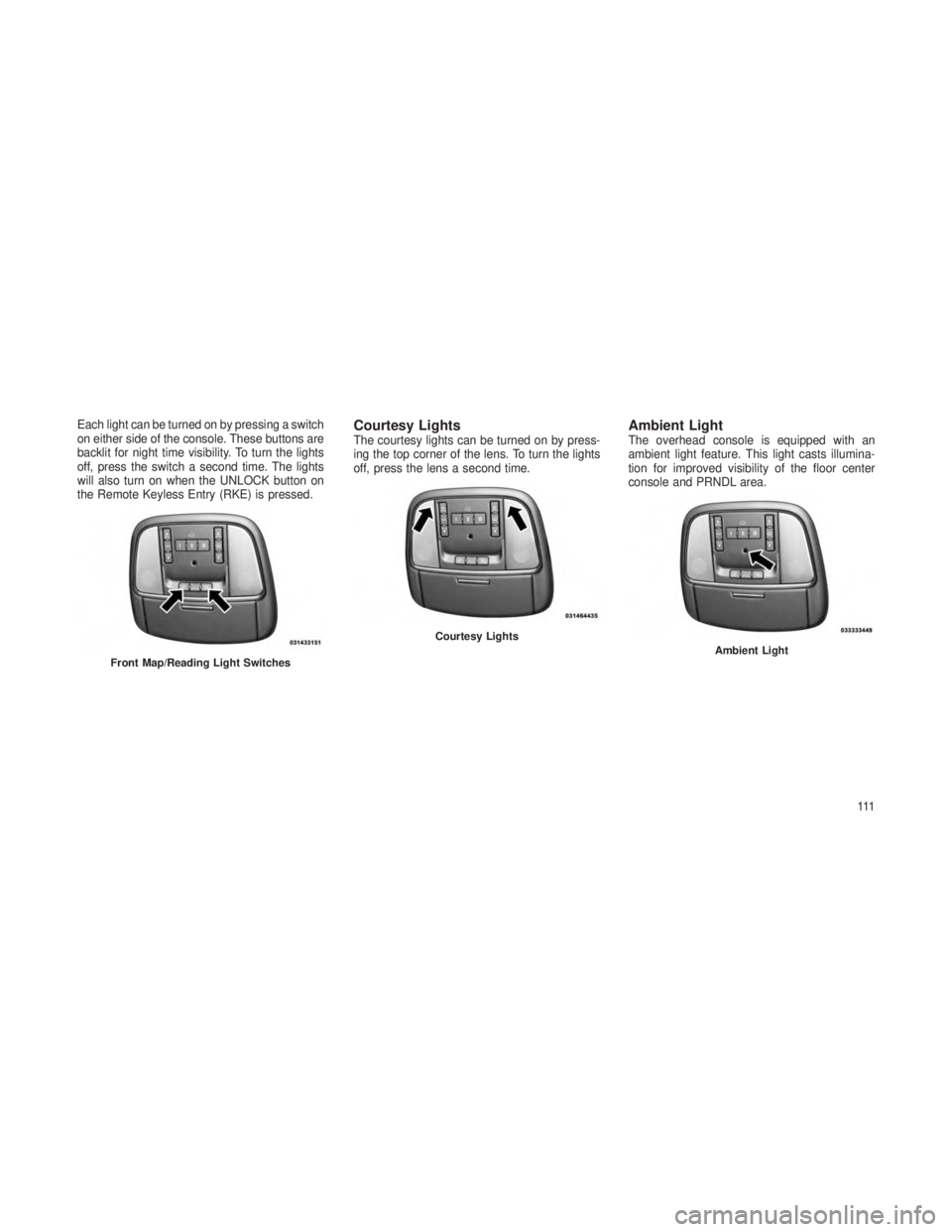

Each light can be turned on by pressing a switch
on either side of the console. These buttons are
backlit for night time visibility. To turn the lights
off, press the switch a second time. The lights
will also turn on when the UNLOCK button on
the Remote Keyless Entry (RKE) is pressed.Courtesy LightsThe courtesy lights can be turned on by press-
ing the top corner of the lens. To turn the lights
off, press the lens a second time.Ambient LightThe overhead console is equipped with an
ambient light feature. This light casts illumina-
tion for improved visibility of the floor center
console and PRNDL area.
Front Map/Reading Light Switches
Courtesy LightsAmbient Light
111

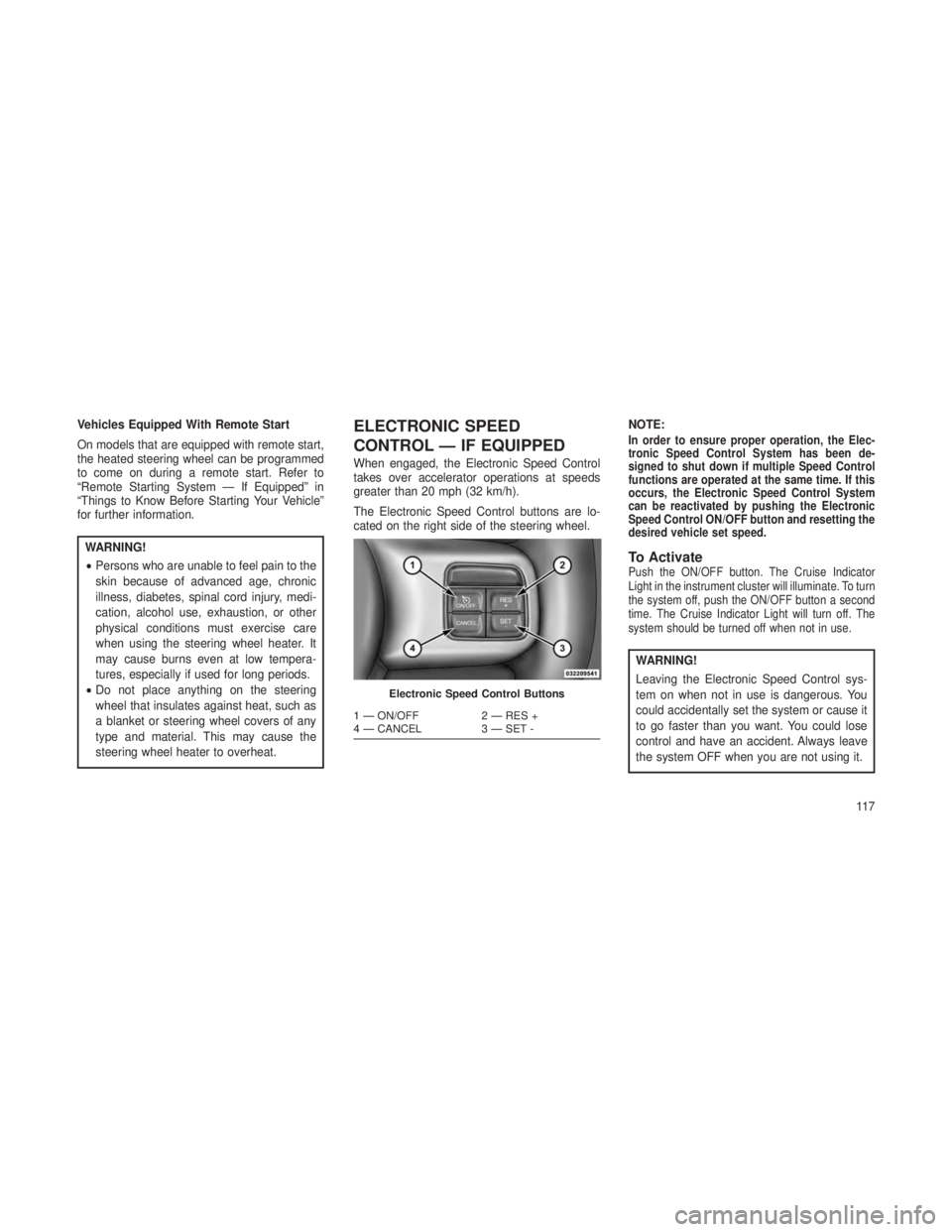

Vehicles Equipped With Remote Start
On models that are equipped with remote start,
the heated steering wheel can be programmed
to come on during a remote start. Refer to
“Remote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information.
WARNING!
•Persons who are unable to feel pain to the
skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medi-
cation, alcohol use, exhaustion, or other
physical conditions must exercise care
when using the steering wheel heater. It
may cause burns even at low tempera-
tures, especially if used for long periods.
• Do not place anything on the steering
wheel that insulates against heat, such as
a blanket or steering wheel covers of any
type and material. This may cause the
steering wheel heater to overheat.
ELECTRONIC SPEED
CONTROL — IF EQUIPPED
When engaged, the Electronic Speed Control
takes over accelerator operations at speeds
greater than 20 mph (32 km/h).
The Electronic Speed Control buttons are lo-
cated on the right side of the steering wheel. NOTE:
In order to ensure proper operation, the Elec-
tronic Speed Control System has been de-
signed to shut down if multiple Speed Control
functions are operated at the same time. If this
occurs, the Electronic Speed Control System
can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the
desired vehicle set speed.
To ActivatePush the ON/OFF button. The Cruise Indicator
Light in the instrument cluster will illuminate. To turn
the system off, push the ON/OFF button a second
time. The Cruise Indicator Light will turn off. The
system should be turned off when not in use.
WARNING!
Leaving the Electronic Speed Control sys-
tem on when not in use is dangerous. You
could accidentally set the system or cause it
to go faster than you want. You could lose
control and have an accident. Always leave
the system OFF when you are not using it.
Electronic Speed Control Buttons
1 — ON/OFF
2 — RES +
4 — CANCEL 3 — SET -
11 7
