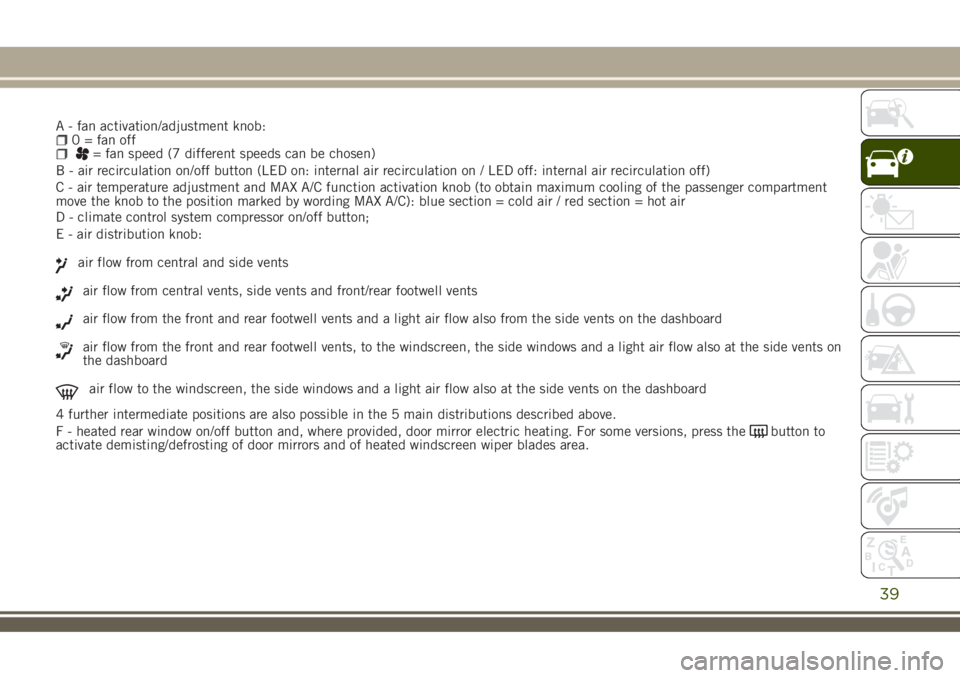

A - fan activation/adjustment knob:0 = fan off= fan speed (7 different speeds can be chosen)
B - air recirculation on/off button (LED on: internal air recirculation on / LED off: internal air recirculation off)
C - air temperature adjustment and MAX A/C function activation knob (to obtain maximum cooling of the passenger compartment
move the knob to the position marked by wording MAX A/C): blue section = cold air / red section = hot air
39
D - climate control system compressor on/off button;
E - air distribution knob:
air flow from central and side vents
air flow from central vents, side vents and front/rear footwell vents
air flow from the front and rear footwell vents and a light air flow also from the side vents on the dashboard
air flow from the front and rear footwell vents, to the windscreen, the side windows and a light air flow also at the side vents on
the dashboard
air flow to the windscreen, the side windows and a light air flow also at the side vents on the dashboard
4 further intermediate positions are also possible in the 5 main distributions described above.
F - heated rear window on/off button and, where provided, door mirror electric heating. For some versions, press the
button to
activate demisting/defrosting of door mirrors and of heated windscreen wiper blades area.

IMPORTANT Do not apply stickers to the inside of the heated rear window over the heating filaments, to avoid damage that
might cause them to stop working properly.

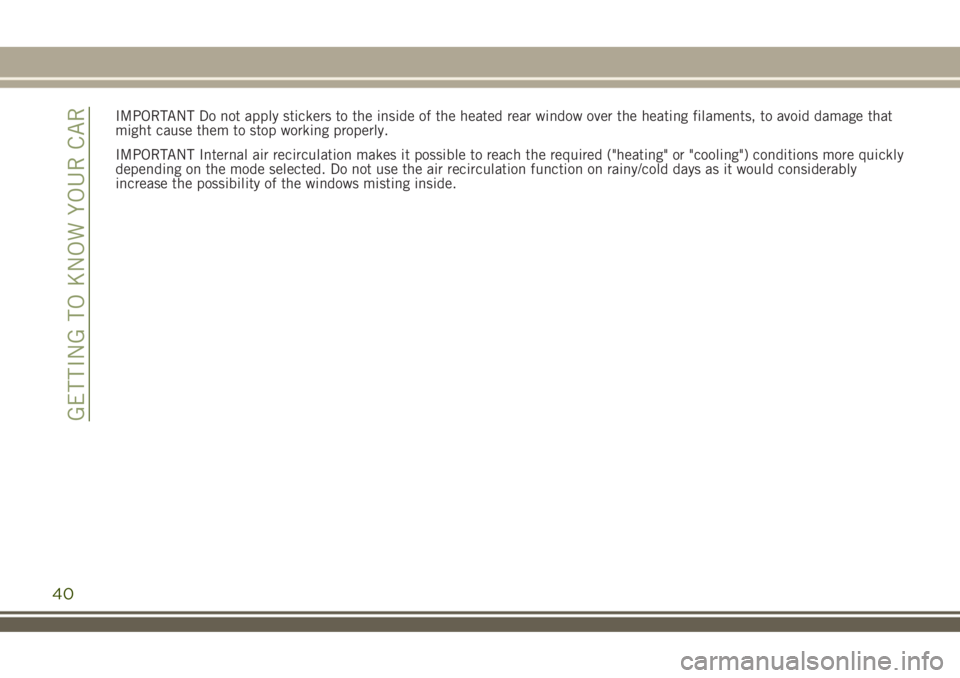

IMPORTANT Internal air recirculation makes it possible to reach the required ("heating" or "cooling") conditions more quickly
depending on the mode selected. Do not use the air recirculation function on rainy/cold days as it would considerably
increase the possibility of the windows misting inside.
40
GETTING TO KNOW YOUR CAR

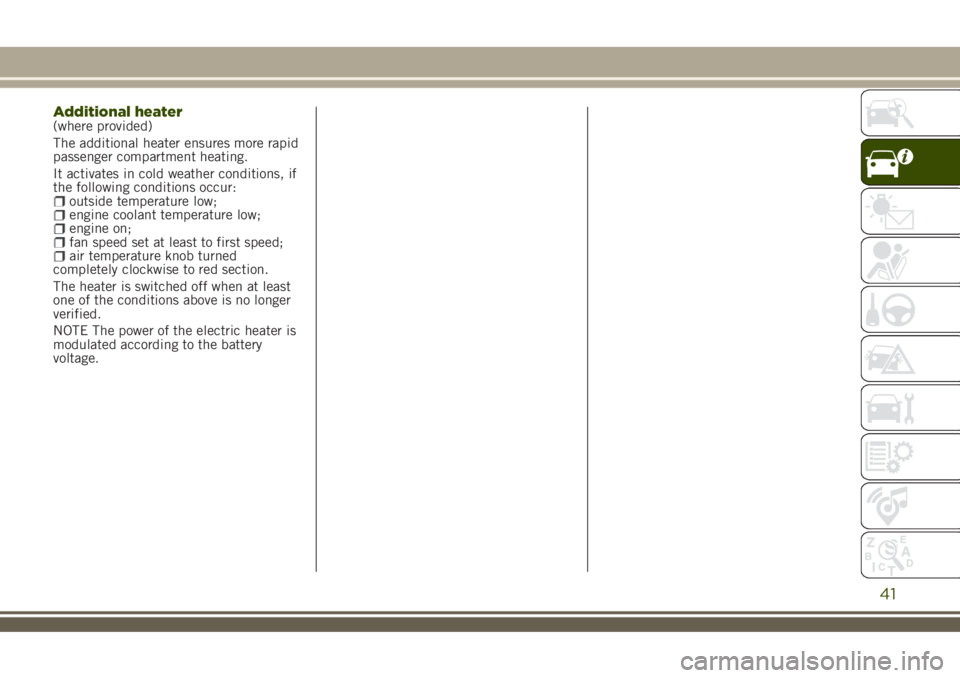

Additional heater(where provided)
The additional heater ensures more rapid
passenger compartment heating.
It activates in cold weather conditions, if
the following conditions occur:
outside temperature low;engine coolant temperature low;engine on;fan speed set at least to first speed;air temperature knob turned
completely clockwise to red section.
The heater is switched off when at least
one of the conditions above is no longer
verified.
NOTE The power of the electric heater is
modulated according to the battery
voltage.
41

AUTOMATIC DUAL-ZONE CLIMATE CONTROL SYSTEM(where provided)

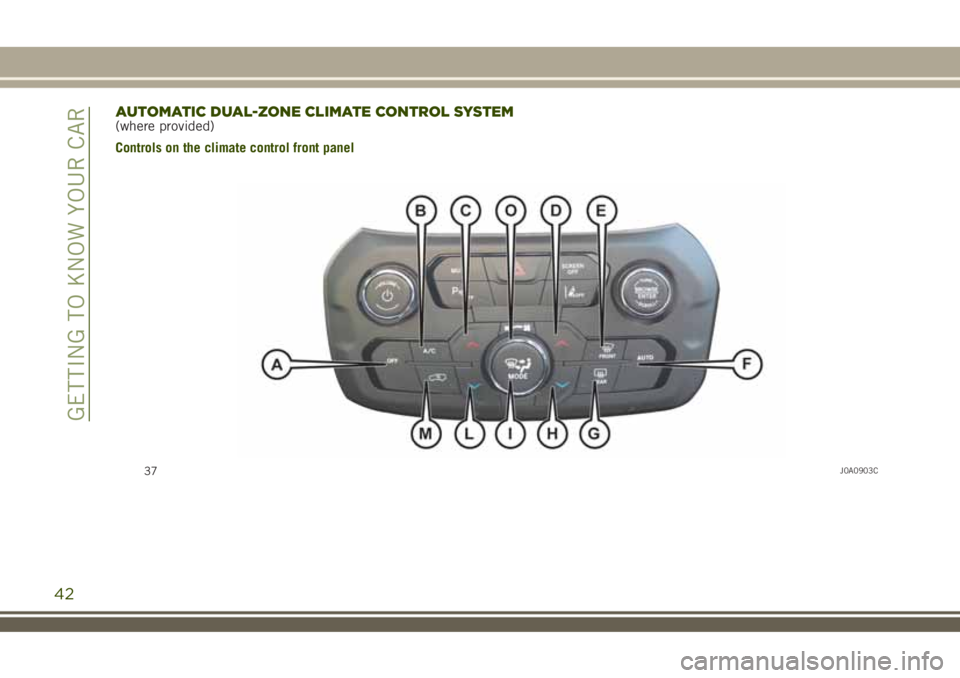

Controls on the climate control front panel
37J0A0903C
42
GETTING TO KNOW YOUR CAR

Controls on Uconnect™ system display

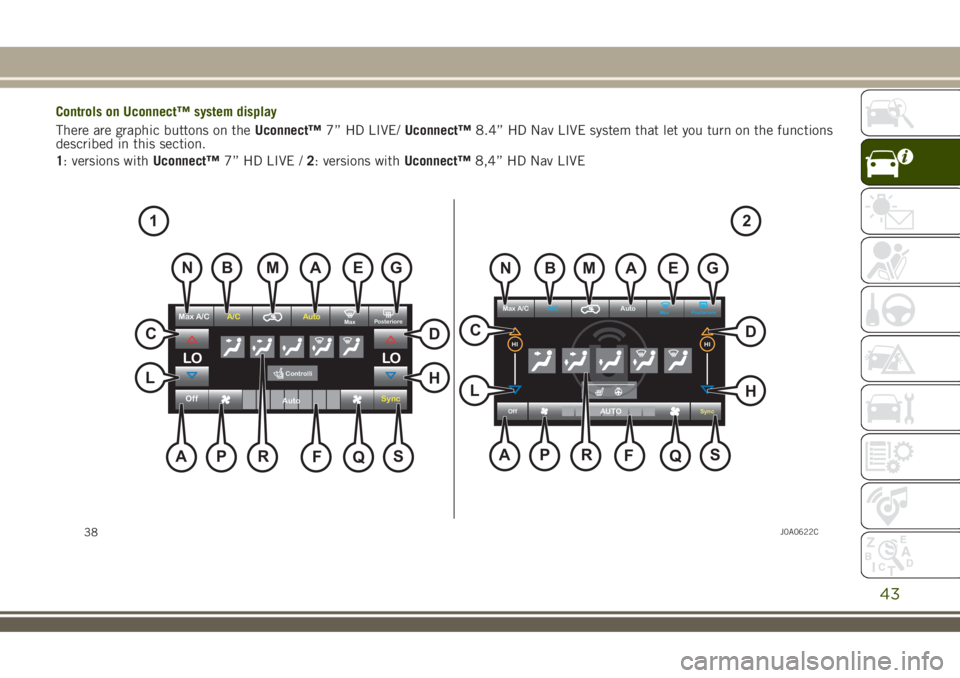

There are graphic buttons on theUconnect™7” HD LIVE/Uconnect™8.4” HD Nav LIVE system that let you turn on the functions
described in this section.
1: versions withUconnect™7” HD LIVE /2: versions withUconnect™8,4” HD Nav LIVE
Max A/CA/C
OffSyncAUTO
AutoMax Posteriore
HIHI
OffSync
Max A/CA/C AutoPosteriore
Max
LO LOControlli
Auto
NBMAEG
C
L
AP R
F
QS
N
C
BMAEG
L
AP R
F
QSH DH D
12
38J0A0622C
43

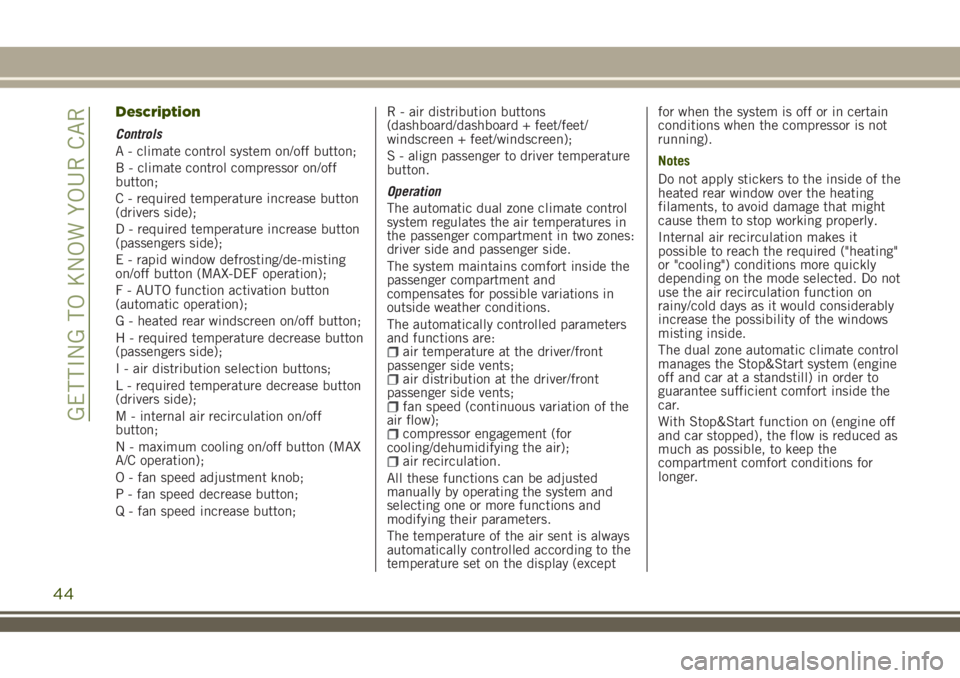

Description
Controls
A - climate control system on/off button;
B - climate control compressor on/off
button;
C - required temperature increase button
(drivers side);
D - required temperature increase button
(passengers side);
E - rapid window defrosting/de-misting
on/off button (MAX-DEF operation);
F - AUTO function activation button
(automatic operation);
G - heated rear windscreen on/off button;
H - required temperature decrease button
(passengers side);
I - air distribution selection buttons;
L - required temperature decrease button
(drivers side);
M - internal air recirculation on/off
button;
N - maximum cooling on/off button (MAX
A/C operation);
O - fan speed adjustment knob;
P - fan speed decrease button;
Q - fan speed increase button;R - air distribution buttons
(dashboard/dashboard + feet/feet/
windscreen + feet/windscreen);
S - align passenger to driver temperature
button.
Operation
The automatic dual zone climate control
system regulates the air temperatures in
the passenger compartment in two zones:
driver side and passenger side.
The system maintains comfort inside the
passenger compartment and
compensates for possible variations in
outside weather conditions.
The automatically controlled parameters
and functions are:
air temperature at the driver/front
passenger side vents;
air distribution at the driver/front
passenger side vents;
fan speed (continuous variation of the
air flow);
compressor engagement (for
cooling/dehumidifying the air);
air recirculation.
All these functions can be adjusted
manually by operating the system and
selecting one or more functions and
modifying their parameters.
The temperature of the air sent is always
automatically controlled according to the
temperature set on the display (exceptfor when the system is off or in certain
conditions when the compressor is not
running).
Notes
Do not apply stickers to the inside of the
heated rear window over the heating
filaments, to avoid damage that might
cause them to stop working properly.
Internal air recirculation makes it
possible to reach the required ("heating"
or "cooling") conditions more quickly
depending on the mode selected. Do not
use the air recirculation function on
rainy/cold days as it would considerably
increase the possibility of the windows
misting inside.
The dual zone automatic climate control
manages the Stop&Start system (engine
off and car at a standstill) in order to
guarantee sufficient comfort inside the
car.
With Stop&Start function on (engine off
and car stopped), the flow is reduced as
much as possible, to keep the
compartment comfort conditions for
longer.
44
GETTING TO KNOW YOUR CAR

IMPORTANT
2)The system uses R134a coolant, which
does not pollute the environment in the
event of accidental leakage. Under no
circumstances use R1234yf and
R12 fluids, which are incompatible with
the components of the system.

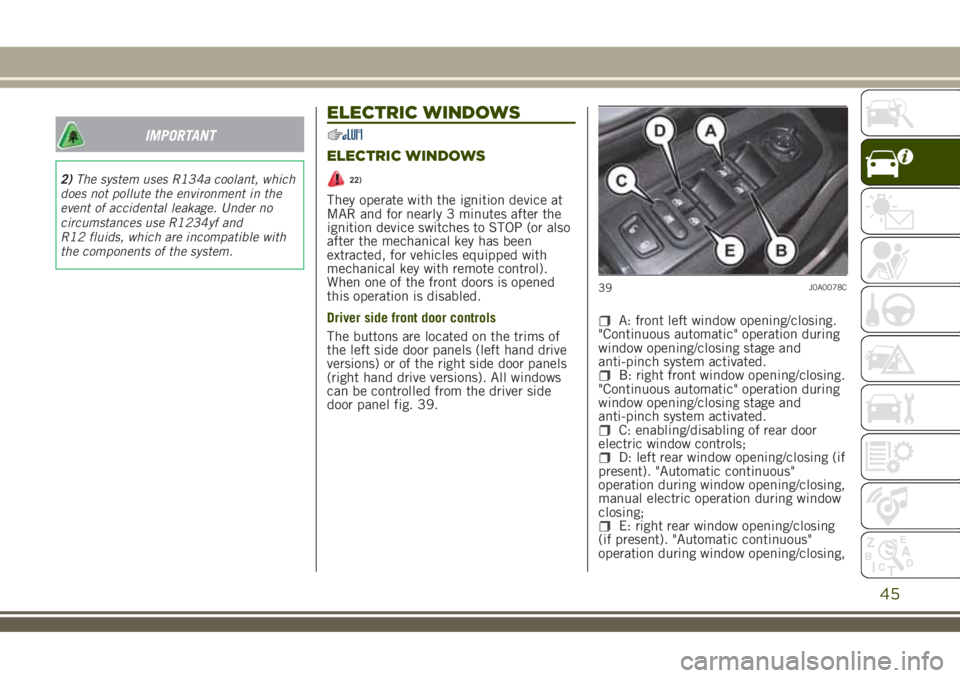

ELECTRIC WINDOWS
ELECTRIC WINDOWS
22)
They operate with the ignition device at
MAR and for nearly 3 minutes after the
ignition device switches to STOP (or also
after the mechanical key has been
extracted, for vehicles equipped with
mechanical key with remote control).
When one of the front doors is opened
this operation is disabled.
Driver side front door controls
The buttons are located on the trims of
the left side door panels (left hand drive
versions) or of the right side door panels
(right hand drive versions). All windows
can be controlled from the driver side
door panel fig. 39.
A: front left window opening/closing.
"Continuous automatic" operation during
window opening/closing stage and
anti-pinch system activated.
B: right front window opening/closing.
"Continuous automatic" operation during
window opening/closing stage and
anti-pinch system activated.
C: enabling/disabling of rear door
electric window controls;
D: left rear window opening/closing (if
present). "Automatic continuous"
operation during window opening/closing,
manual electric operation during window
closing;
E: right rear window opening/closing
(if present). "Automatic continuous"
operation during window opening/closing,
39J0A0078C
45

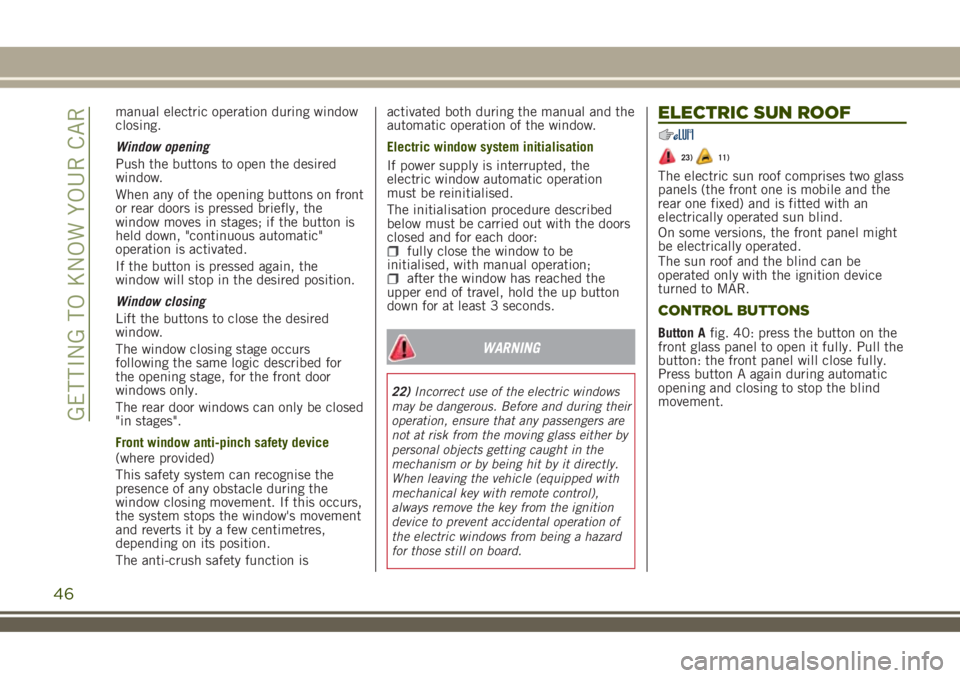

manual electric operation during window
closing.
Window opening
Push the buttons to open the desired
window.
When any of the opening buttons on front
or rear doors is pressed briefly, the
window moves in stages; if the button is
held down, "continuous automatic"
operation is activated.
If the button is pressed again, the
window will stop in the desired position.
Window closing
Lift the buttons to close the desired
window.
The window closing stage occurs
following the same logic described for
the opening stage, for the front door
windows only.
The rear door windows can only be closed
"in stages".
Front window anti-pinch safety device
(where provided)
This safety system can recognise the
presence of any obstacle during the
window closing movement. If this occurs,
the system stops the window's movement
and reverts it by a few centimetres,
depending on its position.
The anti-crush safety function isactivated both during the manual and the
automatic operation of the window.
Electric window system initialisation
If power supply is interrupted, the
electric window automatic operation
must be reinitialised.
The initialisation procedure described
below must be carried out with the doors
closed and for each door:
fully close the window to be
initialised, with manual operation;
after the window has reached the
upper end of travel, hold the up button
down for at least 3 seconds.
WARNING
22)Incorrect use of the electric windows
may be dangerous. Before and during their
operation, ensure that any passengers are
not at risk from the moving glass either by
personal objects getting caught in the
mechanism or by being hit by it directly.
When leaving the vehicle (equipped with
mechanical key with remote control),
always remove the key from the ignition
device to prevent accidental operation of
the electric windows from being a hazard
for those still on board.
ELECTRIC SUN ROOF
23)11)
The electric sun roof comprises two glass
panels (the front one is mobile and the
rear one fixed) and is fitted with an
electrically operated sun blind.
On some versions, the front panel might
be electrically operated.
The sun roof and the blind can be
operated only with the ignition device
turned to MAR.
CONTROL BUTTONS
Button Afig. 40: press the button on the
front glass panel to open it fully. Pull the
button: the front panel will close fully.
Press button A again during automatic
opening and closing to stop the blind
movement.
46
GETTING TO KNOW YOUR CAR

Button Bfig. 40: Briefly press button B
will open the sunshade blind in “steps”.
Pressing the button for longer, instead,
will activate “continuous automatic”
opening. Briefly pulling the button will
give a “snap” closing of the sunshade
blind. Keeping the button pulled,instead, will activate “continuous
automatic” closing.
Button Cfig. 40: press and release the
button to move the roof to the “spoiler”
position (swivel opening). This type of
swivel opening can be activated
irrespective of the position of the
sunroof. During “spoiler” opening, any
pressure on button C stops the roof
closing. Press button C with the roof fully
closed to open the roof to the “swivel”
position. If the roof is positioned between
the fully open position and the “swivel”
position, press button C to close it
manually.
ANTI-PINCH DEVICE
The sun roof and the electric blind are
equipped with an anti-pinch safety
system capable of detecting the presence
of an obstacle whilst the roof is closing:
if this happens, the system intervenes
and the movement of the glass is
immediately reversed.
EMERGENCY OPERATION
If the control buttons fail to operate, the
sun blind and the sun roof can be moved
manually, proceeding as described
below:

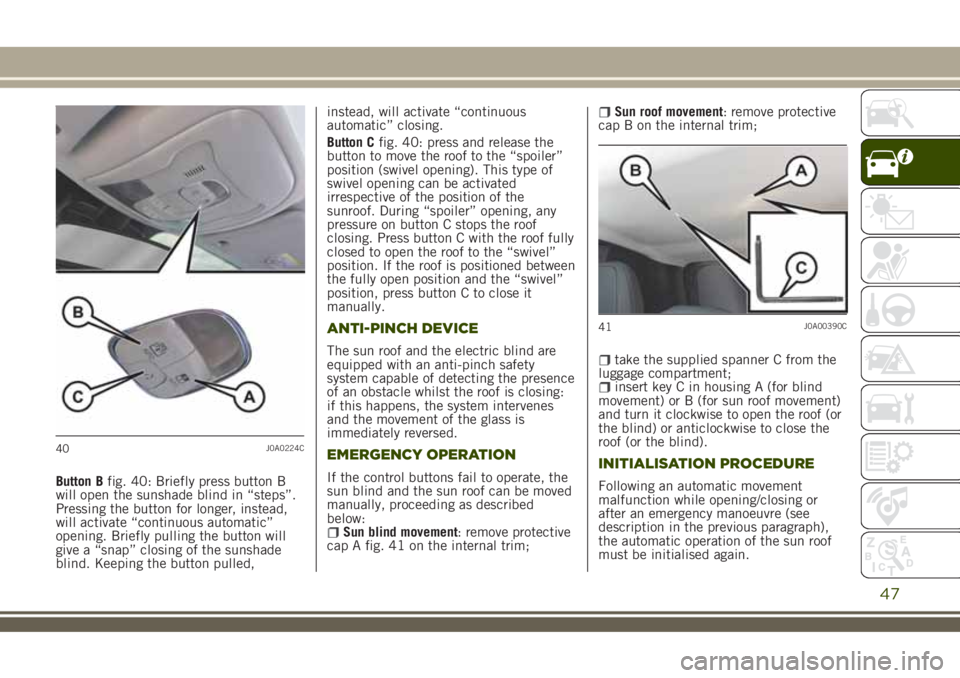

Sun blind movement: remove protective
cap A fig. 41 on the internal trim;
Sun roof movement: remove protective
cap B on the internal trim;
take the supplied spanner C from the
luggage compartment;
insert key C in housing A (for blind
movement) or B (for sun roof movement)
and turn it clockwise to open the roof (or
the blind) or anticlockwise to close the
roof (or the blind).

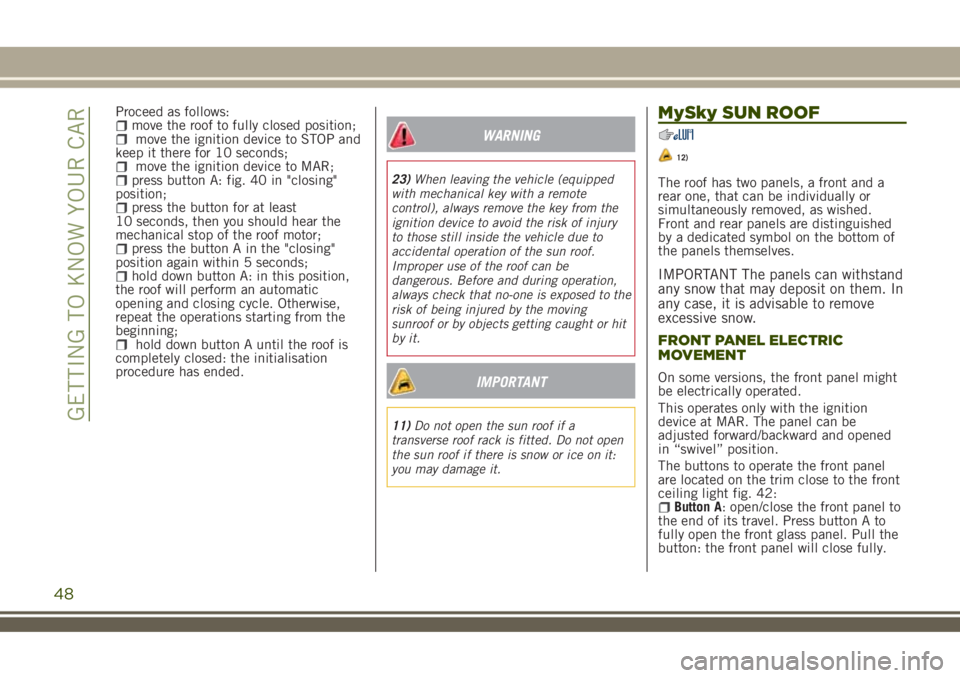

INITIALISATION PROCEDURE
Following an automatic movement
malfunction while opening/closing or
after an emergency manoeuvre (see
description in the previous paragraph),
the automatic operation of the sun roof
must be initialised again.
40J0A0224C
41J0A00390C
47

Proceed as follows:move the roof to fully closed position;move the ignition device to STOP and
keep it there for 10 seconds;
move the ignition device to MAR;press button A: fig. 40 in "closing"
position;
press the button for at least
10 seconds, then you should hear the
mechanical stop of the roof motor;
press the button A in the "closing"
position again within 5 seconds;
hold down button A: in this position,
the roof will perform an automatic
opening and closing cycle. Otherwise,
repeat the operations starting from the
beginning;
hold down button A until the roof is
completely closed: the initialisation
procedure has ended.
WARNING
23)When leaving the vehicle (equipped
with mechanical key with a remote
control), always remove the key from the
ignition device to avoid the risk of injury
to those still inside the vehicle due to
accidental operation of the sun roof.
Improper use of the roof can be
dangerous. Before and during operation,
always check that no-one is exposed to the
risk of being injured by the moving
sunroof or by objects getting caught or hit
by it.
IMPORTANT
11)Do not open the sun roof if a
transverse roof rack is fitted. Do not open
the sun roof if there is snow or ice on it:
you may damage it.
MySky SUN ROOF
12)
The roof has two panels, a front and a
rear one, that can be individually or
simultaneously removed, as wished.
Front and rear panels are distinguished
by a dedicated symbol on the bottom of
the panels themselves.
IMPORTANT The panels can withstand
any snow that may deposit on them. In
any case, it is advisable to remove
excessive snow.
FRONT PANEL ELECTRIC
MOVEMENT
On some versions, the front panel might
be electrically operated.
This operates only with the ignition
device at MAR. The panel can be
adjusted forward/backward and opened
in “swivel” position.
The buttons to operate the front panel
are located on the trim close to the front
ceiling light fig. 42:
Button A: open/close the front panel to
the end of its travel. Press button A to
fully open the front glass panel. Pull the
button: the front panel will close fully.
48
GETTING TO KNOW YOUR CAR
