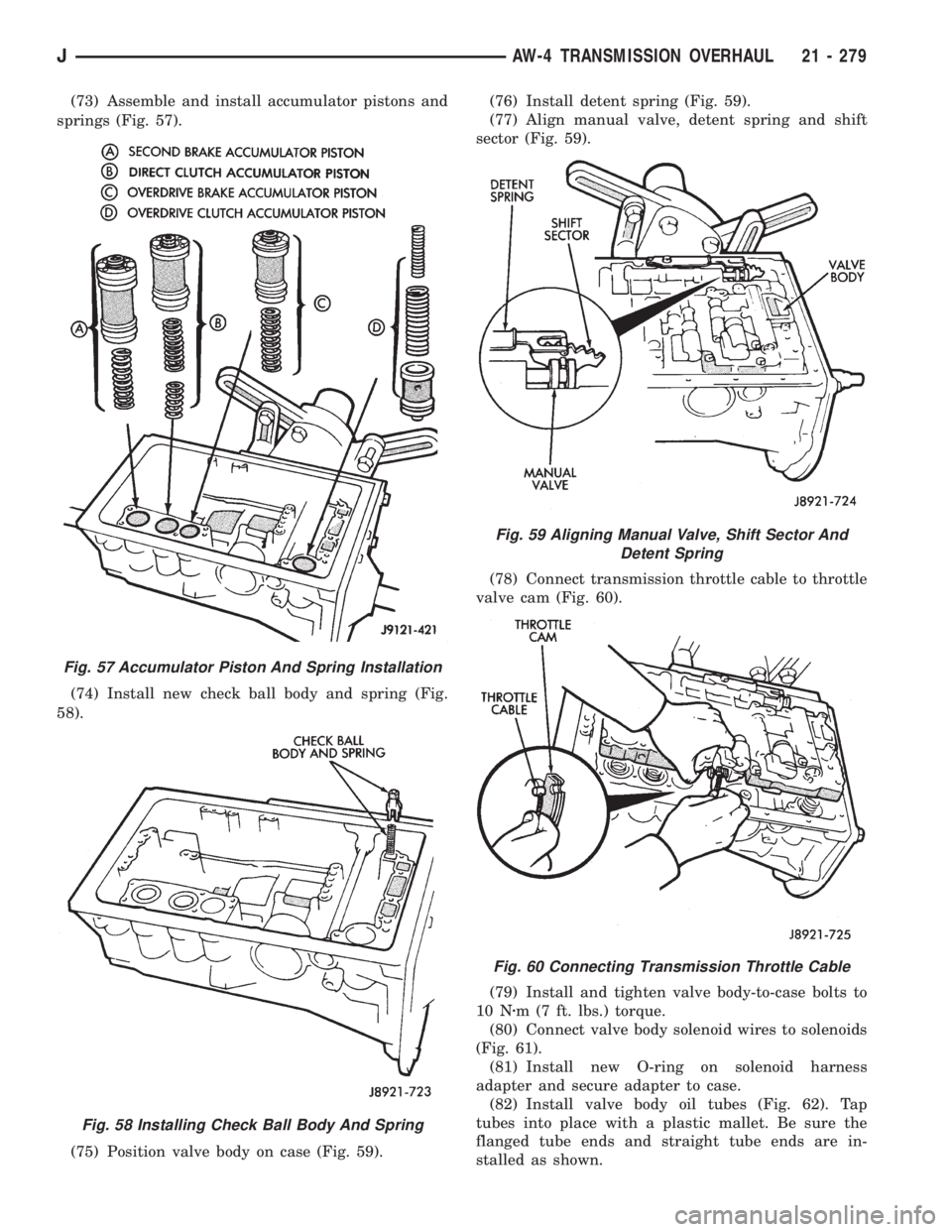

JEEP XJ 1995  Service And Repair Manual (73) Assemble and install accumulator pistons and
springs (Fig. 57).
(74) Install new check ball body and spring (Fig.
58).
(75) Position valve body on case (Fig. 59).(76) Install detent spring (Fig.

Page 1842 of 2158

JEEP XJ 1995  Service And Repair Manual (83) Install new gaskets on oil screen and install
screen on valve body. Tighten screen bolts to 10 Nzm
(7 ft. lbs.) torque.
(84) Install magnet in oil pan. Be sure magnet
does not interfere with valv

Page 1843 of 2158

JEEP XJ 1995  Service And Repair Manual (94) Mount park/neutral position switch on manual
valve shaft and tighten switch adjusting bolt just
enough to keep switch from moving (Fig. 68).
(95) Install park/neutral position switch tabbed
washe

Page 1844 of 2158

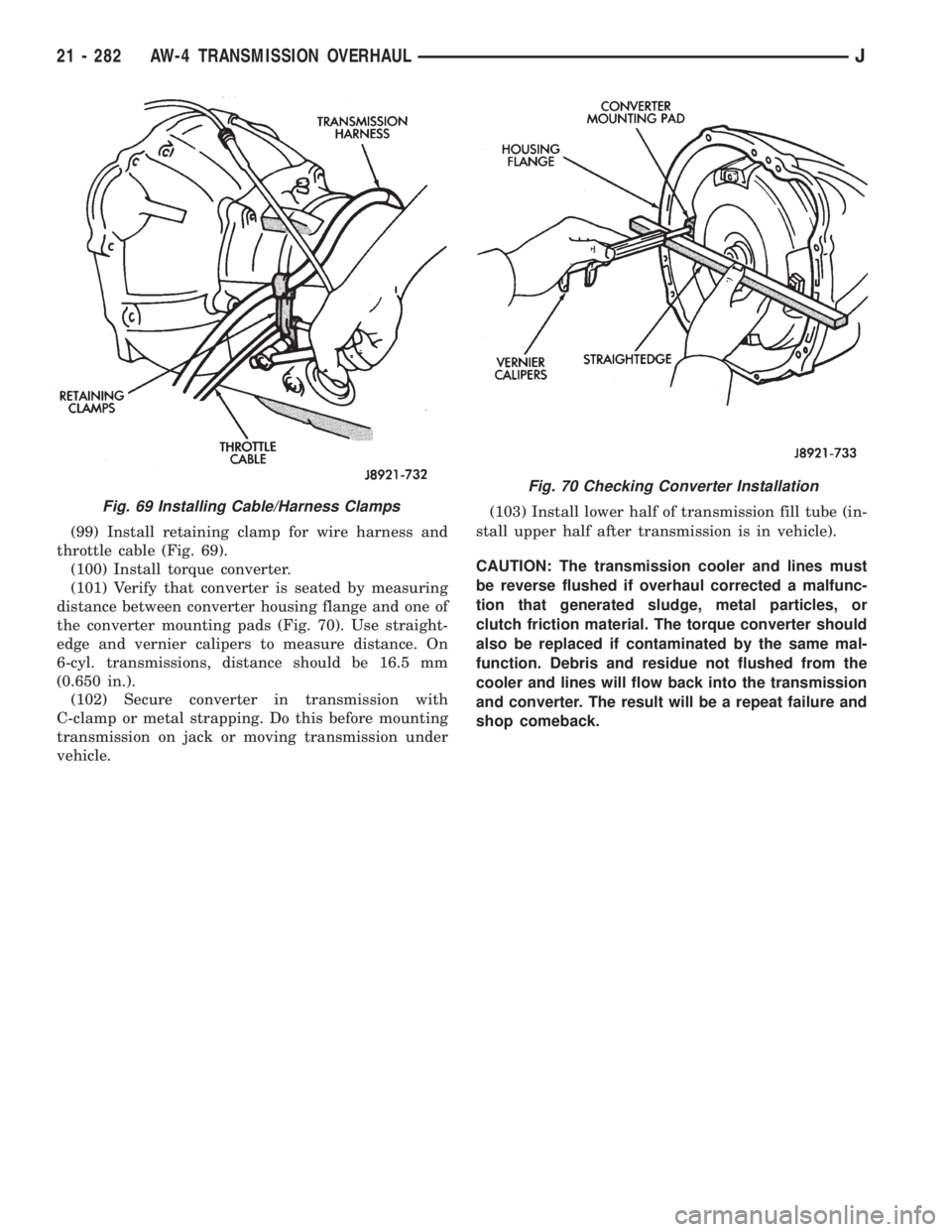

JEEP XJ 1995  Service And Repair Manual (99) Install retaining clamp for wire harness and
throttle cable (Fig. 69).
(100) Install torque converter.
(101) Verify that converter is seated by measuring
distance between converter housing flange

Page 1845 of 2158

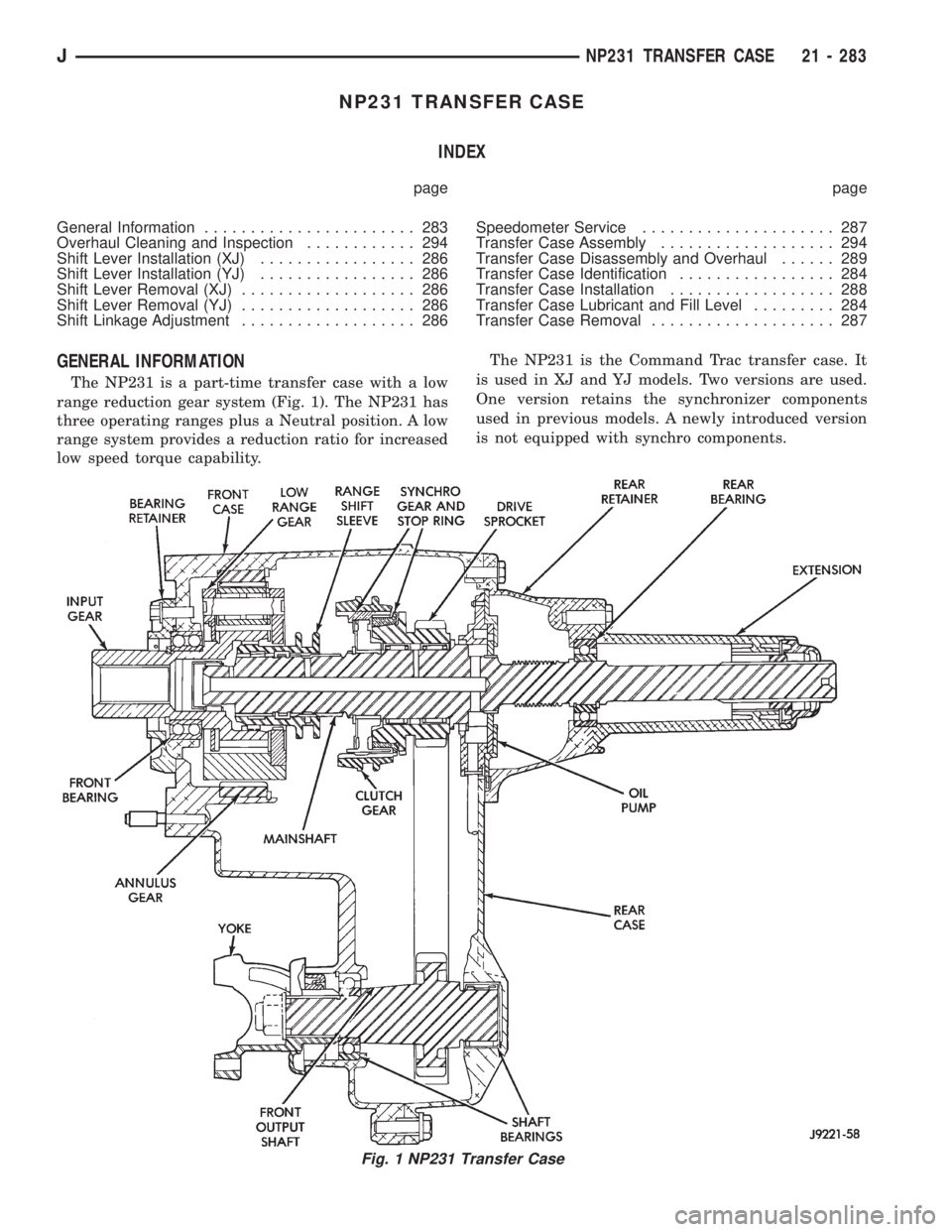

JEEP XJ 1995  Service And Repair Manual NP231 TRANSFER CASE
INDEX
page page
General Information....................... 283
Overhaul Cleaning and Inspection............ 294
Shift Lever Installation (XJ)................. 286
Shift Lever Insta

Page 1846 of 2158

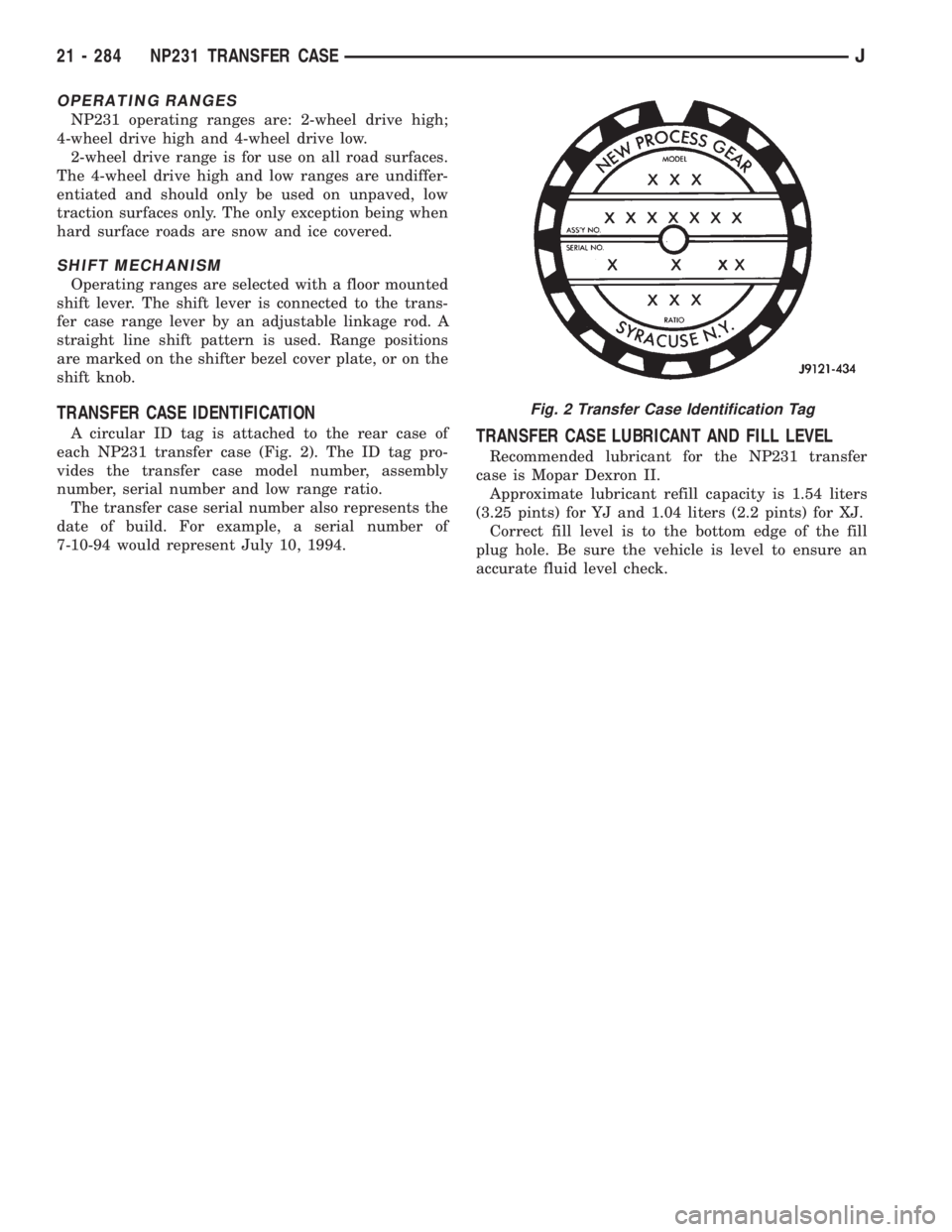

JEEP XJ 1995  Service And Repair Manual OPERATING RANGES
NP231 operating ranges are: 2-wheel drive high;
4-wheel drive high and 4-wheel drive low.
2-wheel drive range is for use on all road surfaces.
The 4-wheel drive high and low ranges ar

Page 1847 of 2158

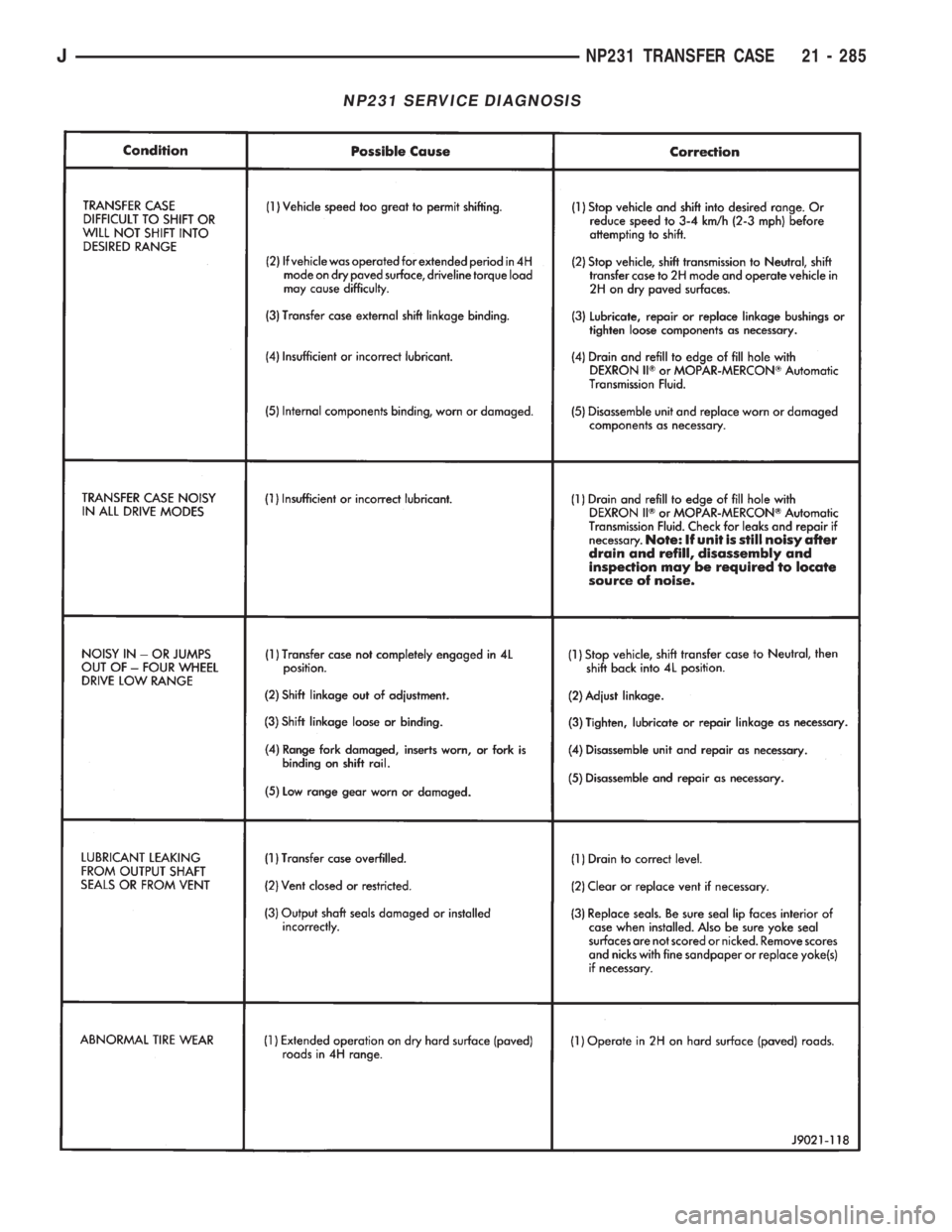

JEEP XJ 1995  Service And Repair Manual NP231 SERVICE DIAGNOSIS
JNP231 TRANSFER CASE 21 - 285

Page 1848 of 2158

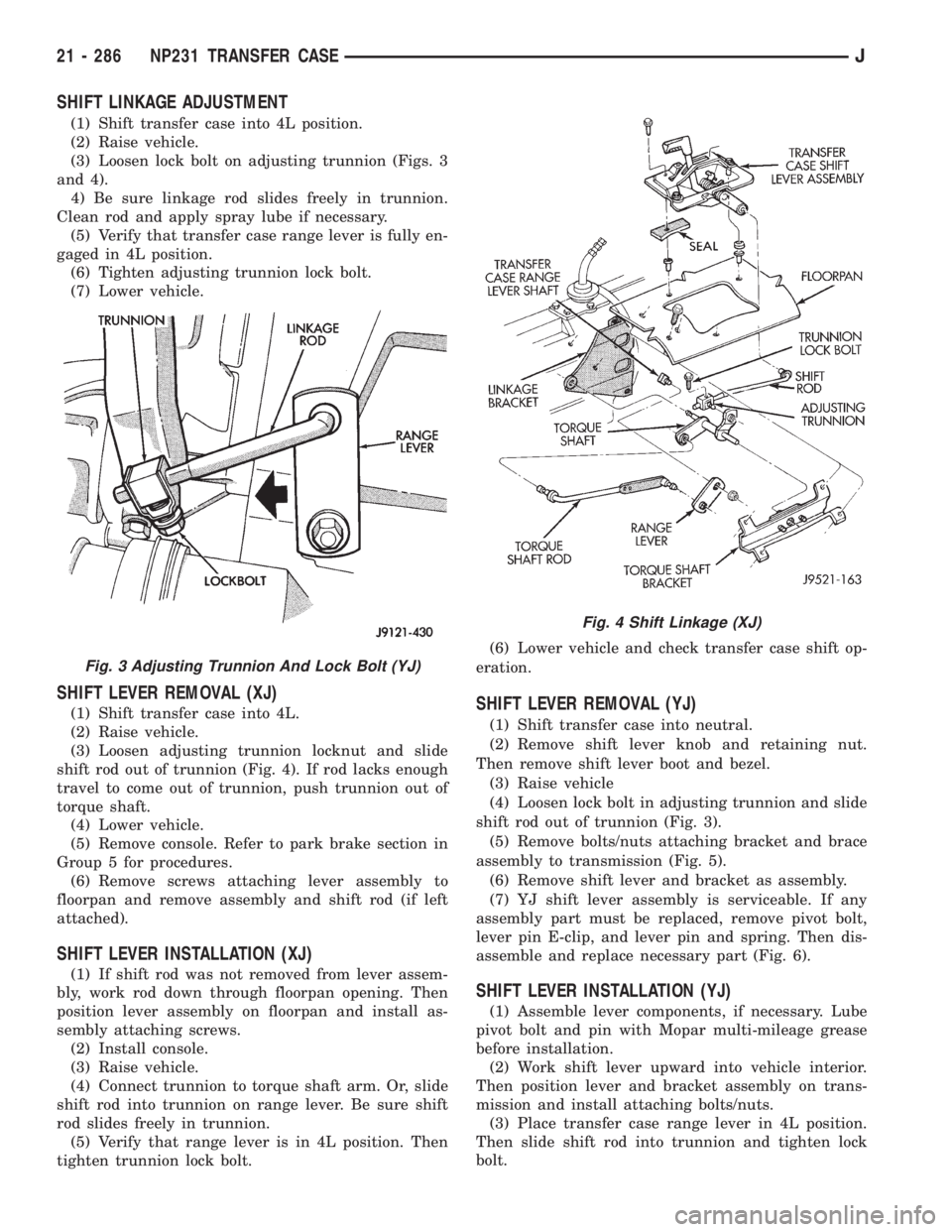

JEEP XJ 1995  Service And Repair Manual SHIFT LINKAGE ADJUSTMENT
(1) Shift transfer case into 4L position.
(2) Raise vehicle.
(3) Loosen lock bolt on adjusting trunnion (Figs. 3
and 4).
4) Be sure linkage rod slides freely in trunnion.
Clea

Page 1849 of 2158

JEEP XJ 1995  Service And Repair Manual (4) Lower vehicle.
(5) Install shift lever bezel and boot (Fig. 7). Then
install retaining nut and shift knob on lever.
SPEEDOMETER SERVICE
Speedometer service is covered in the 30RH/32RH,
or AW-4 aut

Page 1850 of 2158

JEEP XJ 1995  Service And Repair Manual (14) Pull transfer case and jack rearward to disen-
gage transfer case.
(15) Remove transfer case from under vehicle.
(16) If transfer case was removed for overhaul, re-
move damper from rear retainer
