KIA SPORTAGE 2020 Quick Reference Guide

29

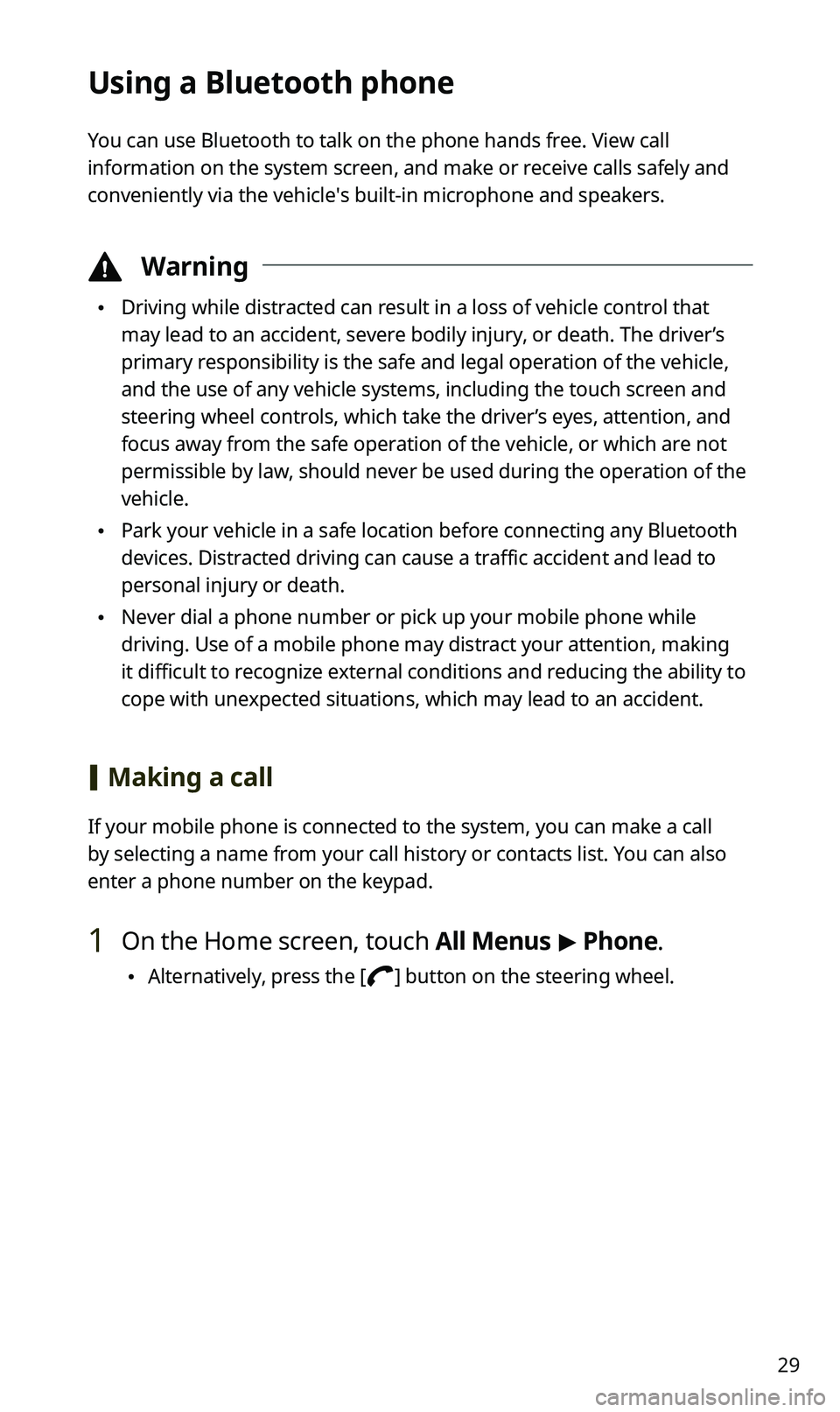

Using a Bluetooth phone
You can use Bluetooth to talk on the phone hands free. View call
information on the system screen, and make or receive calls safely and
conveniently via the vehicle′s built-in microphone and speakers.
ÜWarning
•Driving while distracted can result in a loss of vehicle control that
may lead to an accident, severe bodily injury, or death. The driver’s
primary responsibility is the safe and legal operation of the vehicle,
and the use of any vehicle systems, including the touch screen and
steering wheel controls, which take the driver’s eyes, attention, and
focus away from the safe operation of the vehicle, or which are not
permissible by law, should never be used during the operation of the
vehicle.
•Park your vehicle in a safe location before connecting any Bluetooth
devices. Distracted driving can cause a traffic accident and lead to
personal injury or death.
•Never dial a phone number or pick up your mobile phone while
driving. Use of a mobile phone may distract your attention, making
it difficult to recognize external conditions and reducing the ability to
cope with unexpected situations, which may lead to an accident.
[Making a call
If your mobile phone is connected to the system, you can make a call
by selecting a name from your call history or contacts list. You can also
enter a phone number on the keypad.
1 On the Home screen, touch All Menus > Phone.
•Alternatively, press the [] button on the steering wheel.

30

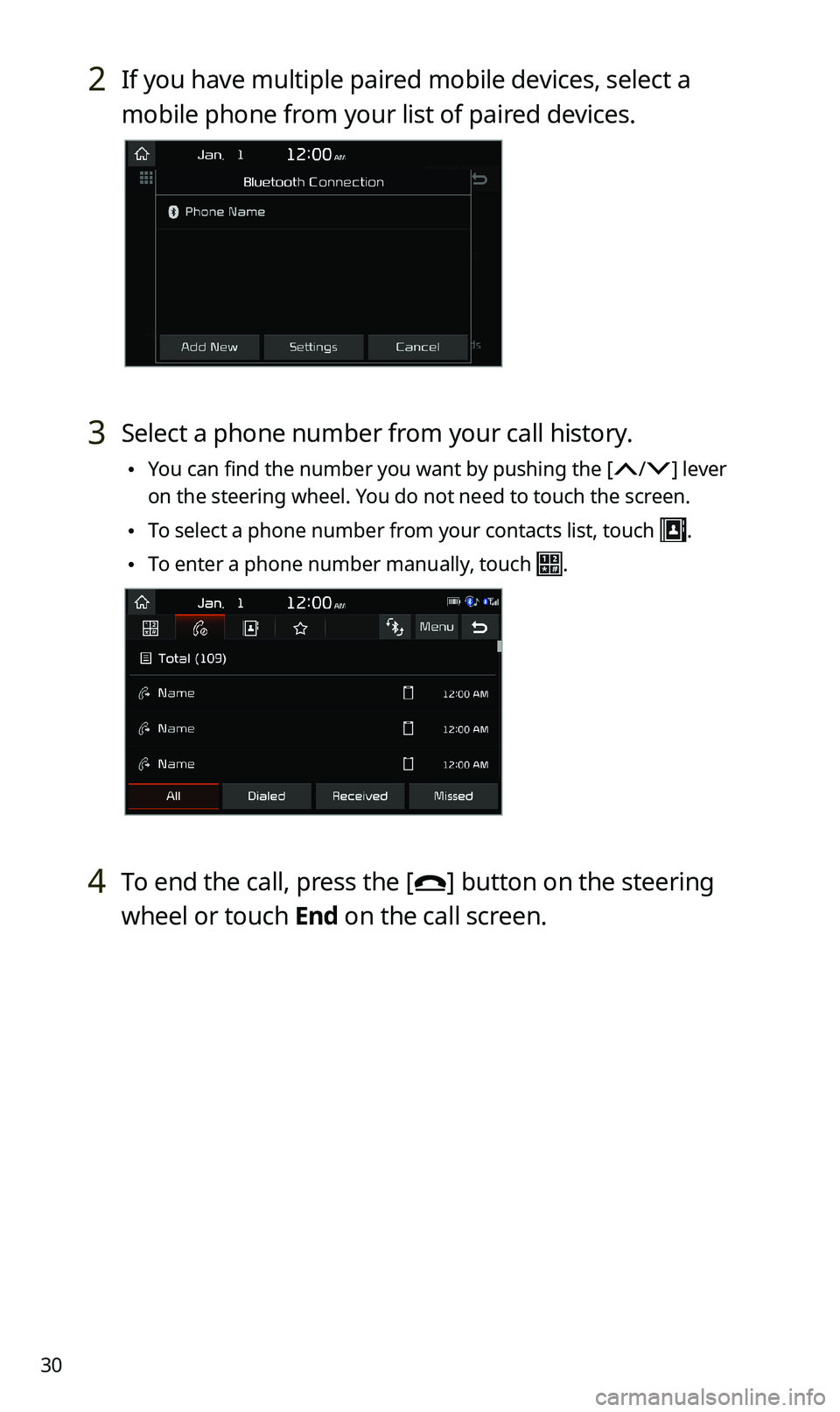

2 If you have multiple paired mobile devices, select a
mobile phone from your list of paired devices.
3 Select a phone number from your call history.
•You can find the number you want by pushing the [/] lever
on the steering wheel. You do not need to touch the screen.
•To select a phone number from your contacts list, touch .
•To enter a phone number manually, touch .
4 To end the call, press the [] button on the steering
wheel or touch End on the call screen.

31

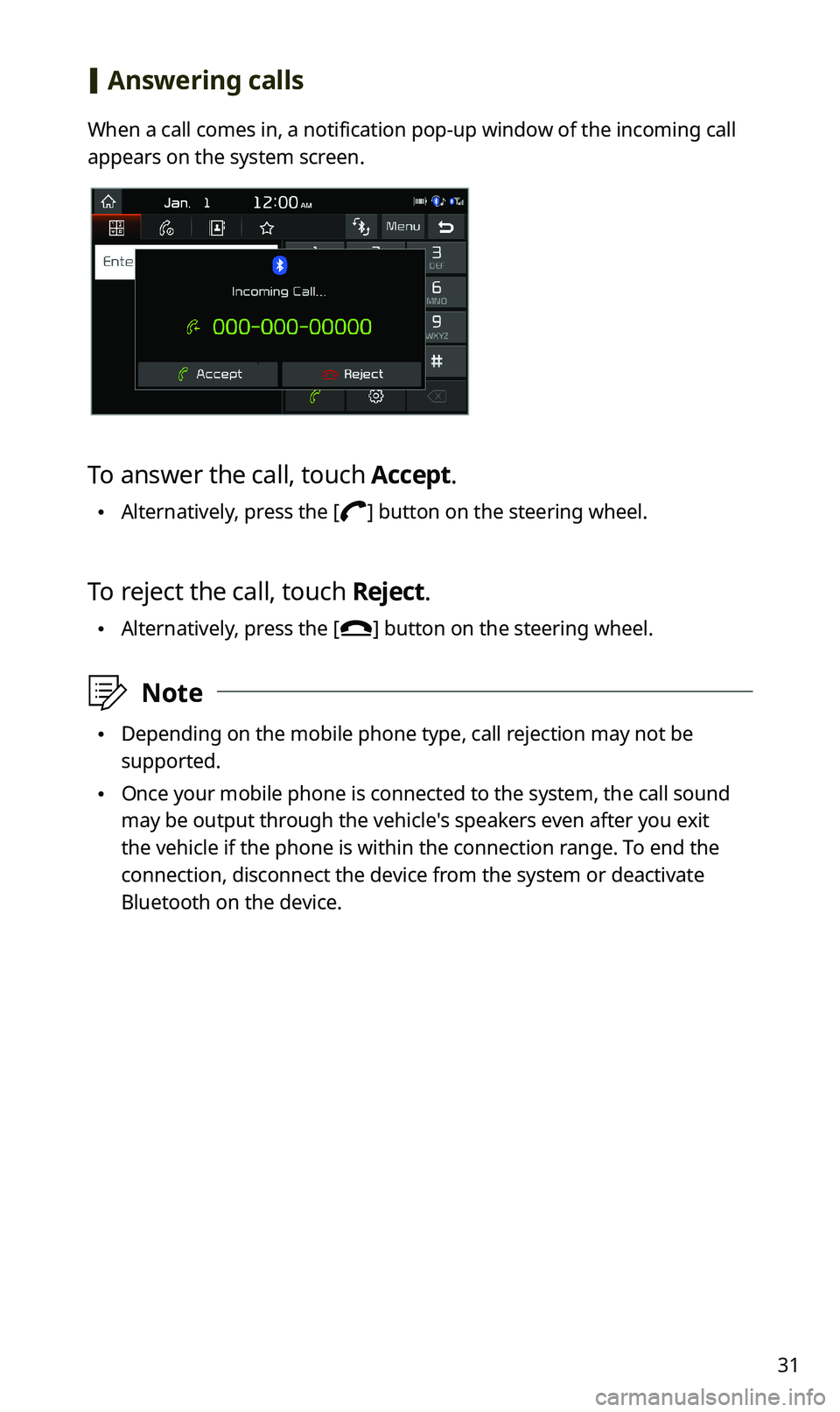

[Answering calls
When a call comes in, a notification pop-up window of the incoming call
appears on the system screen.
To answer the call, touch Accept.
•Alternatively, press the [] button on the steering wheel.
To reject the call, touch Reject.
•Alternatively, press the [] button on the steering wheel.
ÛNote
•Depending on the mobile phone type, call rejection may not be
supported.
•Once your mobile phone is connected to the system, the call sound
may be output through the vehicle′s speakers even after you exit
the vehicle if the phone is within the connection range. To end the
connection, disconnect the device from the system or deactivate
Bluetooth on the device.

32

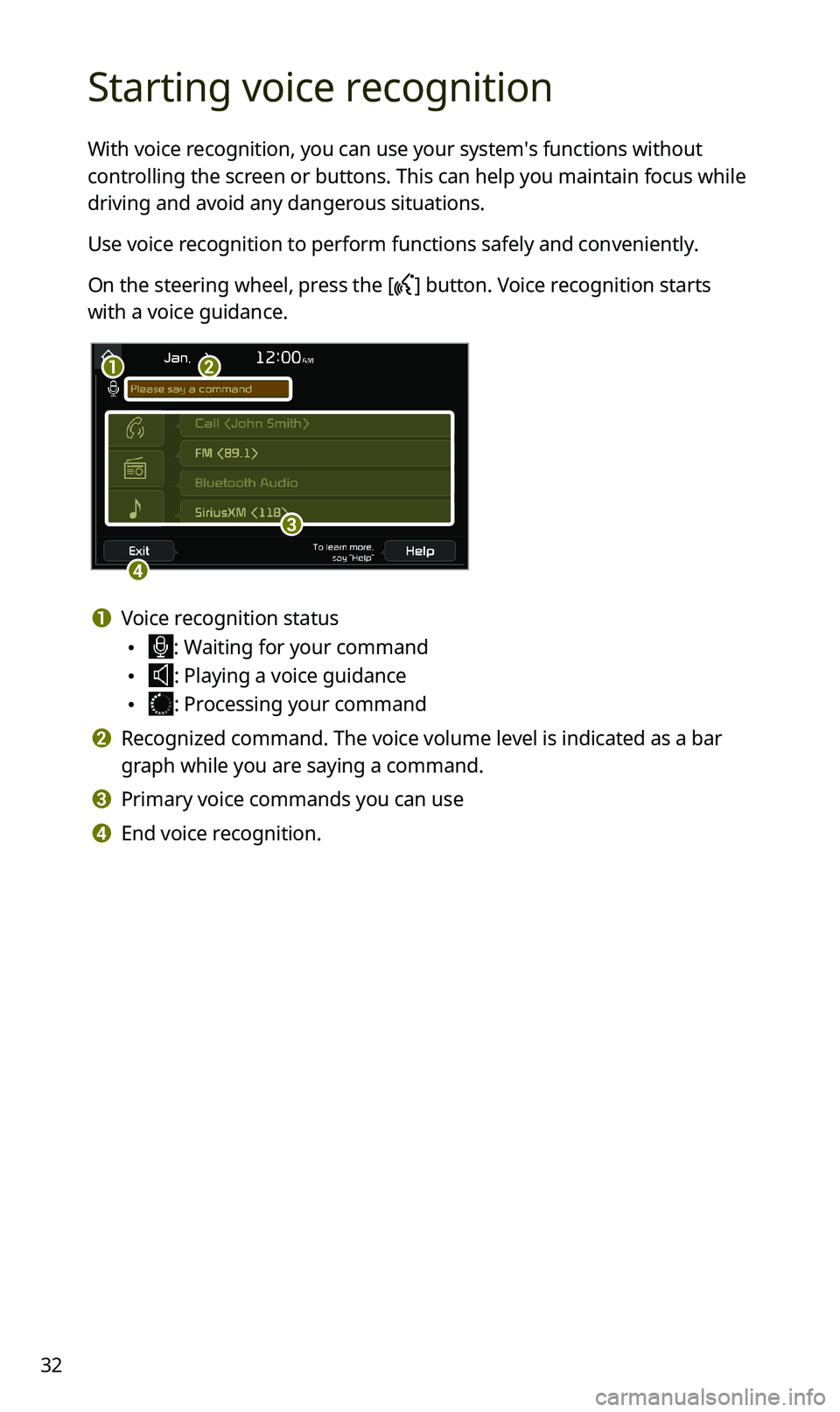

Starting voice recognition
With voice recognition, you can use your system′s functions without
controlling the screen or buttons. This can help you maintain focus while
driving and avoid any dangerous situations.
Use voice recognition to perform functions safely and conveniently.
On the steering wheel, press the [] button. Voice recognition starts
with a voice guidance.
b
c
d
a
a Voice recognition status
•: Waiting for your command
•: Playing a voice guidance
•: Processing your command
b Recognized command. The voice volume level is indicated as a bar
graph while you are saying a command.
c Primary voice commands you can use
d End voice recognition.

33

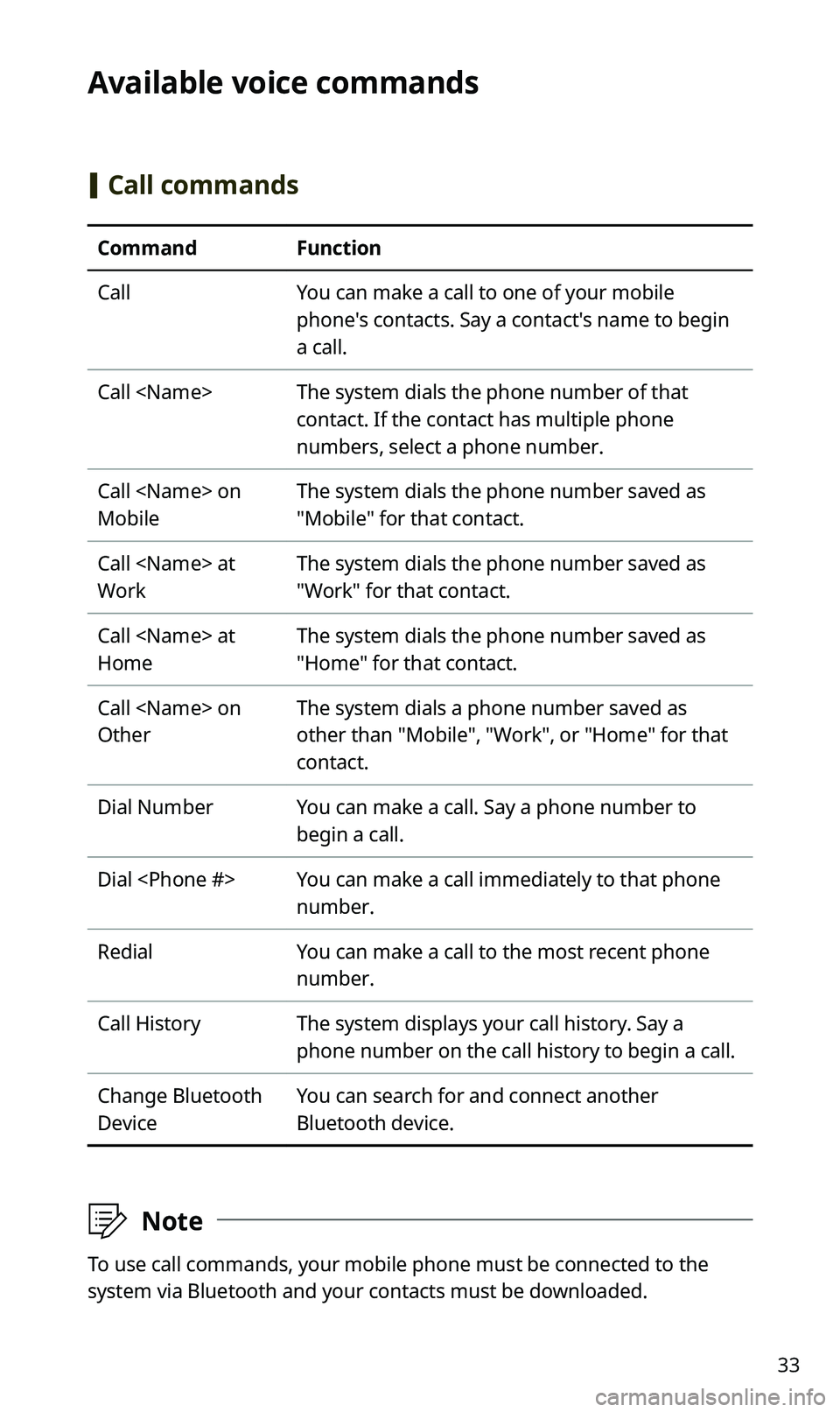

Available voice commands
[Call commands
CommandFunction
CallYou can make a call to one of your mobile
phone's contacts. Say a contact's name to begin
a call.
Call The system dials the phone number of that
contact. If the contact has multiple phone
numbers, select a phone number.
Call on
Mobile
The system dials the phone number saved as
"Mobile" for that contact.
Call at
Work
The system dials the phone number saved as
"Work" for that contact.
Call at
Home
The system dials the phone number saved as
"Home" for that contact.
Call on
Other
The system dials a phone number saved as
other than "Mobile", "Work", or "Home" for that
contact.
Dial NumberYou can make a call. Say a phone number to
begin a call.
Dial You can make a call immediately to that phone
number.
RedialYou can make a call to the most recent phone
number.
Call HistoryThe system displays your call history. Say a
phone number on the call history to begin a call.
Change Bluetooth
Device
You can search for and connect another
Bluetooth device.
ÛNote
To use call commands, your mobile phone must be connected to the
system via Bluetooth and your contacts must be downloaded.

34

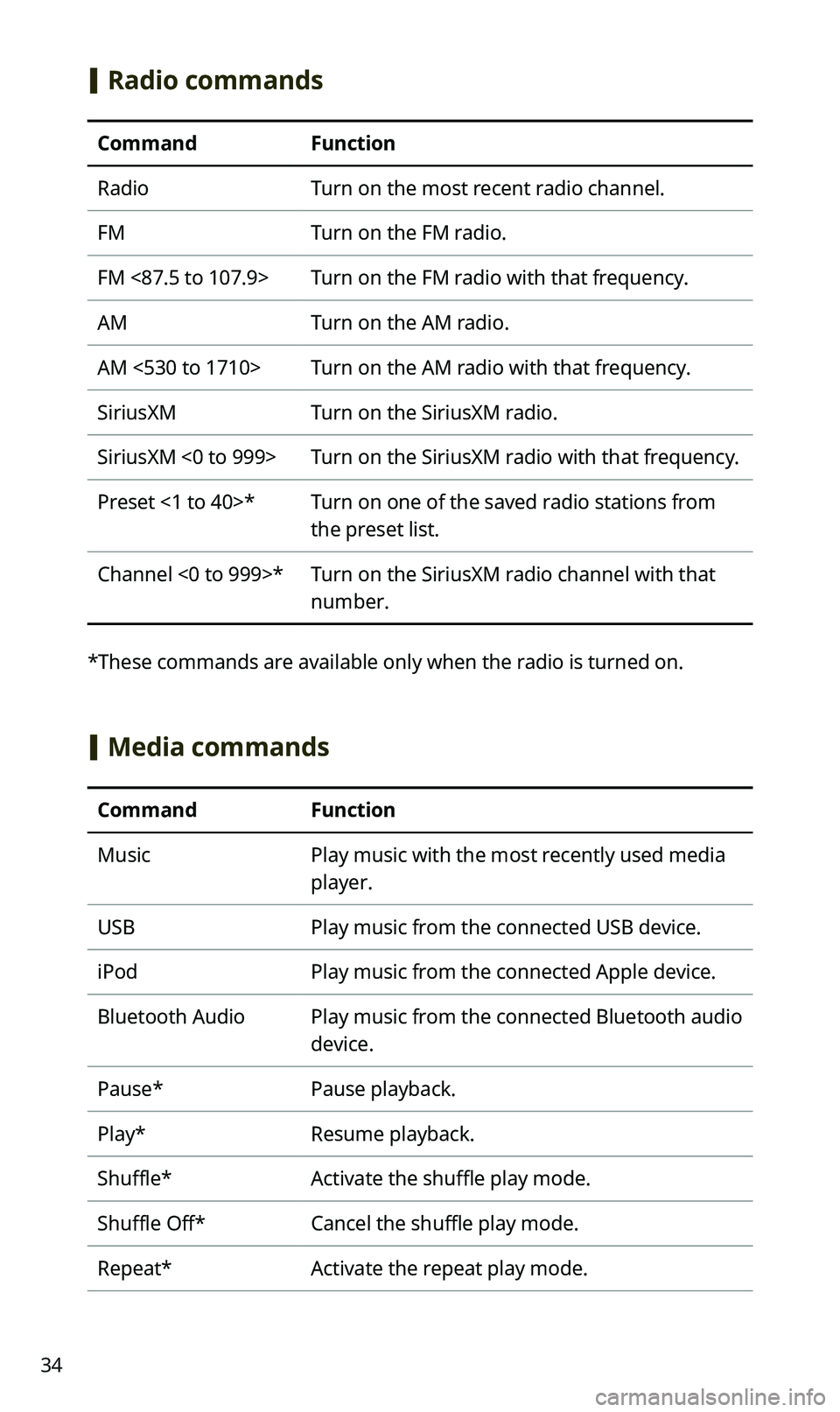

[Radio commands
CommandFunction
RadioTurn on the most recent radio channel.
FMTurn on the FM radio.
FM <87.5 to 107.9>Turn on the FM radio with that frequency.
AMTurn on the AM radio.
AM <530 to 1710>Turn on the AM radio with that frequency.
SiriusXMTurn on the SiriusXM radio.
SiriusXM <0 to 999>Turn on the SiriusXM radio with that frequency.
Preset <1 to 40>*Turn on one of the saved radio stations from
the preset list.
Channel <0 to 999>*Turn on the SiriusXM radio channel with that
number.
* These commands are available only when the radio is turned on.
[Media commands
CommandFunction
MusicPlay music with the most recently used media
player.
USBPlay music from the connected USB device.
iPodPlay music from the connected Apple device.
Bluetooth AudioPlay music from the connected Bluetooth audio
device.
Pause*Pause playback.
Play*Resume playback.
Shuffle*Activate the shuffle play mode.
Shuffle Off*Cancel the shuffle play mode.
Repeat*Activate the repeat play mode.

35

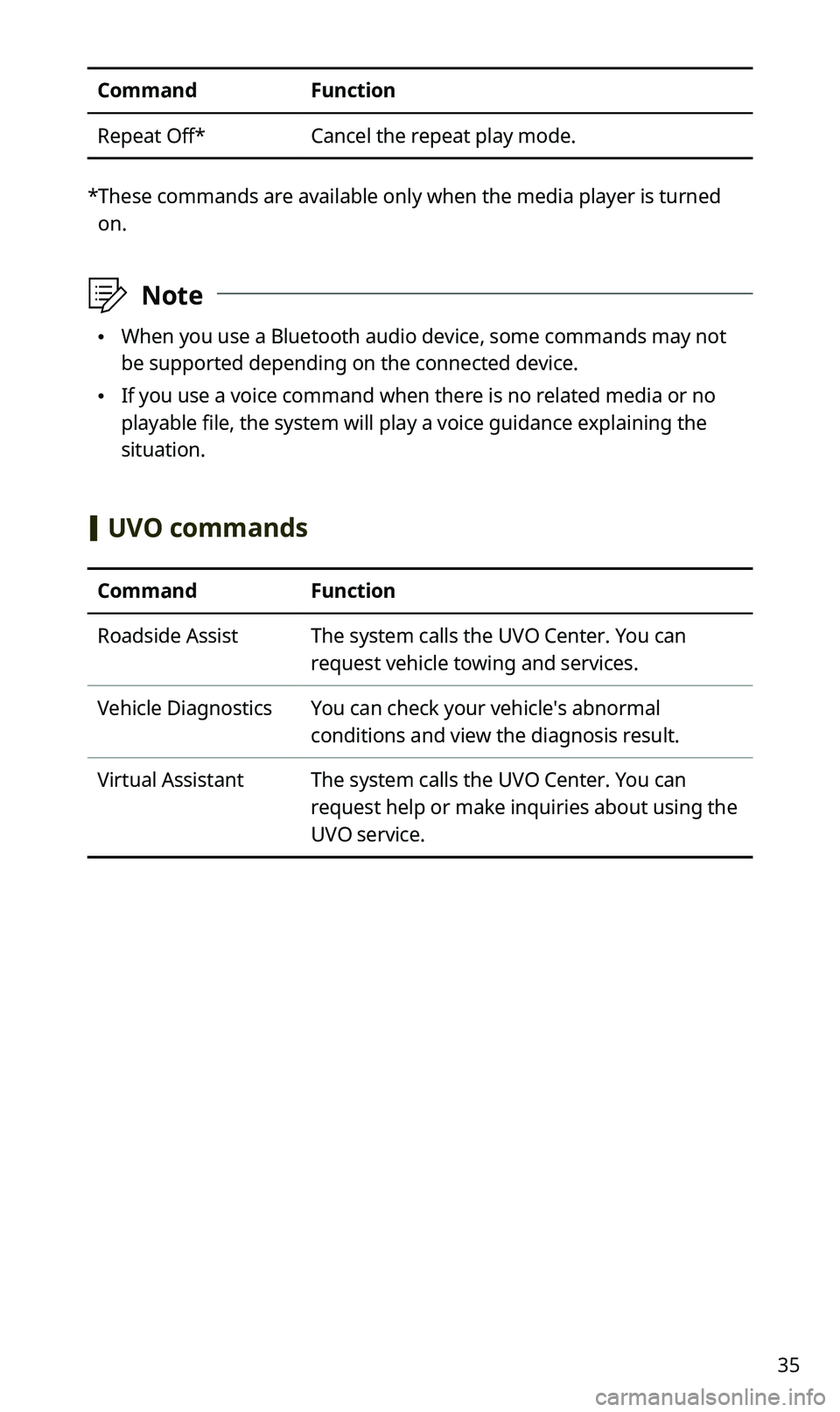

CommandFunction
Repeat Off*Cancel the repeat play mode.
* These commands are available only when the media player is turned
on.
ÛNote
•When you use a Bluetooth audio device, some commands may not
be supported depending on the connected device.
•If you use a voice command when there is no related media or no
playable file, the system will play a voice guidance explaining the
situation.
[UVO commands
CommandFunction
Roadside AssistThe system calls the UVO Center. You can
request vehicle towing and services.
Vehicle DiagnosticsYou can check your vehicle′s abnormal
conditions and view the diagnosis result.
Virtual AssistantThe system calls the UVO Center. You can
request help or make inquiries about using the
UVO service.

36

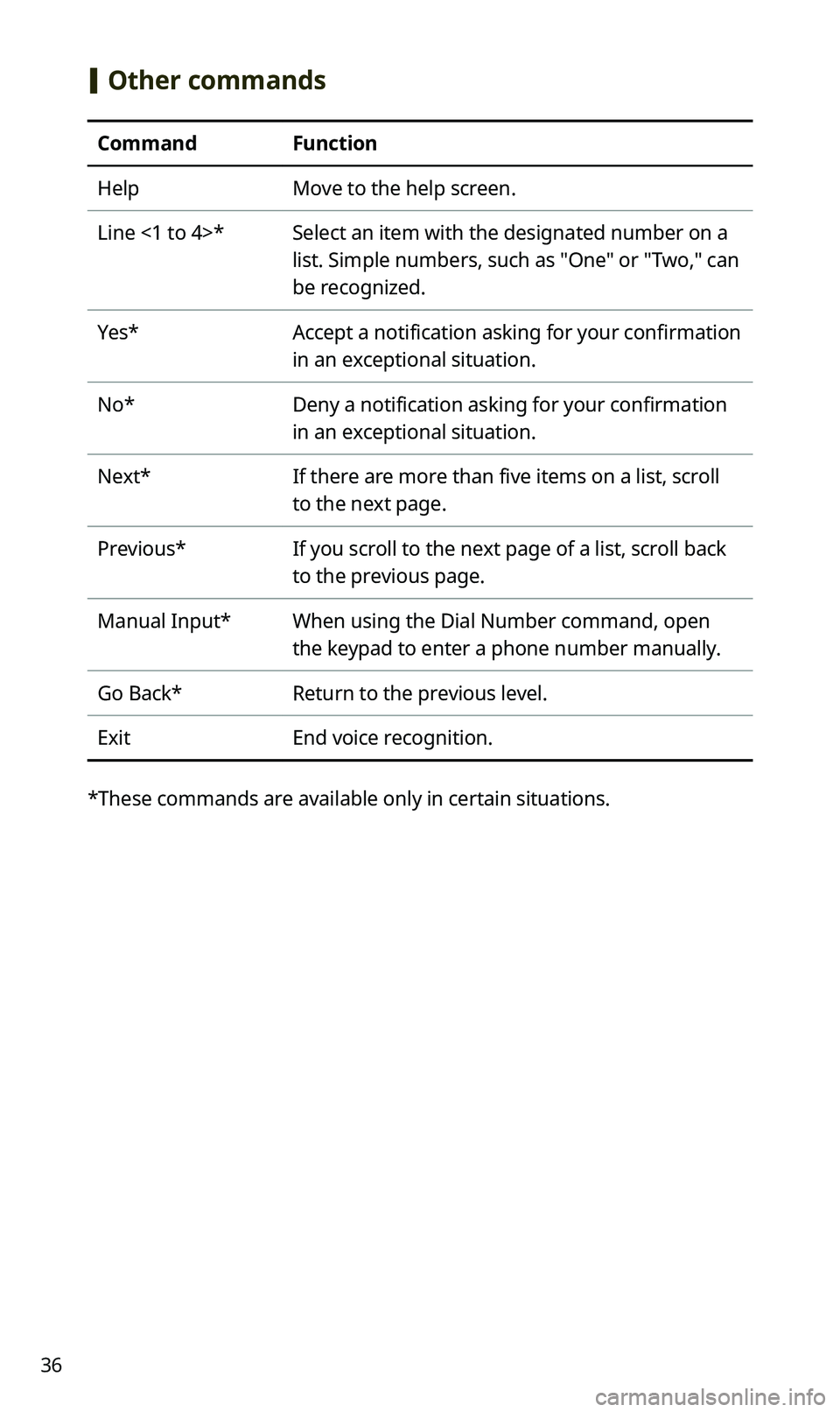

[Other commands
CommandFunction
HelpMove to the help screen.
Line <1 to 4>*Select an item with the designated number on a
list. Simple numbers, such as "One" or "Two," can
be recognized.
Yes*Accept a notification asking for your confirmation
in an exceptional situation.
No*Deny a notification asking for your confirmation
in an exceptional situation.
Next*If there are more than five items on a list, scroll
to the next page.
Previous*If you scroll to the next page of a list, scroll back
to the previous page.
Manual Input*When using the Dial Number command, open
the keypad to enter a phone number manually.
Go Back*Return to the previous level.
ExitEnd voice recognition.
* These commands are available only in certain situations.

37

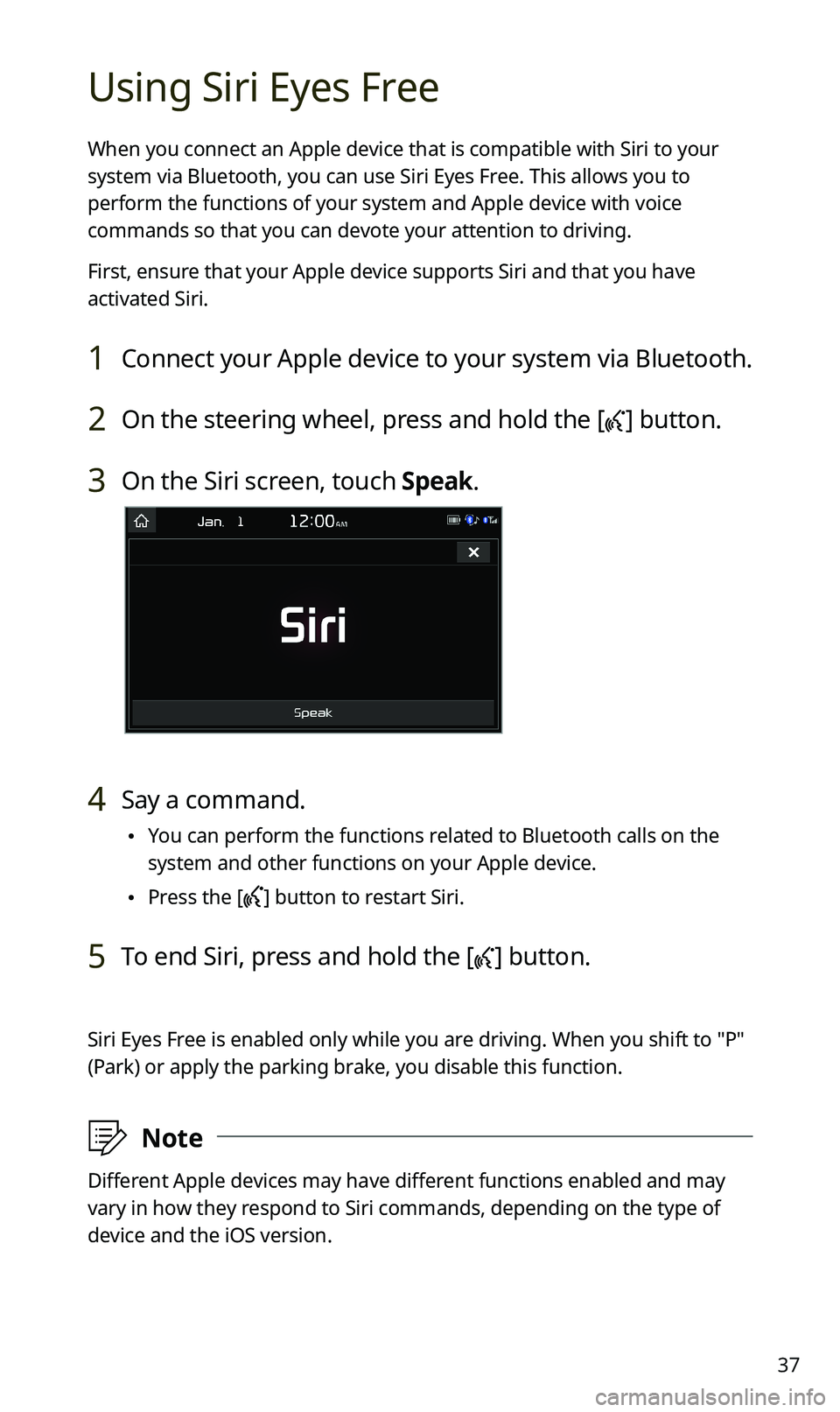

Using Siri Eyes Free
When you connect an Apple device that is compatible with Siri to your
system via Bluetooth, you can use Siri Eyes Free. This allows you to
perform the functions of your system and Apple device with voice
commands so that you can devote your attention to driving.
First, ensure that your Apple device supports Siri and that you have
activated Siri.
1 Connect your Apple device to your system via Bluetooth.
2 On the steering wheel, press and hold the [] button.
3 On the Siri screen, touch Speak.
4 Say a command.
•You can perform the functions related to Bluetooth calls on the
system and other functions on your Apple device.
•Press the [] button to restart Siri.
5 To end Siri, press and hold the [] button.
Siri Eyes Free is enabled only while you are driving. When you shift to ″P″
(Park) or apply the parking brake, you disable this function.
ÛNote
Different Apple devices may have different functions enabled and may
vary in how they respond to Siri commands, depending on the type of
device and the iOS version.

38

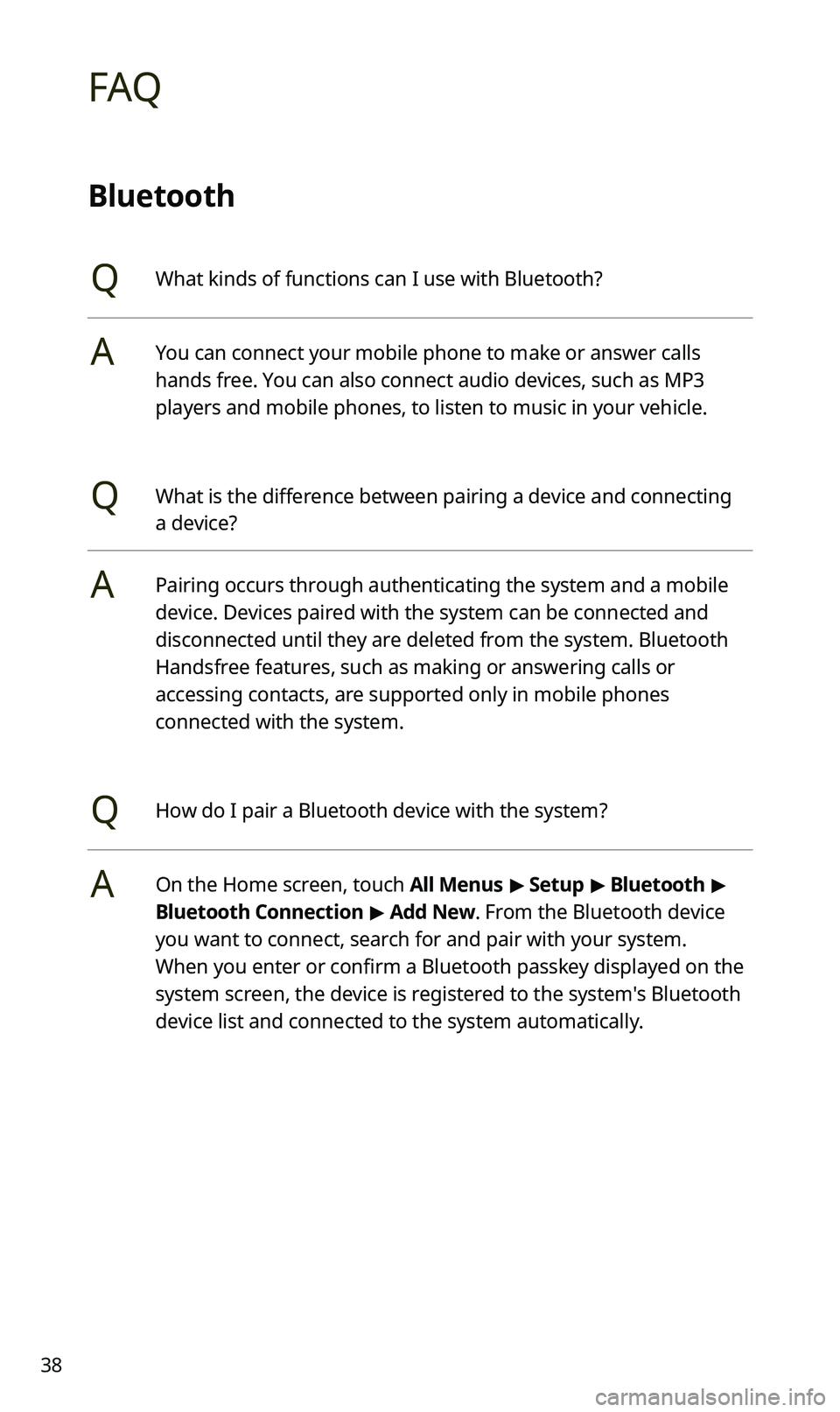

FAQ
Bluetooth
QWhat kinds of functions can I use with Bluetooth?
AYou can connect your mobile phone to make or answer calls
hands free. You can also connect audio devices, such as MP3
players and mobile phones, to listen to music in your vehicle.
QWhat is the difference between pairing a device and connecting
a device?
APairing occurs through authenticating the system and a mobile
device. Devices paired with the system can be connected and
disconnected until they are deleted from the system. Bluetooth
Handsfree features, such as making or answering calls or
accessing contacts, are supported only in mobile phones
connected with the system.
QHow do I pair a Bluetooth device with the system?
AOn the Home screen, touch All Menus > Setup > Bluetooth >
Bluetooth Connection > Add New. From the Bluetooth device
you want to connect, search for and pair with your system.
When you enter or confirm a Bluetooth passkey displayed on the
system screen, the device is registered to the system's Bluetooth
device list and connected to the system automatically.
