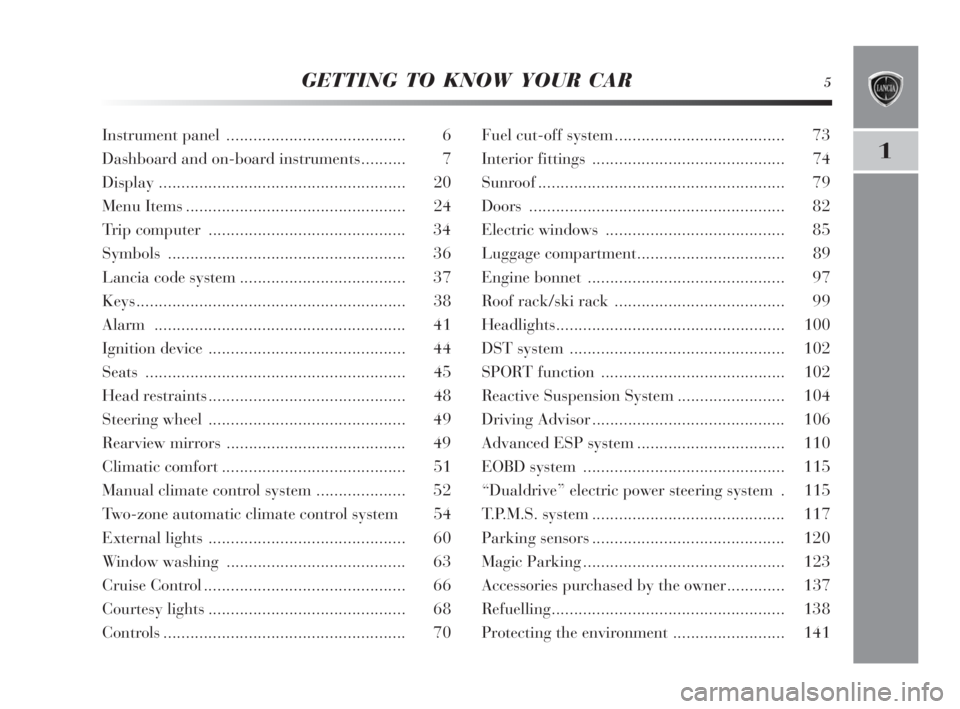

GETTING TO KNOW YOUR CAR5
1
Instrument panel........................................ 6
Dashboard and on-board instruments.......... 7
Display ....................................................... 20
Menu Items ................................................. 24
Trip computer ............................................ 34
Symbols..................................................... 36
Lancia code system..................................... 37
Keys............................................................ 38
Alarm........................................................ 41
Ignition device............................................ 44
Seats .......................................................... 45
Head restraints ............................................ 48
Steering wheel............................................ 49
Rearview mirrors ........................................ 49
Climatic comfort ......................................... 51
Manual climate control system .................... 52
Two-zone automatic climate control system 54
External lights............................................ 60
Window washing ........................................ 63
Cruise Control ............................................. 66
Courtesy lights............................................ 68
Controls...................................................... 70Fuel cut-off system...................................... 73
Interior fittings........................................... 74
Sunroof....................................................... 79
Doors......................................................... 82
Electric windows........................................ 85
Luggage compartment................................. 89
Engine bonnet ............................................ 97
Roof rack/ski rack...................................... 99
Headlights................................................... 100
DST system ................................................ 102
SPORT function ......................................... 102
Reactive Suspension System ........................ 104
Driving Advisor........................................... 106
Advanced ESP system................................. 110
EOBD system ............................................. 115
“Dualdrive” electric power steering system . 115
T.P.M.S. system........................................... 117
Parking sensors........................................... 120
Magic Parking............................................. 123
Accessories purchased by the owner............. 137
Refuelling.................................................... 138
Protecting the environment ......................... 141
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 5

6GETTING TO KNOW YOUR CAR
DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows - 2. Adjustable air vent - 3. Exterior lighting control lever - 4. Instrument panel -
5. Windscreen wiper/rearscreen wiper/trip computer control lever - 6. Adjustable air vents - 7. Hazard warning lights
- 8. Passenger front air bag - 9. Glove compartment - 10. Dashboard controls - 11. Climate controls - 12. Ignition key
and ignition device - 13. Driver front air bag - 14. Driver front knee air bag (for versions/markets, where provided) -
15. Steering lock lever - 16. Fuse box access flap - 17. Bonnet opening lever.
fig. 1L0E0001m
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 6

GETTING TO KNOW YOUR CAR41
1
fig. 13L0E0106m
Replacing the remote control cover fig. 13
To replace the remote control cover, follow the procedure
shown in the diagram.ALARM
(for versions/markets, where provided)
The alarm, which is provided in addition to the remote
control functions described previously, is controlled by a
receiver located under the dashboard, near the fuse box.
ALARM TRIPPING
The alarm trips in the following cases:
❍when a door, the bonnet or the tailgate is opened ille-
gally (perimeter protection);
❍when the ignition system is operated (ignition key ro-
tated to MAR);
❍when the battery cables are cut;
❍when someone is moving inside the passenger com-
partment (volume-sensing protection);
❍when the vehicle is lifted or tilted.
According to the market, when the alarm is tripped this
operates the alarm siren and direction indicators (for ap-
proximately 26 seconds). Alarm tripping and the number
of cycles depend on the sales market.
There are a maximum number of acoustic/visual cycles.
When this is reached the system returns to normal oper-
ation.
The volume sensing and anti-tilt protection can be ex-
cluded by adjusting the dedicated control on the front
courtesy light (see “volume sensing/anti-tilt protection”).
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 41

56GETTING TO KNOW YOUR CAR
Selecting air distribution B-fig. 26
Press one or more buttons

/ / ˙to manually select
one of the 7 possible air distribution settings:

Air flow to the windscreen and front side win-
dow vents to demist/defrost them.
Air flow to the front and rear foot well vents. This
distribution setting rapidly heats the passenger
compartment.

Air flow distribution between front/rear vents,
˙dashboard central/side vents, rear vent, wind-
screen and front side windows demisting vents.

Air flow distribution between foot well vents and
windscreen and front side window demisting/ de-
frosting vents. This distribution setting allows ad-
equate warming of the passenger compartment
and prevents the windows from misting up.
˙
Air flow distribution between foot well vents (hot-
ter air) and central/side dashboard vents and rear
vent (cooler air).
˙Air flow distribution between central/side dash-
board vents, rear vent and windscreen and front
side window demisting/defrosting vents. This dis-
tribution setting allows adequate ventilation of the
passenger compartment and prevents the windows
from misting up.
IMPORTANT For the climate control system to function,
one of the following buttons must be operated:

/ /
˙. The system does not allow all buttons
/  / ˙to
be switched off.
IMPORTANT Press OFF to restart the climate control sys-
tem: in this way all previously stored operating conditions
are reset before switching off.
To restore automatic air distribution control after a man-
ual selection, press AUTO.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 56

60GETTING TO KNOW YOUR CAR
Switching the climate control compressor
on/off I-fig. 26
Press button
❄to switch on the climate control system
compressor.
Compressor engagement
❍the LED on button
❄is lit up;
❍Symbol
❄is shown on the display.
Compressor disengagement
❍the LED on button
❄is off;
❍symbol
❄disappears from the display;
❍internal air recirculation is excluded;
❍the AQS function is disabled.
With the climate control system compressor disengaged,
it is not possible to introduce air of a lower temperature
than the outside temperature into the passenger com-
partment; in this case the symbol on the display will flash.
The disengagement of the climate control compressor re-
mains in the system memory even after the engine has
been stopped. To engage the climate control compressor
press the button
❄once again or press AUTO: in this last
case any manual settings will be cancelled.
EXTERNAL LIGHTS
The left-hand lever operates most of the external lights.
The external lights can only be switched on when the ig-
nition key is on MAR. The instrument panel and the var-
ious controls on the dashboard will be illuminated when
the external lights are switched on.
DAYLIGHT lights (D.R.L. - Adaptive Daylight Led)
(for versions/markets, where provided)
With the ignition key turned to MAR and the selector wheel
turned to position Othe daylight lights are automatical-
ly activated; the other lights and internal illumination re-
main off. The automatic lighting up of the daytime lights
can be switched on/off using the display menus (see “Dis-
play” section in this chapter). If the daytime lights are
switched off, when the selector wheel is turned to Ono
lights will come on.
fig. 27L0E0019m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 60

62GETTING TO KNOW YOUR CAR
DIPPED BEAM HEADLIGHTS/SIDE LIGHTS
With the ignition key turned to MAR, turn the selector
wheel to 2. If dipped beam headlights are activated, the
daytime lights are switched off and the side lights, num-
ber plate light and dipped beam headlights are lit up. The
3warning light will come on in the instrument panel.
When the ignition key is turned to STOP or removed, and
the selector wheel is turned from
Oto2, the number plate
light and side lights are lit. The 3warning light will
come on in the instrument panel.
Parking function
With the side lights on and the ignition key turned to STOP
or removed, it is possible to light up one side of the vehi-
cle by moving the lighting lever down (left-hand side) or
up (right-hand side). In this case warning light
3on the
instrument panel will go out.
MAIN BEAM HEADLIGHTS
With the selector wheel in position 2, push the lever for-
ward toward the dashboard (stable position). The 1warn-
ing light will come on in the instrument panel. They are
switched off by pulling the lever towards the steering wheel.
Flashing the headlights
You can flash the headlights by pulling the lever towards
the wheel (unstable position). The
1warning light on the
instrument panel will come on.DIRECTION INDICATORS Fig. 28
Push the lever to (stable) position:
– up (position
a): right-hand indicator ON;
– down (position
b): left-hand indicator ON.
Warning light
¥orÎwill blink on the instrument pan-
el.. The direction indicators are switched off automatically
when the steering wheel is straightened.
fig. 28L0E0020m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 62

64GETTING TO KNOW YOUR CAR
“Smart washing” function
Pull the lever towards the steering wheel (unstable posi-
tion) to operate the windscreen washer jet. Keep the lever
pulled to activate both the windscreen washer jet and the
windscreen wiper with a single movement; the latter turns
on automatically if you keep the lever pulled for over half
a second. The windscreen wiper stops operating a few
strokes after the lever is released; after a few seconds, a
further cleaning stroke completes the wiping operation.
fig. 29L0E0021m
REAR WINDOW WIPER/REAR WINDOW
WASHER
This only operates with the ignition turned to MAR.
Turn the selector wheel to
'to operate the rear window
wiper.
With the windscreen wiper active, turn the selector wheel
to
'activate the rear window wiper which, in this case,
operates (in the different positions) in sync with the wind-
screen wipe but at half its rate. When reverse gear is en-
gaged with windscreen wiper active, the rear window wiper
automatically turns on in slow continuous mode.
It stops when the reverse gear is disengaged.
Do not use the windscreen or rearscreen
wiper to remove layers of snow or ice from
the windscreen. In such conditions, the wind-
screen wiper may be subjected to excessive stress
and the motor protection which prevents operation
for a few seconds may trip. If the issue persists, con-
tact a Lancia Dealership.
“Smart washing” function
Pushing the lever towards the dashboard (unstable posi-
tion) will activate the rear window washer.
Keep the lever pushed to activate the rear window wash-
er jet and the rear window wiper with a single movement;
the latter turns on automatically if you keep the lever
pushed for over half a second.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 64

GETTING TO KNOW YOUR CAR83
1
LOCK/RELEASE FROM INSIDE fig. 52
From inside the vehicle (with the doors closed) press the
door locking/unlocking button A on the dashboard. If the
electrical system has failed, it is still possible to lock the
doors manually.
fig. 52L0E0043m
CHILD LOCK SYSTEM B-fig. 53
This system prevents the rear doors from being opened
from the inside.
This device can only be engaged with rear doors open:
❍position 1 - device engaged (door locked);
❍position 2 - device not engaged (door may be opened
from the inside).
The device stays on even if the doors are unlocked by the
central locking system.
IMPORTANT The rear doors cannot be opened from the
inside when the child-lock system is engaged.
After engaging the child lock on both rear
doors, check it is properly engaged by try-
ing to open a rear door using the internal
handle.
Always use this device when carrying chil-
dren.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 83

GETTING TO KNOW YOUR CAR85
1
IMPORTANT If the battery is disconnected or the pro-
tection fuse blows, the door opening/closing mechanism
must be reinitialised as follows:
❍close all the doors;
❍press button
Áon the key or door locking/unlocking
button
≈on the dashboard;
❍press button
Ëon the key or door locking/unlocking
button
≈on the dashboard.
If the child lock was engaged and the previ-
ously described locking procedure carried
out, operating the internal handle will not
open the door but will only realign the door lock
knob. To open the door, the outside handle must be
used. The door central locking/unlocking button
≈is not disabled by the engagement of the emer-
gency lock.
ELECTRIC WINDOWS
These operate when the ignition key is turned to MAR and
for about 2 minutes after turning the key to STOP or re-
moving it.
The control buttons are located in the door panels (the
driver-side door panel can be used to operate all the win-
dows).
There is may be anti-crush safety device which starts
working when the front windows are closing.
CONTROLS fig. 54
A. opening/closing left-hand front window; “continuous
automatic” operation during window opening/closing
stage;
B. opening/closing right-hand front window; continu-
ous automatic operation during window open-
ing/closing stage;
C. enabling/disabling of rear door electric window con-
trols;
D. opening/closing left-hand rear window (for ver-
sions/markets, where provided); continuous automat-
ic operation during window opening/closing stage;
E. opening/closing right-hand rear window (for ver-
sions/markets, where provided); “continuous auto-
matic” operation during window opening/closing stage.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 85

GETTING TO KNOW YOUR CAR107
1
SWITCHING OFF THE SYSTEM
Manual method
The system can be deactivated by pressing button A-fig. 71
on the dashboard.
Confirmation of system deactivation is signalled by the
LED on the button going out and a message 1-fig. 72 ap-
pearing on the display.
Automatic method
The system can be deactivated automatically (if the sys-
tem is required it will therefore need to be reactivated).
The driver is advised that the system has been turned off au-
tomatically by three consecutive acoustic signals and the mes-
sage 1 – fig. 72 in the instrument panel display after the fol-
lowing situations:
❍the driver does not keep his hands on the steering wheel
(indication 2-fig. 72 is shown on the instrument pan-
el and a buzzer sounds until the driver places his hands
back on the wheel. This is considered a dangerous con-
dition and the system is automatically deactivated);
❍triggering of the vehicle safety systems (ABS, ESP,
ASR, DST and TTC);
❍the driver sets the sports driving pressing the SPORT
button (for versions/markets, where provided).
WARNING: the system cannot be activated if the driver
has previously selected the sport driving mode. The im-
possibility of using the system will be communicated to
the driver by three consecutive beeps and by the displayed
message 1 in fig. 72.SYSTEM FAILURE
In the event of a malfunction, the system reports the fault
via a message 3-fig. 72 appearing on the display and a
buzzer sounding.
IMPORTANT
The driving advisor is unable to operate following a malfunc-
tion in any of the following safety systems: ABS, ESP, ASR,
DST and TTC.
In the presence of indistinct, overlapping or
missing lane markings, the lane assistance
function is unable to aid the driver and the
system will be deactivated.
The driving advisor is not an automatic dri-
ving system and cannot replace the driver in
controlling the vehicle trajectory. The driver
is personally responsible for maintaining a suitable
level of concentration as traffic and road conditions
require, and for safely controlling the vehicle’s tra-
jectory.
The operation of the lane assistance function may be com-
promised by adverse visibility conditions (rain, fog, snow),
extreme lighting conditions (solar glare, darkness) or dirt
or damage, even partial, to the windscreen in the area
around the video camera.
The area of the windscreen by the TV camera should not
be partly or totally obscured by objects (e.g. stickers, pro-
tective film, etc.)
001-142 Delta 3ed gb 30-11-2009 13:22 Pagina 107
