REFUELLING
Petrol engines:only refuel the car with unleaded
petrol with a RON of at least 95.
Diesel engines:refuel the car exclusively with diesel fuel for
motor vehicles conforming to the European specification
EN590.
The use of other products or mixtures may damage the
engine beyond repair and consequently invalidate the
warranty, depending on the damage caused.
STARTING THE ENGINE
Petrol engines:make sure that the handbrake is
engaged; set the gearshift lever to neutral; fully depress
the clutch without pressing the accelerator, then turn
the ignition key to AV Vand release it as soon as the
engine has started.
Diesel enginesturn the ignition key to MARand wait until
the warning lights go off. YThenm, turn the ignition key
toAV Vand release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter reaches high temperatures
during operation. Do not park on grass, dry leaves,
pine needles or other flammable material: fire risk.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a
continuous diagnosis of the emission-related
components in order to help protect the environment.ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical
accessories (that may gradually drain the battery),
visit aLancia Dealership.They can calculate the
overall electrical requirement and check that the
car’s electric system can support the required load.
CODE CARD
Keep this in a safe place, not in the car. We
recommend that you always carry the electronic code
provided on the CODE card with you, in case you
need to perform an emergency start.
SCHEDULED MAINTENANCE
Correct car maintenance is essential to ensure that
the performance, safety features, environmental
friendliness and low running costs stay in tip-top
condition over the years.
THE OWNER’S MANUAL CONTAINS…
... important information and warnings on the
correct use and maintenance of your car over time as
well as safe driving tips. Particular attention should
be paid to information marked with the following
symbols:"(personal safety) #(environmental
protection) â(car integrity).
If the multifunction display shows a message reading “See
handbook”, you should refer to the section “Warning lights
and messages” in this handbook.
READ THIS CAREFULLY!
K



001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 2

GETTING TO KNOW YOUR CAR5
1
Instrument panel........................................ 6
Dashboard and on-board instruments.......... 7
Display ....................................................... 20
Menu Items ................................................. 24
Trip computer ............................................ 34
Symbols..................................................... 36
Lancia code system..................................... 37
Keys............................................................ 38
Alarm........................................................ 41
Ignition device............................................ 44
Seats .......................................................... 45
Head restraints ............................................ 48
Steering wheel............................................ 49
Rearview mirrors ........................................ 49
Climatic comfort ......................................... 51
Manual climate control system .................... 52
Two-zone automatic climate control system 54
External lights............................................ 60
Window washing ........................................ 63
Cruise Control ............................................. 66
Courtesy lights............................................ 68
Controls...................................................... 70Fuel cut-off system...................................... 73
Interior fittings........................................... 74
Sunroof....................................................... 79
Doors......................................................... 82
Electric windows........................................ 85
Luggage compartment................................. 89
Engine bonnet ............................................ 97
Roof rack/ski rack...................................... 99
Headlights................................................... 100
DST system ................................................ 102
SPORT function ......................................... 102
Reactive Suspension System ........................ 104
Driving Advisor........................................... 106
Advanced ESP system................................. 110
EOBD system ............................................. 115
“Dualdrive” electric power steering system . 115
T.P.M.S. system........................................... 117
Parking sensors........................................... 120
Magic Parking............................................. 123
Accessories purchased by the owner............. 137
Refuelling.................................................... 138
Protecting the environment ......................... 141
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 5

GETTING TO KNOW YOUR CAR17
1
Glow plug preheating
This warning light comes on when the key is
turned to MAR. It will go out as soon as the glow
plugs have reached a predetermined temperature.
Start the engine as soon as the warning light goes out.
IMPORTANT At high outdoor temperatures the warning
light stays on for an extremely short time.
Glow plug heating failure
The warning light will blink in the event of a failure in the
glow plug preheating system. Go to a Lancia Dealership
as soon as possible.
The display will show a dedicated message.
m
Water in diesel fuel filter (Multijet
versions) (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after
a few seconds. The warning light turns on when there is
water in the diesel fuel filter. The display will show a ded-
icated message.
c
The presence of water in the fuel system circuit
may cause severe damage to the injection sys-
tem and irregular engine operation. If the
c
warning light comes on (together with a message on the
display on some versions), go to a Lancia Dealership
as soon as possible to have the system bled. Water may
have been introduced in the tank if this appears im-
mediately after refuelling: in this case, stop the engine
immediately and contact a Lancia Dealership.
ABS system failure (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a
few seconds. The warning light lights up when the
system is either not working or not available. Under these cir-
cumstances the braking system will work as normal with-
out the extra performance offered by the ABS system.
Drive carefully to the nearest Lancia Dealership to have the
system checked.
The display will show a dedicated message.
>
Lancia Code system failure (amber)
This warning light (or symbol on the display),
when on constantly with the ignition key turned
to MAR, indicates a possible failure (see “Lancia
Code system” in chapter 1).
Y
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 17

GETTING TO KNOW YOUR CAR139
1
DIESEL ENGINES
Operation at low temperatures
If the outside temperature is very low, the diesel thickens
due to the formation of paraffin clots with consequent de-
fective operation of the fuel supply system.
In order to avoid these problems, different types of diesel
are distributed according to the season: summer type, win-
ter type and arctic type (cold/ mountain areas). If refu-
elling with diesel fuel whose features are not suitable for
the temperature of use, it is advisable to mix TUTELA
DIESEL ART additive with the fuel in the proportions
shown on the container. Pour the additive into the tank
before the fuel.
When using or parking the vehicle for a long time in the
mountains or cold areas, it is advisable to refuel using lo-
cally available fuel.
In this case, it is also advisable to keep the tank over 50%
full.REFUELLING CAPACITY
To fill the tank completely, top-up twice after the pump
switches off. Further top-ups could cause faults in the
fuel feeding system.For diesel engines, use diesel fuel for motor
vehicles compliant with EN590 European
specifications only. The use of other products
or mixtures may damage the engine beyond repair
and consequently invalidate the warranty. If you
accidentally introduce other types of fuel into the
tank, do not start the engine. Empty the tank. If the
engine has run, even for a very short time, you will
need to have the entire fuel system emptied in ad-
dition to the tank.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 139

140GETTING TO KNOW YOUR CAR

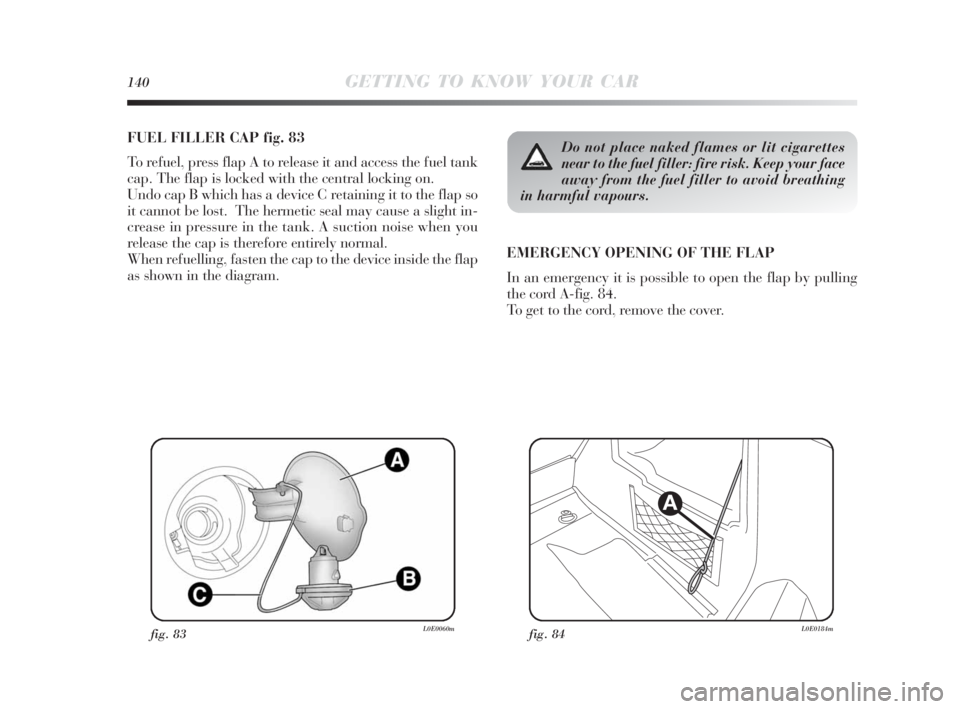

FUEL FILLER CAP fig. 83

To refuel, press flap A to release it and access the fuel tank
cap. The flap is locked with the central locking on.
Undo cap B which has a device C retaining it to the flap so
it cannot be lost. The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction noise when you
release the cap is therefore entirely normal.
When refuelling, fasten the cap to the device inside the flap
as shown in the diagram.
fig. 83L0E0060m
Do not place naked flames or lit cigarettes
near to the fuel filler: fire risk. Keep your face
away from the fuel filler to avoid breathing
in harmful vapours.
EMERGENCY OPENING OF THE FLAP
In an emergency it is possible to open the flap by pulling
the cord A-fig. 84.
To get to the cord, remove the cover.
fig. 84L0E0184m
A
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 140

230CARE AND MAINTENANCE
AIR FILTER/ POLLEN FILTER
Have the air filter or pollen filter replaced by a Lancia
Dealership.
DIESEL FUEL FILTER
DRAINING CONDENSED WATER
(Multijet versions) E-fig. 2-3
The presence of water in the feeding circuit
may cause severe damage to the injection sys-
tem and irregular engine operation. If the
warning light
cgoes on, contact a Lancia Dealer-
ship as soon as possible to have the system bled.
Water may have been introduced in the tank if this
appears immediately after refuelling: in this case,
stop the engine immediately and contact a Lancia
Dealership.
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 230
