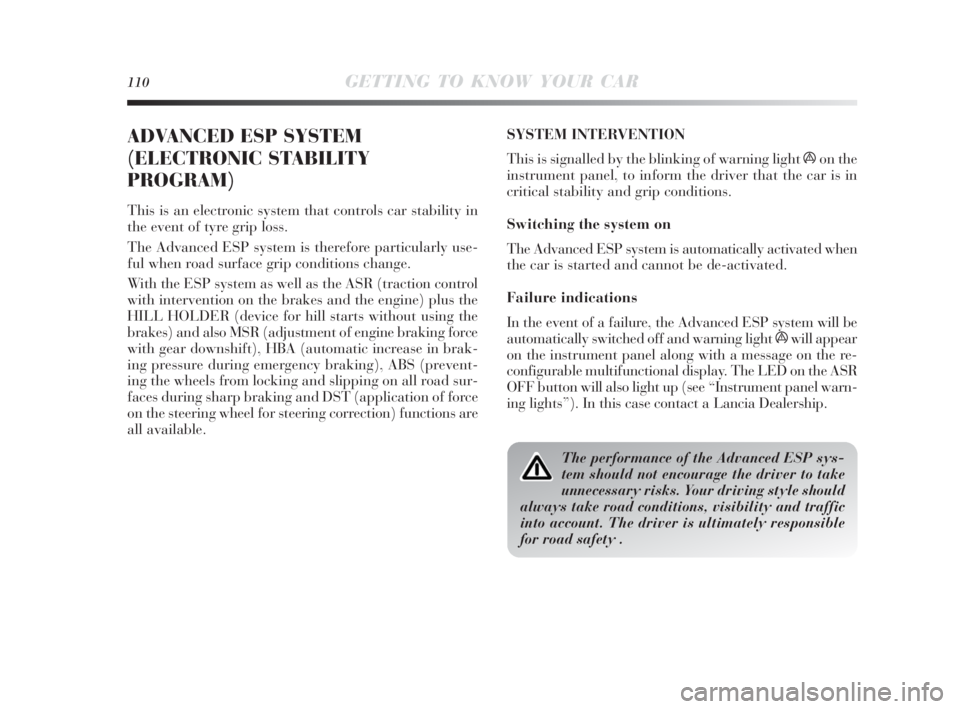

110GETTING TO KNOW YOUR CAR
ADVANCED ESP SYSTEM
(ELECTRONIC STABILITY
PROGRAM)
This is an electronic system that controls car stability in
the event of tyre grip loss.
The Advanced ESP system is therefore particularly use-
ful when road surface grip conditions change.
With the ESP system as well as the ASR (traction control
with intervention on the brakes and the engine) plus the
HILL HOLDER (device for hill starts without using the
brakes) and also MSR (adjustment of engine braking force
with gear downshift), HBA (automatic increase in brak-
ing pressure during emergency braking), ABS (prevent-
ing the wheels from locking and slipping on all road sur-
faces during sharp braking and DST (application of force
on the steering wheel for steering correction) functions are
all available.SYSTEM INTERVENTION
This is signalled by the blinking of warning light áon the
instrument panel, to inform the driver that the car is in
critical stability and grip conditions.
Switching the system on
The Advanced ESP system is automatically activated when
the car is started and cannot be de-activated.
Failure indications
In the event of a failure, the Advanced ESP system will be
automatically switched off and warning light áwill appear
on the instrument panel along with a message on the re-
configurable multifunctional display. The LED on the ASR
OFF button will also light up (see “Instrument panel warn-
ing lights”). In this case contact a Lancia Dealership.
The performance of the Advanced ESP sys-
tem should not encourage the driver to take
unnecessary risks. Your driving style should
always take road conditions, visibility and traffic
into account. The driver is ultimately responsible
for road safety .
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 110

GETTING TO KNOW YOUR CAR113
1
System activation is signalled by a message on the recon-
figurable multifunctional display.
When the system is deactivated, the LED on the ASR OFF
button turns on and a message appears on the reconfig-
urable multifunctional display. If the ASR system is de-
activated when travelling, it is automatically turned on by
the system the next time the vehicle is started.
It may be useful to switch off the ASR system when dri-
ving on snow-covered roads with snow chains fitted: in
these conditions, slipping of the drive wheels during take-
off provides better traction.
TTC system
(Electronic self-locking differential)
THIS system is an integral part of the ASR system, which
cuts in when cornering to provide torque to the outside
wheel and braking action to the inside wheel.
In this way the effect of a self-locking differential is sim-
ulated, increasing the sportiness of the car and improv-
ing cornering.ABS SYSTEM
This is an integral part of the braking system, which pre-
vents the wheels from locking or slipping regardless of road
surface conditions and braking intensity, giving the best
control during emergency braking.
The system is completed by EBD (Electronic Braking
Force Distribution), which distributes the braking action
between front and rear wheels.
IMPORTANT To achieve maximum efficiency of the brak-
ing system, a settlement period of about 500 km is re-
quired: during this time, avoid sudden, repeated and pro-
longed braking.
